Understanding Pareto Charts and Histograms: A Comparative Analysis for Data Visualization

While sharing a surface similarity due to their use of vertical bars, the Pareto chart and the histogram are two fundamentally distinct tools in the realm of statistical process control and exploratory data analysis. Both visualization methods are designed to display the relative frequency of observations, yet their underlying construction rules, the types of data they are designed to handle, and the strategic insights they ultimately provide are profoundly different. Understanding these differences is crucial for any analyst seeking to accurately interpret data and drive informed decision-making, as using the wrong chart can lead to serious misinterpretations of underlying data patterns or problem prioritization.

The selection between these two powerful visual aids hinges entirely upon the analytical objective. If the goal is rooted in quality improvement—specifically, identifying and prioritizing the “vital few” causes that contribute disproportionately to a large number of effects, the Pareto chart is the indispensable choice. Conversely, if the objective is purely descriptive statistics—focused on understanding the shape, spread, and central tendency of a continuous variable’s distribution—the histogram is the required tool. This foundational distinction dictates how data must be prepared, displayed, and ultimately interpreted to extract meaningful information.

A Pareto chart is meticulously engineered to visually rank categories based on their measured occurrence or impact, serving as a powerful organizational instrument that highlights which factors demand immediate attention, often demonstrating the famous 80/20 rule in action. This chart deals primarily with categorical or discrete data that can be counted and ordered. In sharp contrast, a histogram is employed exclusively for summarizing and visualizing continuous quantitative data, such as time, weight, or temperature measurements. Its purpose is not to rank causes but to allow analysts to examine the inherent variability, skewness, and overall shape of a population’s distribution, making it essential for process capability studies and assessing statistical assumptions.

The Anatomy of a Pareto Chart: Prioritization and the 80/20 Rule

A Pareto chart is far more than a simple bar graph; it is a highly specialized visualization framework that incorporates the famous 80/20 principle, also known as the Pareto Principle. This principle posits that for many outcomes, roughly 80% of consequences stem from 20% of causes. The primary goal of the chart, therefore, is to leverage this principle to prioritize issues or categories by clearly showing which factors contribute most significantly to an overall measured outcome, making it an absolutely indispensable tool in process improvement methodologies like Six Sigma and general quality control initiatives where resources must be allocated efficiently to maximum effect.

Unlike standard bar charts, which may order categories arbitrarily or alphabetically, the Pareto chart strictly adheres to a rule of descending magnitude: the bars must be ordered from the highest frequency (or cost, or volume) on the far left to the lowest frequency on the far right. This mandatory arrangement immediately provides visual clarity, drawing the viewer’s immediate attention to the issues, defects, or categories that are having the largest impact and thus demand the most urgent and substantial corrective action. This systematic ranking structure is the core mechanism by which the chart achieves its primary purpose of prioritization.

Crucially, the Pareto chart distinguishes itself through the inclusion of a secondary element: a line graph that is overlaid on the primary bars, usually plotted against a secondary Y-axis on the right side of the chart. This line represents the cumulative percentage of the total count or magnitude. By tracking this cumulative line against the categories displayed on the X-axis, an analyst can rapidly determine the precise point where 80% of the total result (e.g., defects, costs, or sales) is accounted for by a combination of the first few items. This feature offers immediate, data-driven guidance for resource allocation, ensuring that improvement efforts are concentrated on the few categories that will yield the greatest overall return on investment.

The Structure and Purpose of a Histogram: Unveiling Distribution

A histogram serves a fundamentally different purpose in data analysis: it is a graphical representation designed to visualize the distribution of numerical data. Its chief function is to show how often different values or specific ranges of values occur within a given dataset, effectively mapping the probability density function of the observed variable. This visualization is essential for determining if a process output or dataset follows a recognized statistical pattern, such as a normal distribution, or if it exhibits problematic characteristics like heavy skewness, multimodality, or unexpected outliers.

The effective construction of a histogram mandates that the continuous data be systematically partitioned into a series of equal-width intervals, commonly referred to as “bins” or “classes.” The definition of the bin width is a critical step, as it significantly affects the shape and appearance of the resulting distribution; too few bins can obscure important detail, while too many can introduce unnecessary noise. Once the bins are established, the height of each vertical bar corresponds precisely to the frequency or count of observations that fall within that specific numerical range. A key structural requirement for histograms is that, because the underlying data is continuous (meaning there are no gaps between possible values), the bars must be drawn touching one another, symbolizing the seamless, continuous nature of the measurements being analyzed.

Histograms are inherently limited in their application compared to Pareto charts because they cannot utilize qualitative data, such as product types, defect descriptions, or geographical regions. They are strictly reserved for summarizing numerical, quantitative data—measurements that can be logically grouped into sequential, ordered ranges. The output provides a clear, visual snapshot of the data’s central location, its spread (variability), and its symmetry, enabling analysts to assess assumptions about population parameters and process stability before proceeding with inferential statistical tests.

Example 1: Prioritizing Efforts Using a Pareto Chart

Imagine a comprehensive business scenario where a manufacturing company needs to rigorously analyze its product sales performance over the past quarter to pinpoint which items are the most substantial revenue generators, thereby informing inventory and marketing decisions. The initial raw dataset consists of total sales figures, categorized by product:

To effectively apply the Pareto principle to this sales data, the information must first be sorted by sales volume in strict descending order. When this reorganized data is visualized as a Pareto chart, the arrangement immediately and unequivocally highlights the relative contribution of each product category to the overall revenue stream, making prioritization a purely objective, data-driven exercise:

Observing this visualization, the necessary prioritization of managerial resources becomes immediately apparent. Product B is the clear leader, generating the highest total sales, followed by Product A, and then Product F. The steep descent in the bar heights across the horizontal axis clearly demonstrates the relative importance and impact of each product category. The core interpretation, however, is driven by the overlaid line graph, which tracks the cumulative percentage of sales shown on the right-hand axis. This cumulative line enables critical strategic conclusions regarding efficiency and focus:

• Product B alone accounts for approximately 25% of the total recorded sales revenue, establishing it as the single most critical item.
• Products B and A combined already account for roughly 50% of the total sales, demonstrating the concentration of revenue generation.
• The top three products (B, A, and F) collectively contribute approximately 65% of the entire revenue base, illustrating the “vital few” principle at work.

This deep analytical insight guides management to focus substantial efforts—whether in marketing campaigns, optimizing inventory levels, or enhancing quality control—on these few, high-impact products that consistently yield the greatest financial return, thereby illustrating the powerful practical application of the Pareto Principle in business operations.

Example 2: Analyzing Performance Distribution with a Histogram

In marked contrast to the prioritization and categorization focus of the Pareto chart, the histogram is the superior tool when the objective is analyzing continuous, numerical outcomes and understanding their natural variability. Consider a detailed scenario where a sports analyst has recorded the total number of points scored by a large population of professional basketball players over the course of a rigorous season. The raw data provides a list of individual scores:

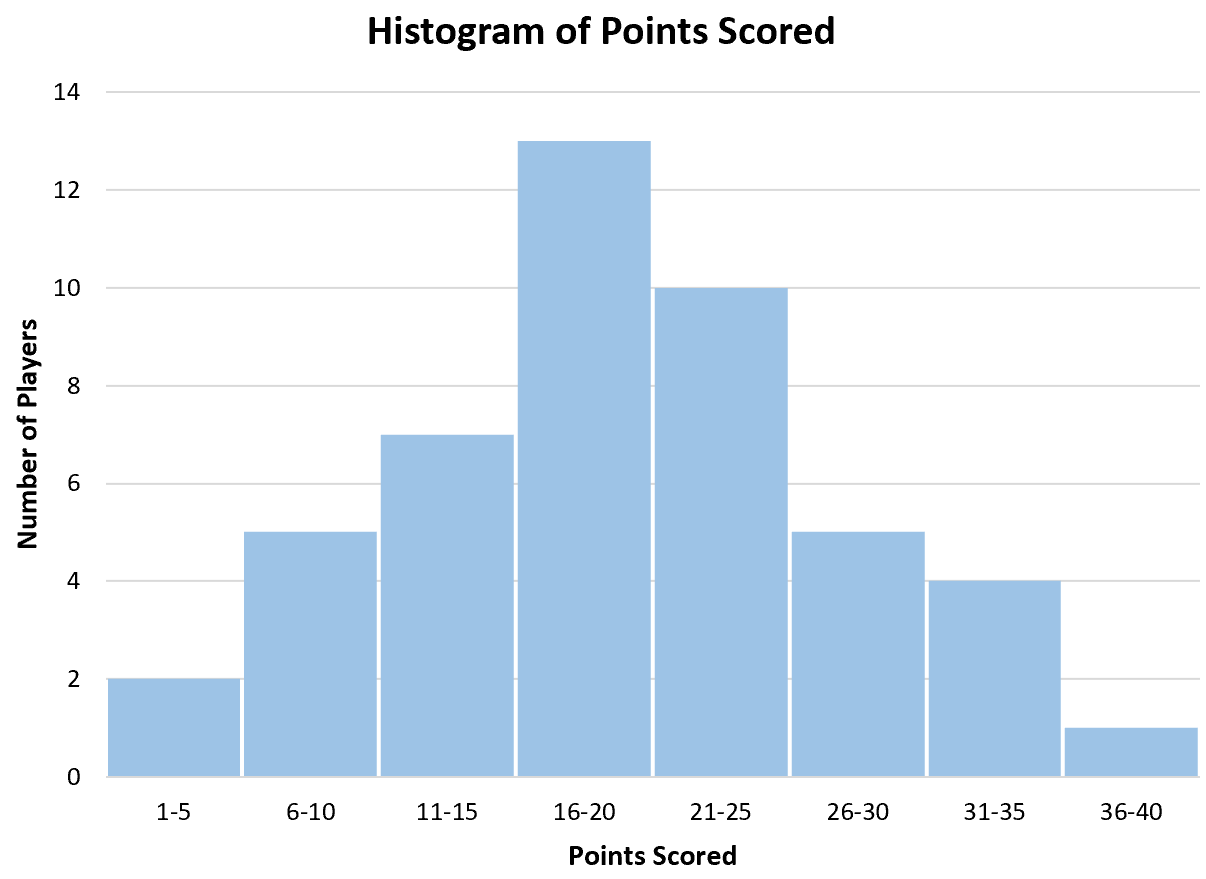

Since this performance data is continuous quantitative data, it is inappropriate for a Pareto chart. Instead, we must group the scores into precisely defined, equal-width numerical ranges (bins) to generate a meaningful distribution visualization. The resulting histogram effectively maps the concentration and spread of player performance across the league:

The histogram provides an immediate and comprehensive understanding of the distribution of points scored, allowing for rapid assessment of the central tendency and the overall variability within the group of players. For instance, the tallest bars clearly indicate that the vast majority of players fall within the middle performance range, scoring between 16 and 25 points. This range represents the statistical center of performance, defining the typical player.

Furthermore, examining the overall shape of the histogram reveals key statistical insights essential for advanced analysis. We can visually confirm that very few players score extremely low (e.g., less than 5 points) or exhibit elite, extremely high performance (36 or more points), suggesting these are statistical outliers or exceptional cases. Crucially, the overall shape of this distribution appears highly symmetrical and roughly “bell shaped,” a strong visual suggestion that the points scored by this player population likely adhere to a normal distribution. This insight is critical because it validates the use of many parametric statistical tests. Therefore, a histogram is the ideal tool for visualizing how a continuous variable is distributed, enabling analysts to check foundational statistical assumptions, rigorously identify anomalies, and accurately assess the overall capability and consistency of a process or population.

Summary of Key Distinctions in Data Visualization

Even though both charts rely on vertical bars to represent some form of frequency or count, the practical and theoretical differences between Pareto charts and histograms are profound. These distinctions are not merely academic; they fundamentally dictate the appropriate use case in statistical analysis, quality management, and business intelligence.

Difference #1: Data Type and Scale on the X-Axis

The Pareto chart is highly versatile, capable of displaying either quantitative data (like costs or counts) or qualitative data (like defect categories or product names) on its horizontal axis. These categories are discrete and distinct. Conversely, the histogram is strictly reserved for summarizing and visualizing continuous quantitative data, which must be systematically grouped into ordered, sequential numerical ranges or bins. This difference in data type is the most fundamental distinction.

Difference #2: Mandatory Ordering of Bars

The bars in a Pareto chart must be non-negotiably ordered from the highest frequency (or magnitude) on the left to the lowest frequency on the right. This descending ranking is not optional; it is the core mechanism that facilitates prioritization and the application of the 80/20 rule. In stark contrast, a histogram orders its bars sequentially based exclusively on the numerical value of the bins on the X-axis, maintaining the natural, ascending progression of the continuous data scale regardless of the height of the bars.

Difference #3: Inclusion of the Cumulative Line

A definitive structural characteristic of the Pareto chart is the inclusion of an overlaid line graph that meticulously tracks the cumulative percentage of the categories being measured. This line is absolutely essential for identifying the “vital few” contributors and applying the 80/20 rule in a practical setting. A histogram, whose function is limited solely to representing the shape and spread of a single variable’s distribution, does not include or require any such cumulative line.
