A Comprehensive Guide to Correlation Analysis with SPSS

The Foundation of Bivariate Analysis: The Pearson Correlation Coefficient

In quantitative research and the broader field of statistics, a primary goal is to understand how variables interact and co-move. To quantify the strength and direction of the linear relationship between two continuous variables, we rely fundamentally on the Pearson correlation coefficient, often symbolized by the letter r. This metric is the cornerstone of bivariate analysis, offering a standardized measure that ranges strictly from -1.0 to +1.0.

The interpretation of the coefficient is straightforward: a value near zero suggests a weak or nonexistent linear association, meaning the variables move independently. Conversely, values approaching +1.0 signify a strong positive correlation (as one variable increases, the other increases), while values approaching -1.0 denote a strong negative correlation (as one variable increases, the other decreases). Understanding this standardized scale is essential for accurately interpreting the subsequent statistical test results.

However, simply calculating r is not sufficient for drawing robust conclusions about the population. The observed correlation in a sample might be merely a chance occurrence, not reflective of a genuine association in the larger population from which the sample was drawn. Therefore, before we can confidently assert that a meaningful relationship exists, we must perform a rigorous statistical procedure: the formal correlation test. This test verifies whether the calculated sample correlation is statistically strong enough to infer a non-zero correlation in the underlying population.

The Role of Hypothesis Testing in Determining Significance

To move beyond simple descriptive statistics and determine if an observed correlation coefficient (r) is statistically significant—meaning it is highly unlikely to be the result of random sampling error—we must execute a formal statistical hypothesis test. This procedure involves calculating a test statistic (often a t-score) derived from the sample correlation and the sample size (N). The resulting test statistic is then used to determine the corresponding p-value.

The p-value is perhaps the most critical component of the output; it represents the probability of obtaining a correlation as extreme as (or more extreme than) the one calculated in our sample, assuming that the null hypothesis is true. A correlation test fundamentally compares two competing, mutually exclusive statements about the population correlation coefficient, which is denoted by the Greek letter $rho$ (rho):

• Null Hypothesis ($text{H}_0$): The population correlation ($rho$) is equal to zero. This asserts that no statistically significant linear relationship exists in the population.
• Alternative Hypothesis ($text{H}_{text{A}}$): The population correlation ($rho$) is not equal to zero. This asserts that a statistically significant linear relationship exists (typically tested using a two-tailed approach).

The decision rule hinges on comparing the calculated p-value against a pre-established significance level, known as $alpha$ (alpha). For most social science and clinical research, $alpha$ is conventionally set at .05. If the p-value is less than $alpha$ (e.g., p < .05), we possess sufficient evidence to reject the null hypothesis. Rejecting $text{H}_0$ allows us to conclude with confidence that the relationship observed in the sample is indeed statistically significant and reflects a true association in the broader population. If the p-value is greater than $alpha$, we fail to reject $text{H}_0$, meaning the observed correlation is likely due to chance.

Automating Correlation Analysis with SPSS

While the manual calculation of the correlation coefficient, the test statistic, and the associated p-value involves complex steps, including determining the degrees of freedom and consulting statistical tables, modern software packages streamline this process entirely. The Statistical Package for the Social Sciences (SPSS) is widely used for its robust capabilities in automating correlation tests, providing all necessary output metrics in a single, coherent table. The standard menu path for initiating this test is Analyze > Correlate > Bivariate.

To illustrate the practical steps, let us consider a dataset containing paired observations for two continuous variables: X (e.g., hours spent studying) and Y (e.g., subsequent test scores). Our objective is to determine the correlation between study effort and performance and test its statistical significance. The data must first be correctly entered and loaded into the SPSS Data View window, ensuring both variables are designated as appropriate scale types.

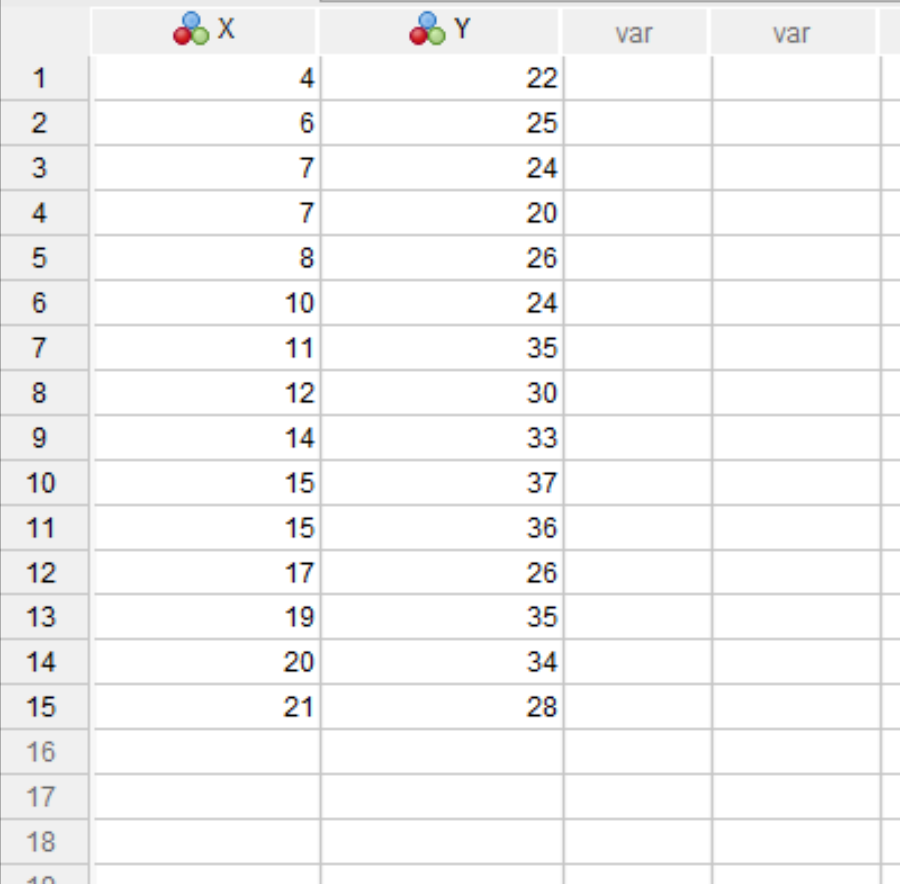

The image below depicts the sample data loaded into the SPSS Data View, ready for analysis. This simple dataset forms the basis for demonstrating the procedure of running a bivariate correlation test, which will quantify the linear relationship between these specific paired observations.

Executing the Bivariate Correlation Procedure in SPSS

The initial phase of the analysis involves navigating the SPSS menu structure. Begin by clicking the Analyze tab located on the top menu bar. This reveals a comprehensive set of statistical procedures. Hover the cursor over the Correlate option, and then specifically select Bivariate. This dedicated sequence is designed specifically for calculating the linear association between pairs of variables, which aligns perfectly with the requirements of the Pearson correlation coefficient.

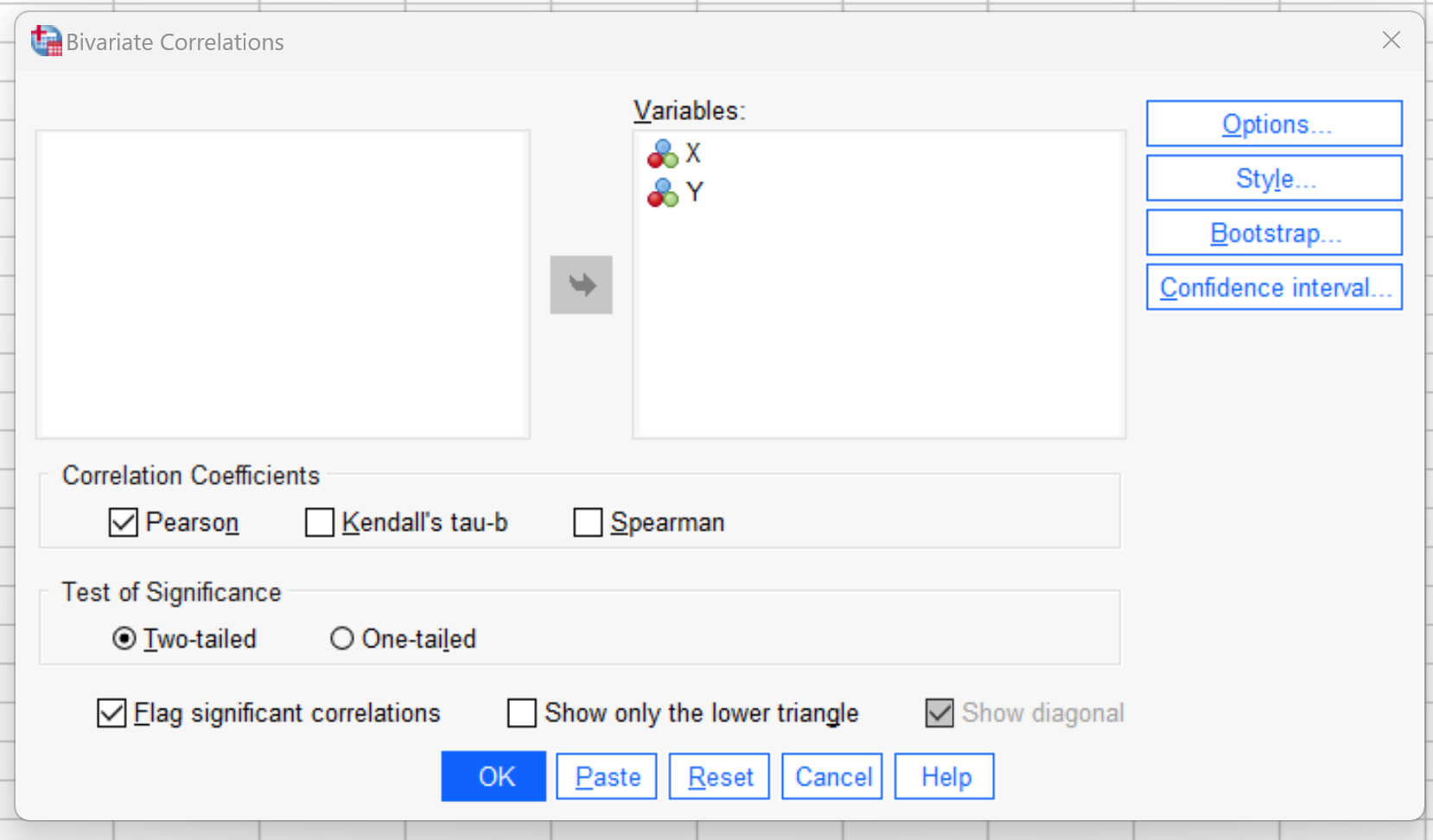

Once the “Bivariate Correlations” dialog box opens, the next task is to identify and transfer the variables of interest. Select both the X and Y variables from the source list on the left and move them into the Variables panel on the right. This is usually accomplished by dragging or using the central arrow button to transfer the variables into the analysis queue.

It is imperative to confirm the analysis specifications before proceeding. Under the Correlation Coefficients section, ensure that the Pearson box remains checked, as this is the standard test for linear relationships between interval or ratio data. We typically retain the default setting for the “Test of Significance,” which is Two-tailed, corresponding to the standard non-directional null and alternative hypotheses. After confirming these settings, click the OK button to prompt SPSS to generate the results in the Viewer window.

Decoding the Correlation Matrix Output

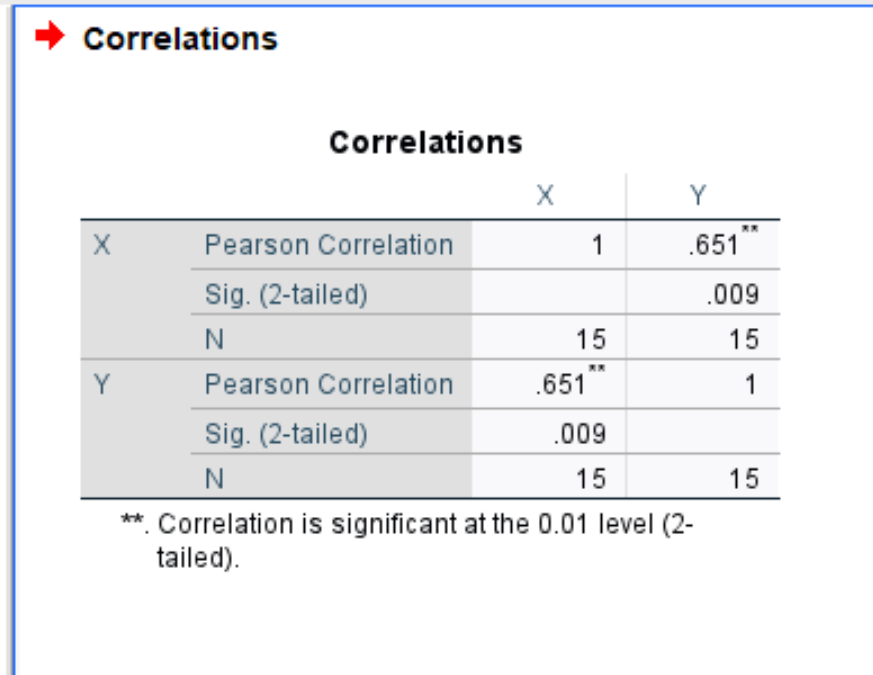

Upon execution, SPSS produces a detailed output table known as the Correlation Matrix. This matrix efficiently presents three essential pieces of information for every possible pairing of variables included in the analysis: the correlation coefficient, the significance level, and the sample size (N).

Focusing on the intersection of Variable X and Variable Y (or Y and X, as the matrix is symmetrical), we extract the core statistical findings. The output is structured clearly, providing three lines of critical information for interpretation:

• Pearson Correlation: This is the calculated value of r, the Pearson correlation coefficient.
• Sig. (2-tailed): This is the statistical significance, or the p-value associated with the test statistic.
• N: This indicates the exact number of data pairs (sample size) used in this specific computation.

From the visual output above, we derive the following specific results for the relationship between X and Y. The calculated Pearson correlation coefficient is .651. This positive value suggests a moderately strong, positive linear relationship, confirming that higher scores on X are generally associated with higher scores on Y. Simultaneously, the significance level (p-value) is reported as .009.

Drawing Formal Conclusions and Adhering to Reporting Standards

The final and most crucial step in the correlation test procedure is the application of the formal decision rule based on our initial hypothesis testing framework. We compare the obtained p-value against the predetermined significance level, typically $alpha = .05$. We recall that if the p-value is less than $alpha$, we reject the null hypothesis.

In this specific example, the p-value derived from the SPSS output is .009. Since 0.009 is definitively less than the standard significance threshold of 0.05 (p < $alpha$), we have met the condition necessary to confidently reject the null hypothesis ($text{H}_0$). This rejection allows us to conclude that the observed relationship between Variable X and Variable Y is highly unlikely to be attributable to mere random sampling fluctuation.

Therefore, we conclude that the correlation is statistically significant. Given the positive sign of the Pearson coefficient (r = .651), we confirm that there is a significant positive linear correlation between the two variables. When disseminating these results in academic papers or professional reports, standard practice requires the inclusion of the coefficient (r), the degrees of freedom, and the p-value.

A standardized and precise way to report this specific finding is: “A statistically significant positive correlation was found between X and Y ($r = .651, p = .009$).” This format concisely communicates both the strength/direction of the relationship and the result of the statistical test, providing complete transparency to the reader.

Important Caveats: Correlation Versus Causation and Linearity

While mastering the correlation test offers a powerful tool for initial data exploration, researchers must always exercise caution in interpretation. The most critical caveat is the distinction between correlation and causation. A statistically significant correlation merely indicates that two variables tend to change together; it does not, under any circumstances, imply that one variable directly causes the change in the other. Establishing causation requires advanced experimental designs or complex statistical modeling.

Furthermore, it is vital to remember that the Pearson correlation coefficient test is specifically designed to detect linear associations. If the true underlying relationship between X and Y is non-linear (e.g., following a curvilinear or exponential pattern), the Pearson coefficient may yield a value close to zero, misleadingly suggesting a weak relationship. Researchers should always begin with a visual inspection of the data, typically through a scatterplot, to confirm the assumption of linearity before running the test.

For those seeking to deepen their understanding of the theoretical underpinnings of bivariate analysis and related measures, the following resource provides additional information:

An Introduction to the Pearson Correlation Coefficient
