Learn How to Perform a Left Join in Excel: A Step-by-Step Guide

The Necessity of Data Joining in Excel

In the realm of modern data analysis, the ability to seamlessly integrate and reconcile information stored across multiple data sets is a fundamental requirement. The process of combining these disparate sources is most effectively achieved through a technique known as a left join. This powerful database operation is designed to merge two separate data structures, often referred to as tables, by ensuring that every record from the primary (or “left”) table is retained, regardless of whether a corresponding entry exists in the secondary (or “right”) table.

When a match is successfully identified based on a shared column, the relevant data from the right table is incorporated into the left. Crucially, this method guarantees that the integrity and completeness of your primary data set are always preserved. If no match is found, the primary record remains intact, and the fields designated for the secondary data are simply marked as empty or an error value, preventing any accidental loss of crucial information.

While structured query language (SQL) environments are traditionally used for executing joins, Excel provides robust, native functions that can effectively replicate this complex relational behavior. This comprehensive guide details the precise steps required to perform a true VLOOKUP-based left join in Excel, walking through a practical, sports-related example to ensure that the methodology is clear, repeatable, and easily mastered.

Conceptual Framework: How the Left Join Works

To successfully execute a left join in a spreadsheet environment, it is essential to first internalize the underlying logic. A left join is fundamentally asymmetric: it prioritizes the structure and contents of one data set (the left table) while treating the other (the right table) as a supplementary source of enrichment. Imagine you are managing two separate lists: one detailing all product inventory (left table) and another tracking recent sales figures (right table). You want a complete list of all inventory items, adding sales figures only where applicable.

The operation relies on a common field—often called a “key” column—that links corresponding rows between the two tables. When the values in this key column match, the data is merged. If a row in the left table’s key column does not find an exact match in the right table’s key column, the row from the left table is still maintained in the final result. However, the associated fields that were supposed to be pulled from the right table will appear blank or, in the case of Excel functions like VLOOKUP, they will display an error value.

This data preservation capability makes the left join an invaluable tool when the primary data set must remain untouched by filtering operations. It allows analysts to enrich a comprehensive list of records with supplementary details—such as adding departmental details to an employee roster, or, as in our example, supplementing player statistics with corresponding team performance metrics—without sacrificing any of the original records.

Practical Setup: Organizing Your Source Data Tables

The success of any data integration task in Excel begins with meticulous data organization. For our demonstration, we will structure two distinct data tables within a single workbook. The first table, designated as the “left” table, contains fundamental player information, including Name, Team, and Points. The second table, the “right” table, holds aggregated team statistics, specifically Assists and Rebounds.

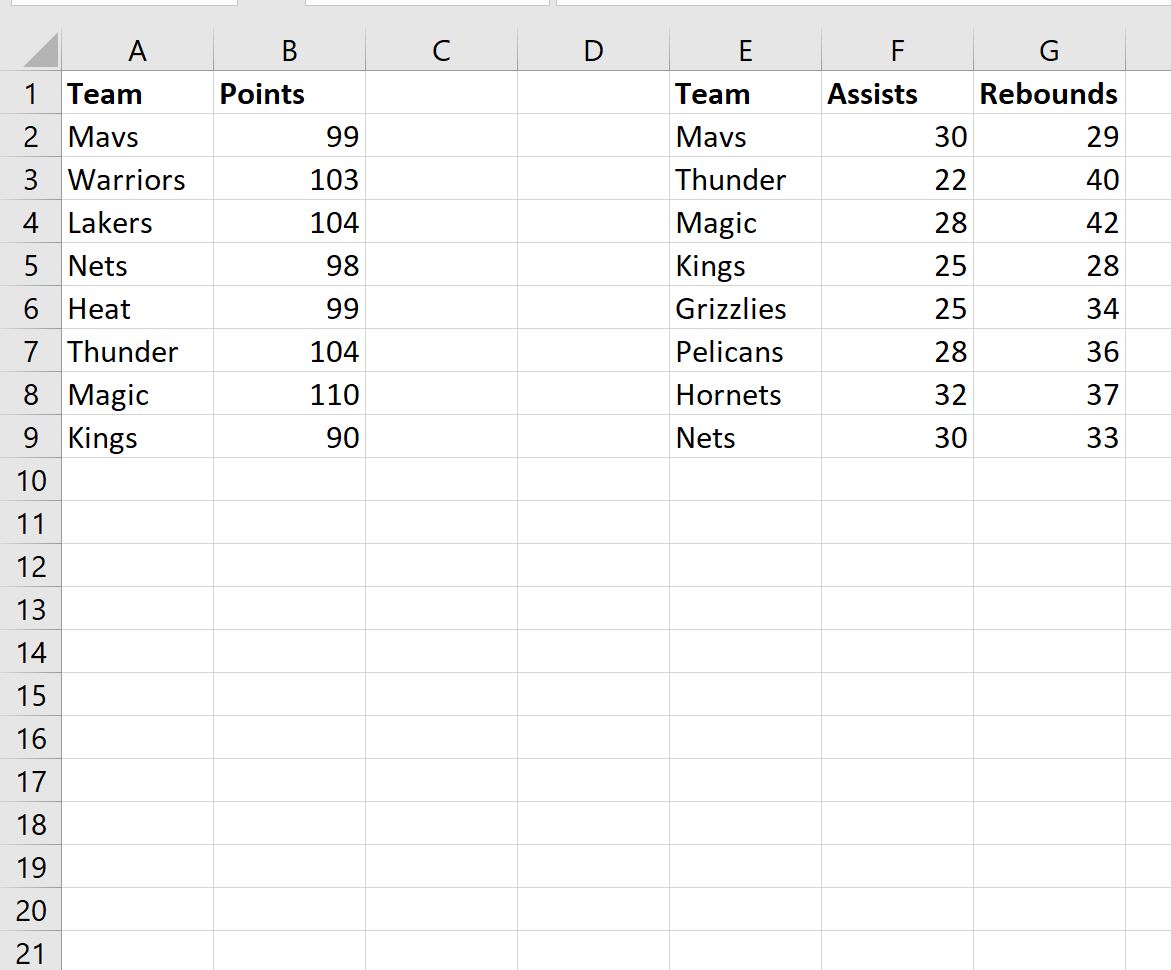

To initiate the process, populate a new Excel sheet with the following sample data. It is imperative that both tables share a common identifier column; in this scenario, the “Team” column will serve as our unique linking key.

As depicted in the image above, our primary player data resides in the range A1:C9, while the supplementary team statistics are located in E1:G9. Our goal is clear: to append the “Assists” and “Rebounds” data from the right table to every corresponding player record in the left table, maintaining all player records even if their team statistics are not available in the supplementary table.

Preparation and Output Range Definition

Before applying the integration formula, we must first establish a dedicated output area. The recommended best practice is to create a duplicate of the left table structure, which will serve as the canvas for the joined data. This preserves the original source data while providing a clean, recognizable foundation for the final merged result.

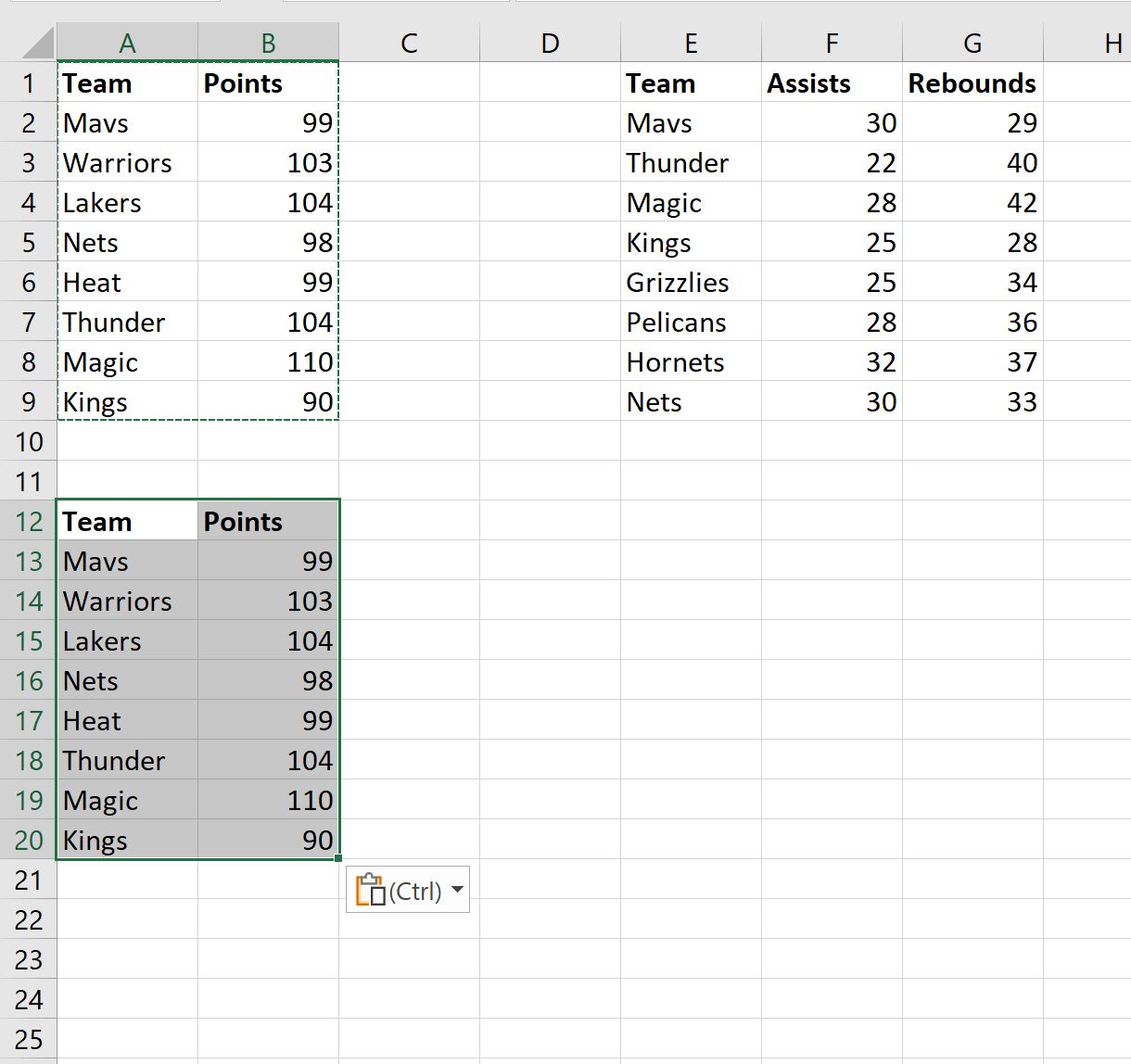

Begin by selecting the entire range of your left table (A1:C9), copying it, and then pasting the structure into an adjacent, empty location. For clarity in this tutorial, we will paste the copied structure starting at cell A12. This duplicated range is where we will apply the VLOOKUP function to fetch and integrate the supplementary columns from the right table.

This foundational step is crucial for maintaining data integrity and ensuring that the final output is clearly separated from the source materials. Once the structure is ready, we can proceed to implement the powerful VLOOKUP formula, which is the engine driving the left join simulation.

The VLOOKUP Strategy: Implementing the Left Join Formula

The core of performing a left join in Excel lies in leveraging the VLOOKUP function, combined with an array constant, to retrieve multiple results simultaneously. We will start by navigating to cell D13 in our copied output range, where the first piece of retrieved data (Assists) will be placed. Enter the following formula:

=VLOOKUP(B13, $E$2:$G$9, {2,3}, FALSE)

Understanding the components of this formula is key to mastering the left join technique:

• B13: This is the lookup_value, referencing the “Team” name in the current row. This is the common key that VLOOKUP will search for in the first column of the right table.
• $E$2:$G$9: This defines the table_array, encompassing the entire right table containing the statistics we wish to retrieve. The crucial use of absolute references ($) ensures that this range remains fixed when the formula is copied down to other rows.
• {2,3}: This is the col_index_num, expressed as an array constant. Instead of returning just one column value, this instruction tells VLOOKUP to return values from both the second (“Assists”) and third (“Rebounds”) columns within the defined table_array.
• FALSE: This range_lookup argument forces VLOOKUP to search only for an exact match, which is necessary for accurate data joining based on unique keys.

After entering the formula in cell D13, press Enter, and then utilize the fill handle to drag the formula down the range D14:D20. Excel will automatically apply the formula to all records, dynamically adjusting the row reference for the lookup value (e.g., B14, B15) while maintaining the integrity of the fixed table array reference. The result is the successful integration of statistics from the right table into your primary data set.

To finalize the structure, add appropriate headers like “Assists” and “Rebounds” above the newly populated columns (D12 and E12) to ensure the joined table is instantly readable and interpretable.

Analyzing Results: Handling Matches and #N/A Values

The final step involves correctly interpreting the output generated by the VLOOKUP function, particularly how it handles both successful matches and non-matches—the defining characteristic of a left join.

For records where a team name from the left table successfully found a corresponding entry in the right table (such as “Mavs”), the associated “Assists” and “Rebounds” values are seamlessly retrieved and displayed. This represents a successful data enrichment process. The data is now combined, providing a comprehensive view that links individual player points with overall team statistics.

Conversely, if a team present in your primary (left) table, like “Warriors,” does not have a matching entry in the supplementary (right) table, the VLOOKUP function returns the specific error value: #N/A. This error, signifying “No Value Available,” is not indicative of a formula mistake but rather a meaningful and expected result in the context of a left join. It confirms that the original player record was preserved, yet the required matching data from the right table was absent.

Conclusion: Mastering Data Integration in Excel

Executing a left join in Excel via the sophisticated application of VLOOKUP and the array constant is a highly valuable skill for any data professional. This technique allows for the efficient integration of information from multiple data tables while rigorously upholding the integrity of the primary data source.

A deep understanding of how to retrieve multiple columns simultaneously, coupled with the correct interpretation of the #N/A error as a signal of non-matched data, is fundamental to effective data management and analysis within the spreadsheet environment. Mastering this method provides the ability to create enriched, consolidated data views quickly and accurately.
