A Comprehensive Guide to the Mann-Kendall Trend Test in R for Time Series Data Analysis

Fundamentals of the Mann-Kendall Trend Test

The Mann-Kendall Trend Test (MK test) stands as a widely respected and powerful statistical procedure specifically engineered to determine the existence of a monotonic trend within time series data. This test is indispensable across disciplines like hydrology, environmental engineering, and meteorology, where practitioners must rigorously assess whether long-term parameters—such as stream flow rates, ambient temperature averages, or precipitation levels—have consistently increased or decreased over a defined historical interval. Unlike highly restrictive parametric methodologies, such as linear regression, which mandate a strictly linear relationship, the Mann-Kendall approach concentrates exclusively on the consistency and direction of the trend, establishing it as an exceptionally robust and adaptable instrument for analyzing complex, long-duration environmental datasets. Its application yields an objective, quantitative measure of whether observed changes are statistically meaningful deviations from random noise.

A primary methodological strength of the Mann-Kendall test is its classification as a non-parametric test. This crucial characteristic implies that the test imposes no prerequisite constraints regarding the underlying distribution of the data. Specifically, it does not require the analyzed data to conform to a theoretical distribution, such as the normal distribution. This is a significant advantage, as many naturally derived or environmental datasets frequently fail to meet the stringent distributional assumptions required by parametric counterparts. By bypassing requirements related to data normality or homogeneity of variance, the Mann-Kendall test delivers reliable conclusions even when analyzing datasets that are heavily skewed, censored, or irregularly distributed. The test’s effectiveness is rooted in its assessment of the relative rank of data points over time, rather than relying on the measured magnitude of those values, thereby maximizing its flexibility and applicability across diverse scientific and observational domains.

To properly structure and interpret the test, one must first clearly delineate the competing hypotheses that frame the statistical investigation. All forms of statistical trend analysis commence by establishing the potential outcomes concerning the underlying data structure. If the evidence leads us to retain the primary assumption of no change, the conclusion is that the data is statistically stationary or exhibits fluctuations that are purely random without any persistent, directional movement. Conversely, if the collected evidence strongly suggests a systematic directional change, we are compelled to accept the alternative claim. This formal, binary framework rigorously guides the interpretation of the resulting test statistic, known as Kendall’s Tau ($tau$), and the associated p-value, providing a clear and objective pathway to confirming whether a genuine monotonic trend is present.

Formulating Hypotheses and Determining Statistical Significance

The operational framework of the Mann-Kendall Trend Test is built upon a precise, dualistic set of hypotheses that formally structure the statistical inquiry into the temporal behavior of the data. These defined statements form the essential foundation for determining whether any observed alteration within the time series is statistically compelling or simply attributable to inherent random variation. A thorough understanding of these precise definitions is a mandatory prerequisite for undertaking the statistical analysis, whether performed in R or any other professional statistical software environment.

The core hypotheses are structured to test the fundamental question of trend presence versus trend absence:

• H₀ (Null Hypothesis): There is no statistically significant monotonic trend present in the time series data. This implies that the data points are considered independent and identically distributed, meaning any visible fluctuations are merely the result of random chance.
• H_A (Alternative Hypothesis): A statistically significant monotonic trend is present in the data. This trend can be either positive, indicating a consistent increase over time, or negative, suggesting a consistent decrease.

The definitive decision regarding whether to accept or reject the null hypothesis (H₀) is governed by a comparison between the calculated p-value and a predefined significance level, conventionally denoted by the Greek letter $alpha$ (alpha). Standard and accepted thresholds for $alpha$ in scientific reporting commonly include 0.10, 0.05, and 0.01. The choice of $alpha$ represents the maximum risk we are willing to tolerate of incorrectly rejecting H₀ when it is actually true (a Type I error). If the computed p-value resulting from the test is smaller than the chosen significance level ($text{p-value} < alpha$), we conclude that there is sufficient statistical evidence to confidently reject H₀. Rejecting the null hypothesis affirms that a statistically significant monotonic trend exists within the observed time series. Conversely, if the p-value is greater than $alpha$, we must fail to reject H₀, signifying that we lack the necessary statistical proof to confirm the presence of a systematic trend.

Establishing the R Environment for Trend Analysis

To execute the Mann-Kendall Trend Test both accurately and efficiently, we must leverage the comprehensive statistical tools available within the R programming environment. The necessary functionality required for this specific non-parametric test is conveniently bundled within the widely utilized Kendall package, which specializes in providing robust methods for rank correlation and trend detection. Assuming the package has been installed, the critical first action involves loading the Kendall library into the active R session using the standard library() command. Once the library is initialized, the principal function used to conduct the analysis is MannKendall(), which is specifically designed to accept a vector or time series object containing the chronological sequence of observations as its core argument.

The fundamental functional syntax for initiating the calculation is designed for clarity and ease of use, reflecting the standard conventions of R:

MannKendall(x)

The required input argument x is formally defined as:

• x = The numerical vector or structured time series object that holds the sequential observations. It is absolutely essential that the sequence of elements within this vector precisely reflects the chronological order of the observations across time, as the structural integrity of the test depends entirely on assessing the rank order changes between these sequential time steps.

For a practical demonstration illustrating the mechanics of running the test and interpreting the ensuing output, we will utilize an accessible, pre-loaded dataset provided directly within the Kendall package: PrecipGL. This specific dataset comprises comprehensive historical data detailing the annual average precipitation levels recorded for the entire Great Lakes region, covering a substantial historical span from 1900 through 1986. Analyzing this dataset allows us to investigate whether long-term regional precipitation patterns exhibit a statistically meaningful monotonic trend over this 87-year period, serving as an excellent, real-world instance of environmental time series data analysis.

The initial practical coding steps involve loading the required statistical library into memory and accessing the data, followed by an immediate structural inspection of the dataset to confirm its format, type, and temporal range:

# Load the specialized Kendall library, which contains the test functions and the sample data.
library(Kendall)
data(PrecipGL)

# Output the dataset structure to verify its format and contents, confirming it is a time series object.
PrecipGL

Time Series:
Start = 1900
End = 1986
Frequency = 1
[1] 31.69 29.77 31.70 33.06 31.31 32.72 31.18 29.90 29.17 31.48 28.11 32.61
[13] 31.31 30.96 28.40 30.68 33.67 28.65 30.62 30.21 28.79 30.92 30.92 28.13
[25] 30.51 27.63 34.80 32.10 33.86 32.33 25.69 30.60 32.85 30.31 27.71 30.34
[37] 29.14 33.41 33.51 29.90 32.69 32.34 35.01 33.05 31.15 36.36 29.83 33.70
[49] 29.81 32.41 35.90 37.45 30.39 31.15 35.75 31.14 30.06 32.40 28.44 36.38
[61] 31.73 31.27 28.51 26.01 31.27 35.57 30.85 33.35 35.82 31.78 34.25 31.43
[73] 35.97 33.87 28.94 34.62 31.06 38.84 32.25 35.86 32.93 32.69 34.39 33.97
[85] 32.15 40.16 36.32
attr(,"title")
[1] Annual precipitation, 1900-1986, Entire Great Lakes

Executing the Test and Interpreting Quantitative Results

With the time series data successfully loaded, verified, and ready for analysis, the next logical and most critical step is the direct application of the MannKendall() function to the PrecipGL object. This execution instantaneously calculates the two essential metrics required for statistical inference: the Kendall Tau ($tau$) statistic and the corresponding two-sided p-value. These quantitative outputs form the foundation for our official trend assessment, summarizing whether the observed fluctuations and changes in annual Great Lakes precipitation over the 1900-1986 period are statistically meaningful or merely random occurrences.

To initiate the calculation and retrieve the statistical summary, we simply input the dataset name into the function:

# Perform the Mann-Kendall Trend Test on the precipitation data to assess for monotonic trend presence.
MannKendall(PrecipGL)

tau = 0.265, 2-sided pvalue =0.00029206

The resulting statistical output provides highly specific and actionable information. Firstly, the Kendall Tau ($tau$) statistic is reported as 0.265. Kendall’s Tau serves as a measure of the direction and strength of the monotonic relationship between the passage of time and the measured precipitation level. A positive Tau value, such as the 0.265 observed here, strongly indicates a positive or consistently increasing trend within the data series. Secondly, and paramount for formal hypothesis testing, the corresponding two-sided p-value is calculated as 0.00029206. To draw a final conclusion, we must compare this p-value against our chosen significance threshold, conventionally set at $alpha = 0.05$. Since the calculated value of $0.00029206$ is dramatically smaller than $0.05$, we possess overwhelming statistical evidence to confidently reject the null hypothesis (H₀). This definitive rejection leads us to the conclusion that a statistically significant positive monotonic trend exists in the annual precipitation levels across the Great Lakes region between 1900 and 1986.

Visualizing Confirmed Trends for Enhanced Clarity

While the statistical test provides the necessary quantitative confirmation regarding the presence of a trend, visualization remains an essential, complementary tool for grasping the practical nature, magnitude, and consistency of this detected change. A high-quality time series plot allows researchers to visually scrutinize the data points over time, immediately confirming the direction suggested by the Mann-Kendall test statistic ($tau = 0.265$). By plotting the annual precipitation data against the corresponding year of observation, analysts gain an intuitive understanding of the underlying temporal patterns that contributed to the rejection of the null hypothesis and solidified the conclusion of a significant upward trend.

To further enhance the visualization and clearly depict the detected long-term trend, it is standard analytical practice to overlay a smoothed regression line onto the raw data points. This smoothing line offers a robust, non-parametric estimate of the underlying long-term movement, effectively filtering out high-frequency noise and short-term, inter-annual variability that can obscure the macro-trend. Within the R environment, the powerful lowess() function (Locally Weighted Scatterplot Smoothing) is commonly employed for this task. This function computes a smooth fit based on localized regression calculations, offering an intuitive graphical representation that visually reinforces the statistical conclusion concerning the direction and consistency of the observed trend across the entire study period.

The following R code generates the essential base time series plot and proceeds to add the critical visual trend line:

# Generate the base plot for the time series data, showing annual precipitation over time.
plot(PrecipGL)

# Utilize the lowess function to compute and plot a smooth, locally weighted trend line in blue, highlighting the direction of change.
lines(lowess(time(PrecipGL),PrecipGL), col='blue')

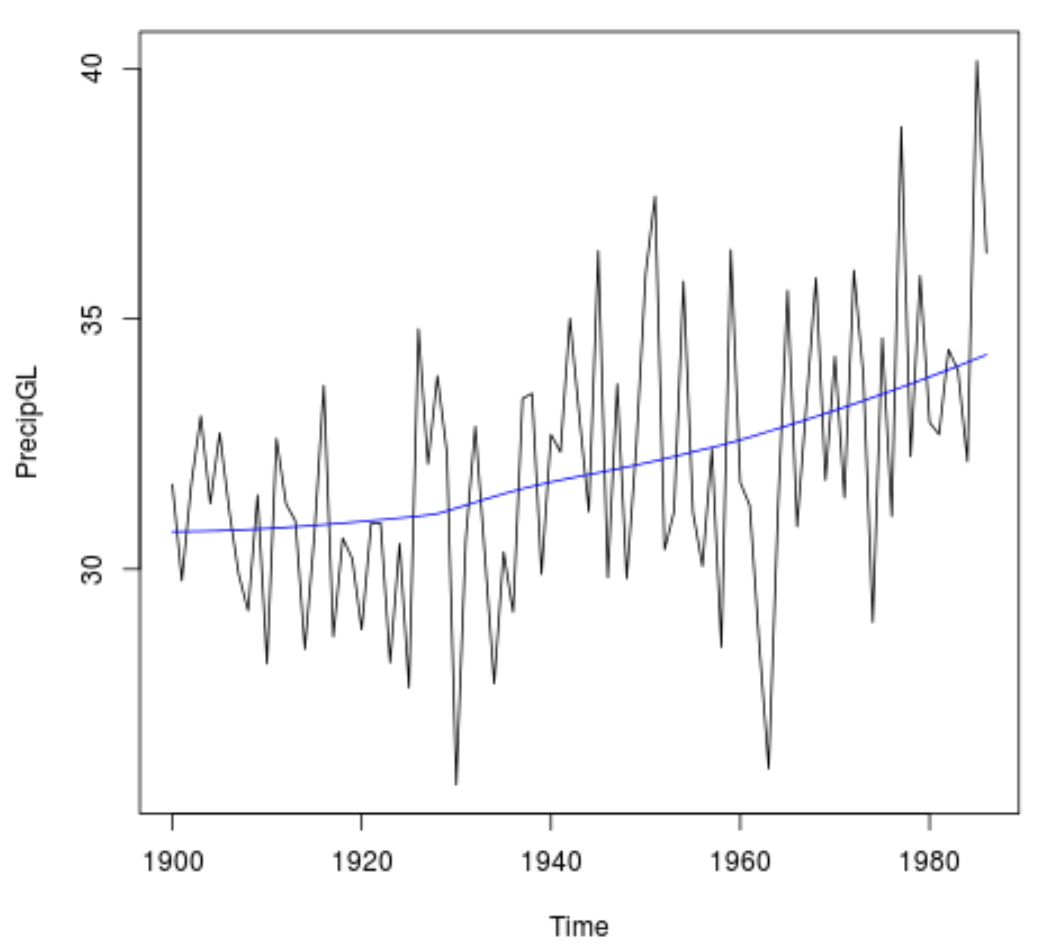

The resulting plot, displayed below, unequivocally illustrates the upward trajectory of the annual precipitation data, thereby visually confirming the positive slope indicated by the Mann-Kendall test. The blue smooth line, generated using the lowess methodology, graphically reinforces the overall increasing pattern, providing strong visual evidence that solidifies the statistical conclusion: precipitation levels have risen significantly over the duration of the studied period.

Handling Data with Seasonality: The Seasonal Mann-Kendall Test

A critical methodological consideration in advanced time series data analysis is the potential influence of seasonality—regular, predictable patterns that reliably recur over fixed, short-term intervals (e.g., monthly, quarterly, or weekly cycles). If the data exhibits pronounced seasonal components, applying the standard Mann-Kendall Trend Test without appropriate adjustment can often lead to inaccurate or severely misleading results. This occurs because the cyclical seasonal variation may either completely mask a genuine long-term trend or, conversely, falsely inflate the estimated trend magnitude.

For datasets where seasonality is a confirmed and significant factor—such as monthly measurements of pollutant concentrations or quarterly economic indicators—the SeasonalMannKendall() function is the methodologically correct tool. This function, also conveniently provided within the robust Kendall library, executes a modified test specifically engineered to account for the seasonal correlation structure. It achieves this sophistication by calculating the trend independently for each specific season (or month) and subsequently aggregating these individual seasonal results into a single, overall combined test statistic. This highly robust approach ensures that the eventual assessment of the long-term monotonic trend is decoupled from the influence of cyclical seasonal variations, yielding a far more reliable and accurate conclusion.

The command structure for deploying the seasonal test closely parallels the non-seasonal version, requiring only the structured time series object as the input argument:

# Execute the seasonally-adjusted Mann-Kendall Trend Test to account for potential cyclical patterns.
SeasonalMannKendall(PrecipGL)

tau = 0.265, 2-sided pvalue =0.00028797

When executing the seasonal test on the annual precipitation data, the output yields results highly consistent with the standard test. This consistency is entirely expected, as the input data is aggregated annually and therefore inherently lacks the high-frequency monthly or quarterly seasonality that the function is designed to address. The resulting Kendall Tau statistic remains fixed at 0.265, and the corresponding two-sided p-value is calculated as 0.00028797. This p-value remains extremely low, falling significantly below the standard $alpha$ threshold of 0.05. Consequently, based on both the standard and the seasonally-adjusted tests, we firmly maintain our rejection of the null hypothesis, confirming the statistically robust presence of a positive, long-term monotonic trend in the Great Lakes annual precipitation data across the entirety of the studied time span.
