Learn Multivariate Analysis of Variance (MANOVA) with Stata: A Step-by-Step Guide

Understanding the Difference: ANOVA vs. MANOVA

The standard ANOVA, or Analysis of Variance, is a foundational statistical method used primarily to ascertain whether differing levels of an explanatory factor result in statistically distinguishable mean outcomes on a singular, continuous response variable. This technique is robust and efficient when researchers are focused exclusively on a single metric of interest derived from the subjects under study.

To illustrate, consider a research question investigating how three predetermined levels of educational attainment (Associate’s degree, Bachelor’s degree, Master’s degree) affect an individual’s annual income. In this conventional setup, we are operating with one categorical explanatory variable and only one continuous dependent outcome. The structure for this univariate analysis is defined simply as:

• Explanatory variable: Level of education (the grouping factor).
• Response variable: Annual income (the single measured outcome).

The MANOVA, or Multivariate Analysis of Variance, is a powerful statistical expansion of the one-way ANOVA. It is specifically engineered for research scenarios where the impact of explanatory factors must be assessed across multiple response variables concurrently. Crucially, employing MANOVA helps researchers maintain control over the overall Type I error rate, which would otherwise become inflated if separate, individual ANOVAs were conducted for each dependent measure.

Building upon our previous example, suppose we broaden our investigation to determine if the level of education influences not just annual income, but also the total student loan debt incurred. In this more complex instance, the explanatory variable remains constant, but we introduce a second, potentially correlated response variable. Analyzing these two outcomes together necessitates the application of a MANOVA. The variables are now structured as follows:

• Explanatory variable: Level of education.
• Response variables: Annual income and Student loan debt.

Because the analysis involves assessing the relationship between our educational groups and a set of two or more dependent measures, the MANOVA framework provides the statistically appropriate and efficient choice. The subsequent sections will provide a detailed guide on how to execute and interpret this multivariate analysis using the specialized statistical software, Stata.

Key Assumptions Underlying MANOVA

Prior to initiating any multivariate analysis, it is fundamentally important to confirm that the underlying statistical assumptions of the MANOVA model have been adequately satisfied. Failure to meet these core assumptions can significantly undermine the validity and reliability of the analytical results, leading to potentially inaccurate conclusions regarding the significance of the explanatory variable’s effect on the combined set of response variables.

The first critical assumption is the independence of observations. This mandates that the data collected from one participant or experimental unit must not, in any way, influence the data collected from any other unit within the sample. In rigorous experimental designs, adherence to this assumption is typically ensured through meticulous randomization and robust data collection protocols. If the observations exhibit correlation (e.g., in designs involving repeated measurements on the same subjects), then specialized alternative models, such as multivariate repeated measures ANOVA, should be considered instead.

The second major requirement is multivariate normality. This assumption stipulates that the set of response variables must follow a multivariate normal distribution within each distinct group defined by the explanatory variable. While MANOVA exhibits a degree of robustness against minor violations of normality (especially when dealing with larger sample sizes), severe deviations from a normal distribution can compromise the accuracy of the resulting F-tests. Researchers commonly assess normality using graphical tools like Q-Q plots and statistical tests such as the Shapiro-Wilk test applied to individual variables, though verifying true multivariate normality often poses a greater methodological challenge.

Finally, the assumption of homogeneity of variance-covariance matrices must be addressed. This constitutes the multivariate analogue to the homogeneity of variances assumption found in univariate ANOVA. It assumes that the patterns of relationships (both variance and correlation) among the dependent variables are statistically equivalent across all levels of the independent grouping variable. This critical assumption is routinely tested using Box’s M test within statistical software packages. Should Box’s M test yield a statistically significant result (typically indicated by a p < 0.001), implying that the covariance matrices are unequal, the Pillai’s trace statistic is generally recommended for interpretation, as it is known to be more resilient to this particular violation compared to other multivariate measures like Wilks’ lambda or the Lawley-Hotelling trace.

Setting Up the Example Dataset in Stata

To furnish a clear, practical demonstration of how to execute a MANOVA, we will employ a small, simulated dataset constructed within the Stata statistical environment. This dataset comprises observations for 24 hypothetical individuals, incorporating all necessary variables to assess the collective effect of educational attainment on key financial outcomes.

Our illustrative dataset is carefully structured around three essential variables, reflecting the categorical predictor and the two continuous financial outcomes:

• educ: This is our categorical explanatory variable, signifying the highest level of education attained. It is coded numerically: 0 = Associate’s degree, 1 = Bachelor’s degree, and 2 = Master’s degree.
• income: The first continuous response variable, quantifying the individual’s annual income (in currency units).
• debt: The second continuous response variable, representing the individual’s total accumulated student loan debt (in currency units).

The image below provides a visual confirmation of this data structure as it appears within the Stata Data Editor, confirming the setup prior to the analytical stage. It is important to note that while the educational variable is coded numerically, Stata correctly recognizes and treats it as a categorical grouping factor during the execution of the MANOVA command.

Researchers who wish to replicate this exact analysis can easily input this small sample size data by navigating within Stata to the main menu bar and selecting Data > Data Editor > Data Editor (Edit). Manually entering this data provides immediate hands-on experience with the command structure required for multivariate statistical testing.

Executing the MANOVA Command in Stata

Once the dataset has been successfully loaded and thoroughly verified for data integrity, performing the Multivariate Analysis of Variance in Stata is achieved through a remarkably concise and powerful command syntax. The general command requires the specification of all continuous response variables first, followed by an equal sign, and then the categorical explanatory variable.

To analyze whether the three distinct levels of the educ variable (our explanatory factor) exert a statistically significant impact on the combined outcome measures of income and debt (our response variables), we must input the following exact syntax into the Stata Command Window:

manova income debt = educ

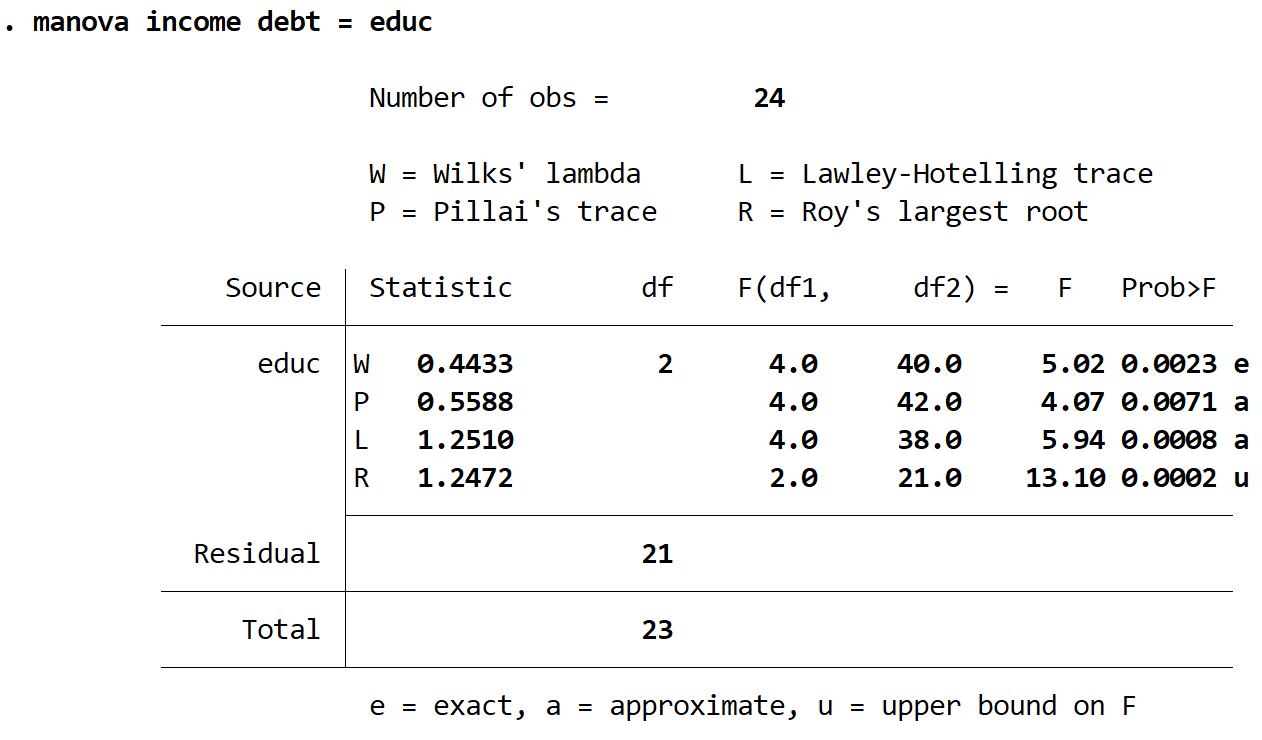

This command instructs Stata to perform a one-way MANOVA, specifically testing the multivariate null hypothesis that the population means of the response variables (income and debt) are identical across all educational groups. Following execution, Stata automatically generates a detailed output table that contains the results of several standard multivariate tests, which collectively assess the overall significance of the proposed model.

The resulting output provides comprehensive diagnostic statistics, including the degrees of freedom, the sums of squares and cross-products matrices (SSCP), and, most critically, the four primary multivariate test statistics utilized to evaluate the overall effect of the explanatory variable. These statistics are essential in determining if there is a statistically significant differentiation among the group means when considering the composite set of dependent variables.

Interpreting the MANOVA Output and Test Statistics

The Stata output generated for a MANOVA consistently presents four standard multivariate test statistics. Although these statistics are derived from different mathematical principles—primarily based on the eigenvalues of the error and hypothesis SSCP matrices—they usually converge to the same conclusion regarding whether to reject or retain the null hypothesis, particularly when the sample sizes across the groups are equal.

1. Wilks’ lambda: This is arguably the most frequently reported multivariate test statistic. It is calculated as the ratio of the error variance to the total variance in the model. Consequently, smaller values of Wilks’ lambda signify a stronger, more pronounced effect of the independent variable. In our specific example, the result is reported as: F-Statistic = 5.02, P-value = 0.0023.
2. Pillai’s trace (or Pillai-Bartlett trace): This statistic is obtained by summing the ratios of variance that are explicitly accounted for by the differences between the groups. Pillai’s trace is generally regarded as the most robust test against violations of the crucial assumption of homogeneity of variance-covariance matrices, making it a highly reliable statistic for interpretation, particularly in studies involving unequal group sizes.
3. Lawley-Hotelling trace: This measure is based on the sum of the eigenvalues derived from the ratio of the hypothesis sum of squares and cross-products (H) matrix to the error sum of squares and cross-products (E) matrix. Based on our current results, the output shows: F-Statistic = 5.94, P-value = 0.0008.
4. Roy’s largest root (or Roy’s greatest characteristic root): This test statistic uniquely focuses on the dimension that exhibits the largest degree of separation or difference between the defined groups. While useful for descriptive insights, it is generally considered less robust for inferential conclusions compared to the other three statistics. For our simulation data, the result is: F-Statistic = 13.10, P-value = 0.0002.

From a practical viewpoint, each of these multivariate tests provides an F-statistic that is used to evaluate the multivariate null hypothesis. The corresponding p-value indicates the probability of observing data as extreme as or more extreme than the current findings if the null hypothesis were truly correct. For those seeking a deeper, mathematical comprehension of the derivation and calculation of these four test statistics, consulting advanced statistical textbooks or academic resources is highly recommended.

A crucial detail in the Stata output presentation is the letter displayed adjacent to the p-value. This letter serves to clarify the precision of the F-statistic calculation: ‘e’ indicates an exact calculation, ‘a’ denotes an approximate calculation, and ‘u’ signifies that the reported value represents an upper bound estimate.

Drawing Conclusions from the Results

To formulate a definitive conclusion from the MANOVA, we must meticulously examine the p-values associated with the calculated multivariate test statistics. Utilizing the conventional significance level (alpha) of 0.05, if the p-value is observed to be less than this threshold, we formally reject the null hypothesis. This rejection confirms that the explanatory variable successfully exerts a statistically significant effect on the combined set of response variables.

In our current example, all four multivariate test statistics—including Wilks’ lambda (P=0.0023), Lawley-Hotelling trace (P=0.0008), and Roy’s largest root (P=0.0002)—yield p-values that are substantially lower than the 0.05 significance level. Therefore, regardless of which primary test statistic we choose to interpret, we can confidently reject the null hypothesis. This provides powerful statistical evidence supporting the conclusion that the level of education attained leads to statistically significant differences when simultaneously considering the outcomes of annual income and total student loan debt.

It is important to understand that a significant overall MANOVA result indicates that differences exist somewhere among the groups (Associate, Bachelor, Master), but it does not specify which particular groups differ from one another, nor does it identify which specific response variable (income or debt) is primarily responsible for driving this overall multivariate effect. To uncover these specifics, subsequent, focused analyses are indispensable.

The standard next step following a significant MANOVA result is typically to conduct a series of follow-up univariate ANOVAs (one for each response variable) to determine which dependent measure contributed the most to the overall observed effect. If these univariate ANOVAs are also found to be significant, post-hoc tests (such as Tukey’s HSD or Bonferroni adjustments) would then be applied to pinpoint the specific pairwise mean differences among the educational groups for that particular outcome. Alternatively, researchers might employ discriminant function analysis to derive linear combinations of the dependent variables that optimally maximize the separation between the groups defined by the explanatory variable.
