Learning One-Way ANOVA: A Comprehensive Guide to Comparing Multiple Group Means

The Analysis of Variance (ANOVA) stands as a foundational and robust statistical tool utilized to systematically compare the means across three or more distinct, independent groups. Specifically, the One-Way ANOVA methodology is employed to ascertain whether the observed differences in group means reflect a true, statistically significant difference among the corresponding population means. Although modern statistical software packages can execute this analysis instantaneously, a thorough comprehension of the manual calculation process is indispensable. This foundational understanding allows researchers and students alike to grasp the underlying statistical principles, validate software outputs, and accurately interpret the final results.

This tutorial is designed to serve as a comprehensive, step-by-step guide detailing how to execute a complete One-Way ANOVA calculation without the aid of software. We will systematically deconstruct the necessary statistical formulas into clear, manageable stages, ensuring maximum clarity throughout this complex but crucial statistical procedure.

Core Concepts and the Logic of ANOVA

Before embarking on the numerical computations, it is essential to internalize the fundamental purpose and logic of ANOVA. Researchers often encounter scenarios where data must be compared across multiple conditions—for instance, evaluating the effectiveness of different medical treatments, comparing productivity under various shift schedules, or assessing yields resulting from different fertilization regimens. In these contexts, ANOVA provides the mechanism to determine if the variation observed between the group means is sufficiently large relative to the variation observed within the groups.

The power of the ANOVA technique lies in its ability to partition the total variability inherent in the dataset. This total variability is mathematically separated into two primary components: the variability attributed to the experimental treatment or group differences (known as the explained variance or variability between groups), and the variability attributed to random chance, measurement error, or individual differences (known as the unexplained variance or variability within groups). This comparison ultimately yields the F test statistic, which is the critical metric used to test the research hypothesis.

If the variation between groups is significantly larger than the variation within groups, it suggests that the different conditions or treatments had a genuine, measurable effect. Conversely, if the within-group variation dominates, the observed differences in means are likely due to random sampling fluctuations.

Defining the Research Scenario and Data Setup

To provide a practical context for our manual calculations, we will analyze a hypothetical research question concerning the efficacy of different exam preparation strategies. A research team seeks to investigate whether three distinct preparation programs (designated Program A, Program B, and Program C) result in different mean scores on a standardized professional exam. To execute this study, thirty participants are randomly recruited and assigned equally to one of the three preparation programs, resulting in ten students per independent group.

Each group engaged with its assigned program for a three-week duration. Upon the conclusion of the preparation phase, all thirty students took the exact same comprehensive exam. The resulting test scores for the three independent groups form the raw data foundation for our subsequent statistical analysis. This data must be meticulously organized before any calculations can commence.

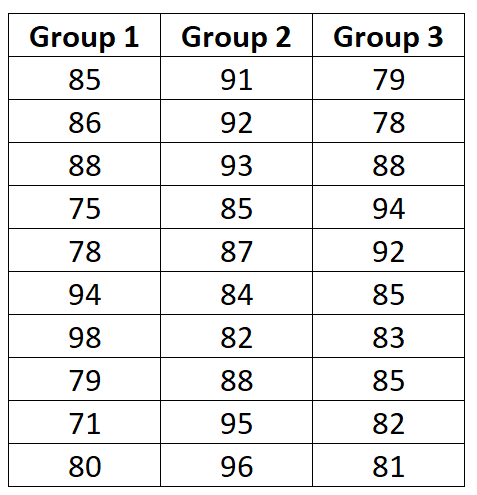

The resulting exam scores used for our demonstration are summarized in the data visualization below, which serves as the input for all manual computations.

Our overarching objective is to utilize these raw scores to successfully perform the One-Way ANOVA procedure and arrive at a statistically sound conclusion regarding whether the observed differences in group performance are statistically significant at a predefined level of confidence.

Step 1: Calculating Variability Components (Sums of Squares)

The initial and most fundamental step in the ANOVA calculation process involves determining the baseline measures: the mean score for each individual group ($bar{X}_j$) and the grand mean score encompassing all observations ($bar{X}..$). These means are pivotal benchmarks required for the subsequent calculation of variance components.

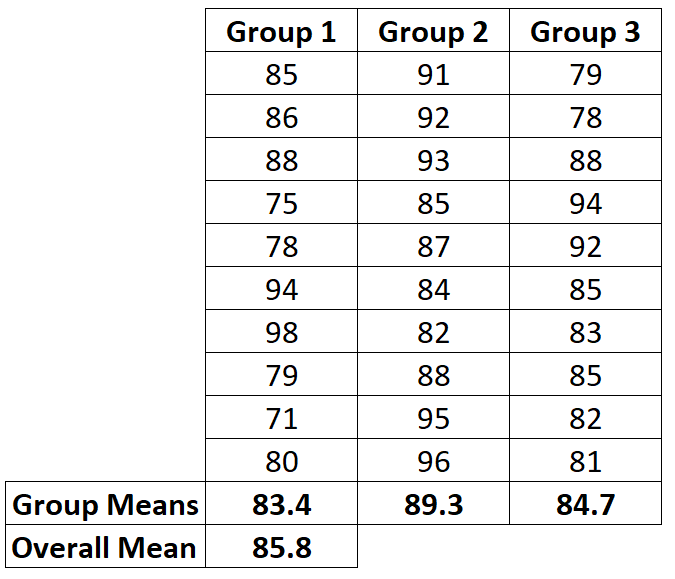

The calculation of these means is visualized in the following diagram:

Once the means are established, we proceed to calculate the variance components, which are expressed as Sum of Squares (SS). We begin with the Regression Sum of Squares (SSR), often termed the Sum of Squares Between Groups or Sum of Squares Treatment. This metric quantifies the portion of the total variability that is explained by the differences existing between the group means and the overall grand mean. The formula used is: nΣ(X_j – X..)². Here, n represents the sample size per group (10), Σ signifies summation across all groups, X_j is the mean of group j, and X.. is the overall mean. Applying this formula to our data yields the calculated value: SSR = 10(83.4-85.8)² + 10(89.3-85.8)² + 10(84.7-85.8)² = 192.2.

Next, we calculate the Error Sum of Squares (SSE), which measures the unexplained variation within each group. This variability is due to inherent random chance, measurement errors, or individual differences among participants that cannot be attributed to the treatment programs. The formula for SSE is: Σ(X_ij – X_j)². This calculation involves summing the squared differences between every individual observation (X_ij) and its respective group mean (X_j), aggregating these values across all groups. After performing the specific calculation for each group (Group 1: 640.4; Group 2: 208.1; Group 3: 252.1), we sum these components to find the total SSE: SSE = 640.4 + 208.1 + 252.1 = 1100.6.

Finally, the Total Sum of Squares (SST) represents the overall variability present in the entire dataset, irrespective of group assignment. A convenient and crucial relationship in ANOVA is that SST is simply the summation of the explained variance (SSR) and the unexplained variance (SSE). The relationship is defined as: SST = SSR + SSE. For our specific example, SST = 192.2 + 1100.6 = 1292.8. Calculating SST this way provides a vital checkpoint, ensuring that the total variance has been correctly and exhaustively partitioned into its explained and unexplained components.

Step 2: Generating the F Test Statistic

Once the three Sum of Squares values (SSR, SSE, SST) have been accurately computed, the subsequent step is the formal organization of these results into the standard ANOVA summary table. This table is the mechanism through which the final test statistic is derived. To populate the table, we must calculate the degrees of freedom (df) and the Mean Squares (MS) for both the Treatment (Between) and Error (Within) sources of variation.

The calculation of the degrees of freedom (df) is fundamental for accurate variance estimation. For the treatment effect, df is calculated as k-1 (where k is the number of groups), resulting in 3-1 = 2. For the error term, df is calculated as n-k (where n is the total number of observations, 30), yielding 30-3 = 27. The total degrees of freedom must equal n-1, which is 30-1 = 29. These df values are critical for the next calculation stage.

The Mean Squares (MS) are variances derived by dividing each Sum of Squares (SS) by its corresponding degrees of freedom (df). The Mean Square Treatment (MS Treatment) measures the variance between the groups (MS Treatment = SSR / df Treatment = 192.2 / 2 = 96.1). The Mean Square Error (MS Error) provides the best estimate of variance within the groups (MS Error = SSE / df Error = 1100.6 / 27 = 40.8). The ratio of these two Mean Squares constitutes the final test statistic.

The completed ANOVA table, incorporating all derived values, is presented below:

The calculation of the F test statistic completes the ANOVA table. The F statistic is fundamentally the ratio of the variance explained by the treatment to the variance unexplained by the treatment (F = MS Treatment / MS Error). In this example, F = 96.1 / 40.8 = 2.358. This computed value is the core evidence we use to test the null hypothesis.

For quick reference, the detailed component calculations used to construct the table are summarized below:

• df treatment: k – 1 = 3 – 1 = 2
• df error: n – k = 30 – 3 = 27
• df total: n – 1 = 30 – 1 = 29
• MS treatment: SSR / df treatment = 192.2 / 2 = 96.1
• MS error: SSE / df error = 1100.6 / 27 = 40.8
• F: MS treatment / MS error = 96.1 / 40.8 = 2.358

Note: In these calculations, n represents the total number of observations (30), and k represents the number of groups (3).

Step 3: Interpreting the Statistical Conclusion

The ultimate goal of performing the ANOVA calculation is to determine whether the calculated F test statistic is large enough to warrant the rejection of the null hypothesis ($H_0$). The null hypothesis posits that all population means are equivalent, meaning the exam preparation programs have no differential effect on student scores. To make this crucial determination, we compare our calculated F value (2.358) against the critical value derived from the theoretical F distribution table.

To identify the correct F critical value, three statistical parameters are necessary: the chosen significance level ($alpha$) and the two degrees of freedom. We standardly set the significance level ($alpha$) at 0.05, representing a 5% risk of incorrectly rejecting a true null hypothesis. The required degrees of freedom are sourced directly from the ANOVA table: DF1 (numerator degrees of freedom) corresponds to the df treatment (2), and DF2 (denominator degrees of freedom) corresponds to the df error (27). By consulting the F distribution table using these parameters ($alpha = 0.05$, DF1 = 2, DF2 = 27), we find that the F critical value is 3.3541.

The final, decisive step involves comparing the calculated F statistic (2.358) with the F critical value (3.3541). Since our calculated test statistic (2.358) is less than the critical value (3.3541), the result falls comfortably within the acceptance region of the F distribution. Consequently, we must fail to reject the null hypothesis. This significant statistical conclusion indicates that, based on the evidence collected from the thirty students, there is insufficient statistical evidence at the 0.05 significance level to conclude that there is a meaningful difference in the mean exam scores produced by the three distinct preparation programs.

For those seeking to verify these detailed manual calculations or automate the process for future analyses, several high-quality statistical tools are available. You may utilize this one-way ANOVA calculator to automatically perform the analysis for up to five samples, providing an efficient method for validating manual steps and streamlining the statistical workflow.
