Learn to Analyze Data: A Step-by-Step Guide to One-Way ANOVA in Excel

The Analysis of Variance (ANOVA) is a foundational statistical technique indispensable across diverse research fields, including psychology, engineering, and biosciences. Its primary function is to rigorously assess whether there is a statistically significant difference among the population means of three or more independent groups. Mastery of the one-way ANOVA is crucial for researchers needing to compare the outcomes resulting from different treatments, categories, or interventions.

At its core, the ANOVA method systematically partitions the total observed variability within a dataset into distinct, measurable components. Specifically, it separates the variance attributable to the differences between the groups (the hypothesized treatment effect) from the variance existing within the groups (often attributed to random error or individual differences). This comparison yields the crucial F-ratio, a metric that ultimately guides our decision regarding the underlying statistical hypotheses.

This comprehensive, expert-level tutorial provides a precise, step-by-step methodology for executing a one-way ANOVA utilizing the robust, built-in statistical features of Microsoft Excel. By following these instructions, researchers and students alike can ensure accurate data analysis and confidently interpret the resulting inferential statistics.

Understanding the One-Way ANOVA

Before initiating any calculation in Excel, a solid theoretical comprehension of the one-way ANOVA’s underlying principles and assumptions is vital. The procedure is fundamentally structured around testing the null hypothesis ($H_0$), which formally states that the population means of all groups under investigation are identical ($ mu_1 = mu_2 = mu_3 = … $). Conversely, the alternative hypothesis ($H_a$) proposes that at least one group mean differs significantly from the others.

The one-way ANOVA is specifically engineered for research designs involving a single categorical independent variable (or factor) that possesses three or more distinct levels (groups), and a single continuous dependent variable. Successful execution relies upon meeting key statistical assumptions: 1) The observations within and between groups must be independent; 2) The dependent variable scores must be approximately normally distributed within each group; and 3) The variances of the populations from which the samples are drawn must be equal, a property known as homogeneity of variances.

Effective preparation of the data within the spreadsheet environment is paramount. While Excel provides the computational engine, the user must ensure the data structure is correctly formatted. For the one-way ANOVA, this organization mandates that the scores for each independent group are listed vertically in separate, adjacent columns, simplifying the input range selection during the analysis phase.

Case Study: Evaluating Study Techniques

To practically demonstrate the application of the one-way ANOVA, we will examine a hypothetical research scenario focused on educational effectiveness. Imagine a study designed to investigate how different study methods influence final exam performance. A researcher recruits 30 participants and randomly assigns them into one of three distinct intervention groups, corresponding to the levels of our independent variable: Technique A (Traditional Review), Technique B (Flashcard Memorization), and Technique C (Collaborative Learning).

Each student rigorously adheres to their assigned technique for a fixed three-week period leading up to a standardized final assessment. The central research query is whether the average scores achieved by the students are significantly different across these three intervention groups. Utilizing the ANOVA test is essential here, as performing multiple two-sample t-tests would severely inflate the Family-wise Error Rate, drastically increasing the likelihood of committing a Type I error (falsely rejecting the null hypothesis).

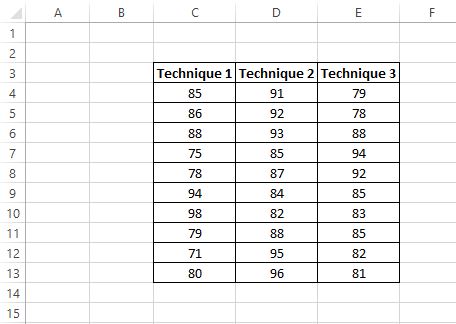

Following the conclusion of the experiment, the final exam scores for all 30 participants are systematically compiled and organized within an Excel worksheet. As illustrated below, each column represents one of the three independent study groups, with the corresponding entries detailing the individual continuous test scores achieved by students within that specific technique cohort.

Our analytical objective is now to execute the one-way ANOVA rigorously, testing the hypothesis that the population mean scores for Technique A, Technique B, and Technique C are all statistically equivalent.

Step-by-Step Guide to Performing ANOVA in Excel

The computational engine for the Analysis of Variance functionality in Microsoft Excel is nested within the Analysis ToolPak. This powerful add-in must be activated within the software environment before any statistical calculation can commence. To initiate the process, navigate directly to the Data tab located prominently on the Excel ribbon interface. Within the far-right section, locate and click the essential Data Analysis option, which is housed within the Analysis group.

If the Data Analysis option is currently missing from your ribbon, it is a necessary prerequisite to load the free Analysis ToolPak add-in. This is achieved by accessing the menu pathway: File > Options > Add-ins. Enabling this tool is mandatory for performing any form of inferential statistics, including t-tests and regression, within the Excel platform.

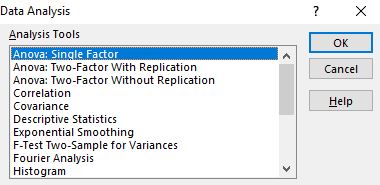

Once the Data Analysis window appears, you will be presented with a list of various statistical procedures. Scroll through the list until you find and select the precise option labeled Anova: Single Factor. This designation is Excel’s term for the standard one-way ANOVA test, making it the correct choice for comparing three or more independent group means. Confirm your selection by clicking OK to move forward to the parameter specification stage, where we will define the boundaries and details of our analysis.

Configuring the ANOVA Parameters

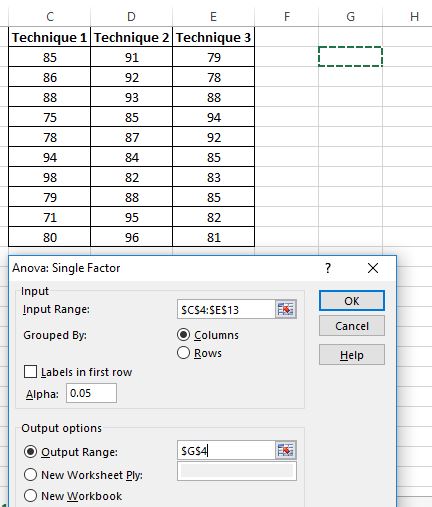

The subsequent dialog box requires careful definition of the essential inputs necessary for Excel to execute the ANOVA calculation accurately. The most critical entry is the Input Range, which must encompass all raw scores for every group simultaneously. It is advisable to include the column headers (labels) in this selection for clarity in the output. Based on our case study data structure, covering Technique A, B, and C scores, the range is specified as $C$4:$E$13. Since our study techniques are arranged vertically, we confirm the grouping orientation by selecting Grouped By: Columns.

If the column labels (e.g., Technique A) were included in the Input Range selection, you must ensure the Labels in first row checkbox is actively checked. This critical step instructs Excel to correctly interpret the first row as identifying text rather than numerical data points, thereby preventing computational errors when calculating group statistics.

Next, the researcher must define the Alpha level, which quantifies the accepted threshold for statistical significance. This value represents the maximum probability of committing a Type I error—rejecting the null hypothesis when it is, in fact, true. Standard statistical practice dictates an Alpha level of 0.05, signifying a willingness to accept a 5% risk of error, and we will retain this default setting for our analysis.

Finally, the Output Range must be specified. This designated location dictates where Excel will place the resulting summary and ANOVA tables on the worksheet. Selecting a single, empty cell, such as G4, is sufficient; Excel will automatically populate the complete output, expanding downward and to the right from that starting point. Once all parameters are accurately set and verified, clicking OK initiates the data processing and generates the complete ANOVA output tables immediately.

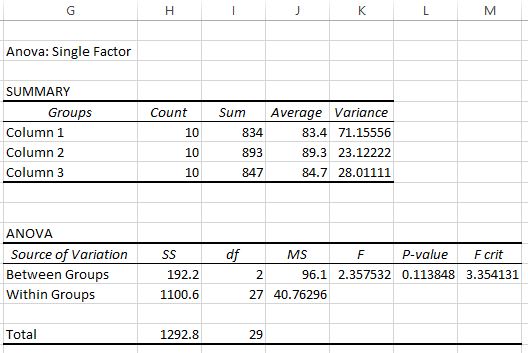

Upon successful execution, the full, detailed results of the one-way ANOVA calculation will instantly populate the chosen output range, ready for detailed interpretation.

Analyzing the Summary Statistics

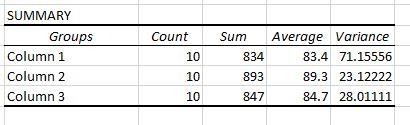

The generated ANOVA output is logically structured into two main tables, providing both descriptive and inferential insights. The first table, titled SUMMARY, presents crucial descriptive statistics broken down by each independent group. Analyzing this summary is essential for gaining an initial, intuitive understanding of the raw data characteristics before proceeding to the formal statistical testing.

The summary table provides four key metrics for assessing the distribution of scores within each study technique group: the Count (N, the sample size, which is 10 for each group in this balanced design), the Sum (the total accumulated score), the Average (the arithmetic mean score for the group), and the Variance (a measure quantifying the spread or dispersion of the scores around the mean within that group). A quick review of the averages immediately reveals the observed performance differences: Technique A achieved 78.3, Technique B achieved 85.6, and Technique C achieved 80.1.

While the numerical differences in average scores are apparent, the summary table alone cannot determine if these variations are substantial enough to be deemed statistically meaningful in the broader population, or if they merely arose by chance due to random sampling variability. To address the core research question—whether the type of study technique genuinely causes a difference in performance—we must transition our focus to the second, more rigorous table: the ANOVA table itself.

Interpreting the ANOVA Table (F-Test and P-Value)

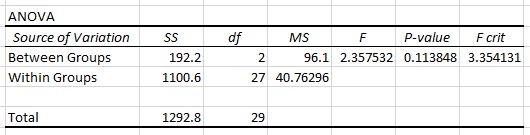

The second table encapsulates the results of the F-test, which forms the inferential heart of the ANOVA. This table systematically compares the variance attributed to the differences between the groups (the hypothesized treatment effect) against the variance remaining within the groups (the unaccounted error). The essential values required for statistical decision-making are the calculated F statistic, the P-value, and the F critical value.

The primary method for hypothesis testing involves comparing the calculated F test statistic against the F critical value. The decision rule states that if the calculated F value exceeds the F critical value, the observed group differences are considered too large to be random, thus compelling the rejection of the null hypothesis. In this specific analysis, the calculated F test statistic is 2.3575, while the F critical value is 3.3541 (based on the degrees of freedom and the 0.05 Alpha level). Since 2.3575 is demonstrably less than 3.3541, we conclude that there is insufficient statistical evidence to reject the null hypothesis.

A secondary, equally valid approach to reaching a conclusion involves scrutinizing the p-value. The p-value quantifies the probability of observing our current data (or data more extreme) assuming the null hypothesis of equal means is true. We compare this value against our predetermined Alpha level (0.05). If the p-value is smaller than Alpha, we reject $H_0$. Here, the p-value is calculated as 0.1138. Since 0.1138 is clearly greater than 0.05, both methods lead to the identical statistical outcome: we must fail to reject the null hypothesis.

Drawing Conclusions and Next Steps

Based on the rigorous analysis of the F-ratio and the p-value, the definitive statistical conclusion is that we lack sufficient evidence, operating at the conventional 0.05 significance level, to assert a statistically significant difference in the average test scores attributable to the three distinct study techniques. Although the sample means showed numerical variation in the summary table (with Technique B scoring highest), this observed difference is most likely accounted for by the inherent random variability or error within the groups, rather than reflecting a true, underlying effect of the technique itself.

In practical and educational terms, this result suggests that the researcher cannot confidently claim that one study technique provides a measurable, superior advantage over the others in enhancing exam performance for the student population studied. The observed performance gaps are not robust enough to warrant a fundamental change in recommended educational practice based purely on the evidence derived from this specific dataset.

Important Note on Follow-Up Tests: Had the statistical decision been to reject the null hypothesis (i.e., if the p-value had been less than 0.05), the overall ANOVA test would only confirm that *at least one* group mean differs from the others. It would not specify which pairs are different. In such a scenario, a subsequent procedure known as a Post-hoc test (e.g., Tukey’s Honestly Significant Difference or Bonferroni correction) would be mandatory. These post-hoc comparisons conduct controlled, pairwise tests to pinpoint the exact locations of the statistically significant mean differences. Since our analysis resulted in failing to reject the null hypothesis, post-hoc analysis is neither required nor appropriate.
