Learn How to Perform a One-Way ANOVA Test in SPSS

The One-Way Analysis of Variance (ANOVA) is a fundamental statistical technique employed to ascertain whether a statistically significant difference exists among the means of three or more independent, or unrelated, groups. This method is particularly useful in experimental and observational research where the effect of a categorical factor on a continuous outcome variable needs assessment.

This specific test is termed a one-way ANOVA because the analysis focuses on how a single predictor variable (or factor) influences a continuous response variable. The predictor variable must possess at least three distinct, mutually exclusive levels or groups. If, hypothetically, a researcher were interested in examining the impact of two separate predictor variables on the response variable simultaneously, the appropriate statistical procedure would be a two-way ANOVA. Understanding this distinction is crucial for selecting the correct model.

This comprehensive guide details the precise methodology for performing and interpreting a one-way ANOVA using the SPSS (Statistical Package for the Social Sciences) software, ensuring the results are robust and accurately reported according to standard statistical conventions.

Illustrative Example and Data Setup

To demonstrate the procedure, consider a classic research scenario. Suppose a research institution aims to compare the effectiveness of different studying strategies. A total of 30 students are recruited for the study and are randomly assigned to one of three experimental conditions, representing three distinct studying techniques. Students are instructed to utilize their assigned technique exclusively for a period of one month while preparing for a standardized examination.

At the conclusion of the month-long preparation phase, all 30 participants take the identical exam. The primary outcome variable is the final test score achieved by each student. The fundamental research question is whether the average test scores differ significantly across the three independent groups (Technique 1, Technique 2, and Technique 3). This setup perfectly mandates the use of a one-way ANOVA.

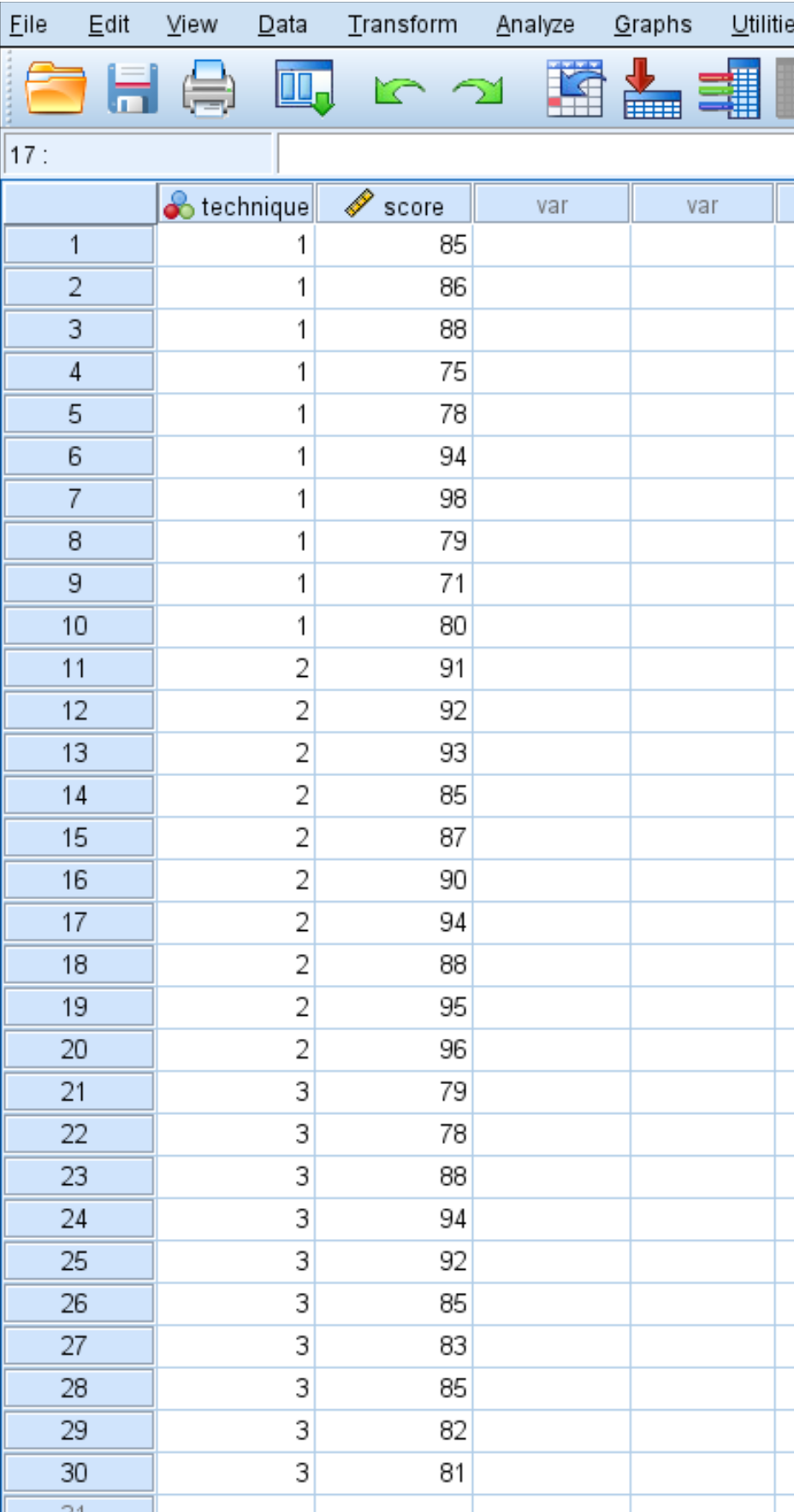

The raw data collected from this experiment, detailing the test scores achieved under each technique, is structured as follows in the SPSS data view:

We will now proceed through the necessary steps within SPSS to execute the one-way ANOVA test and determine if the observed differences in average scores among the three techniques are statistically meaningful.

Step 1: Visualizing Group Distributions with Boxplots

Before conducting any formal inferential statistical test, it is best practice to visually inspect the data distributions across the groups. This initial visualization helps detect potential outliers, assess the spread of scores, and provide a preliminary indication of differences in means. For comparing continuous data across multiple categorical groups, boxplots are the ideal visualization tool.

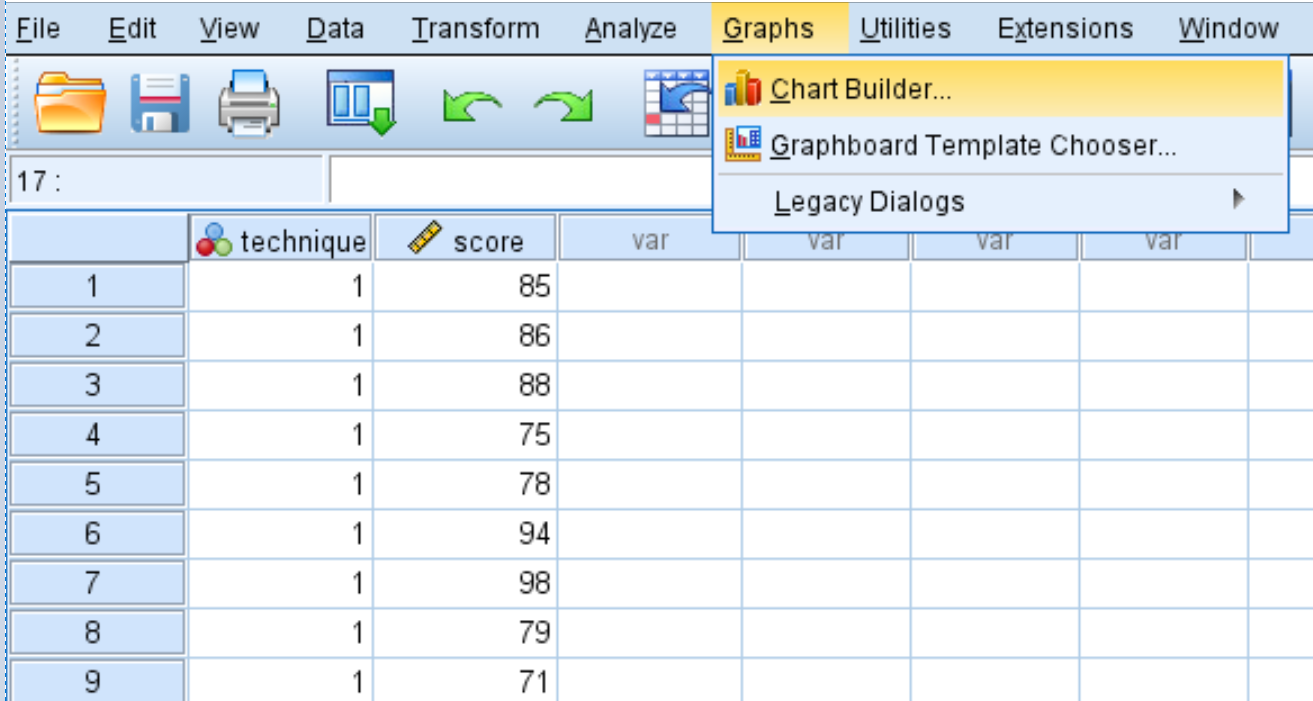

To generate boxplots in SPSS, navigate to the Graphs tab and select Chart Builder. In the dialogue box that appears, select Boxplot from the “Choose from:” list in the lower left corner. Drag the first chart type, titled Simple boxplot, into the main chart editing canvas.

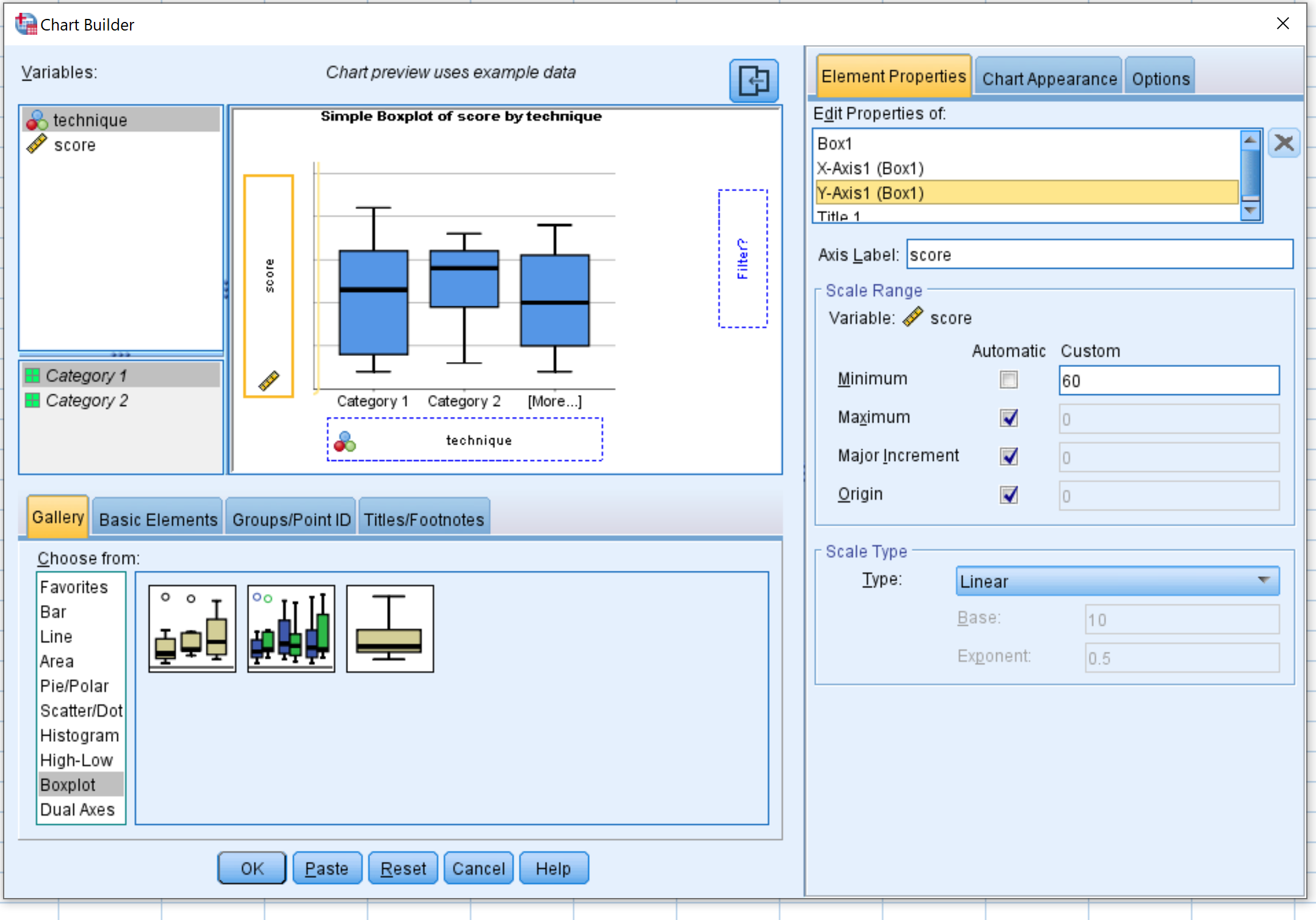

Once the template is on the canvas, map your variables correctly: drag the categorical grouping variable, technique, onto the X-Axis drop zone, and the continuous outcome variable, score, onto the Y-Axis drop zone. For enhanced visual clarity and focus, you may adjust the scale. Click Element Properties, select Y-axis1, and then change the minimum value of the score axis to 60. Click OK to generate the chart.

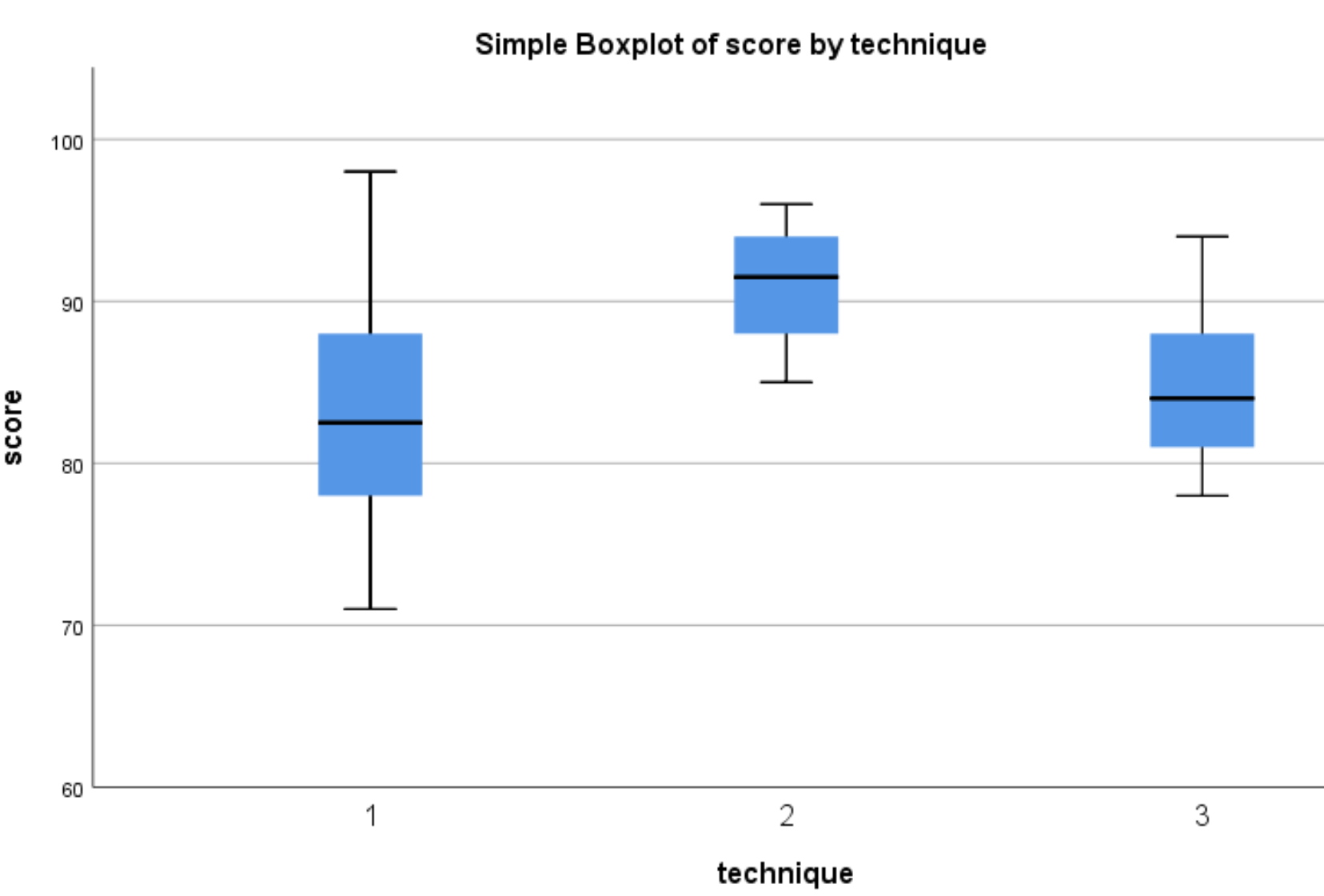

The resulting visualization clearly displays the median, quartiles, and range of test scores for each studying technique. Observing the difference in the central lines (medians) and the overall box positions provides strong graphical evidence regarding the equality of group means.

Step 2: Executing the ANOVA Test in SPSS

With the initial data exploration complete, the next critical step is to execute the formal one-way ANOVA test. This procedure calculates the F-statistic and associated p-value required to test the null hypothesis of equal population means.

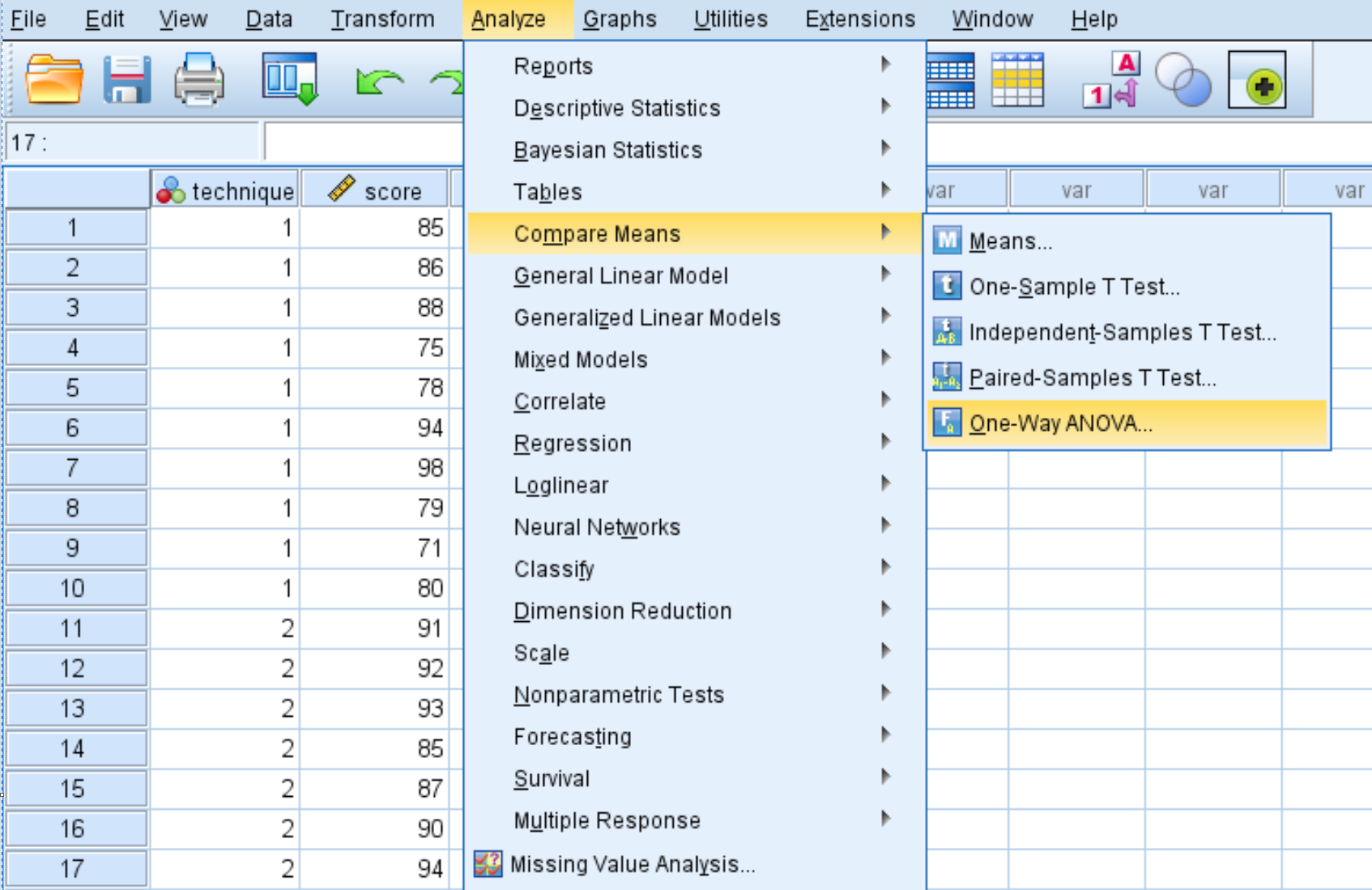

Initiate the procedure by navigating the menu: click the Analyze tab, hover over Compare Means, and then select One-Way ANOVA. This action opens the main dialogue window for the test configuration.

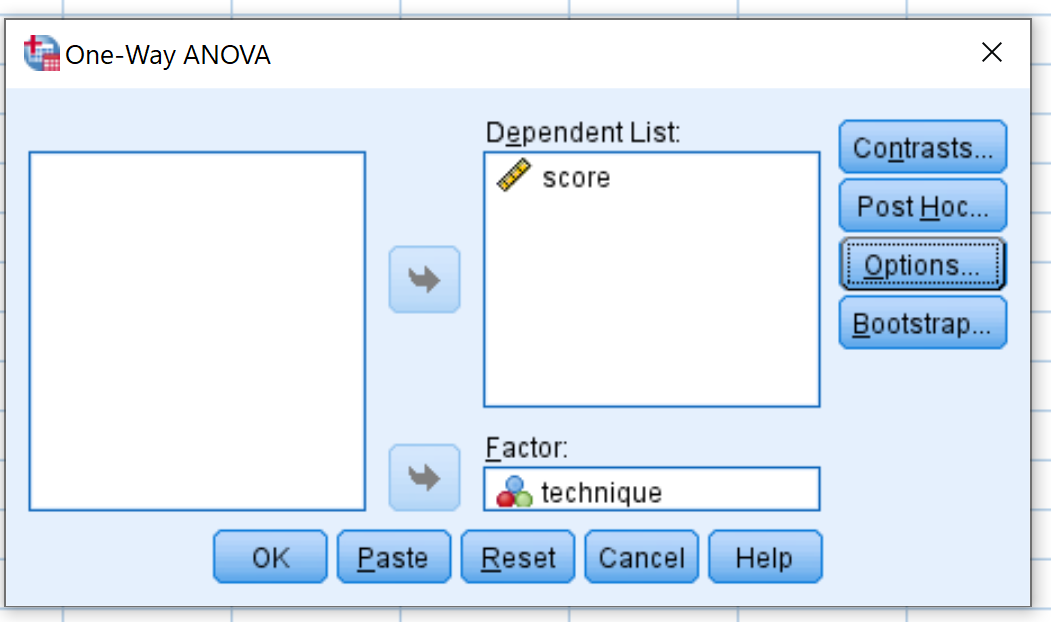

In the resulting dialogue box, correctly assign the variables: the continuous outcome variable, score, must be moved into the box labeled Dependent List. The categorical grouping variable, technique, which defines the independent groups, must be placed into the box labeled Factor.

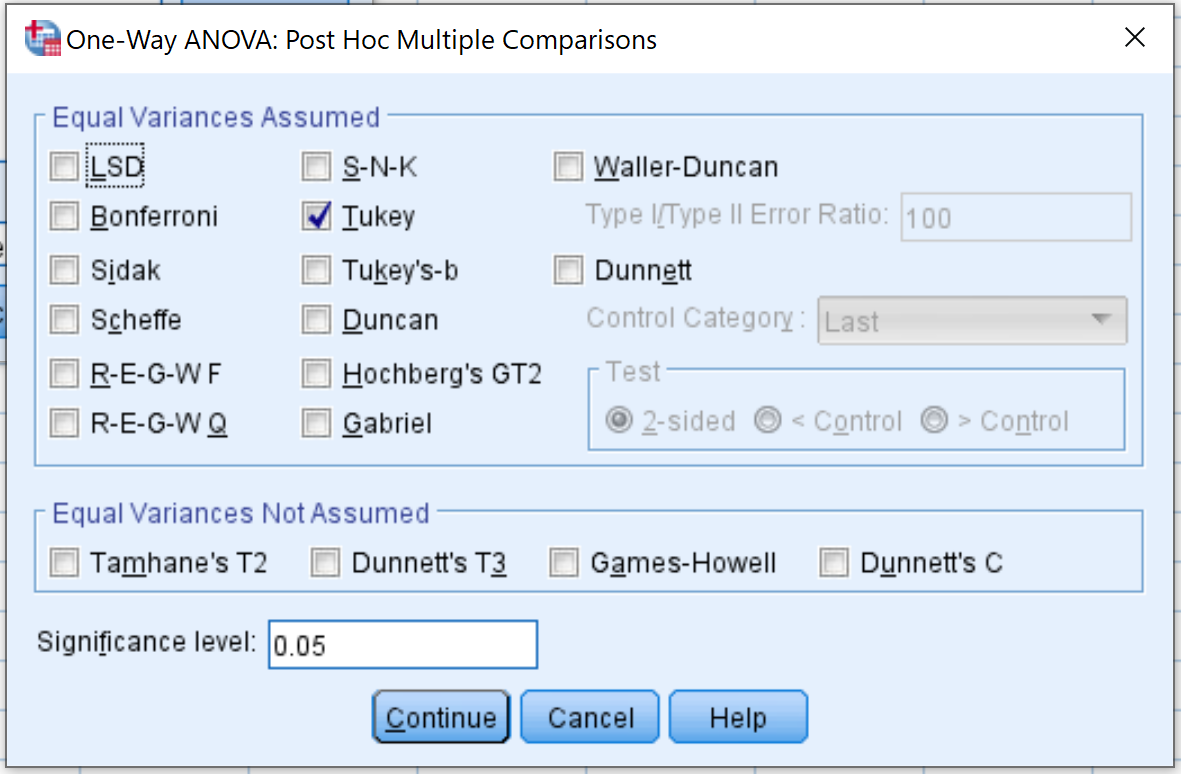

Since ANOVA only tells us if at least one group mean is different, but not which specific pairs differ, we must request a post-hoc test. Click the Post Hoc button. For studies involving equal sample sizes and an assumption of homogeneity of variances (which we typically verify), the Tukey’s Honestly Significant Difference (HSD) test is a highly recommended and robust option. Check the box next to Tukey, and then click Continue.

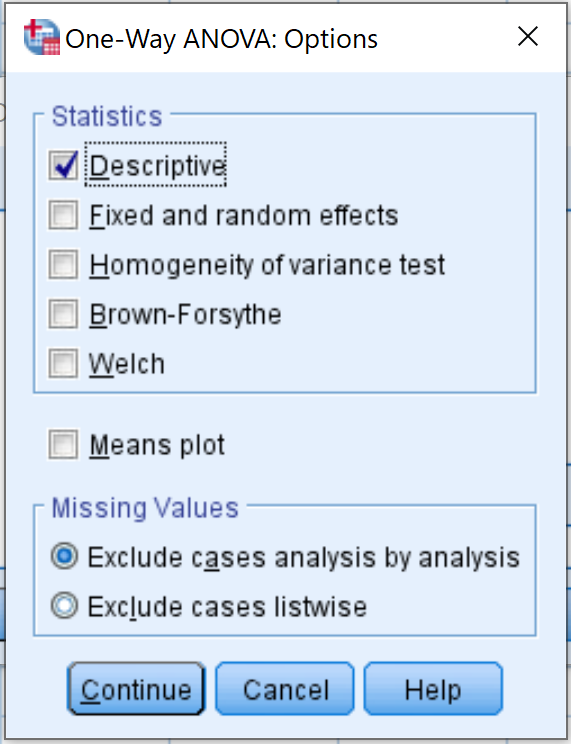

Finally, click the Options button. It is essential to generate descriptive statistics alongside the main ANOVA table for complete reporting. Check the box next to Descriptive. Researchers often also check for homogeneity of variance here, but for this demonstration, we focus on the core output. Click Continue and then click OK in the main One-Way ANOVA dialogue box to execute the analysis and display the results in the SPSS Output Viewer.

Step 3: Interpreting the Statistical Output

The SPSS output provides several critical tables necessary for a thorough interpretation of the results. We must systematically examine the descriptive statistics, the main ANOVA table, and the Tukey post-hoc multiple comparisons table.

Descriptives Table Analysis

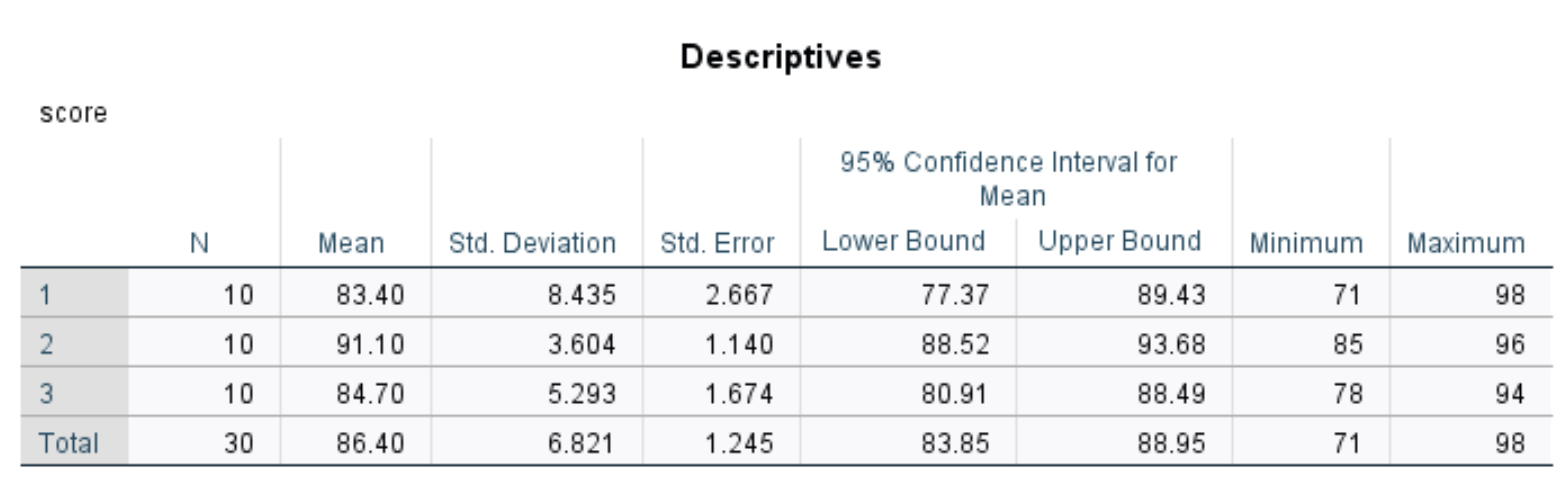

The first table provides detailed descriptive statistics for the test scores within each of the three studying technique groups. This table is indispensable for quantifying the differences observed visually in the boxplots.

Key metrics to focus on in this table include:

• N: This confirms the sample size for each group (in this case, N=10 for all groups, totaling 30 participants).
• Mean: This is the average test score achieved by students utilizing that specific technique. For instance, Technique 1 has a mean score of 81.30, while Technique 2 has a mean of 90.00.
• Std. Deviation: This measures the spread or variability of the scores around the mean for each group. Lower standard deviation indicates less variability and more consistency within the group’s performance.

ANOVA Table Interpretation

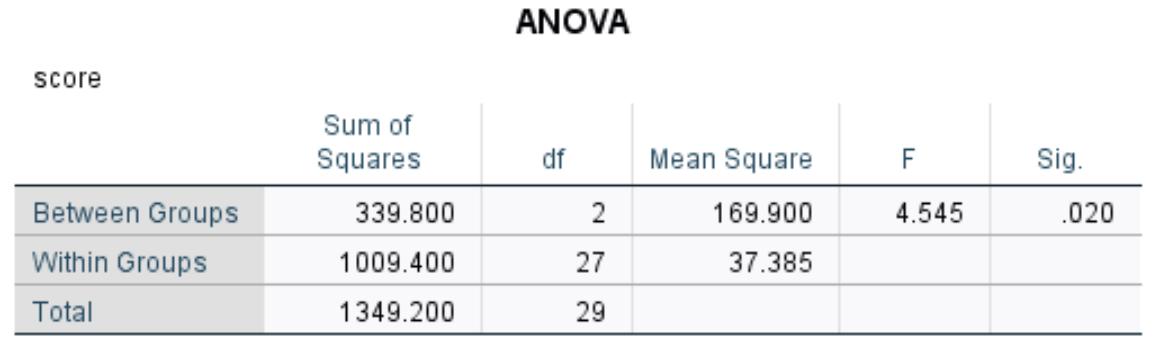

The central output for the one-way ANOVA test is presented in the ANOVA table. This table determines whether there is an overall significant difference among the group means.

The ANOVA test operates under the following set of hypotheses:

• H₀ (null hypothesis): μ₁ = μ₂ = μ₃ (All population means are equal; the studying technique has no effect).
• H_A (alternative hypothesis): At least one population mean is different from the rest (the studying technique does have a statistically significant effect).

The crucial values derived from the ANOVA table are:

• F: This is the calculated overall F-statistic (4.545), which represents the ratio of variance between groups to variance within groups.
• Sig. (Significance): This column contains the p-value corresponding to the calculated F-statistic, considering the degrees of freedom (df numerator = 2, df denominator = 27). In this specific example, the p-value is .020.

To make a decision, we compare the p-value (0.020) to the standard significance level (alpha = 0.05). Since 0.020 is less than 0.05, we possess sufficient evidence to reject the null hypothesis. This statistically confirms that there is a significant difference in average test scores between at least two of the studying technique groups.

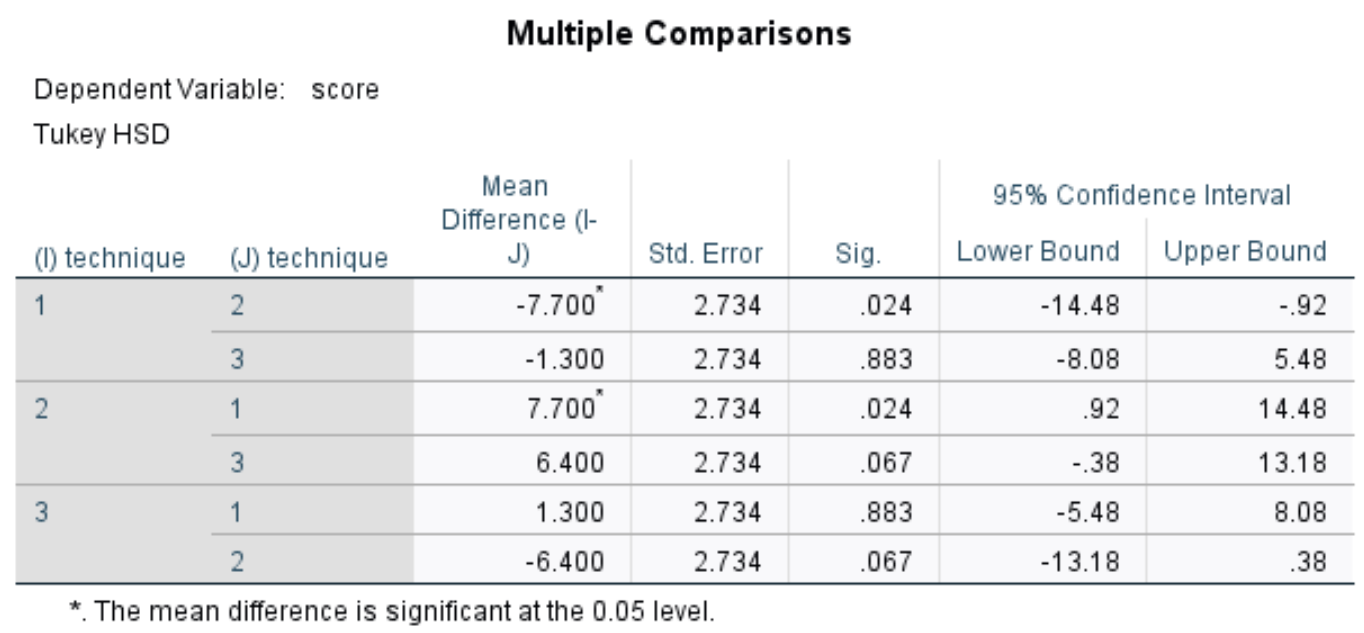

Multiple Comparisons (Post-Hoc) Table

Although the ANOVA test confirms an overall difference, it does not identify which specific pairs of groups are significantly different. For this detailed pairwise comparison, we turn to the Tukey post-hoc multiple comparisons table, which adjusts the significance level to control the family-wise error rate.

We analyze the Sig. column within this table, which displays the adjusted p-values for the difference in means between every possible pair of groups:

1. Technique 1 vs. Technique 2: The p-value is 0.024. Since 0.024 < 0.05, this comparison is statistically significant.
2. Technique 1 vs. Technique 3: The p-value is 0.883. Since 0.883 > 0.05, there is no significant difference.
3. Technique 2 vs. Technique 3: The p-value is 0.067. Since 0.067 > 0.05, there is no significant difference (though this result is borderline).

The post-hoc analysis clearly indicates that the only group comparison yielding a statistically significant difference in average test scores is between Technique 1 and Technique 2. Technique 2 proved significantly more effective than Technique 1, but neither Technique 1 nor Technique 2 differed significantly from Technique 3.

Step 4: Reporting the Final Results

The final stage of the analysis involves reporting the findings in a clear, standardized format, typically adhering to APA style guidelines. This ensures that readers can quickly understand the statistical procedure, the key results, and the corresponding conclusions. The report must include the descriptive statistics, the main ANOVA results (F-statistic, degrees of freedom, and p-value), and the outcome of the post-hoc tests.

When synthesizing the results, emphasize the relationship between the overall test outcome and the specific pairwise comparisons. For example, the rejection of the null hypothesis by the ANOVA is confirmed and detailed by the Tukey’s test, which isolates the significant difference to a single pair of groups.

Here is an exemplary structure for reporting the findings of this one-way ANOVA:

A one-way ANOVA was conducted to investigate whether three distinct studying techniques resulted in differing average test scores.

A total of 30 students, with 10 students randomly assigned to each of the three techniques, participated in the study over one month. Descriptive statistics showed mean scores of 81.30 (Technique 1), 90.00 (Technique 2), and 85.80 (Technique 3).

The one-way ANOVA revealed a statistically significant difference in test scores between at least two of the groups (F(2, 27) = 4.545, p = 0.020).

Subsequent Tukey’s test for multiple comparisons was performed to explore these differences. The analysis indicated that mean test scores were significantly higher for students using Technique 2 compared to those using Technique 1 (p = .024, 95% C.I. = [-14.48, -.92]).

However, no statistically significant difference was found between Technique 1 and Technique 3 (p = .883) or between Technique 2 and Technique 3 (p = .067). This suggests that while Technique 2 is superior to Technique 1, Technique 3’s performance is not reliably distinct from either of the other two methods at the 0.05 significance level.
