A Step-by-Step Guide to Performing a One-Way ANOVA on a TI-84 Calculator

The One-Way Analysis of Variance (ANOVA) is an indispensable statistical method used to evaluate whether there are statistically significant differences among the true population means of three or more independent groups. This technique is fundamental to experimental design, providing a robust framework for assessing the impact of a single categorical independent variable (often called the factor) on a continuous dependent variable. ANOVA achieves this by contrasting the variance observed between the various group means against the inherent variability found within the groups. The result is a single calculated F-statistic and its corresponding p-value, which collectively summarize the evidence for group mean differences. Mastering the execution of this complex test is critical for statistical literacy, and fortunately, the widely used TI-84 graphing calculator makes the computational process highly efficient and accessible.

This expert guide is designed to provide a precise, step-by-step walkthrough detailing how to successfully conduct a one-way ANOVA utilizing the powerful statistical functionalities embedded within the TI-84. We will employ a realistic case study to illustrate the complete analytical workflow, starting with the correct procedure for data entry into the calculator’s statistical lists and concluding with a clear explanation of how to interpret the resulting output metrics. By the end of this tutorial, you will be equipped to confidently apply this essential statistical test to your own quantitative datasets, ensuring you can draw accurate, data-driven conclusions from your experimental results.

Understanding the One-Way ANOVA Test

The primary objective of the one-way ANOVA is the testing of the null hypothesis ($H_0$), which posits that all population means across the groups under comparison are mathematically equal. If we denote the number of groups as $k$, the formal structure of the hypotheses remains consistent:

• $H_0$: $mu_1 = mu_2 = mu_3 = dots = mu_k$ (The population means of all groups are identical, implying that the independent variable has no measurable effect on the outcome.)
• $H_a$: At least one mean is different from the others (This asserts that the independent variable does exert a statistically significant difference on the dependent variable.)

A key advantage of ANOVA over conducting multiple individual t-tests is its ability to maintain control over the overall significance level ($alpha$). Using numerous pairwise t-tests significantly escalates the probability of committing a Type I error—the mistake of falsely rejecting a true null hypothesis. ANOVA avoids this inflation by systematically partitioning the total observed variance within the data into two distinct components. The first component is the variance explained by the differences between the group means (the treatment effect), and the second is the unexplained variance residing within the groups (the error).

This partitioning process culminates in the calculation of the F-statistic. This statistic is defined as the ratio of the Between-Group Mean Square (variance explained by the factor) to the Within-Group Mean Square (unexplained error variance). A substantially high F-statistic serves as strong evidence that the differences observed between the group means are too large to be merely attributed to random sampling error or chance. It is crucial, however, to ensure that your raw data adheres to the core assumptions of the ANOVA test before running the calculation. These assumptions include: 1) Independence of observations, 2) Approximate normal distribution of the dependent variable within each group, and 3) Homogeneity of variances, meaning the spread or variability of the data is roughly consistent across all groups. While the TI-84 excels at computation, it cannot automatically verify these statistical prerequisites; manual verification is essential for drawing valid conclusions.

Case Study: Evaluating Study Techniques

To illustrate the practical application of the one-way ANOVA, let us consider a scenario involving educational research. A team is interested in determining if three separate studying techniques—Technique A, Technique B, and Technique C—have differential impacts on student achievement. The study design involves recruiting 30 undergraduate students, who are then randomly and equally assigned to one of the three techniques, resulting in 10 students per group. Participants rigorously apply their assigned technique for a full month in preparation for a unified, standardized final examination.

The resultant score on this final exam serves as our continuous dependent variable, while the specific studying technique used represents the categorical independent variable (the factor). The primary statistical inquiry is whether the average exam scores are statistically equivalent across all three groups. If our subsequent analysis supports the null hypothesis, it suggests that any minor differences in average performance are simply products of random variability among the students. Conversely, rejecting the null hypothesis would provide compelling evidence that at least one study technique is significantly more or less effective than the others, offering direct, data-driven insight for educational recommendations.

The subsequent steps will detail the procedure for executing the one-way ANOVA on the TI-84 calculator using the data derived from this experiment. This calculation is the definitive method for determining whether the chosen studying technique is a significant predictor of variation in exam performance. We will utilize the calculator lists L1, L2, and L3 to store the scores corresponding to Technique A, Technique B, and Technique C, respectively.

Step 1: Data Entry and Preparation on the TI-84

The foundation of any accurate statistical calculation on the TI-84 is the precise input of raw data. For the one-way ANOVA, it is mandatory to allocate a distinct statistical list for the data associated with each independent group being compared. In our study technique example, the scores for Technique A will be stored in L1, Technique B scores in L2, and Technique C scores in L3.

Initiate the data entry process by pressing the Stat button, which grants access to the calculator’s core statistical suite. Immediately select the EDIT function (Option 1) to navigate to the list editor interface. If the lists L1, L2, or L3 contain residual data from prior calculations, it is imperative to clear them first to prevent calculation errors. To clear a list, scroll up using the arrow keys until the list name (e.g., L1) is highlighted, press Clear, and then finalize the action by pressing Enter. Once all lists are pristine, proceed to input the observed exam scores sequentially for Technique A into L1, Technique B into L2, and Technique C into L3.

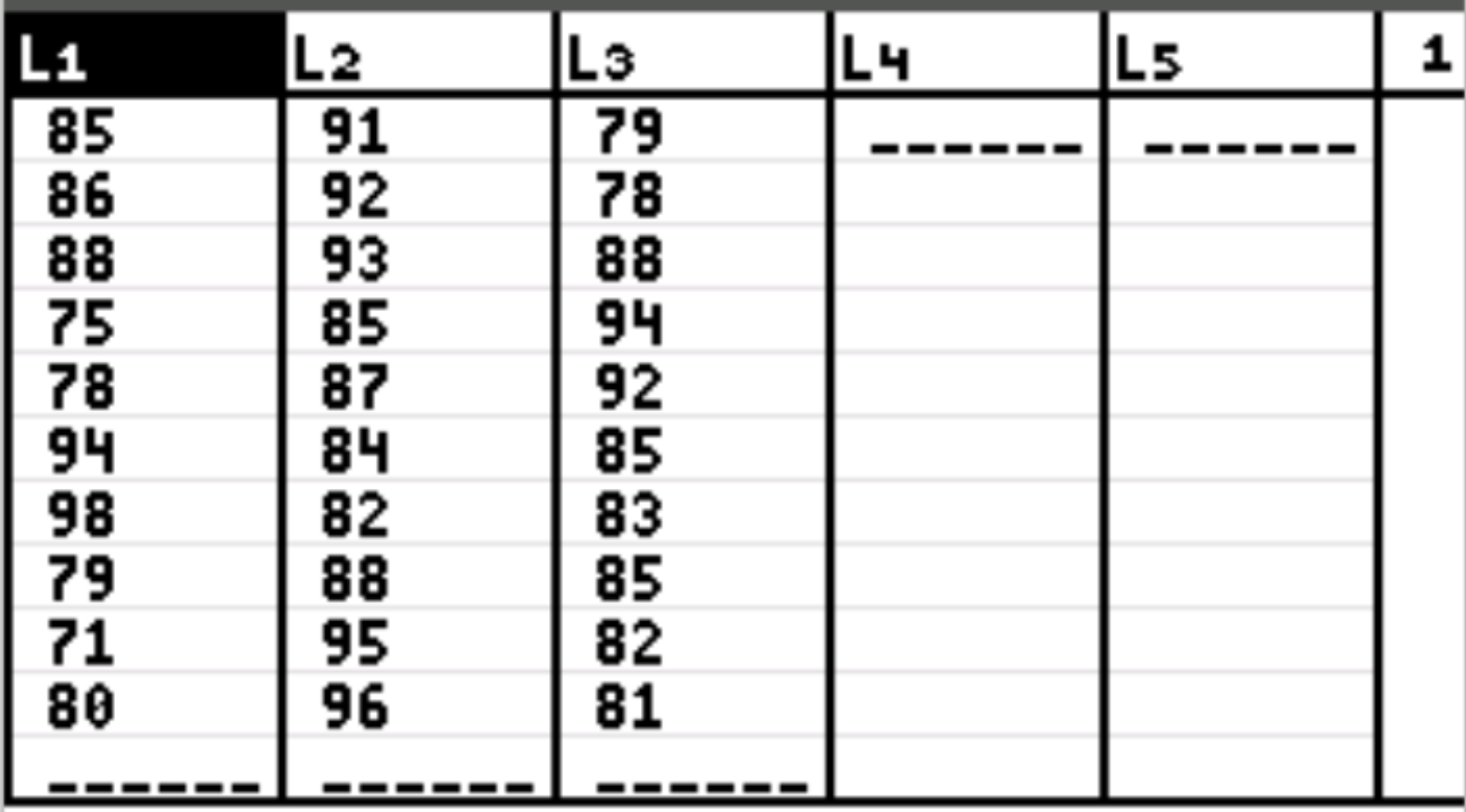

The following visual representation confirms the correct structure and placement of the sample data across the three required statistical lists:

A diligent verification process is highly recommended following data input, as the statistical outcome is entirely dependent on the accuracy of these values. Confirm that each list holds the correct number of observations (N=10 per list in our case study) and that the values are correctly matched to their respective technique groups. Once this data preparation phase is complete, the calculator holds the necessary input vectors to proceed to the calculation phase.

Step 2: Executing the ANOVA Calculation

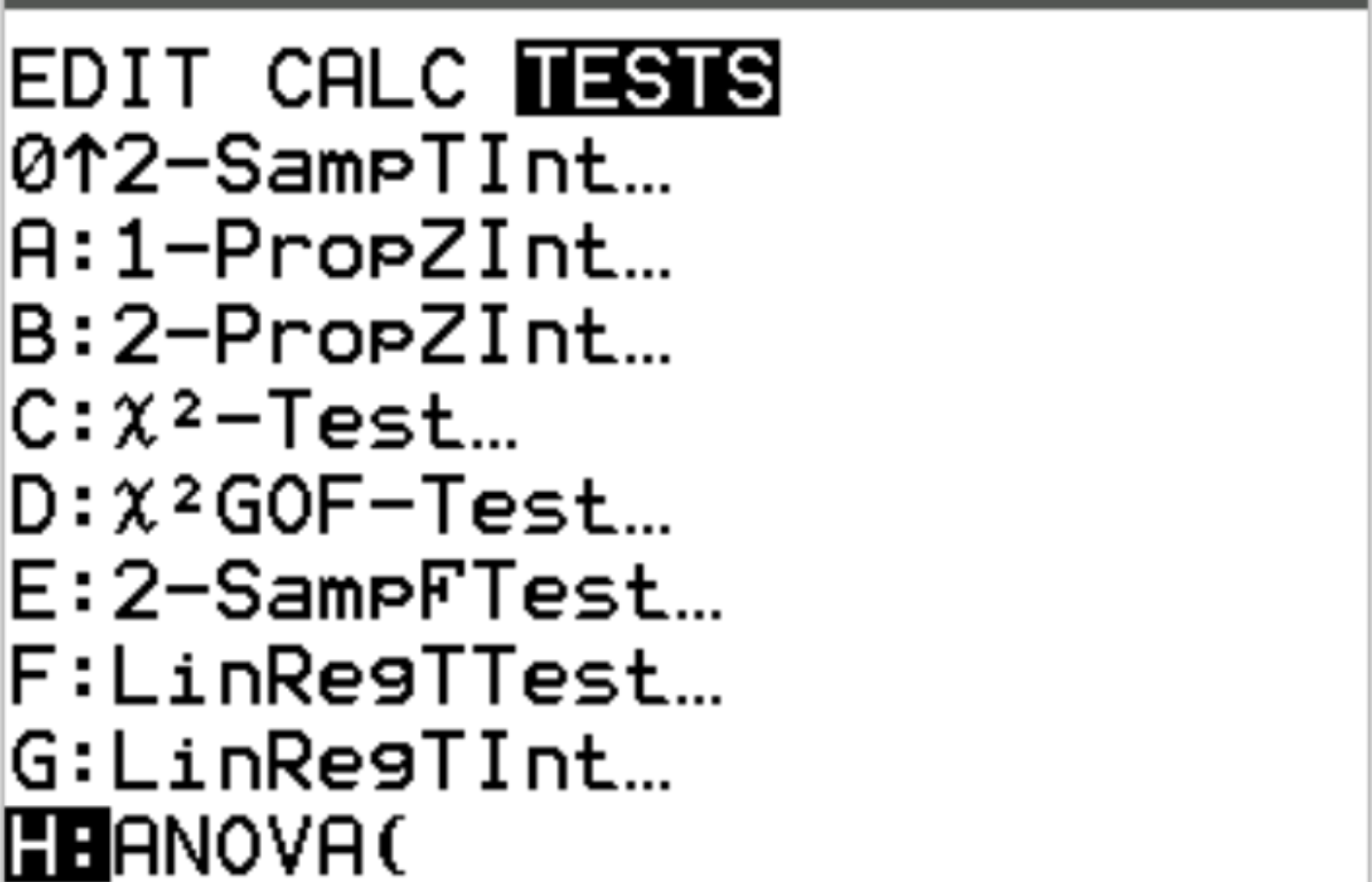

With the data meticulously organized and stored in lists L1, L2, and L3, the next phase is instructing the TI-84 calculator to run the one-way ANOVA test. The dedicated function for this test is housed within the calculator’s statistical testing menu. Follow these precise steps:

1. Press the Stat button again to access the main statistical menu.
2. Scroll horizontally to the right using the arrow keys until the TESTS menu is highlighted.
3. Navigate down through the comprehensive roster of statistical tests until you locate the ANOVA( function. This function is typically positioned lower down the list, frequently identified by the title ‘ANOVA’.
4. Press Enter to select the ANOVA function, bringing it to the home screen.

Once selected, the home screen will display ANOVA(, prompting the user to specify the data lists that are to be compared. The TI-84 requires that all list names be entered sequentially, separated by commas. In our three-group example, we must input L1, L2, and L3. To access these list names, utilize the secondary function keys above the number pad.

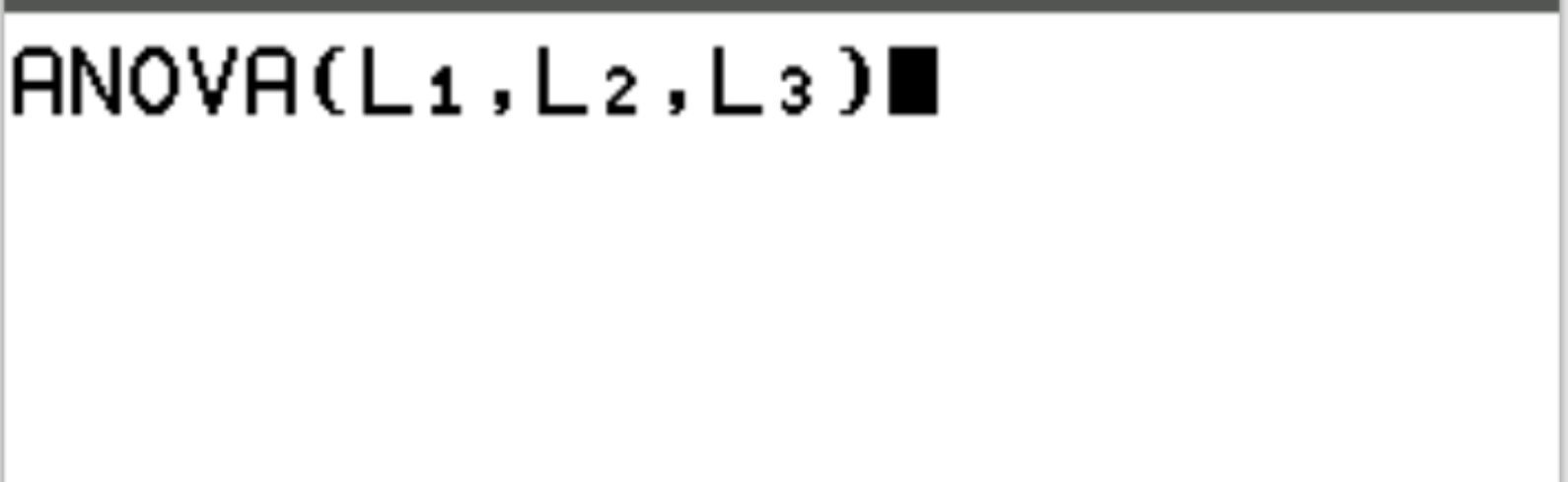

To finalize the input string: Press 2nd followed by 1 to generate L1; then press the comma key. Repeat this pattern: Press 2nd and 2 for L2, followed by the comma key. Conclude by pressing 2nd and 3 for L3. The following image demonstrates the correct input sequence on the calculator screen:

After verifying that the command reads exactly as ANOVA(L1, L2, L3) (ensure the closing parenthesis is present if not automatically provided), press Enter. The calculator will immediately process the stored data, executing the complex calculations involving the sums of squares, degrees of freedom, mean squares, and finally generating the critical F-statistic and the associated p-value. This action culminates in the display of the full statistical output screen, ready for expert interpretation.

Step 3: Interpreting the Statistical Output

The output screen generated by the TI-84 provides a concise summary of the ANOVA results, displaying the key metrics necessary for making a formal decision regarding the null hypothesis. A thorough understanding of each displayed metric is crucial for accurate interpretation of the findings. The primary outputs include:

• F: The calculated F-statistic, representing the ratio of variance between the groups to the variance within the groups.
• p: The critical p-value, which quantifies the probability of observing the current data (or data more extreme) assuming the null hypothesis is true.
• Factor df: The Degrees of Freedom (df) for the numerator (Between-Group variability), calculated as $k – 1$ (where $k$ is the number of groups).
• Error df: The Degrees of Freedom for the denominator (Within-Group variability), calculated as $N – k$ (where $N$ is the total sample size).
• MS Factor / MS Error: The Mean Squares (Variance estimates) for the Factor (Between groups) and the Error (Within groups), illustrating the relationship $F = frac{text{MS Factor}}{text{MS Error}}$.
• SS Factor / SS Error: The detailed Sums of Squares for the Factor and the Error components of the total variance.

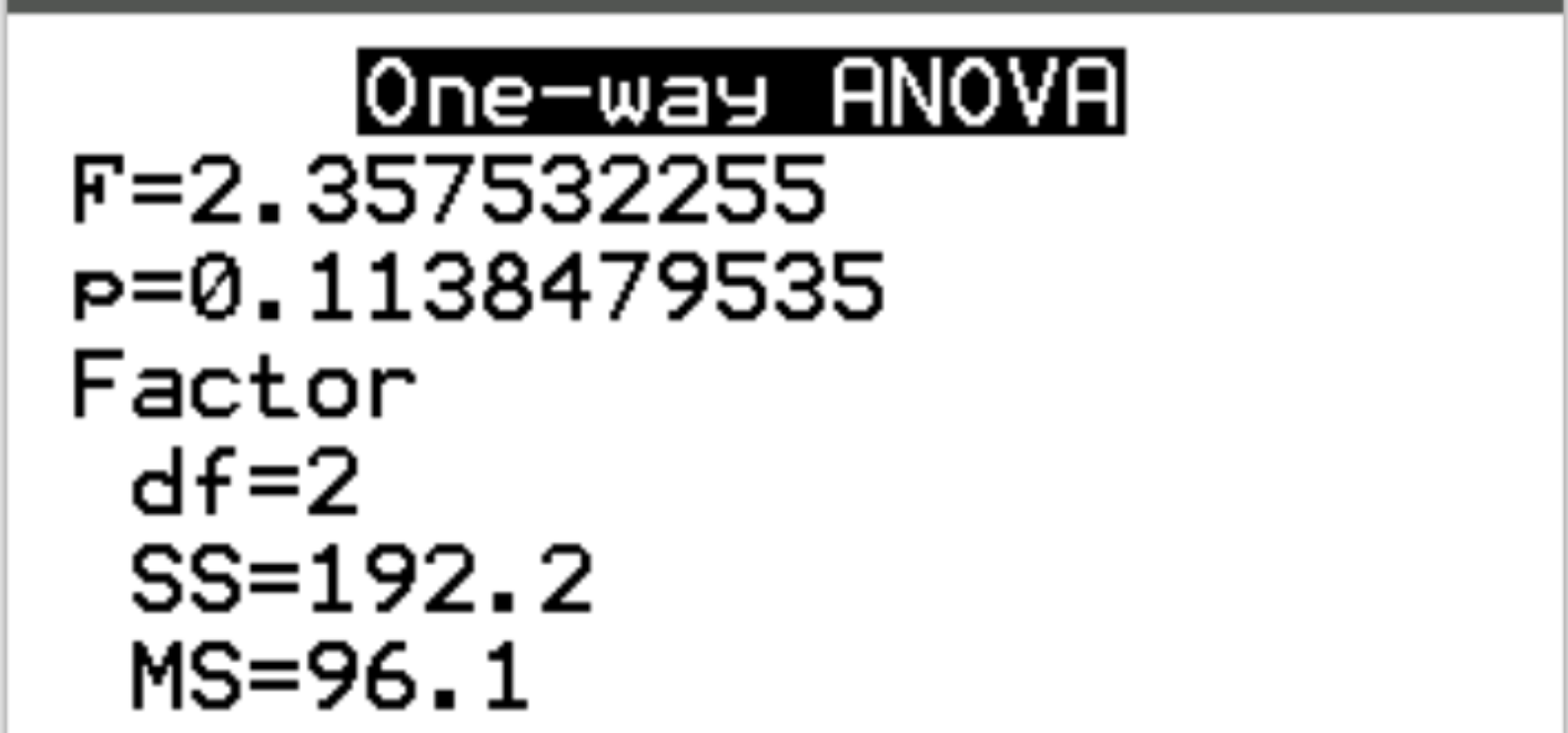

For our running example concerning the three study techniques, the results generated immediately after pressing Enter will appear similar to the following screen:

The most critical metric here is the calculated p-value, as it dictates the outcome of the hypothesis testing procedure. This p-value must be compared against a pre-established significance level, conventionally set at $alpha = 0.05$. The universally accepted decision rule is straightforward: if the p-value is less than $alpha$ (p < 0.05), the researcher rejects the null hypothesis ($H_0$); conversely, if the p-value is greater than or equal to $alpha$ (p $ge$ 0.05), we conclude that we lack sufficient evidence and thus fail to reject the null hypothesis. In this specific scenario, the displayed p-value is approximately 0.771. Since 0.771 is significantly larger than the threshold of 0.05, it strongly suggests that the observed minor differences in average exam scores are highly likely to have occurred purely by random chance, even if all studying techniques were equally effective in reality.

Drawing Conclusions and Practical Implications

Based on the computed p-value of approximately 0.771, which far exceeds the standard significance threshold ($alpha = 0.05$), the definitive statistical action is to fail to reject the null hypothesis ($H_0$). This finding carries a specific statistical weight: the collected data does not contain enough evidence to confidently assert that a statistically significant difference exists among the true population means of the three distinct study technique groups.

From a practical perspective within the context of educational policy, this non-significant result implies that we cannot confidently recommend one technique (A, B, or C) as statistically superior to the others based on the exam scores obtained in this study. The variation in the average scores observed across the techniques is small enough that it can be reasonably attributed to inherent individual student differences or random sampling fluctuation, rather than being caused by a genuine, measurable effect of the specific studying method. Therefore, the choice of studying technique, according to this analysis, does not significantly influence final exam performance.

It is paramount to accurately phrase this conclusion: failing to reject the null hypothesis is not the same as concluding that the null hypothesis is definitively true (accepting it). It merely signifies that the alternative hypothesis lacks adequate statistical support from the current dataset. Had the ANOVA test yielded a significant outcome (p < 0.05), the logical next analytical step would have been the application of post-hoc tests (such as the Bonferroni correction or Tukey’s Honestly Significant Difference, HSD) to pinpoint exactly which specific pairs of groups demonstrated significant mean differences. Given the non-significant outcome here, such detailed pairwise comparisons are not statistically warranted.
