Two-Way ANOVA in Excel: A Beginner’s Guide to Statistical Analysis

The Analysis of Variance (ANOVA) stands as a cornerstone in inferential statistics, providing a robust methodology for determining whether observed differences between the means of multiple independent groups achieve a level of statistically significant difference. While the simplest form of ANOVA handles a single factor, advanced research often requires evaluating the simultaneous impact of multiple variables. This is where the Two-Way ANOVA becomes indispensable.

A Two-Way ANOVA is specifically designed for scenarios where experimental subjects or observations are classified based on two distinct, categorical independent variables (factors). Its primary utility lies in its ability to simultaneously test three crucial hypotheses: the independent effect of Factor A, the independent effect of Factor B, and, most importantly, the synergistic or counteractive influence known as the interaction effect between the two factors.

This comprehensive guide details the precise methodology required to execute a statistically sound Two-Way ANOVA using the accessible, built-in capabilities of Microsoft Excel. We will navigate the process from structuring raw data correctly for Excel’s calculation engine to utilizing the specialized Analysis ToolPak, culminating in a detailed explanation of how to interpret the resulting complex statistical output.

The Foundational Principles of Two-Way ANOVA

Understanding the structure of the Two-Way ANOVA is critical before attempting the analysis. Unlike a One-Way ANOVA, which focuses solely on the influence of one categorical independent variable (IV) on a continuous dependent variable (DV), the Two-Way design incorporates a second categorical IV. This allows researchers to model complex relationships where the outcome might be jointly determined by two separate conditions.

This design is highly valued across diverse fields, including psychology, agricultural science, and manufacturing quality control, because it provides a more nuanced view of causality. For instance, studying the yield of a crop might require assessing both the type of fertilizer used (Factor A) and the irrigation schedule (Factor B). The dependent variable, crop yield, is expected to be continuous and normally distributed, fulfilling the test’s core assumptions.

The most compelling reason for employing a Two-Way ANOVA over performing two separate One-Way ANOVAs is the capacity to detect the interaction effect. An interaction occurs when the effect of one factor on the dependent variable changes depending on the level of the second factor. If Factor A’s influence is consistent regardless of the status of Factor B, the factors operate independently (no significant interaction). However, if their effects combine in a non-additive way—perhaps Factor A is only effective when Factor B is at a high level—a statistically significant interaction is present, offering deep, actionable insight into the mechanisms at play.

In the context of Excel, successfully performing this analysis requires meticulous data formatting and the activation of the statistical add-in. The interpretation phase revolves around comparing the calculated F-statistics and their associated p-values against a predetermined significance threshold, typically the alpha level of 0.05, for each of the three sources of variation: Factor A, Factor B, and the Interaction term (A x B).

Preparing Your Data Matrix for Excel Analysis

To demonstrate the practical application of the Two-Way ANOVA, we will continue with the example of a controlled botany experiment. The objective is to determine whether plant growth (measured by final height in inches—the continuous dependent variable) is significantly affected by two factors: Watering Frequency and Sunlight Exposure. These two factors constitute the independent variables.

The experimental design establishes specific levels for each factor:

• Factor A (Watering Frequency): Daily vs. Weekly (2 levels).
• Factor B (Sunlight Exposure): No Sunlight, Low Sunlight, or High Sunlight (3 levels).

This results in a 2 x 3 factorial design, yielding six unique treatment combinations. Critically, the experiment includes replication, meaning five distinct plants (observations) are grown under each of the six treatment combinations. This ensures sufficient statistical power for reliable hypothesis testing. After two months, the final height of all 30 plants is recorded.

For the Excel Data Analysis ToolPak to correctly process the Two-Way ANOVA, the raw data must be arranged in a specific, structured matrix format. This structure is non-negotiable and requires careful organization, where the levels of one factor define the rows and the levels of the second factor define the columns. The raw measurements are then entered into the cells corresponding to their treatment combination, ensuring all replications are grouped vertically under the appropriate column label.

The initial setup table below illustrates how Factor A (Watering Frequency) defines the rows, and Factor B (Sunlight Exposure) defines the columns. The raw height data is entered into the matrix accordingly:

A closer look at the arrangement confirms the requirement for replication. Under the combination of Daily Watering and No Sunlight, there are five separate height measurements. These five observations are necessary to calculate the within-group variance, which forms the denominator of the F-statistic. This robust design, featuring multiple data points per cell, dictates the specific ANOVA function we must select later in the process.

Once the data is accurately housed in this matrix format, including the necessary row and column labels, the next stage involves activating the statistical computation tools within Excel.

Activating and Selecting the Correct ToolPak Function

Unlike simple calculations like averages or standard deviations, performing a Two-Way ANOVA requires accessing Excel’s advanced statistical capabilities, which are bundled within the Data Analysis ToolPak add-in. If you have not previously utilized statistical routines in Excel, you must ensure this powerful tool is both installed and activated before proceeding with the analysis.

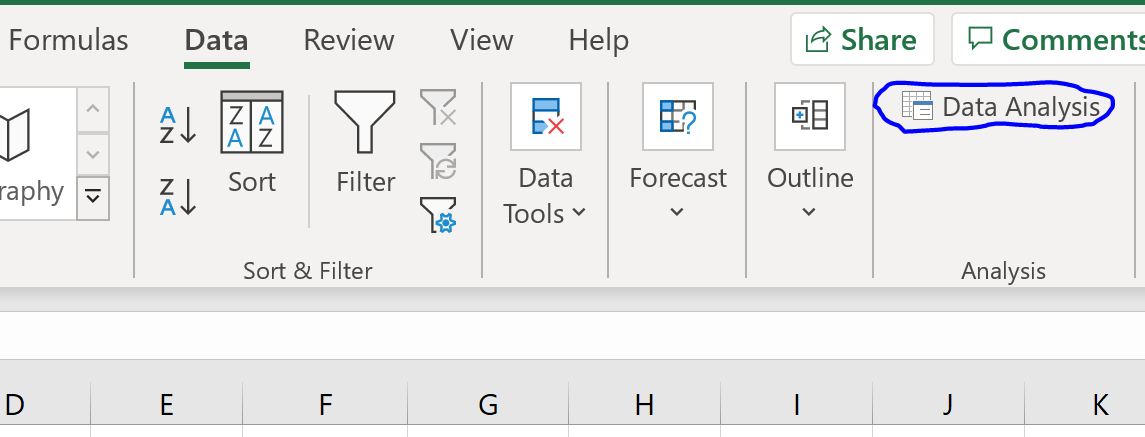

To initiate the analysis sequence, locate the main Excel ribbon and click on the Data tab. Once the Data tab is active, look for the Analysis group, typically positioned on the far right of the ribbon. Within this group, you will find and click the Data Analysis option.

If the Data Analysis button is missing from your ribbon, you must first install or activate the Data Analysis ToolPak via Excel’s Add-ins manager. This activation is a mandatory preliminary step for utilizing any of Excel’s complex statistical routines.

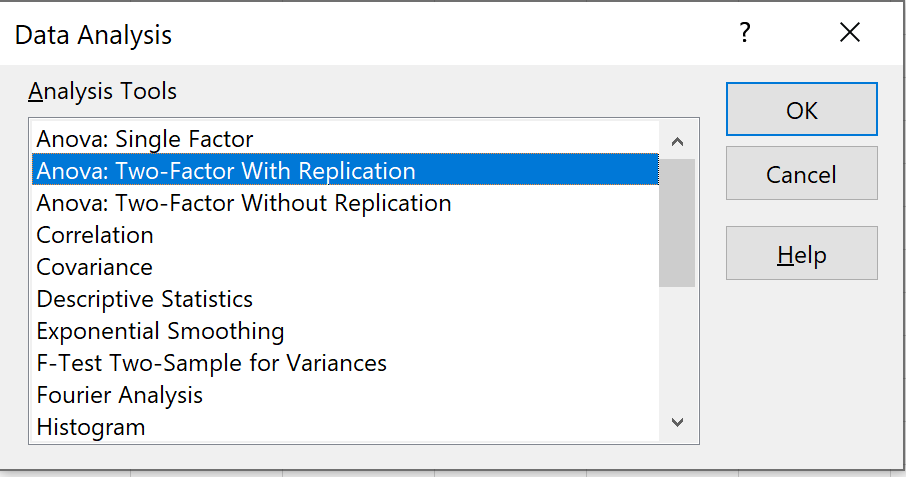

Upon clicking Data Analysis, a menu listing all available statistical procedures will appear. It is crucial here to select the function that matches our experimental design. Because our experiment features multiple observations (five plants) for every single combination of the two factors (Watering x Sunlight), we must select the option labeled: Anova: Two-Factor With Replication. After highlighting this specific selection, click OK to open the configuration dialog box.

The distinction between “With Replication” and “Without Replication” is vital for the validity of the results. “With Replication” confirms the presence of multiple data points within each cell of the matrix, allowing Excel to calculate the necessary variability components. Conversely, “Without Replication” is reserved for designs where only a single measurement is taken per treatment combination, a design that cannot test the interaction effect. Since our design is robust, including five replications per cell, we confidently proceed with the “With Replication” setting.

Defining Parameters and Executing the Analysis

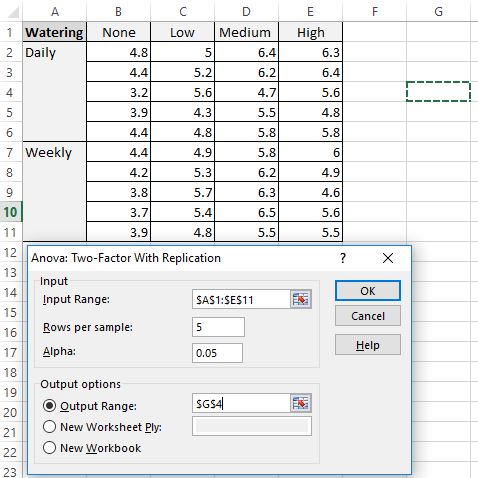

Once the correct ANOVA type has been selected, the parameter input dialog box requires precise definitions to ensure the analysis is run correctly. Every field must be populated accurately, often including the labels to ensure the final output tables are clear and understandable.

The first critical input is the Input Range. This range must encompass the entirety of the data matrix, including both the row labels (Daily, Weekly) and the column labels (No Sunlight, Low Sunlight, High Sunlight), along with all the numerical observations. For a standard setup, this might span from cell A1 down to D7. Including the labels is essential for identifying the results later, and skipping them will lead to calculation errors or confusing output.

Next, the Rows per sample field is perhaps the most crucial input, defining the exact number of replications within each treatment combination cell. Since we measured the height of 5 individual plants for every unique pairing of watering frequency and sunlight exposure, we must enter the number “5” here. A mistake in this number will fundamentally distort the calculation of variances and invalidate the resulting F-statistics and p-values.

The Alpha value, or significance level, establishes the threshold for statistical decision-making. This value represents the maximum risk we are willing to accept of erroneously rejecting a true null hypothesis (a Type I error). By statistical convention, and for this procedure, we set the alpha level at 0.05. If a p-value generated by the analysis is less than 0.05, we deem the effect statistically significant.

Finally, the Output Range defines where Excel should place the extensive statistical results. It is highly recommended to specify a starting cell (e.g., $G$4) that is far removed from the input data to prevent the new output tables from overwriting your raw measurements.

Once all parameters are confirmed and the input range is double-checked for accuracy, clicking OK prompts Excel to execute the complex calculations, instantly generating a series of detailed statistical tables in the designated output range.

Decoding and Interpreting the Statistical Output

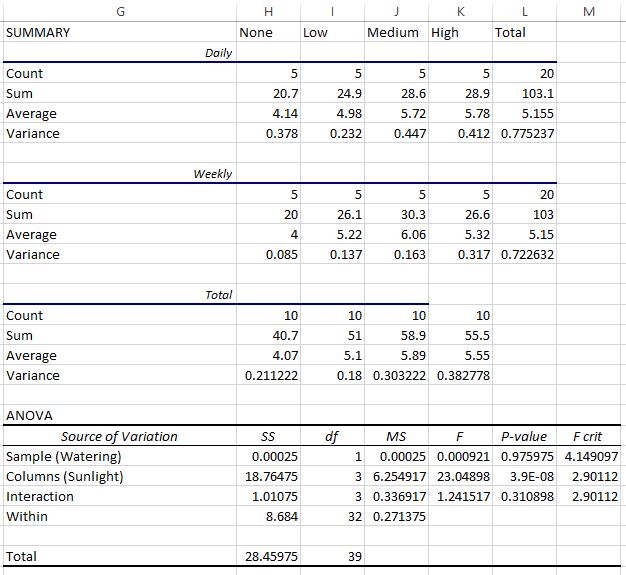

The output generated by the Analysis ToolPak is comprehensive, featuring multiple sections that guide the researcher toward a final conclusion. The output is typically divided into preliminary Summary Statistics and the indispensable core ANOVA table.

The initial tables present detailed Summary Statistics. These descriptive metrics—including the count of observations (n=5), the sum of measurements, the average (mean) height, and the variance—are provided for every factor level and for every unique treatment combination. These summaries offer crucial preliminary insights into the data trends. For instance, reviewing the output quickly reveals that plants subjected to the highest sunlight exposure, on average, achieved a height of 5.55 inches, suggesting a strong main effect for that factor before formal testing.

The summary data also helps visualize potential interaction effects. We observe that the overall average height for daily-watered plants (5.115 inches) is very similar to weekly-watered plants (5.15 inches). However, a deeper look at the cell means shows slight variations across sunlight levels, prompting the need for the formal statistical test to confirm if these differences are real or merely due to random chance.

Analyzing the Core ANOVA Table for Significance

The final and most critical table is the ANOVA output itself, which rigorously tests the three hypotheses. This table lists the Source of Variation, the Sum of Squares (SS), Degrees of Freedom (DF), the calculated F-statistic, the corresponding P-value, and the F-critical value. Our focus must be the comparison between the P-value and our established alpha level of 0.05.

We systematically examine the three primary sources of variation:

• Rows (Main Effect of Watering Frequency): This tests whether daily watering, across all sunlight levels, results in a significantly different height compared to weekly watering. The p-value reported for the row factor was 0.975975. Since this value is vastly greater than the 0.05 alpha level, we must retain the null hypothesis. We conclude that watering frequency, when considered independently, does not exert a statistically significant effect on plant height.
• Columns (Main Effect of Sunlight Exposure): This assesses whether the different levels of sunlight exposure, averaged across both watering frequencies, significantly influence plant growth. The p-value for sunlight exposure was reported as 3.9E-8 (or 0.000000039). Because this value is infinitesimally small (far less than 0.05), the effect is highly statistically significant. We confidently reject the null hypothesis and conclude that sunlight exposure has a powerful, reliable effect on plant height.
• Interaction (Watering x Sunlight): This pivotal test determines if the effect of watering frequency changes depending on the level of sunlight. The p-value for the interaction term was 0.310898. As this value significantly exceeds the 0.05 significance level, we conclude that the interaction effect is not statistically significant.

In conclusion, the Two-Way ANOVA analysis clearly demonstrates that sunlight exposure is the sole factor that yields a statistically significant effect on plant height. Crucially, the non-significant interaction effect confirms that the positive impact of increased sunlight is consistent, regardless of whether the plant is watered daily or weekly. This finding simplifies the interpretation: the two factors operate independently in determining the final plant height outcome.
