Learn Data Binning in Excel: A Step-by-Step Guide with Examples

Effective data analysis hinges on understanding the structure and distribution of numerical information. A fundamental technique for achieving this clarity is data binning, often referred to as data discretization or bucketing. This method involves partitioning a range of continuous numerical values into a smaller number of distinct “bins” or intervals. Instead of analyzing every single, raw data point, we consolidate their frequencies within these predefined ranges, a process that is essential for uncovering underlying patterns, trends, and structural characteristics that might otherwise be hidden in complex data.

The primary benefit of binning is the simplification of complex datasets, making them significantly more manageable and readily interpretable. This reduction in granularity helps minimize the influence of minor measurement errors or noise and serves as a critical preparatory step for sophisticated statistical analysis and various machine learning algorithms. By grouping data into meaningful, ordered categories, analysts gain a holistic perspective on the data’s overall shape, which is vital for robust modeling and informed, evidence-based decision-making.

This comprehensive guide provides a detailed, step-by-step walkthrough of how to execute data binning efficiently using the powerful features available in Microsoft Excel. We will utilize a practical, real-world example to clearly demonstrate each phase of the process, ensuring you acquire the necessary expertise to accurately apply this data transformation technique to your own organizational or research data.

Understanding Data Binning and Its Applications

Fundamentally, data binning is a systematic approach to converting continuous numerical variables into discrete, categorical intervals. Consider, for instance, a large compilation of sales transaction values; binning allows us to transform these individual amounts into useful ranges, such as “$0-$100,” “$101-$500,” and so forth. This essential transformation from continuous to categorical data provides several distinct advantages, greatly enhancing the ease with which we can extract actionable insights from large volumes of quantitative information.

A key application of binning lies in data visualization, particularly in the construction of histograms. A histogram serves as an effective graphical summary of a data distribution, where the entire data range is partitioned into bins (the x-axis intervals), and the height of each bar represents the frequency of data points contained within that specific bin. This visual summary provides an immediate understanding of the data’s central tendency, dispersion, and the presence of any statistical outliers or skewness.

Beyond visualization, the application of data binning offers significant methodological benefits. It is highly effective in managing and mitigating the undue influence of extreme outliers by incorporating them into broader categories, thus preventing them from disproportionately affecting certain statistical or predictive models. Moreover, binning often enhances the performance of machine learning models by reducing data noise and simplifying the underlying relationships between input features. Crucially, this technique facilitates communication, translating complex numerical ranges into intuitive categories that are easily grasped by stakeholders who may not possess a technical background.

Setting Up Your Data for Binning in Excel

To illustrate the practical mechanics of this procedure, we will adopt a common analytical scenario. Imagine we possess a dataset containing the total points scored by various professional basketball players over a recent season. Analyzing this raw, continuous performance data can be cumbersome and difficult to summarize without a structural aggregation method.

Our core objective is to systematically categorize these individual performance scores into discrete, meaningful groups, or “bins,” to accurately determine the frequency distribution of player performance. This transformation will allow us to rapidly ascertain how many players fall within specific scoring tiers (e.g., low, medium, or high scorers), offering a far clearer and more insightful overview than simply reviewing a lengthy list of raw numbers.

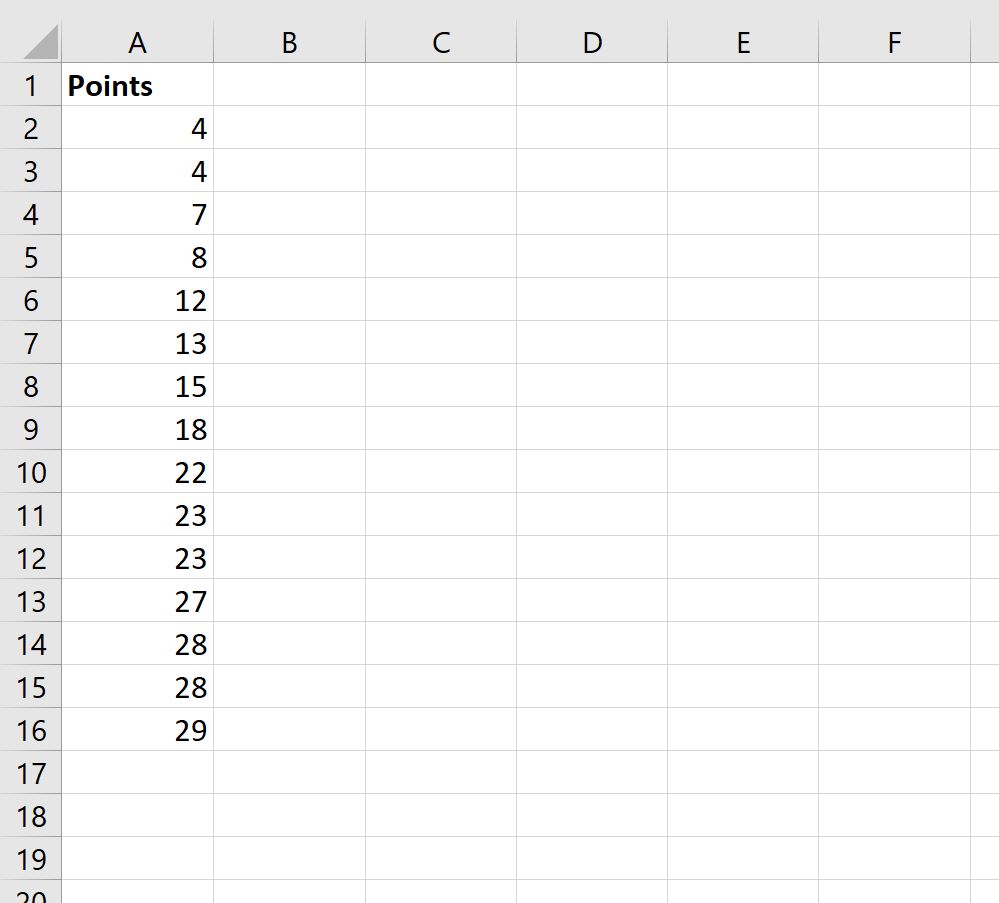

The image below presents our initial, raw dataset as structured within Microsoft Excel. The “Points Scored” column represents the input data that we will utilize as the source for our subsequent binning operations.

Defining Bin Ranges: The Foundation of Data Binning

Prior to executing the actual grouping process, it is mandatory to establish the precise boundaries for our bins. These boundaries are formally termed “bin ranges” or “bin upper limits,” and they dictate exactly how the continuous raw data will be segregated into categories. The selection of appropriate bin ranges is arguably the most critical step, as it directly influences the resulting frequency distribution and the statistical conclusions drawn from the analysis. For example, overly narrow bins can introduce excessive noise, whereas excessively wide bins can mask critical patterns within the data structure.

In the context of Microsoft Excel, these bin definitions are achieved by creating a separate column that explicitly lists the maximum value, or upper limit, for each desired interval. A data point will be counted in a specific bin if its value is less than or equal to the upper limit defined in that bin’s row, and greater than the upper limit of the preceding bin. For our basketball scores analysis, we will opt for bins of a uniform width to ensure straightforward and easily comparable performance categories.

The subsequent illustration demonstrates the implementation of the “Bin Upper Limit” column. This specifically defined column is indispensable, as it provides the necessary parameters for Excel’s Histogram analysis tool to correctly classify and aggregate the raw data points.

For the purpose of this demonstration, we have meticulously established the following distinct bin ranges, ensuring comprehensive coverage of the data:

• 0-5 points
• 6-10 points
• 11-15 points
• 16-20 points
• 21-25 points
• 26-30 points

These structured ranges guarantee that every recorded score falls precisely into one specific interval, thereby establishing a clear and unambiguous framework for our subsequent statistical examination.

Accessing Excel’s Data Analysis ToolPak for Histograms

With both the raw data and the bin ranges precisely defined, the next crucial phase involves activating Microsoft Excel‘s integrated statistical capabilities. The primary utility designed for executing data binning and automatically generating histograms is the specialized Data Analysis ToolPak. This powerful, comprehensive add-in provides a robust collection of tools tailored for statistical modeling and engineering analysis within the spreadsheet environment.

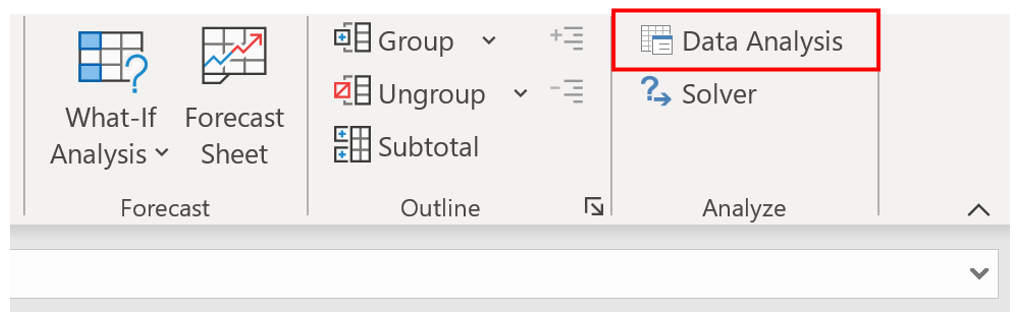

To initiate the Data Analysis ToolPak, navigate to the Data tab located in the main ribbon interface of Microsoft Excel. Within the far-right segment, typically labeled the Analyze group, you will locate and click the Data Analysis button. This action will promptly launch a selection dialog box that lists all the available statistical procedures.

Important Note: If the Data Analysis command is not readily visible under the Data tab, it signifies that the Analysis ToolPak add-in has not yet been activated. To enable it, follow these steps: go to File > Options > Add-ins. From the “Manage” dropdown menu at the bottom, select “Excel Add-ins” and click Go…. Finally, ensure the box labeled “Analysis ToolPak” is checked, and click OK. The Data Analysis button should then appear immediately in the Data ribbon.

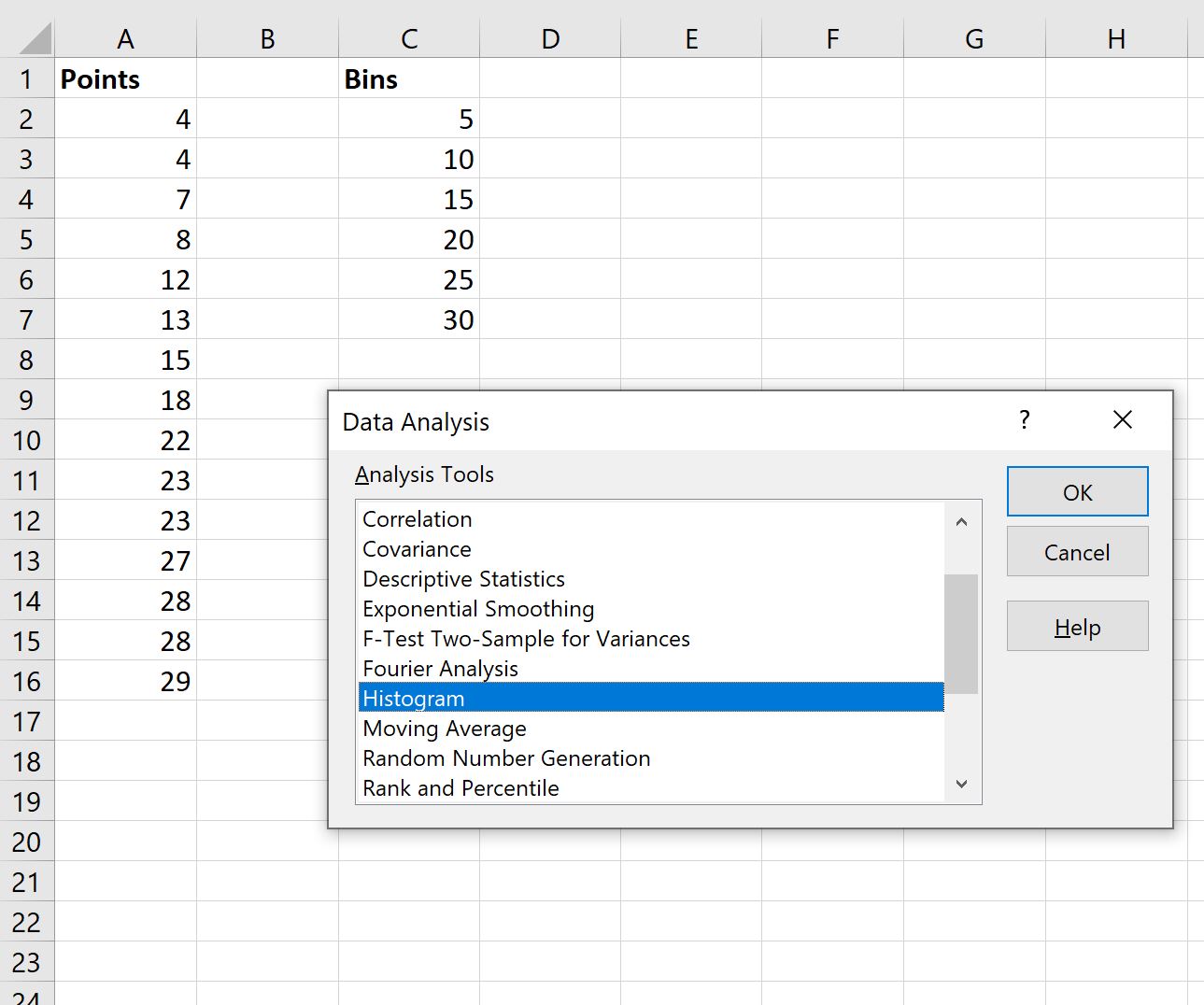

Once the “Data Analysis” window is open, scroll through the list of analysis tools and select the Histogram option. After making the selection, click OK to advance to the detailed Histogram dialog box, where we will configure the precise input and output parameters for the binning calculation.

Configuring the Histogram Tool for Accurate Binning

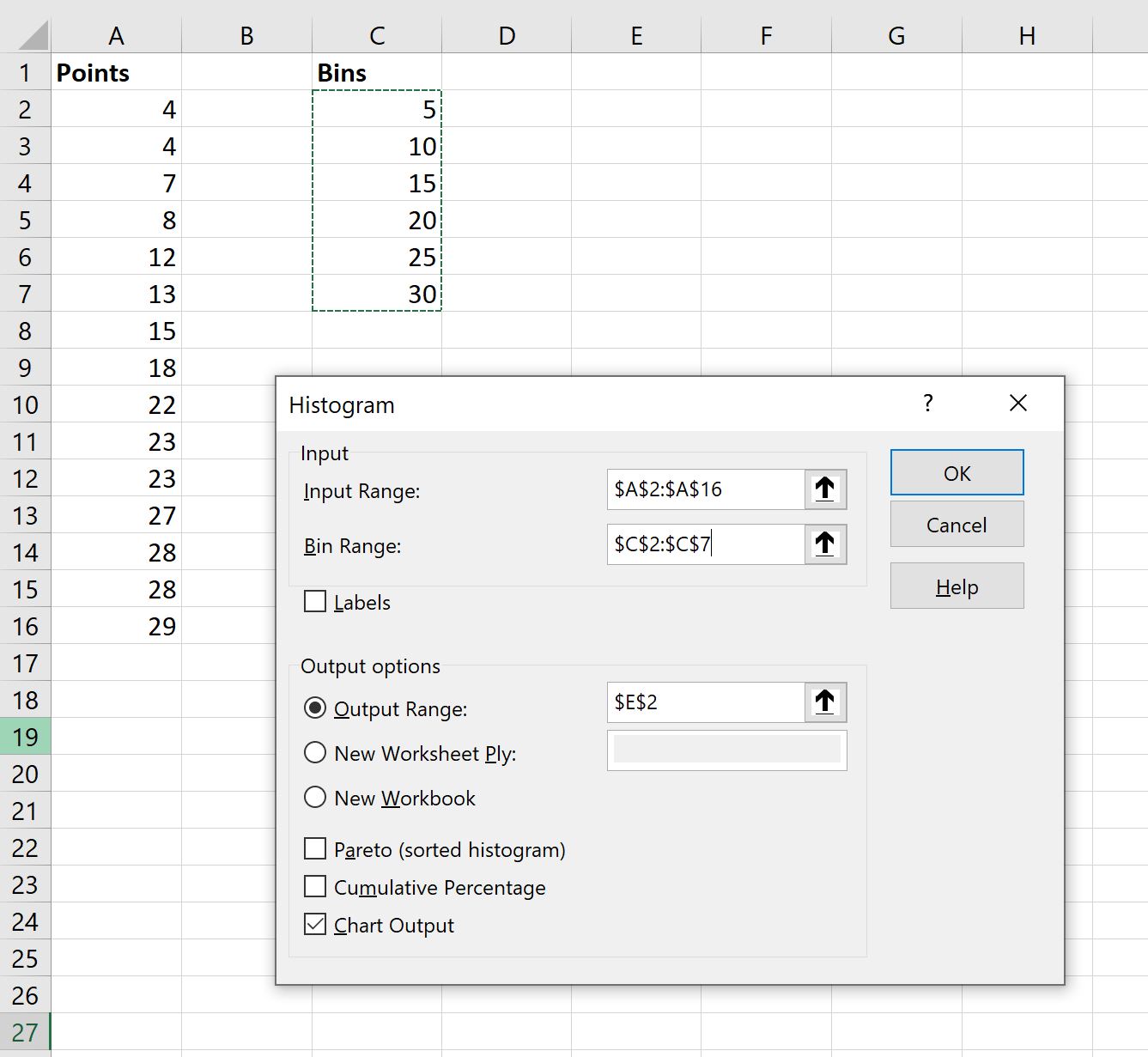

With the Histogram setup dialog now visible, it is time to meticulously define the necessary parameters for the data aggregation process. Every field in this configuration window plays a vital role in ensuring that Excel correctly processes your raw data and yields the precise frequency distribution required for interpretation.

• Input Range: This field demands the selection of the contiguous range of cells containing the core numerical data intended for binning. In our example, this corresponds to the raw points scored by the basketball players. It is crucial to select only the data values, excluding any header cell if it was included in the previous step. Specifically, we will input or select the range A2:A16.
• Bin Range: Here, you must select the range of cells that precisely define the upper limits of your bins. This refers to the auxiliary column we constructed earlier to set the categorical boundaries. Verify that this range accurately encompasses all your desired intervals. For this demonstration, we specify C2:C7.
• Output Options: This critical section controls the placement and format of the calculated results.
  • Output Range: Specify a single empty cell in your current worksheet (e.g., E2). Excel will use this cell as the starting point for the top-left corner of the resulting frequency table and chart.
  • New Worksheet Ply: Choosing this will automatically generate a brand new worksheet within the existing workbook dedicated solely to the output data.
  • New Workbook: Selecting this option will create an entirely separate Excel file to house the results.
• Chart Output: It is strongly recommended to activate this feature by checking the box labeled Chart Output. Doing so instructs Excel to automatically render a graphical chart alongside the numerical frequency table, providing an immediate and powerful visual representation of the binned data’s shape.

After carefully verifying that all input, bin, and output parameters have been accurately specified according to your analytical goals, click the OK button. Excel will then execute the complex aggregation calculation and present the finalized results in the location you designated.

Interpreting the Binned Data and Histogram Output

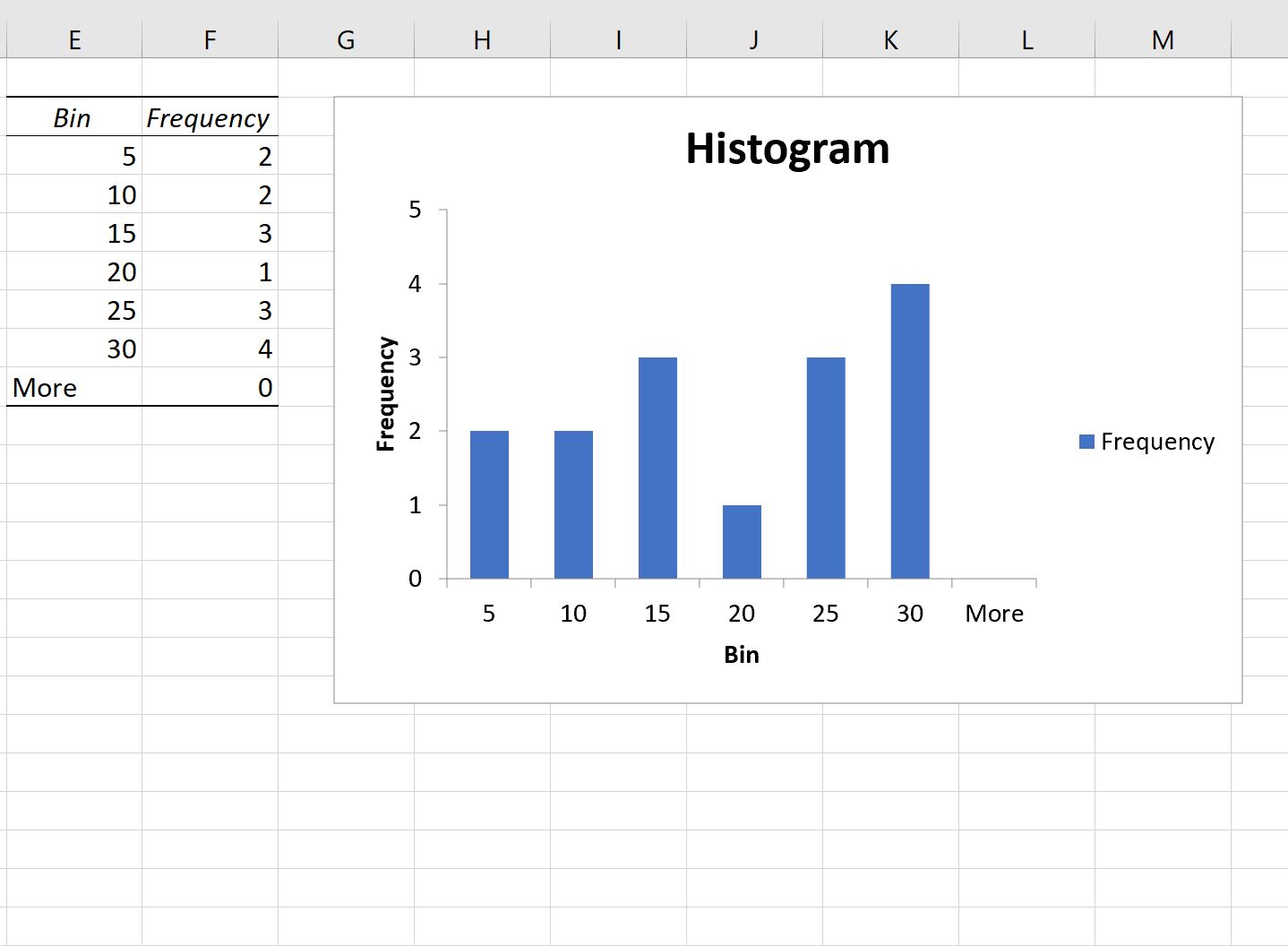

Once the process is complete, Excel generates two primary outputs: a structured frequency distribution table and, if selected, the corresponding statistical chart. This resulting output represents the successful culmination of our data transformation, offering an explicit summary of how the initial continuous numerical data is spread across the defined intervals.

The generated table typically features two columns: “Bin” and “Frequency.” The “Bin” column reiterates the upper limits of the intervals we defined, while the “Frequency” column displays the exact count (or number) of data points that were categorized within each respective bin. Importantly, a final row, usually titled “More,” serves to capture the count of any values that exceeded the upper limit of the largest bin established during the setup phase.

Based on this structured output, we can succinctly summarize the observed distribution of our basketball players’ scores:

• Exactly 2 player scores fall into the 0-5 points range.
• A total of 2 player scores fall into the 6-10 points range.
• 3 distinct values are contained within the 11-15 points range.
• Only 1 score falls into the 16-20 points range.
• There are 3 scores categorized within the 21-25 points range.
• The highest concentration is found in the 26-30 points range, containing 4 scores.
• The “More” category shows 0 values, confirming that no players scored above our highest defined bin of 30 points.

The accompanying visual representation, the chart, instantly reinforces these numerical counts. This graphical display is profoundly valuable for analysts, as it enables the swift identification of central tendencies, skewness, major peaks, and unexpected distributions within the dataset. The chart provides an intuitive mechanism for understanding where the majority of data points are concentrated and how widely they are dispersed across the entire range of potential values.

Flexibility in Bin Definition: While we intentionally utilized bins of equal width throughout this particular example for simplicity and ease of comparison, the Analysis ToolPak offers complete flexibility. Analysts are free to define bins with varying widths by simply adjusting the numerical values in the “Bin Range” input column. This adaptability is highly beneficial when analyzing data that exhibits non-uniform distributions or when specific, critical ranges require a more detailed, granular level of observation than others.

Conclusion and Further Exploration

Data binning, when executed within Excel using the robust Data Analysis ToolPak, stands as an exceptionally effective methodology for transforming raw, continuous numerical streams into a format that is both highly digestible and statistically interpretable. By systematically grouping values into discrete bins, analysts can accurately surface the underlying frequency distribution, quickly identify structural patterns, and effectively prepare their data for subsequent advanced statistical procedures or compelling data visualization. This indispensable technique is foundational for professionals dealing with quantitative data, spanning from academic researchers to highly specialized business intelligence analysts.

The procedure outlined is remarkably streamlined: prepare the raw data, precisely define the categorical bin ranges, correctly configure the Histogram tool parameters, and finally, interpret the resulting frequency table and accompanying chart. Achieving proficiency in this core data management skill will substantially improve your capability to comprehend and articulate critical insights derived from large datasets, ensuring that complex numerical information is translated into accessible and ultimately actionable intelligence.

We strongly advocate that readers engage in practical experimentation by manipulating different bin widths and ranges. Observe how these adjustments fundamentally alter the resulting histogram’s shape and the substantive insights you are able to extract. This critical hands-on practice is the quickest route to solidifying your theoretical understanding and achieving true proficiency in leveraging Excel for sophisticated and robust data analysis tasks.
