Learning Fuzzy Matching Techniques for Data Integration in Power BI

The Imperative for Fuzzy Matching in Data Integration

In the arena of sophisticated data modeling, analysts routinely encounter a significant hurdle: integrating datasets whose key identifiers do not align perfectly. This challenge frequently surfaces when attempting to combine tables using text-based fields or strings that carry minor inconsistencies. These variations might stem from typographical errors, inconsistent spacing, differences in abbreviation usage, or varied capitalization standards across source systems. Relying solely on a standard, exact match join in such scenarios inevitably leads to dropped rows and incomplete analyses, compromising the integrity of the final data model.

The essential technique engineered to resolve this issue—successfully joining tables despite these imperfections—is known as fuzzy matching. Rather than demanding absolute equality between two values, this method calculates the degree of similarity, allowing for matches that fall within an acceptable range of variation. This capability is paramount for dealing with real-world data, where perfect standardization is often an unachievable ideal.

Within the Microsoft Power BI ecosystem, the most efficient and powerful mechanism for performing these complex fuzzy matching operations is the built-in Merge Queries function. This functionality is readily available and highly configurable directly within the powerful data transformation environment: the Power Query Editor. By leveraging this feature, data professionals can bypass the cumbersome necessity of manual cleanup or writing complex custom data transformation scripts, thereby significantly accelerating the crucial data preparation phase.

This comprehensive guide provides a detailed, step-by-step practical demonstration, meticulously illustrating how to configure and execute this advanced capability to seamlessly integrate disparate data sources and ensure the robustness of your business intelligence reports.

Understanding the Mechanics of Fuzzy Matching

To truly appreciate the value of fuzzy matching, consider a common business intelligence scenario: combining operational metrics from two separate source systems. For example, System A might record sales transactions using the vendor name “Acme Corp,” while System B, tracking shipping costs, records the same entity as “Acme Corporation.” A rigid, exact match join would fail to link these records, falsely suggesting missing data. Fuzzy matching resolves this critical discrepancy by employing sophisticated algorithms to quantify the difference between two strings.

Instead of checking for perfect equality, the process calculates a similarity score based on metrics such as the Levenshtein distance (measuring the minimum number of single-character edits required to change one string into the other) or the Jaccard similarity (comparing the overlap of characters or words). If the calculated similarity score exceeds a defined Similarity threshold, the two non-identical strings are accepted as a match. This algorithmic approach is indispensable in various business intelligence applications, particularly when standardizing data sourced from external vendors, integrating legacy systems, or cleaning up unstructured, user-generated input.

By successfully implementing fuzzy matching, analysts can dramatically increase their data match rates, thereby ensuring that all relevant information is correctly incorporated into the final analytical model. This capability is not merely a convenience; it is a fundamental requirement for maintaining high data integrity and achieving genuinely accurate reporting outcomes. For the demonstration that follows, we simulate this common data discrepancy using basketball statistics, aiming to perform a relational inner join between two tables where the team name fields are deliberately inconsistent.

Case Study Setup: Preparing Disparate Datasets for Merging

To illustrate the power of fuzzy matching, our demonstration utilizes two distinct data tables, both imported into Power BI Desktop. These tables contain overlapping player identification information but possess the core challenge we seek to overcome: inconsistent formatting of the common key field, the team name.

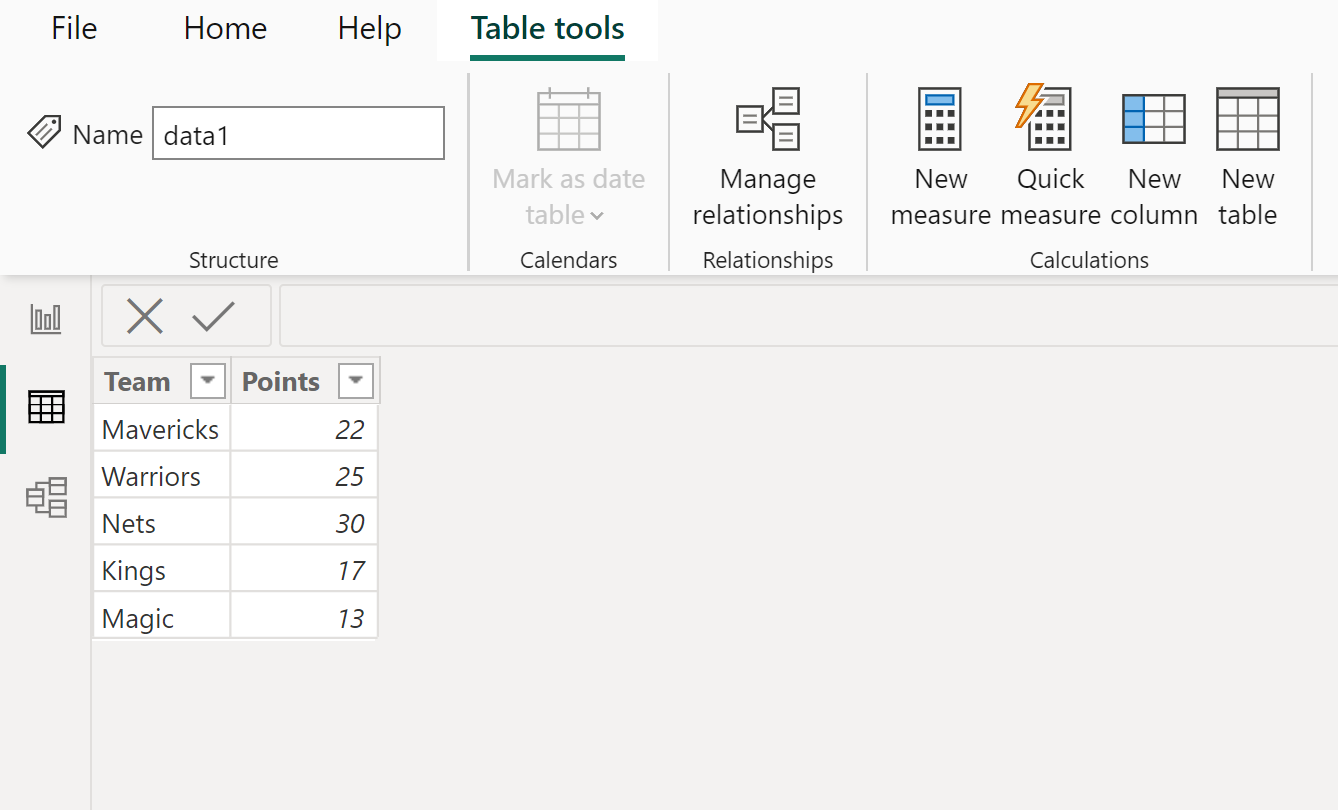

The first table, designated data1, records the team affiliation and the corresponding points scored by various players. It is crucial to examine the precise spelling and capitalization used for the team names in this initial dataset, as this will serve as our primary source table during the merge operation.

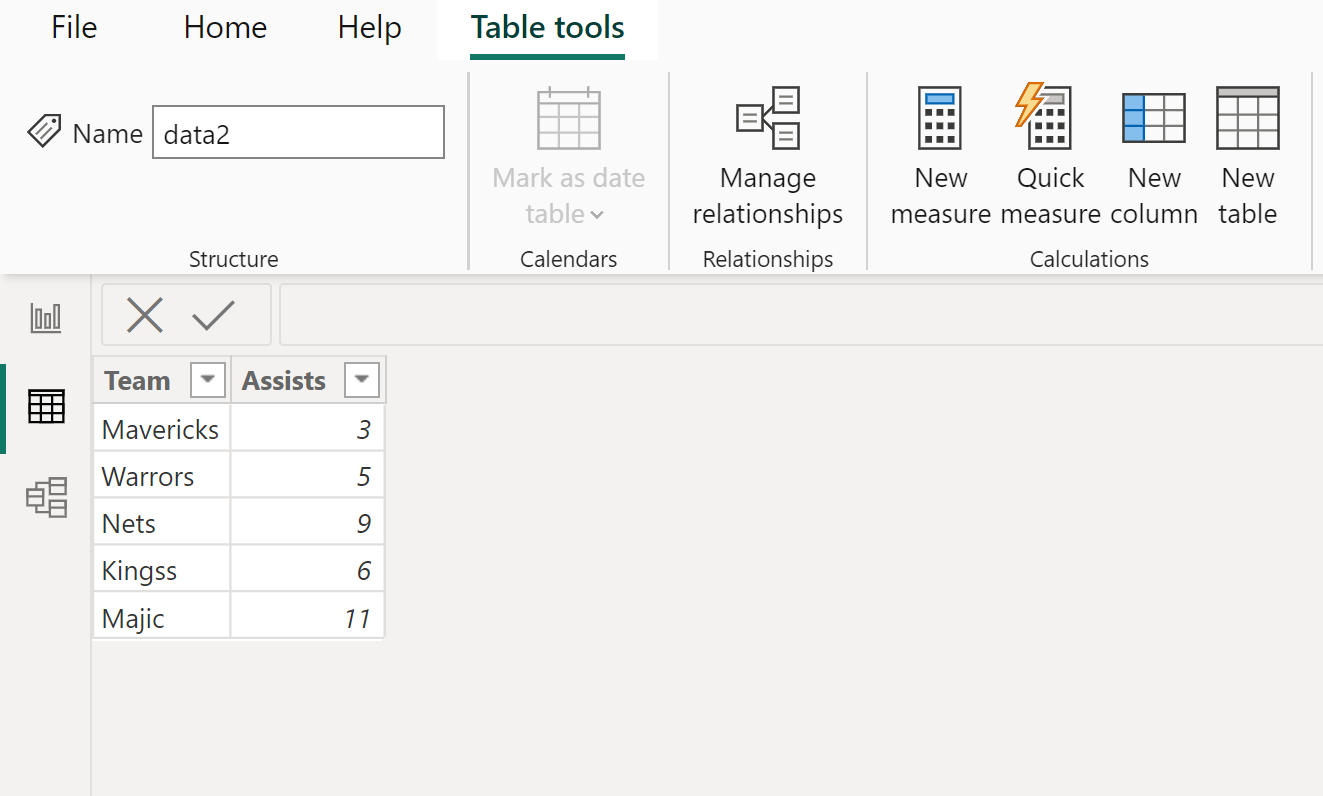

The second table, labeled data2, holds complementary statistics, specifically the team name and the number of assists recorded. Critically, observe the subtle yet significant variations in the spelling, spacing, and formatting of the team names within data2 when compared directly to data1. Examples include “Boston Celtics” versus “Celtics (BOS)” or “LA Lakers” versus “L.A. Lakers.” Were we to attempt a standard, non-fuzzy merge based on the Team column, the majority of rows would fail to match due to these minor discrepancies, resulting in substantial data loss.

Our objective is to execute an inner join between these two tables. Success is defined by the ability to accurately combine the Points from data1 and the Assists from data2 by correctly applying the logic of fuzzy matching to align the respective, non-exact Team columns.

Executing the Merge Operation via Power Query

The process of merging data, especially when utilizing advanced logic, necessitates access to the core transformation engine within Power BI Desktop: the Power Query Editor. All sophisticated data preparation and manipulation tasks are centralized within this specialized environment.

To initiate the transformation process, follow these sequential steps to access the editor:

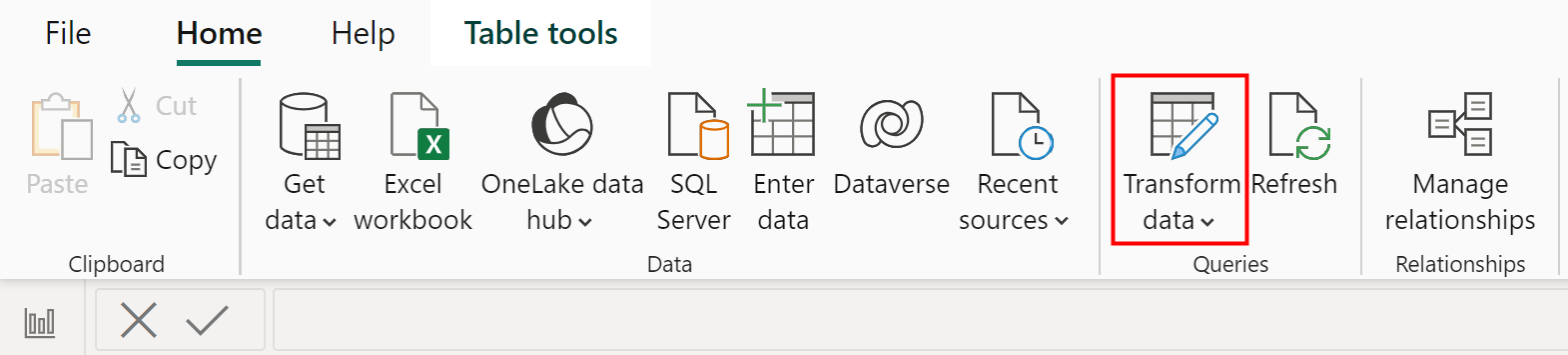

1. From the main Power BI Desktop application ribbon, navigate and select the Home tab.
2. Click the Transform data icon, which is typically situated within the External Data or Queries group.
3. Selecting this option launches the dedicated application window known as the Power Query Editor.

Once the editor is open, locate the Combine group on the Home tab. Within this group, the critical function is Merge Queries. For best practices in data governance, it is generally recommended to create a brand new merged table rather than modifying an existing, imported source table in place, thus preserving the original data lineage.

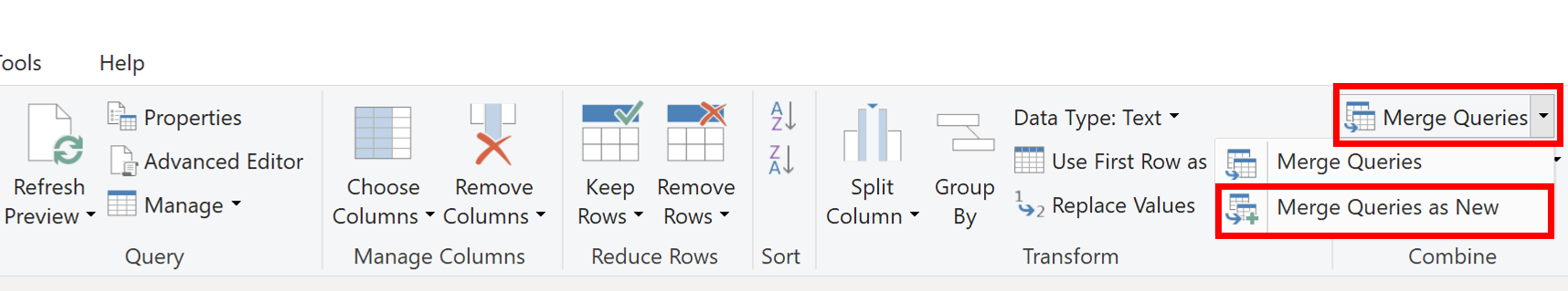

4. Click the Merge Queries icon.
5. From the resulting dropdown menu, select Merge Queries as New. This action triggers the configuration dialog box where we will define the type of join and the specific parameters required for the fuzzy logic.

Fine-Tuning the Fuzzy Logic Parameters

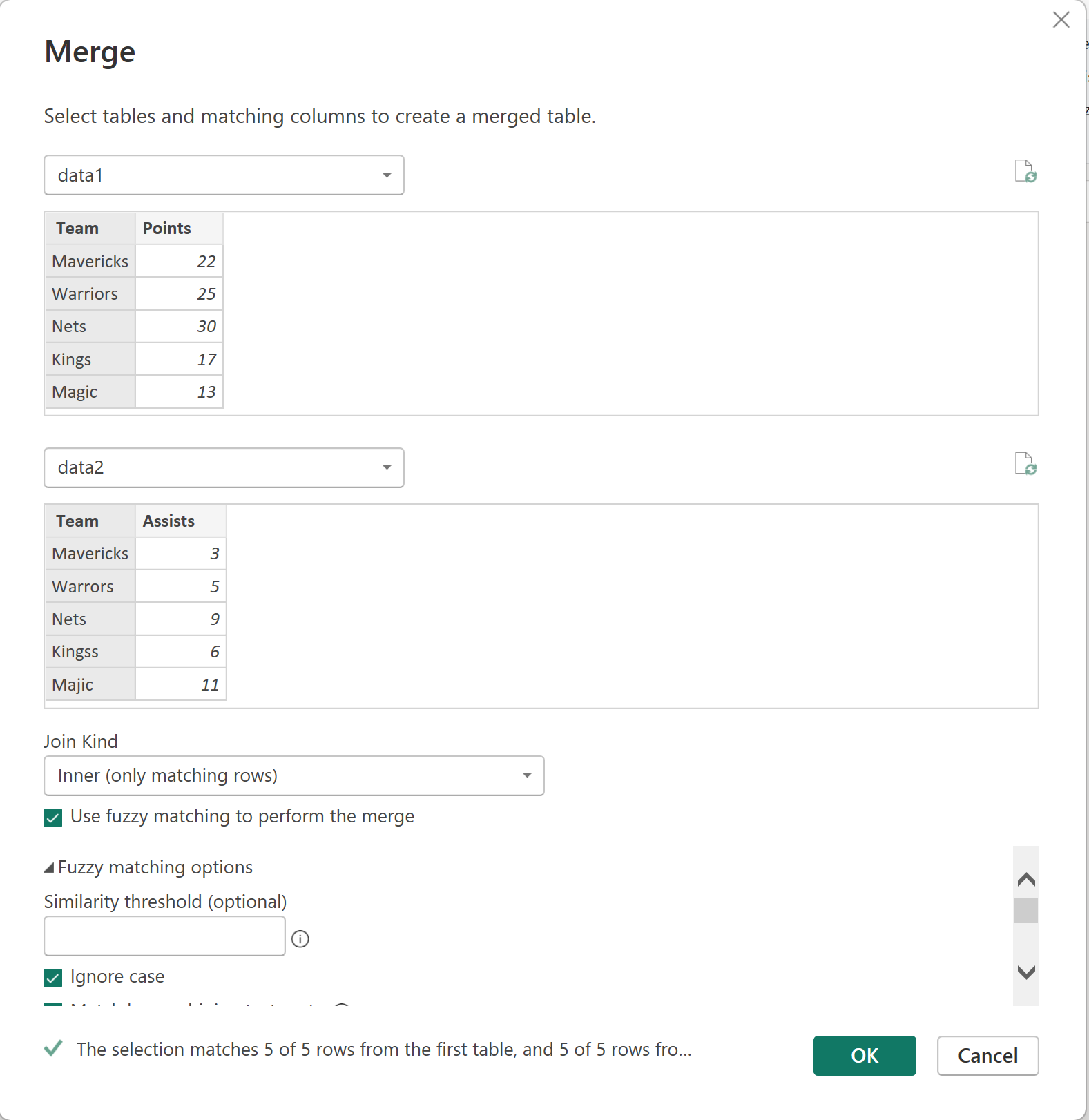

The subsequent Merge dialog box is the central point for defining the relationship between the two tables and, crucially, enabling and customizing the fuzzy matching algorithm. This configuration is essential for instructing Power Query Editor to identify and link non-exact strings as valid matches.

Careful execution of these steps within the dialog box ensures a successful merge:

1. Designate data1 as the primary table using the upper dropdown menu.
2. Select data2 as the secondary table to be merged into the primary table via the lower dropdown menu.
3. In both tables, click on the Team column header to establish it as the definitive join key. Although composite keys (multiple columns) are supported, the Team identifier is sufficient for this example.
4. Specify Inner as the Join Kind. An inner join ensures that the final result set only includes rows where a successful match (fuzzy or exact) exists in both data sources.

The most important action for activating non-exact matching is located at the bottom of the interface: selecting the checkbox labeled Use fuzzy matching to perform the merge.

Once fuzzy matching is enabled, a set of optional configuration parameters becomes accessible for fine-tuning the similarity calculation. The paramount setting among these is the Similarity threshold. This numerical value ranges from 0.0 (no similarity required) to 1.0 (an exact match required). Setting the threshold to 0.8 is the standard default, which is generally optimal for correcting minor typographical errors, spacing issues, and common text variations. For this specific case study, we will proceed with the default 0.8 threshold to clearly demonstrate its effectiveness in bridging the data discrepancies.

After all parameters are carefully selected and confirmed, clicking OK instructs the Power Query Editor to execute the merge operation, resulting in a new query (typically named Merge1) containing the preliminary combined data structure.

Expanding and Applying the Merged Data

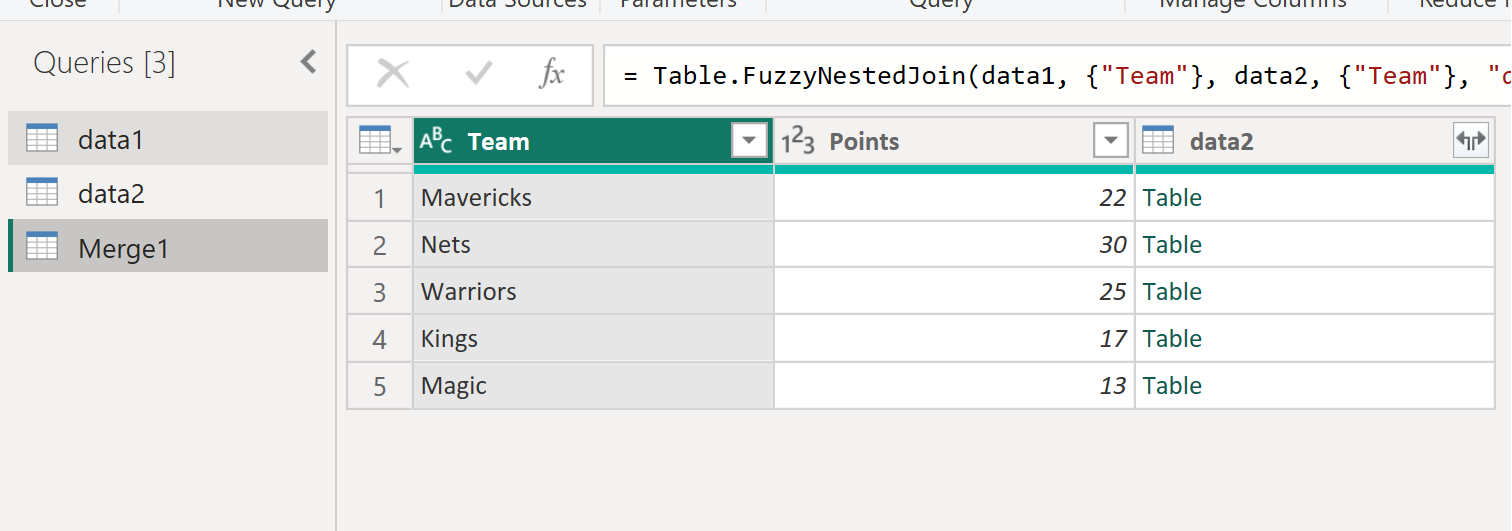

The immediate output of the merge operation includes all columns from the primary source (data1) alongside a single new column representing the secondary table (named data2). Crucially, this data2 column does not contain raw data but instead holds nested table values, corresponding to the linked rows found via the fuzzy matching process. To make the statistical data usable, we must expand this nested column into individual, discrete fields.

The following steps detail the necessary procedure to expand the table column and select the specific attributes required for the final dataset:

1. Click the column expansion icon (represented by opposing left and right arrows) located directly on the header of the data2 column.
2. In the expansion dialog box that appears, ensure you uncheck the box labeled Select All Columns to prevent the inclusion of unnecessary or redundant fields from the secondary table.
3. Check only the box adjacent to Assists, confirming that this is the sole column from data2 required for integration into the final merged table.
4. Click OK to execute the expansion.

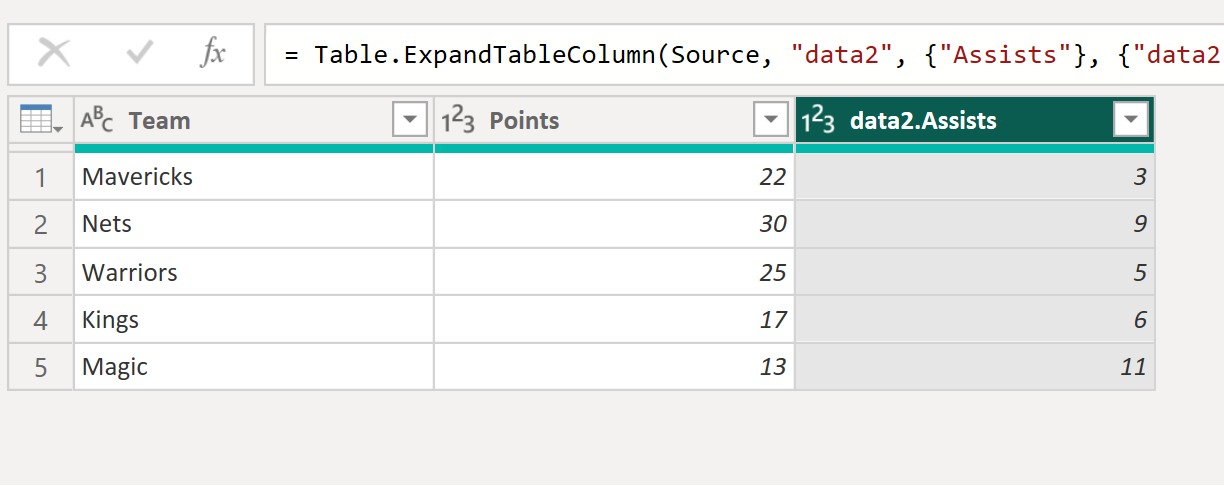

The Assists column is now perfectly integrated into the merged query, appearing seamlessly alongside the original data. This successful integration confirms the algorithm’s ability to accurately align the disparate team strings across the two source tables, validating the configured Similarity threshold.

Once all necessary data transformations and cleanup steps are complete within the Power Query Editor environment, the modifications must be committed back to the main Power BI Desktop model for reporting and visualization. To finalize this process, click Close & Apply on the Home tab of the editor. A confirmation dialogue will prompt you to apply the pending changes to the data model; selecting Yes completes the integration process, making the new merged table available for analysis.

Conclusion: The Value of Robust Data Integration

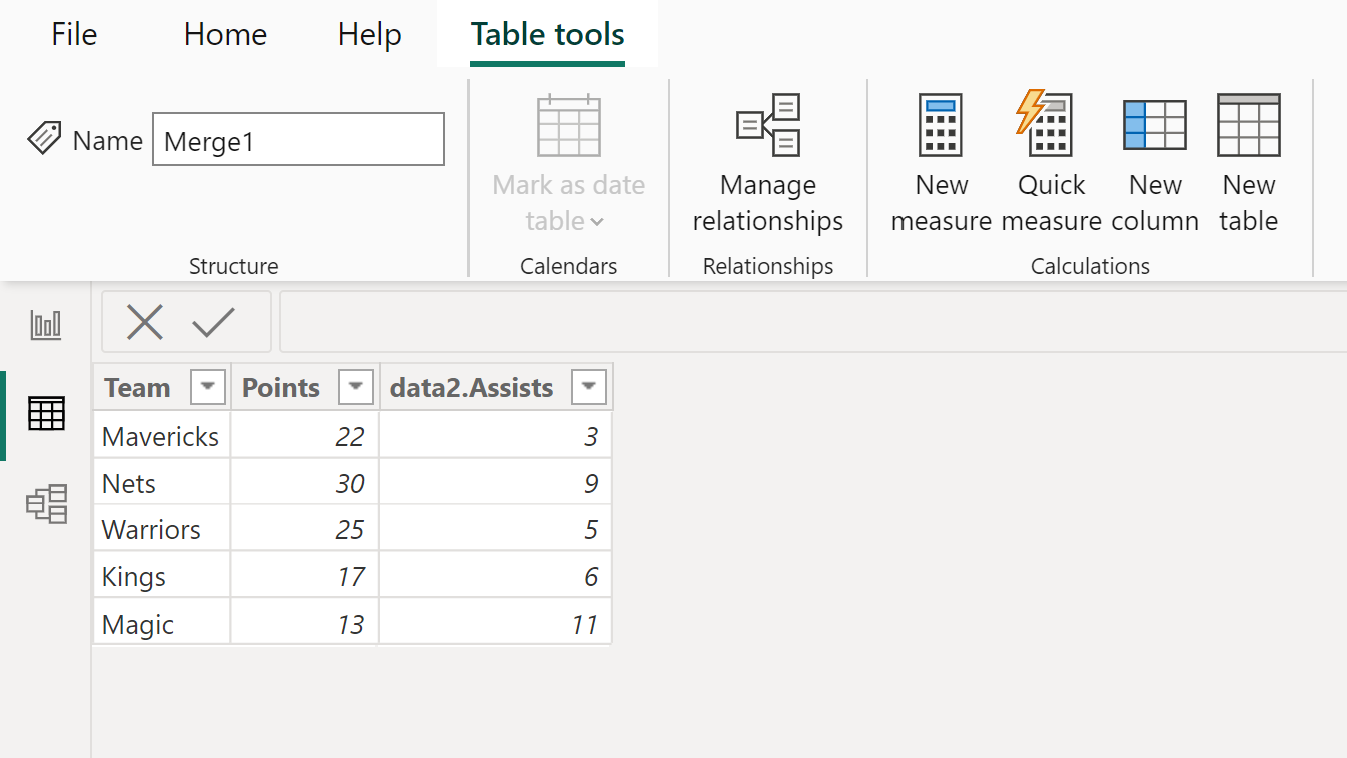

Following the application of the changes, the newly created table, Merge1, is readily accessible within the Table view of Power BI Desktop. This final combined dataset represents a successful integration, bringing together the Points data from data1 with the Assists data from data2, despite the fundamental inconsistencies present in the underlying text fields used for the join key.

The powerful utility of fuzzy matching is undeniable: it empowers data professionals to effectively reconcile minor data entry errors and structural inconsistencies, guaranteeing robust and complete dataset integration without the need for time-consuming manual preprocessing or complex custom conditional logic. This feature is an indispensable capability for analysts who routinely handle messy, real-world data sources where achieving perfect standardization across systems is typically impractical. It is worth noting that if the automatically generated column name data2.Assists is not desired, the column can be easily renamed to simply Assists by utilizing the column header options within the Power Query Editor before the final changes are applied.

Mastering fuzzy matching is a key step toward advanced data transformation, ensuring that data quality issues inherent in source systems do not impede accurate business analysis and reporting.
