Learning Lowess Smoothing: A Step-by-Step Guide in R

In the dynamic realm of statistics and advanced data analysis, the technique known as LOWESS—an acronym for “Locally Weighted Scatterplot Smoothing”—stands as an exceptionally powerful non-parametric regression method. Its core utility lies in its ability to generate a smooth, mathematically robust curve that accurately captures the inherent relationship between two variables displayed in a scatterplot, crucially without imposing the restrictive assumptions required by traditional parametric models.

Unlike conventional approaches such as linear or simple polynomial regression, which attempt to fit a single, global function to the entire dataset, LOWESS operates on a localized principle. It systematically computes a series of individual regression estimates within defined neighborhoods of the data. This iterative, localized process is indispensable when the underlying connection between the predictor (X) and response (Y) variables is complex, exhibits pronounced non-linearity, or when the observations are contaminated by significant levels of noise or influential outliers. The resulting smooth curve provides a reliable visual summary that resists distortion from these localized anomalies.

This comprehensive guide is engineered to provide a practical, step-by-step walkthrough detailing how to execute LOWESS smoothing effectively utilizing the premier statistical programming environment, R. Upon completion of this tutorial, you will possess the requisite knowledge to not only generate sophisticated smoothed curves but also to proficiently interpret and manipulate the influence of crucial controlling parameters, such as the smoother span, to achieve optimal data visualization.

Understanding the R lowess() Function: Syntax and Core Parameters

The base installation of R provides a highly efficient, dedicated function, lowess(), specifically designed for implementing locally weighted scatterplot smoothing. This function is streamlined for core data manipulation, operating directly on two numerical vectors to calculate the weighted averages and return the set of smoothed values necessary for drawing the final curve. Mastery of its syntax is the foundational step toward successful implementation and customized data analysis.

The lowess() function employs a straightforward structure, allowing the analyst precise control over the degree and nature of the smoothing that is applied. The basic calling structure incorporates the data vectors and a key tuning parameter that dictates the local scope of the regression calculations:

lowess(x, y, f = 2/3)

The arguments passed into the function are critical components that govern its operation, defining both the input data structure and the essential smoothing behavior:

• x: This is a numerical vector that represents the independent or predictor variable values.
• y: This is a numerical vector that represents the dependent or response variable values, corresponding directly to the values in x.
• f: This parameter, universally recognized as the smoother span or bandwidth, is arguably the most critical tuning element. It explicitly dictates the proportion of the total data points that will be incorporated into each localized regression calculation. The default value established in R is 2/3 (approximately 0.67), which provides a generally balanced degree of smoothing for exploratory analysis.

The choice of the smoother span carries significant implications for the resulting curve’s fidelity. A smaller value assigned to f constrains the local regression to fewer, closer data points, yielding a curve that is highly sensitive to local fluctuations. While this flexibility captures subtle trends, it increases the risk of overfitting the noise (low bias, high variance). Conversely, employing a larger value for f integrates more distant points into the weighted average, resulting in a substantially smoother, stiffer curve. While this reduces noise (low variance), it may inadvertently mask subtle, legitimate local trends, leading to underfitting (high bias).

Step 1: Generating and Structuring the Data for Analysis

Prior to the application of any statistical smoothing technique, it is paramount to ensure that the input data is correctly structured within the R environment, typically organized as a data.frame object. For the purposes of this technical demonstration, we will proceed by generating a synthetic dataset comprising 16 paired observations of X and Y values. This specific dataset is intentionally engineered to display a distinct non-linear trajectory alongside a manageable degree of intrinsic noise, establishing it as an optimal candidate for robust LOWESS analysis.

We utilize the data.frame() command to construct the structure that will house our two paired numerical vectors. The following code block explicitly defines and initializes our required input data structure:

df <- data.frame(x=c(1, 1, 2, 2, 3, 4, 6, 6, 7, 8, 10, 11, 11, 12, 13, 14),
                 y=c(4, 7, 9, 10, 14, 15, 19, 16, 17, 21, 22, 34, 44, 40, 43, 45))

This newly created dataset, designated as df, now encapsulates the essential numerical vectors required for both graphical representation and subsequent application of the smoothing algorithm. It is always a recommended best practice to verify the structure of your data (using functions such as str(df) or head(df)) to confirm that the variables are unambiguously interpreted as numerical types before advancing to the visualization phase.

Step 2: Visualizing the Raw Relationship with a Scatterplot

The conceptual and analytical foundation of LOWESS smoothing is intrinsically linked to the scatterplot. Plotting the raw, untransformed data points is a mandatory preliminary step, serving two critical functions: first, it allows for a final visual confirmation of the data distribution and structure; and second, it enables the analyst to visually diagnose the underlying relationship that the smoothing algorithm is intended to model or summarize.

We will employ the highly flexible base R plotting function, plot(), supplying the X and Y components extracted from our generated data frame. This command instantly produces the necessary foundational visual representation of our empirical data:

plot(df$x, df$y)

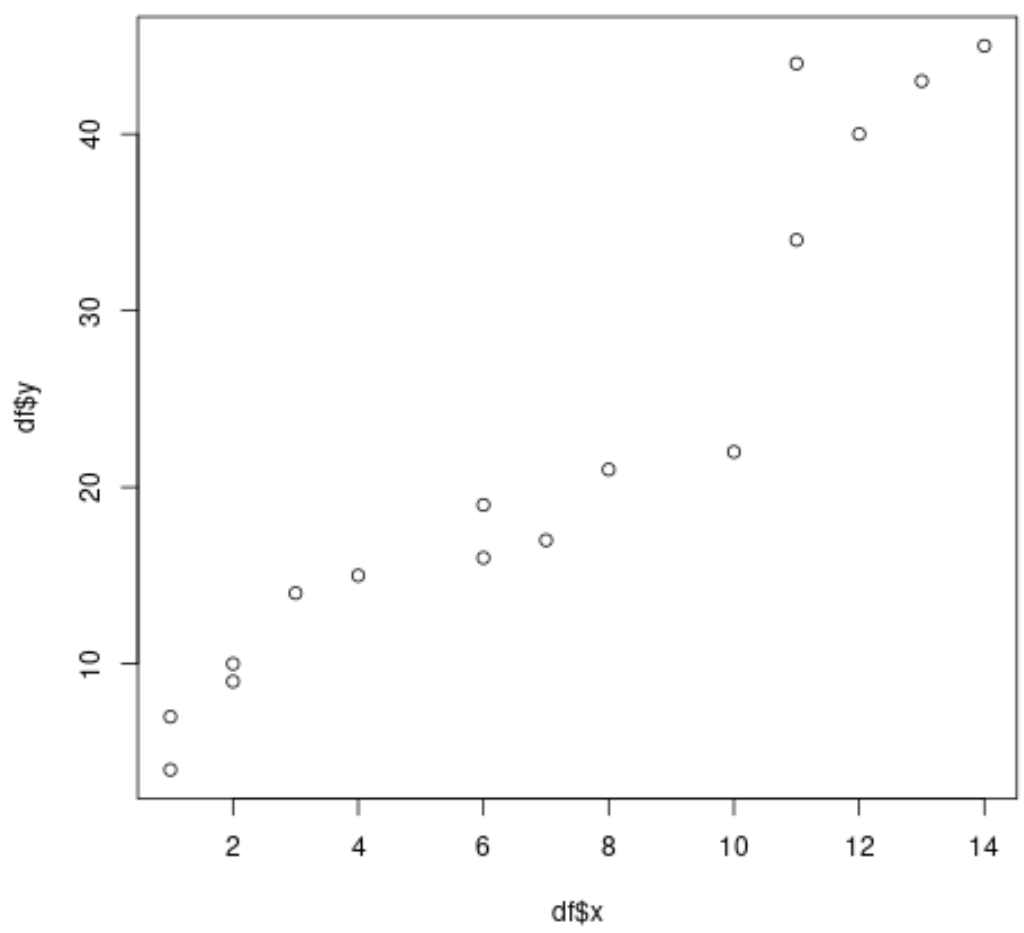

The resultant image displays the scattered data points, confirming a general, positive correlation between X and Y. Crucially, visual inspection reveals that the trend deviates from a simple linear path, particularly noticeable at the higher X values where the dispersion of the Y observations increases. This observed complexity and variability underscores the absolute necessity of utilizing a flexible, non-parametric smoothing technique, such as LOWESS, to accurately model the relationship.

Step 3: Implementing and Interpreting the Default LOWESS Curve

Once the raw data has been successfully plotted, the logical progression involves superimposing the calculated smooth curve directly onto the existing visualization. It is essential to understand that the lowess() function executes the necessary mathematical calculations and returns a list object containing the newly determined, smoothed X and Y coordinate pairs. We then utilize the efficient lines() function, a standard component of the R graphing system, to draw a continuous line connecting these calculated coordinates directly onto the active scatterplot.

By default, if the critical f parameter is omitted during the function call, R automatically employs the standard smoother span of f = 2/3. This pre-set value is conventionally selected because it typically achieves a balanced and moderate level of smoothing, generally suitable for initial exploratory data analysis where the specific noise characteristics are not yet fully quantified.

We execute the following concise code block to implement the smoothing. We first ensure the raw scatterplot is active, and then use lines(lowess(df$x, df$y)) to append the calculated smoothed curve, which we deliberately highlight in red for maximum visual contrast against the raw data points:

#create scatterplot
plot(df$x, df$y)

#add lowess smoothing curve to plot using default span (f = 2/3)
lines(lowess(df$x, df$y), col='red')

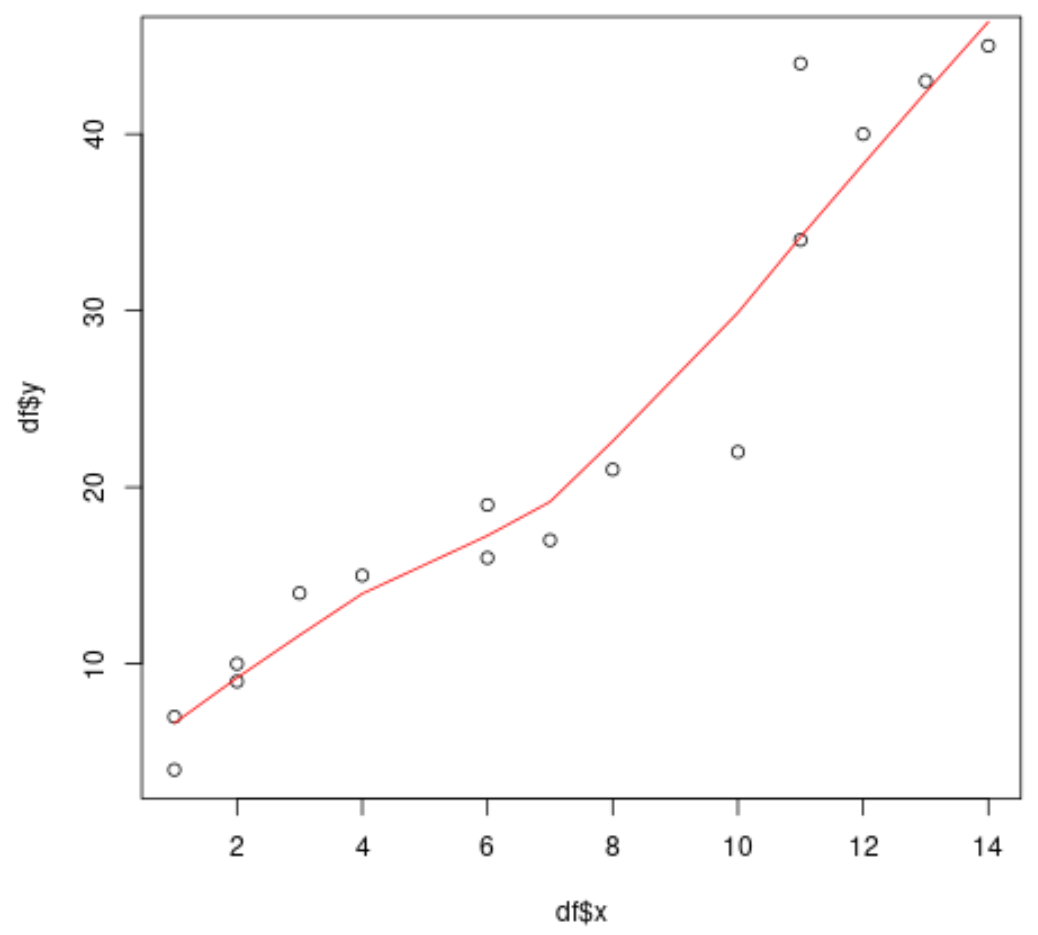

The resulting image powerfully demonstrates how the LOWESS curve successfully navigates through the densest areas of the data distribution. By following the local average path of the points while mitigating the distorting influence of local noise and outliers, the curve provides a clear, concise visual summary of the underlying non-linear trend. This step confirms the basic effectiveness of locally weighted smoothing in capturing the true data trajectory.

Step 4: Fine-Tuning the Smoothing Degree via the Span Parameter (f)

One of the most profound advantages and valuable features inherent to the LOWESS methodology is the analyst’s capacity to meticulously fine-tune the degree of smoothing applied, controlled almost entirely through the manipulation of the f argument, the smoother span. Adjusting this single value empowers the analyst to explore the dataset at dramatically different scales of detail, allowing for the revelation of overarching macro-level trends or the isolation of subtle, micro-level fluctuations.

It is imperative to maintain a precise understanding of the inverse relationship governing this parameter: a smaller span value incorporates fewer neighboring points into the calculation, resulting in a highly flexible, rough, and locally responsive curve. While this curve conforms closely to the data, it risks overfitting noise (high variance). Conversely, a significantly larger span value forces the inclusion of many points, producing a very rigid, overly smooth curve. This stiffness effectively suppresses noise but carries the risk of masking genuine, subtle changes in the data’s directional trend (high bias).

To effectively illustrate the dramatic effect of this span parameter, we will now overlay three distinct LOWESS curves onto the same raw scatterplot, showcasing the range of possible fits:

1. Default Span (f = 2/3): Represented by the Red line, this provides the moderate, standard level of smoothing.
2. Small Span (f = 0.3): Represented by the Purple line, this demonstrates heightened flexibility and greater retention of local detail and noise.
3. Large Span (f = 3): Represented by the Steelblue line, this showcases excessive smoothing, resulting in a significantly rigid curve.

We implement the visualization using the following code block, ensuring all three curves and a descriptive legend are simultaneously rendered:

#create scatterplot
plot(df$x, df$y)

#add lowess smoothing curves with varying spans
lines(lowess(df$x, df$y), col='red')
lines(lowess(df$x, df$y, f=0.3), col='purple')
lines(lowess(df$x, df$y, f=3), col='steelblue')

#add legend to plot
legend('topleft',
       col = c('red', 'purple', 'steelblue'),
       lwd = 2,
       c('Smoother = 2/3 (Default)', 'Smoother = 0.3 (Low Span)', 'Smoother = 3 (High Span)'))

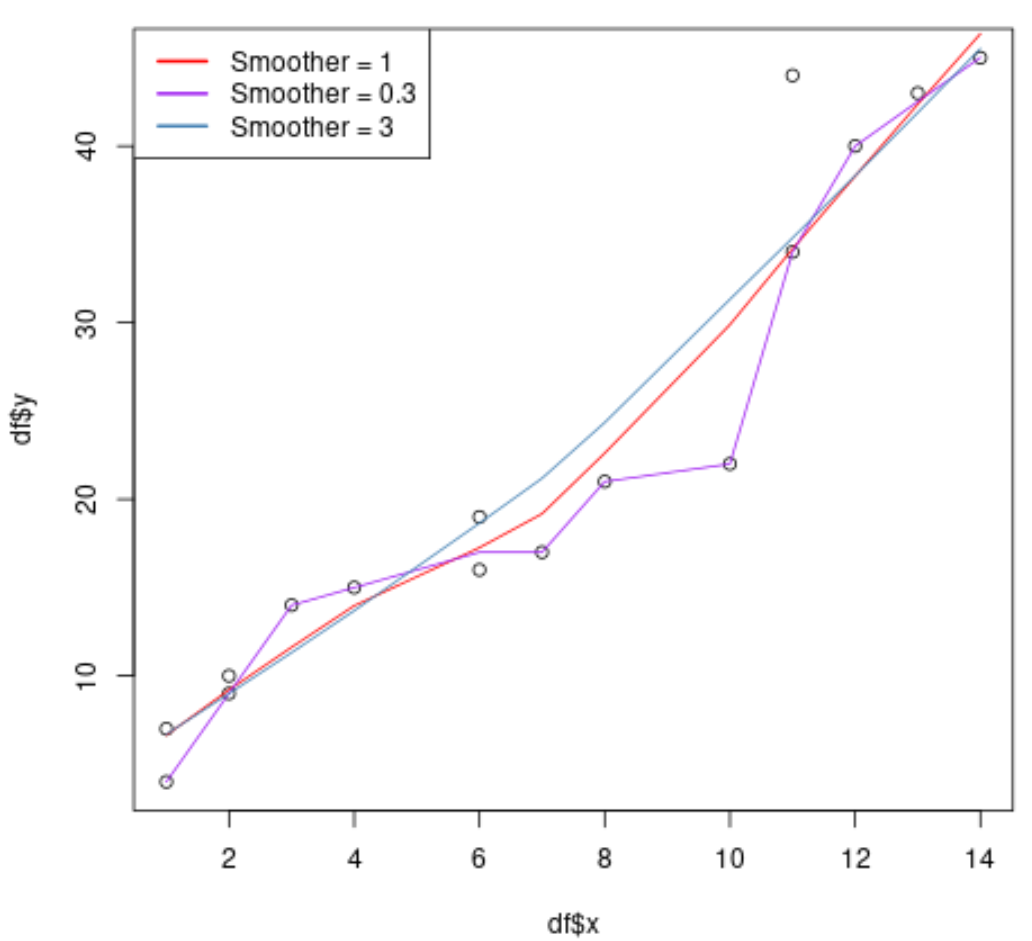

The resultant visual comparison provides compelling evidence: the purple line (f=0.3) clings tightly to individual data points, reflecting excessive noise retention and potential overfitting. Conversely, the steelblue line (f=3) is noticeably over-rigid and simplified, potentially obscuring legitimate, although subtle, inflections in the data trend. Ultimately, the selection of the optimal smoother span is not absolute; rather, it is an iterative process that must be meticulously guided by visual inspection, domain expertise, and the specific analytical objective of the study.

Conclusion: Mastering LOWESS for Exploratory Data Analysis

The LOWESS smoothing technique constitutes an invaluable, foundational tool for robust exploratory data analysis, particularly when analysts are confronted with complex, asymmetrical, or non-linear relationships between variables. By proficiently utilizing the built-in lowess() function in R, users are empowered to rapidly generate reliable, locally weighted curves that efficiently summarize underlying data trends without the computational burden or restrictive necessity of pre-specifying a formal parametric model form.

Achieving proficiency in the adjustment of the f parameter—the critical smoother span—is the fundamental key to optimizing the delicate balance required between curve flexibility (to capture detail) and noise reduction (to maintain stability). We strongly encourage practitioners to engage in continued experimentation with various datasets and a wide range of span values to fully assimilate the power, versatility, and nuanced interpretation afforded by this essential non-parametric approach.

For individuals interested in delving deeper into the rigorous mathematical foundations of this statistical methodology, or for those seeking to explore related, generalized techniques such as LOESS (which represents a more flexible and generalized form of LOWESS), the following supplementary resources are highly recommended for advanced study:
