Understanding Matrix Multiplication with Excel: A Practical Guide

Mastering the MMULT Function for Matrix Multiplication in Excel

Matrix multiplication is a foundational mathematical operation central to disciplines across science, engineering, and data analysis. While dedicated software often handles highly complex linear algebra, Excel offers a highly capable, native solution for these computations: the MMULT function. This powerful, integrated feature allows users to seamlessly execute complex matrix operations directly within their spreadsheets, significantly streamlining data processing, statistical analysis, and financial modeling without the dependency on external programming environments. A thorough understanding of how to correctly implement MMULT is the essential prerequisite for unlocking sophisticated analytical capabilities using the familiar spreadsheet interface.

The core purpose of the MMULT function is to compute the matrix product derived from two specified input arrays. The resulting output is a new matrix whose dimensions are strictly governed by the mathematical rules of the operation and the dimensions of the input matrices. To effectively utilize this tool, users must internalize both the function’s syntax and, critically, the fundamental dimensional constraints that dictate valid matrix multiplication. Although the formula structure itself is concise, its precise application—particularly regarding the alignment of input array dimensions—is paramount to ensuring accurate and meaningful results.

The standard syntax for the MMULT function is elegantly straightforward: =MMULT(array1, array2). This syntax requires two primary arguments, both of which must represent rectangular ranges of numeric data within the worksheet. Understanding the role of each argument is key to setting up the computation correctly.

• array1: This argument defines the first matrix (M1) in the multiplication sequence. It must be specified as a contiguous cell range or a constant array, containing exclusively numerical entries.
• array2: This argument defines the second matrix (M2) in the operation. Similar to array1, this range must consist entirely of numeric values, ensuring the mathematical operation is feasible.

A non-negotiable condition for performing valid matrix multiplication is dimensional compatibility. Specifically, the number of columns in the first matrix (array1) must exactly match the number of rows in the second matrix (array2). If this crucial requirement is violated, the MMULT function cannot proceed, and it will return the standard error indicator: #VALUE!. When the dimensional rules are successfully met, the size of the final product matrix is determined by the number of rows in array1 and the number of columns in array2. The subsequent sections of this guide will provide clear, practical illustrations of MMULT deployment across various compatible matrix dimension pairs.

Case Study 1: Multiplying a (2×2) Matrix by a (2×2) Matrix

Our initial demonstration focuses on one of the most fundamental operations in linear algebra: calculating the product of two 2×2 matrices using Excel. This introductory example is essential for grasping the basic mechanics and output expectations of the MMULT function. Since both input matrices are symmetrically 2×2, the dimensional compatibility requirement is naturally satisfied (the first matrix has 2 columns, and the second has 2 rows). Consequently, the resulting product matrix will also maintain the 2×2 dimension, derived from the outer dimensions (2 rows from the first matrix and 2 columns from the second).

To begin, ensure your two 2×2 matrices are clearly and correctly arranged in separate, contiguous ranges within your worksheet. The following image illustrates a typical, clean layout, where the first input matrix occupies the cell range A2:B3 and the second input matrix occupies D2:E3. Maintaining organized inputs is a critical step for preventing errors during formula execution, particularly when dealing with larger or more complex datasets.

To calculate the matrix product, you must correctly enter the MMULT formula into the designated output area. For users of older, legacy versions of Excel, confirmation of the array formula must be performed by pressing Ctrl+Shift+Enter after selecting the entire 2×2 output range (e.g., G2:H3). However, modern versions of Excel equipped with dynamic arrays greatly simplify this process; users only need to enter the formula into the top-left cell of the desired output (G2) and press Enter, allowing the results to automatically “spill” into the complete 2×2 result range.

=MMULT(A2:B3, D2:E3)

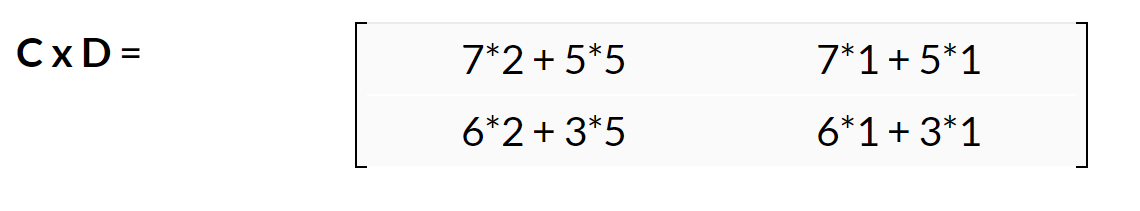

This formula precisely instructs Excel’s calculation engine to execute the multiplication of the first array (A2:B3, visually represented in blue) by the second array (D2:E3, visually represented in red). The clear cell range specification ensures the data input process is efficient and intuitive. The subsequent image provides a detailed visualization demonstrating the underlying computational steps Excel undertakes to derive each individual element of the resulting matrix, strictly adhering to the rigorous mathematical rules of matrix multiplication (row-by-column summation).

The final computed output, a 2×2 matrix, is then correctly displayed in the designated result range (G2:H3). This successful, immediate execution validates Excel’s capability to handle fundamental linear algebra operations with precision and speed, providing a reliable tool for basic mathematical modeling.

Case Study 2: Calculating the Product of a (2×2) Matrix and a (2×3) Matrix

Moving beyond square matrices, this second case study showcases the adaptability of the MMULT function when processing matrices of differing, yet mathematically compatible, dimensions. In this instance, we execute the multiplication of a (2×2) matrix (M1) by a (2×3) matrix (M2). The core compatibility rule remains absolutely essential: the number of columns in the first matrix (2) must precisely match the number of rows in the second matrix (2). Since the outer dimensions are 2 (rows of M1) and 3 (columns of M2), the resulting product matrix will be a (2×3) array.

Meticulous arrangement of the input data is paramount for correctly defining the ranges. The visual representation provided below illustrates how these dimensionally distinct matrices should be structured within your Excel workspace. It is important to note that the second matrix is horizontally wider, spanning three columns (D2:F3), compared to the first matrix (A2:B3), which confirms the anticipated 2×3 output shape.

To correctly execute this matrix multiplication, the MMULT formula must be entered into the starting cell of the anticipated (2×3) result range, typically cell H2. The formula specifies the ranges for both the 2×2 array and the expanded 2×3 array:

=MMULT(A2:B3, D2:F3)

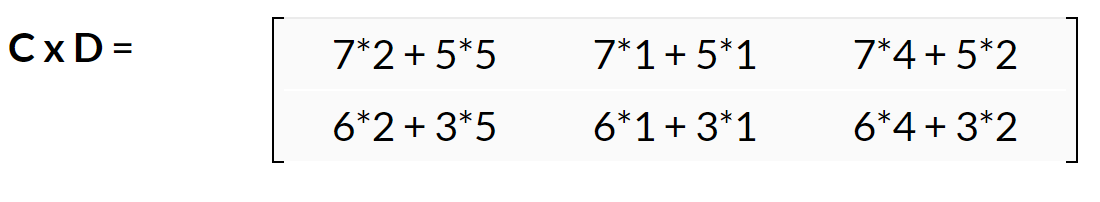

This specific instruction directs the MMULT function to compute the product of the array defined by A2:B3 and the array defined by D2:F3. As standard practice, utilize the appropriate array entry method for your Excel environment (Ctrl+Shift+Enter for older systems, or a simple Enter key press for those using dynamic array capabilities). Upon successful execution, the detailed internal calculations that Excel performs to determine each of the six elements of the 2×3 product matrix are summarized below, providing transparency on the row-by-column multiplication process.

The final (2×3) product matrix, which accurately reflects the predetermined output dimensions, is presented in the designated cells H2:J3. This outcome clearly demonstrates the function’s robust adaptability in efficiently handling matrix products where input dimensions are compatible but unequal, a common requirement in practical data modeling scenarios.

Case Study 3: Handling Larger Matrices – (3×3) by (3×2) Multiplication

This final operational example serves to reinforce the general utility and scalability of the MMULT function by addressing larger, more complex arrays: specifically, a (3×3) matrix multiplied by a (3×2) matrix. This configuration is frequently encountered in tasks involving linear transformations or the manipulation of larger sets of data points. Compatibility is rigorously maintained because the number of columns in the first matrix (3) perfectly aligns with the number of rows in the second matrix (3). The resulting product matrix will inherit the 3 rows from the first matrix and the 2 columns from the second, yielding a final (3×2) output structure.

The visual arrangement below illustrates the placement of these two larger input matrices within the Excel worksheet. The first matrix, M1, spans the range A2:C4 (three rows and three columns), while the second matrix, M2, spans E2:F4 (three rows and two columns). Careful definition of these expanded ranges is critical to ensuring all data points are included in the calculation.

To initiate this matrix multiplication, the MMULT formula must be accurately input into the starting cell of your expected (3×2) result matrix, such as cell H2. Since the arrays are larger, it is imperative that the formula accurately defines the complete cell ranges for both input arrays:

=MMULT(A2:C4, E2:F4)

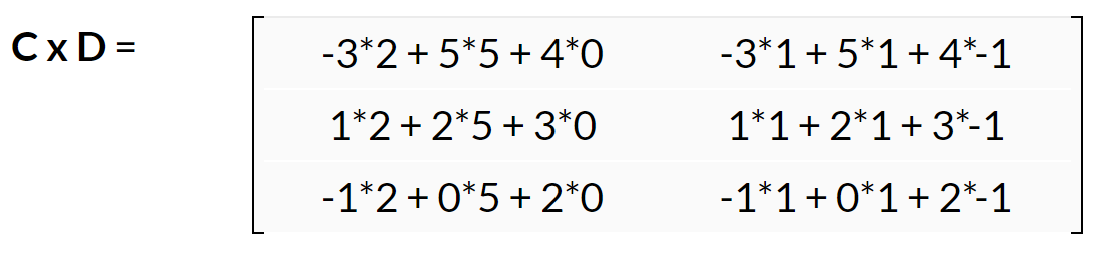

This command instructs Excel to calculate the product of the 3×3 array (A2:C4) and the 3×2 array (E2:F4). Successful deployment hinges on following the correct array entry procedure based on your specific Excel version. The subsequent image details the extensive internal calculation process Excel executes to derive all six elements of the (3×2) resultant matrix, providing clear evidence of the complex underlying linear algebra being performed quickly and accurately.

The computed outcome is precisely the expected (3×2) matrix, which is then dynamically displayed in the appropriate cells H2:I4 as the final product of the multiplication. This robust result emphasizes the MMULT function’s ability to efficiently manage larger and asymmetric matrix multiplication requirements, proving its value as a serious computational tool within the spreadsheet environment.

Optimizing MMULT Usage: Tips and Troubleshooting Common Errors

While the MMULT function is an invaluable resource for conducting matrix operations efficiently, expert users must maintain awareness of certain best practices and common pitfalls to guarantee computational accuracy and operational efficiency. The single most common failure users encounter involves violating the fundamental mathematical rule of dimensional compatibility. It is imperative to always verify that the number of columns in the first matrix precisely equals the number of rows in the second matrix. Failure to meet this requirement will invariably cause the function to return the persistent #VALUE! error, which signals the need for immediate structural correction of the input arrays.

A second critical consideration relates directly to the formula entry methodology, which varies significantly depending on your specific Excel version. In legacy versions of the software (such as Excel 2016 or earlier), MMULT operates exclusively as a traditional legacy array formula. This workflow requires the user to first select the entire expected output range, then type the formula, and finally confirm the entry by simultaneously pressing Ctrl+Shift+Enter (CSE). This unique keystroke combination is essential, as it inserts the necessary curly braces around the formula, activating its array functionality. In contrast, users benefiting from modern Excel versions (Microsoft 365 or Excel 2019 onward) leverage dynamic array capabilities, where entering the formula into a single cell and pressing Enter is entirely sufficient, allowing the results to seamlessly “spill” into the required output range. Understanding and applying the correct entry method is crucial for proper deployment.

Furthermore, data integrity within the input ranges is absolutely essential for the MMULT function to operate correctly. Both input arrays must contain exclusively numeric values. The inclusion of any non-numeric data—including text strings, logical values (TRUE/FALSE), or even unintentionally left-blank cells within the specified range—will immediately disrupt the mathematical calculation and trigger a formula error. To mitigate such data-related errors, it is highly recommended that users adopt meticulous spreadsheet organization habits, perhaps employing distinctive formatting (such as borders or background colors) to clearly delineate input ranges from output ranges, thereby enhancing clarity and significantly reducing the risk of data contamination.

Conclusion: Empowering Analysis with MMULT

The MMULT function effectively elevates Excel’s capabilities, establishing it as a highly formidable tool for nuanced numerical analysis and extending its utility far beyond basic arithmetic operations. It provides users with a direct, highly reliable, and exceptionally efficient method for executing matrix multiplication, an operation that forms the analytical foundation across numerous scientific, statistical, and financial modeling disciplines. By diligently adhering to the required dimensional compatibility rules and precisely defining the input ranges, users can effortlessly integrate complex linear algebra calculations into their routine spreadsheet workflows. This powerful capability eliminates the necessity for time-consuming, error-prone manual calculations and significantly enhances overall analytical productivity.

Through the preceding, detailed case studies—ranging from the straightforward 2×2 multiplication to the more intricate 3×3 by 3×2 scenarios—we have thoroughly illuminated the comprehensive application and adaptability of the MMULT function in practice. Mastering this function is an invaluable skill that substantially enhances not only proficiency in spreadsheet software but also the capacity to confidently handle sophisticated, matrix-based computations. This makes the MMULT function an indispensable asset for a wide range of professionals, including students, researchers, dedicated data analysts, and sophisticated financial modelers seeking high-precision results.
