Learn Nonlinear Regression Analysis with Excel: A Step-by-Step Guide

When analyzing complex datasets, standard linear models often prove inadequate for capturing the true underlying relationship between variables. Nonlinear regression is a powerful statistical technique deployed precisely when the relationship between the set of input factors, often referred to as predictor variables, and the observed outcome (the response variable) exhibits a distinct curve rather than a straight line. This method employs iterative algorithms to find the best possible fit for complex, curvilinear shapes—ranging from exponential growth curves to asymptotic decay models. It is indispensable across diverse fields, including biological sciences, advanced engineering, and complex economic modeling, where phenomena rarely adhere to simple proportionality.

Recognizing the appropriate moment to shift from a linear approach to a nonlinear model is paramount for obtaining reliable statistical conclusions. If an initial visual assessment of the data, such as a scatterplot, reveals shapes like parabolas, logarithms, or clear exponential trends, attempting to impose a linear fit will invariably lead to poor predictive accuracy, high residual errors, and fundamentally flawed conclusions. Nonlinear regression provides the flexibility required to accurately characterize these intricate data patterns, thereby producing models that are both statistically robust and practically meaningful.

This comprehensive guide is designed to walk you through the precise steps required to execute a functional nonlinear regression analysis directly within Microsoft Excel. We will leverage Excel’s intuitive charting and advanced trendline capabilities to derive the optimal polynomial equation that accurately models the relationship within our illustrative sample dataset. While Excel has limitations compared to dedicated statistical software, its trendline feature offers a highly accessible method for performing basic polynomial fitting.

Step 1: Structuring and Preparing the Input Data

The efficacy of any statistical modeling exercise, particularly regression analysis, rests heavily on the organization and integrity of the input data. Before generating visualizations or attempting to fit a model, the independent variables (X, the predictors) and the dependent variables (Y, the responses) must be systematically arranged in adjacent columns within your Microsoft Excel spreadsheet. For the purpose of this tutorial, we will construct a hypothetical dataset specifically chosen because it visually demonstrates a strong, non-straight-line relationship, making it an ideal candidate for nonlinear modeling.

Our sample dataset consists of 20 distinct observations. Column A will house the input values (X), which represent the predictor variable, while Column B will contain the corresponding measured observations (Y), which constitute the response variable. This standard arrangement is critical because it ensures that Excel correctly pairs the data points and interprets the data ranges accurately during the subsequent plotting and modeling phases. Failing to structure the data correctly can lead to erroneous chart generation and invalid regression outputs.

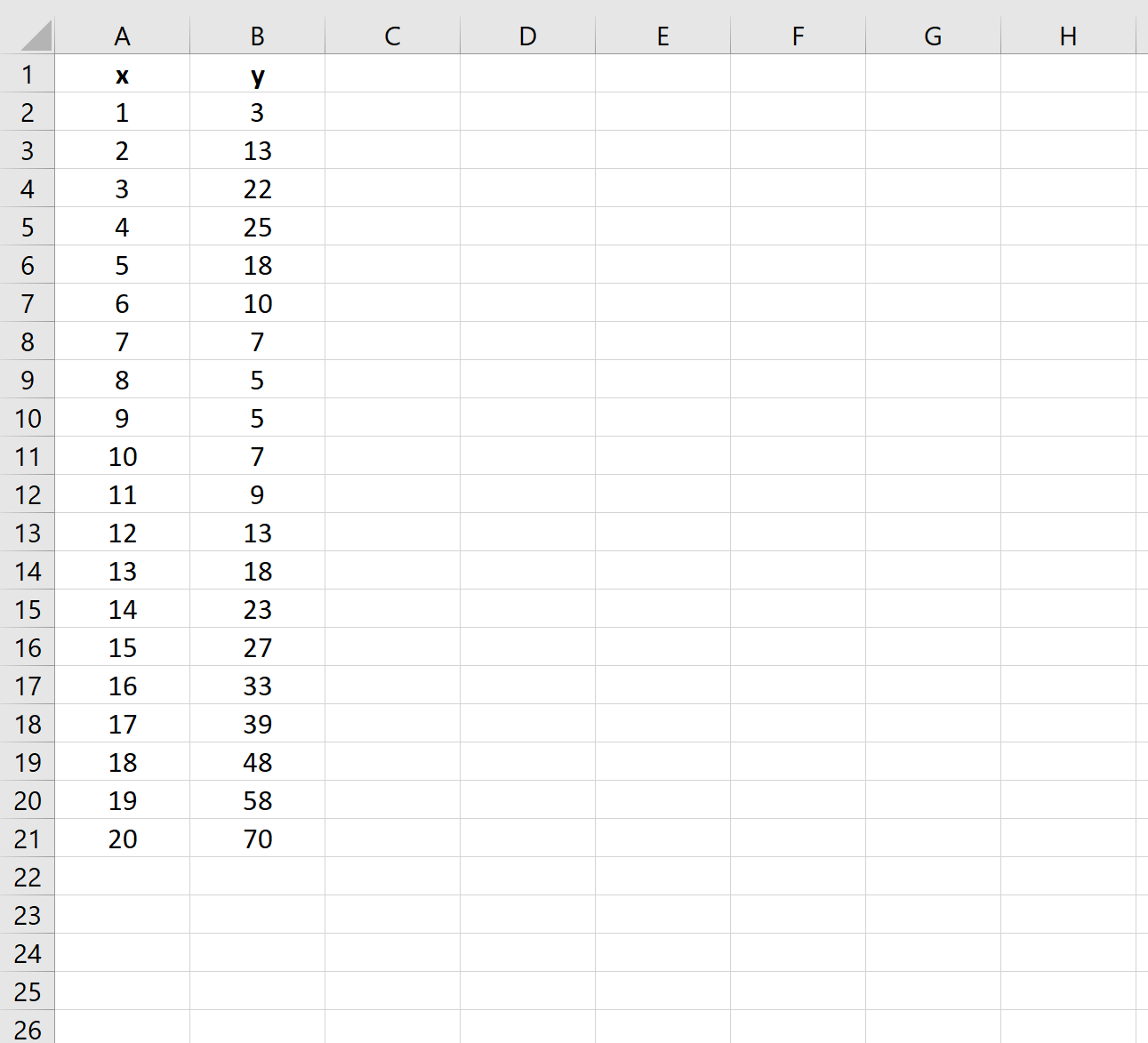

To follow along, input the necessary data points into columns A and B, ensuring continuity:

Once the data entry is complete, it is highly advisable to conduct a thorough review of all entered values. Check meticulously for any outliers—data points that deviate significantly from the general trend—or simple input errors. In nonlinear modeling, the resulting equation is highly sensitive to anomalous points, and even a small error can drastically skew the model fit, severely compromising the accuracy and reliability of the final derived equation.

Step 2: Visual Confirmation via Scatterplot Generation

The scatterplot is arguably the most vital diagnostic instrument in the entire regression workflow, especially when determining if a linear or nonlinear approach is required. By graphically plotting the independent variable (X) on the horizontal axis against the dependent variable (Y) on the vertical axis, we gain an immediate, intuitive understanding of the underlying data structure. This visualization allows us to confirm whether the data exhibits a linear trajectory or if a clear curve—necessitating a nonlinear technique—is present.

To produce this essential visualization within Microsoft Excel, execute the following precise sequence of actions:

1. Begin by highlighting the entire data range, specifically the cells encompassing A1 through B21, ensuring both the X and Y variable columns are selected.
2. Locate and click the Insert tab situated on Excel’s primary ribbon interface.

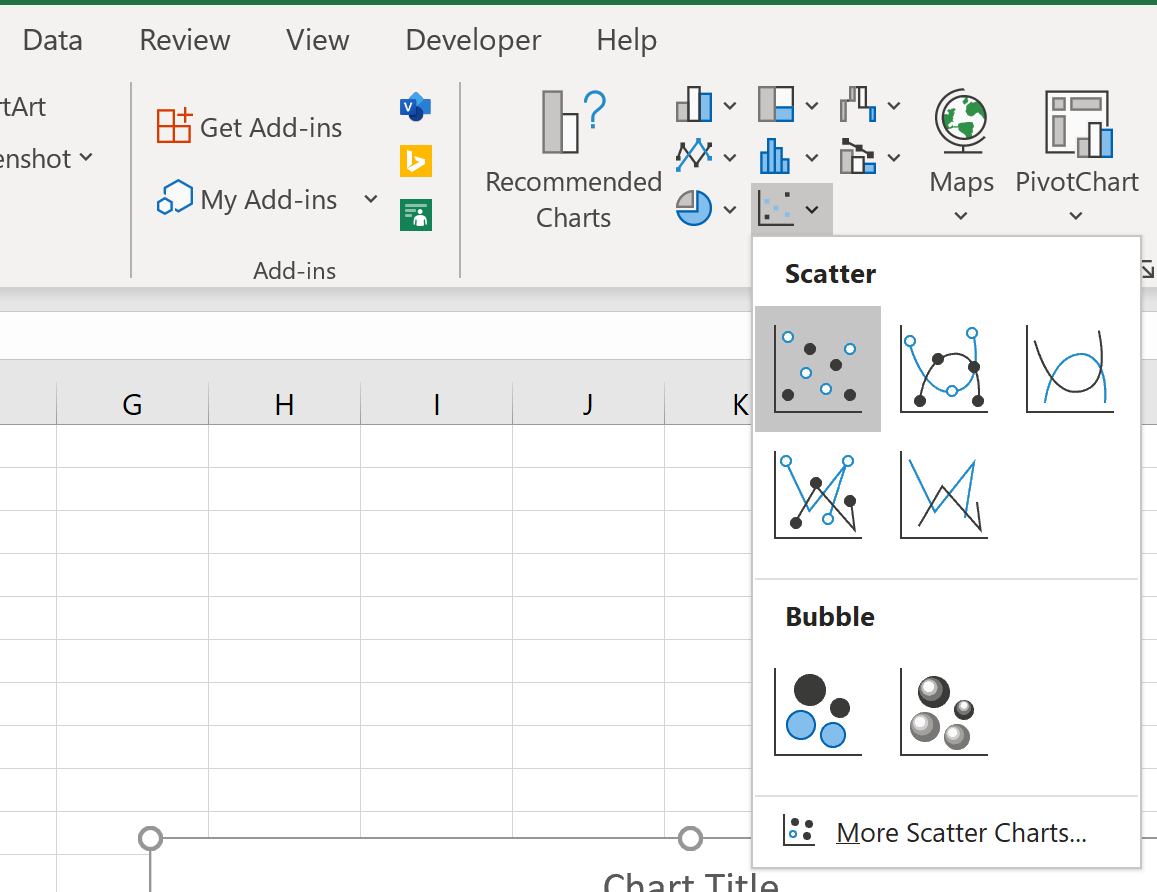

3. Within the dedicated Charts group, select the Scatter chart type. It is best practice to choose the first plot option, which displays only markers, as this provides the cleanest and clearest depiction of the raw, unmodeled data points.

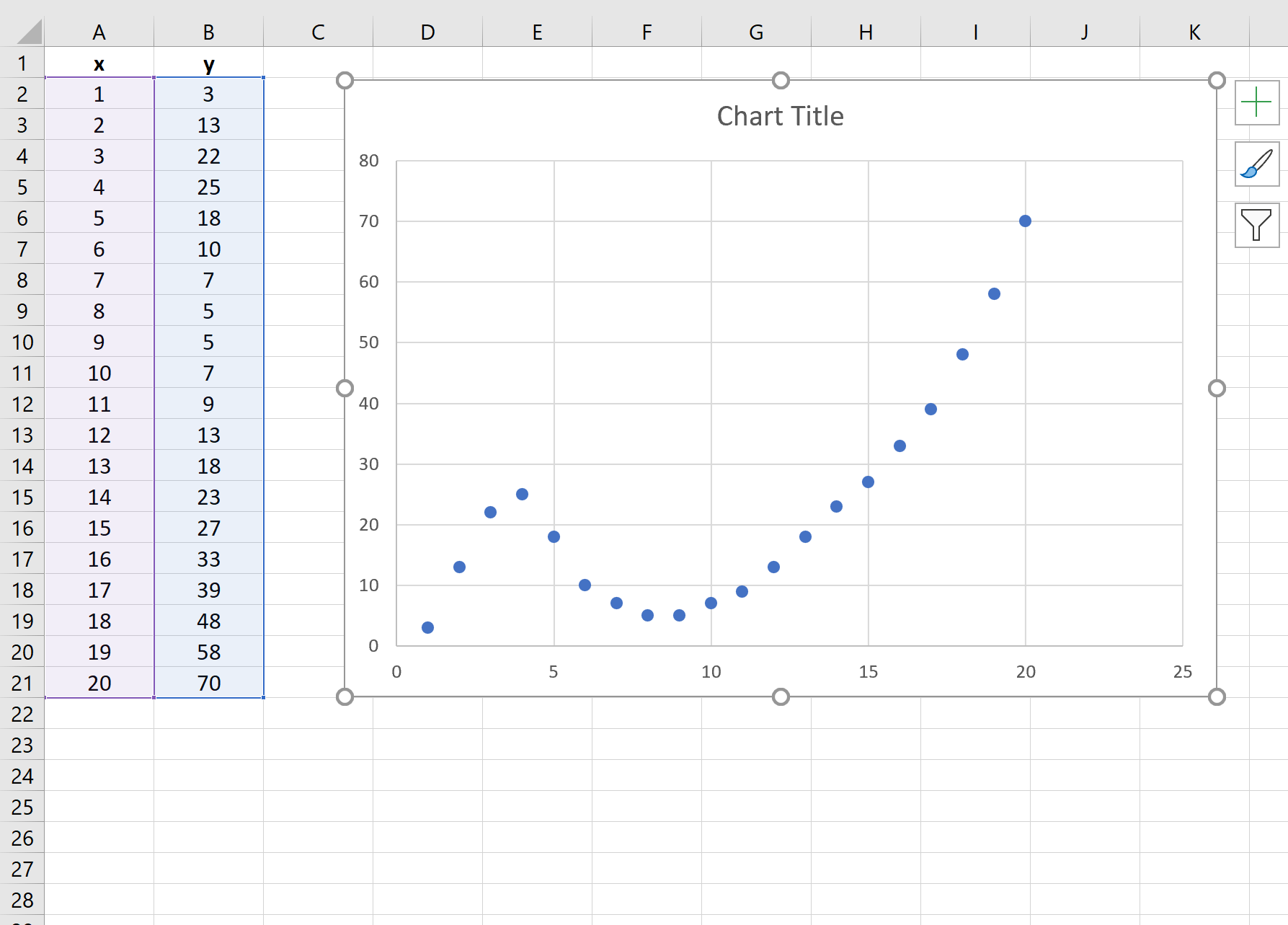

Upon execution, Excel generates a two-dimensional plot mapping every (X, Y) data pair. If the data has been entered correctly, the resulting scatterplot for this sample should distinctly illustrate a curved pattern, unequivocally confirming the necessity of employing a polynomial regression or another form of nonlinear analysis, as opposed to attempting a simplistic linear fit.

Step 3: Implementing the Nonlinear Polynomial Trendline

With the scatterplot successfully generated, the next vital step is to mathematically overlay a trendline that precisely captures the curvilinear dynamics observed among the data points. Excel facilitates this through its versatile trendline feature, which supports several key nonlinear models, including polynomial, exponential, and logarithmic fits. For data exhibiting multiple changes in curvature, like our sample, the polynomial regression model is often the most effective approach within this software environment.

To add and meticulously configure the most appropriate trendline, follow these steps:

1. Click anywhere on the scatterplot area to ensure the chart is selected and the chart tools become active.
2. Click the prominent + sign (known as Chart Elements) situated in the top-right corner of the chart boundary.
3. In the ensuing dropdown menu, hover your mouse over Trendline, click the adjacent arrow that appears, and then select the More Options… command. This action initializes the detailed Format Trendline pane on the right side of your working screen.

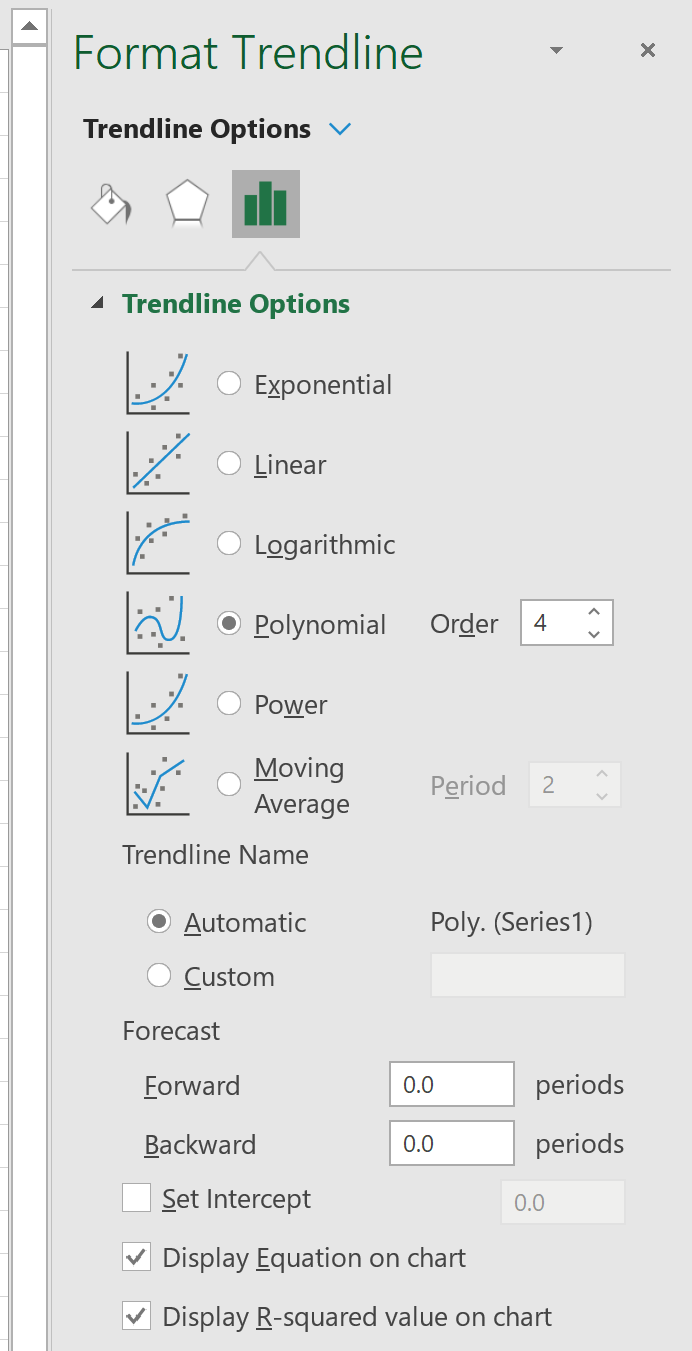

Within the Format Trendline pane, you must define the specific mathematical model. Given the oscillatory pattern in our data, select the radio button corresponding to Polynomial. Furthermore, two critical checkboxes must be activated: Display Equation on chart and Display R-squared value on chart. These outputs are absolutely essential for extracting the final mathematical model and rigorously assessing its statistical goodness of fit.

A fundamental aspect of polynomial regression is selecting the correct Order, which dictates the complexity and flexibility of the fitted curve. A second-order polynomial is parabolic, while higher orders allow for more inflection points (bends). Analysts often need to systematically test different orders (e.g., 2nd, 3rd, 4th) to achieve the optimal balance. Selecting an excessively high order, however, carries the significant risk of overfitting the model to the specific sample noise. For this particular dataset, a fourth-order polynomial is statistically determined to provide the most precise and accurate fit.

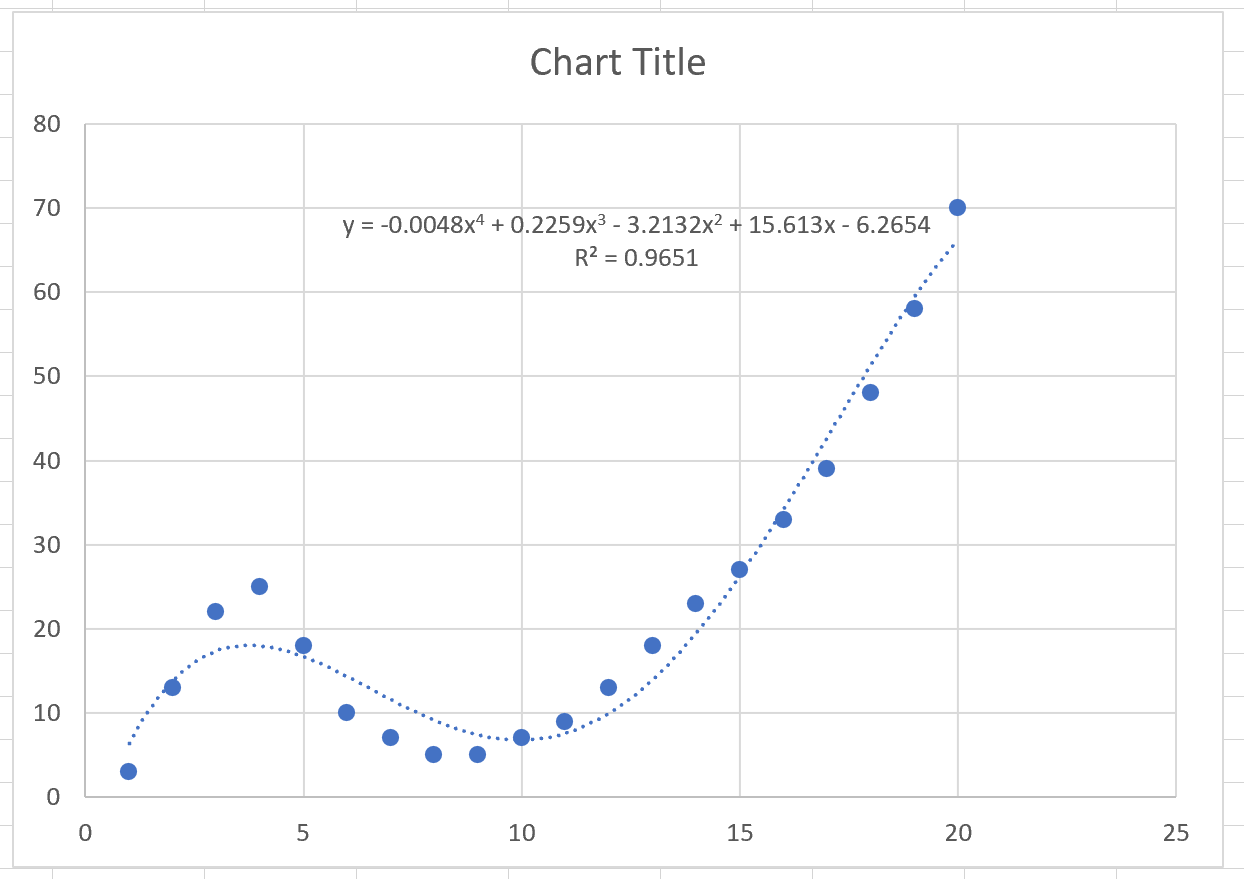

This careful configuration results in the following highly accurate curve being successfully overlaid onto the initial scatterplot:

Step 4: Extracting and Interpreting the Regression Model

The successful culmination of the nonlinear regression process in Excel is the automatic display of the derived polynomial equation and the associated R-squared value directly on the chart. These twin components form the foundation of the predictive model and are indispensable for both forecasting and evaluating the model’s performance against the empirical data.

By observing the resulting plot, we can cleanly transcribe the regression equation, which now serves as our finalized mathematical model for prediction:

y = -0.0048x⁴ + 0.2259x³ – 3.2132x² + 15.613x – 6.2654

This sophisticated, fourth-degree equation, incorporating terms up to x⁴, can now be reliably utilized to forecast the value of the response variable (Y) for any new input value of the predictor variable (X), provided that X remains within the domain established by the original observed data. This capability allows researchers to generate informed forecasts grounded in the observed complex nonlinear trend.

The R-squared value (or Coefficient of Determination) is the critical metric for quantifying the goodness of fit of the derived model. It expresses the proportion, or percentage, of the total variation observed in the response variable (Y) that can be statistically accounted for and explained by the inclusion of the predictor variable (X) within the calculated model.

For our specific fourth-order curve, the calculated R-squared value is a very strong 0.9651. This implies that 96.51% of the variation observed in the dependent variable can be effectively explained by the factors defined within this fourth-order polynomial structure. Such a high value strongly indicates an excellent fit to the observed data, suggesting the model has successfully captured the underlying pattern.

Step 5: Understanding Limitations and Advanced Modeling Considerations

While the trendline feature in Excel offers a superb, accessible introduction to polynomial regression and data visualization, it is essential for analysts to recognize its inherent limitations. Excel’s primary strength in this area lies in fitting polynomial functions. If the true underlying mathematical relationship is fundamentally exponential, logarithmic, or defined by complex mechanistic equations (which are common in physical sciences), reliance solely on a polynomial approximation may introduce systemic errors. In such cases, utilizing data transformation techniques or migrating to specialized statistical environments—such as R, Python (with libraries like NumPy or SciPy), or dedicated commercial software—becomes necessary to achieve a truly accurate fit.

Furthermore, achieving a high R-squared value, such as the 0.9651 we achieved, should never be the sole criterion for model validation. Experienced analysts must also conduct a crucial visual inspection of the model’s residuals—the vertical differences between the actual observed Y values and the Y values predicted by the equation. If a plot of the residuals reveals any structured pattern (e.g., a residual plot that looks parabolic itself), it signifies that the model is still systematically failing to account for some variation in the data, indicating that further model refinement, or perhaps a change in model type, is urgently required.

Finally, a critical caution concerns the practice of extrapolation. Derived nonlinear equations should never be used to make predictions significantly outside the boundary of the original data set’s range. Polynomial models, particularly those of higher complexity like our fourth-order fit, possess a strong tendency to diverge rapidly and unrealistically beyond the established fitting range. Relying on such forecasts leads to highly unreliable and often nonsensical predictions, rendering the model invalid outside its proven domain. Analysts must always restrict predictive use to interpolation within the observed range.
