Perform Scheffe’s Test in Excel

The Crucial Need for Scheffe’s Test in Post-Hoc Analysis

When researchers analyze experimental outcomes involving several independent samples or groups, the initial statistical approach is typically a one-way ANOVA (Analysis of Variance). This sophisticated method serves as the cornerstone for determining whether significant differences exist among the means of three or more distinct groups. The ANOVA provides a powerful, initial test concerning the overall variation within the dataset, setting the stage for deeper analysis.

The result generated by the ANOVA calculation is fundamentally a global test. If the resulting p-value—extracted from the comprehensive ANOVA summary table—is observed to be less than the predetermined significance threshold (conventionally set at $alpha = 0.05$), the researcher is compelled to reject the null hypothesis. This rejection is a critical finding, indicating that the statistical evidence gathered is sufficient to conclude that not all group means are identical; at least one group mean deviates significantly from the others in the population.

However, the ANOVA result alone does not offer sufficient detail; it fails to identify precisely which specific pairs of groups are statistically different from one another. Since the overall test is significant, we must proceed to pinpoint these differences. To systematically isolate these specific variations while simultaneously maintaining stringent control over the potential for making a Type I error (false positive), a subsequent procedure known as a post-hoc test is absolutely mandatory.

It is essential that these comparative follow-up tests effectively control the family-wise error rate (FWER)—the probability of making at least one Type I error across the entire set of comparisons. Among the diverse array of post-hoc methods available, Scheffe’s test is frequently employed and highly respected for its versatility. It is robust enough to handle not only all possible pairwise comparisons but also complex comparisons (such as comparing the average of two groups against a third), often making it the most conservative and rigorous option. This comprehensive guide will detail the exact, step-by-step methodology required to perform the critical Scheffe’s test in Excel, ensuring accessibility for applied statisticians and researchers.

Step 1: Structuring and Inputting Experimental Data in Excel

To demonstrate the practical application of Scheffe’s procedure, we will use a common educational scenario. Imagine an educator seeking to evaluate the relative effectiveness of three distinct studying techniques—perhaps traditional review, flashcard memorization, and collaborative group study—on student performance in a final exam. The educator recruits 30 students, randomly assigning 10 students to utilize each specific studying technique for a predetermined period, and subsequently records their final exam scores. This controlled experimental design provides the ideal dataset for a one-way ANOVA followed by a Scheffe post-hoc analysis.

The initial action in Excel, and arguably the most crucial, is the accurate preparation and entry of the raw data. For statistical analysis using Excel’s built-in tools, the data must be organized in a vertical format: each independent group (studying technique) must occupy its own separate column, with the corresponding dependent variable scores (exam results) listed directly beneath the group label. Proper organization ensures that the statistical software correctly identifies the grouping variables required for the ANOVA calculation.

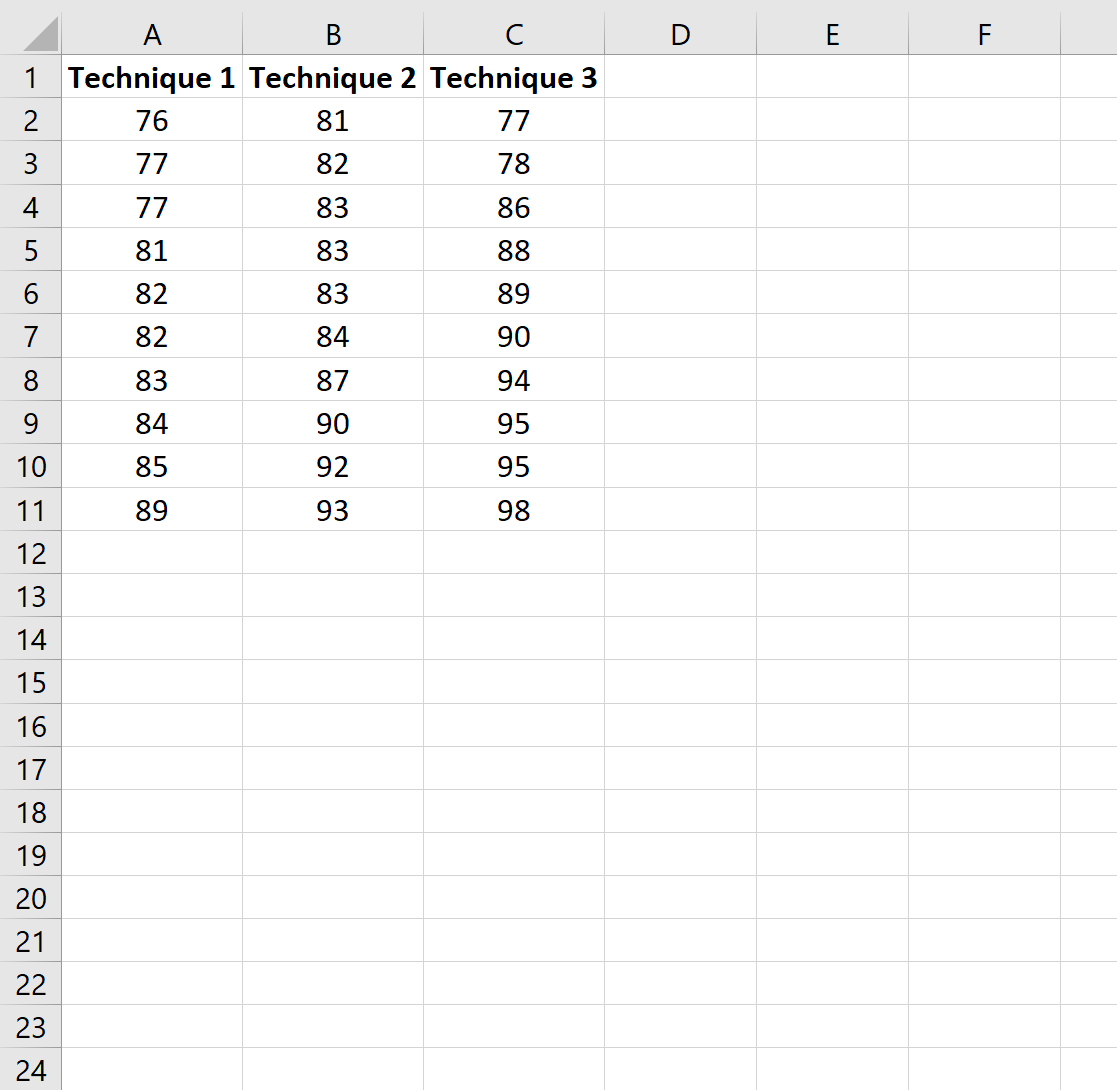

The resulting dataset should precisely follow the structure displayed below, clearly differentiating the three independent groups by column headers:

Step 2: Executing the Preliminary One-Way ANOVA using Data Analysis ToolPak

Before we can calculate the adjusted critical values necessary for Scheffe’s comparison, we must first successfully run the standard one-way ANOVA within Excel. This foundational step requires the prior activation and loading of the Data Analysis ToolPak, a specialized and powerful add-in that is indispensable for performing advanced statistical computations within the Microsoft Excel environment. Without this tool, complex procedures like ANOVA are impossible to execute directly within the spreadsheet software.

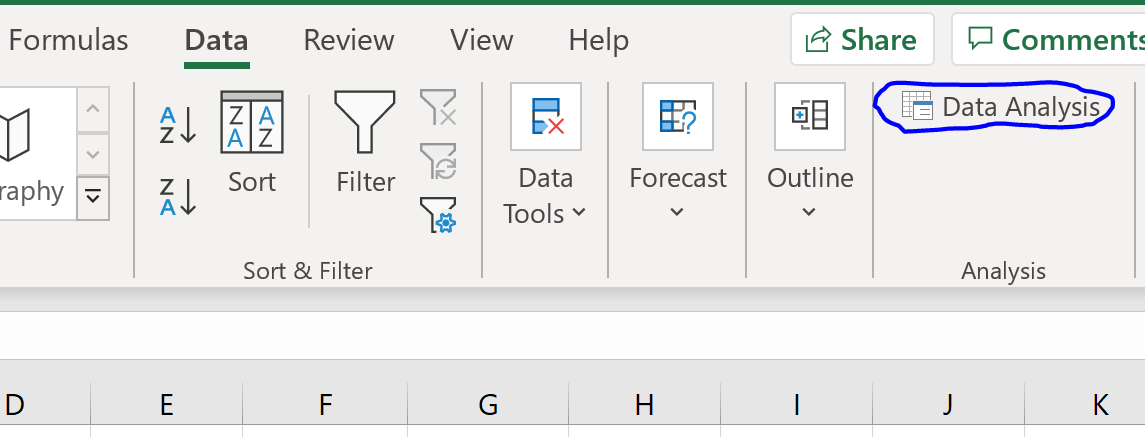

To begin the analysis, users must navigate to the Data tab, which is prominently positioned on the main ribbon interface. Within the far right of this ribbon, locate the Analysis group and click on the Data Analysis option. If this essential command is missing from the ribbon, it signifies that the user needs to first ensure they have correctly installed and enabled the Data Analysis ToolPak through Excel’s options menu.

Upon clicking the Data Analysis button, a specialized dialogue box will appear, listing various statistical tests. Scroll down and select the option labeled Anova: Single Factor from this list, as this corresponds directly to the one-way ANOVA procedure. Confirm your selection by clicking OK.

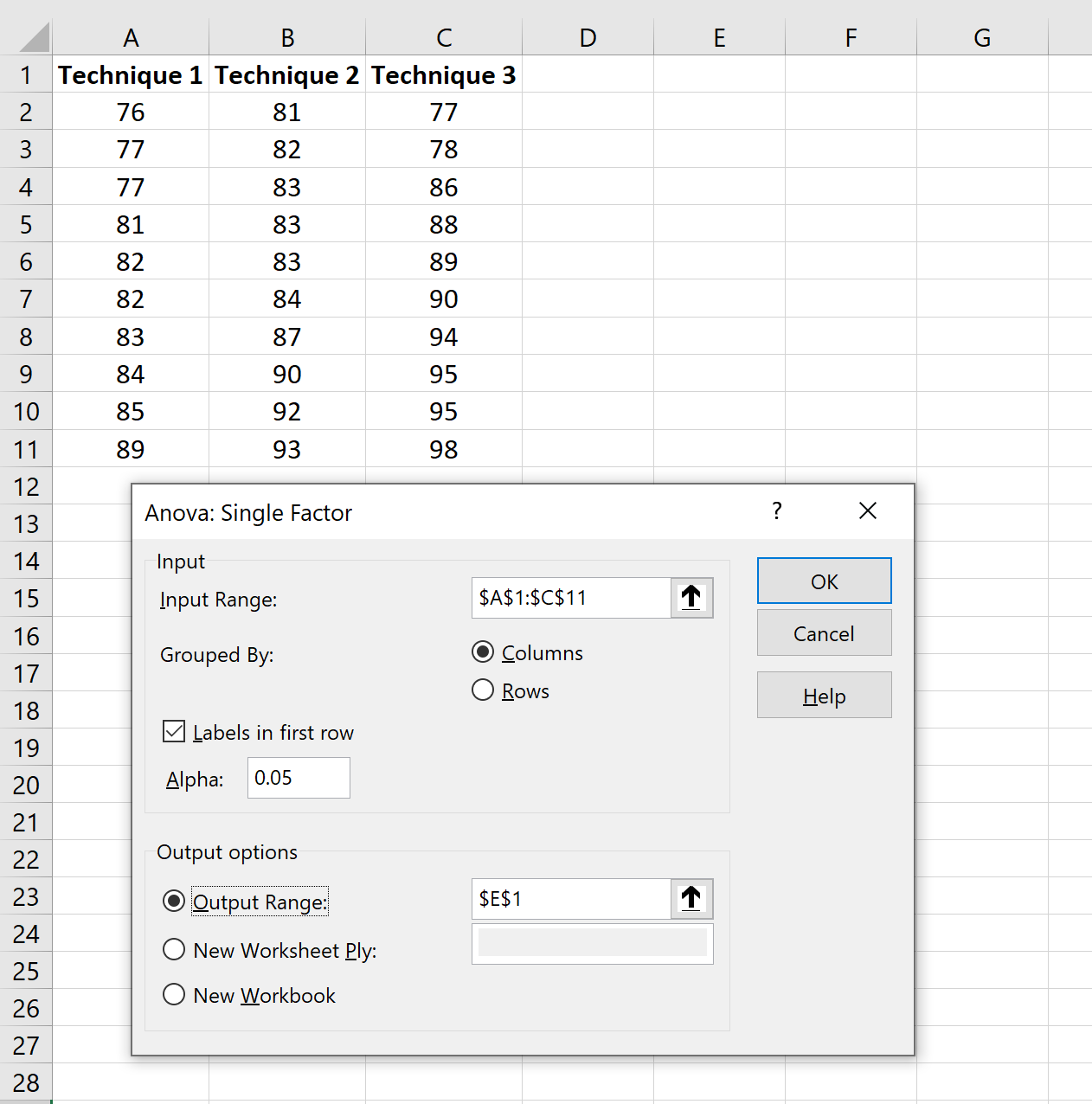

In the subsequent configuration window that opens, careful attention must be paid to the input specifications. Define the Input Range to encompass all data columns, crucially including the descriptive labels in the first row. Verify that the grouping is correctly set to “Columns” and that the box confirming “Labels in first row” is checked. For this analysis, we maintain the standard alpha level of 0.05 for determining statistical significance. Finally, specify the desired Output Range where the detailed ANOVA summary table will be generated.

Step 3: Interpreting the Initial ANOVA Summary and Extracting Key Metrics

Once Excel successfully executes the calculations, the comprehensive ANOVA summary table will populate the designated output area. This table is not merely a final result; it is a repository of core statistical metrics that are absolutely necessary to proceed with the advanced calculations required for Scheffe’s test. We must carefully review the output to extract two critical components.

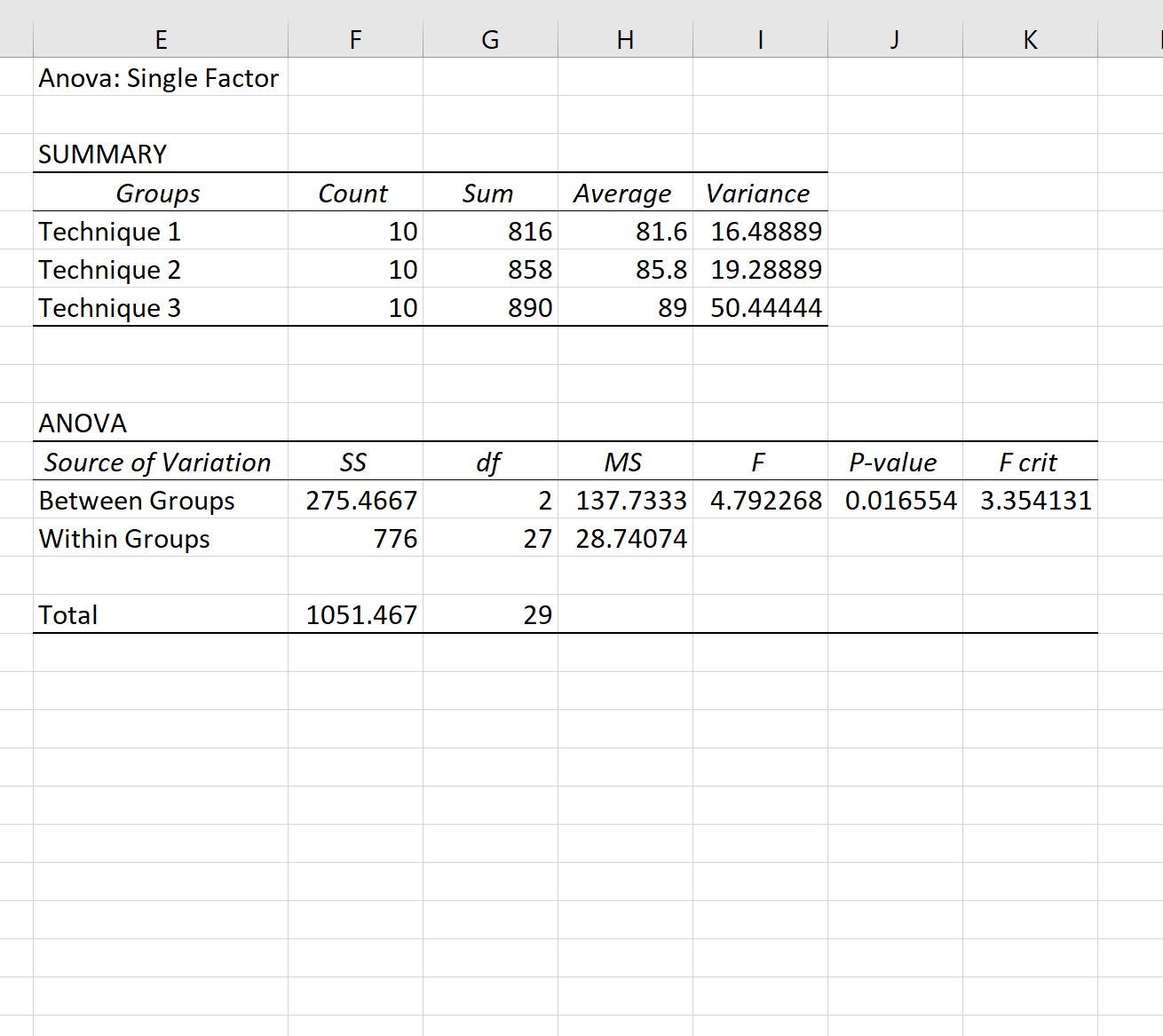

For our example concerning the studying techniques, the output provides detailed summary statistics for each group, the overall F-ratio, and the critical values used for the global significance test:

The most immediate focus must be on the overall p-value, which in this instance is calculated as 0.016554. Since this value is demonstrably less than the standard significance threshold ($alpha = 0.05$), we confidently confirm the initial finding: there is a statistically significant overall difference present among the average exam scores produced by the three distinct studying techniques. Because the global test yields a significant result, moving forward with a detailed post-hoc analysis like Scheffe’s is statistically justified and required to identify the source of the difference.

Crucially, we must extract two specific values from the ANOVA table for the subsequent Scheffe calculation. These are the F Critical Value (3.354131) and the Mean Square Within ($text{MS}_{text{within}}$), which measures the pooled variance within the groups and is 108.9667. These two metrics form the mathematical basis for establishing the adjusted critical threshold and calculating the specific pairwise F-statistics.

Step 4: Deriving Scheffe’s Adjusted Critical Value (F’)

It is important to understand that the standard F Critical Value provided in the ANOVA output is calibrated solely for the single, overall test of means equality. It is not appropriate for the multiple individual comparisons required in a post-hoc procedure. Scheffe’s test, being highly conservative, demands an adjusted critical value, often denoted as F-prime ($text{F}’$), to effectively manage and control the family-wise error rate across the entire set of potential comparisons, thereby reducing the chance of spurious findings.

The mathematical calculation for Scheffe’s Critical Value is defined by a simple modification of the ANOVA’s F Critical Value. We multiply the F Critical Value by the degrees of freedom between groups, which is represented as $k – 1$, where $k$ is the number of groups being compared:

Scheffe’s Critical Value ($text{F}’$) = F Critical Value (from ANOVA) $times$ ($k – 1$)

In the context of our educational example, ‘k’ (the count of studying techniques) is 3. Therefore, the degrees of freedom between groups ($k – 1$) equals 2.

Utilizing the specific F Critical Value derived from our ANOVA summary table (3.354131), the necessary adjusted critical threshold is calculated as follows:

$3.354131 times 2 = mathbf{6.708262}$.

This resulting figure, 6.708, now serves as the rigorous new benchmark or threshold for statistical significance. For any calculated pairwise comparison to be deemed statistically significant under the strict conditions of Scheffe’s procedure, its corresponding calculated F-statistic must unequivocally exceed this value of 6.708.

Step 5: Calculating Pairwise F-Statistics and Stating the Final Conclusion

The final analytical stage involves calculating the specific F-statistic for every possible pairing of group means. Given that we are working with three groups (Techniques 1, 2, and 3), there are three unique pairwise comparisons that must be evaluated: Technique 1 versus Technique 2, Technique 1 versus Technique 3, and Technique 2 versus Technique 3.

The formula for the F-statistic used in a pairwise Scheffe comparison is central to deriving these results:

$text{F-statistic}: (bar{x}_{i} – bar{x}_{j})^{2} / (text{MS}_{text{within}} times (1/n_{i} + 1/n_{j}))$

We rely on the summary statistics from the ANOVA output to retrieve the necessary group means ($bar{x}$) and the $text{MS}_{text{within}}$ value (108.9667). Since all sample sizes ($n$) are consistently 10 in this balanced design, the denominator term simplifies across all calculations.

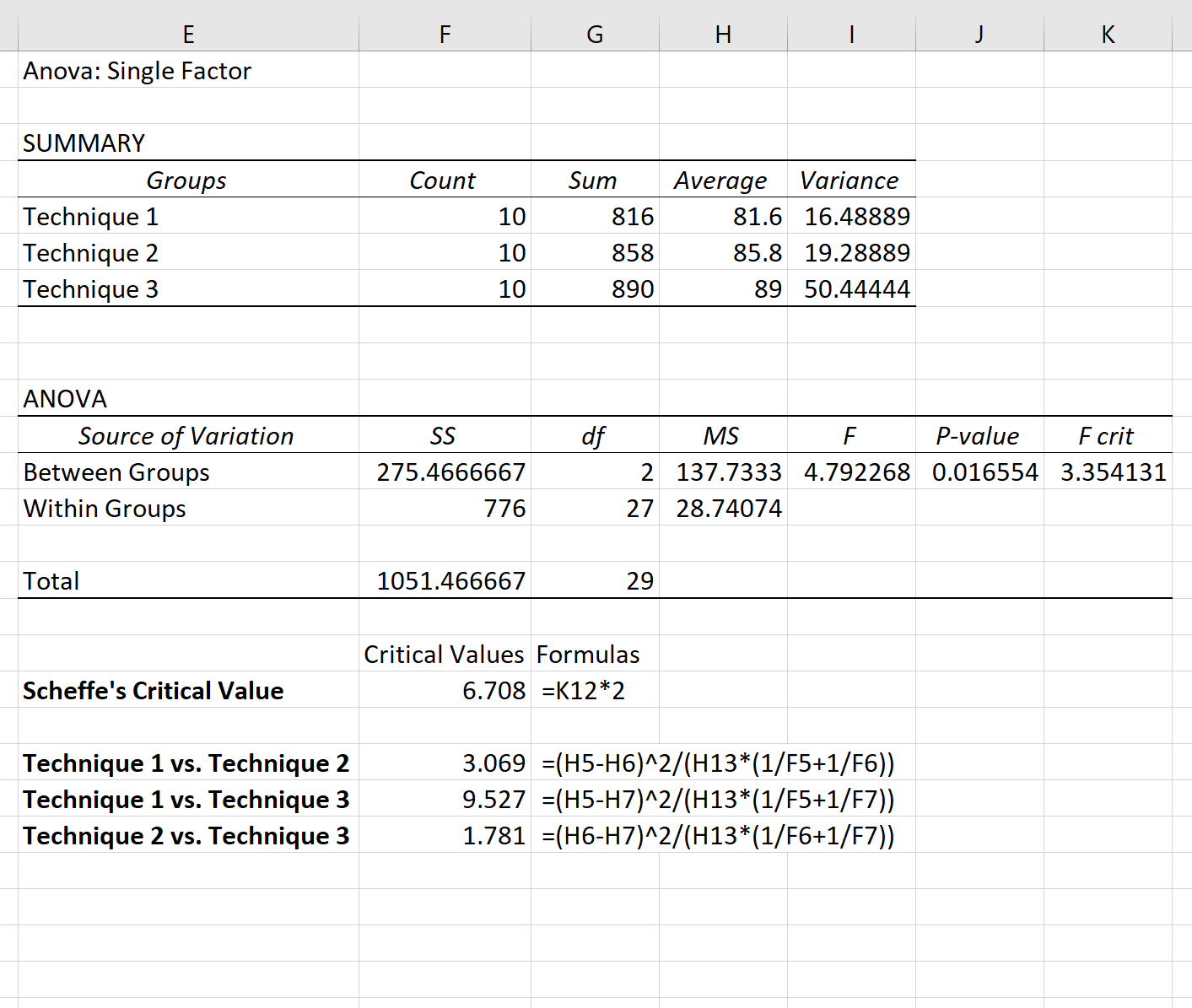

These calculations are best organized and executed directly within Excel. We set up a comparison table to clearly display the differences in means and the resulting F-statistic for each pair:

After successfully calculating the F-statistic for all three possible pairs, the final step involves systematically comparing each resulting value against Scheffe’s Critical Value ($text{F}’ = mathbf{6.708}$). The results are summarized as follows:

• Comparison of Technique 1 vs 2: The F-statistic calculated is 3.738. Since $3.738 < 6.708$, this difference is Not statistically significant.

• Comparison of Technique 1 vs 3: The F-statistic calculated is 10.854. Since $10.854 > 6.708$, this difference is Statistically significant.

• Comparison of Technique 2 vs 3: The F-statistic calculated is 1.956. Since $1.956 < 6.708$, this difference is Not statistically significant.

In conclusion, the Scheffe’s test confirms that, although the initial ANOVA indicated overall differences existed, the only two groups that demonstrate a statistically significantly different effect on average exam scores are Technique 1 and Technique 3. The differences observed between all other pairs are likely attributable to random chance or sampling error.
