Understanding Simple Linear Regression Using Excel: A Beginner’s Tutorial

Simple linear regression (SLR) stands as a foundational and indispensable technique within statistics, designed specifically to model, analyze, and quantify the linear relationship existing between precisely two continuous variables. At the heart of this methodology are two defined roles: the explanatory variable (conventionally designated as x, sometimes referred to as the independent variable) and the response variable (designated as y, the outcome or dependent variable). This robust analytical framework operates under the crucial assumption that the underlying relationship between these variables can be effectively described by a straight line, thereby enabling researchers and analysts to accurately predict the value of the response variable based on observed variations in the explanatory factor.

This step-by-step tutorial serves as a comprehensive guide, walking you through the entire process of conducting and interpreting simple linear regression using the powerful statistical functionalities built directly into Microsoft Excel. By the conclusion of this detailed guide, readers will possess the confidence and requisite knowledge to effectively apply this analytical tool to their own datasets, smoothly transitioning from the initial organization of raw data to the rigorous interpretation of the resulting statistical output and model parameters. Understanding these steps is paramount for anyone looking to perform basic predictive modeling without requiring specialized statistical software packages.

Applying Simple Linear Regression: A Practical Educational Case Study

To effectively illustrate the practical application and utility of simple linear regression, we will delve into a common, real-world scenario frequently encountered in educational research: exploring the potential correlation between the number of hours a student dedicates to studying and their eventual final examination score. This specific analysis allows us to formally test the intuitive hypothesis that increased investment in study time generally correlates with and leads to demonstrably higher academic performance outcomes.

In the context of constructing this specific statistical model, the measured hours studied will function as our explanatory variable (the predictor, or cause), while the resulting exam score will be treated as our response variable (the outcome we are attempting to predict and model). Our primary objective through this detailed regression analysis is the derivation of a precise mathematical equation—the regression line—that accurately describes this linear relationship, thereby facilitating reliable predictions and informed statistical inference about the broader student population.

The following sequence of steps provides a highly detailed walkthrough of the necessary actions required within the Excel environment, beginning with the critical organization of the raw data, and culminating in the execution of a rigorous simple linear regression analysis utilizing the indispensable Data Analysis ToolPak.

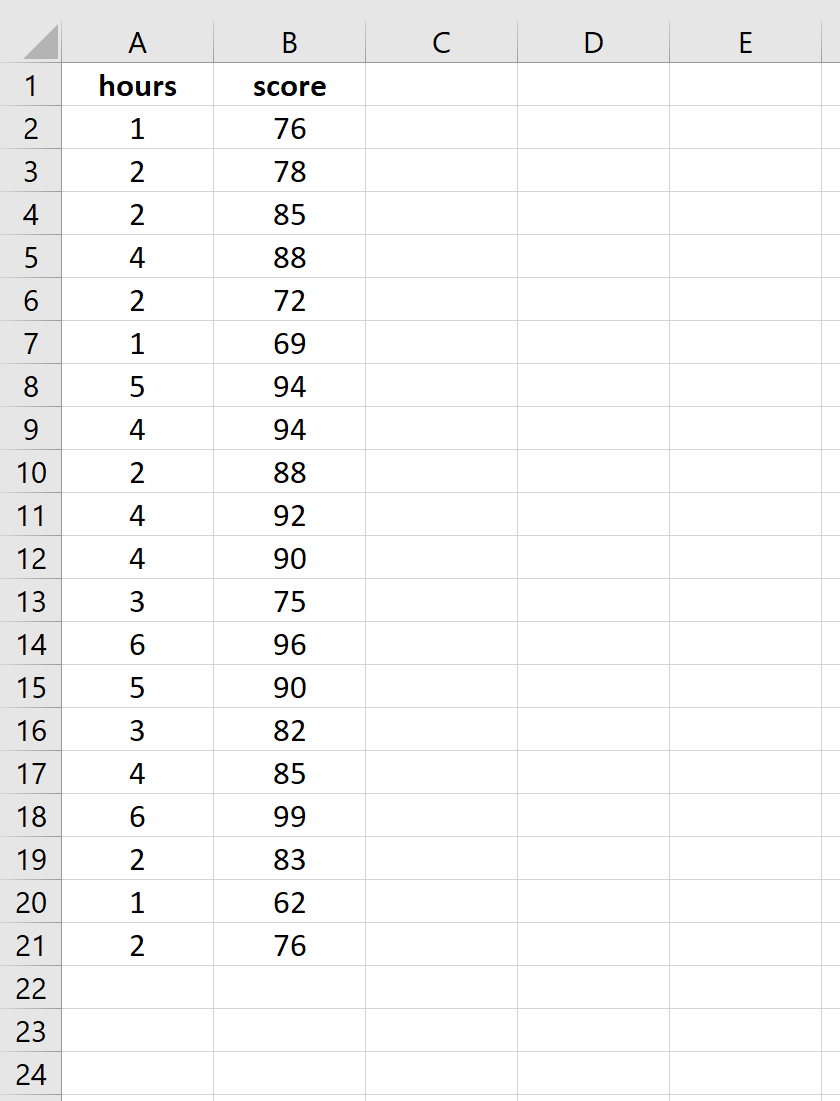

Setting Up the Analysis: Data Preparation and Entry (Step 1)

The initial and most critical stage of any successful statistical investigation involves the accurate and structured input of the raw data into the spreadsheet environment. For the purpose of our illustrative example, we have meticulously collected paired data points from 20 diverse students, tracking both their total dedicated study time (measured in hours) and their respective achieved final exam scores. It is universally considered a statistical best practice to clearly and concisely label your columns, ensuring the explanatory variable is consistently positioned in one column and the corresponding response variable is placed immediately adjacent to it.

You should meticulously enter the following dataset into two distinct, designated columns within your active Excel worksheet. For organizational clarity and operational consistency, we have assigned Column A to represent “Hours Studied” (x) and Column B to represent “Exam Score” (y). Maintaining this precise and consistent data layout is absolutely vital for the smooth and correct operation of Excel’s powerful built-in statistical tools, especially when utilizing the Data Analysis add-in.

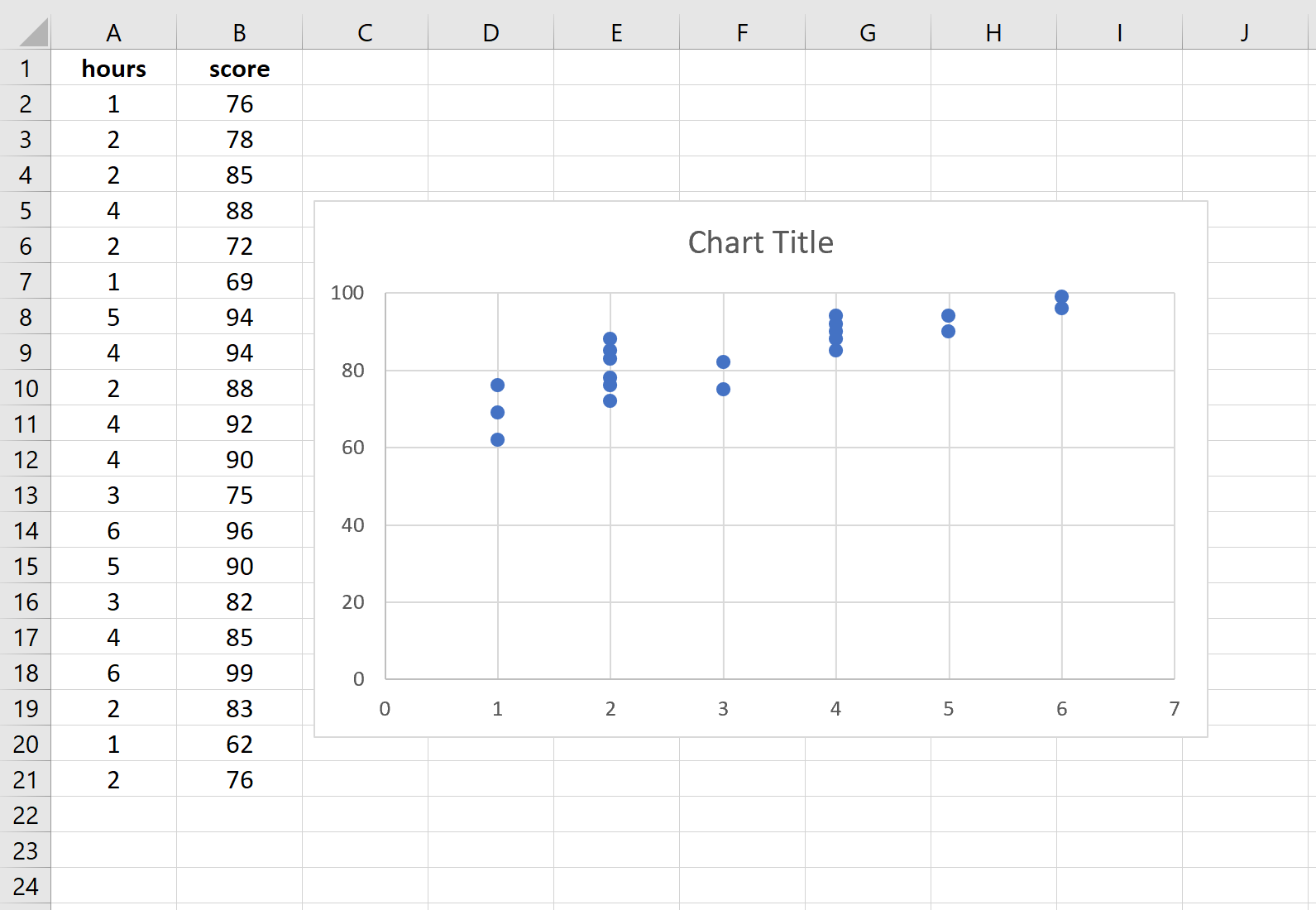

Visualizing the Data: Constructing the Scatterplot (Step 2)

Prior to initiating any complex numerical calculations, it is an essential diagnostic procedure to visually examine and inspect the collected data. The creation of a scatterplot provides an immediate and invaluable assessment of whether a discernible linear relationship truly exists between the two variables under study. Identifying this linearity is a key foundational assumption of simple linear regression. If the data points appear haphazardly scattered without a clear pattern, or if they conspicuously follow a distinctly curved (non-linear) trajectory, then linear regression may simply not be the most statistically appropriate or reliable modeling technique for the given dataset.

To successfully generate the required scatterplot, first highlight the entire relevant data range, which must include both the explanatory variable (x) and the response variable (y) columns (Columns A and B, including headers). Next, navigate to the Insert tab, which is prominently located on the top ribbon interface in Excel. Within the dedicated Charts group, locate and select the option labeled Insert Scatter (X, Y), and then choose the fundamental subtype, which is typically titled simply Scatter. Upon selection, Excel will automatically and instantaneously render the visual representation of your bivariate dataset directly onto the worksheet.

Upon careful examination of the resulting plot, we can clearly observe a positive, upward trend: as the recorded number of hours studied progressively increases along the horizontal axis, the corresponding exam scores also exhibit a strong tendency to rise along the vertical axis. This visually compelling positive association provides powerful support for the suitability of employing simple linear regression to formally and mathematically quantify the strength, direction, and specific parameters of this observed relationship. With this critical visual confirmation, we are now prepared to proceed confidently with the formal statistical calculation phase.

Executing the Regression Analysis ToolPak (Step 3)

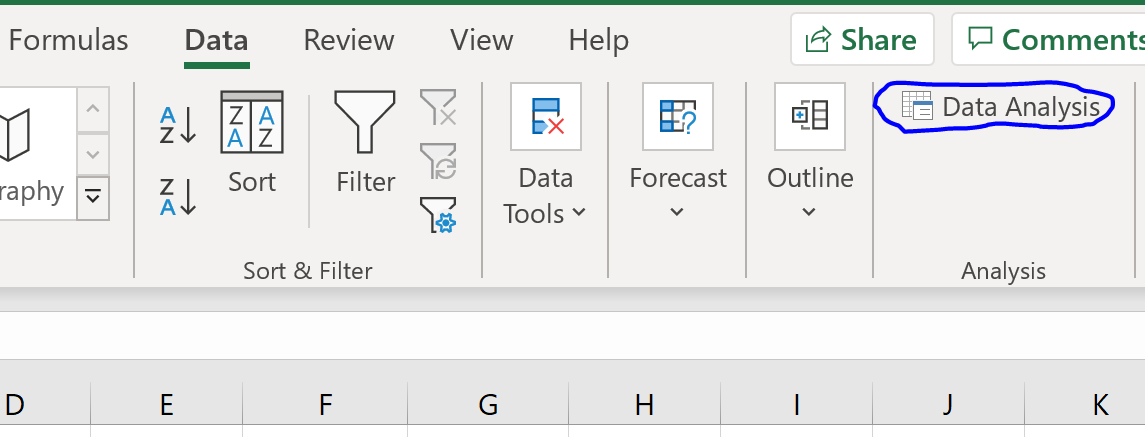

With the visual confirmation establishing the plausibility of a linear relationship, the next stage is to execute the formal regression analysis utilizing Excel’s specialized Data Analysis ToolPak. To successfully access this critical statistical tool, navigate to the Data tab located on the Excel ribbon and click the Data Analysis button. It is important to note that if this option is not visible in your ribbon, you must first enable this statistical add-in through the Excel Options menu settings before proceeding.

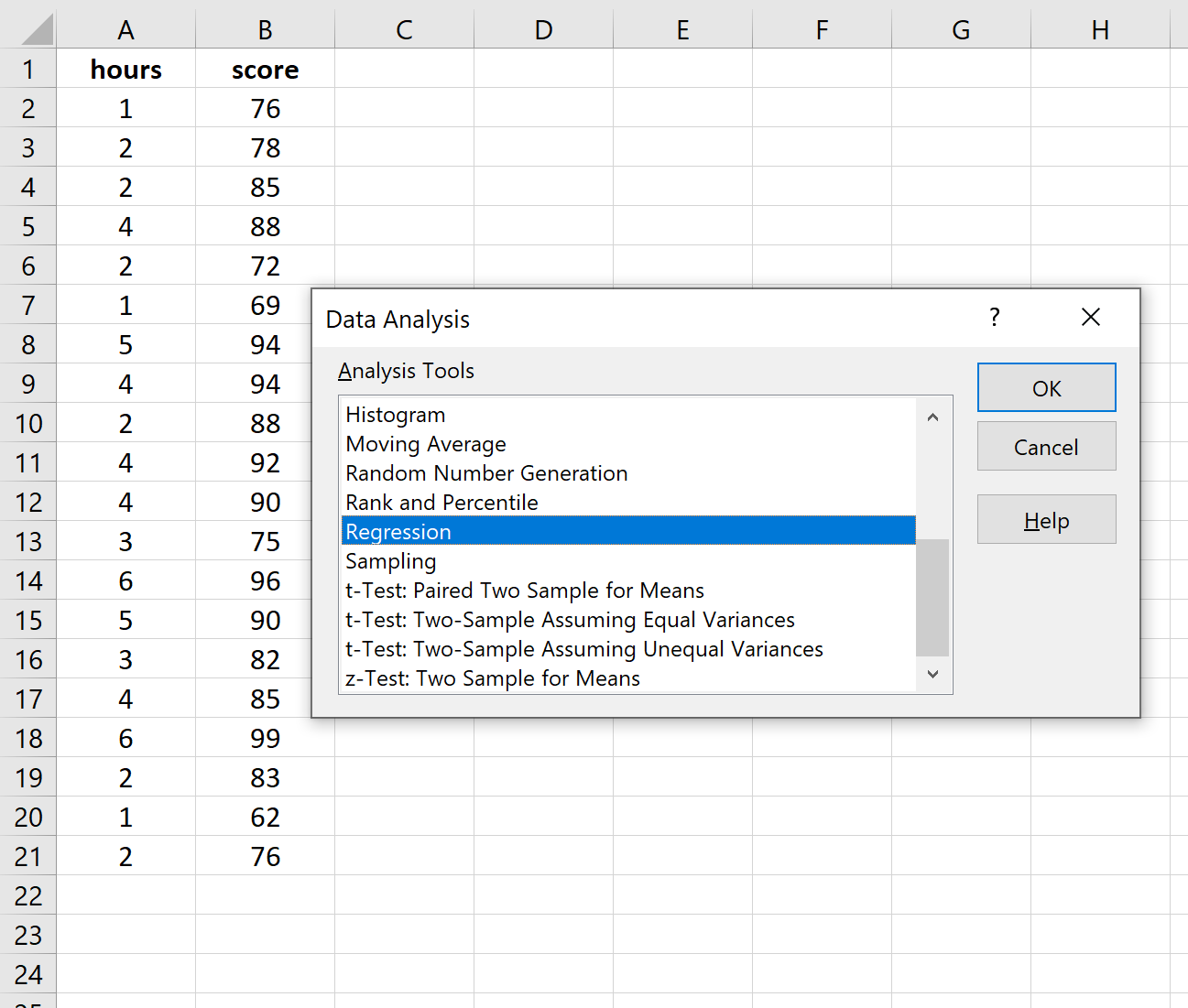

Once the Data Analysis selection window appears, scroll down the list of available statistical procedures and select the specific option labeled Regression. Click OK to open the detailed configuration dialog box, which is where you will precisely define the essential parameters and inputs for your linear model.

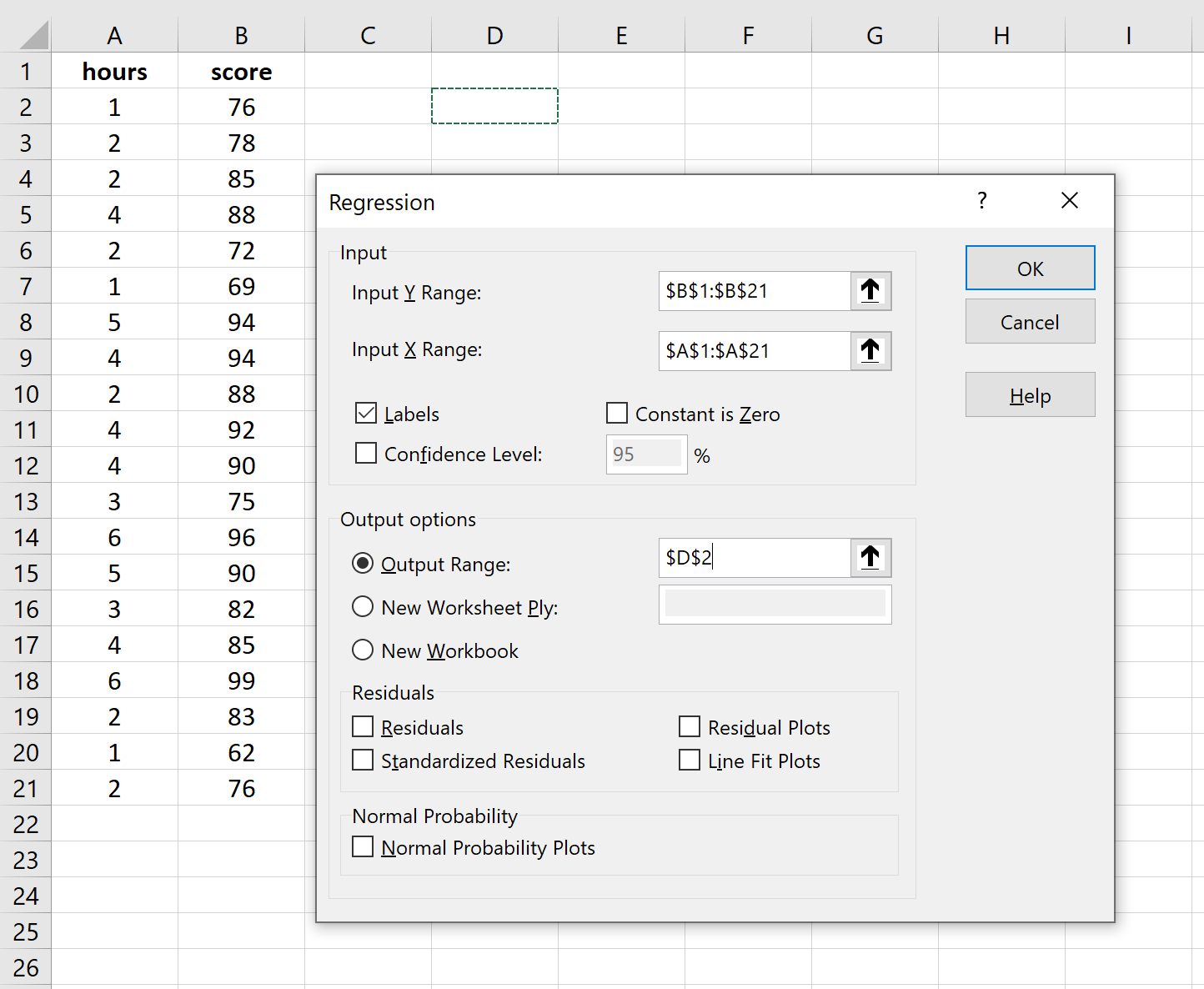

Within the opened Regression dialog box, exercise extreme care in defining your input ranges and operational options to ensure accuracy:

1. For the Input Y Range, select the complete array of cells that contain your response variable—in this case, the Exam Score data, including the column label.
2. For the Input X Range, select the complete array of cells that contain your explanatory variable—the Hours Studied data, again including the label.
3. Crucially, ensure the box next to Labels is checked. This setting explicitly instructs Excel that the very first row of your selected input arrays contains descriptive variable names (headers) rather than actual numerical data points, preventing calculation errors.
4. Finally, specify an Output Range by selecting a single empty cell where you desire the comprehensive statistical results and detailed output summary to be prominently displayed.

After meticulously confirming that all settings and ranges are accurate, click OK. Excel will then instantaneously generate the full regression output summary table in the designated location, ready for interpretation.

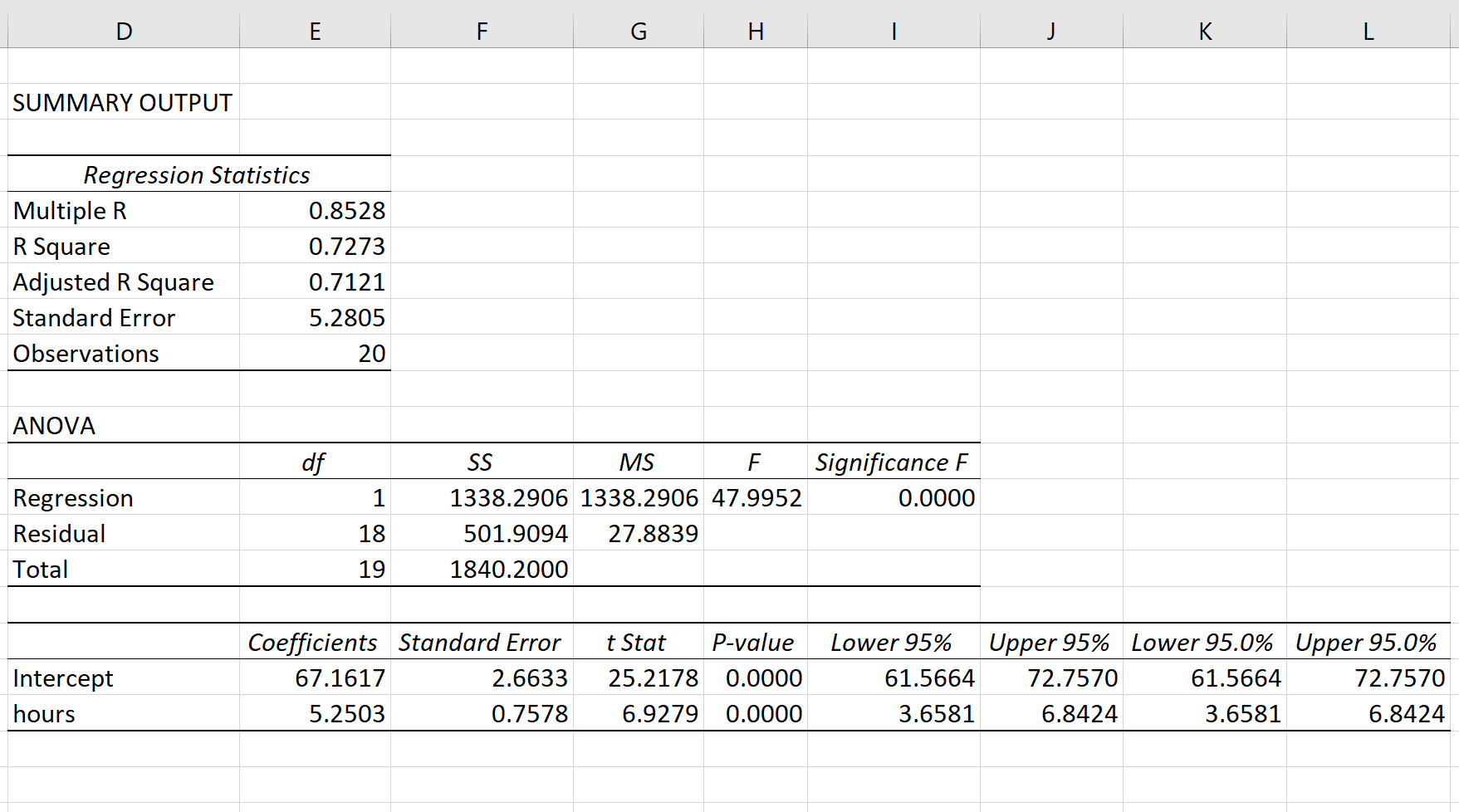

Interpreting the Core Regression Output Metrics (Step 4)

The statistical output produced by Excel is exceptionally rich, containing numerous essential metrics that are fundamental for evaluating the overall quality, goodness-of-fit, and statistical significance of our developed linear regression model. A thorough understanding of what each section and metric represents is absolutely crucial for successfully drawing valid and defensible conclusions regarding the relationship between the number of study hours and the resulting exam scores. The summary output is systematically organized into three primary sections: Regression Statistics, ANOVA (Analysis of Variance), and Coefficients.

We will now focus our interpretive efforts on the most immediately relevant statistics required for the initial assessment of the model:

• R Square (0.7273): This highly important value is statistically defined as the coefficient of determination. It provides a measure of the exact proportion of the total variance observed in the response variable (Exam Score) that can be reliably and statistically predicted or explained by the explanatory variable (Hours Studied). In this specific example, a strong 72.73% of the total variability found in the exam scores is statistically accounted for by the number of hours studied, which strongly suggests a robust and meaningful model fit.
• Standard Error (5.2805): The Standard Error of the estimate serves to quantify the average distance that the actual, observed data points deviate or fall away from the mathematically fitted regression line. Essentially, it represents the typical, expected prediction error inherent in the model. In our case, the observed exam scores deviate from the scores predicted by our model by an average margin of approximately 5.28 points.
• Significance F (0.0000): The Significance F value represents the calculated p-value derived from the overall F-test of the entire regression model. This specific test formally evaluates the null hypothesis that the explanatory variable has absolutely no statistically significant association with the response variable. Since our resulting p-value (0.0000) is definitively much lower than the conventional threshold significance level of 0.05 (alpha), we confidently reject the null hypothesis and conclude that the overall regression model is statistically highly significant.

Deriving and Applying the Predictive Regression Equation

The final and perhaps most actionable component of the regression output is the Coefficients section. This section yields the necessary numerical parameters required to construct the formal regression equation. This equation, often referred to as the line of best fit, is the mathematical model that enables powerful and robust prediction of the response variable (Y) based on any given value of the explanatory variable (X).

Based on the specific coefficient values provided within the Excel output summary, the estimated linear regression equation describing the relationship is precisely constructed as follows:

Exam Score = 67.16 + 5.2503 * (Hours Studied)

A detailed interpretation of these individual coefficients provides specific, actionable predictive insights derived from the model:

• Intercept (67.16): This statistical coefficient represents the expected mean exam score in the hypothetical scenario where the explanatory variable (hours studied) is precisely zero. Therefore, based on our model, a student who invests zero hours in studying is statistically predicted to achieve an average score of 67.16 points.
• Hours Studied Coefficient (5.2503): This crucial value represents the slope of the fitted regression line. We interpret this slope to mean that for every single additional hour a student dedicates to studying, their expected exam score is predicted to increase by an average of 5.2503 points, assuming all other potential influencing factors remain constant (the ceteris paribus assumption).

This rigorously estimated regression equation can now be directly utilized for practical forecasting and predictive applications. For instance, if we consider a new student who is expected to study for exactly three hours, their expected score can be calculated by simply substituting this value into the derived mathematical equation:

Expected Exam Score = 67.16 + 5.2503 * (3) = 82.91

Consequently, our model predicts that a student who studies for three hours is expected to achieve an exam score of approximately 82.91. This outcome clearly demonstrates the tangible, practical predictive capability gained by executing simple linear regression analysis within the accessible environment of Microsoft Excel.
