Simple Linear Regression in SPSS: A Step-by-Step Guide

Simple Linear Regression is a powerful statistical method we can use to understand and model the relationship between a single predictor variable and a single response variable. This technique allows researchers to quantify the extent and nature of this relationship, ultimately enabling prediction and inference.

This comprehensive tutorial explains the step-by-step process of how to effectively perform and interpret Simple Linear Regression using the SPSS statistical software package.

Introduction to Simple Linear Regression

At its core, Simple Linear Regression (SLR) attempts to fit a straight line to a set of data points that best minimizes the sum of squared errors, a methodology known as the least squares method. The resulting equation is used to predict the value of the dependent variable (response) based on the value of the independent variable (predictor). It is a foundational tool in statistics, crucial for fields ranging from economics to psychology.

Before proceeding with the analysis in SPSS, it is vital to ensure that the data meets several key assumptions, including linearity (the relationship must be approximated by a straight line), independence of errors, and homoscedasticity (constant variance of residuals). Failure to meet these assumptions can lead to unreliable model results and incorrect conclusions.

Setting Up the Example Dataset in SPSS

To demonstrate the procedure, we will utilize a practical example investigating the relationship between study habits and academic performance. Suppose we have collected data from 20 students, tracking the total number of hours they studied for a particular examination and the final score they achieved. The goal is to determine if hours studied is a statistically significant predictor of exam performance.

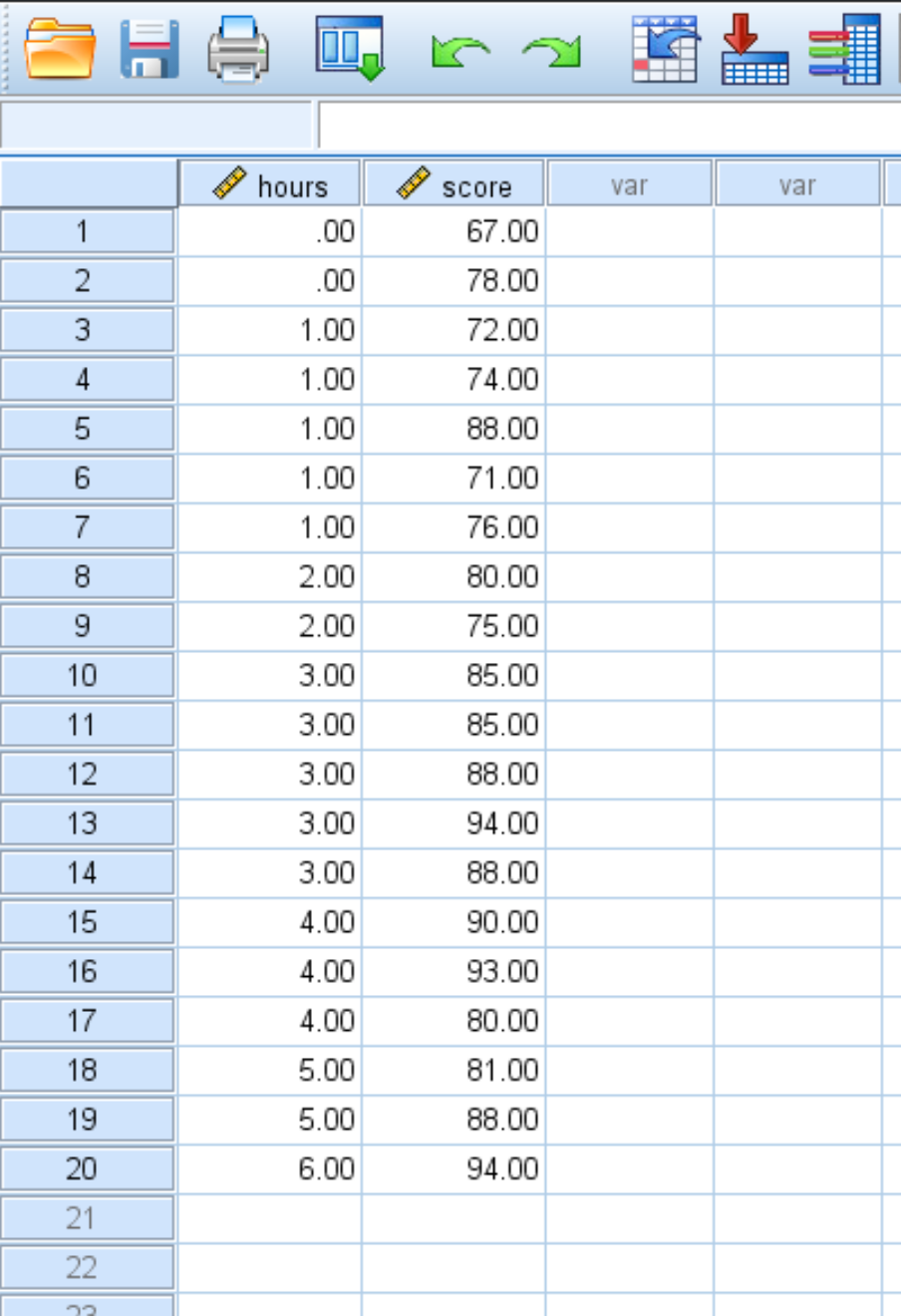

The dataset, which must be correctly entered into SPSS‘s Data View, contains two variables: hours (the predictor, X) and score (the response, Y). Ensure both variables are defined as “Scale” in the Variable View to be treated as continuous quantitative data for the regression analysis.

We will now use the following structured steps to perform the Simple Linear Regression analysis on this dataset, quantifying the precise relationship between hours studied and exam score.

Step 1: Visualizing the Data with a Scatterplot

The first and most critical step in any regression analysis is data visualization. Creating a scatterplot allows us to visually assess the linearity assumption. If the relationship between the two variables does not appear linear, then applying simple linear regression would be inappropriate, and alternative techniques (such as non-linear models) should be considered.

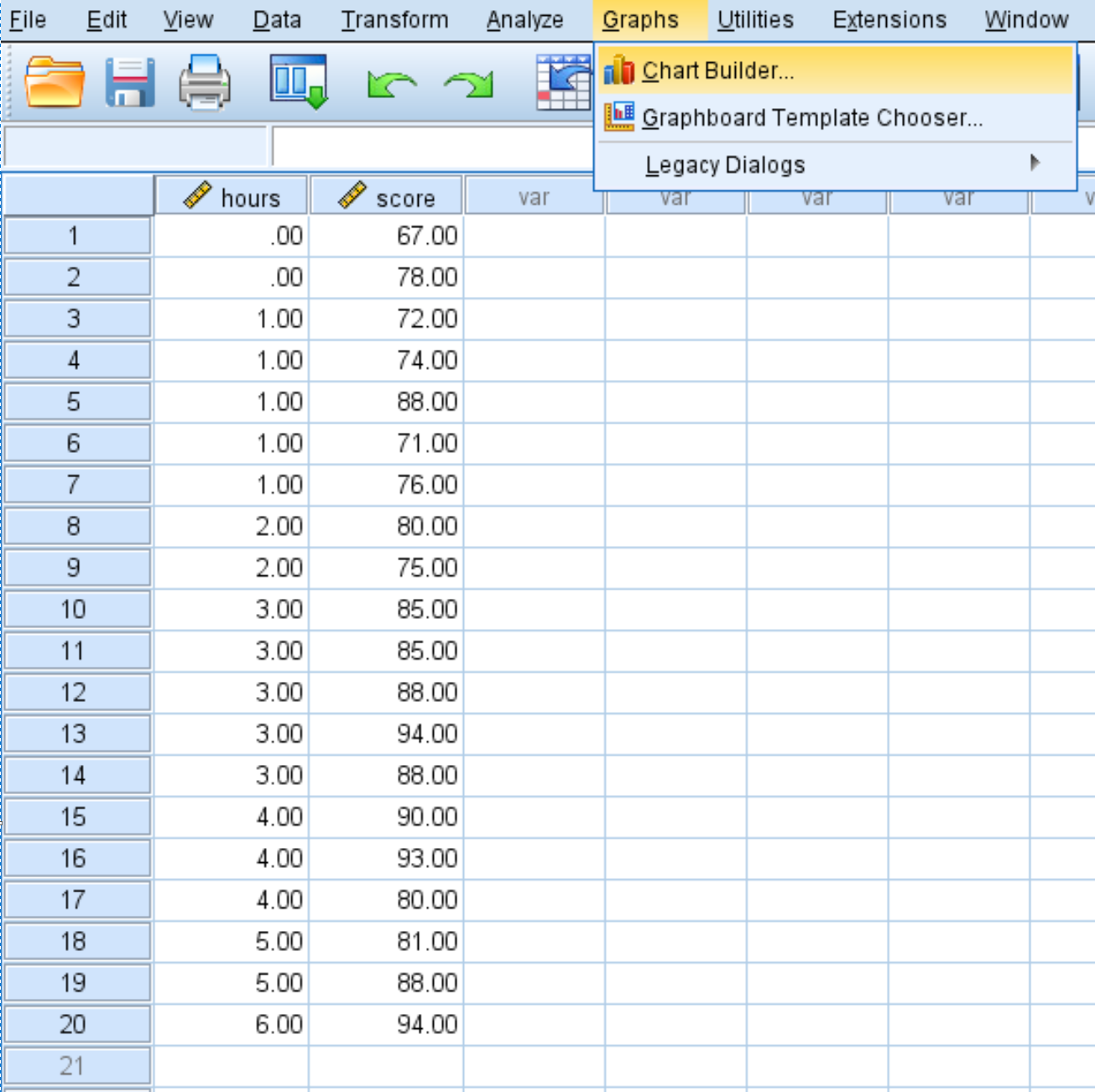

To generate the visualization in SPSS, navigate to the main menu bar and click the Graphs tab, followed by Chart Builder. This tool provides a flexible interface for generating various types of plots.

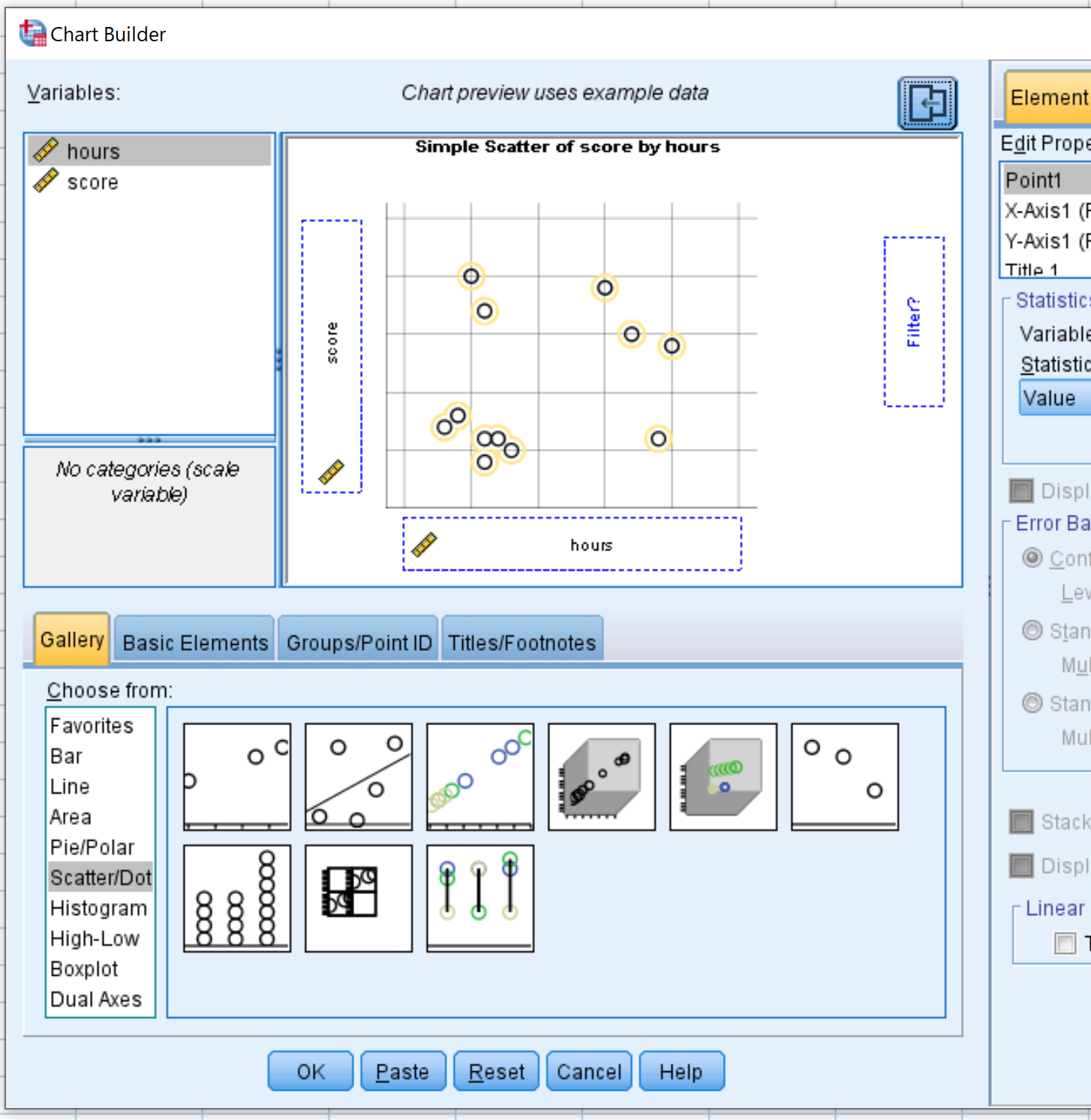

In the Chart Builder interface, select Scatter/Dot from the Choose from menu at the bottom left, and drag the icon into the main editing window. Next, assign your variables: drag the hours variable onto the x-axis (Independent) and the score variable onto the y-axis (Dependent). Once the variables are assigned, click OK to generate the chart.

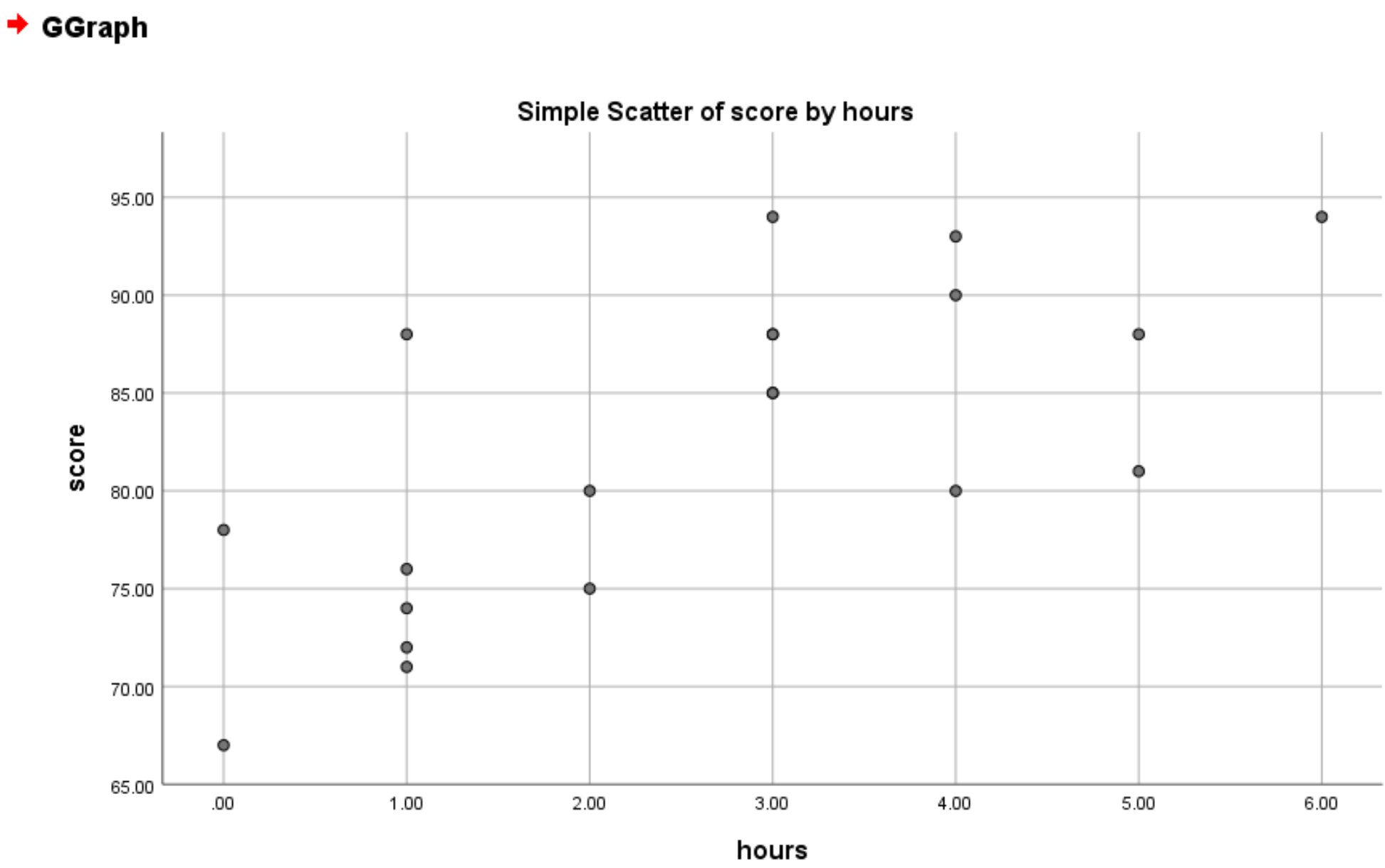

The resulting scatterplot clearly reveals a positive linear relationship between the two variables. We can observe that as the number of hours studied increases, the corresponding exam score generally rises. Since this visualization confirms the linearity assumption, we can confidently proceed with fitting the simple linear regression model to the dataset.

Step 2: Fitting the Simple Linear Regression Model

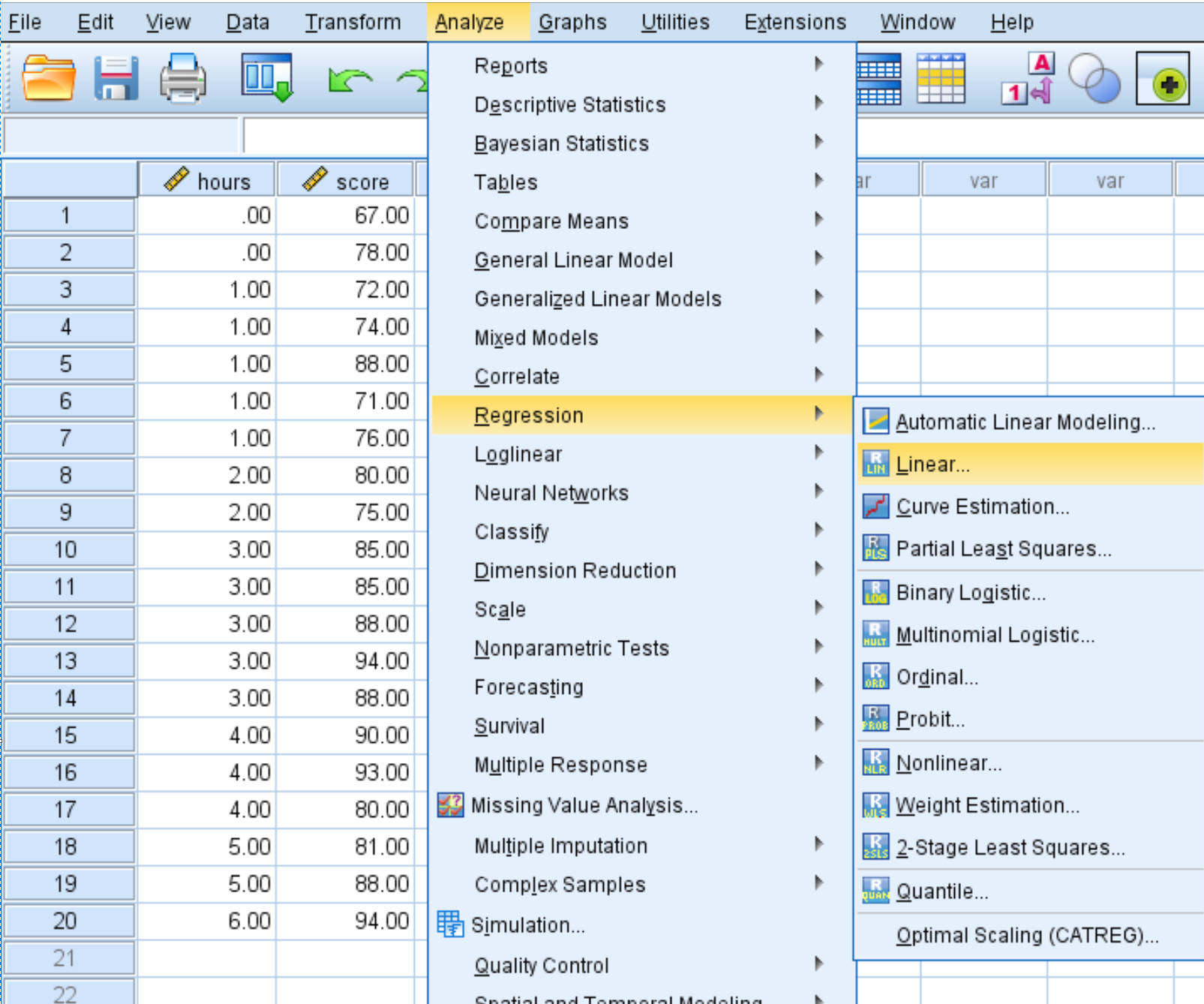

With the linearity assumption confirmed, we can now instruct SPSS to calculate the regression line parameters. To initiate the regression procedure, navigate to Analyze, select Regression, and then choose Linear. This opens the main dialog box for specifying the model.

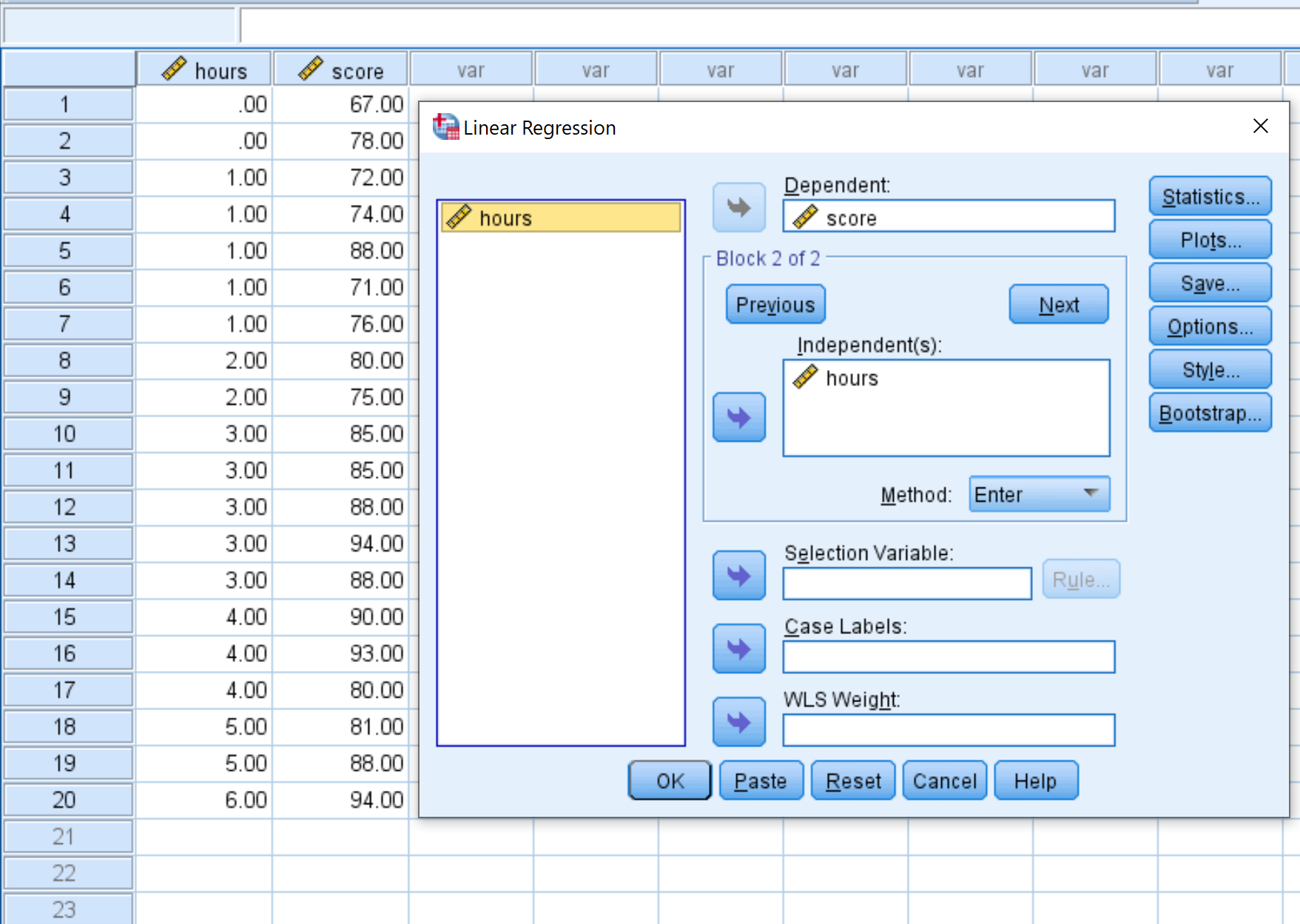

In the new dialog box that appears, accurately designate the dependent and independent variables. Drag the score variable (the outcome we are trying to predict) into the box labeled Dependent, and drag the hours variable (the predictor) into the box labeled Independent(s). For simple linear regression, only one independent variable is used.

While advanced options exist for selecting statistics or plotting residuals, for a basic analysis, simply ensuring the variables are correctly placed is sufficient. Click OK to execute the command and generate the statistical output, which will appear in the SPSS Output Viewer window.

Step 3: Detailed Interpretation of SPSS Output

The results output generated by SPSS provides several tables detailing the model’s performance and the specific coefficients of the regression line. We must analyze two key tables: the Model Summary and the Coefficients table.

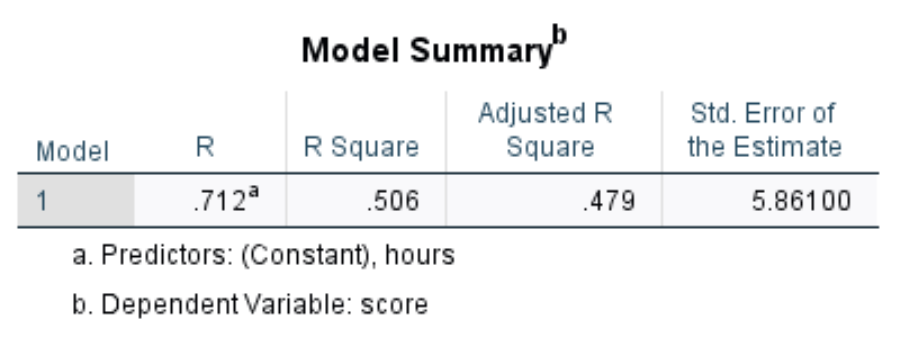

Model Summary Interpretation

The first critical table to examine is the Model Summary, which provides metrics regarding the overall fit and strength of the relationship established by the regression equation.

• R Square: This value represents the Coefficient of Determination. It is the proportion of the variance in the response variable (exam score) that is predictable from the explanatory variable (hours studied). In this instance, the R Square value of 0.506 indicates that 50.6% of the total variation observed in the exam scores can be explained by the variation in the number of hours studied. The remaining variance is attributed to other factors not included in the model.
• Std. Error of the Estimate: This metric quantifies the average magnitude of the errors (residuals). It is the average distance that the observed score values fall from the calculated regression line. A lower value indicates a more precise model. In this example, the observed values fall an average of 5.861 units (score points) from the regression line, which serves as a measure of the model’s accuracy in prediction.

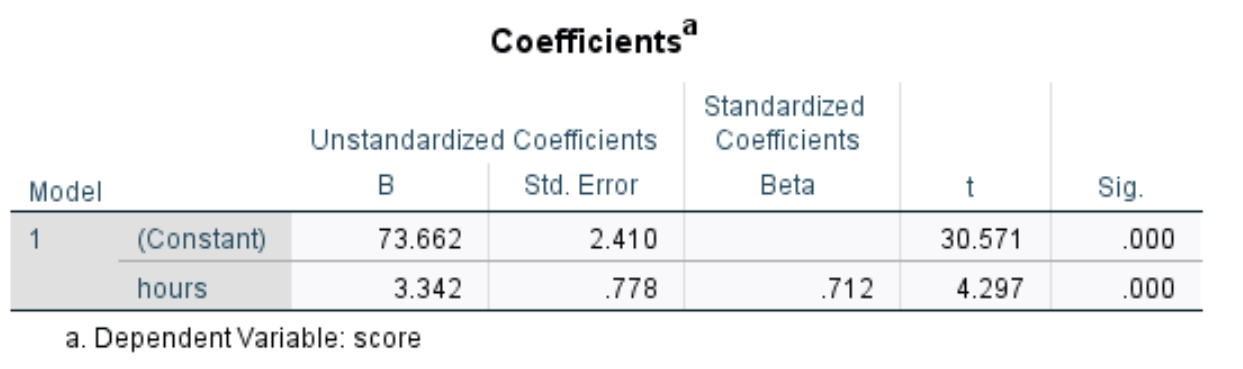

Coefficients Table Interpretation

The Coefficients table is arguably the most important, as it provides the necessary values (the intercept and the slope) required to construct the final regression equation and interpret the specific impact of the predictor variable.

• Unstandardized B (Constant): This coefficient represents the Y-intercept of the regression line. It tells us the predicted average value of the response variable (score) when the predictor variable (hours studied) is equal to zero. Here, the constant of 73.662 implies that a student who studies for zero hours is predicted to achieve an average exam score of 73.662 points. Caution should always be exercised when interpreting the intercept if zero is outside the range of observed data.
• Unstandardized B (hours): This is the regression coefficient, or slope. It indicates the average change in the response variable associated with a one-unit increase in the predictor variable. The value of 3.342 means that for each additional hour studied, the exam score is expected to increase by 3.342 points, on average. This is the key quantification of the relationship.
• Sig (hours): This column contains the P-value associated with the t-test for the predictor’s coefficient. This test assesses whether the slope is significantly different from zero. Since the observed P-value (reported as 0.000, meaning less than 0.0005) is far below the conventional significance level of 0.05, we reject the null hypothesis. We conclude that the predictor variable hours is statistically significant in predicting exam scores.

Step 4: Constructing and Applying the Regression Equation

The ultimate practical output of a simple linear regression analysis is the predictive equation, formed by utilizing the unstandardized coefficients (Constant and Slope) derived from the Coefficients table. The general form of the equation is: Estimated Y = Constant + (Slope * X).

Substituting our specific results into this linear model yields the following regression equation:

Estimated exam score = 73.662 + 3.342*(hours)

This equation can now be used for prediction within the range of the observed data. For instance, we can calculate the expected score for a student who reports studying for exactly 3 hours.

By plugging the value X=3 into the model, we calculate the estimated score:

Estimated exam score = 73.662 + 3.342*(3) = 73.662 + 10.026 = 83.688

Therefore, a student who studies for 3 hours is expected to receive an exam score of 83.688, based on the statistical relationship modeled by our dataset.

Step 5: Reporting the Results

The final stage of the analysis involves summarizing the findings in a clear, standardized format, typically adhering to academic or professional reporting guidelines. This summary should include the descriptive statistics, the overall model fit (R-square), and the specific parameters of the regression line, along with the test statistics.

When reporting the results, it is essential to cite the degrees of freedom and the relevant test statistics (t-value and p-value) to allow readers to evaluate the statistical significance of the findings independently. Here is an example of how the results of this Simple Linear Regression could be formally presented:

A simple linear regression was performed to quantify the relationship between hours studied and exam score received, utilizing a sample of 20 students.



Results showed that there was a statistically significant positive relationship between hours studied and exam score (t = 4.297, p < 0.001). Hours studied accounted for 50.6% (R² = 0.506) of the explained variability in exam score.



The final regression equation was determined to be:



Estimated exam score = 73.662 + 3.342*(hours)



This indicates that each additional hour studied is associated with an increase of 3.342 points in the predicted exam score, on average.
