Perform Spline Regression in R (With Example)

Understanding Spline Regression: An Introduction

Spline regression stands as a highly adaptive and essential technique within regression analysis, proving indispensable when modeling relationships between variables that display complex, highly non-linear behavior. Unlike conventional models that assume a uniform, straight-line relationship, spline regression is engineered to precisely capture abrupt shifts, subtle curves, or distinct phases within the data structure. These critical points where the underlying statistical relationship changes significantly are mathematically defined as “knots.” The accurate placement of these knots is fundamental to the model’s success.

When simpler statistical tools, such as basic linear regression or even standard polynomial regression, fail to provide an accurate or satisfactory representation of the observed data patterns, spline regression offers a powerful and flexible solution. The method operates by dividing the independent variable’s range into several intervals and fitting a separate, low-degree polynomial segment to each interval. These segments are then carefully joined together at the specified knots, ensuring continuity and smoothness across the entire curve. This segmented yet continuous approach allows for a vastly more adaptive fit, effectively reflecting the true, often intricate, dynamics between the predictor and response variables.

This article provides a comprehensive, step-by-step tutorial guiding you through the practical application of spline regression within R, the industry-standard statistical programming environment. We will walk through the necessary steps: data preparation, establishing a baseline using a simple linear model, and finally, implementing and rigorously interpreting a spline regression model to achieve a superior, highly descriptive fit for challenging data.

Step 1: Preparing and Visualizing Non-Linear Data in R

The foundation of effective data modeling begins with meticulous data preparation and visualization. For this demonstration, we will construct a synthetic data frame in R, containing two variables, x (the predictor) and y (the response). This dataset is specifically engineered to exhibit a pronounced non-linear relationship, ensuring that the limitations of traditional linear models are clearly visible.

Following data generation, the immediate next step is creating a scatterplot. This graphical representation is not merely an aesthetic choice; it provides the analyst with immediate, critical insight into the relationship between x and y. Visual inspection helps confirm the presence of non-linearity and, crucially, aids in the preliminary identification of potential points where the relationship’s trend abruptly changes—the locations where we might later place our model’s knots.

# Create the sample data frame
df <- data.frame(x=1:20,
                 y=c(2, 4, 7, 9, 13, 15, 19, 16, 13, 10,
                     11, 14, 15, 15, 16, 15, 17, 19, 18, 20))

# View the first few rows to verify the structure
head(df)

  x  y
1 1  2
2 2  4
3 3  7
4 4  9
5 5 13
6 6 15

# Generate a scatterplot to visualize the relationship
plot(df$x, df$y, cex=1.5, pch=19)

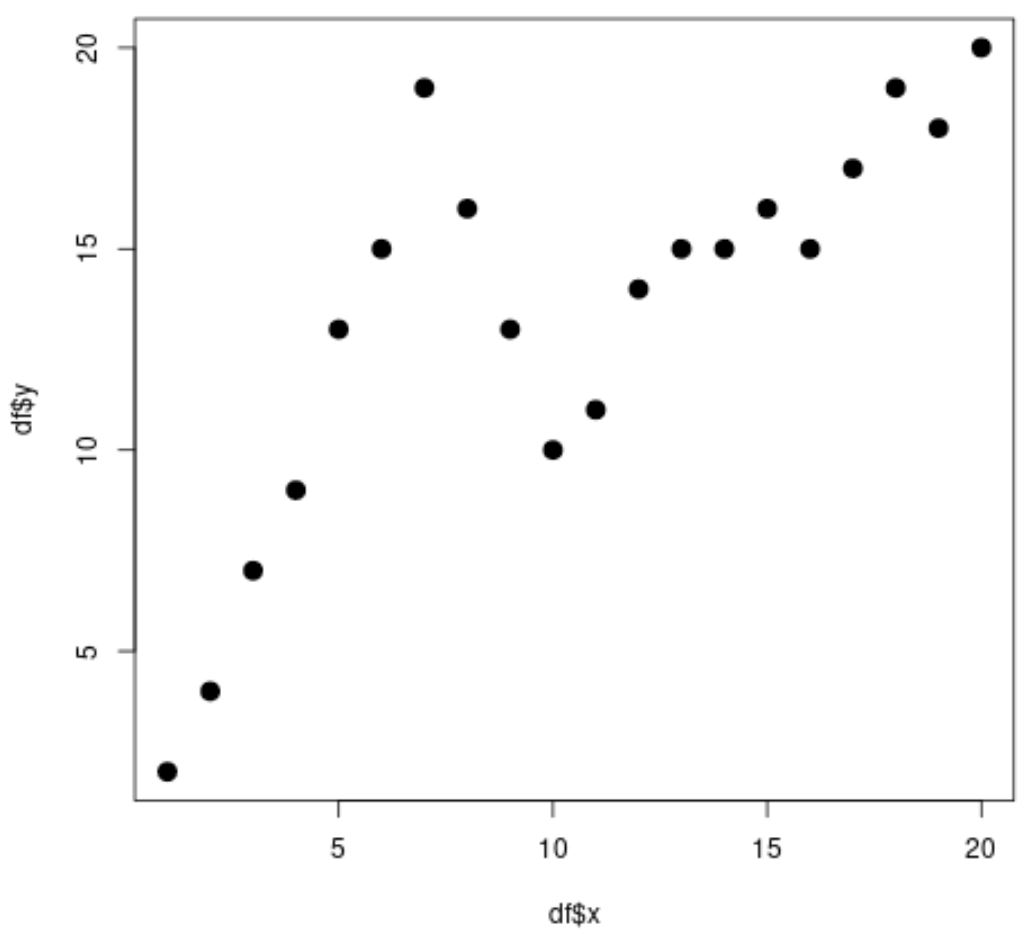

Analyzing the resulting scatterplot confirms that the relationship between x and y is far from linear. The data initially rises steeply, then dips, and eventually resumes an upward trend. Crucially, we can visually identify two prominent points where the pattern dramatically shifts. These visually discernible changes, which signal the need for a segmented model, appear to be located approximately around x = 7 and x = 10. These visual indicators are paramount; they justify moving beyond simple linear models and provide the crucial initial guidance for placing the knots in our forthcoming spline model.

Step 2: Assessing Limitations of Simple Linear Regression

To properly contextualize the power of spline regression, it is standard practice to first fit a simple linear regression model to the data. This serves two vital roles: establishing a measurable baseline performance and definitively illustrating the inadequacy of a rigid linear structure for modeling this particular dataset. We employ the robust lm() function in R for this purpose, which calculates the best-fit straight line, and then plot this line over our existing scatterplot.

The detailed output generated by the model summary provides rich numerical information about the linear fit. Analysts must pay close attention to several key diagnostics, including the magnitude and significance (p-values) of the coefficients, the distribution of residuals, and, most importantly, the R-squared value. The R-squared statistic quantifies the proportion of the variance in the dependent variable (y) that the independent variable (x) explains. A low value here immediately flags the model as a poor descriptor of the observed data variability.

# Fit a simple linear regression model
linear_fit <- lm(df$y ~ df$x)

# View the summary of the linear model
summary(linear_fit)

Call:
lm(formula = df$y ~ df$x)

Residuals:
    Min      1Q  Median      3Q     Max
-5.2143 -1.6327 -0.3534  0.6117  7.8789

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   6.5632     1.4643   4.482 0.000288 ***
df$x          0.6511     0.1222   5.327  4.6e-05 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 3.152 on 18 degrees of freedom
Multiple R-squared:  0.6118,	Adjusted R-squared:  0.5903
F-statistic: 28.37 on 1 and 18 DF,  p-value: 4.603e-05

# Re-create the scatterplot
plot(df$x, df$y, cex=1.5, pch=19)

# Add the simple linear regression line to the scatterplot
abline(linear_fit)

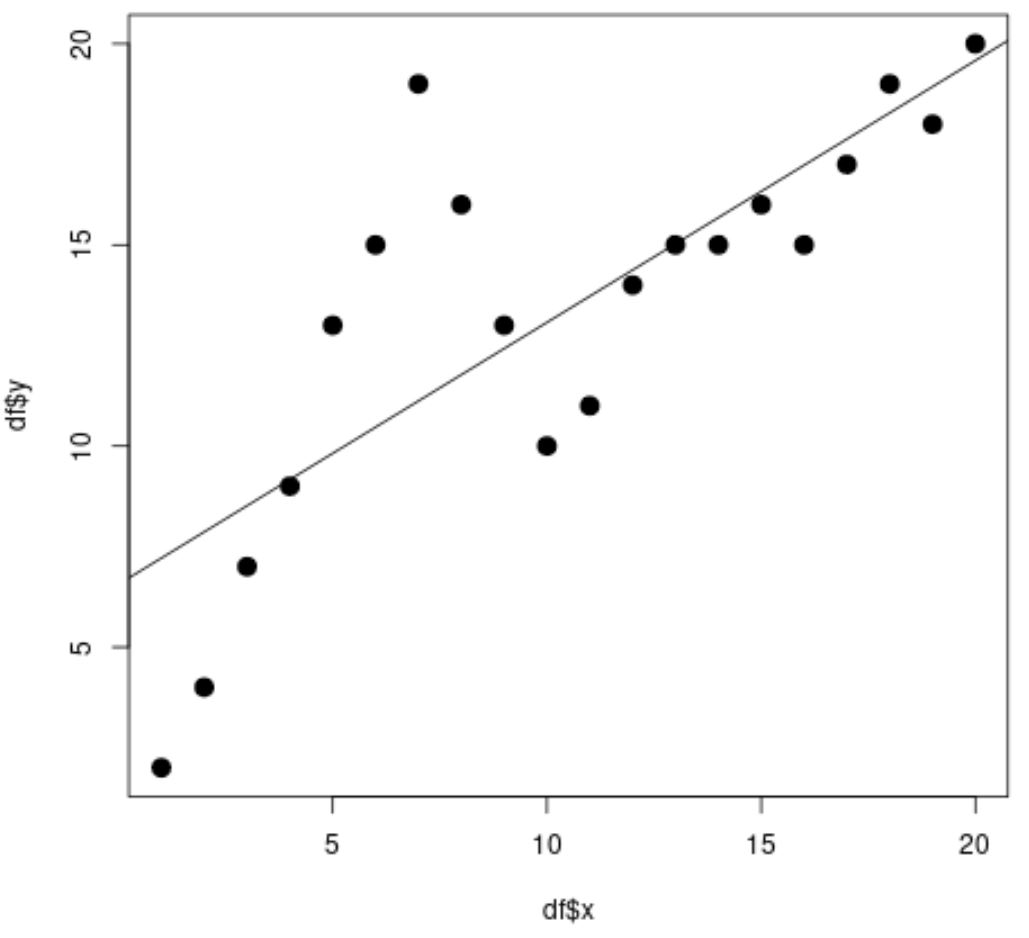

As the visualization clearly demonstrates, the rigid, single straight line derived from the simple linear regression model is entirely inadequate for capturing the complex trajectory of the data points. The line severely overestimates the center points and underestimates the peaks and troughs. The numerical model output reinforces this conclusion: the adjusted R-squared value stands at a modest 0.5903. This indicates that the linear relationship only accounts for approximately 59% of the variance observed in y, leaving significant structure unexplained. This poor fit confirms the necessity of adopting a more sophisticated, flexible modeling framework, such as spline regression.

Step 3: Implementing Spline Regression with the R splines Package

Having confirmed the inadequacy of the linear baseline, we proceed to implement spline regression, which is perfectly suited for handling these non-linear structures. In R, the necessary functionality is provided by the essential splines package. This package contains the powerful bs() function, which stands for “basis splines.” We use bs() within the standard lm() call to transform our single predictor variable x into a set of basis functions, effectively preparing it for the segmented polynomial fit.

For this example, we utilize the visual evidence gathered in Step 1 and explicitly define two knots at x=7 and x=10. By supplying the knots argument to the bs() function, we instruct the model exactly where the polynomial segments should join, allowing the curve’s slope and shape to change precisely at those inflection points. This targeted placement is what grants the spline model its remarkable flexibility. Once the model is fitted, we examine its summary, anticipating a significantly higher adjusted R-squared value compared to the linear model baseline.

library(splines)

# Fit a spline regression model using the bs() function with specified knots
spline_fit <- lm(df$y ~ bs(df$x, knots=c(7, 10)))

# View the summary of the spline regression model
summary(spline_fit)

Call:
lm(formula = df$y ~ bs(df$x, knots = c(7, 10)))

Residuals:
     Min       1Q   Median       3Q      Max
-2.84883 -0.94928  0.08675  0.78069  2.61073

Coefficients:
                            Estimate Std. Error t value Pr(>|t|)
(Intercept)                    2.073      1.451   1.429    0.175
bs(df$x, knots = c(7, 10))1    2.173      3.247   0.669    0.514
bs(df$x, knots = c(7, 10))2   19.737      2.205   8.949 3.63e-07 ***
bs(df$x, knots = c(7, 10))3    3.256      2.861   1.138    0.274
bs(df$x, knots = c(7, 10))4   19.157      2.690   7.121 5.16e-06 ***
bs(df$x, knots = c(7, 10))5   16.771      1.999   8.391 7.83e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.568 on 14 degrees of freedom
Multiple R-squared:  0.9253,	Adjusted R-squared:  0.8987
F-statistic:  34.7 on 5 and 14 DF,  p-value: 2.081e-07

# Calculate predictions using the spline regression model for plotting
x_lim <- range(df$x)
x_grid <- seq(x_lim[1], x_lim[2])
preds <- predict(spline_fit, newdata=list(x=x_grid))

# Create a scatterplot and overlay the spline regression predictions
plot(df$x, df$y, cex=1.5, pch=19)
lines(x_grid, preds)

Step 4: Interpreting and Comparing Model Performance

The final visualization, which overlays the smooth spline curve onto the raw data points, offers immediate and compelling confirmation of the spline model’s success. The curve seamlessly follows the complex non-linear path, accurately rising, dipping, and rising again, demonstrating an exceptional fit that the simple linear model could never achieve. This visual superiority is the direct result of the model’s ability to adapt its structure at the predefined knots, effectively modeling localized changes in trend.

Quantitatively, the numerical output from the model summary provides the most authoritative evidence of performance enhancement. We specifically look at the key metric established earlier: the adjusted R-squared value for the spline regression model is calculated as 0.8987. This figure represents a dramatic leap in explanatory power compared to the 0.5903 achieved by the simple linear regression model. An adjusted R-squared approaching 0.90 suggests that nearly 90% of the variance in the dependent variable y is accounted for by the spline functions of x.

This substantial increase in the adjusted R-squared value confirms that the spline regression model is significantly more effective at capturing the true underlying relationship between the variables. This improved predictive accuracy is crucial, as it provides a much more robust foundation for both inference and prediction tasks involving datasets characterized by inherent non-linear dynamics. The success here underscores why spline regression is a vital tool in the data analyst’s arsenal when faced with complex, real-world data structures.

It is important to note a practical consideration: in this illustrative tutorial, the placement of the two knots (at x=7 and x=10) was determined through clear visual inspection of the generated data. In practical, real-world data analysis, identifying the optimal number and location of knots is often far more challenging. Data professionals frequently rely on a blend of methodologies, including domain expertise, careful residual analysis, and rigorous statistical methods such as cross-validation techniques or the application of more automated frameworks like Generalized Additive Models (GAMs). The choice of knot configuration directly impacts the model’s flexibility and risk of overfitting, making it a critical aspect of model building.

Further Exploration and Advanced Modeling Techniques

The ability to successfully deploy spline regression in R represents a significant step forward in analyzing complex datasets that inherently violate the strict assumptions of traditional linear models. Mastering this flexible technique, alongside related advanced regression methods, is paramount for modern data scientists and researchers navigating the irregularities of observational data.

To continue building upon this foundation and further refine your analytical toolkit in R, we recommend exploring these related concepts and advanced tutorials:

• Polynomial Regression: Investigate this related technique, which uses global polynomial functions to model non-linear relationships. It serves as an important intermediate step and comparison point before adopting the localized flexibility of splines.

• Generalized Additive Models (GAMs): Delve into these models, which significantly extend the flexibility of splines by allowing the response variable to be modeled by a sum of smooth functions of predictors. GAMs offer an even more automated and adaptive approach to handling multivariate non-linearity.

• Cross-Validation for Model Selection: Learn to implement techniques such as k-fold cross-validation. This is essential for objectively comparing different model configurations—including those with varying numbers and positions of knots—to ensure that the chosen model generalizes well to new data and prevents overfitting.

• Interpreting Regression Coefficients in Basis Functions: Gain a deeper conceptual understanding of how to interpret the coefficients derived from basis functions in spline models, and what these abstract parameters truly signify regarding the segmented relationship between the variables.

By continuously expanding your theoretical knowledge and practical skills in statistical modeling, particularly within the R environment, you will be exceptionally well-equipped to manage and solve diverse and challenging data analysis problems, yielding more accurate insights and facilitating better data-driven decisions.
