Trend Analysis in Excel: A Step-by-Step Tutorial for Beginners

Trend analysis is a foundational statistical methodology applied across diverse fields, including finance, economics, and advanced data science. Its core purpose is to systematically summarize and mathematically articulate the historical pattern—or “trend”—inherent in a given dataset. By defining this past performance, analysts gain the ability to accurately project or forecast future values. This insight into underlying patterns is absolutely critical for strategic planning, resource allocation, and informed decision-making within any modern organization.

When examining time-series data, the ability to identify whether the data exhibits a positive, negative, or cyclical movement provides invaluable predictive power. Quantifying this relationship transforms simple historical observation into a reliable mechanism for future prediction, moving beyond guesswork to data-driven strategy.

This guide offers a comprehensive, step-by-step tutorial detailing the exact procedures required to conduct a robust trend analysis within Microsoft Excel. We will leverage Excel’s powerful built-in visualization and statistical tools to derive a predictive mathematical model.

Structuring the Foundational Dataset for Analysis

The inaugural step in any successful trend analysis project involves meticulously structuring your raw data. For effective time-series modeling, your dataset must consist of two adjacent variables: one column dedicated to the sequential time element (e.g., Year, Quarter, or Month) and a second column representing the measurable variable under scrutiny (e.g., Sales Volume, Operational Costs, Units Produced, or Revenue).

For the purpose of this practical example, we will construct a dataset that tracks the total sales volume achieved by a fictional corporation over 15 consecutive years. This clean, sequential, and well-organized data structure is foundational. It ensures that we can accurately calculate the mathematical properties—specifically the slope and y-intercept—of the resulting trendline.

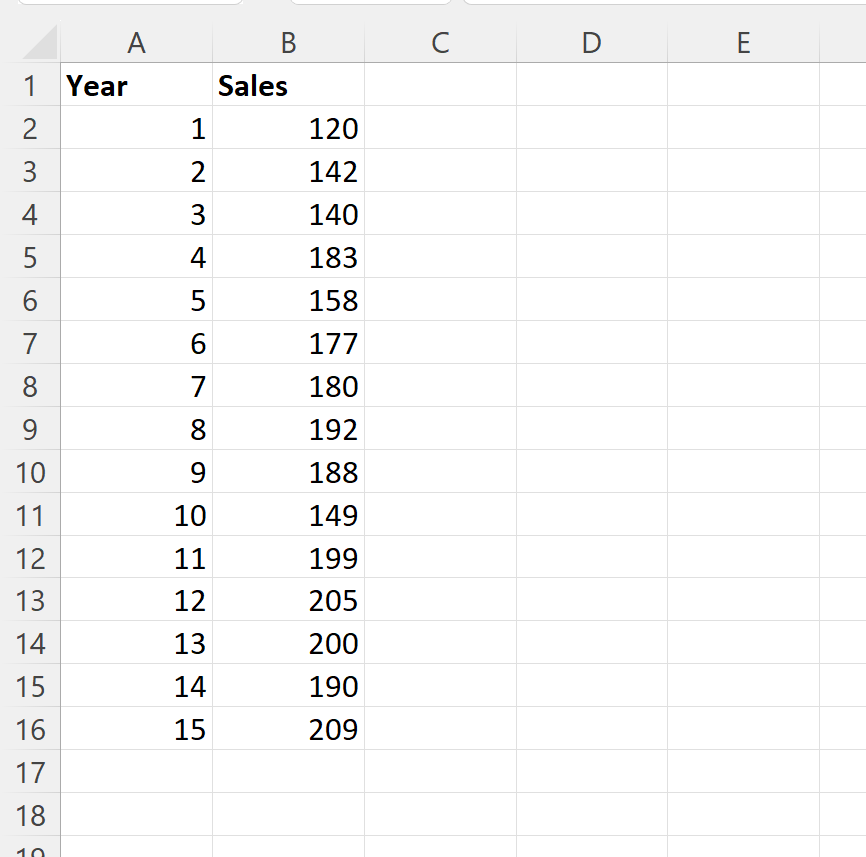

It is imperative to confirm that your time periods and corresponding values are input into two adjacent columns, precisely as illustrated below. This arrangement is necessary to facilitate the seamless creation of the graphical representation in the immediate subsequent step.

Visualizing the Data Using a Scatter Plot

Before applying a strict mathematical model, generating a graphical representation is essential for preliminary analysis. Visualization allows us to visually inspect the relationship between the two variables, offering immediate insights into the data’s general direction and volatility. We specifically utilize a scatter plot because it excels at clearly displaying the distribution of individual data points across the defined time axis.

To create this visualization in Excel, begin by carefully highlighting the entire data range, which must include both the column headers and all corresponding values. In our specific example, this corresponds to the cell range A2:B16. Once highlighted, navigate to the Insert tab situated on the primary ribbon interface of Excel.

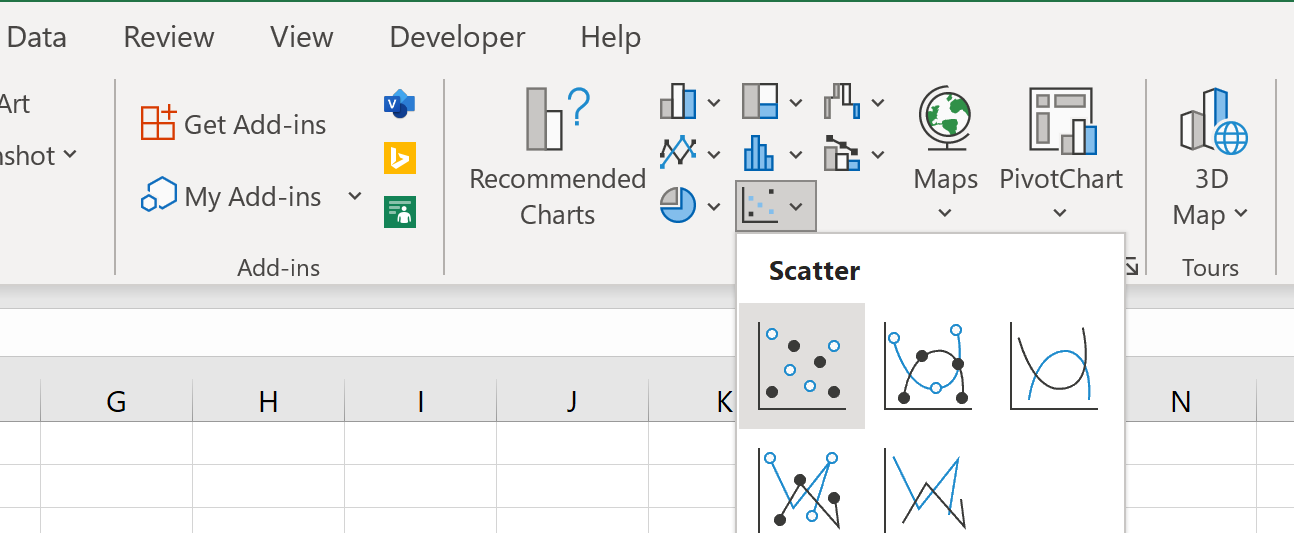

Within the Charts group, locate and select the Insert Scatter icon (often represented by a small cluster of dots). Excel will instantly render a plot illustrating the sales performance over time, with each sequential year represented by a distinct, measurable data point.

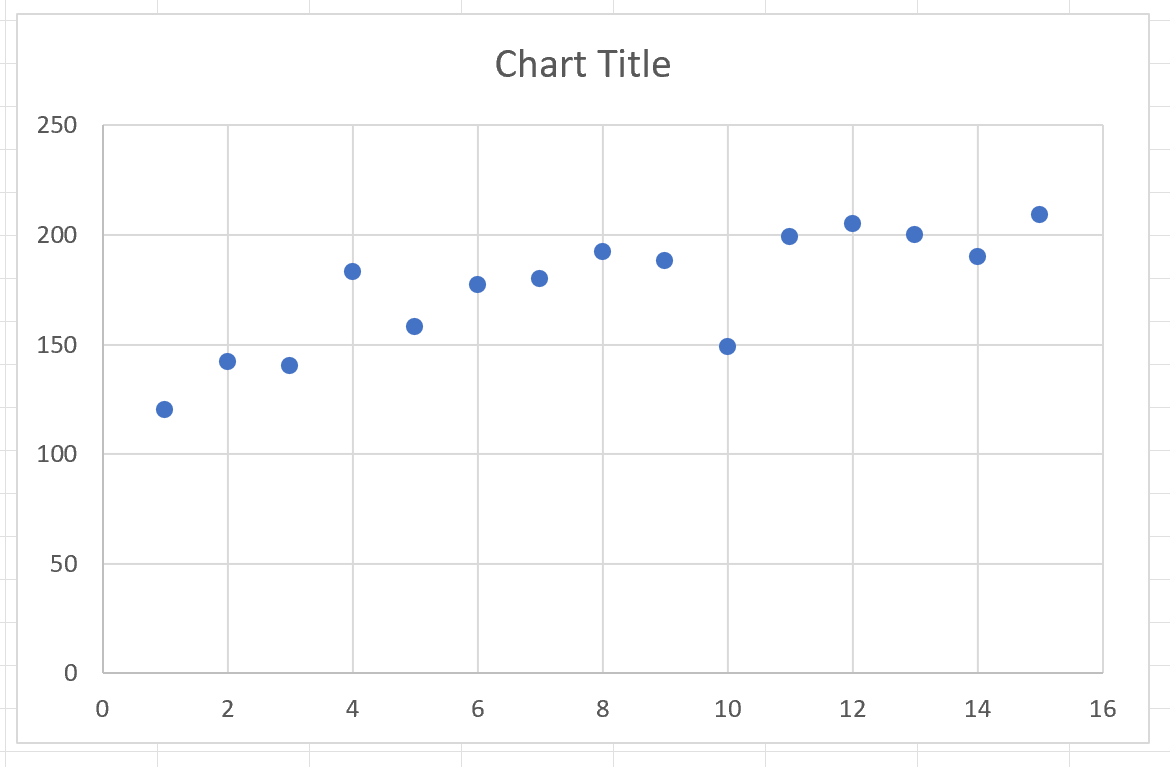

The resulting scatter plot provides a clean, easily digestible visual summary of the raw data: the horizontal x-axis plots the independent variable (the consecutive years), while the vertical y-axis corresponds to the dependent variable (the total sales recorded for each respective period).

Deriving the Trendline and Mathematical Equation

The next critical analytical step is to impose a mathematical framework onto the visual data by adding a Trendline. This line represents the statistically calculated “best fit” for the data points, achieved by minimizing the cumulative distance between the line and the actual observations. The trendline effectively defines the average direction and magnitude of the underlying trend.

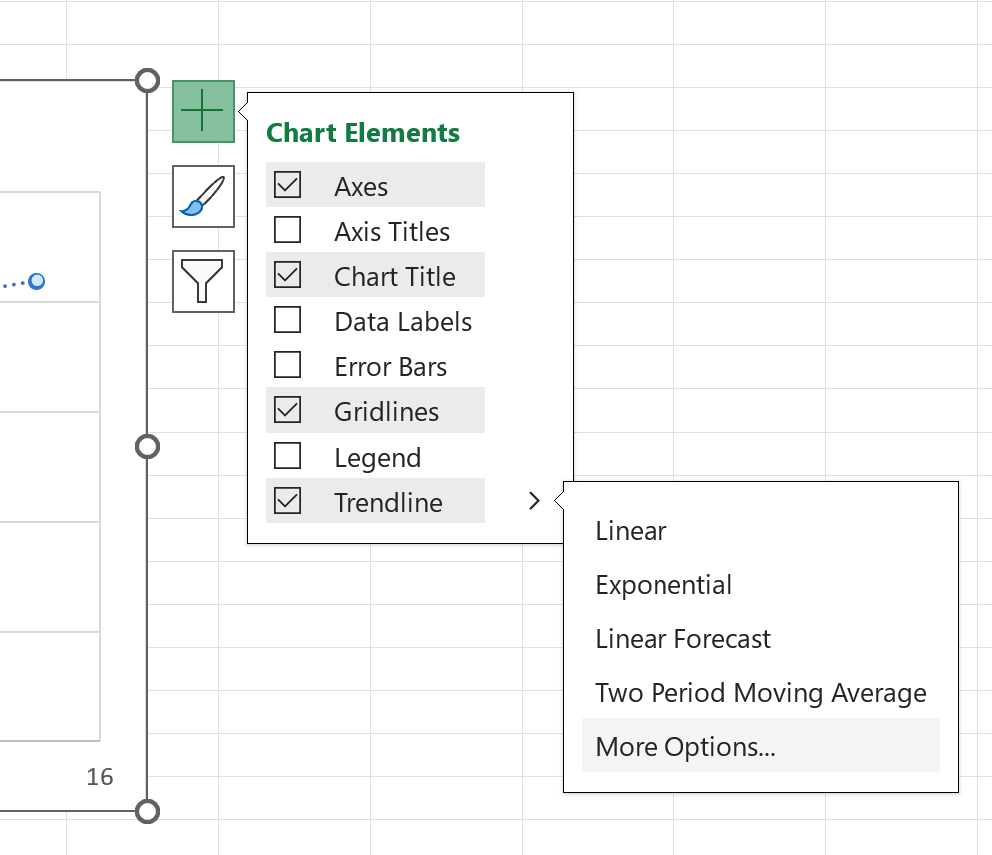

To activate the necessary chart editing options, click anywhere within the boundary of the scatter plot. Once the chart is active, locate the small green plus sign ( + ) icon, referred to as the Chart Elements button, situated in the upper-right corner of the chart area. Click this button, and subsequently check the box next to the Trendline option.

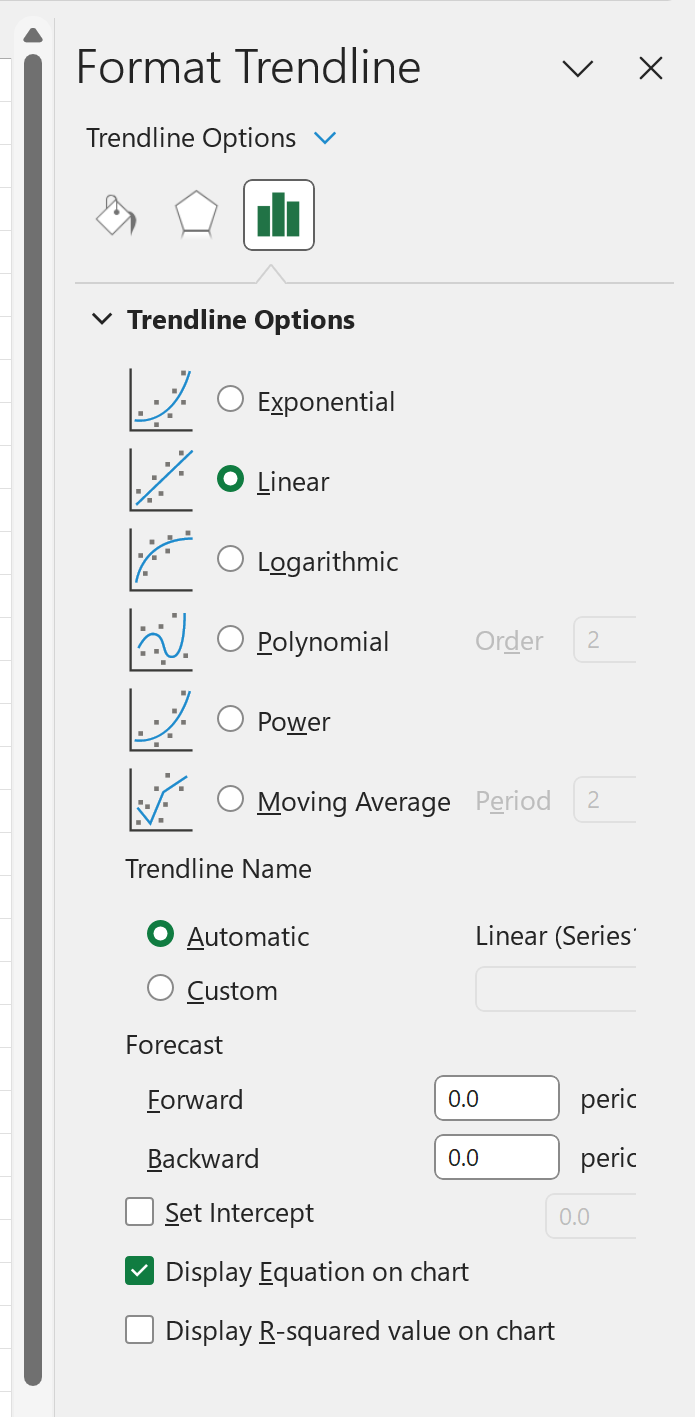

Upon selecting the Trendline option, the Format Trendline panel will automatically appear on the right side of your screen. Because our visual data suggests a relatively constant, straight-line rate of change, we will select the Linear model type. Most importantly, scroll down to the bottom of this panel and ensure the box labeled Display Equation on chart is checked. This action is paramount, as the resulting equation is the foundation for all subsequent predictive calculations.

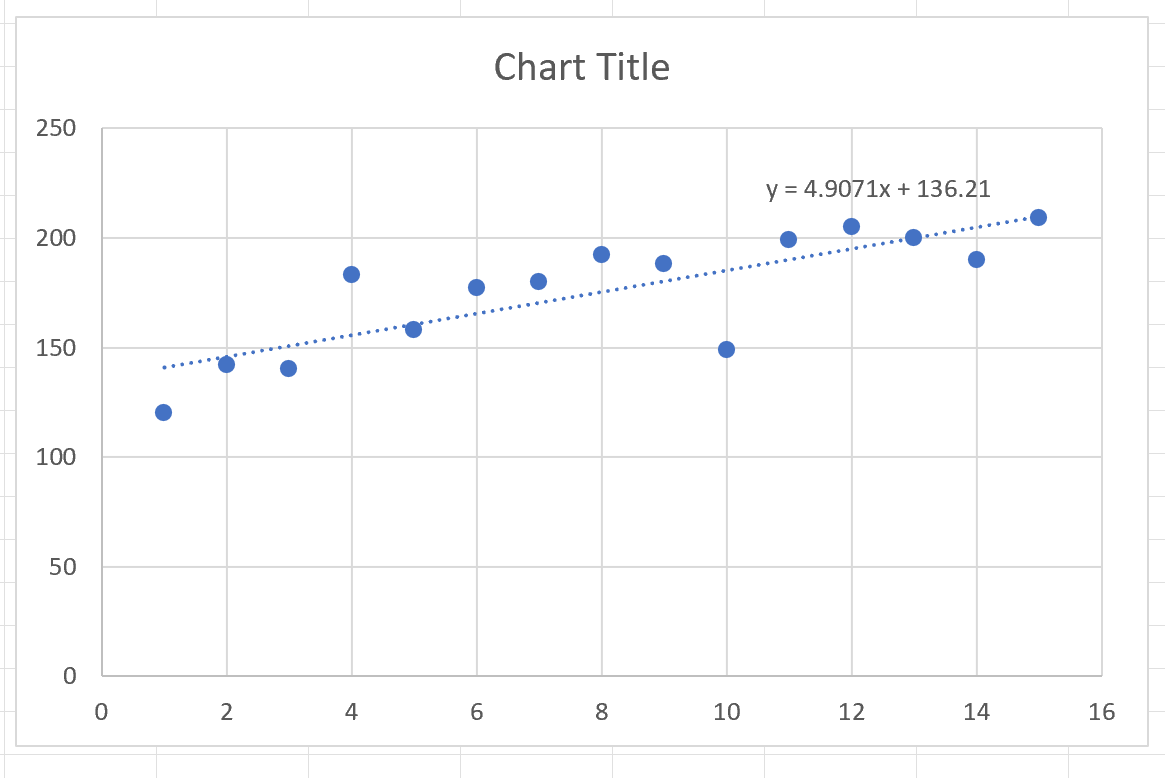

Once these parameters are confirmed, the scatter plot will immediately update, displaying both the statistically calculated linear trendline and the corresponding equation presented in the standard form (y = mx + b).

Interpreting the Trendline Equation

With the visualization complete, the focus now shifts entirely to interpreting the mathematical output. The equation displayed directly on the chart is:

y = 4.9071x + 136.21

In this formula, y represents the predicted sales value, and x represents the independent variable, which is the sequential year number or time period. The coefficient associated with x (4.9071) is the slope of the line, providing the most significant analytical insight into the trend. This positive slope indicates that, on average, for every additional year that passes, the expected total sales increases by 4.9071 units. Since the slope is a positive value, we can confidently conclude that the company’s sales exhibit a robust and sustained positive trend over the observed period.

This powerful, quantified relationship is what enables accurate predictions. The ability to leverage this equation to project future performance, assuming the underlying historical pattern holds, is the fundamental objective of conducting trend analysis.

Forecasting Future Values Using the Derived Model

To effectively demonstrate the forecasting utility of this linear equation, let us predict the total sales for Year 20. Given that our original dataset encompassed only 15 years, Year 20 represents an extrapolation beyond the existing data points. We must simply substitute the value 20 for the variable x in our established linear equation:

The calculation for the forecast proceeds methodically as follows:

• y = 4.9071x + 136.21
• sales = 4.9071(20) + 136.21
• sales = 98.142 + 136.21
• sales = 234.352

Based on the statistically established historical trend, our linear model predicts that the total sales volume in Year 20 will reach approximately 234.352 units. This proven methodology forms the essential basis for accurate budgeting processes, strategic resource allocation, and the development of long-term business strategy.

Important Consideration: Selecting the Right Model: While we intentionally employed a linear trendline for simplicity and clarity in this tutorial, it is crucial to recognize that not all real-world data follows a simple straight-line pattern. If your initial scatter plot visualization suggests a curve (such as rapid exponential growth or a distinct parabolic arc), you must select a more appropriate and complex regression model. Options like Polynomial, Exponential, or Logarithmic models are available within the Trendline Options section of the Format Trendline panel. Selecting the mathematically correct model type is paramount to ensuring the highest possible predictive accuracy.
