Understanding Permuted Block Randomization: A Guide with Examples

Permuted block randomization (PBR) is a sophisticated and widely utilized statistical technique, crucial for designing robust experimental studies, particularly in clinical research and agricultural trials. This methodology ensures that allocation ratios remain balanced across different treatment arms, even if the study is terminated prematurely or if external factors are suspected of influencing the outcome.

The core principle behind PBR is the division of study participants or experimental units into predefined groups, known as blocks. Within each block, the treatments are assigned randomly, but with the constraint that every treatment must appear an equal number of times. This stratification minimizes the influence of known confounding variables—factors that could skew the results if not accounted for—thereby increasing the statistical power and validity of the final conclusions.

Defining Permuted Block Randomization

Permuted block randomization falls under the category of restricted randomization methods. Unlike simple randomization, which can lead to unequal group sizes, PBR enforces balance. A block is essentially a sequence of treatment assignments that is internally balanced. For instance, if a block size is four and there are two treatments (A and B), the block must contain exactly two A’s and two B’s (e.g., AABB, ABAB, BAAB, etc.). The order of these treatments within the block is determined randomly, or “permuted.”

The choice of block size is a critical design element. A block must be small enough to maintain continuous balance throughout the recruitment process but large enough to ensure sufficient permutations for true randomization. If the block size is too large, the benefit of immediate balance is diminished; if it is too small, the sequence of assignments becomes overly predictable, which can introduce bias if researchers or clinicians are not blinded to the assignments.

The primary objective of PBR is achieving and maintaining balance. This balance must be maintained in two key areas: first, ensuring that at the end of each block, the total number of subjects assigned to each treatment is equal; and second, ensuring that the known prognostic factors (the “blocks” themselves, such as location, age group, or disease severity) are evenly distributed across the treatment groups. This rigorous control is what makes PBR a preferred method for high-stakes experiments requiring minimal variability.

Setting Up the Experiment: A Practical Example

To illustrate the implementation of permuted block randomization, consider an agricultural study designed to evaluate the efficacy of two distinct fertilizers. Suppose we aim to test whether Fertilizer A or Fertilizer B leads to greater growth in a total cohort of 24 plants. These 24 plants are distributed across six physically separate fields, which we must treat as our confounding factors, or blocks.

In this scenario, our experimental parameters are clearly defined: the treatments are Fertilizer A and Fertilizer B, and the blocks are the six different fields. Since we have 24 plants distributed across 6 fields, each field (block) must contain exactly four plants. To maintain the crucial balance required by PBR, within each block of four plants, two must receive Fertilizer A and two must receive Fertilizer B.

We will use the following systematic, three-step approach to properly set up the permuted block randomization for this specific agricultural experiment. This systematic process ensures that the inherent variability introduced by the different field conditions is controlled for, allowing any observed differences in plant growth to be more confidently attributed to the fertilizer treatment itself, rather than the environmental setting.

Step-by-Step Implementation of PBR

The successful application of permuted block randomization requires precision in defining the experimental units, calculating the possible arrangements, and finally, randomly assigning those arrangements.

Step 1: Place each plant in one of the six blocks based on their field.

The initial step involves grouping the experimental units based on the identified nuisance factor—in this case, the specific field location. This physical grouping establishes the boundaries for randomization. Since there are 24 total plants and 6 fields, each block (field) will contain a block size of 4 plants. It is crucial that the experimental units within each block are as homogeneous as possible, while the blocks themselves are heterogeneous relative to one another.

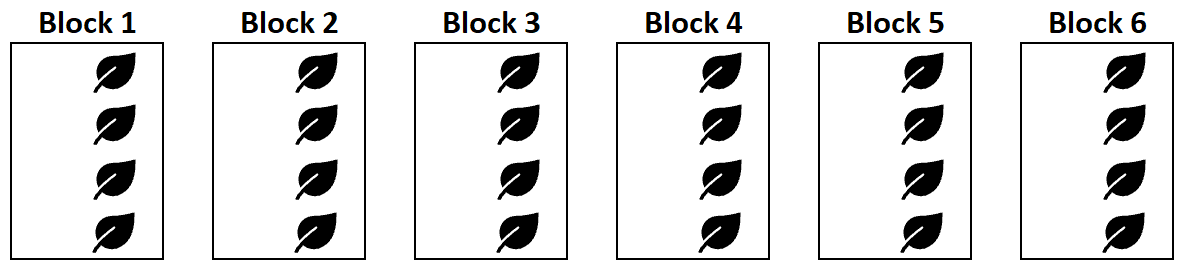

This visual representation confirms the grouping: 6 blocks, each containing 4 experimental units. The goal now is to assign treatments (A or B) to these four slots within each block such that balance is maintained (2 A’s and 2 B’s per block).

Step 2: Generate all of the possible treatment arrangements.

The next phase involves determining the total number of unique sequences that satisfy the balance constraint within a single block. Since we have a block size of 4 (N=4) and two treatment types (T=2), with each treatment appearing twice (nA=2, nB=2), we are calculating the number of unique permutations of the sequence AABB.

The total possible treatment arrangements can be calculated using the multinomial coefficient, often simplified for two treatments (A and B) using the following factorial formula:

Total arrangements = N! / (n_A! * n_B!)

where:

• N: The total block size (number of units in the block, here N=4)
• n_A: Count of treatment A (here n_A=2)
• n_B: Count of treatment B (here n_B=2)

Applying this formula to our example: 4! / (2! * 2!) = 24 / (2 * 2) = 24 / 4 = 6 total arrangements.

Here’s what these six unique, internally balanced arrangements look like:

AABB
ABBA
ABAB
BBAA
BABA
BAAB

Step 3: Randomly assign one arrangement to each block.

The final step is the randomization itself. For each of the six fields (blocks), we must randomly select one of the six possible treatment arrangements generated in Step 2. This ensures that the assignment sequence is unpredictable, while the overall balance (2 A’s and 2 B’s per field) is strictly maintained. This process is typically automated using statistical software or a random number generator that selects the sequence without human input.

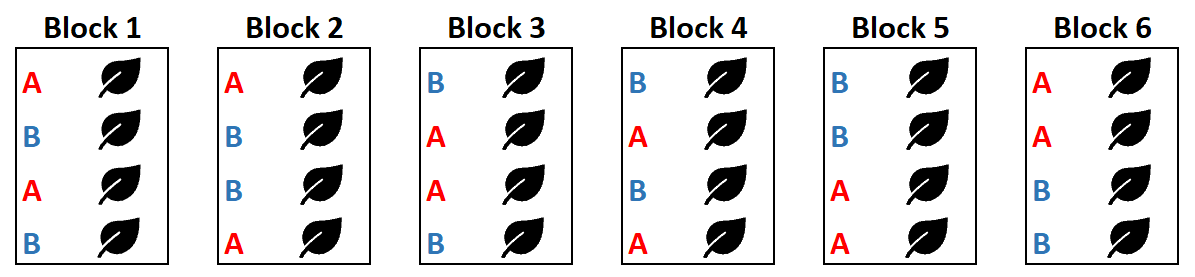

Next, we’ll randomly assign one of the treatment arrangements to each of the six blocks:

Observe that each field, or block, has received a different treatment permutation, yet every block retains the necessary balance of two A assignments and two B assignments. This concludes the permuted block randomization setup, and the experiment can now commence with a scientifically rigorous and balanced design.

Key Advantages and Mitigating Disadvantages

The implementation of permuted block randomization offers significant statistical advantages, primarily focused on ensuring distributional parity between treatment groups across various stages of the study. However, this method is not without potential drawbacks, which researchers must actively mitigate.

There are two main advantages stemming from the enforced balancing mechanism of PBR:

1. Guaranteed Local Balance: Within every block defined by the researcher (e.g., specific field, clinic, or age group), the number of individuals assigned to each treatment is exactly the same. This control effectively minimizes variance attributable to the blocking factor, thereby sharpening the ability to detect a true treatment effect.
2. Maintained Sequential Balance: There is an equal number of experimental units assigned to each treatment at any point in the experiment where a block has been completed. This is perhaps the most valuable feature, especially in clinical trials where patient enrollment is staggered. If the study faces unexpected early termination, researchers are guaranteed to possess equally sized data sets for each treatment group, preventing statistical imbalance that could compromise the analysis.

Despite these benefits, there is one potential disadvantage that requires careful management: the risk of selection bias due to predictability:

1. Predictability of Final Assignments: If the researchers responsible for enrollment or treatment application know the exact block size, they may be able to predict the assignment of the final individuals within that block. For instance, if the block size is 4, and the first three plants have been assigned A, B, and A, the researcher knows with certainty that the fourth plant must be assigned to Fertilizer B to complete the sequence (2 A’s and 2 B’s).

In a scientifically rigorous experiment, researchers should ideally be unaware of which individuals are assigned to which treatment. If the assignment becomes predictable, researchers might unknowingly introduce selection bias—acting differently toward the predictable subjects or altering the enrollment sequence—which could ultimately compromise the study’s integrity and produce non-objective results.

Mitigating Bias Through Blinding

The primary solution to counteract the predictability inherent in permuted block randomization is implementing robust blinding (or masking) procedures. Blinding ensures that those involved in the study—the researchers, analysts, or participants—remain unaware of the specific treatment assignments.

For PBR specifically, the most effective mitigation strategy involves using a centralized randomization service or a third-party statistician who handles the block generation and assignment sequence. The researcher only receives the assignment for the next unit upon request, without ever seeing the full block sequence or knowing the block size used. Furthermore, using variable block sizes (e.g., randomly alternating between block sizes of 4 and 6) can dramatically reduce the ability of researchers to predict the upcoming assignment, even if they suspect the use of PBR.

By employing effective blinding techniques, researchers can harness the powerful balancing properties of permuted block randomization while simultaneously eliminating the risk of selection bias, resulting in a scientifically sound and ethically conducted study. This combination of strict allocation control and careful implementation planning is essential for generating reliable experimental evidence.
