Learning Matplotlib: A Comprehensive Guide to Placing Legends Outside Your Plots

Mastering External Legend Placement in Matplotlib

Effective Python data visualization is paramount for communicating complex findings across scientific, engineering, and financial domains. The Matplotlib library stands as the foundation for creating high-quality, customizable plots. A frequent challenge encountered by developers and researchers is managing the placement of the legend. By default, Matplotlib often positions the legend within the boundaries of the axes. While convenient for simple charts, this internal placement routinely obstructs critical data points or lines, resulting in cluttered and potentially misleading graphics, especially when dealing with densely packed figures or plots where data occupies the full range of the visualization area.

The demand for publication-quality figures necessitates precise control over layout, often requiring the legend to reside completely outside the main plotting area—whether positioned to the right, above, or below the visualization. Fortunately, the Matplotlib API offers a sophisticated and flexible mechanism to achieve this exact positioning. This control is primarily exerted through the matplotlib.pyplot.legend() function, which utilizes a powerful combination of two key arguments: the often-underestimated bbox_to_anchor and the standard loc parameter. Achieving mastery over the interplay between these two settings is essential for crafting visualizations that are not only aesthetically pleasing but also clean, professional, and optimized for data focus.

This comprehensive tutorial aims to demystify the mechanics of external legend placement. We will meticulously dissect the normalized coordinate system that governs bbox_to_anchor and provide step-by-step, practical examples demonstrating how to accurately position the legend in various external configurations. These examples include anchoring the legend immediately outside the top-right corner, aligning it with the bottom edge, and spanning it horizontally above the plot area. By the end of this guide, you will possess the technical knowledge required to eliminate visual interference and ensure optimal layout for every Matplotlib figure you generate.

Decoding the bbox_to_anchor and loc Parameters

The first step toward moving the legend beyond the plot boundaries involves explicitly instructing Matplotlib where to anchor the legend box relative to the existing axes. This task is handled by the bbox_to_anchor argument. The term “bbox” is an abbreviation for “bounding box,” and this parameter accepts a tuple defining the coordinates of a specific reference point on the axes to which the legend will attach. For defining the position relative to the plot axes, Matplotlib employs a normalized coordinate system: the bottom-left corner of the plot area is defined as (0, 0), and the top-right corner is defined as (1, 1). Coordinates outside this (0, 0) to (1, 1) range are necessary for external placement.

The bbox_to_anchor parameter is most frequently used as a two-element tuple, (x, y), which pinpoints a single anchor location. For instance, setting bbox_to_anchor to (1, 1) designates the top-right corner of the plot area as the primary reference point. Crucially, defining this anchor point alone is insufficient; we must also determine which part of the legend box itself should align precisely with this chosen anchor point. This is where the synergy with the loc parameter becomes essential for precise control.

The loc argument controls the internal anchor point of the legend box. It specifies which corner or edge of the legend should be placed at the coordinates defined by bbox_to_anchor. Consider the case where we set bbox_to_anchor=(1, 1) (the plot’s top-right corner) and simultaneously set loc="upper left". This command instructs Matplotlib to align the upper left corner of the legend box exactly at the (1, 1) coordinate. Since (1, 1) is the absolute edge of the plotting area, aligning the legend’s upper left corner there forces the entire legend box to appear immediately outside the top-right boundary of the plot, achieving the desired external placement. Understanding this coordinated relationship between the plot’s anchor (via bbox_to_anchor) and the legend’s alignment point (via loc) is the foundational key to mastering external positioning.

Practical Application 1: Placing the Legend in the Top Right Corner

One of the most common requirements in figure preparation is positioning the legend directly beside the plot’s top-right corner, ensuring zero overlap with the data traces. This arrangement maximizes the visual space within the axes while keeping the labels intuitively close to the overall visualization. To successfully achieve this configuration, we must set the plot’s top-right corner as the anchor reference point and then align the legend’s upper-left corner to meet that point, pushing the legend outward.

The following code demonstrates the standard implementation of this technique. We utilize typical plotting commands accessed via the pyplot interface to construct a simple line chart featuring two distinct, labeled data series. The critical manipulation occurs within the plt.legend() function call, where we pass the coordinate pair (1, 1) to the bbox_to_anchor parameter and specify "upper left" for the loc argument, establishing the necessary alignment.

import matplotlib.pyplot as plt

#create plot
plt.subplot(211)
plt.plot([2, 4, 6], label="First Data")
plt.plot([6, 4, 2], label="Second Data")

#place legend in top right corner
plt.legend(bbox_to_anchor=(1,1), loc="upper left")

#show plot
plt.show()

Executing this snippet yields a figure where the outcome is immediately clear. The visualization confirms that the upper left boundary of the legend box is perfectly aligned with the normalized coordinates (1, 1), which is the exact top-right corner of the axes area. This method proves highly efficient for external placement on the right side of the visualization, eliminating the need for manual margin adjustments, provided the figure dimensions are adequate to accommodate the resulting legend box size.

Practical Application 2: Placing the Legend in the Bottom Right Corner

While the top-right position is often the default choice, certain document layouts may require the legend to be situated below and to the right of the plot area. This might be necessary if the upper margin is reserved for complex titles, or if the figure is part of a multi-panel visualization where other subplots occupy the space above. Placing the legend neatly in the bottom-right corner demands a calculated adjustment to both the anchor definition (the target point on the plot) and the legend’s alignment reference (the internal point on the legend box).

For this scenario, the desired reference point, or anchor, is the bottom-right corner of the plot area, which corresponds to the normalized coordinates (1, 0). If we define this point as our anchor using bbox_to_anchor, we must then determine which point on the legend box should touch (1, 0). To ensure the entire legend box appears outside and above the bottom edge of the plot, we need to align the lower left corner of the legend box to the plot’s (1, 0) coordinate. This dual adjustment ensures the legend is pushed both rightward and upward.

The code below illustrates this specific configuration. We maintain the identical underlying plotting setup for consistency, focusing only on the changes within the plt.legend() function call. Notice that the bbox_to_anchor argument is now set to (1, 0), shifting the anchor to the bottom boundary of the axes. Concurrently, the loc parameter is set to "lower left" to define the legend’s internal alignment point, thereby correctly positioning the legend externally.

import matplotlib.pyplot as plt

#create plot
plt.subplot(211)
plt.plot([2, 4, 6], label="First Data")
plt.plot([6, 4, 2], label="Second Data")

#place legend in top right corner
plt.legend(bbox_to_anchor=(1,0), loc="lower left")

#show plot
plt.show()

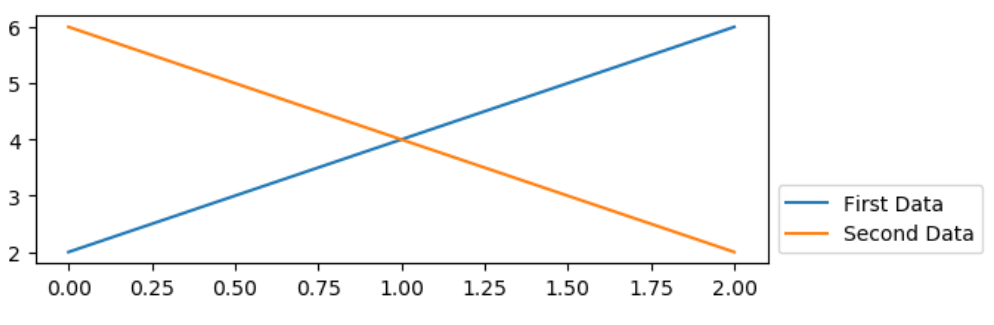

The resulting figure confirms that the lower left corner of the legend box is now precisely aligned with the (1, 0) coordinate, positioning the legend neatly to the right of the plot and above the x-axis boundary. This placement is particularly beneficial when integrating figures into reports where captions or explanatory text must sit directly beneath the visualization, ensuring the legend maintains proximity without interfering with other crucial document elements.

Advanced Technique: Expanding the Legend Horizontally Above the Plot

An advanced layout requirement involves positioning the legend above the plot while distributing its entries horizontally to span the width of the figure. This configuration is exceptionally valuable when visualizing several data series, as it dramatically conserves vertical space that would otherwise be consumed by a tall, stacked legend placed on the side. To achieve this horizontal expansion, we must define the bounding box not merely as a single anchor point, but as a specific rectangular area using the four-element tuple format for bbox_to_anchor: (x0, y0, width, height).

For a legend stretching across the top of the plot, we define the bounding box relative to the plot’s upper boundary. We set x0=0 and width=1, ensuring the box covers the entire normalized width of the plotting area. We set y0=1 (just above the plot) and height=0 (or a negligible value). The configuration (0, 1, 1, 0) specifically defines a bounding box that stretches horizontally from the plot’s top-left corner (0, 1) to its top-right corner (1, 1).

Beyond defining this expansive bounding box, we must introduce two additional critical arguments: mode="expand" and ncol=N. The mode="expand" argument is essential, as it forces the legend contents to utilize the full width allocated by the bbox_to_anchor rectangle. The ncol argument specifies the desired number of columns for the legend items (here, ncol=2). By setting loc="lower left", we anchor the bottom-left corner of the legend box to the (0, 1) coordinate of the axes, perfectly aligning the expanded legend just above the top edge.

import matplotlib.pyplot as plt

#create plot
plt.subplot(211)
plt.plot([2, 4, 6], label="First Data")
plt.plot([6, 4, 2], label="Second Data")

#place legend above plot
plt.legend(bbox_to_anchor=(0, 1, 1, 0), loc="lower left", mode="expand", ncol=2)

#show plot
plt.show()

This powerful and precise combination of parameters produces a visually appealing, horizontally distributed legend positioned immediately above the plotting area, as confirmed by the resulting visualization. This technique offers the optimal solution for multi-line charts where maximizing the data display area within the figure boundaries is the primary design goal.

Simplified Above-Plot Placement (Vertical Legend)

If the desired output is simply to place the legend above the plot without the need for horizontal stretching or column definition, the complexity introduced by the mode and ncol arguments can be removed. A much simpler approach achieves external positioning just above the top-left corner, allowing the legend box to maintain its natural, stacked (vertical) appearance and occupy only the minimum necessary horizontal space.

To implement this simplified above-plot placement, we revert to the two-element bbox_to_anchor tuple format. We set the anchor point to (0, 1), which corresponds to the normalized top-left corner of the plotting area. By setting loc="lower left", we instruct Matplotlib to align the bottom-left corner of the legend box with the plot’s (0, 1) coordinate. This action effectively pushes the entire legend box vertically upward, starting immediately above the top-left edge of the plot.

This streamlined method offers a concise and effective means of moving the legend out of the main plotting area while preserving a traditional vertical structure, which may be preferable when the number of data entries is limited. The underlying code structure remains consistent with previous examples, but the legend() call is significantly simplified, highlighting the flexibility of the API:

import matplotlib.pyplot as plt

#create plot
plt.subplot(211)
plt.plot([2, 4, 6], label="First Data")
plt.plot([6, 4, 2], label="Second Data")

#place legend in top left corner above plot
plt.legend(bbox_to_anchor=(0, 1), loc="lower left")

#show plot
plt.show()

The visual output below demonstrates how this simple parameter set achieves clean external placement without the forced horizontal expansion, resulting in a compact legend positioned neatly above the axes. This alternative is a versatile choice when vertical space is not a critical constraint or when the layout dictates a narrow figure width.

Conclusion and Summary of Matplotlib Control

Mastering the precise placement of graphical elements, particularly the legend, is crucial for producing high-quality, professional data visualizations using Matplotlib. The fundamental concept derived from these examples is the necessary operational distinction and coordinated use of the bbox_to_anchor parameter—which specifies the anchor coordinate on the plot axes—and the loc parameter—which defines the corresponding alignment point on the legend box itself. Whether your design requires a simple corner placement or a sophisticated, horizontally distributed layout above the figure, the robust flexibility afforded by these arguments ensures that your legend will never obscure the underlying data.

By consistently applying the principles and coordinate logic detailed within this guide, developers can substantially elevate the clarity and professional caliber of their analytical figures. Precision in graphical presentation directly enhances the effective interpretation of complex datasets, reinforcing the importance of mastering these specific Matplotlib techniques for advanced data communication.
