Learning to Visualize Beta Distributions in R: A Step-by-Step Guide

The Beta distribution is a cornerstone concept in probability theory and Bayesian statistics, serving as the standard model for random variables restricted to the interval [0, 1]. These variables typically represent probabilities, proportions, or rates of success. For any statistical analysis involving this distribution, visualization is paramount, as the curve’s shape provides immediate insight into the underlying uncertainty or belief structure. Fortunately, plotting the Beta distribution within the powerful R environment is highly intuitive, leveraging core functions designed for continuous probability modeling.

To accurately plot any continuous probability distribution in R, two primary components are necessary: defining the domain (the x-axis values) and calculating the corresponding heights of the curve (the y-axis, representing the probability density function, or PDF). Since the Beta distribution is constrained to the interval between 0 and 1, our definition of the x-axis range is always straightforward.

The core computational engine for this visualization is the built-in function dbeta(). This function calculates the density given a range of values and specific shape parameters. The process then involves generating a sequence of points spanning [0, 1] and mapping the calculated densities to these points using the generic plot() function. The fundamental structure required to generate the curve is concise and efficient:

#define range
p = seq(0, 1, length=100)

#create plot of Beta distribution with shape parameters 2 and 10
plot(p, dbeta(p, 2, 10), type='l')

The following detailed examples demonstrate how to apply and customize this syntax, advancing from visualizing a single probability distribution to effectively comparing multiple distributions with vastly different characteristics, a crucial skill in advanced statistical modeling.

The Role of Shape Parameters in the Beta Distribution

The Beta distribution is uniquely flexible due to its two positive shape parameters, commonly denoted as $alpha$ (alpha) and $beta$ (beta). These parameters exert complete control over the curve’s location, skewness, and concentration. Because the domain is fixed at [0, 1], manipulating $alpha$ and $beta$ allows us to model a wide variety of probabilistic outcomes, from uniform uncertainty to distributions heavily weighted toward zero or one.

In many practical applications, particularly those related to Bayesian statistics, these parameters have a natural interpretation derived from observed data. If $s$ represents the number of observed successes and $f$ represents the number of observed failures, the resulting Beta distribution, Beta($s+1, f+1$), provides a continuous representation of the belief regarding the true underlying probability of success. Thus, $alpha$ is often viewed as the number of successes plus one, and $beta$ as the number of failures plus one. A deep understanding of how the ratio and magnitude of these parameters interact is critical for drawing valid conclusions from the model.

Within R, the function used to compute the curve is dbeta(x, shape1, shape2). Here, x is the vector representing the range [0, 1], shape1 corresponds to $alpha$, and shape2 corresponds to $beta$. The numerical output of dbeta() is the height of the curve, or the density, for each point in the sequence. It is important to note that density values for continuous distributions are not probabilities themselves (probabilities correspond to the area under the curve), but they are the necessary component for plotting the continuous function.

Core R Functions for Generating Density Plots

The visualization of continuous distributions relies on two distinct steps executed through specific base R functions. First, we must generate a finely graded sequence of values across the distribution’s domain. Second, we must plot the resulting densities against this sequence. The built-in seq() function efficiently handles the former task, while the combination of dbeta() and plot() handles the latter.

When using seq(0, 1, length=N), the value chosen for N dictates the smoothness of the resulting curve. While length=100 is sufficient for basic plotting, increasing this value (e.g., to length=500 or length=1000) calculates more points, resulting in a significantly smoother and more professional visualization, especially for complex or sharply peaked distributions. For visualization of the PDF, the plot() function requires the sequence vector (x-values) followed by the density vector (y-values). Crucially, the argument type='l' must be included to instruct R to connect the calculated discrete points with lines, thereby rendering the intended continuous curve.

New users of R often encounter a family of functions related to probability distributions, and understanding their roles is vital. For the Beta distribution, these are dbeta, pbeta, qbeta, and rbeta. dbeta computes the density (used for plotting the curve); pbeta computes the cumulative distribution function (CDF); qbeta computes the quantile function (the inverse of the CDF); and rbeta generates random deviates from the distribution. For the purpose of plotting the characteristic density curve, only dbeta() is required.

Example 1: Visualizing a Single Beta Distribution

To demonstrate the practical application of the core syntax, let us visualize a Beta distribution defined by the parameters $alpha=2$ and $beta=10$. This specific combination of shape parameters results in a distribution that is highly skewed to the left, concentrating the bulk of the probability mass close to zero. This might represent a scenario where, based on 1 success and 9 failures (or 2 successes and 10 total trials, depending on interpretation), the underlying probability of success is believed to be very low.

Our initial step involves defining the vector p, which meticulously spans the required range from 0 to 1. We select 100 points for a clear and smooth representation of the curve. The subsequent plot() command then takes this range, p, and the calculated densities derived from dbeta(p, 2, 10), rendering the resulting visualization directly in the R graphics device. We use type='l' to ensure a continuous line is drawn.

The following script provides the exact command sequence necessary to plot this single, left-skewed Beta distribution using the default R graphical settings:

#define range
p = seq(0,1, length=100)

#create plot of Beta distribution with shape parameters 2 and 10
plot(p, dbeta(p, 2, 10), type='l')

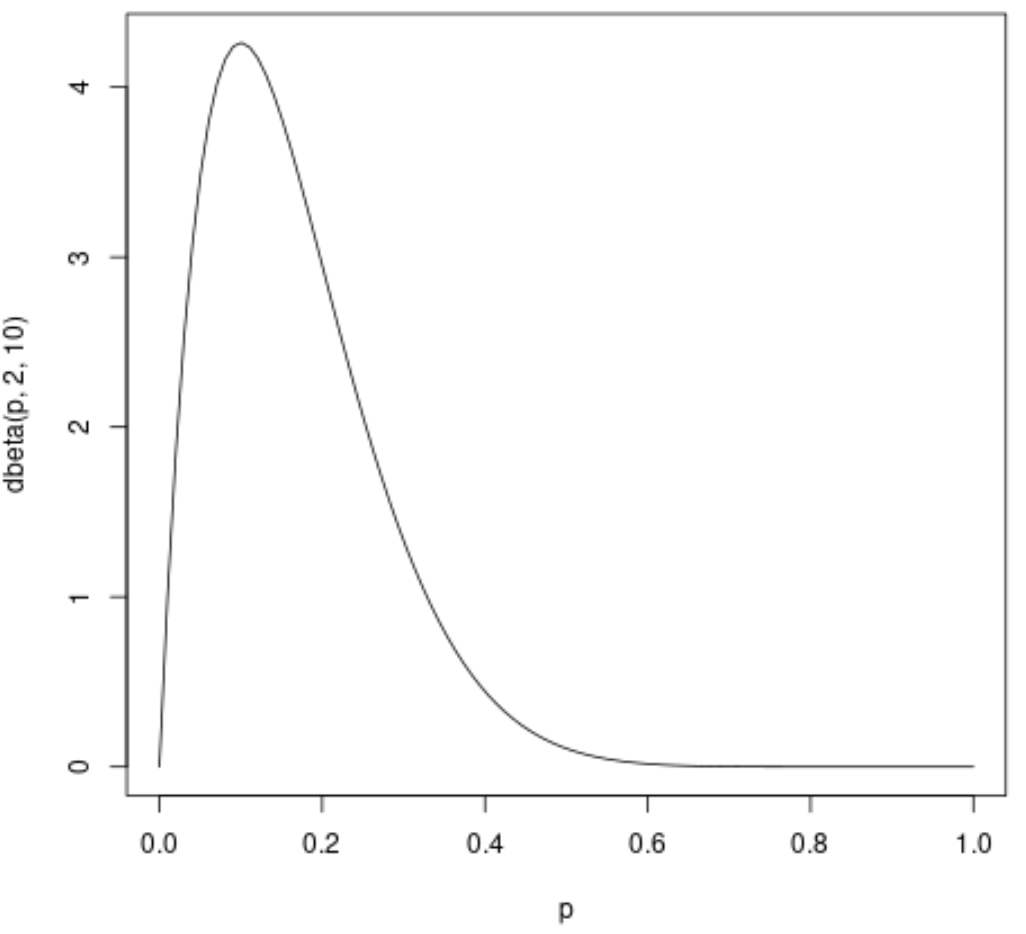

Execution of this code produces a clear visual representation, affirming the concentration of density near the lower boundary of the probability scale, as seen below:

Customizing the Plot Appearance for Professional Use

While the default output from R is functionally correct, customization is essential for creating publication-quality graphics that are clear, professional, and immediately interpretable. Customization involves enhancing elements such as axis labels, the plot title, and the line color to improve the overall aesthetic and informational content.

The plot() function accepts numerous arguments known as graphical parameters. The most important for clarity include: ylab (specifying the Y-axis label), xlab (specifying the X-axis label, often ‘Probability’ or ‘Proportion’ for the Beta distribution), main (providing an explicit title for the chart), and col (defining the color of the density line). For instance, setting an explicit title such as “Beta Distribution ($alpha=2, beta=10$)” immediately conveys the context of the visualization to any viewer.

It is particularly important to label the y-axis explicitly as ‘Density’ using ylab='density'. This prevents confusion, as the height of the curve—the density value—can often exceed 1, unlike traditional probability values. Choosing a distinct color, like purple, further enhances the plot’s visual impact, making it easier to integrate into reports or presentations.

The refined code snippet below demonstrates how to apply these modifications, resulting in a more customized and publication-ready visualization:

#define range
p = seq(0,1, length=100)

#create custom plot of Beta distribution
plot(p, dbeta(p, 2, 10), ylab='density',
     type ='l', col='purple', main='Beta Distribution')

This customized approach provides immediate and professional visual feedback on the distribution’s characteristics, as demonstrated in the resulting graph:

Example 2: Comparing Multiple Beta Distributions

In advanced statistical analysis, especially within Bayesian statistics, the ability to compare multiple distributions is indispensable. This comparison often involves overlaying a prior distribution with a posterior distribution or simply illustrating how varying sets of shape parameters dramatically redistribute the probability mass.

When plotting multiple curves, we must use the plot() function exclusively for the first distribution. This initial call establishes the axes, labels, and crucially, the overall boundaries of the graph. It is essential to ensure that the y-axis range is scaled large enough to encompass the peak density value of all subsequent distributions. Subsequent distributions are then added using the lines() function, which draws a new line segment without resetting the existing plot framework. Each line should be assigned a unique color for differentiation.

In this example, we compare three very different Beta distributions: Beta(2, 10) (left-skewed), Beta(2, 2) (symmetric, peaked near 0.5), and Beta(5, 2) (right-skewed). To make the comparison effective, a legend() must be included to accurately map each line color to its corresponding parameter combination. The coordinates supplied to legend() (e.g., .7, 4) define where the legend box appears on the graph.

#define range
p = seq(0,1, length=100)

#plot several Beta distributions
plot(p, dbeta(p, 2, 10), ylab='density', type ='l', col='purple')
lines(p, dbeta(p, 2, 2), col='red')
lines(p, dbeta(p, 5, 2), col='blue')

#add legend
legend(.7, 4, c('Beta(2, 10)','Beta(2, 2)','Beta(1,1)'),
       lty=c(1,1,1),col=c('purple', 'red', 'blue'))

This process results in an overlay plot that provides immediate visual confirmation of how drastically different parameter choices alter the probability distribution, which is central to effective statistical modeling:

Interpreting the Effects of Shape Parameters

The inherent utility of the Beta distribution stems directly from the control offered by its two shape parameters, $alpha$ and $beta$. By skillfully manipulating these values, analysts can model nearly any shape over the [0, 1] interval, encompassing everything from heavy skewness to uniform and even bimodal distributions. Accurate interpretation of the resulting curve is vital for extracting meaningful conclusions from the probabilistic model.

The general method for interpreting the shape involves assessing the relative magnitudes of $alpha$ and $beta$. If $alpha$ is substantially larger than $beta$, the distribution is skewed toward 1, indicating a strong belief or high probability concentrated at the upper end of the scale. Conversely, if $beta$ is significantly larger than $alpha$, the curve is skewed toward 0, reflecting a concentration of probability mass at the lower end.

Specific parameter combinations yield predictable, characteristic shapes that are essential knowledge for analysts:

• If $alpha = 1$ and $beta = 1$, the distribution is perfectly uniform. This represents a state of total ignorance or indifference, where all probabilities between 0 and 1 are equally likely.
• If $alpha > 1$ and $beta > 1$, the distribution is unimodal (bell-shaped), having a single peak. The larger the sum of $alpha$ and $beta$, the more concentrated the density mass becomes around the mode.
• If $alpha < 1$ and $beta < 1$, the distribution becomes bimodal or U-shaped, peaking near both 0 and 1. This often signifies extreme uncertainty, suggesting the true proportion is likely either very high or very low.

The visual comparison achieved by plotting these diverse distributions side-by-side, as demonstrated in the previous example, allows analysts to rapidly assess how input data or prior beliefs are translated into the resulting posterior probability distribution—a fundamental task in advanced quantitative analysis and statistical modeling.

Further Applications and Advanced Resources

While this guide focuses strictly on plotting the Beta distribution using the base plot() function in R, users seeking highly refined, complex graphics may wish to explore advanced packages such as ggplot2, which offers superior customization and graphical fidelity. Nonetheless, mastering the base R plotting functions provides a robust and fundamental understanding of statistical graphic generation.

The Beta distribution’s utility extends far beyond theoretical Bayesian statistics. Its applications are widespread, including portfolio management (where it models asset returns restricted to specific ranges), project management (using related Pert distributions for task time estimation), and machine learning (where it can model the uncertainty inherent in classification probabilities). The ability to quickly and accurately visualize the density curve is indispensable for effectively communicating complex probabilistic information across these varied disciplines.

To further enhance your skills in visualizing probability distributions, consider exploring tutorials on related concepts that build upon the foundational principles demonstrated here.

Additional Resources

The following tutorials explain how to plot other common distributions in R, reinforcing the basic plotting principles demonstrated here for the Beta distribution:

• Plotting the Normal Distribution
• Visualizing the Gamma Distribution
• Generating Histograms for Discrete Distributions
