Learn How to Calculate and Plot Cumulative Distribution Functions (CDFs) in Excel

Understanding data distribution is a cornerstone of effective statistics and data analysis. Among the most critical analytical tools is the cumulative distribution function (CDF). The CDF serves to quantify the probability that a defined random variable will take on a value less than or equal to a specific point. Calculating and accurately plotting the CDF provides analysts with a powerful visual representation, illustrating the likelihood of various outcomes across the entire scope of the dataset.

While specialized statistical programming environments are often employed for complex tasks, the widely accessible platform of Microsoft Excel offers robust, built-in functions suitable for determining cumulative distribution probabilities. This approach democratizes statistical analysis, enabling quick and efficient assessment of datasets without requiring advanced software. This comprehensive guide details the necessary, precise steps for calculating and visualizing a CDF exclusively using standard Excel features.

Defining the Cumulative Distribution Function (CDF)

The fundamental objective of the CDF is to offer a holistic perspective on the likelihood of observing a value up to a certain threshold within a distribution. It is crucial to distinguish the CDF from the probability density function (PDF). While the PDF provides the probability associated with a specific, isolated value, the CDF operates cumulatively. It aggregates and sums the probabilities starting from the lowest possible value up to the specific point of interest, providing a running total of likelihood.

Formally, for any given value x, the CDF yields the probability P(X ≤ x). This inherent cumulative nature makes the function indispensable across numerous statistical applications. For instance, the CDF is routinely utilized when calculating percentile ranks, establishing confidence intervals, or executing rigorous hypothesis testing. Graphically, when plotted for continuous distributions, the CDF typically generates a smooth, characteristic S-shaped curve, which invariably begins at 0 (representing 0% probability) and monotonically increases, terminating at 1 (representing 100% probability).

The Role of the NORM.DIST Function in Excel

To compute the cumulative probability specific to a dataset assumed to be normally distributed within the Excel environment, we rely heavily on the sophisticated NORM.DIST function. This function is purpose-built to return the normal distribution values, provided the necessary parameters: the observation value, the distribution’s central tendency, and its variability.

The standard syntax required for accurately calculating cumulative distribution probabilities in Excel is defined precisely as follows, incorporating four distinct arguments:

=NORM.DIST(x, MEAN, STANDARD_DEVIATION, TRUE)

The most crucial component that dictates the calculation’s outcome is the final argument, which must be set to TRUE. Specifying TRUE explicitly instructs Excel to calculate and return the value of the cumulative distribution function, summing all probabilities up to x. Conversely, if this argument were set to FALSE, the function would return the probability mass or density function (PDF) value instead. For all CDF calculations, setting the cumulative argument to TRUE is an absolute requirement.

Step 1: Preparing the Dataset and Statistical Parameters

Before any formulas can be effectively applied, the initial step involves meticulous organization of the input data and explicit definition of the statistical parameters characterizing the distribution. This preparation mandates inputting the raw dataset values and clearly stating the population or sample mean and the standard deviation.

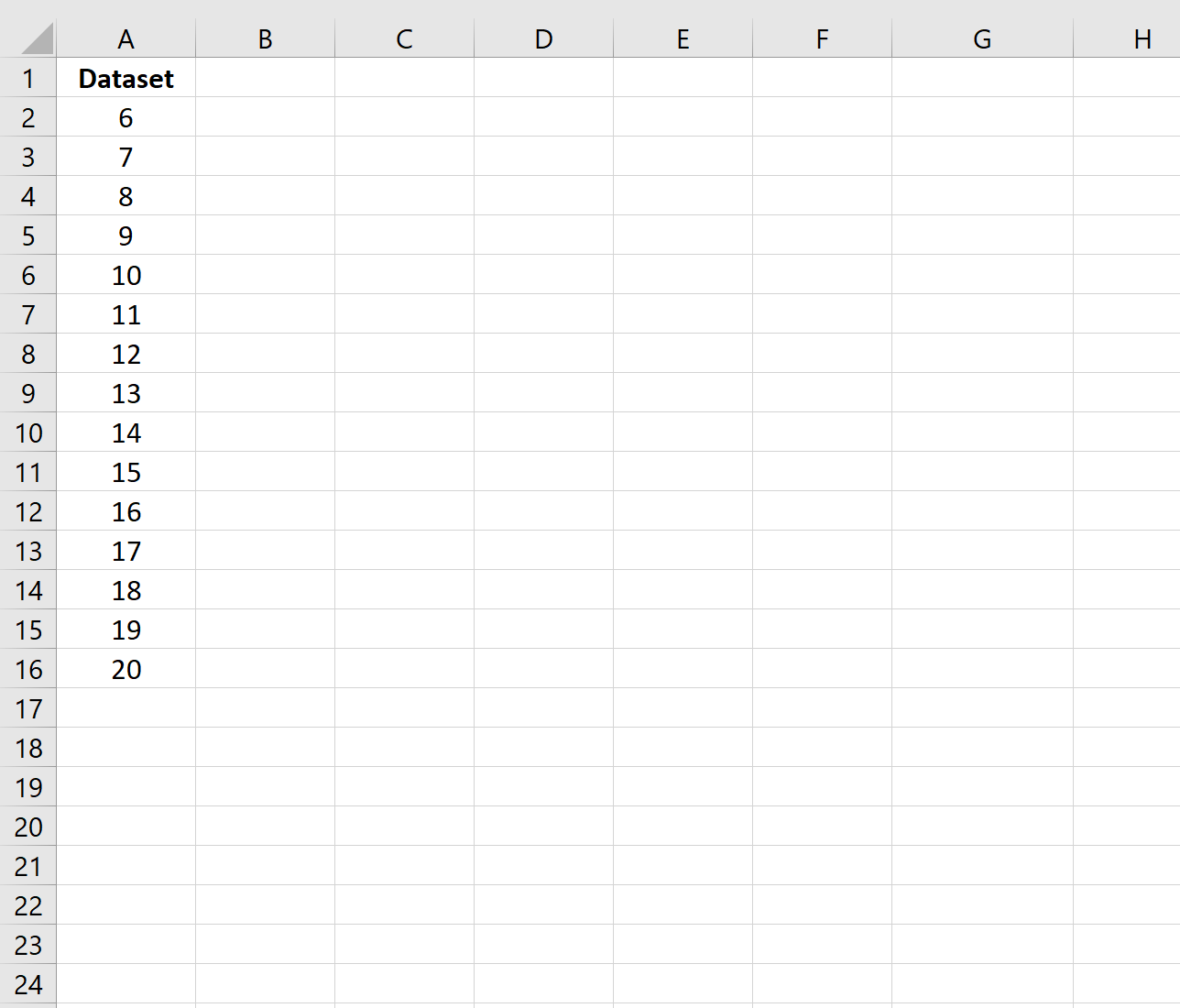

To initiate this process, users should establish the sample dataset within an Excel worksheet. Typically, these observation values are listed sequentially in a single column, such as Column A, as shown in the visual aid below:

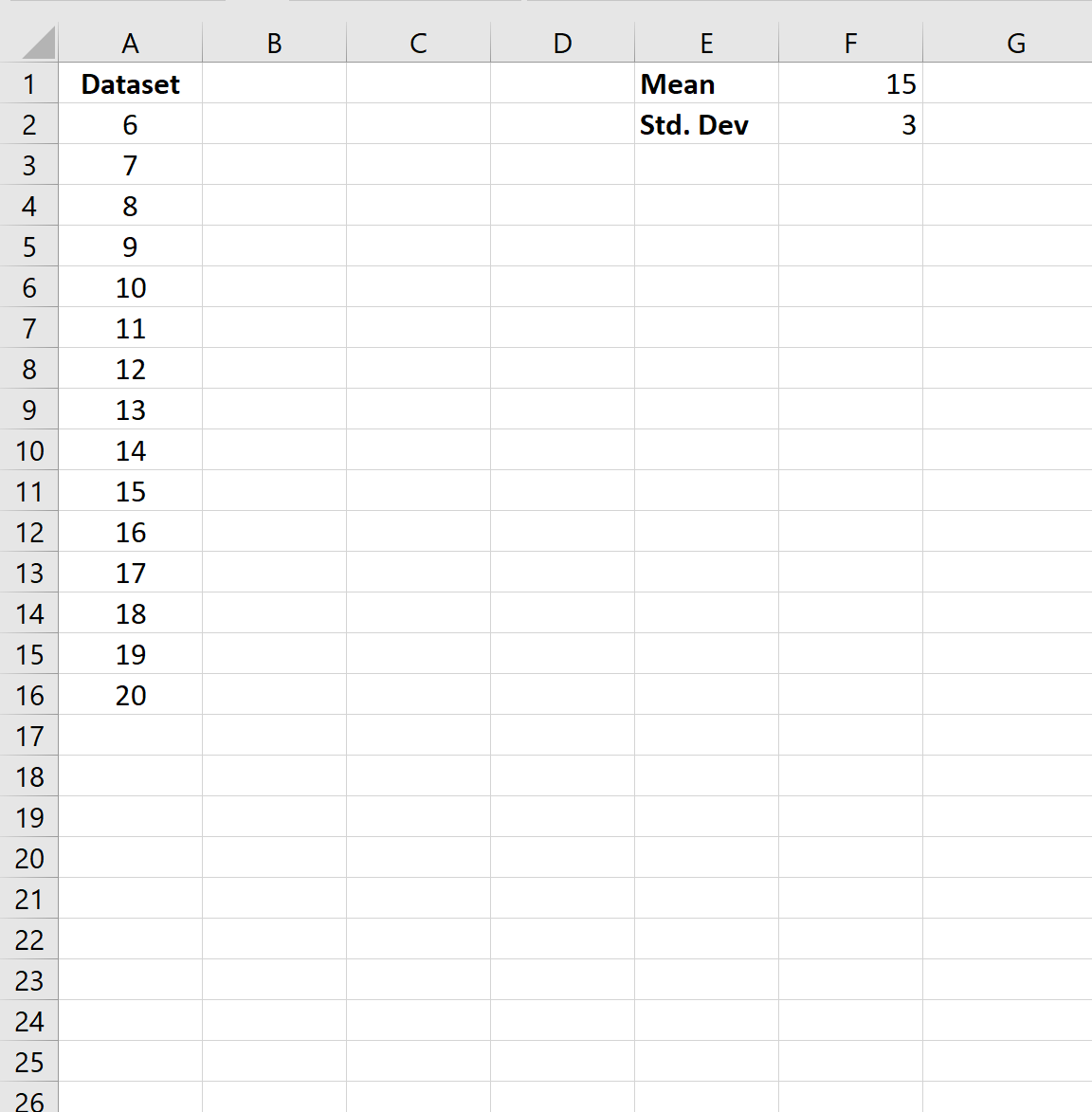

Subsequently, the critical statistical measures—the mean and the standard deviation—must be specified and placed in separate, clearly labeled cells. These defined values are paramount because they represent the central tendency and spread of the distribution. These parameters must be referenced using absolute cell references in the subsequent calculation formulas to ensure their values remain constant when the formula is applied across the entire range of data points.

Step 2: Calculating Cumulative Probabilities using Absolute References

With the dataset organized and the distribution parameters clearly defined, the next stage involves calculating the cumulative probability for each data point. This calculation is executed by applying the NORM.DIST function, linking it to the specific observation value in Column A, and utilizing the locked parameters for the mean and standard deviation (which, in the provided example, reside in cells F1 and F2, respectively).

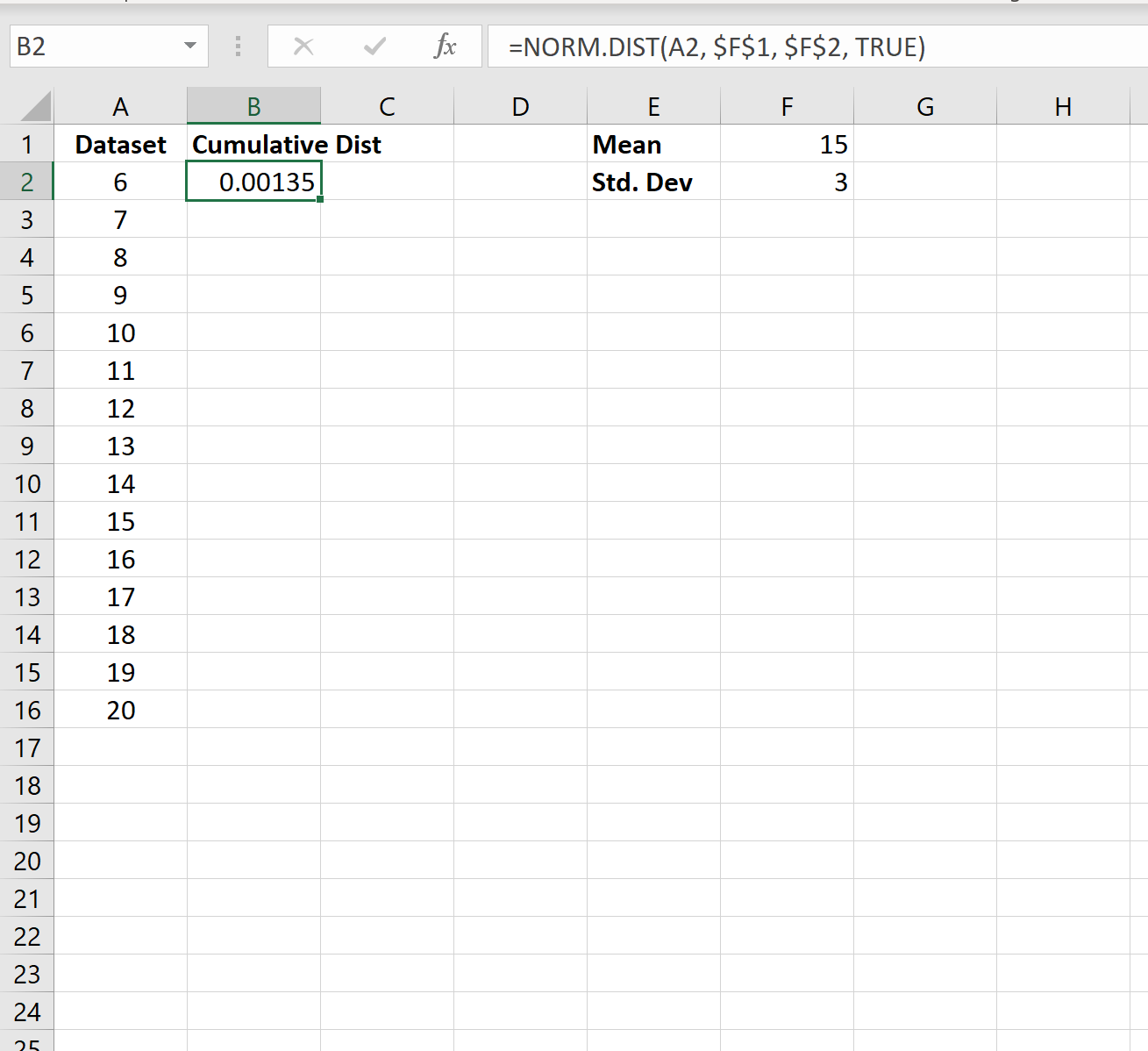

When calculating the CDF probability for the initial data point (A2), it is absolutely necessary to incorporate absolute cell references. These are denoted by the dollar signs (e.g., $F$1 and $F$2). The use of these absolute references is critical; it guarantees that when the formula is copied or dragged down the column, the references pointing to the statistical parameters (mean and standard deviation) remain fixed, while the reference to the observation value (A2) correctly updates to A3, A4, and so on.

=NORM.DIST(A2, $F$1, $F$2, TRUE)

Following the successful calculation of the CDF probability for the first cell, this formula can be rapidly disseminated across the remainder of the dataset. By simply copying and pasting the formula into the corresponding cells in Column B, Excel automatically computes the cumulative probability P(X ≤ x) for every single data point listed in Column A, efficiently completing the core analytical step.

Interpreting the Results and Visualizing the CDF Plot

Upon completion of the calculation phase, Column B holds the definitive values for the Cumulative Distribution Function corresponding to the input dataset. The interpretation of these figures is straightforward: they represent the likelihood (ranging strictly from 0 to 1, or 0% to 100%) that an observation randomly drawn from the distribution will possess a value less than or equal to the corresponding data point in Column A.

For clarity, we can translate the calculated probabilities found in Column B into actionable insights regarding the distribution:

• The probability that the random variable will be less than or equal to the value 6 is approximately 0.00135.
• The probability that the random variable will be less than or equal to the value 7 is approximately 0.00383.
• The probability that the random variable will be less than or equal to the value 8 is approximately 0.00982.

The final, crucial step is generating a visual representation of this distribution. To do this, select the data in both Column A (the observation values) and Column B (the calculated CDF values). Using Excel’s charting tools, create either a scatter plot or a smooth line chart. The independent variable, represented by the dataset values (Column A), must be mapped to the x-axis, while the dependent variable, the calculated CDF values (Column B), must be mapped to the y-axis.

This resulting plot is the formal visualization of the Cumulative Distribution Function. It vividly illustrates the manner in which probability accumulates as the underlying variable increases. The x-axis provides context regarding the scale of the data, and the y-axis, representing the accumulated probability, clearly demonstrates the approach toward 1 as the data points reach the upper bounds of the distribution.

Further Exploration and Resources

For analysts, students, and professionals keen on expanding their expertise in statistical distributions, probability modeling, and advanced data manipulation within Microsoft Excel, several additional resources are highly recommended. A strong grasp of alternative distribution functions and their corresponding Excel formulas can significantly enhance analytical capabilities.

We encourage readers to explore the official documentation for related functions such as NORM.INV (the inverse normal distribution) and specific non-normal distribution calculations available in Excel, broadening the toolkit for robust data interpretation and modeling.
