Understanding and Visualizing Confidence Intervals in Python

The concept of a confidence interval (CI) is fundamental to inferential statistics. It provides a crucial measure of uncertainty surrounding an estimate. Simply put, a confidence interval defines a range of plausible values for an unknown population parameter, such as the mean or the slope of a regression model, based on a sample dataset. For instance, stating that a 95% CI for the mean height is [170 cm, 180 cm] implies that if we were to repeat the sampling process many times, 95% of the resulting intervals would contain the true population mean.

While numerical calculation of these bounds is essential, visualizing the confidence interval significantly enhances interpretability, especially when dealing with relationships between variables. By presenting the range visually, researchers and analysts can quickly grasp the precision of their estimates. A narrow interval suggests high precision, while a wide interval indicates significant uncertainty or high variance in the data. This tutorial offers a practical guide on how to generate compelling visualizations of confidence intervals for various datasets using the powerful statistical plotting capabilities available in Python, specifically leveraging the Seaborn library.

We will explore two primary methods provided by Seaborn: the lineplot() function, suitable for trend analysis and time series data, and the regplot() function, which is designed for visualizing linear relationships and regression estimates. Mastery of these plotting techniques is vital for presenting statistically sound and easily digestible results in data science and statistical analysis projects.

Understanding Confidence Intervals in Statistical Visualization

In statistical modeling, we often rely on point estimates—single values derived from a sample—to approximate population characteristics. However, point estimates alone are insufficient because they do not convey the variability or reliability inherent in the sampling process. This is precisely where the visual representation of the confidence interval becomes indispensable. When plotted, the CI appears as a shaded band around the estimated line or curve, immediately communicating the probable spread of the true relationship. This visualization moves the analysis beyond a simple guess and anchors it firmly in the realm of statistical inference.

The choice of the confidence level, usually 90%, 95%, or 99%, dictates the width of this shaded band. A 95% CI is the most commonly adopted standard, reflecting a balance between precision (narrowness) and confidence (the probability of capturing the true parameter). Understanding the trade-off is critical: increasing the confidence level (e.g., moving from 95% to 99%) guarantees a higher probability of capturing the true parameter, but it simultaneously forces the interval to widen, thereby decreasing the precision of the estimate. Conversely, decreasing the confidence level (e.g., to 90%) narrows the interval, increasing precision, but also increases the risk that the interval fails to capture the true population value.

Visualizing the CI allows for quick comparisons across different models or datasets. If two different experimental groups yield overlapping confidence bands, it suggests that the difference between the estimated parameters (means or slopes) may not be statistically significant. If the bands do not overlap, it provides strong visual evidence supporting a significant difference. This comparative power makes CI visualization a key component of exploratory data analysis and hypothesis testing, providing immediate intuition that raw p-values or t-statistics often fail to deliver.

Visualizing Confidence Intervals Using lineplot()

The first and often most straightforward technique for plotting a trend line along with its associated uncertainty is by utilizing Seaborn‘s lineplot() function. This function is particularly well-suited for visualizing the evolution of a variable over time or across ordered categories. It automatically calculates the central tendency (often the mean) for observations grouped by the x-variable and connects these points with a smooth line. Crucially, it renders a shaded band around this line, which represents the confidence interval of the estimate at each corresponding point along the x-axis.

To demonstrate this functionality, we first need to import the necessary libraries: NumPy for generating simulated data, Seaborn for the statistical plotting, and Matplotlib for display management. The following code block sets up a simple dataset where the variable y is linearly related to x, plus some added random noise. By default, lineplot() computes a 95% CI based on bootstrapping the data, offering a robust estimate of the population trend.

import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt

#create some random data
np.random.seed(0)
x = np.random.randint(1, 10, 30)
y = x+np.random.normal(0, 1, 30)

#create lineplot
ax = sns.lineplot(x, y)

Executing the code above generates a plot featuring a clear trend line representing the relationship between x and y. Surrounding this line is the default 95% confidence band. This band visually confirms that while the central tendency follows the line, the true population relationship is likely contained within the shaded area. The consistency and smoothness of the band reflect the underlying assumptions of the estimation method.

Controlling Precision: Adjusting the ci Parameter

While the 95% confidence level serves as a strong starting point for most statistical analyses, there are instances where researchers may need to adjust the certainty level based on the domain requirements or the specific risk tolerance associated with the study. Both lineplot() and regplot() in Seaborn provide the flexibility to modify the confidence level through the ci argument. This argument accepts an integer representing the percentage confidence desired, such as 80, 90, or 99.

It is crucial to understand the relationship between the chosen confidence level and the resulting plot visualization. As discussed earlier, there is an inverse relationship between confidence and precision. Specifying a lower confidence level, such as 80%, will result in a confidence interval band that is significantly more narrow. This narrower band indicates higher precision in the estimate, but reduces the likelihood that the true population parameter is captured within that range. Conversely, selecting a higher confidence level (e.g., 99%) will produce a much wider, more encompassing band.

To illustrate this effect, we modify the previous lineplot() command to plot an 80% confidence interval using the identical dataset. Notice how the code change is minimal, requiring only the addition of the ci=80 parameter. This immediate visual comparison highlights the trade-off inherent in statistical inference.

#create lineplot
ax = sns.lineplot(x, y, ci=80)

The resultant plot clearly shows a tighter, more defined band around the central line compared to the default 95% interval. Choosing the appropriate confidence level is a decision that must be made prior to analysis and should be driven by the context of the study, rather than solely by the desire for a visually appealing, narrow band.

Plotting Confidence Intervals Using regplot()

While lineplot() is excellent for displaying trends, when the primary goal is to visualize a linear relationship and the uncertainty of that relationship, Seaborn‘s regplot() function is the preferred tool. The name regplot() is short for regression plot, and it is specifically designed to fit a linear regression model to the data, display the individual data points as a scatterplot, and crucially, surround the estimated regression line with its confidence interval band.

Unlike lineplot(), which calculates CIs for the mean of Y at each X value, regplot() calculates the confidence interval for the regression estimate itself—that is, the uncertainty in the slope and intercept parameters. This shaded area represents the range within which the true population regression line is expected to fall, given the observed data and the specified confidence level. This visualization is invaluable for assessing the strength and reliability of predictive models.

Using the same synthetic dataset generated earlier, we can quickly switch from a trend visualization to a regression visualization simply by changing the function call from sns.lineplot() to sns.regplot(). Notice that the setup involving NumPy and Seaborn remains identical, reinforcing the consistency of the Python data science ecosystem.

import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt

#create some random data
np.random.seed(0)
x = np.random.randint(1, 10, 30)
y = x+np.random.normal(0, 1, 30)

#create regplot
ax = sns.regplot(x, y)

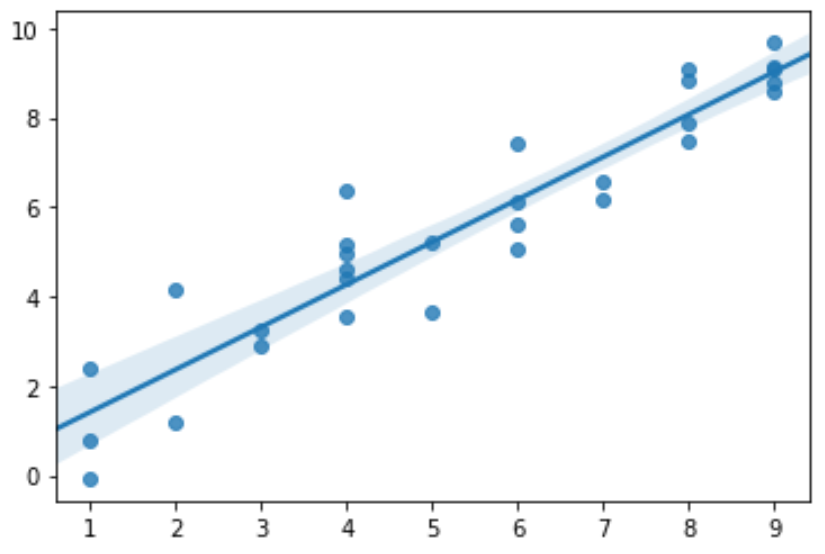

The resulting plot displays both the raw data points and the fitted regression model. By default, regplot() assumes a 95% confidence interval. A key characteristic to observe in regression confidence bands is that they often widen at the extremes of the x-axis. This widening correctly reflects the statistical reality that our estimates of the dependent variable become less reliable (more uncertain) when extrapolating far beyond the observed data range.

Tailoring the Regression Confidence Level

Just as with lineplot(), the power of regplot() lies in its ability to quickly adjust the statistical rigor of the visualization. The default 95% confidence level provides a high degree of certainty, but if the analysis requires a different balance of precision versus confidence, the ci parameter is utilized in the exact same manner. Using ci=80, for instance, instructs Seaborn to calculate and plot the 80% confidence interval around the estimated regression line.

The impact of this adjustment is immediately visible: the shaded area contracts around the regression line, reflecting the reduced statistical certainty required for the interval to contain the true population relationship. This technique is often employed in preliminary analysis or when high precision is prioritized over strict statistical confidence, provided the context justifies the choice.

Below is the implementation of regplot() utilizing an 80% confidence interval, demonstrating the visual narrowing of the uncertainty band compared to the previous 95% plot.

#create regplot
ax = sns.regplot(x, y, ci=80)

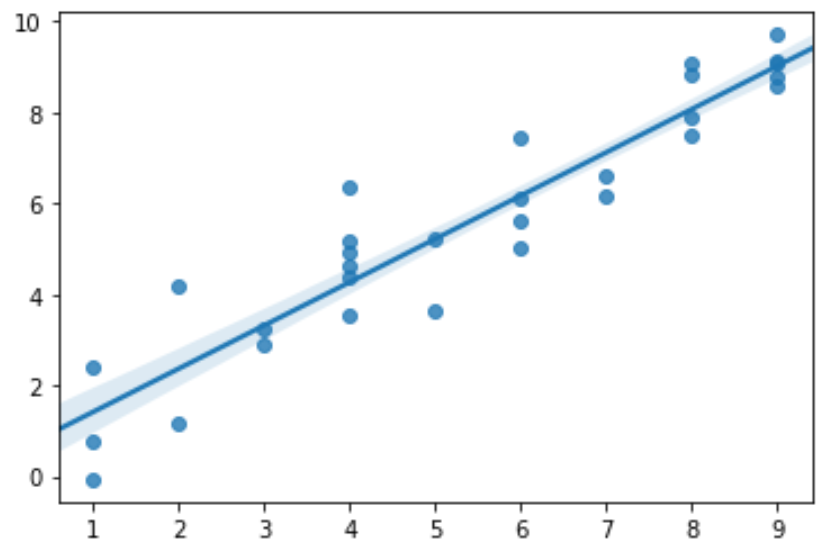

Analyzing the plot generated by this code snippet confirms that the uncertainty band is much tighter, particularly around the central mass of the data. However, readers must exercise caution when interpreting narrow confidence bands, as they inherently carry a higher risk of excluding the true population relationship. The choice of CI level should always be transparently documented alongside the visualization.

Choosing the Right Plot: lineplot() vs. regplot()

While both lineplot() and regplot() are excellent tools within the Seaborn ecosystem for visualizing uncertainty, their appropriate use cases differ based on the statistical question being addressed and the nature of the data. Selecting the correct function ensures that the derived visualization accurately reflects the underlying statistical methodology.

The primary distinction lies in what each function estimates and plots. lineplot() is fundamentally designed for sequential data—where the x-axis represents ordered, grouped categories (like time, age groups, or experimental order). It plots the mean (or median) of the y-variable at each x-point and calculates the confidence interval around that specific estimate of central tendency. The resulting line connects these means, emphasizing the trend over time or sequence. It is often used to visualize time series data or the performance of metrics across different ordered bins.

In contrast, regplot() is built specifically for linear modeling and bivariate analysis. Its primary purpose is to visualize the estimated linear relationship between two variables, regardless of whether the x-variable is sequential or not. It plots the raw data points as a scatterplot and fits a single, globally estimated regression line. The confidence band generated here pertains to the uncertainty of the entire linear model, not just the mean at specific x-values. If your goal is to show causation or correlation based on a linear model, regplot() is the superior choice.

To summarize the use cases, consider the following list:

• lineplot() is best for: Analyzing trends over time, visualizing the average change across ordered groups, and when discrete data points are aggregated into means.
• regplot() is best for: Displaying the results of a linear regression analysis, visualizing correlation between two continuous variables, and emphasizing the uncertainty in the estimated slope and intercept.

Understanding this distinction allows data scientists using Python to generate highly accurate and statistically meaningful visualizations that correctly convey the uncertainty inherent in their data analysis.

Additional Resources

To deepen your knowledge of statistical inference and the practical application of confidence intervals in data science using Python, we recommend exploring the following resources:

• What are Confidence Intervals?
• How to Calculate Confidence Intervals in Python

Further study into the documentation for Seaborn and NumPy will also prove beneficial for advanced visualization and data handling techniques.
