Learning to Visualize Gamma Distributions: A Python Tutorial with Examples

The Gamma distribution stands as one of the most fundamental and versatile continuous probability distributions utilized in statistics and applied mathematics. Its utility lies primarily in its ability to model continuous, positive random variables—phenomena that cannot take negative values. This makes it indispensable across diverse fields, from actuarial science, where it models the severity of insurance claims, to reliability engineering, where it describes waiting times until a sequence of events occurs, such as in a Poisson process.

For any serious statistical analysis or data science project, the ability to accurately understand and visualize this distribution is paramount. This comprehensive guide offers detailed, practical examples demonstrating how to harness the power of the Python ecosystem, specifically leveraging the statistical functions within the SciPy library alongside the robust plotting capabilities of Matplotlib, to generate insightful visualizations of the Gamma distribution.

We will meticulously explore how the distribution’s defining parameters influence its shape and location, providing you with the tools necessary to produce clean, professional, and interpretable plots that accurately reflect the underlying probabilistic models governing your data.

Mathematical Foundations of the Gamma Distribution

The mathematical definition of the Gamma distribution restricts its domain to positive real numbers (x > 0). It is fundamentally characterized by two distinct parameters that govern its behavior: the shape parameter (typically represented by k or α) and the scale parameter (usually represented by θ). This dual-parameter structure grants the distribution remarkable flexibility, enabling it to accurately model diverse non-negative and often highly skewed datasets encountered in disciplines ranging from network traffic modeling to risk analysis in financial engineering.

A key distinguishing feature of the Gamma distribution, setting it apart from symmetric models like the Normal distribution, is its inherent skewness. This characteristic makes it perfectly suited for modeling real-world metrics where negative outcomes are impossible and where the bulk of observations are clustered near zero, such as inter-arrival times or asset decay rates. Furthermore, when the shape parameter takes on an integer value, the Gamma distribution simplifies to the Erlang distribution, which is specifically used to model the cumulative waiting time required for a predetermined number (k) of events to occur within a standard Poisson process.

Visualizing any continuous distribution requires computing its Probability Density Function (PDF) over a relevant domain of possible values. The PDF defines the relative likelihood of the continuous random variable adopting any specific value; the higher the curve, the more likely the corresponding value. In the Python environment, the calculation of the Gamma distribution’s PDF is handled seamlessly and efficiently by calling the stats.gamma.pdf method, which is a core component of the SciPy statistical module.

The Influence of Shape and Scale Parameters

To accurately model data using the Gamma distribution, one must have a clear understanding of how the two governing parameters—shape and scale—interact to define the curve. The visual outcome and the statistical moments (like the mean and variance) of the distribution are entirely conditional upon the values assigned to these two critical components. This insight is not only theoretical but crucial for practical data modeling and interpretation.

The shape parameter, conventionally labeled a or k in computational libraries, dictates the skewness and the fundamental form of the distribution. When the shape parameter is small (e.g., a < 1), the probability mass is heavily concentrated near zero, resulting in an L-shaped curve that declines sharply. As the value of a increases, the distribution becomes progressively more symmetrical, the peak shifts away from the origin, and for very large values of a, the Gamma distribution closely approximates the Normal distribution, showcasing its remarkable flexibility.

Conversely, the scale parameter, labeled scale or θ, acts as a multiplicative factor on the x-axis, controlling the spread and dispersion of the curve without fundamentally changing its shape (which is determined by a). A larger scale parameter effectively stretches the distribution, pushing the mean and median to higher values and resulting in greater variance. This means that a large scale parameter implies a wider range of possible outcomes for the random variable.

It is important to note the specific nomenclature used within the SciPy library: the gamma() function simplifies deployment by accepting the argument a to define the shape parameter and the explicit argument scale to define the scale parameter, streamlining the process of implementing statistical models in Python.

Example 1: Generating a Single Distribution Plot

To solidify our theoretical understanding, our first practical example walks through the fundamental steps required to generate a high-quality visualization of a single Gamma distribution. We will initialize a distribution defined by a shape parameter (a) of 5 and a scale parameter of 3. Executing this task requires the synergistic use of three essential Python libraries: NumPy for defining the numerical domain, SciPy for executing the statistical calculations, and Matplotlib for rendering the final graphical output.

The following code snippet demonstrates the initialization process, calculating the required Probability Density Function (PDF) values across a defined range of potential outcomes, and subsequently displaying the resulting statistical curve.

import numpy as np
import scipy.stats as stats
import matplotlib.pyplot as plt

#define x-axis values
x = np.linspace (0, 40, 100)

#calculate pdf of Gamma distribution for each x-value
y = stats.gamma.pdf(x, a=5, scale=3)

#create plot of Gamma distribution
plt.plot(x, y)

#display plot
plt.show()

Upon execution, this code generates the visual representation of the parameterized Gamma distribution. The horizontal axis (x-axis) maps the continuous range of the random variable, representing all possible outcomes, defined here from 0 to 40. The vertical axis (y-axis) represents the calculated PDF values, where the height of the curve at any point indicates the relative likelihood of that outcome occurring. The apex of the curve corresponds to the mode, or the most likely value, demonstrating the distribution’s dependency on the chosen parameters (shape=5, scale=3). The visual output clearly exhibits the characteristic right-skewness inherent to the Gamma family.

Dissecting the Python Code Implementation

A thorough understanding of the code’s individual components is vital for adapting these techniques to different statistical problems. The collaboration between the imported libraries is what makes this visualization possible.

The initial line, x = np.linspace(0, 40, 100), employs NumPy‘s highly efficient array generation capability. It constructs 100 equally spaced data points spanning the range from 0 to 40. This array defines the continuous domain for the plot; choosing a sufficient number of points (100 in this case) ensures that the resulting curve is smooth and accurately represents the continuous nature of the distribution. If the variance of the Gamma distribution were significantly larger, the upper limit (40) would need adjustment to capture the entire spread.

The statistical core of the script lies in y = stats.gamma.pdf(x, a=5, scale=3). This invocation uses the dedicated statistical module within SciPy to compute the Probability Density Function (PDF) for every x-value in the generated array. The calculation utilizes the defined shape parameter (a=5) and scale parameter (scale=3). The resulting y array holds the corresponding density values, which are essentially the vertical coordinates of the distribution curve.

Finally, the commands plt.plot(x, y) and plt.show() initiate the visualization pipeline using Matplotlib. As the foundational library for visualization in Python, Matplotlib takes the numerical coordinates defined by the x and y arrays and renders them into a graphical plot, effectively translating complex statistical data into an easily digestible visual format for analysis and communication.

Example 2: Visual Comparison of Parameter Effects

To fully grasp the practical impact of the shape parameter and scale parameter, the most effective technique is to overlay multiple Gamma distributions onto a single plot. This comparative visualization provides immediate insight into how alterations in these governing values affect the distribution’s key characteristics: its central tendency (peak location), overall spread (variance), and degree of skewness.

In this expanded example, we define three unique Gamma distributions, each representing a distinct scenario using varied parameter sets. Crucially, we utilize the powerful label argument integrated into Matplotlib‘s plotting functions. This ensures that when the plot is rendered, a descriptive legend is automatically generated, enabling clear identification of which statistical curve corresponds to which set of parameters.

import numpy as np
import scipy.stats as stats
import matplotlib.pyplot as plt

#define three Gamma distributions
x = np.linspace(0, 40, 100)
y1 = stats.gamma.pdf(x, a=5, scale=3)
y2 = stats.gamma.pdf(x, a=2, scale=5)
y3 = stats.gamma.pdf(x, a=4, scale=2)

#add lines for each distribution
plt.plot(x, y1, label='shape=5, scale=3')
plt.plot(x, y2, label='shape=2, scale=5')
plt.plot(x, y3, label='shape=4, scale=2')

#add legend
plt.legend()

#display plot
plt.show()

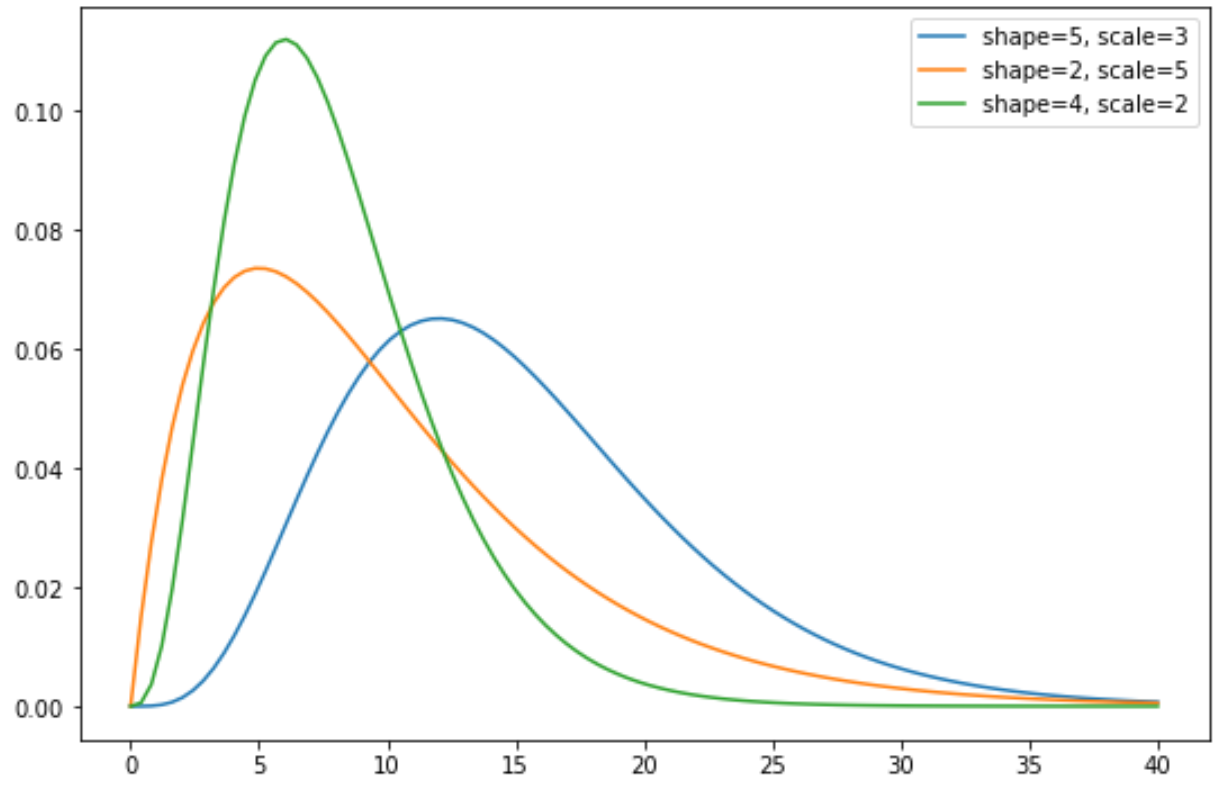

The resulting visualization powerfully demonstrates the dynamic and flexible nature of the Gamma distribution family. Each colored curve represents a specific probabilistic model, graphically demonstrating how underlying statistical assumptions, defined by the parameter selection, directly determine the shape and location of the modeled outcomes.

The strategic inclusion of the label keyword within the plt.plot() calls is fundamental to the readability of this comparative chart. This functionality feeds the descriptive text directly into the plt.legend() function, ensuring that the visual comparison remains readable, unambiguous, and immediately informative for statistical inference.

Detailed Interpretation of Parameter Interplay

A systematic analysis of the comparative plot generated in Example 2 offers crucial practical insights into how the theoretical definitions of the shape and scale parameters manifest visually in statistical modeling. The mean of a Gamma distribution is calculated simply as the product of the shape and scale parameters (Mean = a * scale).

• Distribution 1 (Shape=5, Scale=3): This curve serves as our baseline. It exhibits a moderate degree of right skewness, peaking sharply near x=12. With a calculated mean of 15 (5 * 3), the mode is clearly positioned to the left of the mean, which is the signature characteristic of a moderately skewed Gamma distribution.

• Distribution 2 (Shape=2, Scale=5): This distribution appears noticeably flatter and wider than the others. The smaller shape parameter (2) results in higher skewness, causing the probability mass to concentrate closer to the origin. Simultaneously, the large scale parameter (5) significantly stretches the distribution along the x-axis, leading to a much greater variance and a mean of 10 (2 * 5).

• Distribution 3 (Shape=4, Scale=2): This curve demonstrates the tightest concentration and consequently achieves the highest peak among the three. The reduced scale parameter (2) compresses the distribution, minimizing the overall spread and yielding the lowest mean value of 8 (4 * 2). The probability density is therefore maximized over a narrower range of outcomes.

It is abundantly clear that the morphology of the Gamma distribution is highly sensitive to the precise interplay between its defining parameters. Effective statistical modeling, particularly when dealing with phenomena like financial risk or reliability engineering, requires the careful estimation of these parameters—often achieved through techniques like maximum likelihood estimation—to ensure the model accurately reflects the underlying observed data properties. Visual representation of these models offers the most intuitive and immediate method for validating that the chosen parameters align with the expected statistical characteristics of the process under investigation.

Expanding Your Python Visualization Toolkit

The techniques mastered in plotting the Gamma distribution—namely, utilizing NumPy for domain setup, relying on SciPy for statistical processing, and employing Matplotlib for graphical rendering—form a robust and transferable foundation. This methodology is universally applicable across the visualization of virtually all continuous probability distributions available within the extensive scipy.stats module.

We highly recommend expanding your knowledge by exploring how different parameter settings influence other widely used distributions, such as the Beta, Weibull, or Exponential distributions. These models are essential tools in advanced data science, and fluency in both their mathematical definition and visual representation is critical for accurate statistical inference and decision-making.
