Learning to Visualize Normal Distributions with Python

The Foundation of Data Science: Visualizing the Normal Distribution

The ability to visualize statistical concepts is paramount in both data analysis and scientific research. Among all continuous probability distributions, the Normal Distribution, frequently referred to as the Gaussian distribution, holds a central place. It is instantly recognizable by its characteristic symmetric, bell-shaped curve, which is defined entirely by two parameters: the mean ($mu$) and the standard deviation ($sigma$). Understanding how to plot this distribution in Python is an essential skill, providing immediate visual insights into data parameters, such as central tendency and spread, that are crucial for statistical inference and hypothesis testing.

To successfully generate and plot this distribution digitally, we must leverage the robust capabilities of Python’s specialized scientific libraries. Our toolkit fundamentally relies on three pillars: NumPy, which handles the essential numerical operations, array creation, and mathematical transformations; Matplotlib, the industry-standard library responsible for rendering the high-quality statistical graphics; and SciPy, which furnishes the advanced statistical functions required to calculate the precise probabilities associated with the curve.

This comprehensive guide is designed to walk you through the necessary steps, defining the core syntax and providing detailed, practical examples. We will begin by plotting a single, standard normal distribution curve and progress to comparing multiple distributions simultaneously, illustrating the effect of parameter variations on the shape and position of the curve. Mastering these techniques ensures that your statistical visualizations are not only accurate but also highly informative and professionally presented.

Setting up the Computational Environment and Core Syntax

Before any plotting can occur, the computational environment must be properly configured. This involves importing the core modules required to handle numerical data generation and statistical computation. The successful visualization of the normal curve hinges on two primary steps: first, defining a sufficiently wide and dense range of x-axis values; and second, calculating the corresponding y-axis values using the distribution’s Probability Density Function (PDF).

The standard workflow integrates functions from NumPy to create the domain, the specialized norm module found within SciPy‘s statistics package (scipy.stats) to compute the PDF, and the primary plotting interface from Matplotlib (specifically matplotlib.pyplot) to render the graphic. This combination allows for efficient and accurate generation of the complex curve shape.

The fundamental structure below illustrates how we define the input domain and calculate the output density. We use NumPy‘s powerful arange function to construct a sequence of evenly spaced values, which provides the horizontal axis for our plot. Subsequently, the plt.plot() function uses these inputs to draw the curve based on the calculated probability densities:

#x-axis ranges from -3 and 3 with .001 steps
x = np.arange(-3, 3, 0.001)

#plot normal distribution with mean 0 and standard deviation 1
plt.plot(x, norm.pdf(x, 0, 1))

In this critical code snippet, the array x establishes both the span and the resolution of the horizontal axis. A smaller step size (here, 0.001) ensures a smoother, more continuous curve representation. The function norm.pdf(x, 0, 1) is the core statistical engine, calculating the Probability Density Function (PDF) value for every single point in the x array. The parameters passed to norm.pdf() define the distribution: the first argument (0) sets the mean ($mu$), and the second argument (1) sets the standard deviation ($sigma$). Finally, plt.plot() takes these two arrays (x-values and PDF y-values) and renders the visual relationship.

Example 1: Plotting the Standard Normal Distribution

The Standard Normal Distribution is a specific case where the population mean ($mu$) is 0 and the standard deviation ($sigma$) is 1. It serves as the canonical reference point for many statistical procedures, including Z-score calculations and standardized testing. To properly execute the plotting script, we must import numpy, matplotlib.pyplot, and specifically the norm object from scipy.stats.

For the Standard Normal Curve, setting the x-axis range from -3 to 3 is generally sufficient. According to the Empirical Rule, this interval captures approximately 99.7% of all data points under the curve, making it an efficient domain for visualization without needing excessive calculation. The following code block demonstrates the complete implementation necessary to generate this fundamental statistical visualization.

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import norm

#x-axis ranges from -3 and 3 with .001 steps
x = np.arange(-3, 3, 0.001)

#plot normal distribution with mean 0 and standard deviation 1
plt.plot(x, norm.pdf(x, 0, 1))

Upon running this script, Matplotlib generates the classic bell-shaped curve, centered precisely at zero, confirming the underlying mathematical properties of the Standard Normal Distribution.

Enhancing Visual Quality: Customizing Plot Appearance

While the default output from Matplotlib is accurate, customizing the plot’s aesthetics is crucial for generating high-impact, publication-quality graphics. Visual enhancements not only improve readability but also help highlight critical aspects of the data being presented. The plt.plot() function offers extensive arguments for controlling the visual properties of the rendered line.

Two primary parameters that immediately impact visual clarity are color and linewidth. The color parameter allows precise control over the line’s hue, enabling thematic consistency or emphasis on specific curves. The linewidth parameter controls the thickness of the line, which can be essential when distinguishing between multiple overlapping distributions or ensuring visibility in different media formats.

By simply modifying the original plotting command to include these parameters, as shown below, we can dramatically enhance the visibility and focus of the distribution. This adjustment moves the plot beyond a simple functional graphic toward a more professional analytical figure.

plt.plot(x, norm.pdf(x, 0, 1), color='red', linewidth=3)

The updated plot now features a thicker, highly visible red line, making the distribution stand out clearly and ensuring that the Standard Normal Distribution is impactful and easy to interpret.

Example 2: Comparative Analysis of Multiple Distributions

Often, statistical analysis requires comparing how different parameters—the mean ($mu$) or standard deviation ($sigma$)—affect the shape and location of the Normal Distribution. Plotting multiple distributions on the same axes allows for a direct visual comparison of their spread and location.

In this example, we keep the mean constant ($mu = 0$) but vary the standard deviation ($sigma = 1, 1.5,$ and $2$). Distributions with larger standard deviations are wider, meaning we must expand the domain of the x-axis to ensure the full curve is captured. We utilize NumPy‘s arange function to set the new range from -5 to 5.

Each distribution requires its own dedicated plt.plot() call. Furthermore, we incorporate the label argument within each plot function. This label acts as the identifier for that specific curve and is essential for generating an automatic key later. This systematic approach ensures that each curve is accurately calculated and ready for clear differentiation.

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import norm

#x-axis ranges from -5 and 5 with .001 steps
x = np.arange(-5, 5, 0.001)

#define multiple normal distributions
plt.plot(x, norm.pdf(x, 0, 1), label='μ: 0, σ: 1')
plt.plot(x, norm.pdf(x, 0, 1.5), label='μ:0, σ: 1.5')
plt.plot(x, norm.pdf(x, 0, 2), label='μ:0, σ: 2')

#add legend to plot
plt.legend()

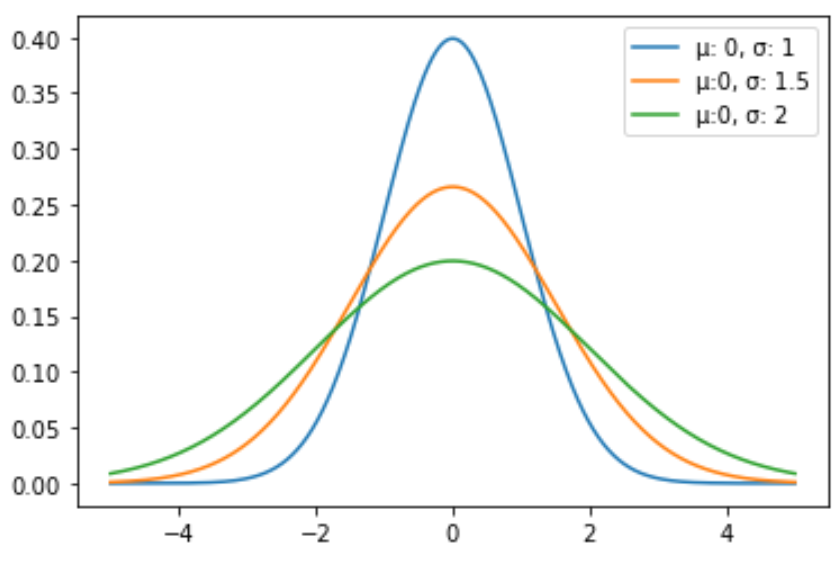

Notice how each distribution uses the label argument within the plt.plot() call. This is essential, as the subsequent plt.legend() function automatically reads these labels and generates a key for the visualization. The resulting plot clearly shows that as the standard deviation increases, the curve becomes wider and shorter, indicating greater variability in the data.

Achieving Publication-Ready Graphics: Annotation and Context

A well-structured plot is incomplete without proper annotation. Adding a title, axis labels, and a descriptive legend ensures that the audience can correctly interpret the data being presented. Matplotlib provides dedicated functions for these elements, transforming technical output into a comprehensive analytical figure.

In the final example, we build upon the multiple distribution plot by assigning specific colors to each line for contrast, adding a descriptive title to the legend, and applying labels to the X and Y axes. This transforms the raw plot into a comprehensive analytical figure.

We use plt.ylabel(), plt.xlabel(), and plt.title() to provide context. The fontsize parameter in the title call helps emphasize the main topic.

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import norm

#x-axis ranges from -5 and 5 with .001 steps
x = np.arange(-5, 5, 0.001)

#define multiple normal distributions
plt.plot(x, norm.pdf(x, 0, 1), label='μ: 0, σ: 1', color='gold')
plt.plot(x, norm.pdf(x, 0, 1.5), label='μ:0, σ: 1.5', color='red')
plt.plot(x, norm.pdf(x, 0, 2), label='μ:0, σ: 2', color='pink')

#add legend to plot
plt.legend(title='Parameters')

#add axes labels and a title
plt.ylabel('Density')
plt.xlabel('x')
plt.title('Normal Distributions', fontsize=14)

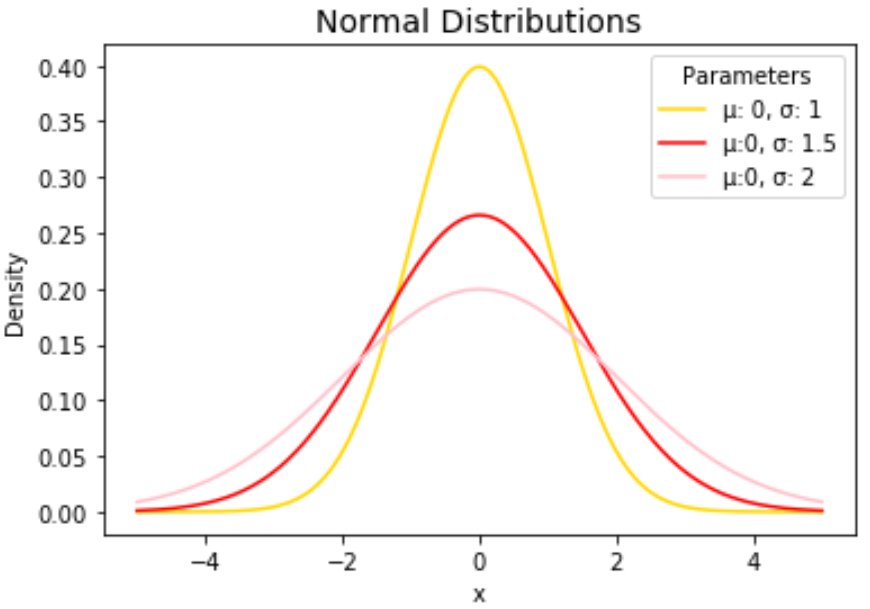

The final output is a clear, publication-ready graph comparing three distinct Normal Distribution curves, highlighting the effect of changing the standard deviation.

Conclusion: Mastering Statistical Visualization in Python

The process of plotting probability distributions, specifically the Normal Distribution, in Python is streamlined and highly effective when utilizing the collaborative power of the scientific stack: NumPy for foundational numerical array handling, SciPy for precise statistical computation (via norm.pdf()), and Matplotlib for high-fidelity rendering. By understanding how to accurately define the continuous domain of the x-axis and correctly apply the parameters ($mu$ and $sigma$) within the Probability Density Function calculation, users gain the ability to generate powerful visualizations of statistical concepts.

Beyond mere generation, the true value lies in mastering the extensive customization options offered by the plt.plot() function. Incorporating parameters for color, linewidth, labels, titles, and legends is instrumental in transforming raw data plots into insightful, persuasive data narratives. These techniques ensure clarity, distinguish between multiple overlaid datasets, and provide the necessary context for effective communication of statistical findings.

For a detailed and in-depth exploration of every parameter and argument available for customizing line charts, refer directly to the Matplotlib documentation regarding the plt.plot() function.
