Learning to Visualize Data: Plotting Pandas Series with Examples

Introduction: Visualizing Data with Pandas Series

Effective data visualization is a foundational skill in modern data analysis. It provides the necessary clarity to discern complex patterns, identify underlying trends, and spot outliers that are often invisible when examining raw numerical tables. Within the extensive ecosystem of Python for data science, the Pandas library remains an indispensable tool for efficient data manipulation and structuring. At its core lies the Pandas Series, the fundamental structure for handling one-dimensional labeled datasets.

A Pandas Series is not merely a simple list; it is a powerful, one-dimensional array-like object designed to hold various data types—from integers and floats to strings and Python objects. What truly sets the Series apart from a standard Python list or a raw NumPy array is its explicit, associated array of data labels, known as the index. This index grants exceptional flexibility for data access, alignment, and time-series operations, making the Series highly versatile for diverse data processing tasks.

To successfully visualize the content held within a Pandas Series, we rely heavily on the capabilities of Matplotlib, Python’s premier plotting library. Fortunately, Pandas offers seamless integration with Matplotlib, allowing users to generate a wide variety of high-quality plots directly from Series objects with minimal effort. This comprehensive guide will walk you through the two most common and critical methods for plotting Series data: constructing a line plot to analyze temporal or sequential trends, and generating a histogram to understand value distribution.

Gaining proficiency in these visualization techniques is essential for any professional dealing with data. They transition abstract numbers into immediate, actionable insights regarding the underlying structure and characteristics of your datasets. We will proceed by exploring each method using practical, runnable Python examples, demonstrating not only plot generation but also crucial customization techniques for maximizing clarity and interpretability.

Core Methods for Plotting a Pandas Series

Visualizing a Pandas Series involves the critical step of transforming numerical data into graphical representations that allow for intuitive and rapid information transfer. While the ecosystem supports numerous plotting styles, two methods stand out as fundamentally necessary for exploring Series data: the line plot and the histogram. These methods serve distinctly different, yet equally important, roles in the initial phases of data exploration and formal presentation.

The decision on which method to employ hinges entirely upon the nature of your data and the specific analytical question you are addressing. The line plot is the definitive choice for illustrating trends, sequential changes, or evolution over a continuous interval, typically time, where the Series index defines the progression. In contrast, the histogram is meticulously designed to display the underlying distribution of numerical values, enabling you to quantify and visualize the frequency of observations across different ranges.

We can implement these visualizations using two primary approaches: either by directly leveraging the functions provided by Matplotlib, or by utilizing the convenient, integrated plotting methods built into the Pandas object itself. Below are the foundational syntax examples for both methods, serving as a quick reference before we examine detailed, practical implementations.

Method 1: Creating a Line Plot from a Pandas Series using Matplotlib

import pandas as pd
import matplotlib.pyplot as plt

plt.plot(my_series.index, my_series.values)

This implementation utilizes Matplotlib’s core plt.plot() function. It requires explicitly passing the Series’ index to define the horizontal (x) axis and the Series’ numerical values to define the vertical (y) axis. This approach grants the user maximum control and is highly preferred when integrating multiple plots onto one canvas or applying highly advanced Matplotlib customization features.

Method 2: Creating a Histogram from a Pandas Series using Integrated Plotting

import pandas as pd
import matplotlib.pyplot as plt

my_series.plot(kind='hist')

In contrast, this method takes advantage of the convenience offered by the Pandas built-in .plot() accessor. By setting the kind parameter to 'hist', we instruct Pandas to generate a histogram using Matplotlib behind the scenes. This method streamlines the plotting process dramatically, offering a highly efficient path for generating most common plot types directly from Series or DataFrame objects.

Example 1: Generating a Line Plot from a Pandas Series

The line plot stands as the optimal choice for visualizing data that possesses a clear sequential or temporal structure, such as stock prices, monthly sales figures, or any scenario where the chronological order of observations holds significant meaning. By connecting successive data points with straight segments, the line plot excels at highlighting overall trends, detecting seasonal patterns, and identifying significant fluctuations against the backdrop of the independent variable, which is intrinsically linked to the Series index.

To demonstrate this, we must first establish a working Pandas Series. We will construct a simple Series containing a sequence of increasing numerical values. Once the Series is defined, we utilize the pyplot module from Matplotlib to render the visualization. The core plotting is handled by plt.plot(), which explicitly maps the inherent integer index of the Series to the x-axis and the actual stored data values to the y-axis.

import pandas as pd
import matplotlib.pyplot as plt

#create pandas Series
my_series = pd.Series([2, 2, 2, 3, 3, 4, 5, 7, 8, 9, 12, 12, 14, 15, 16, 16, 18,
                       19, 22, 22, 22, 25, 26, 27, 30, 33, 33, 33, 34, 35])

#create line plot to visualize values in Series
plt.plot(my_series.index, my_series.values)
# Optional: Call plt.show() to display the plot if not in an interactive environment
plt.show()

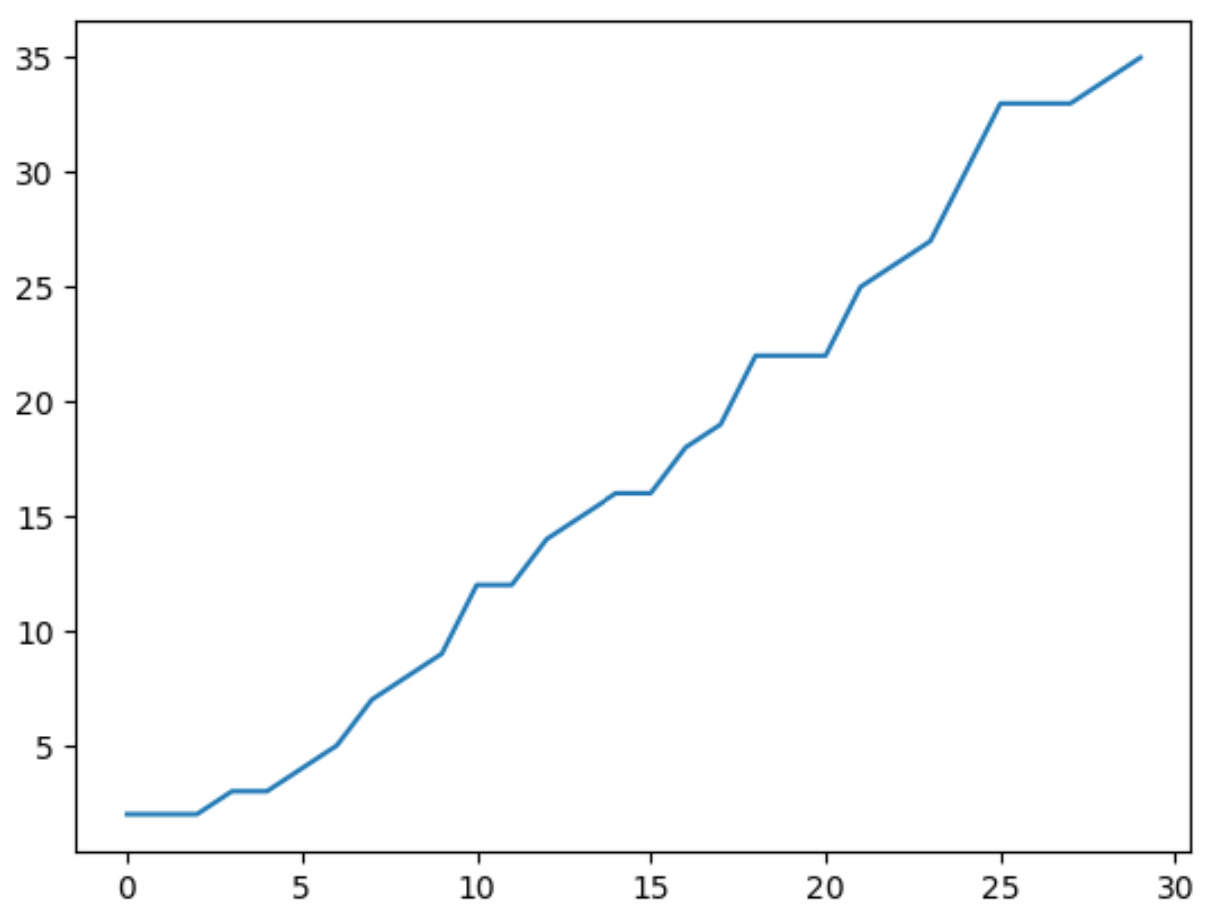

Upon reviewing the initial line plot, the x-axis visibly represents the implicit zero-based index of the Pandas Series, spanning from 0 up to 29 for our thirty data points. Conversely, the y-axis accurately reflects the actual quantitative values stored within the Series. This visualization immediately confirms the overall upward trajectory of the data, characterized by periods of steady growth interspersed with brief plateaus, providing an instant visual summary of the data progression.

While the default visualization provides a solid foundation, professional and effective plots require thoughtful customization to enhance their narrative power. Both Pandas and Matplotlib offer an extensive suite of functions that enable precise control over every visual element, including line style, color, axis labeling, and the plot title. Implementing these customizations is crucial for tailoring the visual output to meet specific analytical requirements and audience expectations.

#create customized line plot
plt.plot(my_series.index, my_series.values, color='red', linewidth=2.5)

#add axis labels and title
plt.xlabel('Index')
plt.ylabel('Values')
plt.title('Line Plot of Pandas Series')
plt.grid(True) # Optional: Add a grid for better readability
plt.show()

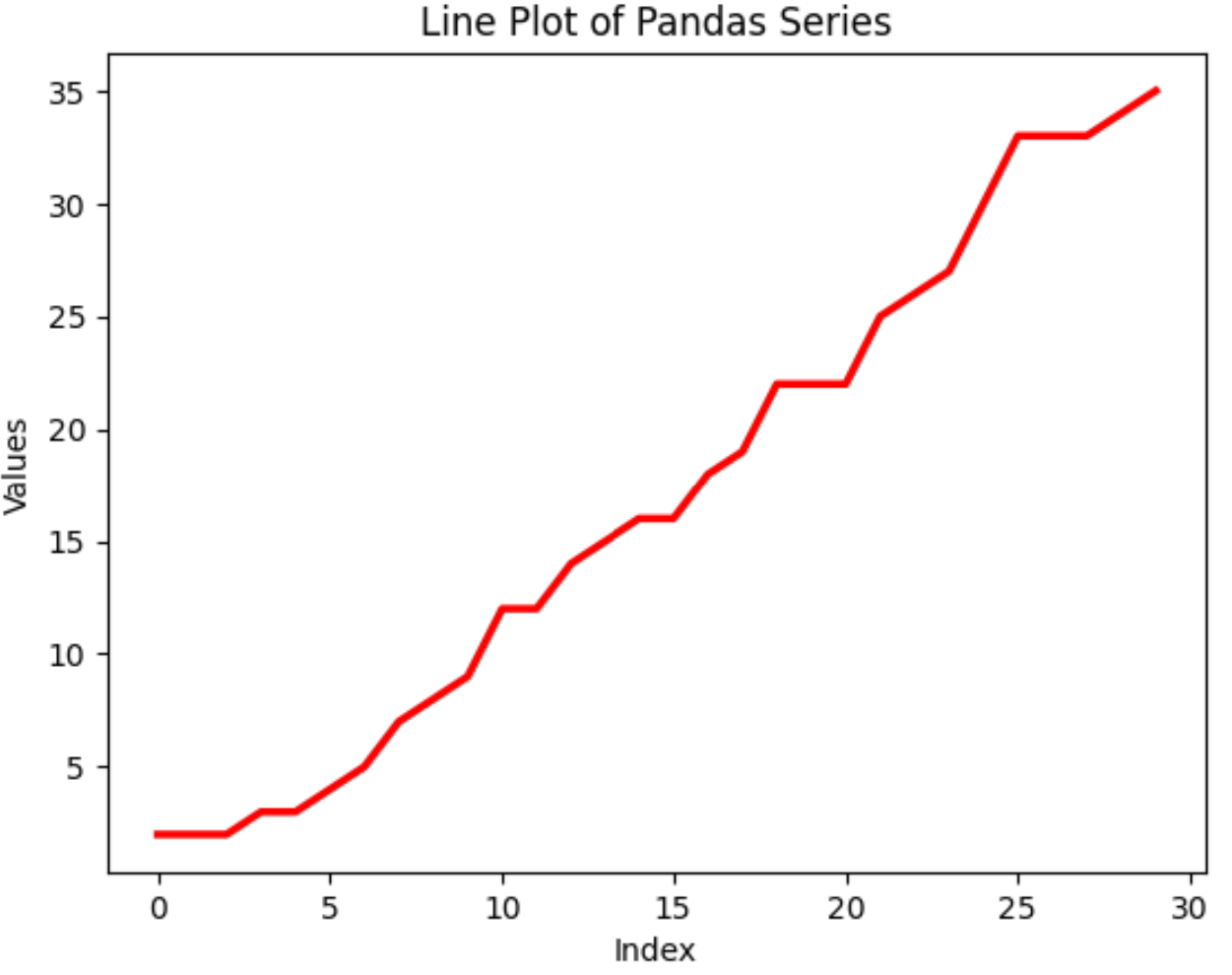

In this customized rendering, we have deliberately adjusted the visual parameters: the line color is set to ‘red’ and the linewidth is increased to 2.5, significantly improving visual prominence. More fundamentally, we have added informative labels to the axes using plt.xlabel() and plt.ylabel(), and supplied a descriptive title via plt.title(). These simple enhancements drastically improve the plot’s overall readability and its effectiveness in communicating the data story, transforming a basic graph into a professional visualization.

Example 2: Constructing a Histogram from a Pandas Series

While the line plot tracks change over time, the histogram is the definitive visualization for exploring the distribution of a numerical variable. This chart operates by dividing the entire range of data values into discrete intervals, known as “bins,” and then calculating the frequency (or count) of observations that fall within each bin. By representing these frequencies as bars, the histogram allows for immediate assessment of key statistical properties, including the central tendency, data spread, and the overall shape—revealing whether the distribution is symmetric, skewed, or multimodal.

We will reuse the same Pandas Series from the previous example to illustrate its value distribution. The most direct and efficient approach for generating a histogram is to employ Pandas’ integrated plotting capabilities. By invoking the .plot() method directly on the Series object and specifying the parameter kind='hist', we can produce a statistically sound histogram using just a single line of execution code.

import pandas as pd
import matplotlib.pyplot as plt

#create pandas Series
my_series = pd.Series([2, 2, 2, 3, 3, 4, 5, 7, 8, 9, 12, 12, 14, 15, 16, 16, 18,
                       19, 22, 22, 22, 25, 26, 27, 30, 33, 33, 33, 34, 35])

#create histogram visualize distribution of values in Series
my_series.plot(kind='hist')
plt.show()

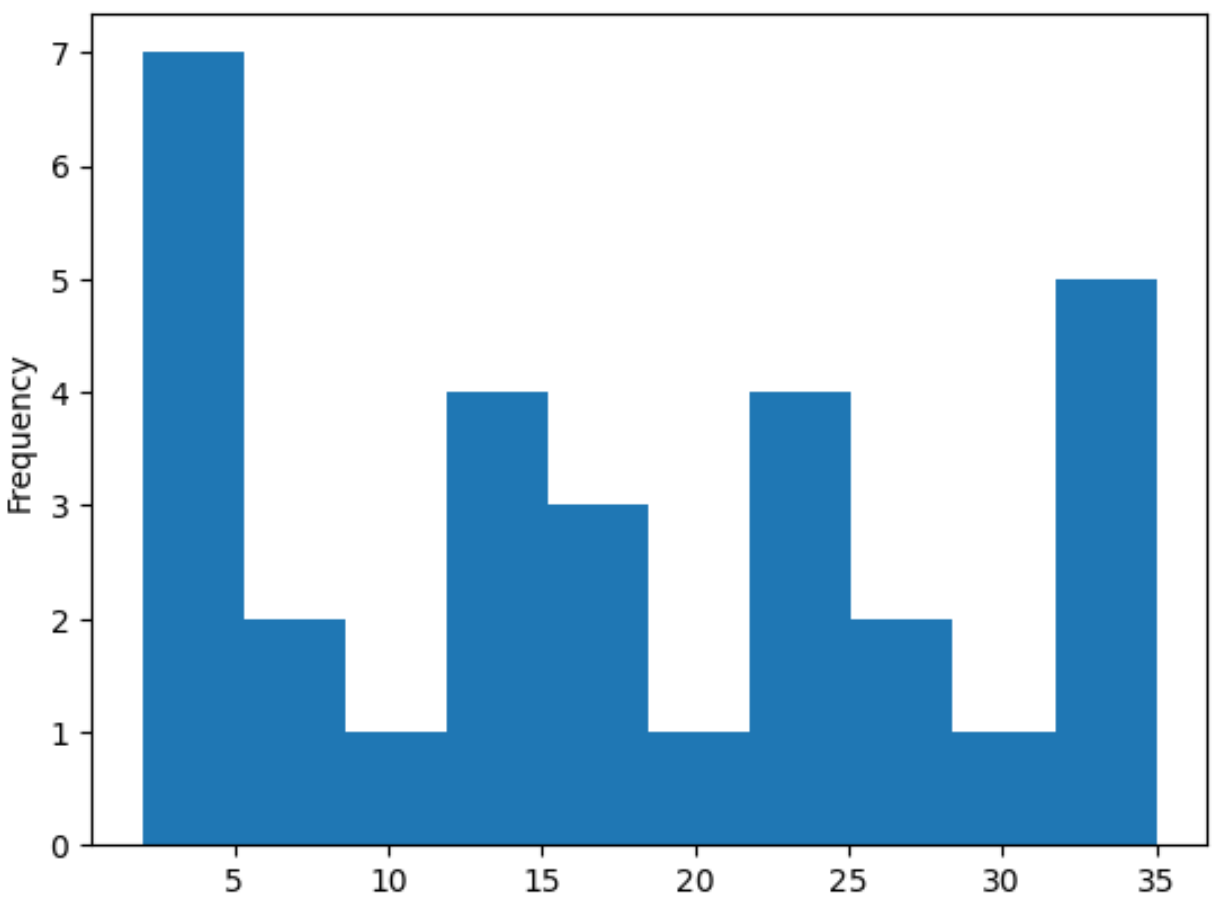

In this initial output, the x-axis represents the continuum of values within our Pandas Series, partitioned into the default number of intervals or bins. The y-axis accurately measures the frequency—the count of data points—that fall into each corresponding bin. This default visualization immediately reveals that the data is concentrated in the lower ranges and gradually decreases in frequency as values increase, providing a quick, albeit high-level, overview of the distribution’s shape.

Effective data presentation often necessitates refining the histogram through customization. Pandas’ .plot() method allows for control over aesthetic elements like bar color and edge color, but the most crucial parameter is the number of bins. Adjusting the bins argument is vital because it fundamentally dictates the granularity of the distribution analysis, allowing you to fine-tune the chart to accurately represent the data’s underlying structure without oversimplification or undue complexity.

#create histogram with 15 bins
my_series.plot(kind='hist', edgecolor='black', color='gold', bins=15)

#add axis labels and title
plt.xlabel('Values')
plt.ylabel('Frequency') # Added y-axis label for clarity
plt.title('Histogram of Pandas Series with 15 Bins') # Updated title
plt.show()

For this refined histogram, we applied aesthetic changes by setting the bar color to ‘gold’ and adding a ‘black’ edgecolor to enhance definition between intervals. Most critically, we used the bins=15 argument to increase the number of bins from the default setting. This increase provides a much more granular view of the data’s frequency distribution, revealing finer structural details that were previously aggregated. Furthermore, we ensured the visualization was complete by adding informative axis labels and an updated title that clearly states the configuration used.

Understanding the `bins` Argument in Histograms

The bins argument is arguably the most fundamental parameter when constructing a histogram, as it directly governs how your data’s distribution is visually articulated. Conceptually, bins are sequential, non-overlapping ranges that span the entirety of your dataset’s numerical values. The histogram then aggregates all data points that fall within each range, displaying this count as the height of the corresponding bar. Consequently, the total number of bins you specify is the primary factor controlling the level of granularity shown in the distribution plot.

By standard convention, most Python plotting libraries, including Matplotlib (and therefore Pandas), typically default to using 10 bins. While this default often suffices for a preliminary, general overview of the data’s shape, it rarely provides the optimal representation. For large datasets or data with high variability, 10 bins might prove too coarse, masking important subgroups or subtle features. Conversely, for smaller, tightly clustered datasets, 10 bins might be too fine, resulting in a sparse, noisy plot that is difficult to interpret.

Adjusting the bins argument allows the analyst to finely control this inherent level of detail. If you decrease the number of bins, each interval will cover a wider range of values, leading to a histogram with fewer, broader bars that offer a highly generalized summary of the distribution. Conversely, increasing the number of bins creates narrower intervals and more bars, which produces a much more detailed, fine-grained visual picture of the data’s spread. Understanding this trade-off between generalization and detail is key to effective histogram creation.

Determining the perfect number of bins is less about mathematical precision and more about iterative data exploration. There are statistical rules of thumb (like the square root rule or Sturges’ formula), but the best practice involves visually experimenting with several counts—perhaps 5, 10, 20, or 50—to observe how the perceived shape of the distribution changes. The ultimate objective is to strike a critical balance: the histogram must reveal the underlying structure of the data clearly and accurately, without succumbing to excessive complexity or oversimplification that obscures meaningful insights.

Conclusion and Further Exploration

This comprehensive guide has illuminated the essential methodologies for effectively visualizing a Pandas Series utilizing Python’s powerful libraries. We successfully demonstrated the creation of both line plots and histograms, clearly defining their distinct analytical applications: line plots are indispensable for tracking sequential trends across an ordered index, while histograms deliver pivotal insights into the distribution, concentration, and frequency of numerical values within the dataset.

Crucially, we underscored that achieving impactful visualizations extends beyond basic generation; it requires thoughtful plot customization. Leveraging functions provided by Matplotlib and the integrated plotting features of Pandas, we customized elements such as colors, axis labels, titles, and, most importantly, the number of bins in the histogram. These adjustments are vital for maximizing the clarity, readability, and interpretability of your visual data narrative.

We strongly recommend that you solidify this knowledge through hands-on practice using your own datasets. Practical application is the fastest route to mastering data visualization techniques. Try plotting different types of data Series, actively explore the impact of various customization options, and meticulously observe how changes to parameters—particularly the number of bins—alter the visual representation of your data’s structure. This iterative, experimental approach will significantly sharpen your ability to derive meaningful and accurate insights.
