Learning Polynomial Regression: A Practical Guide with R

Polynomial regression is a sophisticated extension of standard linear modeling, crucial in fields ranging from economics to engineering. This specialized regression technique is employed when the relationship between the independent variable (the predictor variable) and the dependent variable (the response variable) exhibits a clear, non-linear curvature. When a simple straight line fails to capture the underlying trend, polynomial modeling offers the necessary flexibility to accurately map the data trajectory.

The fundamental difference between standard linear regression and polynomial regression lies in how the relationship is modeled. While linear models restrict the relationship to a first-degree equation, polynomial models introduce predictor variables raised to higher powers—such as squared ($X^2$) or cubed ($X^3$) terms. This ability to fit a curve is indispensable for accurately modeling complex physical and social phenomena that defy simple linear approximations.

This comprehensive guide is designed to walk the reader through the entire process of fitting a polynomial model to a dataset and, critically, visualizing the resulting regression curve. We will utilize the powerful and widely adopted statistical computing environment, R, providing step-by-step instructions necessary for generating clear, professional-grade visualizations that effectively communicate analytical results.

Theoretical Foundations of Polynomial Modeling

At its core, polynomial regression transforms the standard linear regression framework by introducing polynomial terms. Consider a third-degree (cubic) model, which is mathematically expressed as $Y = beta_0 + beta_1 X + beta_2 X^2 + beta_3 X^3 + epsilon$. Despite the nonlinear relationship between the input variable $X$ and the output variable $Y$, the model remains structurally linear in its coefficients ($beta$). This crucial characteristic allows researchers to employ well-established techniques, such as Ordinary Least Squares (OLS), for efficient parameter estimation.

A critical decision in constructing a robust polynomial model is selecting the appropriate degree. This choice directly impacts the model’s ability to generalize. Selecting a low-degree polynomial, such as a quadratic, may result in underfitting, where the model fails to capture the underlying complex curvature inherent in the data. Conversely, choosing an excessively high-degree polynomial introduces the significant risk of overfitting. An overfit model memorizes the random noise specific to the training data rather than the true underlying relationship, rendering it useless for prediction on new, unseen data.

Given this inherent trade-off between bias (underfitting) and variance (overfitting), visualization becomes an indispensable tool. Before relying solely on statistical diagnostics like R-squared or p-values, plotting the fitted curve directly over the raw data points provides an immediate, intuitive assessment. This visual inspection allows the researcher to confirm that the chosen polynomial degree achieves the necessary balance, resulting in a curve that accurately follows the trend without becoming overly erratic or complex.

Preparing Sample Data and Initial Visualization in R

To effectively demonstrate the methodology for plotting a polynomial curve, we begin by constructing a synthetic dataset within the R environment. The advantage of synthetic data is that we can precisely define the true underlying relationship—in this case, ensuring that a cubic function is the ideal fit. We generate 50 independent predictor values using the runif() function (uniformly distributed) and then calculate the response variable based on a cubic equation, incorporating random variability using rnorm() to simulate the noise and uncertainty characteristic of real-world measurements.

The essential first step in the visualization process is creating an initial scatterplot of the raw data points. This plot establishes the graphical foundation upon which the subsequent fitted regression curve will be overlaid. We utilize R’s base plot() function, carefully setting aesthetic parameters. For instance, using pch=16 ensures solid, dark circular points, and setting cex=1.5 magnifies the points, enhancing visibility against the background and ensuring the data structure is immediately clear to the viewer.

The R code block provided below executes the data definition and generates the initial plot. It also includes the subsequent steps required to fit the model and prepare the elements necessary for drawing the smooth curve, setting the stage for the full visual analysis:

#define data
x <- runif(50, 5, 15)
y <- 0.1*x^3 - 0.5 * x^2 - x + 5 + rnorm(length(x),0,10)

#plot x vs. y
plot(x, y, pch=16, cex=1.5)

#fit polynomial regression model
fit <- lm(y ~ x + I(x^2) + I(x^3))

#use model to get predicted values
pred <- predict(fit)
ix <- sort(x, index.return=T)$ix

#add polynomial curve to plot
lines(x[ix], pred[ix], col='red', lwd=2)

Executing the Polynomial Fit and Ordering Predictions

With the raw data successfully visualized, the next procedural step is fitting the polynomial regression model using R’s foundational lm() function (Linear Model). A critical syntax requirement for specifying polynomial terms in R is the mandatory use of the I() function—the “As Is” operator. For example, terms must be written as I(x^2) and I(x^3). This instructs R to treat these expressions literally as the square and cube of the predictor variable x, ensuring they are correctly incorporated into the design matrix rather than being misinterpreted as complex interaction terms, which is a common error for new R users.

The resulting fitted model object, stored here as fit, contains all the estimated parameters, including the coefficients derived through the OLS estimation process. However, to draw a smooth regression curve, we must first calculate the expected response values based on the fitted model across the range of the predictor variable. This essential step is accomplished using the predict() function, which takes the fit object and returns a vector of predicted Y values (pred) corresponding to the original X inputs.

A technical hurdle arises when drawing continuous lines: the original X values were randomly generated and are thus unsorted. If the line were drawn based on the unsorted X values, the regression curve would appear jagged and chaotic, jumping back and forth across the plot. To guarantee a visually smooth curve that flows logically from left to right, we must sort the original X values and simultaneously obtain the indices of this sort using sort(x, index.return=T). These resulting indices (ix) are then applied to both the X values and the corresponding predicted Y values, forcing the sequence to be drawn continuously and accurately.

Overlaying and Interpreting the Final Regression Curve

The culmination of the analysis is the visual representation: overlaying the calculated predicted values onto the initial scatterplot. This critical step is executed using the lines() function in R, which takes the sorted X values (x[ix]) and the corresponding sorted predicted Y values (pred[ix]) as its primary arguments. The smooth, continuous line generated by this function represents the best-fit third-degree polynomial model.

To maximize the clarity and visual impact of the plot, we employ specific graphical parameters within the lines() function. By setting col='red', the regression curve is distinctly colored, separating it from the raw data points. Furthermore, using lwd=2 increases the line width, making the fitted trend highly discernible. This effective visualization confirms that the third-degree model successfully captures the specific nonlinear characteristics inherent in the synthetic dataset, providing strong evidence against both underfitting and overfitting.

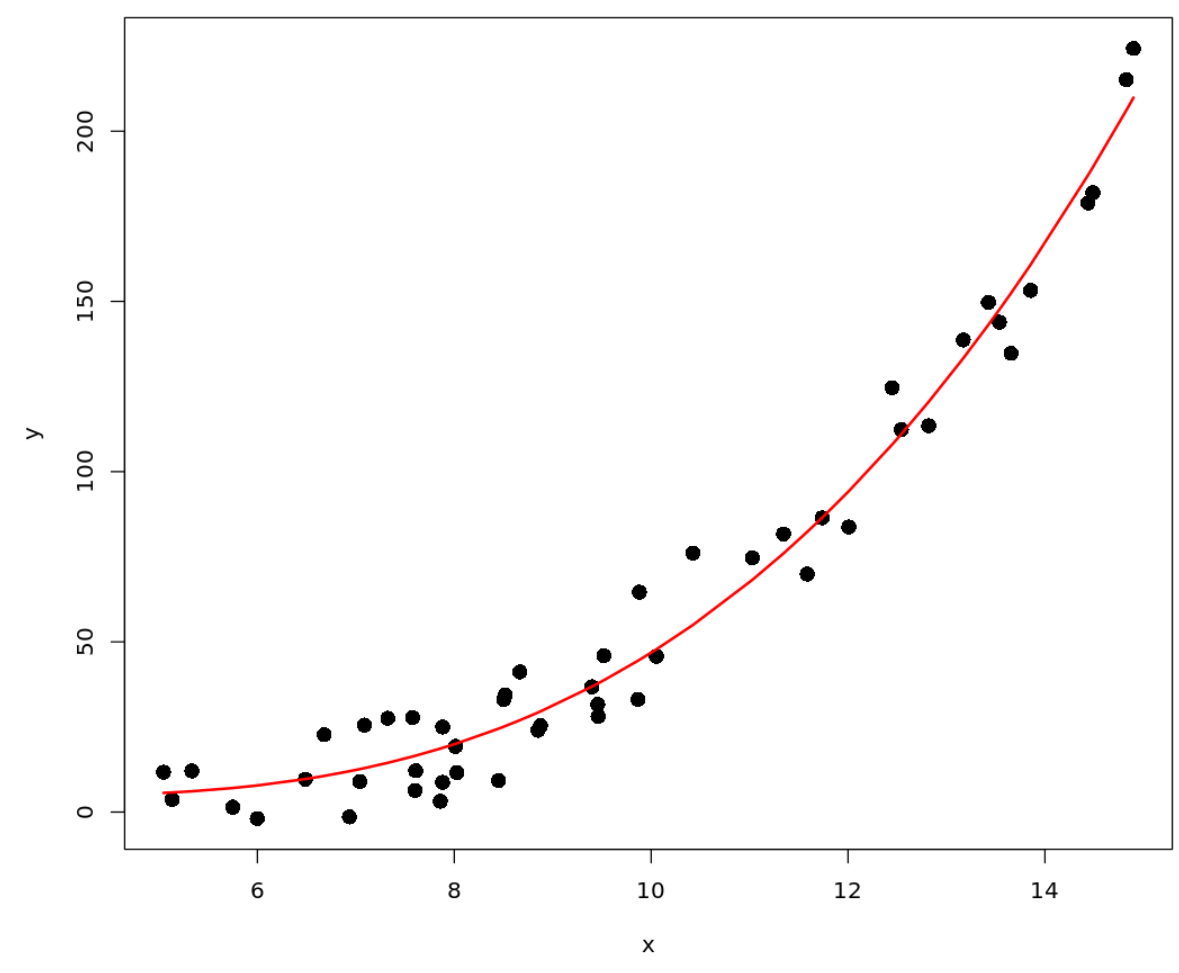

The image below presents the result of this process, showcasing the fitted cubic model smoothly plotted over the raw data points. The prominent red curve clearly tracks the underlying nonlinear pattern, effectively communicating the outcome of the polynomial regression analysis.

Integrating Statistical Context: Displaying the Regression Equation

While the visual curve confirms the quality of the fit, a plot’s interpretability is significantly enhanced by displaying the actual estimated regression equation directly on the graphic. This practice allows the audience to immediately grasp the precise numerical parameters estimated by the model, providing a complete statistical context for the visual trend shown.

The first step toward integrating the equation involves extracting and carefully formatting the estimated coefficients from the fitted model object (fit). We access the coefficient vector using fit$coefficients. To ensure the equation is clean and highly readable when displayed on the plot, we apply the round() function, typically limiting the estimates to two decimal places. This numerical tidiness is essential for maintaining a professional and comprehensible visualization.

The R function text() is utilized to place this formatted equation onto the plot canvas at specified coordinates (e.g., at the location 9, 200). We construct the final text string using the paste() function, which efficiently concatenates the extracted coefficients with their corresponding polynomial terms ($X$, $X^2$, $X^3$) into a mathematically coherent string. This final integration of numerical results directly into the graphic transforms the plot into a single, highly informative analytical tool.

#define data
x <- runif(50, 5, 15)
y <- 0.1*x^3 - 0.5 * x^2 - x + 5 + rnorm(length(x),0,10)

#plot x vs. y
plot(x, y, pch=16, cex=1.5)

#fit polynomial regression model
fit <- lm(y ~ x + I(x^2) + I(x^3))

#use model to get predicted values
pred <- predict(fit)
ix <- sort(x, index.return=T)$ix

#add polynomial curve to plot
lines(x[ix], pred[ix], col='red', lwd=2)

#get model coefficients
coeff <- round(fit$coefficients , 2)

#add fitted model equation to plot
text(9, 200 , paste("Model: ", coeff[1], " + ", coeff[2],
                    "*x", "+", coeff[3], "*x^2", "+", coeff[4], "*x^3"), cex=1.3)

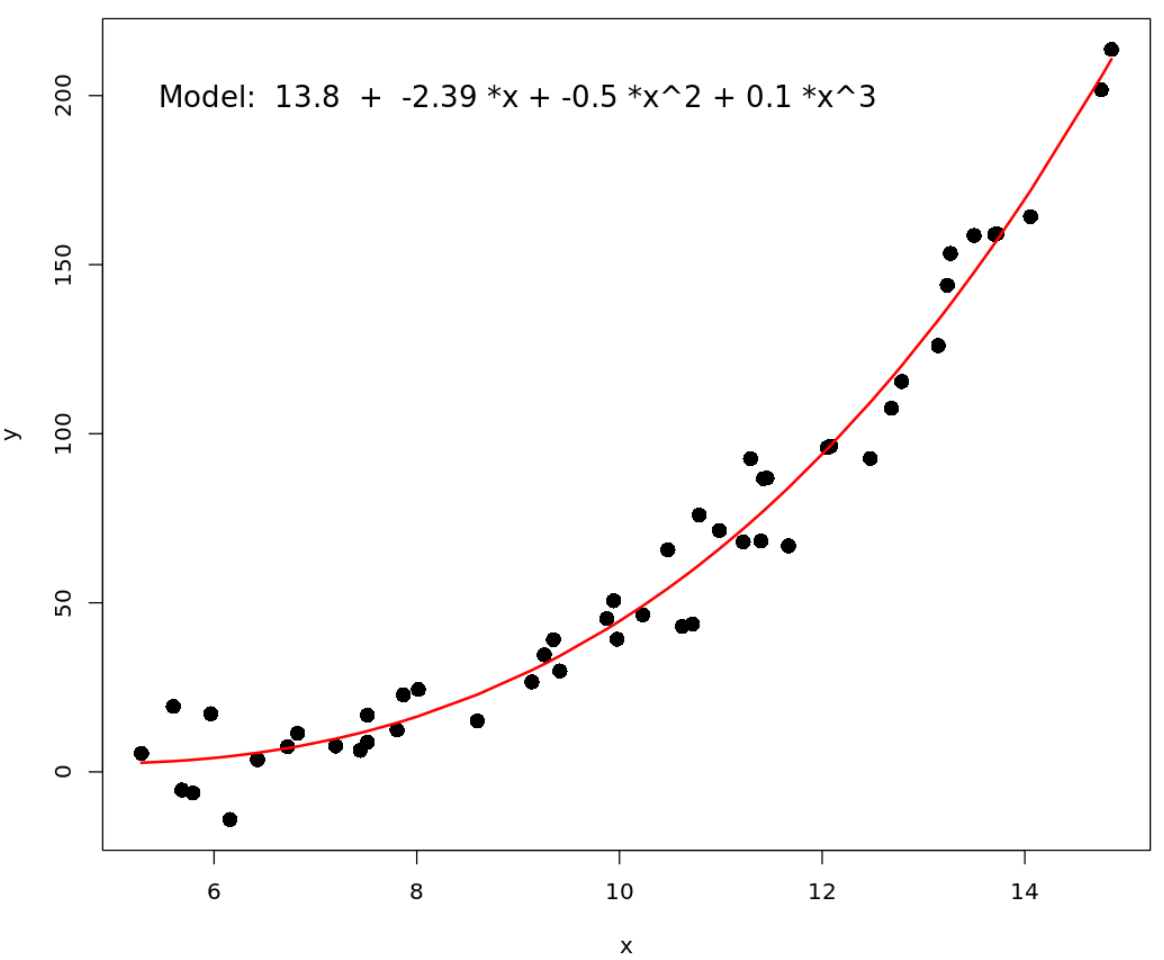

The final output, which successfully incorporates both the fitted regression curve and the statistically meaningful estimated equation, is presented below. This complete visualization serves as an authoritative and effective method for presenting the results of a regression analysis.

Aesthetic Considerations and Alternative Approaches

When utilizing R’s base plotting functions to add textual elements, such as the regression equation, meticulous attention to aesthetic parameters is necessary to ensure optimal readability. In the code demonstrated, the cex argument within the text() function controls the character expansion factor—the effective font size of the text. Because complex mathematical equations require greater visibility, setting cex explicitly to a value larger than the default of 1, such as 1.3, is crucial. This guarantees that the equation stands out clearly against the potentially dense background of data points and the fitted curve.

The methodology detailed throughout this tutorial relies exclusively on the robust base R plotting system, which provides analysts with granular control over every graphical element. However, data scientists seeking more sophisticated visual designs, or those involved in complex multi-layer visualizations, may wish to explore alternative packages. Specifically, the popular ggplot2 package offers an entirely different “grammar of graphics” approach to statistical visualization. While ggplot2 enhances aesthetic options, it is important to note that the underlying statistical principles—fitting the polynomial regression model using lm() and generating predictions—remain identical across all R environments.

Mastery of plotting regression curves is a foundational skill for any professional data analyst working with nonlinear models. By diligently following these procedural steps, you gain the ability to move beyond simply reporting raw coefficients. Instead, you can effectively communicate the results of your regression technique in R, delivering a compelling, visually supported narrative of the complex relationship discovered within your data.

Additional Resources for Advanced Analysis

For those interested in deepening their expertise in advanced regression analysis and exploring more intricate plotting techniques within the R environment, the following resources are highly recommended for continued study:

• Official Documentation for R, providing comprehensive guides on functions and packages.
• Detailed tutorials focusing on advanced plotting techniques utilizing sophisticated R packages like ggplot2.
• Statistical guides specifically addressing model selection criteria, such as techniques for choosing the optimal degree for polynomial regression models.
