A Comprehensive Guide to Visualizing the t-Distribution in R

Mastering the Visualization of the t-Distribution in R

The Student’s t-distribution stands as a cornerstone in classical inferential statistics. Its importance is magnified in scenarios where researchers are forced to work with small sample sizes or when the population standard deviation remains unknown—conditions common in real-world data analysis. For any practitioner, visualizing this distribution is not merely a supplementary step; it is essential for grasping its unique probabilistic characteristics and how they deviate from the more familiar standard normal curve. The versatile statistical environment R provides robust and highly customizable tools necessary for generating precise and informative graphical representations of the t-distribution.

A key differentiator for the t-distribution is the parameter known as the degrees of freedom (df). Unlike the standard normal distribution, which is fully defined by its mean and standard deviation, the t-distribution’s shape is heavily dictated by the value of df. This parameter controls the “peakedness” of the distribution and, critically, the “heaviness” of its tails. Understanding this relationship graphically is vital: as the degrees of freedom increase, the t-distribution monotonically approaches the shape of the standard normal distribution. We rely entirely on R’s efficient built-in functions to accurately translate this complex mathematical relationship into a clear, visual format.

To successfully plot the probability density function (PDF) for a t-distribution, we must harness a specific combination of R utilities. These tools allow us to first calculate the necessary density values across a defined range of inputs and then render the resulting curve with accuracy. This structured approach ensures that the resulting visualization is mathematically sound and easily interpreted by a statistical audience.

Core R Functions for Statistical Plotting

Generating any continuous probability distribution plot in R is fundamentally a two-step procedure: calculation followed by rendering. For the t-distribution, the R language has specialized functions that significantly simplify both stages, making the visualization process highly efficient for statisticians and data scientists alike. These functions abstract away the complex underlying mathematical calculations, allowing us to focus on the parameters that define the distribution itself.

The two indispensable functions required for mapping the t-distribution’s probability density function are:

• dt(x, df): This is the density function calculator. It computes the probability density at a specific point, x, given a t-distribution characterized by its df (degrees of freedom). This function serves as the mathematical engine, generating the precise height of the curve at every point along the x-axis.
• curve(function, from = NULL, to = NULL): This highly versatile graphical function is designed specifically for plotting mathematical expressions or R functions over a continuous domain. It manages the iterative process of feeding x-values into the density function and plotting the resulting (x, y) coordinates, making it the perfect tool for visualizing continuous probability distributions.

When preparing to execute the plot, careful specification of the function arguments is paramount. Within the dt() function, we must explicitly define the df, the degrees of freedom, as this parameter fundamentally shapes the distribution we intend to visualize. Furthermore, the from and to arguments within the curve() function are crucial for setting the boundaries of the x-axis. Defining an appropriate range ensures that the graph captures the majority of the distribution’s density mass, including the central region and the significant tail areas.

Visualizing the Initial t-Distribution Curve

To establish a foundation, we begin with the most straightforward visualization: plotting a single t-distribution using standard graphical settings. We will choose a moderate number of degrees of freedom—say, 10—as this value clearly illustrates a distribution that is distinct from the standard normal curve, yet maintains a well-defined structure. This initial step uses the simplest possible command structure, relying on R’s defaults for aesthetics.

The following R code snippet plots the probability density function for a t-distribution with 10 degrees of freedom. We set the x-axis range from -4 to 4, which is generally sufficient to encompass the critical density mass for t-distributions with ten or more degrees of freedom. This range ensures that the tails are adequately represented without unnecessarily stretching the plot.

curve(dt(x, df=10), from=-4, to=4)

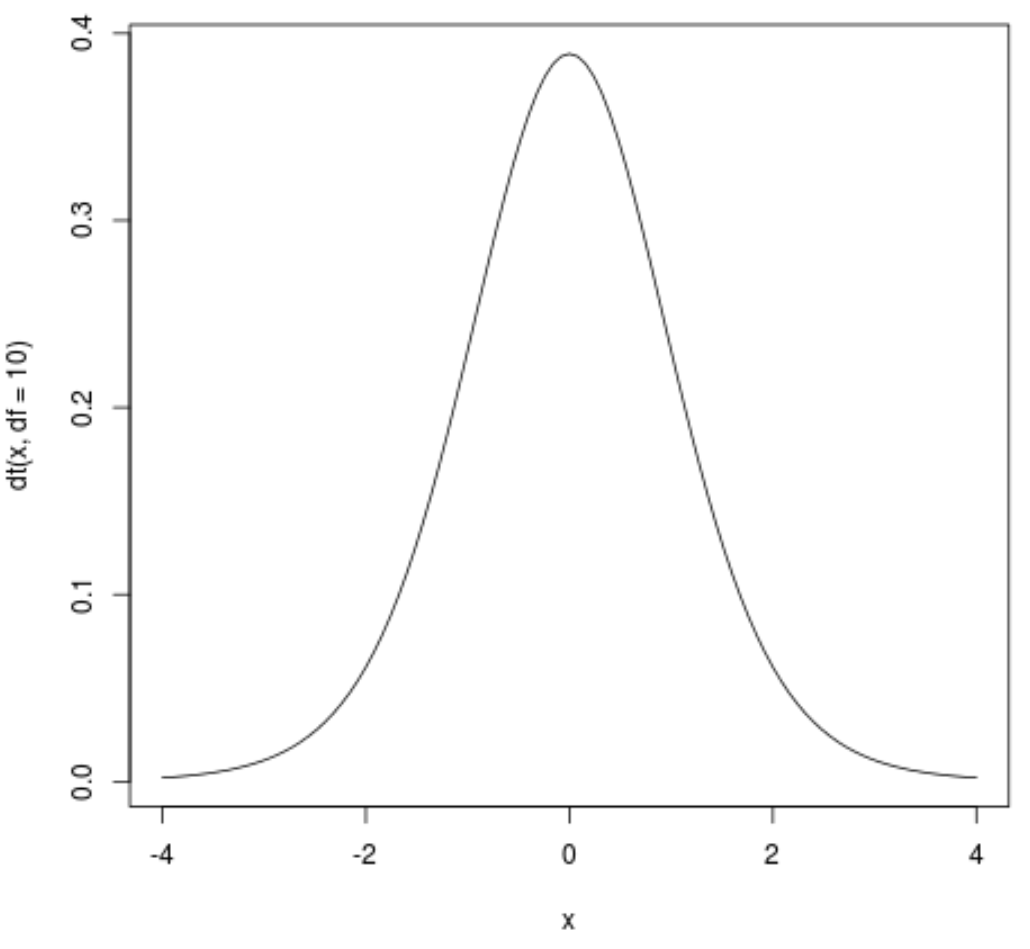

The resulting plot displays the classic bell shape characteristic of the t-distribution. It is important to observe that, like the standard normal distribution, the t-distribution is perfectly symmetrical around a mean of zero. However, because we are using only 10 degrees of freedom, the key difference is evident: the tails are noticeably heavier (thicker), and the peak is slightly lower compared to a normal distribution. This visual difference directly reflects the mathematical reality that a t-distribution incorporates greater uncertainty, particularly in the extreme values.

Refining Aesthetics and Customization for Publication

While the default plot generated by R is mathematically precise, it often lacks the polished visual appeal required for professional presentations or academic publications. R’s plotting ecosystem is highly flexible, allowing extensive customization through optional graphical parameters. These enhancements—such as adding descriptive titles, modifying axis labels, and adjusting line appearance—are crucial for elevating the clarity and professionalism of the statistical visualization.

We can significantly refine the plot’s appearance by incorporating several key optional arguments directly into the curve() function call. For instance, the main parameter allows us to add a concise and informative title; ylab customizes the y-axis label (conventionally set to ‘Density’ for a PDF); lwd controls the line width, improving visibility; and col specifies the color of the density curve, adding visual interest and distinction.

The following example demonstrates how to apply these aesthetic enhancements to our t-distribution (df = 10). By implementing these changes, we transform a basic statistical output into a more informative and visually engaging graph:

curve(dt(x, df=10), from=-4, to=4,
    main = 't Distribution (df = 10)', #add title
    ylab = 'Density', #change y-axis label
    lwd = 2, #increase line width to 2
    col = 'steelblue') #change line color to steelblue

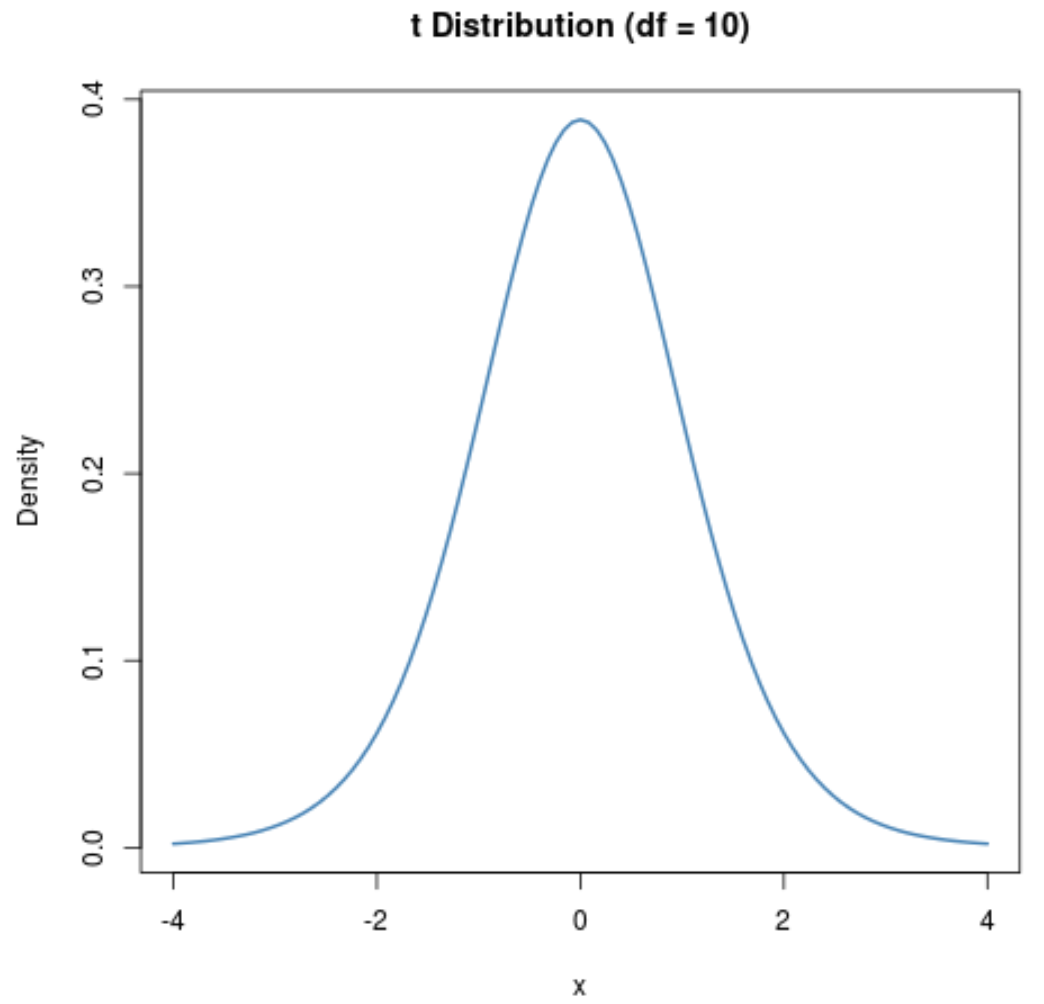

By increasing the line width and selecting a professional color like ‘steelblue’, the density curve becomes a prominent feature, immediately drawing the viewer’s attention. The addition of a descriptive title instantly communicates the parameters used for the visualization, thereby maximizing the plot’s interpretability when shared in reports or presentations.

Comparative Analysis: Plotting Multiple Distributions

A powerful application of statistical visualization lies in the ability to compare how changes in parameters affect distribution shape. When studying the t-distribution, it is extremely instructive to plot curves with varying degrees of freedom (df). This comparison visually demonstrates the principle of convergence: as the df value increases, the curve becomes taller, its center narrows, and its tails diminish, illustrating its rapid approximation to the standard normal curve.

To plot multiple density curves on a single graph, the curve() function is invoked sequentially. The critical technique here is the use of the add=TRUE argument, which must be included in every subsequent curve() call after the initial plot command. The first call establishes the entire plotting environment (axes, scale, etc.), and all following calls using add=TRUE simply draw their respective lines onto this existing framework, facilitating direct visual comparison of the different distributions. We use the col argument extensively here to ensure each distribution is clearly distinguishable.

The following code snippet generates three distinct t-distribution plots using degrees of freedom set at 6, 10, and 30. This range vividly illustrates the impact of increasing df on the distribution’s shape and its convergence:

curve(dt(x, df=6), from=-4, to=4, col='blue')
curve(dt(x, df=10), from=-4, to=4, col='red', add=TRUE)
curve(dt(x, df=30), from=-4, to=4, col='green', add=TRUE)

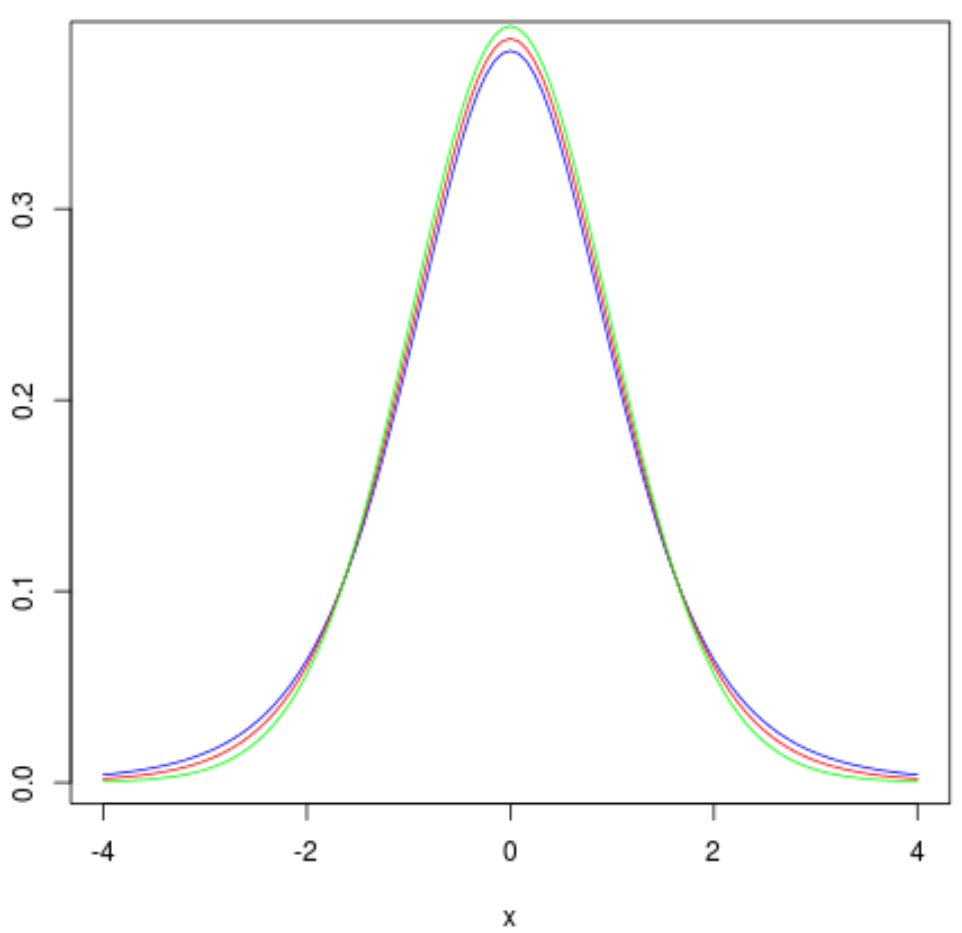

The resulting graph explicitly shows that the distribution with the lowest degrees of freedom (df=6, blue line) is the widest and shortest, possessing the heaviest tails, which implies the greatest uncertainty. Conversely, the curve defined by df=30 (green line) is the most peaked and narrowest, visually confirming its close resemblance to the standard normal probability density function.

Finalizing the Plot with a Descriptive Legend

A plot containing multiple, distinct lines is unusable without a clear key to differentiate them. The legend() function is therefore an essential component when visualizing comparative statistics. The legend provides the necessary mapping, linking the visual attributes (such as line color and style) directly to the corresponding statistical parameters (e.g., the degrees of freedom used).

The general syntax for the legend() function is comprehensive, offering precise control over its location, content, and appearance:

legend(x, y=NULL, legend, fill, col, bg, lty, cex)

The most important arguments govern the positioning and content of the legend box:

• x, y: These coordinates define the exact position for the upper-left corner of the legend box on the plot. Alternatively, common keywords such as “topright,” “bottomleft,” or “center” can be used for automatic placement within the plotting region.
• legend: This required argument takes a character vector containing the text labels that will be displayed (e.g., “df=6”).
• col: A vector specifying the colors corresponding exactly to the lines being described in the legend. This array of colors must match the colors used in the preceding curve() calls.
• lty: Specifies the line type used in the legend markers (e.g., a solid line corresponds to 1).
• cex: Controls the character expansion factor, which effectively determines the font size of the text within the legend box.

To complete our comparative visualization, we integrate the legend() function to clearly label the three density curves. We strategically place the legend using specific x and y coordinates (-4 and 0.3) to prevent any overlap with the plotted curves, ensuring maximum readability.

#create density plots
curve(dt(x, df=6), from=-4, to=4, col='blue')
curve(dt(x, df=10), from=-4, to=4, col='red', add=TRUE)
curve(dt(x, df=30), from=-4, to=4, col='green', add=TRUE)

#add legend
legend(-4, .3, legend=c("df=6", "df=10", "df=30"),
       col=c("blue", "red", "green"), lty=1, cex=1.2)

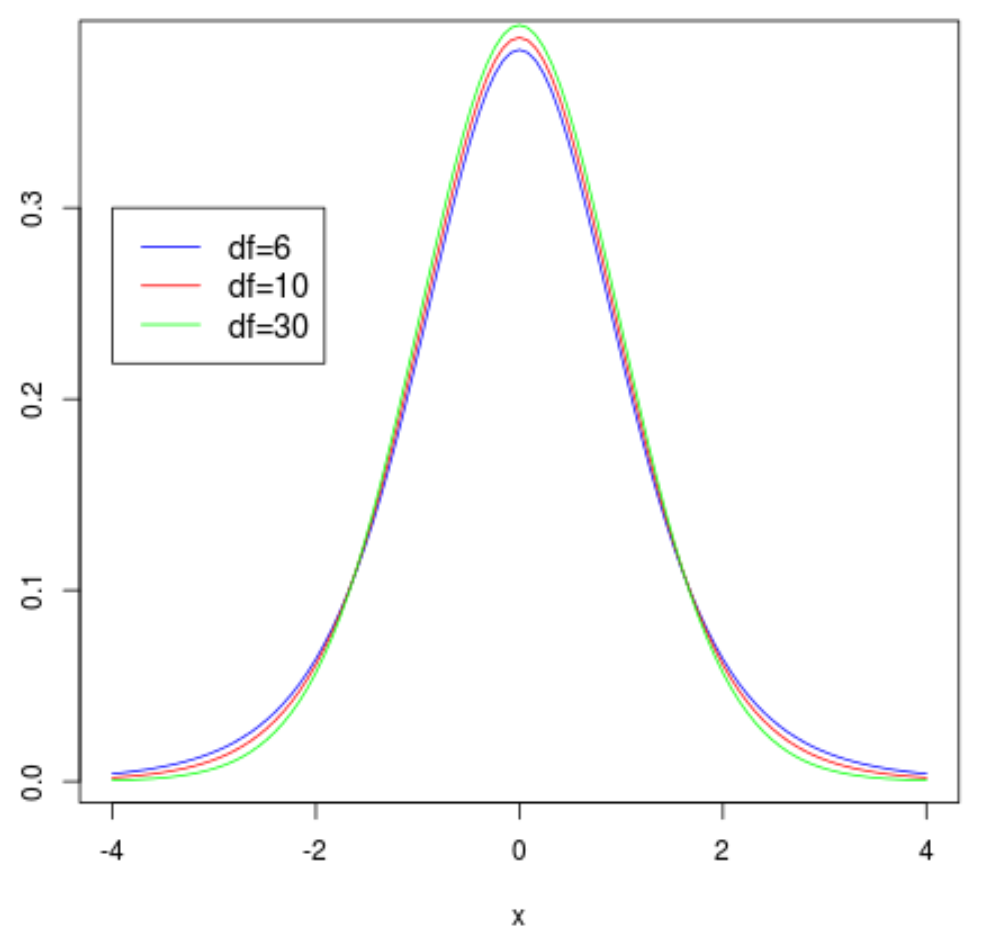

This final, comprehensive visualization—featuring multiple curves and a descriptive, non-overlapping legend—provides an exceptionally powerful analytical tool for explaining how the parameter of degrees of freedom fundamentally dictates the shape and characteristics of the t distribution. It represents a professional-grade statistical output generated entirely within the R environment.
