Understanding and Visualizing Uniform Distributions in R

Understanding the Continuous Uniform Distribution

The Uniform Distribution is a fundamental probability distribution in which every value within a specified finite interval, ranging from a to b, is equally likely to occur. This simplicity makes it a crucial starting point for understanding more complex distributions in statistics and probability theory. Often referred to as a rectangular distribution due to the shape of its probability density function (PDF) when plotted, the uniform distribution posits that there are no inherent peaks or troughs; the probability density remains constant across the entire defined interval.

When dealing with physical systems or theoretical models where we have no prior information favoring one outcome over another within a given range, the uniform distribution serves as the appropriate null hypothesis. For instance, if a digital random number generator is set to produce a number between 0 and 10, and it is truly random, the chance of generating 3.14 is exactly the same as generating 9.87. This characteristic lack of bias is mathematically elegant but requires careful consideration of the boundaries a (the minimum possible value) and b (the maximum possible value), as the density outside this range is strictly zero. This contrasts sharply with distributions like the Normal (Gaussian) distribution, where observations cluster around the mean.

The primary goal of visualizing this distribution in a computational environment like R is to confirm this rectangular shape and understand how changes to the parameters a and b affect the height and spread of the density function. Since the total area under any probability density function must integrate to 1, the constant height of the uniform distribution is determined by the length of the interval, specifically 1 / (b – a). A wider interval results in a lower density, while a narrower interval leads to a higher, steeper density plot, consistently maintaining the total probability of unity.

Key Properties and Probability Calculation

If a Random Variable X is stipulated to follow a continuous uniform distribution, calculating the probability that X falls within any sub-interval is straightforward, relying only on the ratio of the length of the sub-interval to the length of the total defined interval. This simplicity is a hallmark of the uniform model. Specifically, if we are interested in the probability that X takes on a value between x₁ and x₂, where both x₁ and x₂ are contained within the original range [a, b], the calculation avoids complex integration typically required for other distributions.

The specific formula used to calculate this probability emphasizes the geometric nature of the distribution. The probability is simply the length of the desired range divided by the total possible range, assuming that the density is constant throughout. This can be mathematically expressed as follows, defining the probability mass captured by the segment of interest:

P(x₁ < X < x₂) = (x₂ – x₁) / (b – a)

Understanding the components of this formula is critical for applying the uniform distribution correctly in practical scenarios. Each variable represents a specific boundary condition or point of interest within the overall probabilistic space:

• x₁: Represents the lower value of interest within the distribution’s support.
• x₂: Represents the upper value of interest, defining the end of the sub-interval.
• a: Defines the minimum possible value (the lower bound) of the entire uniform distribution.
• b: Defines the maximum possible value (the upper bound) of the entire uniform distribution.

For example, if a variable is uniformly distributed between 0 and 10 (a=0, b=10), the total interval length is 10. If we want the probability of the variable falling between 2 and 4 (x1=2, x2=4), the resulting probability is (4-2) / (10-0) = 2/10 = 0.20, or 20%. This intuitive approach reinforces why the Uniform Distribution is often used as a first model in situations where maximum uncertainty exists regarding specific outcomes. The following sections demonstrate how to harness the power of R to visualize these concepts, thereby transforming abstract mathematics into concrete graphical representations.

Setting Up the Environment for R Plotting

The R programming language provides robust tools for statistical computing and graphics, making it the ideal environment for plotting probability distributions. Before diving into the specific plotting functions, it is essential to prepare the data structure that will represent the continuous nature of the uniform distribution. Since we cannot plot an infinite number of points, we use the seq() function in R to generate a sequence of closely spaced points across a defined range, which effectively simulates the continuous domain for visualization purposes. This sequence will serve as our x-axis, representing the possible outcomes of the Random Variable X.

To achieve a smooth plot that accurately reflects the rectangular shape of the distribution, the number of points generated (specified by the length argument in seq()) should be sufficiently large. While 100 points are often enough for basic visualization, higher resolution plots may require several hundred or even thousands of points to prevent jagged edges. The range of the x-axis defined by seq() should ideally encompass the distribution’s bounds (a and b) and extend slightly beyond them. This extension is crucial for visually confirming that the probability density is zero outside the defined interval, providing a complete picture of the distribution’s support.

Once the x-axis points are established, the next critical step is calculating the corresponding probability densities for each point. R offers a family of functions for distributions, and for the uniform distribution, the function responsible for calculating the probability density is dunif(). This function takes the vector of x-values and the parameters min (corresponding to a) and max (corresponding to b) as arguments, returning a vector of density values that will form the y-axis of our plot. It is important to note that dunif() automatically handles the condition where x-values fall outside the defined [min, max] range, assigning a density of zero to those points, which correctly generates the flat, rectangular shape when plotted.

Example 1: Visualizing the Basic Uniform Distribution

We begin with the simplest scenario: generating and plotting a standard, unadorned uniform distribution plot in R. This initial example focuses purely on the mathematical generation of the distribution’s density function using the core R capabilities, establishing the foundation for more complex visualizations. Our chosen parameters define a uniform distribution spanning the interval from -3 to 3. The visualization process involves three distinct, sequential steps within the R script, ensuring that the continuous density curve is accurately represented.

The following comprehensive code block details how to define the domain of the Random Variable, calculate the appropriate density values, and then render the resulting distribution using the base plot() function. Note how the x-axis range is set from -4 to 4, deliberately exceeding the distribution’s bounds of -3 and 3, to clearly show where the probability density drops off to zero, confirming the limits of the distribution’s support. The type='l' argument is used to connect the calculated points with lines, creating the characteristic rectangular profile.

# Define the x-axis range for plotting, extending beyond the distribution limits (-3 to 3).
x <- seq(-4, 4, length=100)

# Calculate the uniform distribution probabilities (density values) using the dunif() function.
# The distribution is defined from min = -3 to max = 3.
y <- dunif(x, min = -3, max = 3)

# Plot the uniform distribution using a line graph.
plot(x, y, type = 'l')

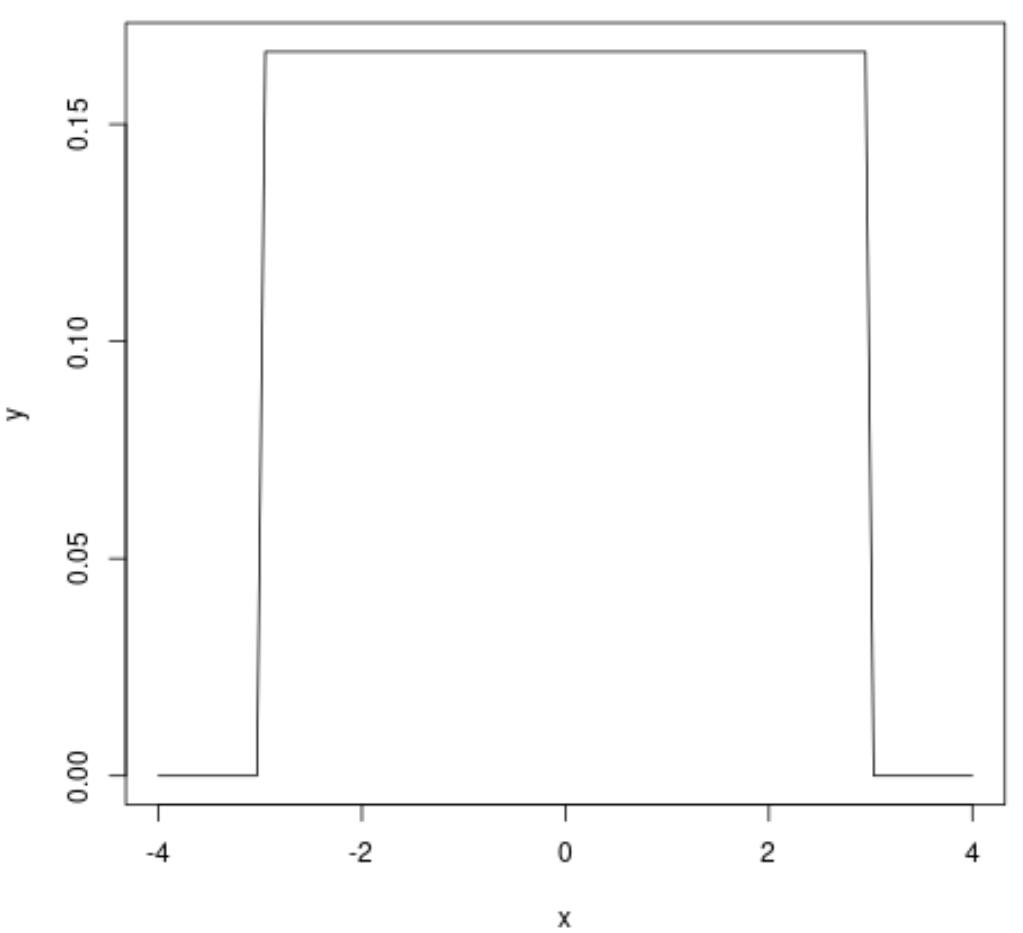

In the resulting visualization, the x-axis represents the continuum of potential values that the Random Variable X can take. The y-axis, conversely, displays the corresponding probability density associated with those values. Crucially, the plot forms a flat horizontal line between x=-3 and x=3, reflecting the equal likelihood of all values within that range. Outside this interval, the density immediately drops to zero. The height of this rectangle is calculated as 1 / (3 – (-3)) = 1/6 ≈ 0.1667, confirming the mathematical definition of the Uniform Distribution.

Note: The dunif() function in R is the core utility for this task. It is specifically designed to calculate the density of a Probability Distribution, given the minimum (a) and maximum (b) parameters. R also provides related functions like punif() for cumulative probabilities, qunif() for quantiles, and runif() for generating random numbers from the distribution, though dunif() is essential for plotting the density function itself.

Example 2: Customizing the Uniform Distribution Plot in R

While the basic plot in Example 1 correctly represents the mathematical density, statistical visualizations often require aesthetic enhancements for clarity and professional presentation. R’s base plotting system offers extensive options to modify graph elements such as the title, axis labels, line thickness, and color. Implementing these customizations transforms a simple line graph into an informative figure suitable for reports or presentations, ensuring that the audience immediately grasps the key parameters of the Uniform Distribution being displayed.

This next example takes the identical uniform distribution (min=-3, max=3) and applies several graphical parameters to improve its visual appeal and descriptive power. Key parameters introduced here include lwd (line width), col (color), xlab (x-axis label), ylab (y-axis label), and main (the overall plot title). Furthermore, we explicitly set the y-axis limits using ylim = c(0, .2) to provide appropriate spacing above the density line, preventing the plot from looking cramped and allowing the title to be clearly visible.

The code below illustrates how these parameters are integrated directly into the plot() function call. Notice that the initial steps—defining the x-axis sequence and calculating the density y using dunif()—remain unchanged, as they define the underlying mathematical reality of the distribution. The enhancements strictly apply to the graphical rendering layer, demonstrating the separation between computation and visualization in R.

# Define x-axis range (unchanged from Example 1).
x <- seq(-4, 4, length=100)

# Calculate uniform distribution probabilities (unchanged from Example 1).
y <- dunif(x, min = -3, max = 3)

# Plot the uniform distribution with customized aesthetics:
plot(x, y, type = 'l', lwd = 3, ylim = c(0, .2), col='blue',
     xlab='x', ylab='Probability Density', main='Uniform Distribution Plot (a=-3, b=3)')

The resulting plot is significantly more informative than the first visualization. The thick blue line clearly delineates the distribution. The axes are correctly labeled as ‘x’ and ‘Probability Density,’ avoiding ambiguity, and the title explicitly states the type of plot and, ideally, the parameters (a and b) used to generate it. This level of customization is essential for communicating statistical findings effectively. By adjusting parameters such as ylim, we ensure that the graphical space is utilized efficiently, providing context for the constant probability density value (0.1667 in this specific case) relative to the zero baseline.

Interpreting the Graphical Output

Properly interpreting the graphical output of a Uniform Distribution plot is essential for gaining statistical insight. The plot is not merely a picture; it is a visual representation of the Probability Distribution function (PDF). The most striking feature is the perfectly horizontal line segment within the defined interval [a, b]. This constant height confirms that the probability density is identical for all values within the range. For continuous distributions, probability is represented by the area under the curve. Since the shape is a rectangle, the total area is calculated as height multiplied by width, which must equal 1.

In our examples where the interval spans 6 units (from -3 to 3), the height is 1/6. If the interval were to narrow—for instance, if we defined the distribution from 0 to 1 (interval length 1)—the height would increase to 1/1 = 1. Conversely, if the distribution spanned 10 units, the height would decrease to 1/10 = 0.1. This inverse relationship between the width of the interval and the height of the density function is a core concept that the visualization effectively communicates. When analyzing the plot, always check that the product of the plotted height and the interval width equals unity.

Furthermore, the sharp drop-off to zero density outside the bounds a and b is highly informative. This demarcation indicates that the probability of the Random Variable taking any value outside this specific range is strictly zero. This is a fundamental difference between bounded distributions, like the uniform or beta distribution, and unbounded distributions, such as the Normal or Cauchy distributions, which theoretically extend to infinity. The visualization in R clearly defines the limits of the probabilistic model being studied, providing clear boundaries for statistical inference and application.

Further Exploration and Resources

Mastering the plotting of the Uniform Distribution in R is the first step toward understanding and visualizing a wide array of statistical models. To deepen your understanding of probability distributions and advanced plotting techniques, consider exploring other built-in R distribution functions, such as dnorm() for the Normal Distribution or dexp() for the Exponential Distribution. These functions operate on the same principle as dunif()—they calculate the density for a given set of x-values—but their resulting plots will exhibit vastly different shapes, showcasing the diversity inherent in statistical modeling.

For those interested in creating highly customized and publication-quality graphics, exploring advanced R packages like ggplot2 is strongly recommended. While the base R plotting system is powerful, ggplot2 offers a grammar of graphics that allows for layer-by-layer construction of plots, providing superior control over aesthetics, colors, and annotations. Applying ggplot2 to the uniform distribution problem can lead to visualizations that include shaded areas for specific probability ranges (P(x1 < X < x2)), enhancing the communicative power of the graph.

Finally, continuous practice with varying parameters (a and b) in the uniform distribution code will help solidify the relationship between the parameters and the resulting plot shape. Experiment with extremely narrow ranges, very wide ranges, and ranges that do not include zero to fully appreciate how the distribution shifts and scales while always maintaining the fundamental requirement that the area under the density curve sums to 1. This hands-on approach is invaluable for developing statistical intuition in the R environment.
