Learn How to Graph Equations in Google Sheets: A Step-by-Step Guide

The Power of Plotting Equations in Google Sheets

The ability to visualize mathematical equations and functions is a fundamental skill in mathematics, engineering, and data analysis. While specialized software like MATLAB or Python libraries exist for complex graphing, Google Sheets offers a remarkably accessible and powerful tool for plotting standard mathematical functions directly within a familiar spreadsheet environment. This functionality allows users—from students learning basic algebra to professionals analyzing trends—to quickly see how changes in variables affect outcomes. Understanding how to transform an algebraic expression into a visual representation, or plot, is crucial for interpreting data patterns and confirming theoretical models.

Often, the need arises to quickly generate a visual representation of a relationship, whether it is a physical law, an economic model, or a simple algebraic exercise. Fortunately, the process of plotting a function in Google Sheets is straightforward, utilizing built-in formulas to generate dependent y-values based on a defined range of independent x-values. This tutorial serves as a comprehensive guide, providing step-by-step instructions and practical examples for plotting various types of mathematical expressions, ranging from simple linear relationships to more complex trigonometric curves. We will demonstrate the foundational principles that allow you to effectively use the charting capabilities of the spreadsheet application to bring abstract equations to life.

Setting Up Your Spreadsheet for Function Visualization

Before diving into specific examples, it is essential to establish the proper structure within your Google Sheet. Plotting any two-dimensional equation requires a set of paired coordinates (x, y). We must dedicate one column to the independent variable, x (the input), and a second column to the dependent variable, y (the output), which will be calculated based on the specific equation we wish to plot. This systematic setup ensures that the resulting chart correctly maps the relationship defined by the function across the chosen domain.

The first step involves defining the domain by inputting a range of x-values. For most functions, starting with integers or a sequence of evenly spaced numbers (e.g., 1, 2, 3, 4, or 0.5, 1.0, 1.5, 2.0) is appropriate. The selection of the range is critical, as it determines the visible segment of the function’s curve. For instance, if you are plotting a periodic function, you will need a wider range to observe its cyclical nature. Conversely, for a simple straight line, a smaller, focused range may suffice. Once the x-values are entered, the corresponding y-values are generated using the specific formula applied to each x-cell reference, followed by dragging the formula down the column to automatically populate the dependent values.

Example 1: Plotting a Linear Equation

A linear equation represents a relationship where the graph is a straight line, characterized by a constant rate of change (the slope). These equations are typically expressed in the form y = mx + b, where ‘m’ is the slope and ‘b’ is the y-intercept. For our first demonstration, we will plot the following specific linear form:

y = 2x + 5

To begin, we set up our columns. In Column A (starting at A2), we input the desired x-values, such as the integers from 1 to 10. In Column B (starting at B2), we input the formula that represents the equation. If A2 contains the first x-value (1), the formula in B2 would be =2*A2 + 5. We then drag this formula down to apply it to the entire range of x-values (A2:A11). This action automatically calculates the corresponding y-values for each point, demonstrating the constant rate of change inherent in linear functions and preparing our coordinate pairs for graphing.

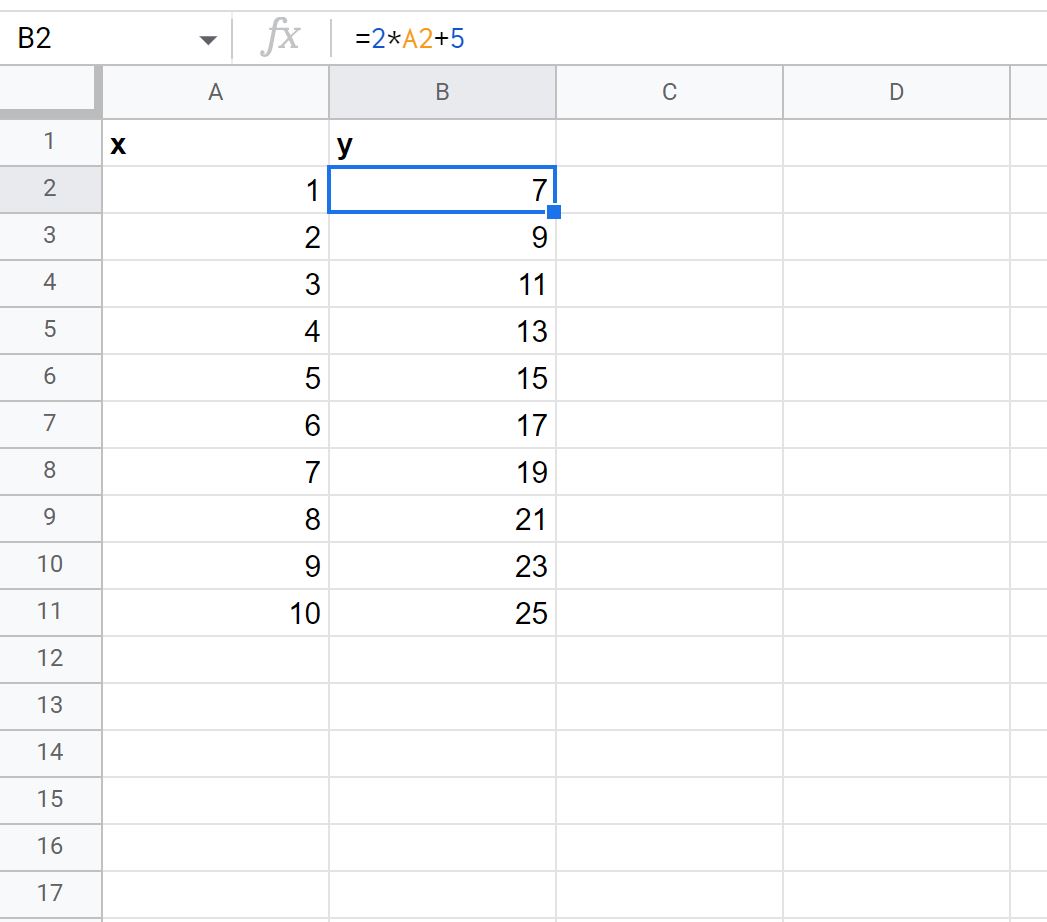

The following image illustrates the precise sheet setup required to generate the y-values for this function within Google Sheets:

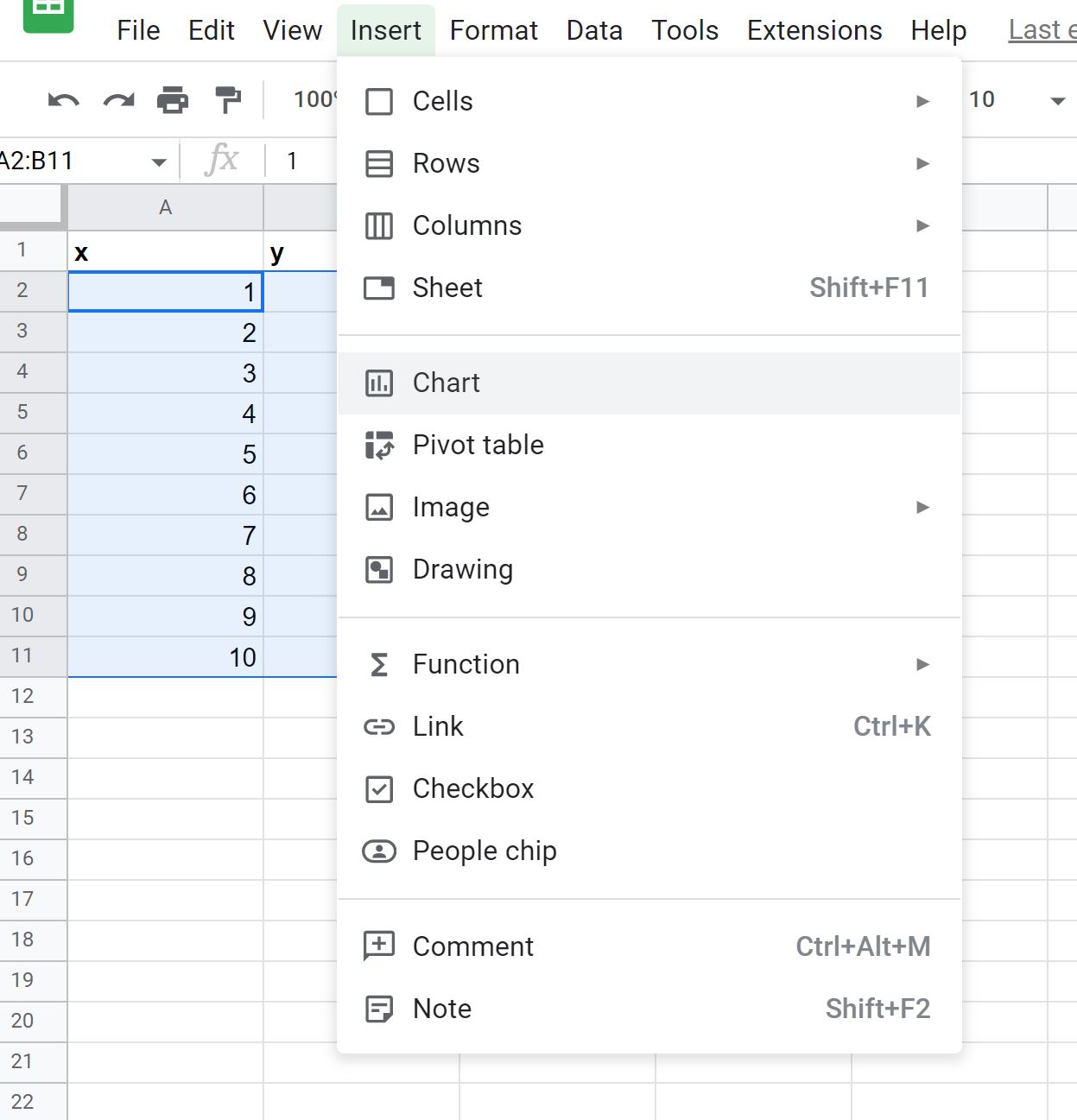

Once the data table is complete, the visualization process begins. First, highlight the entire data set, specifically the range A2:B11, which encompasses both the independent (X) and dependent (Y) variables. Navigate to the Insert tab in the Google Sheets menu, and then select Chart. Sheets will often default to an appropriate chart type, such as a Scatter Chart or a Line Chart, which are ideal for plotting functional relationships. If the default chart is incorrect, you can easily adjust the chart type in the Chart Editor panel that appears on the right side of the screen.

Upon inserting the chart, the visual representation of the linear relationship appears instantly. As expected for any linear function, the plotted points form a perfectly straight line, confirming that the output values increase consistently based on the input values. This immediate visual feedback is invaluable for verifying the algebraic structure of the equation and ensuring the calculated data points are accurate.

Example 2: Plotting a Quadratic Equation

Moving beyond simple linearity, quadratic equations introduce curvature to the graph, resulting in a shape known as a parabola. These equations involve an independent variable raised to the second power, signifying a changing rate of output relative to the input. The defining characteristic of these functions is the presence of the x² term. We will now plot the following common quadratic function:

y = 3x²

The methodology for setting up the data remains consistent with the linear example. We use the same x-range (1 to 10 in Column A). However, the formula in Column B must reflect the quadratic nature of the relationship. In cell B2, the formula is =3*(A2^2), where the caret symbol (^) denotes exponentiation, correctly calculating the square of the x-value before multiplying by three. Notice how rapidly the y-values increase compared to the linear example; this exponential growth is a key characteristic of polynomial functions where the input is squared.

The image below shows the calculation of the y-values for this quadratic function setup in the spreadsheet:

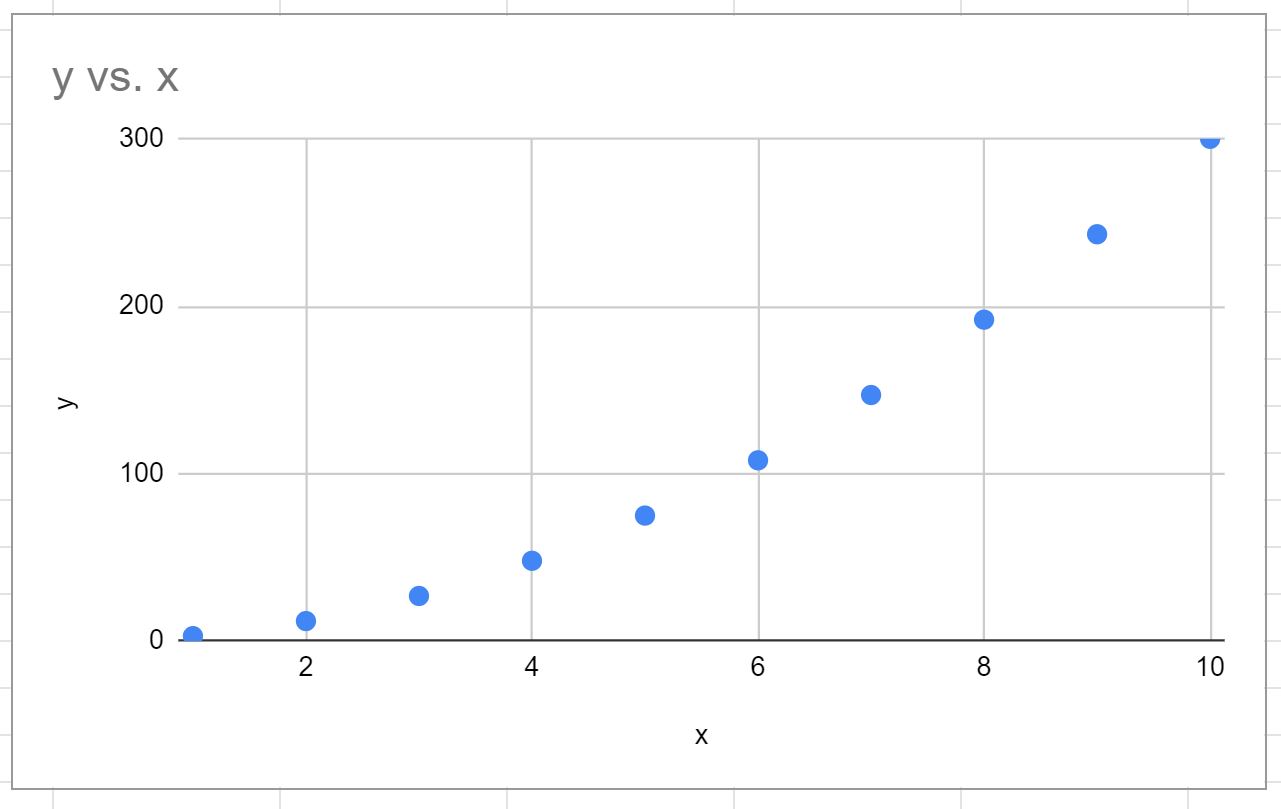

After calculating the full set of coordinates (A2:B11), we follow the exact same steps to generate the chart: highlight the data, click Insert, and select Chart. Because the relationship is non-linear, the chart automatically displays a curved line. This curve represents the right side of a parabola, which is the shape expected from a quadratic function. If we had included negative x-values, the plot would clearly show the symmetry around the y-axis, forming the complete parabolic arc.

Example 3: Plotting a Reciprocal Equation

Reciprocal functions are vital in fields such as physics and economics, often modeling inverse relationships where an increase in the input variable leads to a decrease in the output variable. These functions are defined by the independent variable appearing in the denominator, leading to potential discontinuities or asymptotes (non-intersecting boundary lines), particularly when the denominator equals zero. For this example, we will plot a basic reciprocal equation:

y = 1/x

Using our standard x-range (1 to 10), we input the formula in cell B2 as =1/A2. It is crucial here to note that if the x-range included zero, the formula would result in an error (division by zero), reflecting the mathematical limitation (vertical asymptote) of the function at that point. Since our current range excludes zero, the calculation proceeds smoothly, showing y-values that rapidly decrease as x increases, moving from 1 at x=1 towards 0 as x increases to 10.

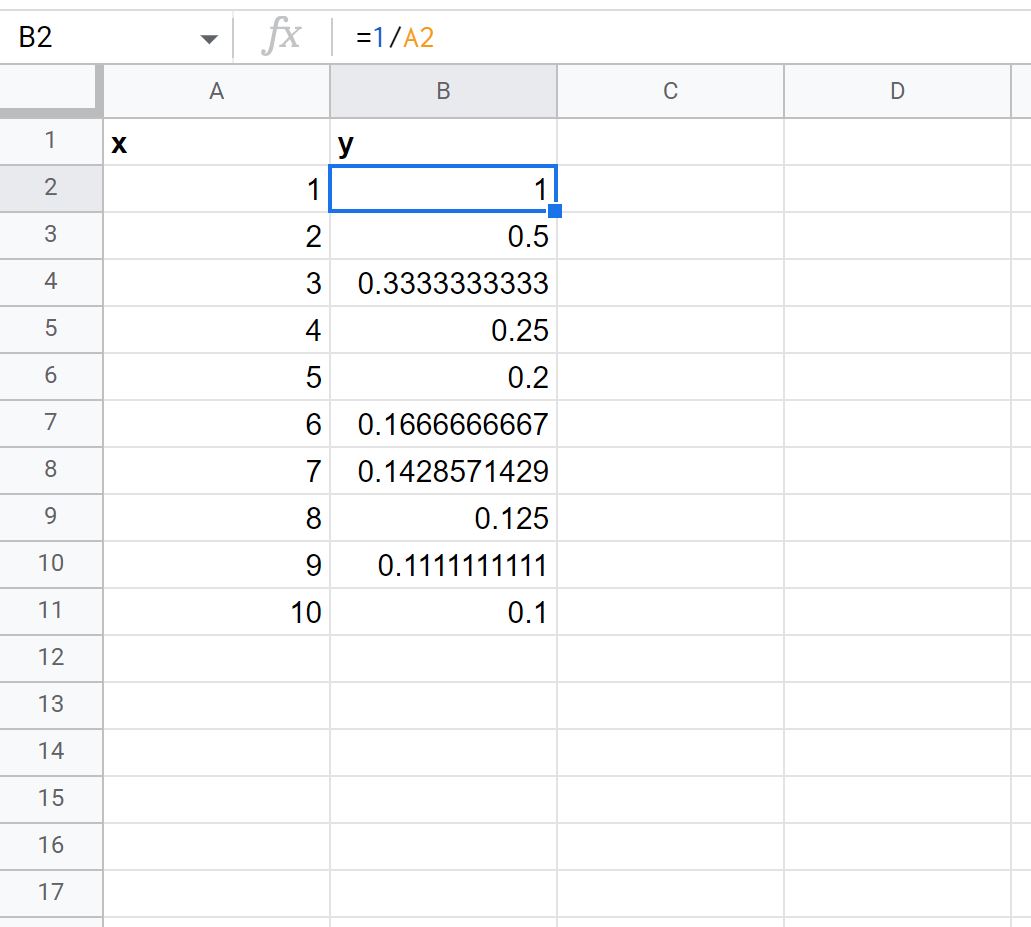

The data preparation for the reciprocal function is shown below, illustrating the rapid decay in the y-values:

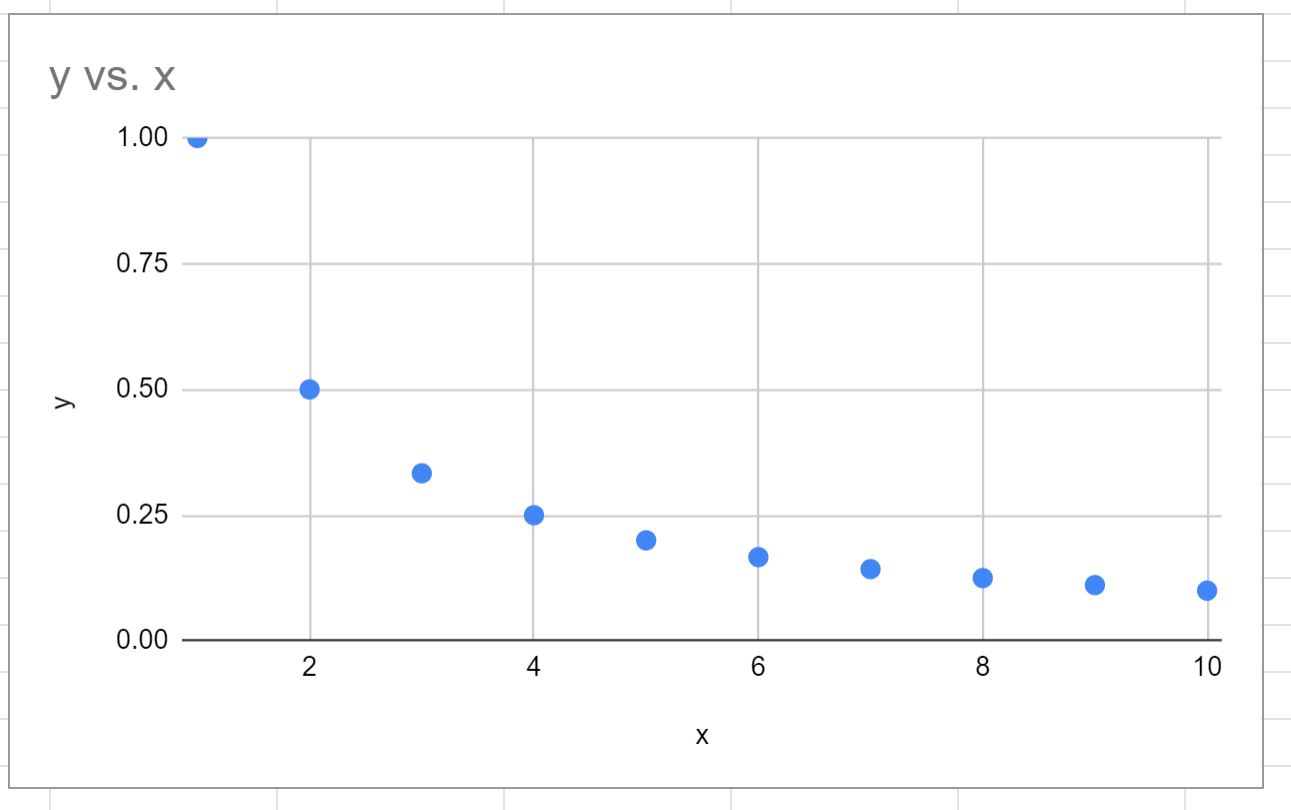

By highlighting the data and inserting the chart (A2:B11, then Insert > Chart), we visualize the characteristic curve of the reciprocal function. The plot clearly demonstrates the inverse relationship: the curve slopes sharply downwards initially and then flattens out significantly as the y-values approach zero (the horizontal asymptote). This visualization confirms that as the independent variable grows larger, the dependent variable approaches, but theoretically never reaches, zero, vividly illustrating the concept of a limit.

Example 4: Plotting a Sine Equation (Trigonometric Functions)

Google Sheets is equally capable of plotting complex functions, including those from trigonometry. Trigonometric functions, such as sine and cosine, are essential for modeling cyclical phenomena like waves, oscillations, and seasonal patterns in physics and engineering. When plotting these functions, it is often beneficial to use x-values that represent angles in radians, as the majority of spreadsheet trigonometric functions (like SIN()) operate using this angular unit. We will plot the fundamental sine equation:

y = sin(x)

For this example, while we use the numerical range (1 to 10) for x in Column A, we must ensure that the formula utilizes the built-in sine function. In cell B2, the entry is =SIN(A2). It is important to remember the unit conversion: if the user intended to input x-values in degrees, the formula would need to include the RADIANS() conversion function (e.g., =SIN(RADIANS(A2))). The resulting y-values will oscillate between -1 and 1, characteristic of the sine wave’s amplitude, demonstrating the periodic nature of the function.

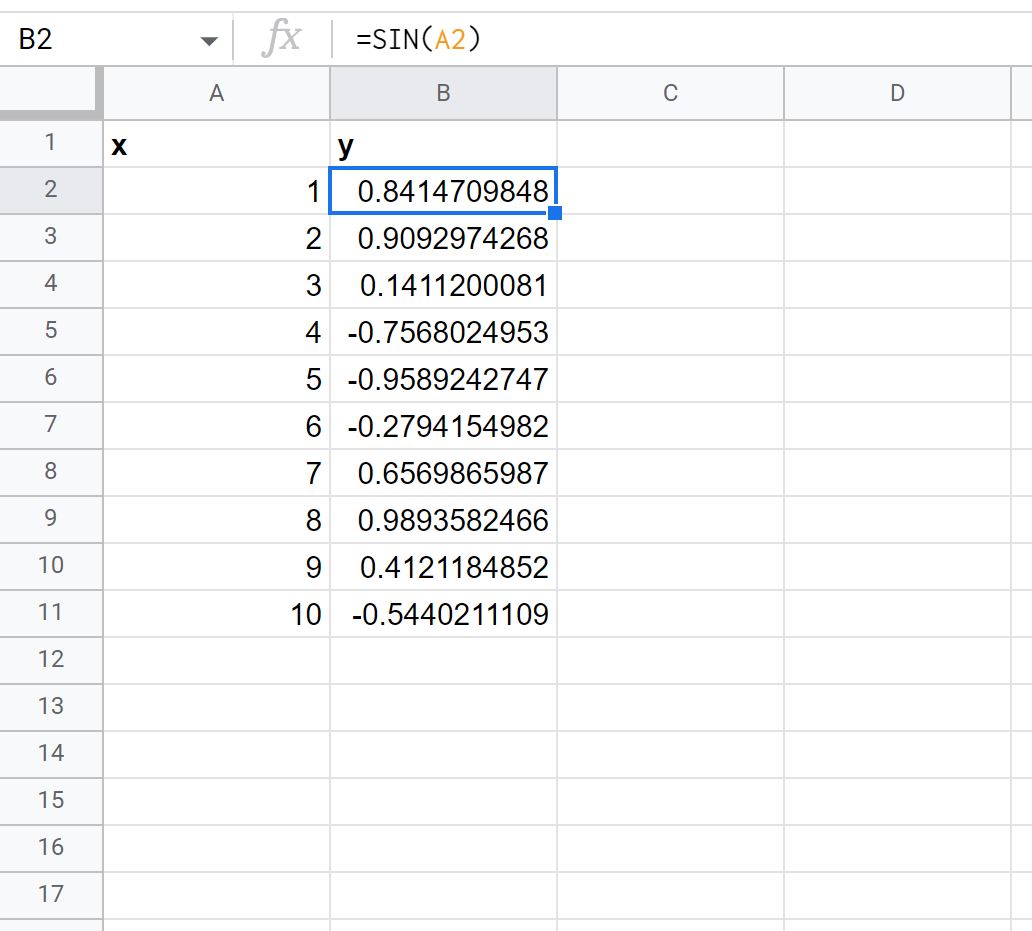

The setup demonstrating the use of the SIN() function and its resulting y-values is provided below:

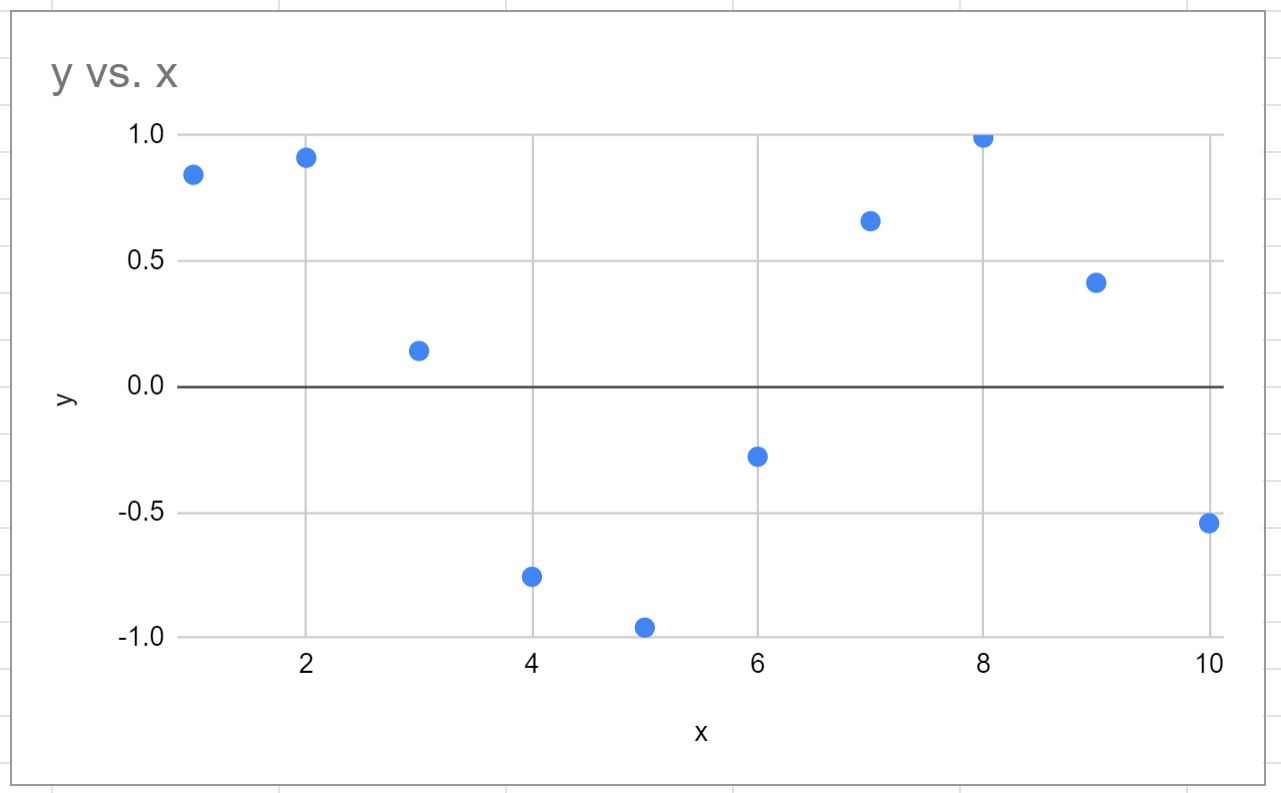

Upon highlighting the data range (A2:B11) and inserting the chart, the plot reveals a segment of the sine wave. Although the limited range of x-values (1 to 10) does not display a full period (which is 2π or approximately 6.28 units), the characteristic curvature showing the rise and fall of the function is clearly visible. To observe the full cyclical nature of the sine wave, the user would need to extend the x-range significantly, perhaps from -10 to 10, to encompass several full periods of oscillation and better illustrate the function’s periodicity.

Generalizing the Equation Plotting Technique

The standardized technique demonstrated across these diverse examples—linear, quadratic, reciprocal, and trigonometric—is universally applicable for plotting virtually any mathematical function in Google Sheets. This methodology relies on a fundamental two-step process that translates algebraic expressions into graphical coordinates: establishing the independent variable range and defining the dependent variable calculation formula.

The general procedure involves choosing a suitable range of x-values to use in one column (Column A). The choice of range should always be informed by the nature of the function (e.g., ensuring key features like turning points, intercepts, or asymptotes are included). Subsequently, an equation based on the function is entered into a separate column (Column B) to define the y-values. This equation must reference the corresponding x-value cell, and this formula is then propagated down the column. Finally, selecting both columns and inserting a scatter or line chart yields the desired graphical representation, providing a powerful, immediate visual analysis tool. Mastering this straightforward technique unlocks significant data visualization capabilities directly within the Google Sheets environment, making complex math more accessible.
