Learn How to Calculate and Visualize Confidence Intervals in Excel

A confidence interval (CI) provides a calculated range of values that is highly likely to contain an unknown population parameter, such as the true mean, based on sampled data. This essential statistical tool is the standard method for quantifying and communicating the inherent uncertainty present in empirical research. While simply calculating the numerical boundaries of the CI is straightforward, effectively visualizing this uncertainty is paramount for clear and powerful data visualization. This comprehensive tutorial provides a rigorous methodology for accurately plotting these intervals onto bar charts using Excel, transforming raw statistical output into compelling and statistically sound graphical representations.

Understanding Confidence Intervals and Visualization

In advanced statistical analysis, reporting a single mean value in isolation is often insufficient and potentially misleading because it fails to communicate the precision of the estimate. The confidence interval resolves this issue by establishing a context, typically defined by a 90%, 95%, or 99% confidence level. For example, a 95% CI implies that if the data sampling process were hypothetically repeated numerous times, 95% of the calculated intervals would successfully capture the true population mean. This measure of statistical reliability is critical for drawing valid conclusions from sampled data.

To visually integrate this uncertainty into a graph, we must utilize error bars within our chosen graphing software, such as Excel. These specialized markers extend symmetrically above and below the calculated mean, visually encompassing the range defined by the confidence interval. They are not merely decorative elements; rather, they are indispensable components for conveying statistical rigor in technical presentations and reports, allowing audiences to grasp the variability of the estimates instantly.

Furthermore, when the goal is to compare the means of multiple groups, the visualization of multiple confidence intervals becomes a highly efficient analytical technique. By observing the error bars, viewers can immediately gauge the overlap, or lack thereof, between the estimates. Generally, if the CIs of two groups do not overlap, it suggests a statistically significant difference between the group means, making data visualization a powerful and intuitive tool for initial inferential analysis before formal hypothesis testing is conducted.

Preparing Your Data for Plotting in Excel

The successful plotting of confidence intervals hinges upon the precise organization of your input data. To correctly configure the error bars, your dataset must be structured to include three essential columns: the Category Label (identifying the group), the calculated Mean (the central estimate), and the corresponding Margin of Error (MOE). The MOE is statistically defined as half the total width of the confidence interval, representing the distance from the mean to either the upper or lower boundary.

For the purpose of this demonstration, we will employ a sample dataset structured in Excel. This data presents the mean score achieved across four distinct categories (A, B, C, and D), accompanied by the specific Margin of Error calculated for the 95% confidence interval for each respective mean. This structure ensures that the visualization accurately reflects the statistical properties of the underlying data:

It is crucial to note that the MOE column (Column C in the example) holds the exact value necessary to define the upper and lower bounds of the interval around the mean. This preparation is the most critical step; ensuring the data is clean, correctly calculated, and properly laid out allows us to reference this column directly when customizing the error bars later in the visualization process within Excel.

Step-by-Step Guide: Generating the Initial Bar Chart

The initial step in this visualization process requires generating a standard bar chart that visualizes only the mean values. It is imperative that you do not include the Margin of Error column at this stage, as the MOE data will be applied later using the dedicated error bar functionality.

To begin the chart creation, first highlight the cells containing both the category labels and the calculated mean values (in our example, the range is A1:B5). Next, navigate to the Insert tab located prominently on the top ribbon of the Excel interface. Within the Charts grouping, click the Insert Column or Bar Chart option and proceed to select the standard 2-D Column chart type.

Executing these simple commands will instantly produce the foundational visualization, clearly displaying the magnitude of the mean score for each category. This base graph serves as the necessary canvas onto which the statistical uncertainty, represented by the custom confidence intervals, will be precisely overlaid in the subsequent customization steps:

Customizing Error Bars for Confidence Intervals

With the fundamental bar chart established, the next crucial step is introducing the visual representation of the confidence interval through custom error bars. To access the necessary customization menu, click the plus sign (+) icon, which appears at the top right corner of your newly created chart. From the chart elements menu that appears, hover your cursor over Error Bars. A submenu will prompt you to click More Options.

This action opens the detailed “Format Error Bars” pane on the right side of the Excel screen, which grants granular control over the error visualization. It is important to remember that Excel often defaults to applying standard deviation or standard error bars initially; these pre-selected measures must be explicitly overridden by selecting the data containing our precise Margin of Error values.

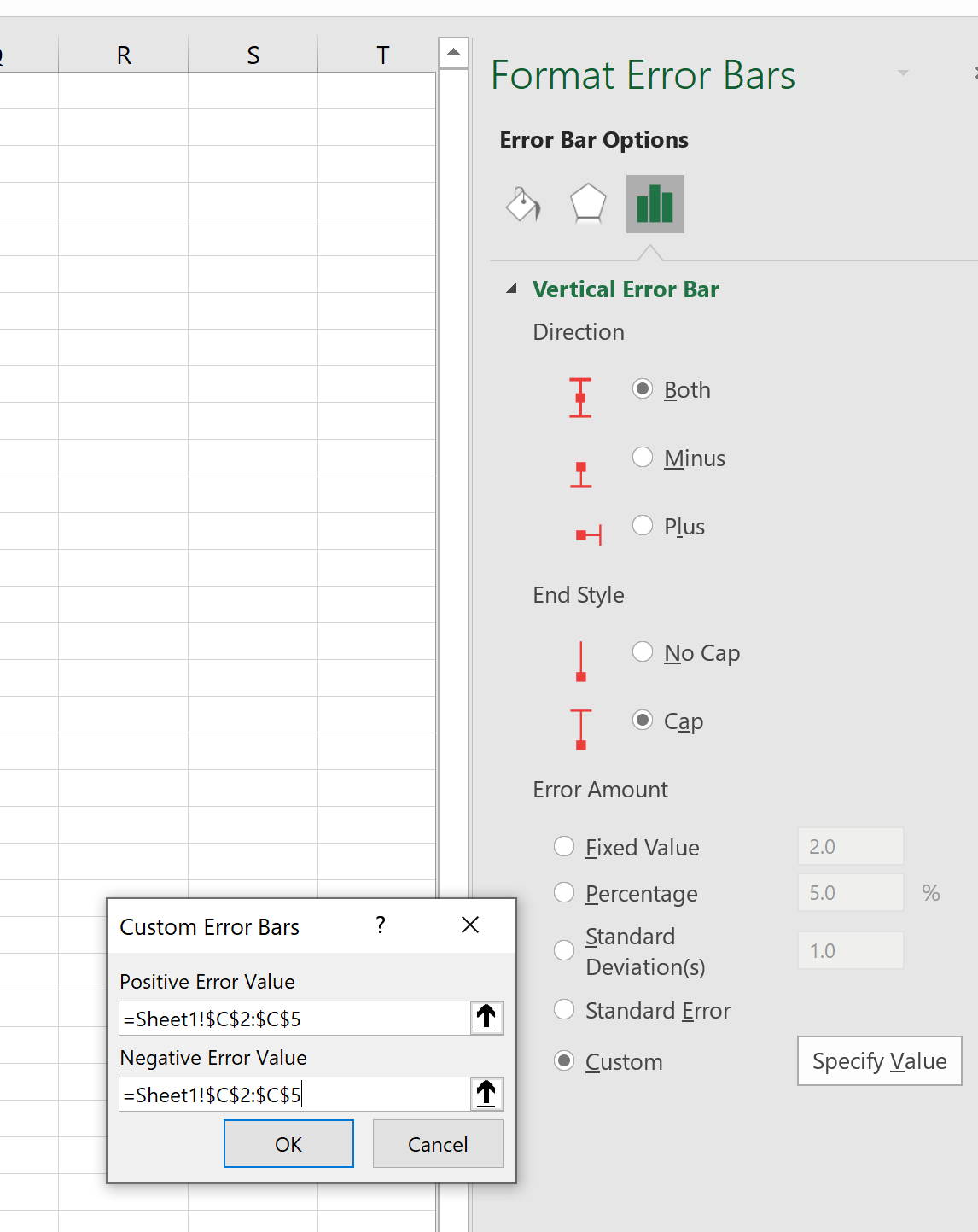

Within the “Format Error Bars” pane, scroll down until you reach the “Error Amount” section and select the Custom radio button. Immediately thereafter, click the Specify Value button. In the resulting “Custom Error Bars” dialog box, you must select the range containing the calculated MOE (Column C in our data) for both the “Positive Error Value” and the “Negative Error Value.” In the context of our example, this range is defined as =Sheet1!$C$2:$C$5. Click OK to apply these custom, statistically derived values to your chart.

The direct result of this detailed customization process is the accurate visual representation of the confidence interval bands. These custom vertical lines are now overlaid precisely on your bar chart, replacing any default error measures with your specific statistical estimates, thereby completing the visualization of uncertainty:

Interpreting the Final Confidence Interval Plot

The finalized plot is a robust and powerful tool for data visualization. The height of each colored bar corresponds to the estimated mean value for its specific category. More importantly, the vertical lines—the error bars—clearly delineate the precise range of the 95% confidence interval around that mean. This combined visual display allows for rapid assessment of both magnitude and precision.

To maximize visual clarity, particularly in cases where the error bars might be visually obscured by the bars themselves, it is often advisable to adjust the formatting of the chart elements. Modifying the color of the bars, applying a slight transparency effect, or changing the line thickness of the error bars can ensure that the statistical uncertainty stands out prominently. This small adjustment significantly enhances readability, ensuring that the audience focuses equally on the estimate and its associated precision.

This visualization method enables direct comparison and inference based on the uncertainty inherent in each group’s estimate. Statistically, the length of the error bar is directly proportional to the size of the margin of error: a longer bar indicates higher variability or greater uncertainty surrounding the mean estimate, usually due to a smaller sample size or larger standard deviation. Conversely, a shorter bar suggests a more precise estimate.

A detailed examination of the chart reveals the following specific interpretations for our sample data:

• The mean value for category A is 12, and the 95% confidence interval ranges from 10 (12 minus 2 MOE) to 14 (12 plus 2 MOE).
• The mean value for category B is 15, and the 95% confidence interval ranges from 12 (15 minus 3 MOE) to 18 (15 plus 3 MOE).
• The mean value for category C is 18, and the 95% confidence interval ranges from 13 (18 minus 5 MOE) to 23 (18 plus 5 MOE). The notable larger range here signals significantly higher uncertainty in this category’s mean estimate compared to the others.
• The mean value for category D is 13, and the 95% confidence interval ranges from 10 (13 minus 3 MOE) to 16 (13 plus 3 MOE).

Advanced Customization and Reporting Best Practices

While the custom error bar method in Excel provides a functional and accurate visualization, adhering to fundamental visualization best practices ensures that your chart is not only statistically sound but also highly digestible for a wide audience. It is strongly recommended to eliminate non-essential elements, often referred to as chart junk, such as excessive gridlines, distracting colors, or overly complex legends, thereby focusing the viewer’s attention exclusively on the data and the associated uncertainty.

To maintain statistical integrity in your reporting, ensure that both the X and Y axes are clearly and descriptively labeled, indicating precisely what the numerical values represent (e.g., “Performance Score,” “Average Count,” or “Estimated Value”). Furthermore, you must always specify the confidence level used (e.g., 95% CI) either within the chart title or in a footnote accompanying the graph. This detail guarantees that the audience understands the precise statistical interpretation of the plotted error bars.

For standard means and data visualization, the custom error bar technique remains a rapid, reliable, and highly effective approach to generating statistically informative graphs suitable for academic publication and professional presentations. Although complex data sets involving negative values or logarithmic scales might require specialized tools, this method is the gold standard for standard CI plots in Excel.
