Learning to Plot Histograms from Data Lists Using Python

Understanding the Basics of Histograms for Data Visualization

A Histogram is a powerful graphical representation used widely in Data Visualization and statistical analysis. Its primary function is to provide a visual estimate of the probability distribution of a continuous variable. Unlike a bar chart, a histogram groups numerical data into ranges, known as bins, and displays the frequency or count of data points falling within each range. This technique is invaluable for understanding the underlying distribution, identifying potential outliers, and assessing data skewness.

When working in Python, the industry standard library for creating static, interactive, and animated visualizations is Matplotlib. Specifically, the pyplot module within Matplotlib offers a simple yet highly customizable function, plt.hist(), which allows developers and analysts to generate histograms directly from lists or arrays of data.

Before proceeding with the visualization, it is crucial to ensure your data is prepared. The data must be in a numerical format, typically stored as a standard Python list or a NumPy array. The following sections detail the fundamental syntax required to plot a histogram and explore practical examples demonstrating how to control the structure and appearance of the plot using bin manipulation.

Essential Syntax for Plotting a Histogram

To begin plotting any chart using Matplotlib, the first step involves importing the necessary modules. We import matplotlib.pyplot, conventionally aliased as plt. This module provides the core plotting environment. We then define our data list, x, which contains the observations we wish to analyze.

The core of the operation lies in the plt.hist() function. This function takes the data list (x) as its primary argument. Crucially, we must define the number of bins. The choice of bin count significantly impacts the appearance and interpretation of the distribution; too few bins can hide important features, while too many can introduce noise.

You can use the following basic syntax to plot a histogram from a list of data in Python:

import matplotlib.pyplot as plt

#create list of data
x = [2, 4, 4, 5, 6, 6, 7, 8, 14]

#create histogram from list of data
plt.hist(x, bins=4)

The initial output generated by this concise code provides a functional representation of the data distribution. The subsequent examples will demonstrate how to refine this basic plot by controlling the binning strategy, which is often the most critical parameter in histogram generation.

Example 1: Creating Histograms with a Fixed Number of Bins

In many scenarios, particularly when dealing with smaller datasets or when a quick overview of the data shape is required, specifying a fixed integer for the number of bins is the simplest approach. When an integer is supplied to the bins parameter, Matplotlib automatically calculates the width of each bin such that the entire range of the data is covered, dividing the range into the specified number of equal-width intervals.

This method allows for immediate visualization without manual calculation of boundaries. Additionally, we often enhance the visual clarity of the plot by adding an edgecolor parameter. Setting edgecolor='black' helps delineate the boundaries between adjacent bars, improving readability, especially when the histogram bars use a solid fill color.

The following code shows how to create a histogram from a list of data, using a fixed number of bins and applying a black outline for better visual contrast:

import matplotlib.pyplot as plt

#create list of data
x = [2, 4, 4, 5, 6, 6, 7, 7, 7, 8, 8, 8, 12, 13]

#create histogram with 4 bins
plt.hist(x, bins=4, edgecolor='black')

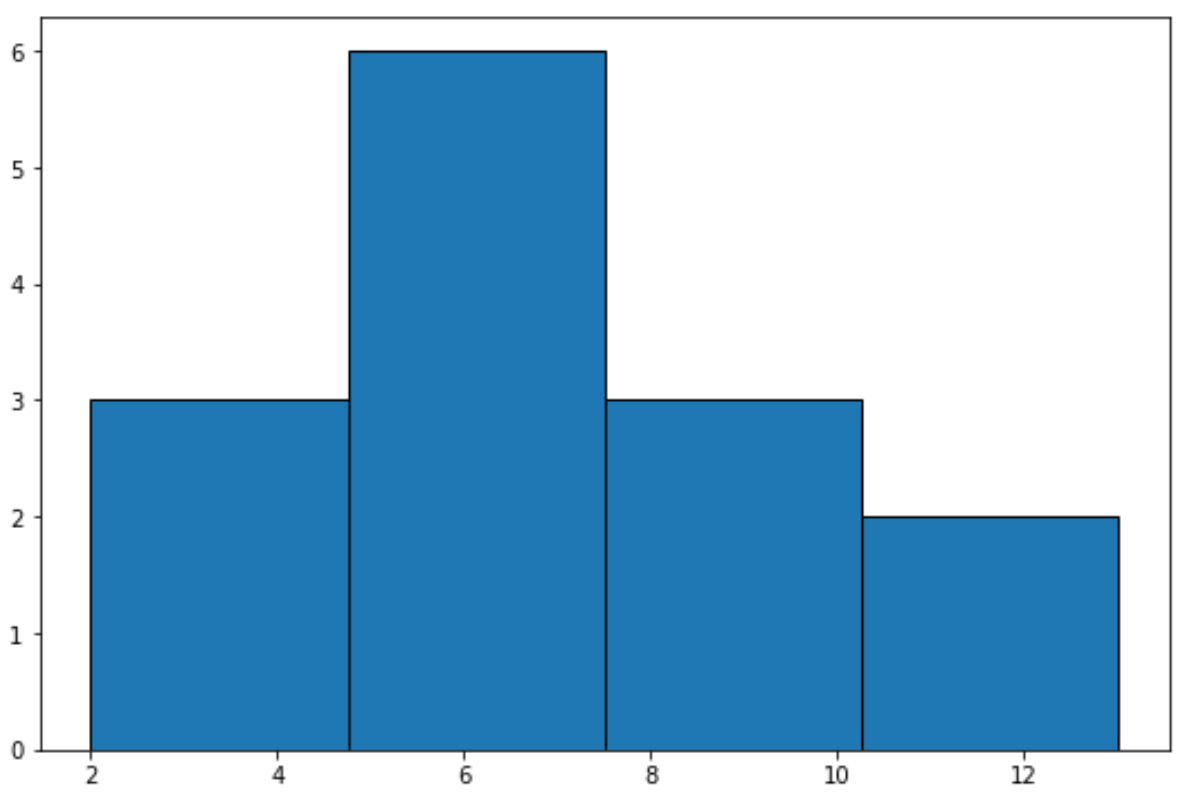

In this specific instance, with the data ranging from 2 to 13, specifying 4 bins forces the visualization tool to divide the data range into four equally sized intervals, highlighting the high frequency of values clustered around the middle of the dataset (5 to 8).

Example 2: Defining Custom Bin Ranges

While fixed bin counts are convenient, there are often situations in statistical analysis where specific bin boundaries are required, usually driven by domain knowledge or specific reporting requirements. For instance, if data represents age groups, we might want bins corresponding to standard demographic ranges (e.g., 0-18, 19-35, 36-60).

To achieve custom bin boundaries, we pass a Python list or NumPy array of numerical values to the bins parameter instead of a single integer. This list must contain the boundary points, meaning if you require N bins, the boundary list must contain N+1 elements. Matplotlib then uses these exact points to define the start and end of each interval.

The following code shows how to create a histogram from a list of data, using explicitly specified bin ranges to control the output visualization:

import matplotlib.pyplot as plt

#create list of data
x = [2, 4, 4, 5, 6, 6, 7, 7, 7, 8, 8, 8, 12, 13]

#specify bin start and end points
bin_ranges = [0, 5, 10, 15]

#create histogram with 4 bins
plt.hist(x, bins=bin_ranges, edgecolor='black')

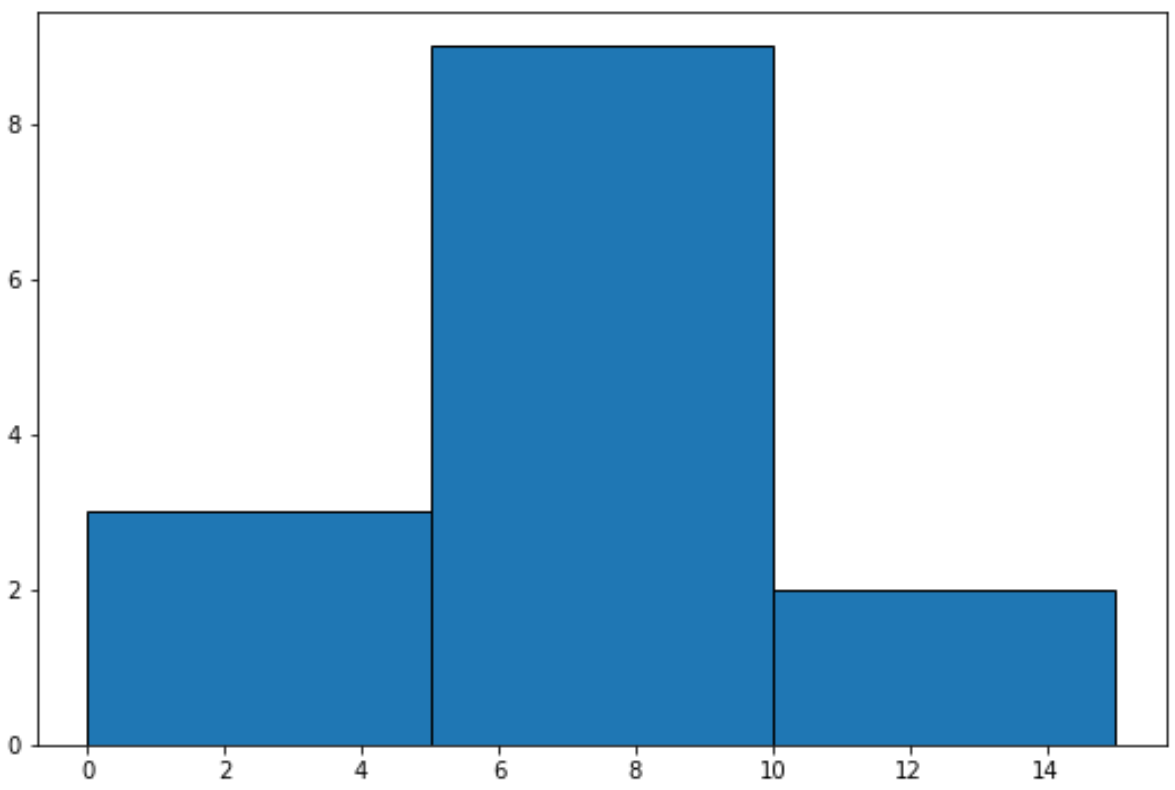

In this example, the data is divided into three bins: [0, 5), [5, 10), and [10, 15]. Notice that the first bin includes values greater than or equal to 0 and strictly less than 5, while the last bin includes the upper limit. This explicit control over binning offers maximum flexibility for tailored Data Visualization.

Customizing and Refining Your Histogram Plot

Beyond the essential parameters of data and bins, the plt.hist() function in Matplotlib offers extensive options for plot customization. Enhancing the visual appeal and informational content of the histogram is critical for professional reporting and analysis.

Key customization options include:

• Color and Transparency: The color parameter sets the bar color, and alpha controls the transparency (useful when plotting multiple distributions).
• Normalization (Density): Setting density=True normalizes the bins so that the area under the histogram integrates to 1. This converts the frequency counts into probability density estimates, which is crucial when comparing distributions of different sizes.
• Labels and Titles: Functions like plt.xlabel(), plt.ylabel(), and plt.title() are essential for providing context to the reader, defining what the axes represent and the overall purpose of the histogram.

When utilizing these features, ensure that the customizations align with best practices for data clarity. For instance, always include axis labels when showing a density plot, as the y-axis no longer represents raw counts. The complete documentation for the Matplotlib histogram function provides exhaustive details on all available parameters.

Further Resources for Data Visualization in Python

Mastering the histogram is a foundational step in utilizing Matplotlib effectively. To continue developing your data visualization skills in Python, it is beneficial to explore other chart types and advanced plotting features. The principles of clear labeling, appropriate scaling, and strategic use of color apply across all visualization styles.

The following tutorials and documentation links explain how to create other commonly used charts and delve deeper into Matplotlib functionality:

1. Detailed Documentation for matplotlib.pyplot.hist function.
2. Tutorial on generating Scatter Plots for relationship analysis.
3. Guides on creating Box Plots for visualizing data quartiles and outliers.
4. Examples of using Pandas integration with Matplotlib for fast plotting from DataFrames.
