Learning to Visualize Linear Regression Models with lm() in R

Visualizing Linear Regression Models in R

In the vast landscape of statistical analysis, R has established itself as the premier environment for advanced modeling, computation, and data visualization. Core to its functionality is the lm() function, the standard tool used to fit linear regression models. While the numerical summary of an lm() object provides essential quantitative data—coefficients, standard errors, and R-squared metrics—relying solely on tables can often obscure critical model behaviors and underlying data structures.

Effective data analysis demands more than just numbers; it requires clear visual confirmation. Plotting the results of a linear model is indispensable for gaining an intuitive understanding of the relationship between variables, identifying influential outliers, and assessing whether the fundamental assumptions of linearity are met. A well-constructed visualization bridges the gap between complex statistical outputs and easily digestible insights.

This comprehensive guide details the two fundamental and most widely adopted approaches for plotting lm() results in R: utilizing the efficient and built-in capabilities of Base R graphics, and employing the sophisticated, layer-based system provided by the powerful ggplot2 package. Mastering these techniques is crucial for anyone performing robust regression analysis in R.

Understanding Linear Regression with lm() and the Imperative of Visualization

The lm() function serves as the workhorse for fitting linear models in R. It operates by minimizing the sum of the squared residuals to estimate the parameters (intercept and slopes) that define the line of best fit. The resulting output summarizes these estimates, along with statistical tests to determine their significance, providing a crucial quantitative description of the relationship between the dependent and independent variables.

However, statistical summaries—no matter how precise—cannot fully capture the structure of the underlying data. Without visualization, an analyst might miss key features, such as non-linear trends, clustering, or significant data points that exert undue influence on the model. A simple scatterplot that displays the raw data points alongside the fitted regression line provides an immediate diagnostic tool.

Visualization is paramount because it allows analysts to instantly assess linearity and identify potential violations of model assumptions, such as heteroscedasticity (unequal variance of errors). Furthermore, plots transform complex numerical findings into a compelling visual narrative, making the results accessible and understandable to non-statistical audiences. Integrating plotting as a standard practice in your regression workflow ensures that your findings are not only statistically sound but also clearly communicated.

Method 1: Plotting lm() Results Using Base R

The native graphics system in Base R offers a direct and highly efficient method for generating plots. This approach is favored for rapid exploratory data analysis (EDA) and situations where minimal customization is required. Plotting an lm() model in Base R typically involves two sequential steps: creating the initial scatterplot of the raw data and then overlaying the calculated regression line.

The primary functions utilized here are plot() and abline(). The plot() function is responsible for initializing the graphical device and drawing the scatterplot, defining the relationship between the dependent variable (Y) and the independent variable (X). Crucially, the abline() function, when supplied with an lm() object, automatically extracts the necessary intercept and slope coefficients from the model fit and draws the corresponding fitted regression line directly onto the existing plot.

This method is remarkably concise and requires only a few lines of code, making it ideal for quick diagnostic checks and simple visualizations of linear models. Below is the fundamental syntax demonstrating how to combine these functions:

# Assume 'fit' holds the result of lm(y ~ x, data=data)
# 1. Create scatterplot of raw data
plot(y ~ x, data=data)

# 2. Add fitted regression line using the lm object
abline(fit)

In this structure, the fit object encapsulates all the necessary information calculated by lm(). By passing this object to abline(), we achieve a rapid and clear visualization of the estimated linear trend superimposed on the observed data points.

Method 2: Plotting lm() Results with ggplot2

For analysts who require greater control over aesthetic details, complex layering, and publication-quality outputs, the ggplot2 package is the gold standard. Developed based on Leland Wilkinson’s “grammar of graphics,” ggplot2 allows users to construct plots systematically by defining layers: data, aesthetic mappings, geometric objects, and statistical transformations. This layered approach provides unparalleled flexibility in designing bespoke visualizations.

Visualizing lm() results using ggplot2 begins with the ggplot() function, which initializes the plot and establishes the data source and variable mappings (aesthetics). We then add a layer for the raw data points using geom_point() (creating the scatterplot). The crucial step for adding the regression line is using the stat_smooth() function. By explicitly setting the argument method = "lm", stat_smooth() calculates and draws the precise linear regression line derived from the model.

A significant advantage of ggplot2 is that stat_smooth() automatically includes a shaded band representing the confidence interval around the line, offering a vital visual measure of the uncertainty in the model’s estimate. This immediate inclusion of statistical context is often preferred in formal reporting. The following code structure outlines the essential steps for generating a linear model plot with ggplot2:

library(ggplot2)

# Initialize plot, map variables, add points, and add linear smoother
ggplot(data, aes(x = x, y = y)) +
  geom_point() +
  stat_smooth(method = "lm")

Because of its powerful layering system, ggplot2 is the preferred choice for generating complex graphics that require precise control over labels, colors, themes, and facets, ensuring the final output is ready for publication or detailed presentation.

Practical Application: Comparing Base R and ggplot2

To solidify our understanding, let us apply both plotting methods to a standard dataset. We will use the R built-in mtcars dataset, which contains data on 32 distinct automobiles. Our objective is to model the relationship between a car’s weight in thousands of pounds (wt, the independent variable) and its fuel efficiency in miles per gallon (mpg, the dependent variable). Intuitively, we anticipate a strong negative correlation: as weight increases, fuel efficiency decreases.

The first step involves fitting the linear regression model using lm(). This model object, stored as fit, contains the calculated intercept and slope. We then proceed to plot the raw data and overlay the estimated linear trend line using the Base R approach. This straightforward process provides a quick yet effective visual summary.

The following Base R code snippet performs the model fitting and generates the initial plot, illustrating the fundamental relationship between car weight and fuel consumption:

# 1. Fit the linear regression model
fit <- lm(mpg ~ wt, data=mtcars)

# 2. Create scatterplot of mpg vs wt
plot(mpg ~ wt, data=mtcars)

# 3. Add fitted regression line
abline(fit)

The resulting plot clearly shows the raw data points and the descending straight line, which is the fitted regression line. This visualization confirms our initial expectation: the downward slope indicates that heavier cars (higher wt) are generally associated with lower fuel efficiency (lower mpg). This Base R plot is concise and immediately communicates the model’s core prediction.

Enhanced Visualization with ggplot2 (Example)

Next, let’s achieve the same visualization using ggplot2 to appreciate the difference in aesthetics and functionality. Unlike Base R, ggplot2 handles the visualization and modeling instructions within the plotting call itself, particularly through stat_smooth().

After loading the ggplot2 library, we construct the plot layer-by-layer, mapping wt to the x-axis and mpg to the y-axis. By using method="lm" in stat_smooth(), we instruct the package to calculate and draw the linear model, automatically including the 95% confidence interval by default.

library(ggplot2)

# Fit regression model (optional, but good practice)
fit <- lm(mpg ~ wt, data=mtcars)

# Create scatterplot with fitted regression line and CI
ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point() +
  stat_smooth(method = "lm")

In the ggplot2 output, the blue line represents the model prediction, and the surrounding grey band denotes the 95% confidence interval. This interval visually quantifies the precision of the estimated regression line; a narrower band suggests a more certain estimate across the range of the predictor variable. This enhanced visualization provides essential context regarding the model’s reliability.

Refining and Annotating ggplot2 Visualizations

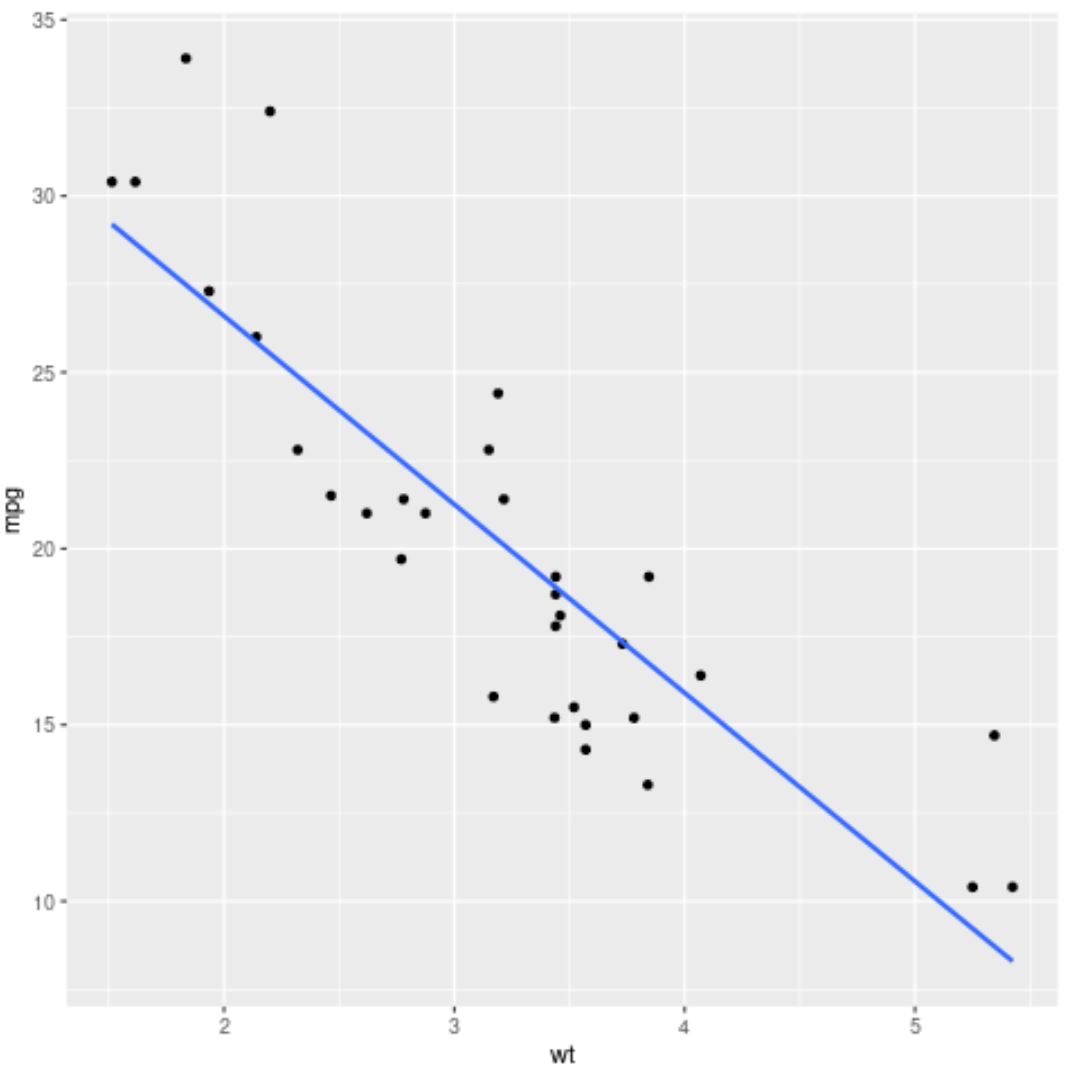

While the confidence interval is highly valuable for diagnostic purposes, there are times—such as in streamlined presentations—when a cleaner plot emphasizing only the point estimate is preferred. ggplot2 allows for simple modification of the stat_smooth() layer to suppress the display of this uncertainty band.

To remove the confidence interval, we simply set the se (standard error) argument within stat_smooth() to FALSE. This adjustment maintains the elegant aesthetic of ggplot2 while focusing the viewer’s attention solely on the predicted linear trend. This level of control is a key differentiator between ggplot2 and Base R graphics.

library(ggplot2)

# Example of removing the confidence interval
fit <- lm(mpg ~ wt, data=mtcars)

# Create scatterplot with fitted regression line (se=FALSE)
ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point() +
  stat_smooth(method = "lm", se=FALSE)

Adding the Regression Equation to the Plot

To further enhance the interpretability of a visualization, it is often useful to include the regression equation directly on the graph. This provides immediate quantitative context, allowing viewers to see the precise intercept and slope values without needing to consult the separate model summary. Achieving this in ggplot2 is facilitated by extension packages, particularly ggpubr.

The ggpubr package provides the convenient stat_regline_equation() function, which automatically extracts and formats the equation from the linear model and adds it as a text annotation layer. We integrate this function by simply adding it to the existing ggplot2 syntax, often specifying its exact location using coordinates (like label.x.npc = "center").

library(ggplot2)
library(ggpubr)

# Code to include the regression equation annotation
fit <- lm(mpg ~ wt, data=mtcars)

# Create plot and add equation annotation
ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point() +
  stat_smooth(method = "lm", se=FALSE) +
  stat_regline_equation(label.x.npc = "center")

The final plot now clearly displays the derived regression equation (e.g., y = 37.28 – 5.34x”) directly on the graph. This composite visualization is highly informative, successfully merging the raw data, the predicted trend line, and the mathematical formula that underlies the model, thereby creating a truly comprehensive and self-explanatory graphic.

Conclusion and Further Exploration

Visualizing the output of a linear regression model fitted using R’s lm() function is an essential practice that moves analysis beyond numerical abstracts. We have successfully demonstrated two primary paths for achieving this visualization: the straightforward, utility-focused methods of Base R graphics using plot() and abline(), and the highly flexible, aesthetic-driven capabilities of the ggplot2 package.

The choice between these methods often depends on the specific project requirements. Base R excels at quick, internal checks and simple scatterplots, while ggplot2 is indispensable for producing sophisticated, layered visualizations that require customization for professional reports or publications, offering built-in features like confidence intervals and easy annotation additions via extensions like ggpubr. By mastering both approaches, analysts can ensure their statistical communication is both accurate and visually compelling.

Beyond simply plotting the fitted line over the raw data, R provides crucial diagnostic plots derived directly from the lm() object. These include Residuals vs Fitted, Normal Q-Q, Scale-Location, and Residuals vs Leverage plots. These visualizations are paramount for checking the core assumptions of the linear model (such as normality of residuals and homoscedasticity) and identifying potential issues like high leverage points. We highly recommend exploring these advanced diagnostic plots to ensure the validity and reliability of your regression analysis.
