Plot Multiple Columns in R (With Examples)

In the realm of advanced data analysis, practitioners using the R programming environment frequently encounter datasets where multiple related variables need simultaneous visualization. This necessity arises when analysts seek to conduct a comprehensive exploration of complex systems, moving beyond simple bivariate relationships to understand how several factors interact or trend over a shared dimension. The ability to effectively plot multiple columns from a single data frame is paramount for identifying subtle patterns, comparing magnitudes, and deriving actionable insights that might otherwise remain obscured.

Fortunately, modern data visualization in R is vastly simplified and empowered by the ggplot2 library. This powerful package, a core component of the Tidyverse, implements the “grammar of graphics,” providing a highly flexible and logical framework for constructing intricate plots layer by layer. By leveraging ggplot2, analysts can transform raw data into high-quality, reproducible visualizations with relative ease, making complex multivariate plotting a standardized procedure rather than a tedious customization effort.

This comprehensive tutorial focuses on the critical methodological steps required for successful multivariate visualization. We will explore two primary, yet distinct, approaches for rendering data from several columns: first, by unifying all variable trends onto a single plot for immediate comparison; and second, by utilizing the technique of facetting to separate variables onto distinct, dedicated panels, ensuring maximum clarity when scales or magnitudes vary significantly. Mastering the underlying data transformation is the key to unlocking these advanced plotting capabilities.

The Imperative of Data Transformation for Multivariate Plots

When dealing with three or more related variables, traditional plotting functions in R often fall short, as they are typically optimized for simple x-y relationships. To plot multiple variables effectively—especially in the context of line plots, where each variable should be represented by its own line differentiated by aesthetics like color or line type—the structure of the input data must be fundamentally altered. The central challenge involves converting the data from its initial wide format, where each variable occupies its own column, into a long format, which is the necessary prerequisite for most advanced visualizations in R.

The long format is critical because ggplot2 operates most efficiently when all the measured values intended for the y-axis are contained within a single column. The original column headers (which represent the names of the different series or variables) must then be stored in a separate categorical column. This new categorical column serves as the mapping variable, dictating how the visual aesthetics—such as the color, shape, or line pattern—are assigned to differentiate the multiple series on the final graph. This structural change treats the different columns not as separate entities, but as levels of a single grouping factor.

Successfully transitioning from the wide format to the long format is often referred to as “melting” or “pivoting” the data. This transformation allows us to treat the collection of columns as a unified set of measurements defined by a common identifier (e.g., time or index). By adopting this standardized structure, we gain the flexibility to apply powerful plotting techniques, such as using color mapping to overlay the series or employing facetting to partition the visualization space, thereby simplifying the comparison and interpretation of complex multivariate data.

Required Libraries for Data Manipulation and Visualization

Executing the examples demonstrated in this tutorial requires two specialized libraries within the R environment. These packages collectively handle the dual requirements of data restructuring and graphical rendering, forming the backbone of the workflow for plotting multiple columns.

• ggplot2: This package is widely recognized as the definitive tool for modern data visualization in R. Its layered approach allows users to build sophisticated plots incrementally, mapping statistical data variables directly to visual attributes like position, size, and color. It is indispensable for generating graphics suitable for publication and detailed analytical reports.
• reshape2: This library is dedicated to the restructuring of datasets. Its key function for this task is melt(), which performs the essential conversion of wide-format data into the long format required by ggplot2. (While the Tidyverse package tidyr offers the modern function pivot_longer(), reshape2 remains a historically important and functional tool, particularly when working with older code or specific data structures.)

It is standard analytical practice to ensure that both ggplot2 and reshape2 are successfully installed on the system and actively loaded into the current R session before attempting any data transformation or plotting operations. This readiness ensures that all necessary functions, such as ggplot() and melt(), are immediately available for use in the subsequent steps.

Example 1: Overlaying Multiple Series on a Unified Graph

The first practical approach involves plotting all measurement variables on a single set of axes, which is optimal when the variables share a common scale and unit, allowing for direct, side-by-side comparison of their relative movements. For this demonstration, we will begin by creating a simple sample data frame, named df, containing an index column and three simulated measurement columns: var1, var2, and var3. This represents the typical wide data structure encountered in real-world scenarios.

The successful visualization hinges on a three-part process: first, ensuring the necessary libraries are loaded; second, restructuring the data using the melt() function; and third, rendering the plot using ggplot2. Crucially, the aesthetic mapping aes(colour = series) within the ggplot() command instructs the visualization engine to use the newly created series column (which holds the original variable names) to assign a unique color to each line, effectively distinguishing the trends of var1, var2, and var3.

#load necessary libraries
library(ggplot2)
library(reshape2)

#create data frame
df <- data.frame(index=c(1, 2, 3, 4, 5, 6),
                 var1=c(4, 4, 5, 4, 3, 2),
                 var2=c(1, 2, 4, 4, 6, 9),
                 var3=c(9, 9, 9, 5, 5, 3))

#melt data frame into long format
df <- melt(df ,  id.vars = 'index', variable.name = 'series')

#create line plot for each column in data frame
ggplot(df, aes(index, value)) +
  geom_line(aes(colour = series))

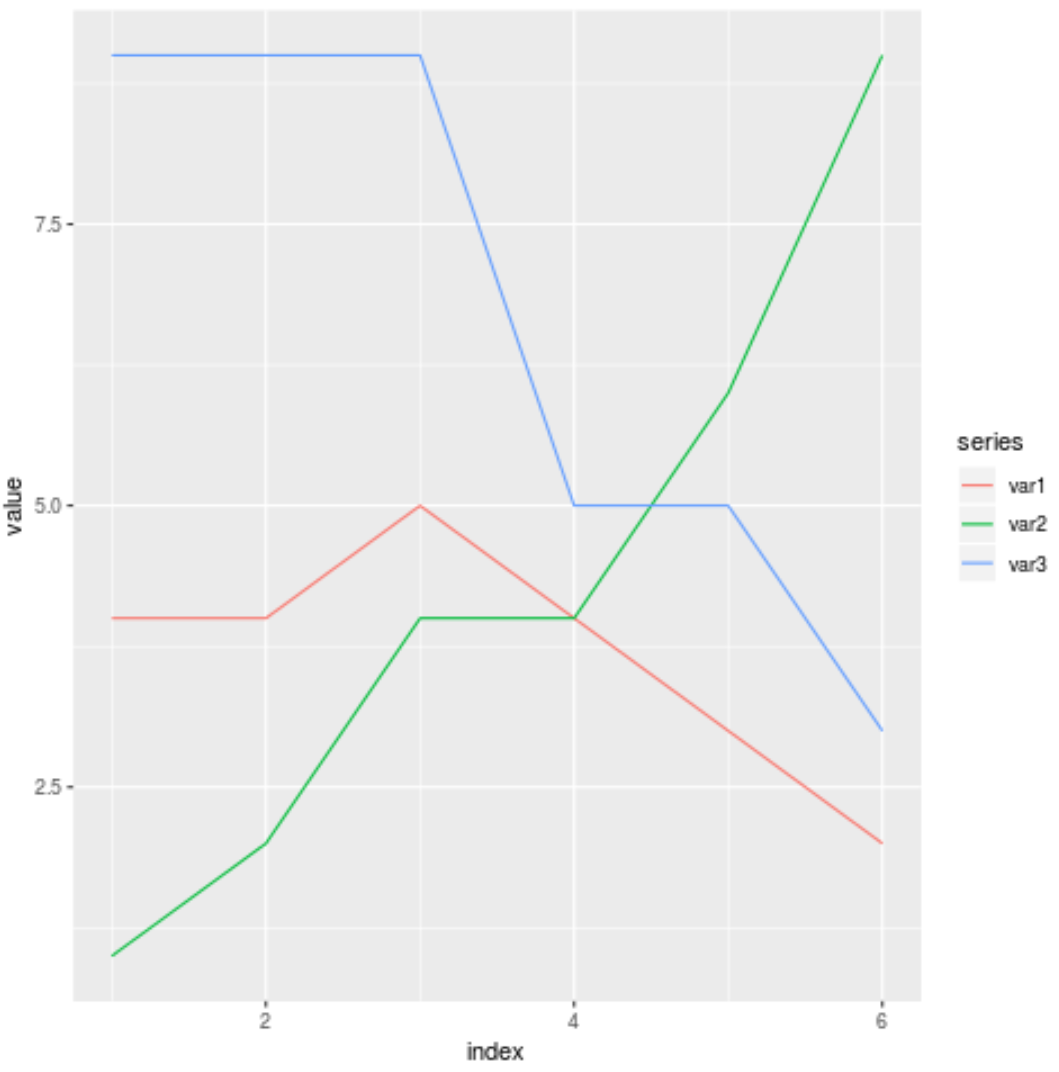

Upon execution, the resulting visualization presents three distinct lines overlaid on the same plot space. Each line corresponds directly to one of the original variables (var1, var2, or var3), and the color aesthetic provides the necessary differentiation. This setup offers an immediate visual summary of how the variables’ trends compare and interact over the sequence defined by the index, facilitating rapid identification of periods of convergence, divergence, or peak activity.

Deconstructing the Data Transformation with melt()

The ability to generate a clean multivariate plot is entirely dependent on the successful execution of the data transformation, particularly through the use of the melt() function. Understanding the mechanics of how this function converts the data is essential for advanced data preparation in R. Initially, our input data frame, df, exists in the wide format, defined by four columns: index (the identifier), and the three measurement variables (var1, var2, var3).

The specific command, melt(df, id.vars = 'index', variable.name = 'series'), dictates the precise structural alterations that create the long format. This process involves three core actions that reshape the data dramatically: first, the index column is designated as the identifier variable (`id.vars`), meaning its values are replicated as necessary to match the stacked measurements; second, all remaining columns (var1, var2, var3) are “gathered,” with their numerical contents consolidated into a single new column, which is automatically named value; and third, the original column headers (`var1`, `var2`, `var3`) are extracted and stored as categorical factors in a separate column explicitly named series, as specified by the variable.name argument.

The final, resulting long-format data frame is characterized by just three columns: index, series, and value. This structure perfectly aligns with the requirements of the ggplot2 framework: the index maps to the x-axis for temporal or sequential positioning, the value column maps directly to the y-axis for magnitude, and the series column provides the necessary grouping variable for applying distinct aesthetics, such as color, ensuring the visual separation of the different measurement lines.

Example 2: Leveraging Facetting for Clarity in Visualization

While overlaid plots are powerful for comparison, they can quickly become visually congested or misleading if the variables possess vastly different units of measurement or if the lines overlap excessively. In situations where clarity and detailed inspection of individual variable trajectories are prioritized over direct comparison, plotting each variable on its own dedicated sub-panel is the superior solution. This technique, known as facetting, is a fundamental feature of the ggplot2 grammar of graphics.

The advantage of facetting is that it logically partitions the visualization space based on a categorical variable. Since we have already transformed our data into the long format in Example 1, the underlying data frame structure remains identical. Only the final plotting command needs modification. Instead of using the color aesthetic, we introduce the facet_grid() layer. The command facet_grid(series ~ .) specifically instructs ggplot2 to organize the plots by creating a separate row (indicated by series ~) for every unique level found in the series column. The period (.) placed after the tilde signifies that no column-wise faceting is required, resulting in a stack of plots.

#load necessary libraries
library(ggplot2)
library(reshape2)

#create data frame
df <- data.frame(index=c(1, 2, 3, 4, 5, 6),
                 var1=c(4, 4, 5, 4, 3, 2),
                 var2=c(1, 2, 4, 4, 6, 9),
                 var3=c(9, 9, 9, 5, 5, 3))

#melt data frame into long format
df <- melt(df ,  id.vars = 'index', variable.name = 'series')

#create line plot for each column in data frame
ggplot(df, aes(index, value)) +
  geom_line() +
  facet_grid(series ~ .)

By implementing this facetting layer, we successfully achieve powerful visual separation. Each variable (var1, var2, and var3) is now clearly displayed within its own dedicated panel, eliminating any potential visual interference. This structure allows for a precise analysis of each variable’s individual trajectory, while the shared x-axis (index) still maintains the ability to compare temporal correspondence across the different facets, thereby maximizing both clarity and interpretability.

Strategic Decisions for Multivariate Plotting

The mastery of visualizing multiple columns in R fundamentally relies on a deep understanding of the wide-to-long data transformation. This crucial preparation step, facilitated by utility functions like melt(), is not just specific to line graphs but is foundational for nearly all complex multivariate visualizations built upon the sophisticated concepts of the grammar of graphics.

Choosing the correct visualization strategy—either an overlaid single plot (Example 1) or a segmented, faceted plot (Example 2)—is a critical analytical decision that impacts the clarity and validity of the findings. Analysts must weigh the benefits of direct comparison against the risks of visual clutter and scale misalignment. The following guidelines should inform this strategic choice:

• Use Single Plots (Overlay): This method is ideal when the primary analytical goal is a rapid, high-level comparison between trends, particularly when all variables share similar measurement scales or units. It excels at immediately highlighting points of convergence, divergence, or correlation. The effective use of aesthetic mapping (such as distinct colors or line types) is essential to ensure readability.
• Use Facetted Plots: Opt for facetting when the variables have vastly different scales or units (which would distort an overlaid plot), when a detailed, deep-dive inspection of each variable’s individual behavior is necessary, or when overlapping lines severely compromise the clarity of the visualization. Facetting guarantees that each trend is shown on its optimal scale, preventing misleading visual comparisons caused by differing magnitudes.

By skillfully applying data transformation techniques and effectively leveraging the aesthetic and facetting layers provided by ggplot2, data scientists can consistently produce informative, professional-quality multivariate graphics that accurately communicate complex relationships within their datasets.
