Plot Multiple Lines in Matplotlib

The ability to display multiple data series within a single graph is arguably the most fundamental capability of any robust charting library. In Python, this task is efficiently handled by Matplotlib, which serves as the foundational engine for high-quality data visualizations. Multi-line plotting is essential for effective comparative analysis, allowing researchers, engineers, and data scientists to directly assess trends, correlations, divergences, or performance metrics across several variables simultaneously. This method elevates standard reporting into powerful data visualization, enabling swift, insightful conclusions regarding complex datasets.

The core mechanism for plotting multiple lines is surprisingly straightforward. Matplotlib operates on a principle of sequential layering: every call to the primary plotting function, plt.plot(), adds a new line or series onto the currently active set of axes. This stacking process continues until the final display command, plt.show(), is executed. Crucially, the library automatically manages essential visual differentiation, assigning distinct colors to each series by default, thus ensuring basic separation and readability right out of the box.

The technical syntax for layering these plots is elegant and highly repeatable, typically involving iterative calls against columns extracted from a structured data source, such as a Pandas DataFrame.

import matplotlib.pyplot as plt

plt.plot(df['column1'])
plt.plot(df['column2'])
plt.plot(df['column3'])

...
plt.show()

This comprehensive tutorial is meticulously structured to guide you from raw data preparation to the creation of a polished, presentation-ready chart. We will explore how to execute the basic plot, then move into advanced techniques for customizing appearance, integrating critical elements like legends, and adding informative titles and axis labels for maximum clarity. Our journey begins by constructing a robust sample dataset using the standard analytical toolkit available in Python.

Preparing the Sample Data for Visualization

To produce meaningful visualizations, we must first ensure we have a representative and well-structured dataset. For the purposes of this guide, we will leverage the capabilities of the Pandas library to generate a synthetic time-series dataset that simulates 100 periods of marketing performance data. This dataset includes key metrics: period (the independent variable or time index), and dependent variables such as leads, prospects, and sales. Utilizing a Pandas DataFrame ensures the data is in the standard, highly efficient format expected by Matplotlib and other data analysis tools.

The creation of synthetic data is greatly simplified using the NumPy library, which provides high-performance tools for numerical operations and random number generation. A critical best practice in data analysis tutorials is ensuring reproducibility. We achieve this by invoking numpy.random.seed(0) at the start of our script. Setting this seed guarantees that the sequence of random numbers generated for our metrics—even those simulating real-world random noise—will remain identical every time the code is executed, making the output predictable and verifiable.

The structure of the data mimics realistic trends. For instance, the sales metric is deliberately modeled to exhibit a slight, deterministic upward trend based on the period number (60 + 2*period), overlaid with normally distributed random variability (noise), reflecting the complexities of actual business data. The other columns, leads and prospects, are generated using uniform distributions to introduce contrast and complexity into the resulting visualizations.

The following code snippet demonstrates the creation of our sample Pandas DataFrame:

import numpy as np
import pandas as pd

#make this example reproducible
np.random.seed(0)

#create dataset
period = np.arange(1, 101, 1)
leads = np.random.uniform(1, 50, 100)
prospects = np.random.uniform(40, 80, 100)
sales = 60 + 2*period + np.random.normal(loc=0, scale=.5*period, size=100)
df = pd.DataFrame({'period': period,
                   'leads': leads,
                   'prospects': prospects,
                   'sales': sales})

#view first 10 rows
df.head(10)


        period	    leads	prospects	    sales
0	1	27.891862	67.112661	62.563318
1	2	36.044279	50.800319	62.920068
2	3	30.535405	69.407761	64.278797
3	4	27.699276	78.487542	67.124360
4	5	21.759085	49.950126	68.754919
5	6	32.648812	63.046293	77.788596
6	7	22.441773	63.681677	77.322973
7	8	44.696877	62.890076	76.350205
8	9	48.219475	48.923265	72.485540
9	10	19.788634	78.109960	84.221815

This carefully constructed Pandas DataFrame now provides the foundation we need. With three distinct numerical series—leads, prospects, and sales—ready to be plotted against the period index, we are prepared to move on to the visualization phase. This setup is the mandatory first step for virtually all subsequent comparative plotting exercises in Python.

Plotting Three Lines Simultaneously in Matplotlib

The most direct method of creating a multi-line visualization involves sequentially calling the plt.plot() function for each column intended for visualization. The library intelligently manages the layering process, automatically stacking these graphical elements onto a single set of axes. This inherent design simplicity is one of Matplotlib‘s greatest strengths, allowing for rapid initial prototyping of data relationships.

In the absence of an explicit x-axis specification, Matplotlib defaults to using the integer index of the input data structure. Since our DataFrame contains 100 periods (indices 0 through 99), these indices become the default values for the horizontal axis. Furthermore, the library’s default color cycle ensures that each line receives a unique hue, which is typically sufficient for distinguishing three or four series without manual intervention.

The following code snippet demonstrates the minimal required syntax to generate this foundational multi-line plot, showcasing the trends of leads, prospects, and sales:

import matplotlib.pyplot as plt

#plot individual lines
plt.plot(df['leads'])
plt.plot(df['prospects'])
plt.plot(df['sales'])

#display plot
plt.show()

While this basic plot is technically functional, it represents only the first stage of effective data visualization. The primary drawback of this output is its lack of crucial context: without explicit labels or a legend, a viewer cannot definitively identify which line corresponds to which metric. The lines are visible, but the analysis remains incomplete. The subsequent steps are dedicated to transforming this raw output into an easily interpretable analytical tool.

Customizing Line Color, Style, and Width

Moving beyond the default settings is crucial for creating professional, accessible, and high-impact visualizations. While default colors offer differentiation, customization ensures that lines remain distinct even when they overlap, intersect, or if the chart is viewed by someone with color vision deficiency. We achieve this by manipulating the aesthetic parameters available within the plt.plot() function.

The three primary parameters for aesthetic control are:

1. color: This parameter allows precise control over the line color. Users can specify standard color names (e.g., 'red', 'blue'), standardized abbreviations (e.g., 'k' for black), or highly precise hexadecimal color codes (e.g., '#FF5733'). Selecting a meaningful color palette can significantly enhance the chart’s message.
2. linewidth: Controlling the thickness of the line is achieved through a numeric value. Increasing the linewidth makes a series more prominent, a technique often used to emphasize the most critical metric in the comparison, such as sales.
3. linestyle (or ls): This parameter dictates the pattern of the line. Options include solid ('-', the default), dashed ('--'), dotted (':'), or a combination like dash-dot ('-.'). Varying the line style is an excellent way to maintain visual separation when printing charts in grayscale or when two lines share a similar color.

By applying these parameters judiciously, we transform the visualization from a simple overlay into a sophisticated graphical comparison, assigning unique visual weights and patterns to each metric based on its importance.

The following code demonstrates how to apply specific customizations to each line:

#plot individual lines with custom colors, styles, and widths
plt.plot(df['leads'], color='green')
plt.plot(df['prospects'], color='steelblue', linewidth=4)
plt.plot(df['sales'], color='purple', linestyle='dashed')

#display plot
plt.show()

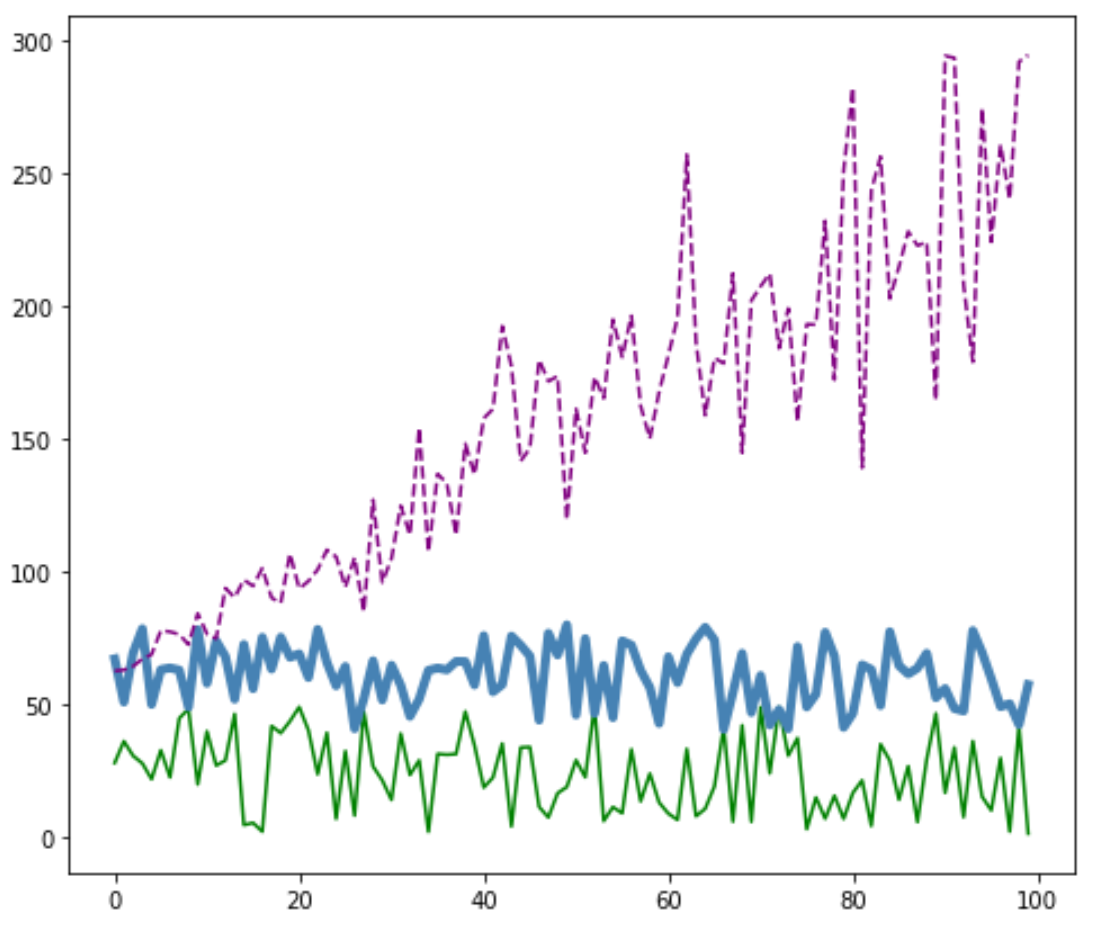

The resulting visual differentiation (as seen in the output image) is immediate and powerful, making the comparison between the heavily weighted prospects line and the dashed sales line much clearer, even before adding textual labels.

Integrating a Legend for Clarity

A multi-line plot is inherently incomplete without a legend, which acts as the definitive key, translating the graphical attributes (color, style, width) back into the corresponding data label. For professional reporting and accurate interpretation, the legend is a non-negotiable component.

In Matplotlib, incorporating a legend requires a streamlined two-step procedure that ensures metadata is captured during plotting and displayed correctly afterward:

1. The label argument must be defined within each individual plt.plot() call. This text string (e.g., ‘Leads’, ‘Prospects’) is the precise descriptor that will appear in the final legend box.
2. After all data series have been plotted and their labels assigned, the function plt.legend() must be called. This function processes the accumulated labels and automatically generates the legend box, intelligently attempting to place it in a location on the chart that minimizes obscuring the actual plotted data.

For our marketing performance chart, we are now assigning the clear, descriptive labels ‘Leads’, ‘Prospects’, and ‘Sales’. This ensures that viewers can effortlessly track and compare the performance of each metric over the 100 periods represented on the x-axis.

#plot individual lines with custom colors, styles, and widths
plt.plot(df['leads'], label='Leads', color='green')
plt.plot(df['prospects'], label='Prospects', color='steelblue', linewidth=4)
plt.plot(df['sales'], label='Sales', color='purple', linestyle='dashed')

#add legend
plt.legend()

#display plot
plt.show()

With the legend successfully implemented, the visualization is functionally complete in terms of identifying its components. We now move to the final, necessary steps of adding external context to fully prepare the chart for analysis or presentation.

Adding Axis Labels and Titles for Context

The final essential step in generating a publication-ready visualization involves adding explicit textual context through axis labels and a title. These elements anchor the visual data within the real-world context it represents, transforming an abstract graph into a meaningful data narrative.

We employ three standard functions for this purpose:

• plt.xlabel(): Defines the label for the horizontal axis. In our case, ‘Period’ clearly indicates the independent variable (time index).
• plt.ylabel(): Defines the label for the vertical axis. Here, ‘Sales’ (or ‘Metric Magnitude’) gives context to the range of the dependent variables.
• plt.title(): Sets the main, descriptive heading for the entire chart, summarizing its content, such as ‘Company Metrics Over Time’.

It is highly recommended to utilize the optional fontsize parameter within these functions. Increasing the font size—for example, setting the title font to 16 and axis labels to 14—ensures high visibility and legibility, a critical aspect when charts are embedded in reports or projected during presentations. This attention to detail dramatically improves the overall professional quality of the output.

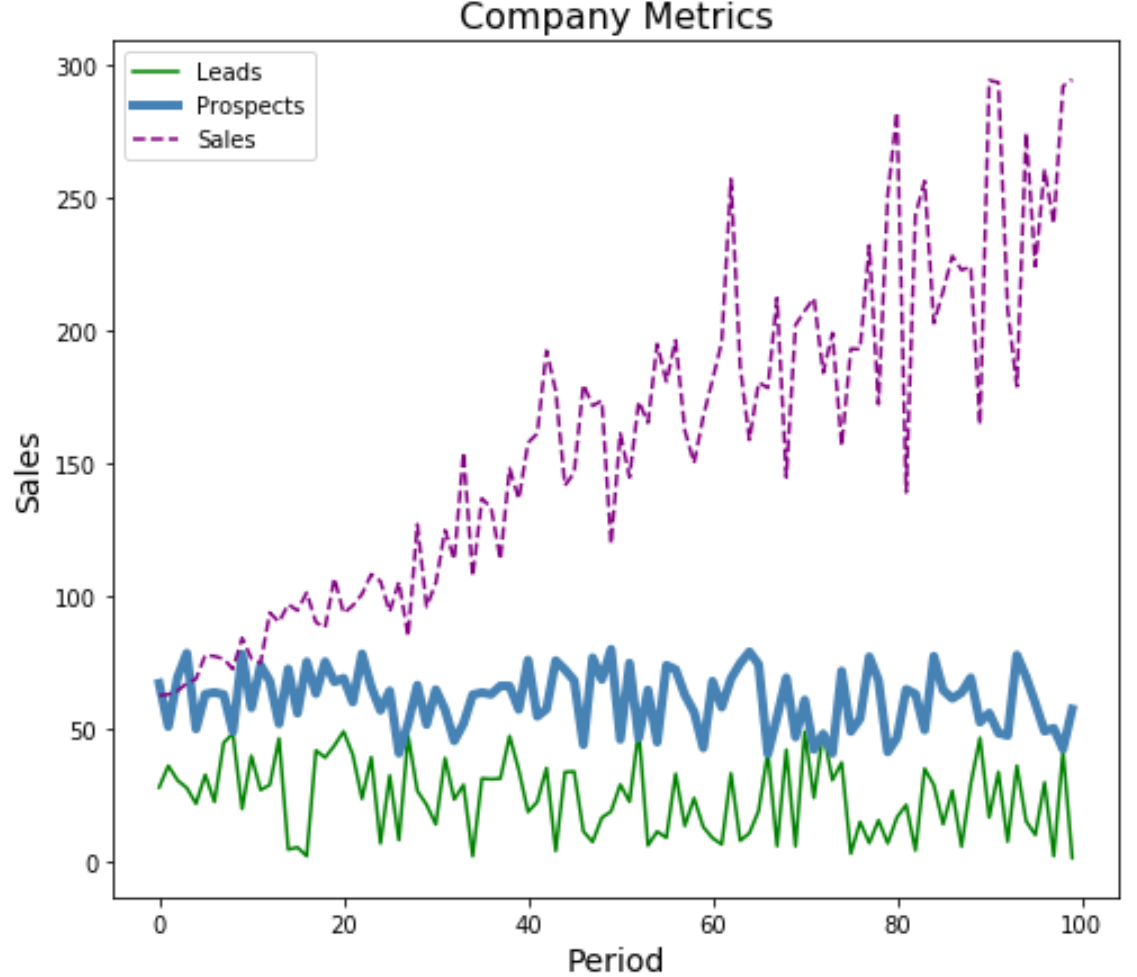

This comprehensive code block synthesizes all previous steps, resulting in the final, fully contextualized visualization:

#plot individual lines with custom colors, styles, and widths
plt.plot(df['leads'], label='Leads', color='green')
plt.plot(df['prospects'], label='Prospects', color='steelblue', linewidth=4)
plt.plot(df['sales'], label='Sales', color='purple', linestyle='dashed')

#add legend
plt.legend()

#add axis labels and a title
plt.ylabel('Sales', fontsize=14)
plt.xlabel('Period', fontsize=14)
plt.title('Company Metrics', fontsize=16)

#display plot
plt.show()

By methodically following this structured approach—from data preparation using NumPy and Pandas, through plotting and aesthetic customization, to the integration of legends and labels—you have mastered the technique of effectively plotting and managing multiple lines within a single Python chart. This fundamental skill is vital for robust multivariate analysis and time-series comparisons in any analytical context.

For data professionals seeking to further refine their output, Matplotlib offers advanced customization avenues, including intricate control over tick marks, grid lines, and the creation of complex figure layouts using subplots. Mastering these advanced features is key to elevating your data visualization proficiency.
