Plot Multiple Lines in Seaborn (With Example)

Introduction: Visualizing Comparative Trends with Seaborn’s lineplot()

In the expansive world of data visualization, the ability to clearly depict changes and comparisons over a continuous variable, such as time, is absolutely essential. When utilizing the Python ecosystem for statistical graphics, the Seaborn library stands out as a high-level interface tailored for creating informative and aesthetically pleasing plots based on datasets. A frequently encountered requirement is the need to plot multiple distinct series or groups on a single graph to facilitate direct comparison of their trajectories.

This comprehensive guide is designed to provide you with an expert walkthrough on generating powerful multi-line visualizations using Seaborn’s primary relational function, lineplot(). We will meticulously examine the foundational syntax required for handling multi-series data, progress through a detailed, practical example centered around analyzing retail sales trends, and explore crucial customization options, including color palettes and data structure transformations.

By mastering the techniques presented in this tutorial, you will gain the proficiency needed to visualize complex temporal relationships and comparative trends within your pandas DataFrame objects, thereby significantly enhancing the clarity and impact of your data storytelling.

Utilizing Wide-Format Data: The Simple Syntax for Multiple Lines

The foundation of plotting multiple lines efficiently with Seaborn lies in how it interprets the structure of your input data. When your data is arranged in a ‘wide format’—meaning each column intended to be plotted as an individual line represents a distinct measurement series over a common index—Seaborn’s lineplot() function can automatically handle the visualization. This approach is highly efficient for quick comparisons when the underlying index (e.g., time or year) is implicitly defined by the row order or index of the DataFrame.

The most straightforward technique involves passing a subset of the DataFrame that contains only the columns you wish to visualize as separate lines directly to the `data` argument of the function. Seaborn then treats each specified column as a separate series, automatically assigning unique color mappings and generating an appropriate legend to distinguish between them.

Imagine a scenario where we have a DataFrame, creatively named `df`, containing columns labeled ‘col1’, ‘col2’, and ‘col3’, each tracking a distinct metric over a shared progression. The following concise syntax demonstrates how to command Seaborn to render all three columns simultaneously as individual lines on a unified graph:

import seaborn as sns

sns.lineplot(data=df[['col1', 'col2', 'col3']]

Executing this brief command generates a plot featuring three visually distinct lines, each meticulously mapped to the data points found in ‘col1’, ‘col2’, and ‘col3’, respectively. This efficiency highlights why Seaborn is favored for preliminary statistical graphics: it intuitively infers that every column provided in the input list should be treated as a separate series designated for plotting.

Practical Demonstration: Analyzing Multi-Store Sales Trends

To solidify our understanding of multi-line plotting, we will apply these concepts to a typical business intelligence problem: tracking and comparing the sales performance across several retail locations over an extended period. Our initial step requires the creation of a representative pandas DataFrame that successfully simulates this crucial sales data, establishing the bedrock for our subsequent visualizations.

For this example, our simulated dataset will encompass sales figures recorded for four distinct retail entities—labeled Stores A, B, C, and D—spanning eight consecutive years. This structure represents classic time-series data, which is optimally suited for line plots. Utilizing this format allows data analysts to easily observe longitudinal trends, detect performance fluctuations, and conduct side-by-side comparisons of each store’s trajectory.

The following Python code snippet demonstrates the creation and immediate inspection of this preparatory DataFrame:

import pandas as pd

# Create the sales DataFrame
df = pd.DataFrame({'year': [1, 2, 3, 4, 5, 6, 7, 8],
                   'A': [10, 12, 14, 15, 15, 14, 13, 18],
                   'B': [18, 18, 19, 14, 14, 11, 20, 28],
                   'C': [5, 7, 7, 9, 12, 9, 9, 4],
                   'D': [11, 8, 10, 6, 6, 5, 9, 12]})

# View the resulting DataFrame structure
print(df)

   year   A   B   C   D
0     1  10  18   5  11
1     2  12  18   7   8
2     3  14  19   7  10
3     4  15  14   9   6
4     5  15  14  12   6
5     6  14  11   9   5
6     7  13  20   9   9
7     8  18  28   4  12

The output confirms that our DataFrame is correctly structured in the wide format, featuring a ‘year’ column (acting as our x-axis variable) and dedicated columns for the sales of each store (‘A’, ‘B’, ‘C’, ‘D’). This wide arrangement is perfectly configured for direct plotting using Seaborn, allowing us to proceed directly to the visualization phase where we compare the sales trajectories of all four stores simultaneously.

Generating the Initial Comparative Multi-Line Plot

With our structured sales DataFrame now in place, we can execute the core task: creating our first multi-line plot using the power of Seaborn. The primary goal remains visualizing the individual sales performance trends for each store (A, B, C, and D) across the entire eight-year range. By representing each store’s sales trajectory as a distinct line, we are immediately positioned to observe growth, stability, or decline patterns specific to each entity.

To accomplish this visualization with maximum simplicity, we call the lineplot() function, providing it with a filtered subset of our DataFrame that includes only the sales columns (A, B, C, D). As noted previously, Seaborn’s intelligence allows it to infer that each column in this input subset should correspond to a unique line on the resulting plot.

Crucially, Seaborn automatically assigns a unique color to every line and generates an informative legend, typically placed outside the plotting area or in a non-obtrusive location, which ensures immediate clarity and distinction without requiring manual specification of colors or labels.

import seaborn as sns

# Plot sales of each store as a distinct line
sns.lineplot(data=df[['A', 'B', 'C', 'D']])

As clearly illustrated in the resulting graphic, each line visually captures the sales performance of one of the four retail stores over the observed period. The automatically generated legend, positioned for convenient reference, precisely maps each color to its corresponding store, greatly simplifying the interpretation of individual trends and facilitating effortless comparisons among the different entities at a glance.

Advanced Customization: Palettes and Data Transformation

While the default aesthetics provided by Seaborn are often high-quality, professional data communication frequently necessitates customization of colors, either for adherence to corporate branding guidelines, enhancing visual contrast, or highlighting specific series. The lineplot() function accommodates this need through the powerful `palette` argument, which accepts a list of color specifications to be used sequentially for each line in the visualization.

Let’s refine our sales data plot by assigning a specific, custom set of colors to the lines. This modification significantly improves the visual impact and ensures the graph aligns with tailored presentation requirements. It is important to remember that the sequence of colors supplied to the `palette` argument must strictly correspond to the order of the columns specified in the DataFrame subset provided to the `data` argument.

import seaborn as sns

# Plot sales of each store with custom colors
sns.lineplot(data=df[['A', 'B', 'C', 'D']], palette=['red', 'blue', 'purple', 'pink'])

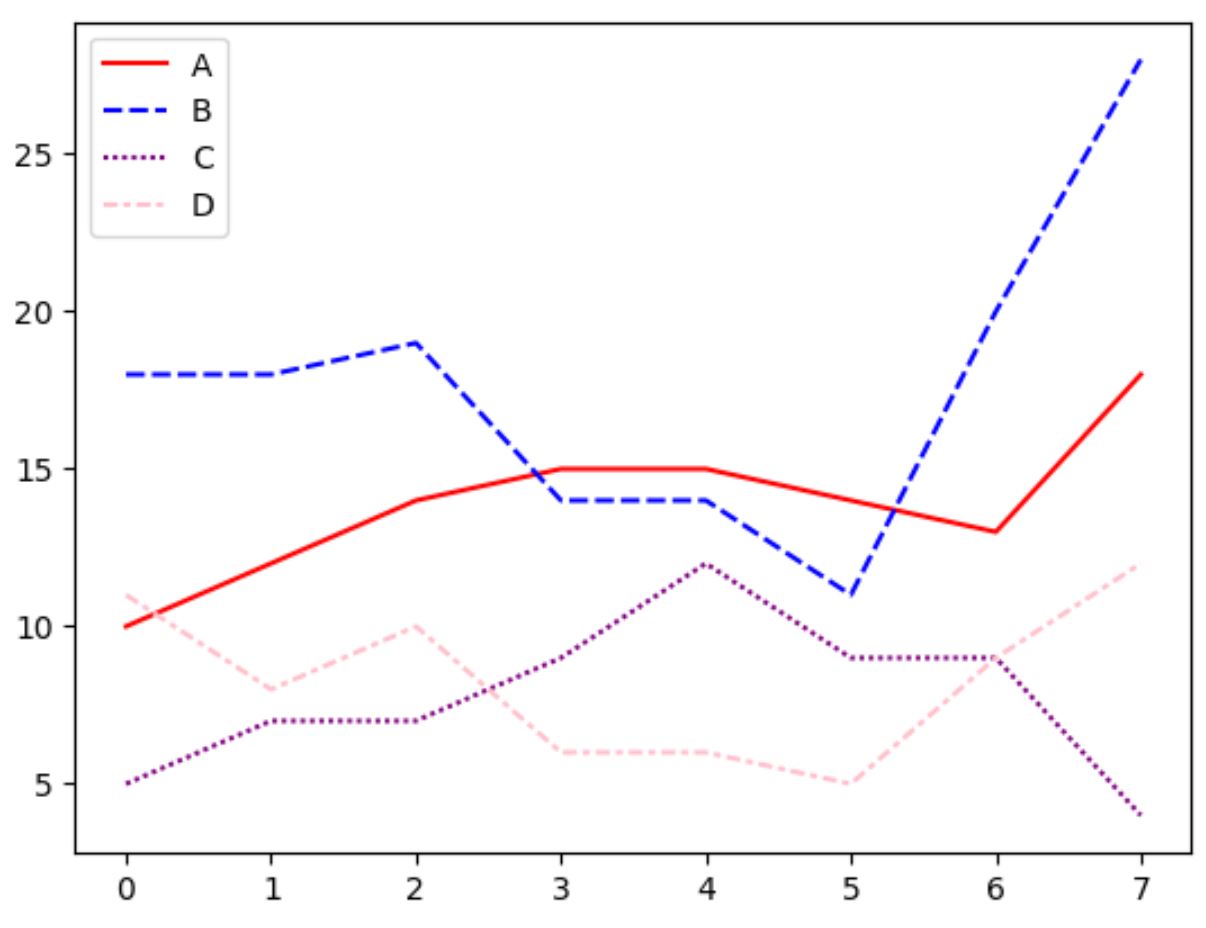

Observing the new plot, it is evident that the line colors now precisely reflect the custom values specified within the `palette` argument. However, for achieving more precise control over aesthetic mappings, especially when dealing with categorical variables (known as ‘hue’ variables), transforming the data structure from the current ‘wide’ format into a ‘long’ format is often the superior approach. This conversion is handled expertly by the melt() function provided by the pandas library.

The process of melting reshapes the DataFrame by collapsing the column headers (the store names) into a single categorical column, typically named ‘variable’ (or ‘Store’ in a real-world scenario), and placing their corresponding numeric values into a ‘value’ column. This ‘long-form’ data structure is ideally suited for Seaborn functions that explicitly utilize the `x`, `y`, and `hue` arguments. Using this structure grants analysts granular control over how variables are mapped to visual properties, enabling us to map the ‘year’ to the x-axis, the ‘sales value’ to the y-axis, and the ‘store identifier’ (variable) to the hue, which dictates color assignment.

import seaborn as sns

# Plotting with melted data using x, y, and hue arguments
sns.lineplot(x='year', y='value', hue='variable',
             data=pd.melt(df, ['year']),
             palette=['red', 'blue', 'purple', 'pink'])

The final, refined plot generated using the `x`, `y`, and `hue` parameters alongside our melted DataFrame produces exceptionally clean and consistent visual results. Every line is rendered uniformly, demonstrating the enhanced control afforded by the long-form data structure. This methodology is particularly valuable when constructing complex statistical graphics and bespoke visualizations that require precise mapping of data attributes to visual elements.

Best Practices for Effective Multi-Line Visualization

When constructing multi-line plots, adherence to established best practices is crucial for maximizing their effectiveness and ensuring straightforward interpretability for the audience. The initial consideration should always be data preparation: recognizing whether your data is best handled in a wide format for rapid plotting or if a transformation using pd.melt to the long format is necessary for explicit control over `x`, `y`, and `hue` mappings. For any compelling data visualization, fundamental elements such as clear axis labeling, the inclusion of a descriptive title, and the judicious positioning of legends are indispensable.

A critical element to manage is the complexity introduced by the number of lines. Plotting an excessive number of series simultaneously can result in a confusing, cluttered, and ultimately unreadable graph, a phenomenon often termed “chart junk.” If confronted with numerous series, consider employing strategic simplification methods. These may include grouping related series together, utilizing small multiples (faceting), or transitioning to interactive plots where the user can selectively display the lines of interest. Furthermore, selecting an accessible and high-contrast palette is necessary to ensure the plot is readable for all viewers.

Troubleshooting Note: Should you encounter difficulties initiating Seaborn, particularly within an interactive environment like a Jupyter notebook, the problem usually stems from the package being either uninstalled or unrecognized by the current kernel. In such cases, the remedy involves installing the required library. For users within a Jupyter environment, execute the command %pip install seaborn in a cell. Conversely, if you are working with standard standalone Python scripts, the installation should be performed via the terminal or command prompt using pip install seaborn.

Conclusion and Suggested Resources

The ability to plot and analyze multiple series simultaneously using Seaborn represents a cornerstone skill for professionals engaged in data analysis and visualization. We have demonstrated that Seaborn’s lineplot() function provides a flexible and powerful mechanism for comparing different categories, illustrating temporal trends, and explicitly highlighting intricate relationships latent within your data. Having covered techniques ranging from the simplified wide-format plotting to advanced aesthetic control via custom palettes and data reshaping using pd.melt, you are now equipped with the tools necessary to generate robust and visually appealing multi-line graphs.

We strongly encourage you to extend your practice by experimenting with diverse datasets and fully exploring the extensive customization capabilities that Seaborn provides. These options include adding detailed axis labels, integrating markers for discrete points, adjusting line styles, and even combining Seaborn with Matplotlib for highly granular, specialized control over plot elements. The capacity to clearly articulate complex data dynamics through compelling visual narratives is arguably the most valuable asset in any data-centric domain.

Additional Resources for Deepening Expertise

For those seeking to further enhance their proficiency and investigate other common data tasks within the Seaborn framework, the following authoritative resources are highly recommended:

• The Official Seaborn Documentation, serving as the primary reference for all functions and parameters.
• The comprehensive Pandas Documentation, essential for mastering data manipulation and transformation techniques.
• Specialized tutorials detailing advanced relational plots in Seaborn, which cover detailed mappings and statistical representations.
