Learning R: Visualizing Matrix Rows as Line Graphs with Examples

Introduction to Visualizing Row-Oriented Data in R

The R programming language stands as a foundational tool for quantitative analysis, frequently requiring the organization of complex data sets into high-dimensional matrices. In many analytical contexts, especially those dealing with time series or multivariate profiles, the primary sequence of observations is stored across the rows of the data structure, meaning each row represents a distinct variable or entity being tracked over time or across conditions.

A persistent challenge arises because R’s default plotting mechanisms, including many base graphics functions, are intrinsically designed to interpret and plot data found in the columns of an object. If a user attempts to plot a matrix where the series of interest are rows, the resulting visualization will incorrectly map the data, potentially leading to misinterpretation or simply rendering an unusable graph. Overcoming this structural incompatibility is essential for accurate data visualization.

Fortunately, R provides an elegant and highly efficient solution that leverages the properties of linear algebra combined with the specialized capabilities of the matplot function. This technique centers on the concept of data transposition, ensuring that the row-wise data is structurally aligned with the function’s column-wise expectations. The fundamental command required to achieve this visualization is remarkably concise, relying on the following syntax:

matplot(t(matrix_name), type = "l")

This introductory guide provides a formal, step-by-step tutorial demonstrating the implementation of this technique, ensuring that every row of your matrix is correctly rendered as an individual line graph on a unified coordinate plane.

Deconstructing the Core Mechanism: Transposition and matplot

To master the visualization of row data, it is crucial to first understand the operational design of the matplot function. This function is specifically optimized for plotting multiple columns simultaneously against a common index (usually the row index). When a matrix is passed to matplot, it assumes that each column represents an independent series to be plotted, rendering a distinct line for every column present in the input data frame or matrix.

When our data structure dictates that the observations or series are organized along the rows—for instance, if Row 1 is “Patient A’s Heart Rate” and Row 2 is “Patient B’s Heart Rate”—we must perform a structural alteration prior to plotting. This necessary alteration is achieved by calculating the Transpose of the matrix. Transposition is a mathematical operation that flips a matrix over its diagonal, effectively swapping the row and column indices.

In R, the transpose operation is executed using the concise function t(). By passing t(matrix_name) to matplot, we convert the original N rows of interest into N columns, thereby fulfilling the plotting function’s requirement. The original columns, which represented the observation indices, now form the rows of the transposed matrix, which matplot automatically plots along the X-axis. Furthermore, the argument type = "l" is used to instruct the function to connect the data points with continuous lines, a format most suitable for visualizing sequential or time-dependent data.

Setting Up a Reproducible Matrix Example

For a clear demonstration, we will begin by creating a synthetic data set. In the spirit of reproducibility, a cornerstone of sound statistical practice, we first set the seed for the random number generator using set.seed(1). This ensures that the generated data set is identical every time the code is executed, allowing for easy verification of the results.

Our synthetic matrix will be designed to contain three separate data series (the rows) measured across seven common observation points (the columns). We utilize R’s matrix() function combined with sample.int() to generate 21 random integers between 1 and 50. These 21 values are then organized into a structure with exactly 3 rows, resulting in a 3×7 matrix named data.

Viewing the resulting matrix confirms its dimensions and content. It is essential to recognize that Row 1, Row 2, and Row 3 represent the three distinct profiles or trajectories we intend to visualize individually. The column indices, ranging from 1 to 7, will inherently define the scale and indexing of the X-axis in our final plot, representing the progression of the observations:

#make this example reproducible
set.seed(1)

#create matrix
data <- matrix(sample.int(50, 21), nrow=3)

#view matrix
data

     [,1] [,2] [,3] [,4] [,5] [,6] [,7]
[1,]    4   34   14   21    7   40   12
[2,]   39   23   18   41    9   25   36
[3,]    1   43   33   10   15   47   48

Implementing the Basic Row Plot Command

With the data structured appropriately, the visualization process is straightforward. The next step involves executing the matplot command, ensuring that the transpose function t() is applied directly to the data object before it is processed by the plotting function. This single modification is the critical link between the row-oriented data structure and the column-oriented plotting mechanism:

matplot(t(data), type = "l")

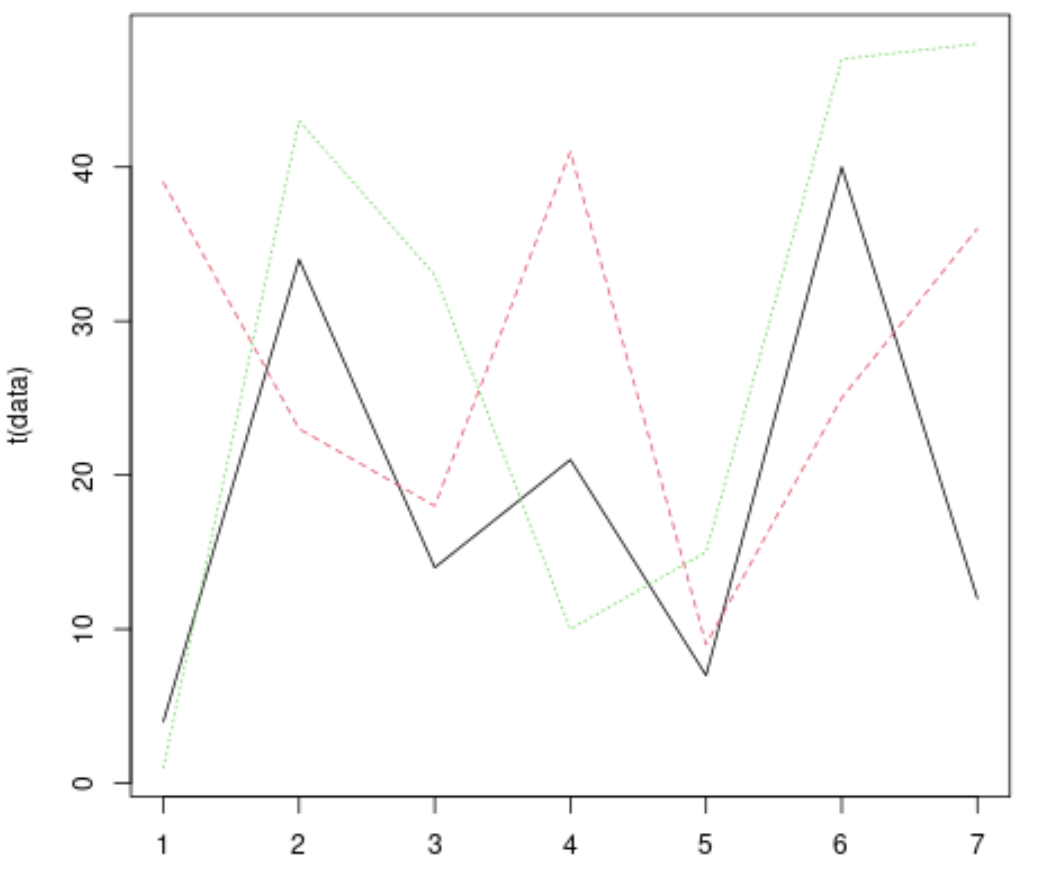

Upon execution, the resulting graph immediately displays three distinct line series. Each line perfectly corresponds to one of the original three rows in the matrix. The matplot function automatically handles the visual differentiation of these series by cycling through R’s default color palette and line types, ensuring that even a basic plot is immediately interpretable.

The X-axis of the plot automatically scales from 1 to 7, reflecting the seven observation points (columns) in the original matrix structure, while the Y-axis accurately reflects the magnitude of the numerical values contained within the matrix cells. This visualization successfully transforms the raw, tabular numerical data into an easily digestible graphical representation, confirming that transposition is the mandatory step for row plotting.

Achieving Professional Quality through Advanced Customization

While the initial plot fulfills the technical requirement of visualizing the rows, the standard R output often lacks the clarity and aesthetic quality necessary for formal presentations or publications. The matplot function is highly versatile, inheriting the extensive graphical parameter controls available in R’s base graphics system, allowing for deep customization.

To enhance the visual impact and improve the interpretability of our matrix visualization, we can modify several key graphical parameters. In the following enhanced example, we focus on improving line boldness and providing informative labels for context. The lwd parameter sets the line width to 2, providing greater visual weight to the trajectories, and main and ylab are used to apply clear descriptive text to the title and the vertical axis, respectively.

The modified command incorporates these parameters directly into the function call, yielding a significantly more polished and informative output:

matplot(t(data),
        type = "l",
        lwd = 2,
        main="Plotting the Rows of a Matrix",
        ylab="Value")

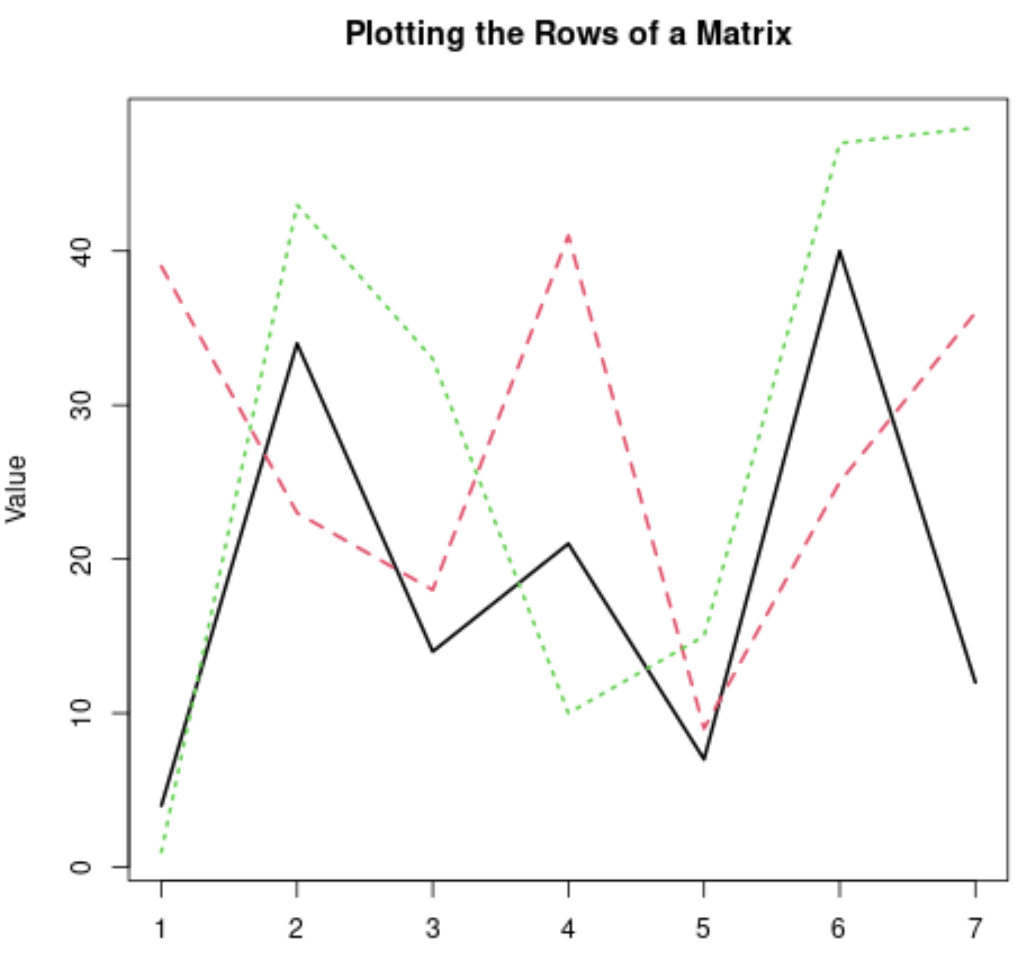

This level of customization is crucial for scientific reporting, where clear, well-labeled visualizations are paramount to effective communication. The resulting graph is not only technically correct but also aesthetically superior, dramatically aiding the reader’s interpretation of the multivariate trends.

Best Practices for Distinct Series Visualization

For complex data sets involving many rows or when specific visual standards must be met, relying on R’s default color and line cycling is often insufficient. Advanced users should take explicit control over the visual aesthetics to ensure that every series remains clearly distinguishable under all viewing conditions, including reproduction in black and white.

The control over visual properties is achieved by supplying vectors of parameters, with each element in the vector corresponding sequentially to one of the plotted rows (series):

• Colors (col): Manually assigning colors via a vector (e.g., col = c("blue", "red", "green", "black")) allows for deterministic mapping. This ensures that Row 1 is always blue, Row 2 is always red, and so forth, which is vital when comparing results across multiple visualizations or analyses.

• Line Types (lty): The lty parameter manages the style of the line (e.g., solid, dashed, dotted). Specifying distinct line types is essential for maintaining clarity and differentiation when the graph is printed without color or when color blindness is a consideration.

• X-Axis Label (xlab): While the default X-axis displays sequential indices, this is often meaningless in real-world applications. Always use the xlab parameter to clearly label what the columns represent—be it time points, distance measurements, or experimental conditions.

A final, yet critical, step in producing publication-quality graphics using matplot is the addition of a legend. Since matplot does not automatically generate series labels, the standard R legend() function must be used post-plotting. The legend maps the manually or automatically assigned colors and line types back to the meaningful labels of the original rows, dramatically enhancing the clarity and completeness of the visualization for any reader.

Conclusion: Mastering Row-Wise Data Visualization in R

The ability to accurately plot the rows of a matrix is a fundamental skill in multivariate data analysis within the R programming language. The core challenge lies in bridging the gap between the row-oriented storage of data series and the column-oriented requirements of R’s plotting functions. By mastering the application of the t() function for transposition, users can efficiently convert their data structure to meet these requirements.

Combined with the robust customization options available within the matplot function, this technique provides a highly reliable and efficient workflow for generating clear, accurate, and professional visualizations of complex data profiles. This specialized approach ensures that multivariate data exploration is both accurate and visually compelling.
