Creating Scatter Plots (X vs. Y) in Excel: A Step-by-Step Guide

When conducting in-depth analysis of quantitative data, one of the most powerful and immediate methods for uncovering the relationship between two distinct variables is the creation of an X vs. Y plot. This visualization is universally recognized as a scatter plot, and it serves as a critical tool for identifying potential correlation, defining underlying patterns, or flagging unexpected anomalies within a complex dataset. Fortunately, executing this essential task within Microsoft Excel is a highly systematic and efficient process that transforms raw numerical observations into clear, impactful graphical representations.

This comprehensive, step-by-step tutorial is designed to guide you through the precise setup and plotting process. We will ensure that you can accurately map your independent (X) and dependent (Y) variables, and then apply crucial customizations necessary to achieve maximum clarity and professional quality in your final chart presentation.

Step 1: Structuring Your Data for Optimal Visualization

The success of any graphical representation hinges upon the correct organization of the source data. For plotting X vs. Y values in Excel, the dataset must be meticulously arranged into two adjacent columns. By convention, the column containing the data for the independent variable (which will define the X-axis) must always precede, or be placed immediately to the left of, the column containing the data for the dependent variable (the Y-axis data).

This specific arrangement is not merely a suggestion; it is a critical requirement that allows Excel to automatically and accurately assign the correct variables to their corresponding axes during the chart generation phase, significantly streamlining the entire plotting procedure. Deviations from this standard may result in misaligned axes or require additional, complex manual data configuration.

For demonstration purposes, we will utilize a specific sample dataset that illustrates a clear and discernible linear relationship between two measures. Please input the following numerical values into a new worksheet, beginning your entry in cell A1. It is imperative that your X-values (Column A) and Y-values (Column B) are aligned row-by-row, as each pair represents a single, cohesive observation. The integrity of this paired structure is fundamental for accurate data visualization.

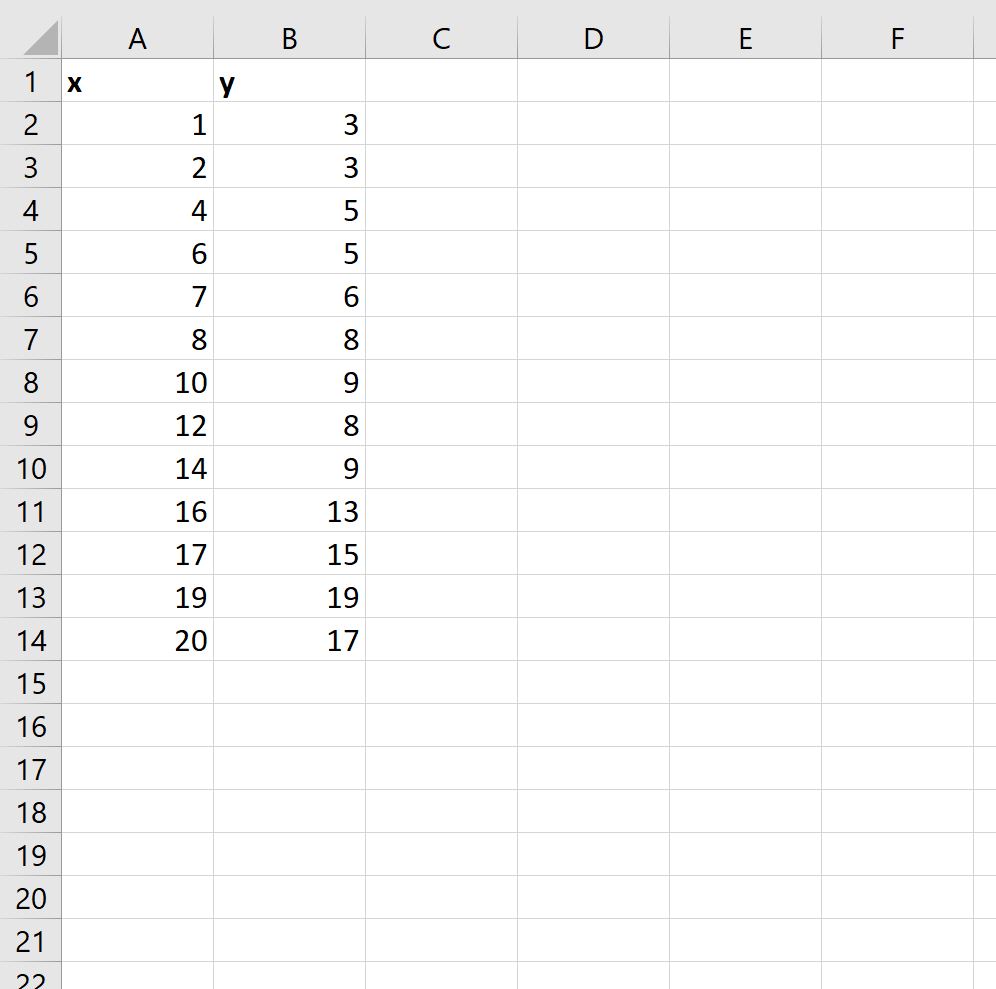

The exact structure of the dataset we are using for this tutorial is displayed below. Although the header rows are technically optional for the plot generation routine itself, they are absolutely essential for maintaining organizational rigor and providing immediate clarity regarding the variables being analyzed within the worksheet environment.

Step 2: Generating the Initial Scatter Plot

Once the foundation—the data—is correctly entered and thoroughly verified, the subsequent step involves instructing Excel to render the visual output. The scatter plot remains the unequivocally ideal chart type for this application, as its fundamental design displays every individual data point using precise Cartesian coordinates. This immediate visual representation enables analysts to quickly assess the overall distribution, density, and nature of the relationship existing between the two variables.

To successfully initiate the plot creation sequence, adhere closely to the following procedural steps:

1. Select the Comprehensive Data Range: Use your mouse to click and drag, highlighting the entire set of cells that encompass both the X and Y numerical data points. In the specific context of our example, this required range is A2:B14. A common practice is to exclude the header row during this initial selection, especially when creating a standard scatter plot, to ensure only numerical data is processed for plotting.
2. Navigate to the Chart Creation Tools: Direct your attention to the main ribbon interface located at the top of the Excel window and click on the Insert tab. This tab contains all the necessary commands for adding visual elements, including charts.
3. Choose the Appropriate Scatter Chart Type: Within the Insert tab, locate the dedicated Charts group. Click on the Scatter icon, which is typically symbolized by a small graphical representation featuring several dispersed dots. This action presents various sub-options for scatter plots, from markers only to markers with lines.

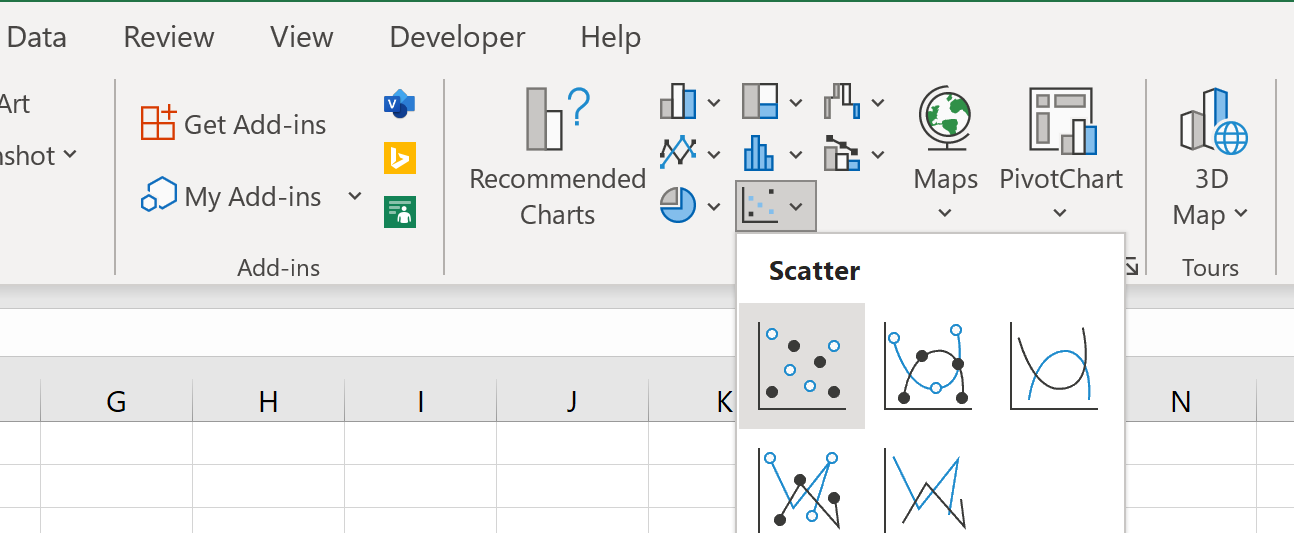

The precise visual pathway necessary for selecting the appropriate chart type, which is critical for accurate data visualization, is clearly illustrated in the image provided below:

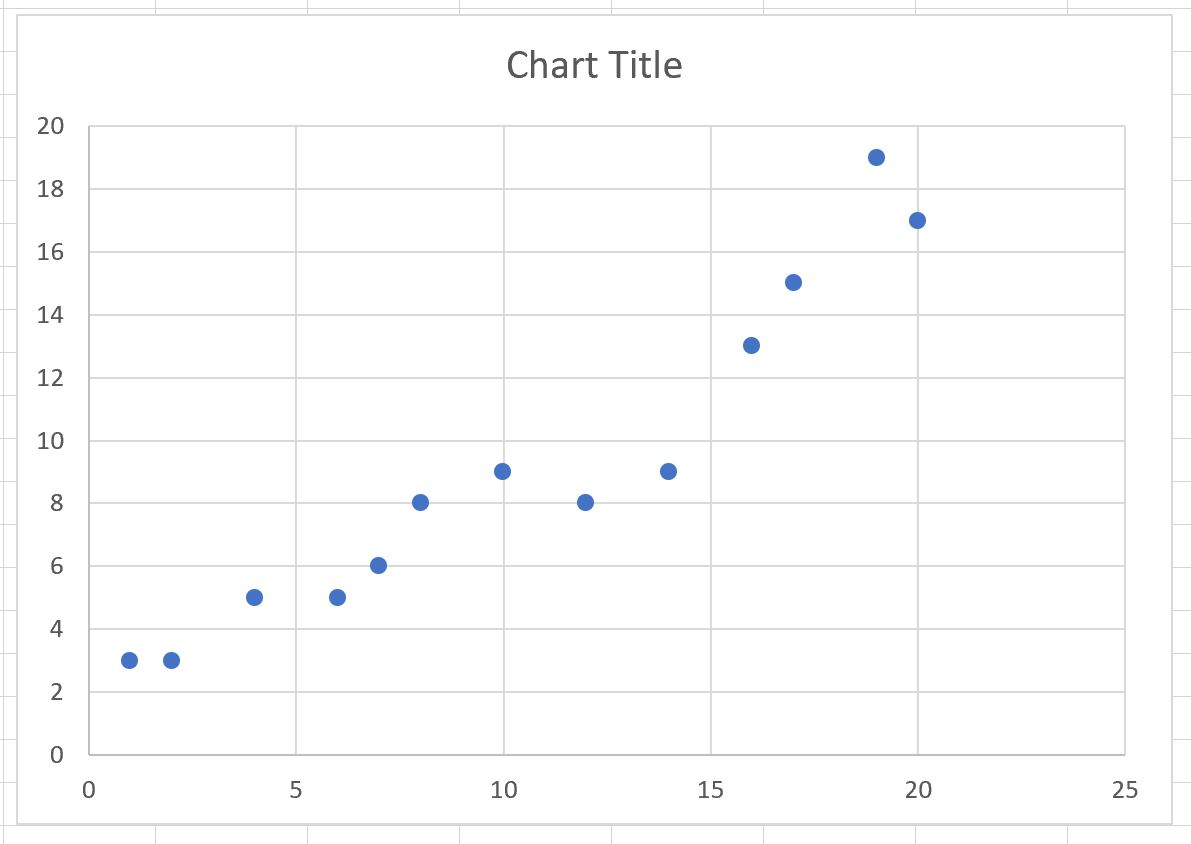

Immediately after clicking the icon, Excel will process the selected data and instantly generate the default scatter plot. This initial visual output provides an immediate, tangible visualization of the relationship defined by the paired observations you input, allowing for rapid exploratory analysis.

Understanding the Cartesian System and Interpretation

The resulting graph operates within the framework of the standard Cartesian coordinate system. The horizontal dimension is defined by the x-axis, which consistently represents the independent variable, while the vertical dimension is defined by the y-axis, representing the dependent variable. Crucially, every single data point plotted on the chart corresponds precisely to one unique, paired observation drawn from your original source dataset.

Interpreting the visual characteristics of the plot is essential for gleaning meaningful insights. Analysts must closely examine the directionality (the slope) and the tightness (the proximity) of the cluster of data points. This examination is the key to understanding the underlying correlation, determining whether the variables exhibit a positive relationship (points trend upward), a negative relationship (points trend downward), or if the scattered nature of the points suggests no statistically significant relationship at all.

A Note on Sequential Data Visualization: In scenarios where the data points inherently represent a sequential flow, such as in time series data, or if the primary objective is to visually emphasize the continuity between observations, a connected plot type may be preferred over a traditional scatter plot. If your analytical goal is to illustrate a continuous path rather than merely discrete points, navigate back to the Charts group during Step 2 and select the alternative option titled Scatter with Smooth Lines and Markers. This specialized chart variant automatically connects the data points in the exact order they appear within the worksheet, thereby providing a clear and traceable visual narrative of change over the sequence.

Step 3: Advanced Formatting and Professional Customization

While the default scatter plot successfully maps the variables, creating a professional-grade presentation often necessitates strategic modifications to significantly improve both readability and aesthetic impact. This stage, though optional, is highly recommended, as it involves fine-tuning elements such as the data marker size and ensuring that all components of the graph are explicitly and accurately labeled, thus maximizing the overall communicative power of your data visualization.

The first enhancement focuses on adjusting the visual prominence of the data markers. Often, the default marker size can be too small, causing the plot to appear cluttered or making individual observations difficult to isolate, especially when the chart is included in a report or viewed remotely. To initiate this adjustment, precisely double-click on any single data point located within the chart area. This action will immediately summon the dedicated Format Data Series panel on the right side of the screen.

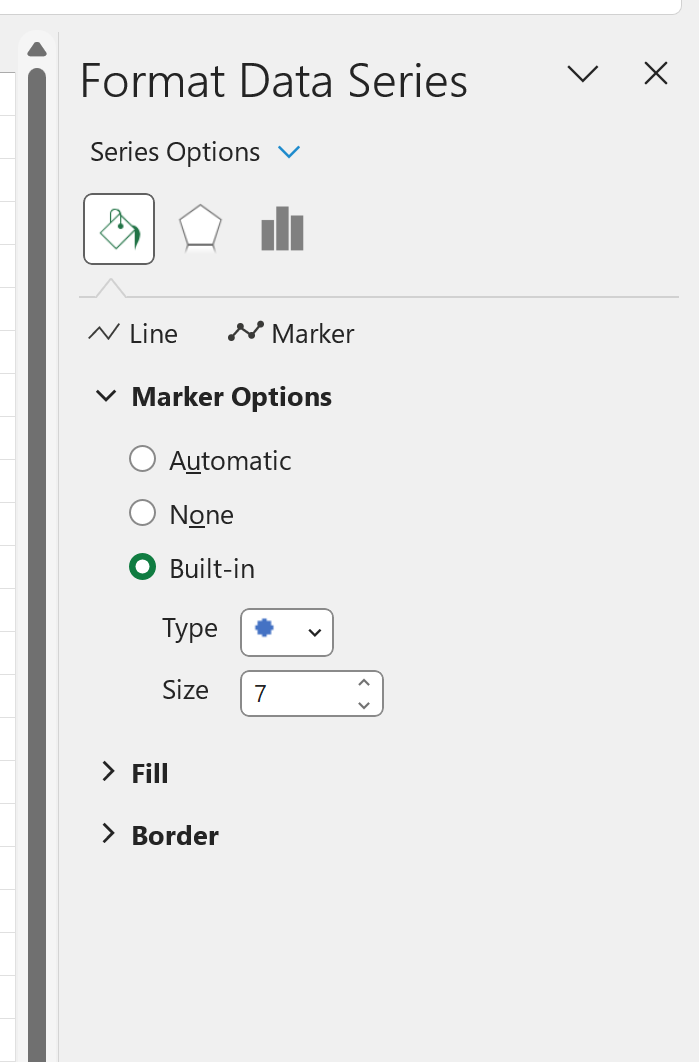

Within the newly opened Format Data Series panel, click the Marker icon (often depicted as a paint bucket or fill icon), then proceed to expand the Marker Options sub-section. Select the Built-in radio button and manually override the current Size setting. Changing the default value to a more visually impactful figure, such as 7 or 8, immediately increases the visual weight and clarity of each individual observation, making the plotted data substantially easier to perceive and analyze.

Next, the correct labeling of the axes and the overarching chart title is absolutely vital. A plot featuring unlabeled axes is functionally meaningless, as the viewer has no way of ascertaining the units of measurement or the specific variables being compared. To correctly add these indispensable labels, click anywhere within the main plot area to fully activate the chart editing tools. A distinct small green plus sign (designated as the Chart Elements icon) will appear near the top-right periphery of the generated plot.

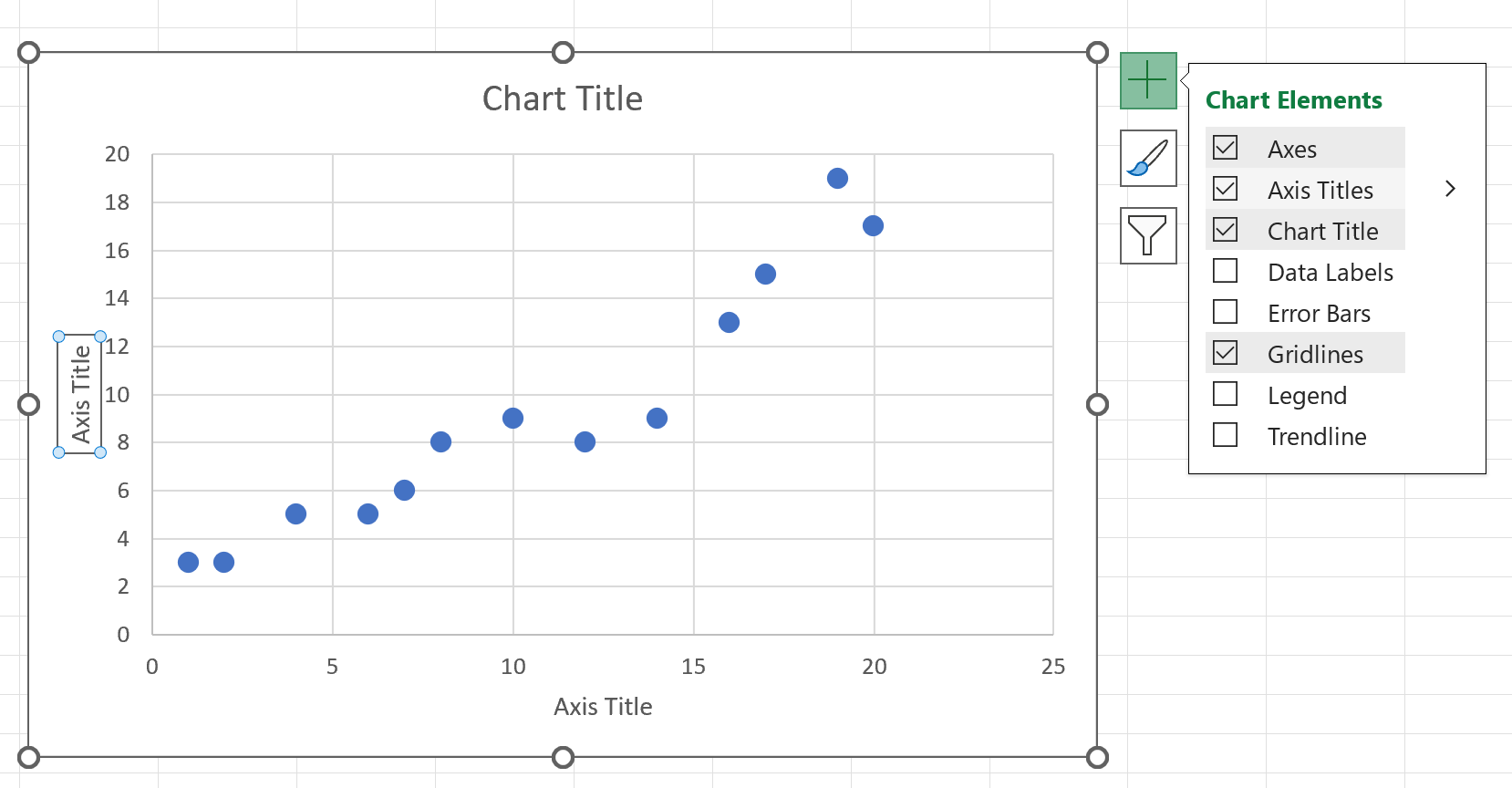

Click this green plus sign and ensure that the checkbox corresponding to Axis Titles is selected from the resulting context menu. This selection automatically inserts placeholder text for both the horizontal and vertical axes, positioning them correctly and making them ready for immediate customization and editing.

The final formatting step requires clicking directly on the placeholder titles (Chart Title, Axis Title) one by one and replacing the generic text with descriptive, informative labels that accurately and unambiguously reflect the nature of the data being displayed. For example, replace “Axis Title” with the precise unit of measurement or the variable name, such as “Temperature (°C)” or “Time Elapsed (Seconds)”. A well-crafted chart title should summarize the entire visualization, conveying the key message at a glance.

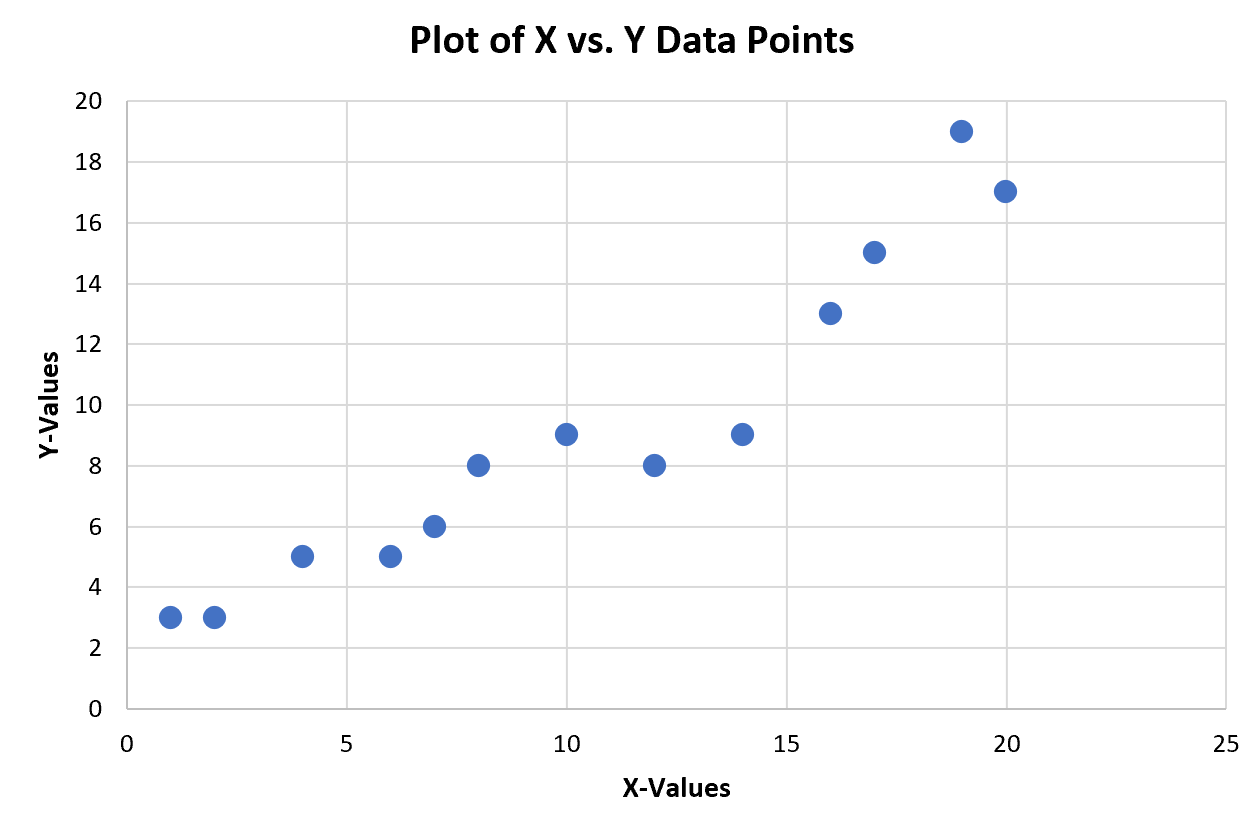

The successful completion of these advanced formatting adjustments results in a highly professional and fully standardized graph. This ready-to-use chart clearly and effectively communicates the relationship between the X-values and Y-values derived from the original dataset, ensuring the visually appealing plot is immediately suitable for formal presentation or seamless integration into technical reports.

Conclusion and Additional Resources

Mastering the creation of effective X vs. Y plots within Excel represents a foundational and indispensable skill for any professional involved in statistical analysis, data science, or business reporting. By diligently following these methodical steps—from ensuring correct data entry structure to applying the necessary formatting adjustments—you possess the capability to reliably transform raw numerical information into powerful, actionable visual insights. Scatter plots are fundamentally indispensable tools, serving as the backbone for rigorous statistical inference and comprehensive exploratory data analysis.
