Learning to Merge Columns from Different Tables in Power BI with LOOKUPVALUE

Integrating Disparate Data in Power BI Using LOOKUPVALUE

In the dynamic landscape of modern business intelligence, effective data modeling frequently demands the consolidation of information dispersed across multiple tables. While the standard practice in Power BI involves establishing formal, persistent relationships between tables to facilitate dynamic measure calculation and visual filtering, specific analytical scenarios necessitate a different approach: creating a calculated column that directly retrieves a static value from an unrelated or loosely connected table. This technique proves indispensable when dealing with differing levels of granularity or when the objective is to embed crucial dimensional attributes directly within a fact table for simplified reporting. The most direct and highly efficient method for executing this common data enrichment task within the DAX environment is by leveraging the versatile LOOKUPVALUE function.

The core functionality of the LOOKUPVALUE function mirrors the widely recognized VLOOKUP functionality found in Excel. It enables users to search a designated target table for a desired result value by matching criteria present in one or more corresponding columns. Because this function is engineered to return only a single value, it is perfectly suited for use within calculated columns where a reliable one-to-one or many-to-one correspondence exists between the current row context of the calculation and the rows in the lookup table. Developing a strong grasp of the syntax and constraints of LOOKUPVALUE is therefore fundamental for any advanced DAX user aiming to enrich data models efficiently, without depending exclusively on complex relational joins managed by the engine.

When structuring a calculated column designed to pull data from a secondary source table, the formula must precisely articulate three mandatory components: first, the specific result column whose value is required; second, the column in the lookup table used for identifying the match; and third, the corresponding column in the current table that provides the search value. This tripartite structure is both simple and remarkably effective, facilitating seamless data integration directly within the tabular model. By permanently attaching specific attributes to the rows of the destination table, we ensure these properties are immediately available for use in subsequent analysis and report visualizations, drastically improving data accessibility.

Conf = LOOKUPVALUE(data2[Conference], data2[Team], data1[Team])

This specific formula snippet is designed to populate a new column, creatively named Conf, within the destination table (designated as data1). Its operation involves retrieving the value located in the Conference column of the source table (data2). Critically, this retrieval process is governed by strictly matching the values found in the Team column of data2 against the values present in the Team column of data1. This mechanism guarantees that the correct conference affiliation is accurately assigned to every team record in the primary table, effectively solving the common challenge of attribute propagation across datasets using a highly precise lookup defined in DAX.

Establishing Prerequisites and Structuring Data for the Lookup

Before attempting to deploy the LOOKUPVALUE function, it is imperative to verify that your data sets are correctly structured and successfully loaded into the Power BI environment. The foundational requirement for a successful lookup operation is the existence of a common identifier, or key column, which is mutually shared between the two tables. This shared key column must contain reliable, matching values that serve as the linkage points across the different datasets. In the scenario we are examining, we utilize two distinct tables, data1 and data2, both of which hold information pertaining to sports teams, and the common column facilitating the connection is named Team.

The first table, data1, operates as our primary destination table, typically housing the granular transactional or ‘fact’ data. In a typical business context, this table might contain performance metrics, sales figures, or seasonal results for various entities. We can observe that data1 currently lacks a vital piece of categorical information—the conference affiliation—which is stored in the auxiliary table. This absence of a crucial dimension is precisely what necessitates the use of a calculated column approach for data enrichment, allowing us to augment the fact data with necessary descriptive context.

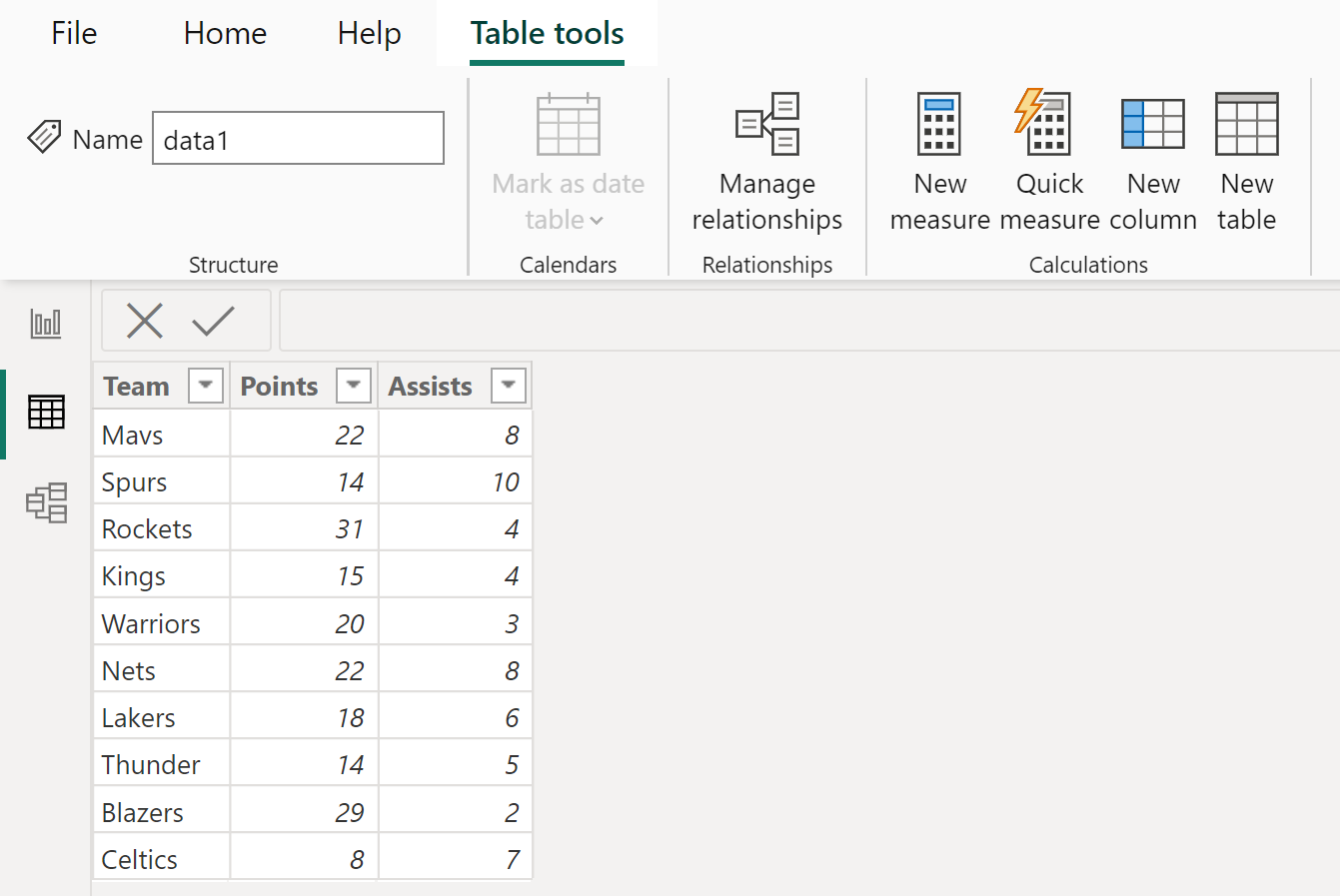

Consider the structure of our primary table in Power BI, named data1:

The second table, data2, fulfills the role of the source or dimension table, containing the descriptive attributes we intend to integrate. This table holds the necessary lookup value (the Conference name) and the essential matching key (the Team name). It is absolutely critical that the Team column in data2 contains unique or non-repeating entries for a successful lookup operation. If the LOOKUPVALUE function encounters multiple matches for a single team name, it will be unable to definitively select a single result, causing it to return an error or a blank value. This function is fundamentally designed for definite, single-result retrieval, making data uniqueness in the source key paramount.

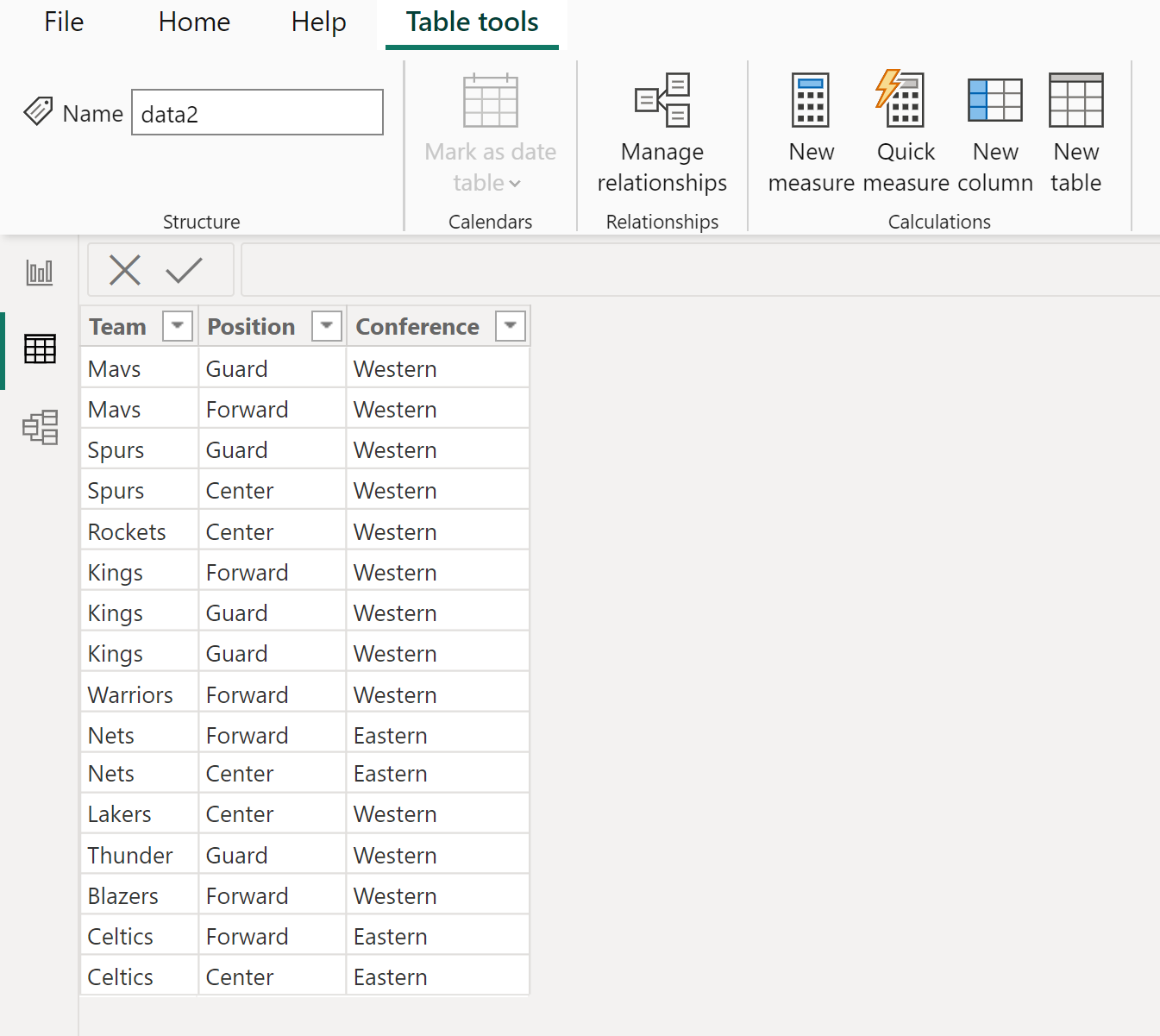

Our source table, designated data2, provides the missing categorical dimension:

The objective is straightforward: we must transfer the Conference information from the descriptive dimension table, data2, into the primary fact table, data1. This transfer is based exclusively on the identical entries discovered in the shared Team column across both datasets. This preparatory work ensures that when the DAX calculation is executed, the mapping between the two tables is accurate and highly reliable, which is essential for subsequent in-depth analysis and coherent reporting.

Step-by-Step Implementation of the LOOKUPVALUE Function

The procedure for successfully adding a calculated column in Power BI requires careful navigation of the modeling interface and the precise input of the DAX formula. Following this established procedural approach guarantees that the new column is correctly integrated into the data model and accurately reflects the desired lookup results immediately upon its calculation, which typically occurs during the data refresh cycle or the initial model load.

The first essential step involves activating the destination table—in this case, data1—which is the table where the new calculated column will permanently reside. Once data1 is selected within either the Data view or the Model view of the Power BI interface, access is granted to the necessary tools for data manipulation and model modifications. Specifically, users must locate and navigate to the Table tools tab situated in the ribbon interface. This tab conveniently aggregates all options related to altering the structure or content of the currently selected table, including the vital functions for creating new calculated columns, defining measures, and generating new tables.

To initiate the creation of the calculated column, the user must locate and click the New column icon found within the Table tools ribbon section. Executing this action immediately opens the formula bar, which is the dedicated workspace for drafting and executing Data Analysis Expressions (DAX) code. The formula bar usually displays a placeholder column name, which the user must promptly replace with the required function definition and the intended name of the new column, ensuring adherence to naming conventions and overall clarity in the data model.

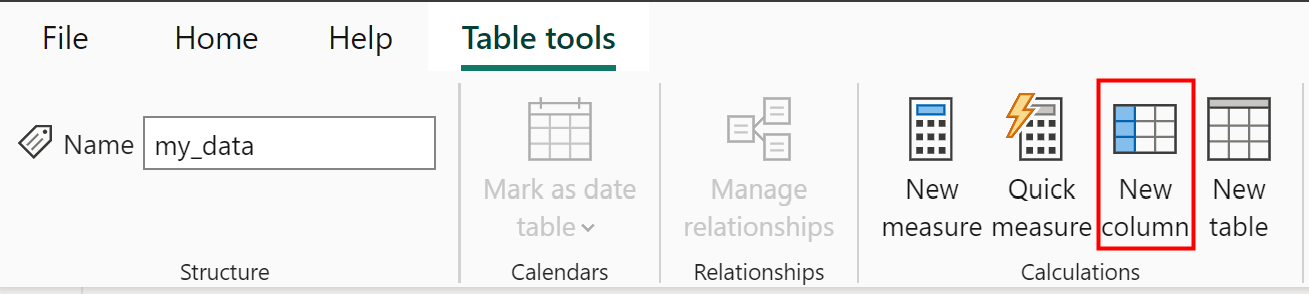

To proceed, we activate the data1 table, navigate to the Table tools tab, and click the New column icon:

The following formula is then meticulously typed into the formula bar, establishing the column name (Conf) and specifying the exact lookup parameters using the defined LOOKUPVALUE structure. This structure strictly mandates the sequential order of arguments: first, the result column (data2[Conference]); second, the search column in the source table (data2[Team]); and finally, the search value pulled from the current table (data1[Team]). Proper and precise referencing of both the table and column names is absolutely essential for the formula to execute without error and produce accurate results.

Input the following formula into the formula bar:

Conf = LOOKUPVALUE(data2[Conference], data2[Team], data1[Team])

Once this formula is executed (typically by pressing the Enter key or clicking the checkmark icon), Power BI initiates the calculation across every single row in data1. For each row, the DAX engine efficiently retrieves the corresponding conference name from data2 based on the exact match of the team name, consequently populating the new Conf column. This outcome successfully integrates the necessary descriptive data into the primary dataset, providing a dynamic, in-model solution that bypasses the need for potentially complex merge queries in the Query Editor.

Analyzing the Successful Result and Data Enrichment

Immediately following the completion of the LOOKUPVALUE calculation, the data1 table is instantaneously updated to display the newly integrated column. This effective integration is critically important for data analysts, as it embeds categorical data directly alongside the quantitative metrics. This unified view enables significantly easier filtering, sorting, and aggregation steps within reports and visualizations. The resulting structure of the enriched table now offers complete contextual data for every recorded entry, substantially improving the overall usability and analytical depth of the dataset.

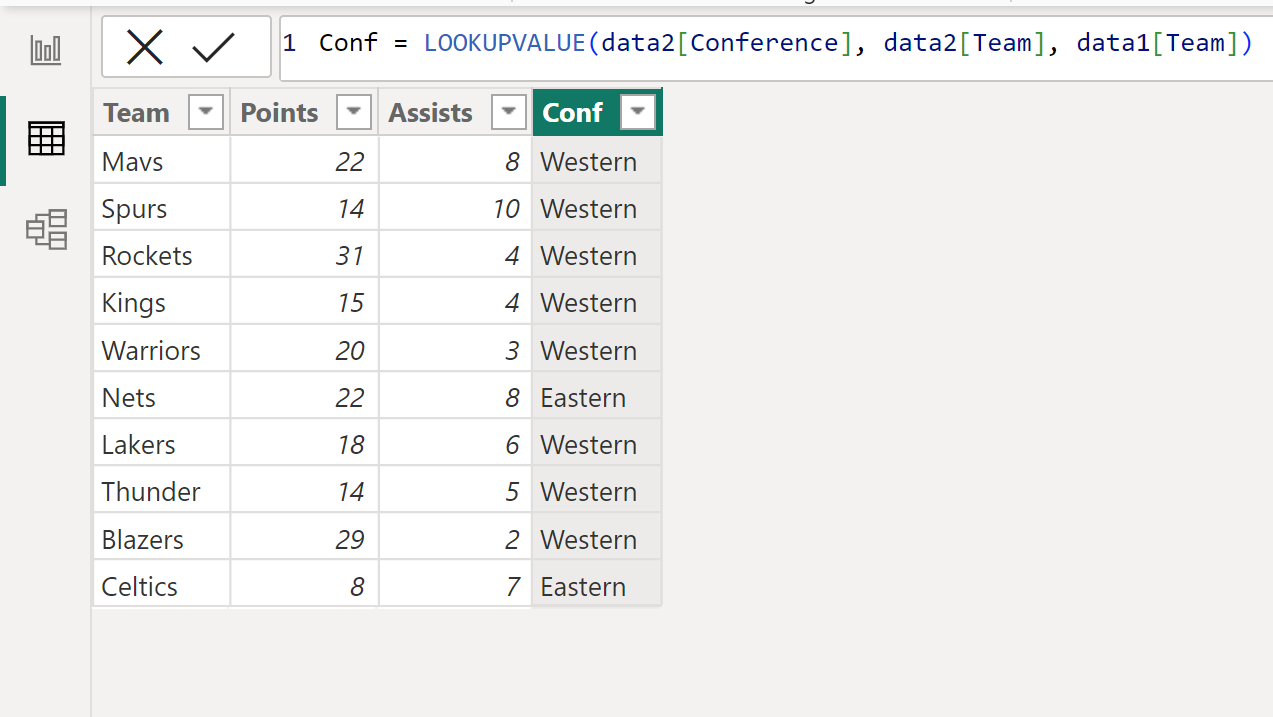

The execution of the formula creates a new column named Conf, which now contains the retrieved values from the Conference column in data2:

A fundamental step in verifying the success of the lookup is diligently checking the new Conf column for the presence of potential blank values. A blank entry in this new column is a clear indicator that the LOOKUPVALUE function failed to locate a corresponding match for the Team name in data1 within the source table, data2. Such inconsistencies usually signify underlying data quality problems, such as minor spelling variations, unwanted leading or trailing spaces, or simply missing entries in the lookup table. Addressing these issues typically requires a robust data cleansing step, either performed in Power Query or handled within DAX using dedicated error handling functions like IFERROR, or by utilizing the optional fourth argument of the LOOKUPVALUE function itself to provide a default result.

The successful command execution fundamentally elevates the utility of the data1 table. Analysts are now empowered to slice, dice, and analyze performance metrics directly by Conference without the need to explicitly manage complex cross-table filtering mechanisms in every subsequent measure calculation. This inherent simplification significantly accelerates report development cycles and substantially reduces the cognitive overhead required to effectively interpret the underlying data model, thus immediately validating the value of using calculated columns for static data enrichment.

Advanced DAX Considerations and Alternative Data Retrieval Methods

While the LOOKUPVALUE function is an outstanding and highly efficient tool for performing simple, single-column lookups, it is crucial for advanced modeling to understand its inherent limitations and recognize when alternative DAX patterns must be employed. The function is specifically optimized for scenarios where the conceptual relationship between the row context (the current table) and the lookup table is reliably one-to-one or many-to-one based on the defined key column. A critical failure point occurs if the key column in the lookup table contains duplicate values; in this situation, LOOKUPVALUE will return a blank or an error because it cannot deterministically choose a single corresponding value, forcing the developer to adopt a more robust, context-filtering methodology.

For situations requiring more complex lookups, particularly those involving multiple matching conditions, complex data transformation, or aggregation, the standard advanced pattern involves utilizing the powerful CALCULATE function combined with explicit filtering context, often managed via functions like FILTER or RELATEDTABLE. For instance, if the requirement was to retrieve the “Average Score” associated with a team, rather than a fixed attribute like “Conference,” the formula would need to be structured as: CALCULATE(AVERAGE(data2[Score]), data2[Team] = data1[Team]). This alternative approach offers far greater flexibility but introduces a more sophisticated filtering context transition compared to the streamlined syntax of LOOKUPVALUE, which should be strictly reserved for simpler, cleaner attribute retrievals.

It is also vital for model performance optimization to clearly distinguish when a calculated column is genuinely necessary versus when a traditional relationship should suffice. If the sole objective is to correctly filter or aggregate measures across tables, establishing a formal relationship between data1 and data2 in the Model view (specifically, a one-to-many relationship flowing from data2 to data1) is almost invariably the superior and recommended choice. Relationships allow the dynamic context transition mechanism to operate efficiently, saving significant memory space that would otherwise be consumed by storing the calculated column results. Calculated columns, such as those generated by LOOKUPVALUE, physically consume memory and increase the overall file size because the results are stored row-by-row for the entirety of the destination table. Therefore, they should be reserved strictly for specialized scenarios where cross-table filtering is required to define the row context, or when integrating data from entirely unrelated sources where establishing a formal model relationship is simply not feasible.

Note: Comprehensive and detailed documentation for the LOOKUPVALUE function in DAX is available through Microsoft’s official resources. These materials provide essential details on advanced error handling techniques, alternative syntax definitions, and critical performance considerations for mastering this essential function.

Summary of Key Takeaways and Resources

Mastering effective data integration techniques, particularly the utilization of the LOOKUPVALUE function, is an indispensable skill for constructing robust, insightful, and highly performant Power BI models. This function provides analysts with a quick and readily accessible method for enriching a granular fact table with necessary descriptive attributes from a dimension table, especially when the requirement is a simple attribute retrieval based on a common key, and when the key values in the source lookup table are confirmed to be unique.

The core implementation sequence involves clearly identifying both the source and destination tables, ensuring the presence of a clean and reliable key column, and accurately defining the three mandatory arguments of the function within the new calculated column definition. Careful attention to data cleanliness and consistency is paramount for preventing problematic blank results and ensuring data integrity.

Review the following streamlined steps for achieving successful LOOKUPVALUE implementation:

1. Select the destination table (e.g., data1) where the new column will reside.
2. Navigate to the Table tools ribbon in the Power BI interface and select the New column option.
3. Input the LOOKUPVALUE formula, precisely specifying the result column, the lookup key column in the source table, and the matching key column in the destination table.
4. Validate the final results, ensuring that any blank values are immediately investigated for underlying data discrepancies, especially issues related to non-matching keys or unintended duplicate keys in the source table.

By seamlessly integrating the static Conference data into our primary table, data1, we have successfully added vital contextual information to our dataset, making all subsequent reporting and complex analytical tasks significantly more straightforward and efficient.

Additional Resources for DAX Proficiency

To further elevate your proficiency in Power BI and advanced DAX modeling, we encourage you to explore related tutorials that cover essential data manipulation and model management tasks:

• Understanding how to calculate running totals in Power BI using sophisticated time intelligence functions.
• Implementing robust row-level security (RLS) features that rely on definitions established by calculated columns.
• Mastering the effective use of the RELATED and RELATEDTABLE functions, which serve as the preferred relational alternatives to LOOKUPVALUE when formal relationships are already established.
