Calculating Column Differences with DAX in Power BI: A Step-by-Step Tutorial

Calculating the variance or difference between two key metrics is not just common—it is a foundational requirement in modern business intelligence and analytical reporting. Within the Power BI environment, achieving this calculation efficiently, especially when dealing with aggregated data, demands the sophisticated power of DAX (Data Analysis Expressions). This article provides a definitive, step-by-step guide on how to calculate the difference between two aggregated columns displayed within any visual, ensuring your results are accurate and contextually relevant.

Consider a practical scenario: analyzing the offensive efficiency of basketball teams. To derive a meaningful metric, you need to calculate the difference between the total Sum of Points scored and the total Sum of Assists recorded for each team. Simply put, we need a new column that reflects (Total Points – Total Assists) at the team level, as demonstrated in the final table output below. This distinction between row-level calculation and aggregated calculation is where DAX shines, and we must utilize a specialized Measure to handle the summarized context correctly.

The chosen method—the creation of a dynamic Measure—is the most robust and performance-efficient strategy for calculations that involve aggregating data dynamically at the visual level. Measures are inherently dynamic, meaning they calculate results based on the current filter context applied to the report. This adaptability ensures computational accuracy regardless of how the data is filtered, sliced, or diced by the end-user, providing a superior solution compared to static, pre-calculated columns.

The Necessity of Calculating Column Differences in Data Analysis

In sophisticated reporting environments, the ability to calculate variance is non-negotiable. Simple column subtraction frequently forms the backbone of critical Key Performance Indicators (KPIs) and forms the basis for crucial analytical tasks. Analysts routinely rely on accurate difference calculations to perform essential tasks such as variance reporting against budgets, identifying performance gaps between periods, or tracking budgetary surpluses and deficits across various organizational segments. When working with large-scale datasets imported into Power BI, these variance calculations must be executed within the precise evaluation context to ensure the results accurately reflect the level of aggregation displayed in the visual.

A common mistake for new users is attempting to directly subtract two raw columns using a calculated column. This approach is only valid if the requirement is the difference calculated row-by-row in the source table itself. However, when you introduce grouping—such as summarizing total points by team, by month, or by region—you fundamentally change the context. You no longer need the difference between individual row values; instead, you require the difference between those *summarized* totals. This shift necessitates understanding the distinction between data modeling components, making the use of a DAX Measure absolutely vital.

A Measure ensures that the calculation is performed *after* the raw data has been filtered and aggregated by the chosen visualization (in our case, the table visual displaying teams). This post-aggregation calculation ensures maximum flexibility and accuracy. If a user modifies the visualization’s filter—for example, switching from viewing totals by Team to viewing totals by Conference—the Measure automatically recalculates the difference correctly for the newly established context. This crucial adaptability is the hallmark of well-designed, scalable Power BI reports and firmly justifies focusing on creating a specialized Measure for this specific aggregated subtraction task.

Understanding DAX Measures vs. Calculated Columns

Before proceeding with the implementation, it is paramount to grasp the fundamental difference between a Measure and a Calculated Column, and why the former is the only viable solution for calculating aggregated differences. A Calculated Column performs its calculation at the time the data is loaded or refreshed into the model, operating on a strict row-by-row basis. Crucially, it consumes memory and is physically stored within the Data Model. If we attempted to create a calculated column for `Points – Assists`, it would calculate the difference for every individual game or player record, which is entirely irrelevant when the goal is viewing summarized team totals.

A Measure, conversely, is not stored in the data model. It is a calculation formula that is evaluated on the fly whenever it is referenced by a visual element in the report. This query-time calculation makes Measures extremely memory efficient and highly dynamic. Most importantly, a Measure operates within the specific filter context established by the visualization. When we incorporate the SUM function within our difference Measure, the DAX calculation engine first aggregates all the points for the current team (or the specific row context of the visual) and then performs the subtraction, yielding the correct variance for the already summarized data.

Therefore, for tasks involving aggregation, such as finding the difference between total points and total assists across grouped entities like teams, the Measure approach provides the necessary contextual calculation and optimizes report performance significantly. Our definitive objective is to calculate the difference between the aggregated sums already displayed in the table visual, making the Measure the authoritative and definitive tool for this type of analytical reporting.

Setting Up the Data Model in Power BI (The Example Scenario)

To effectively illustrate this calculation process, we will proceed with a concrete example. Let us assume we have successfully loaded a table into Power BI named my_data. This source table holds granular, detailed information about various basketball players, including their associated team, the individual points they scored, and the assists they recorded over multiple games.

Our reporting requirement mandates that we analyze performance metrics aggregated solely at the team level, not the individual player or game level. Consequently, the first step in the report canvas is to create a standard table visual. We drag the Team column into the visual, followed by the numerical columns Points and Assists. Power BI intelligently defaults to summing these numerical fields, immediately resulting in a summarized view that clearly shows the total points and total assists accumulated by each respective team:

The logical progression is to introduce a new, dynamic column into this aggregated report that explicitly calculates and displays the difference between these two summarized metrics—the Sum of Points minus the Sum of Assists—for every team row. This final analytical requirement necessitates the creation of our custom DAX Measure, which will handle the aggregation and subtraction simultaneously within the visual’s context.

Step-by-Step Guide: Creating the Difference Measure

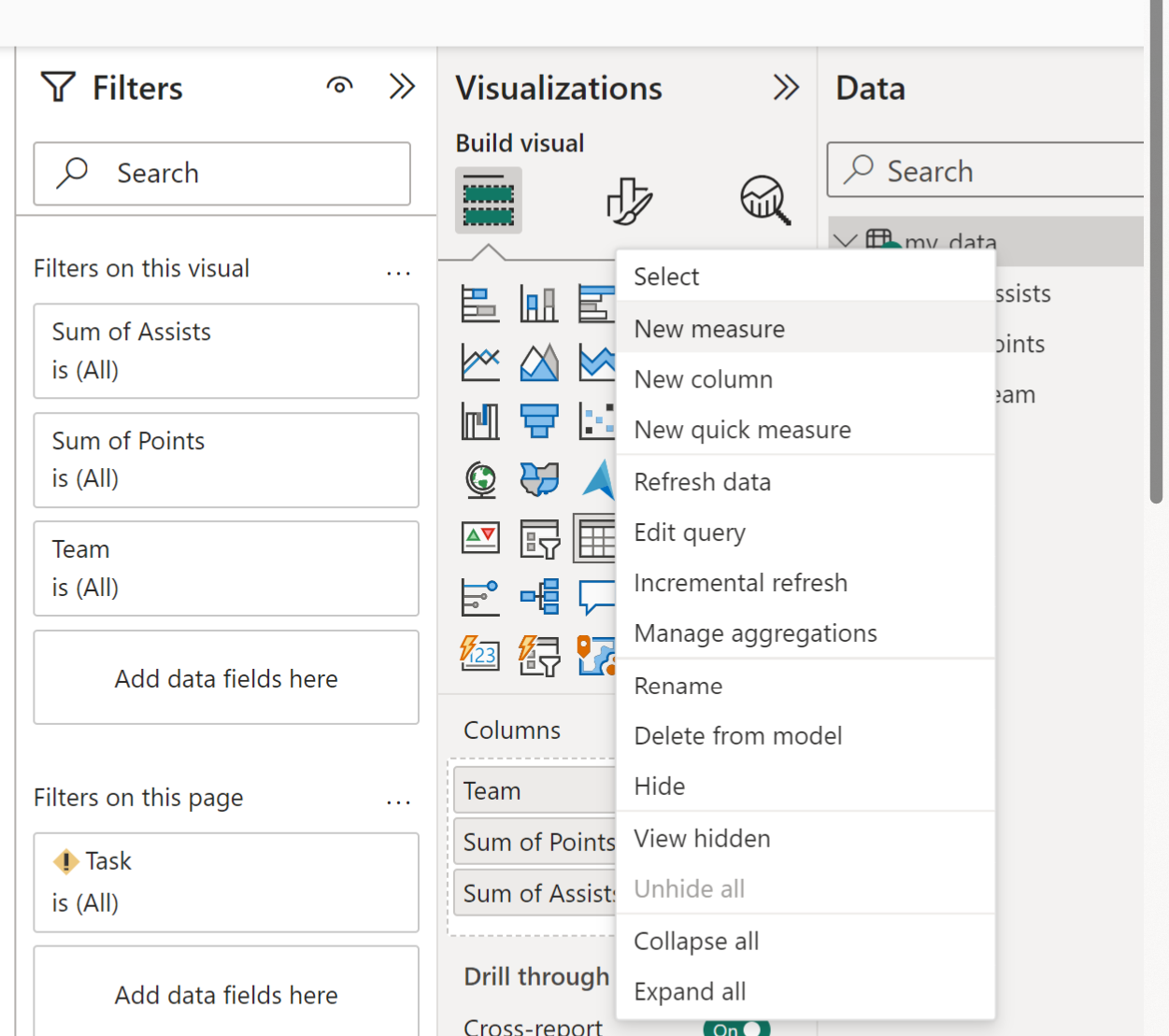

To initiate the creation of this essential dynamic calculation, navigate to the Data pane located on the right side of the Power BI Desktop interface. Identify and locate the specific table that contains the columns you intend to subtract (in this example, the my_data table). Right-click directly on the table name, and from the contextual menu that appears, select the option New measure.

Executing this action opens the specialized formula bar at the top of the interface, prompting you to define the DAX expression for the new Measure. This moment is critical, as we must define the logic to ensure the calculation engine correctly aggregates the column values before performing the mathematical subtraction. The formula must explicitly instruct Power BI to calculate the total sum of points and the total sum of assists, constrained precisely by any filters currently applied (such as the team name defined by the current row in the visual), and then perform the difference calculation.

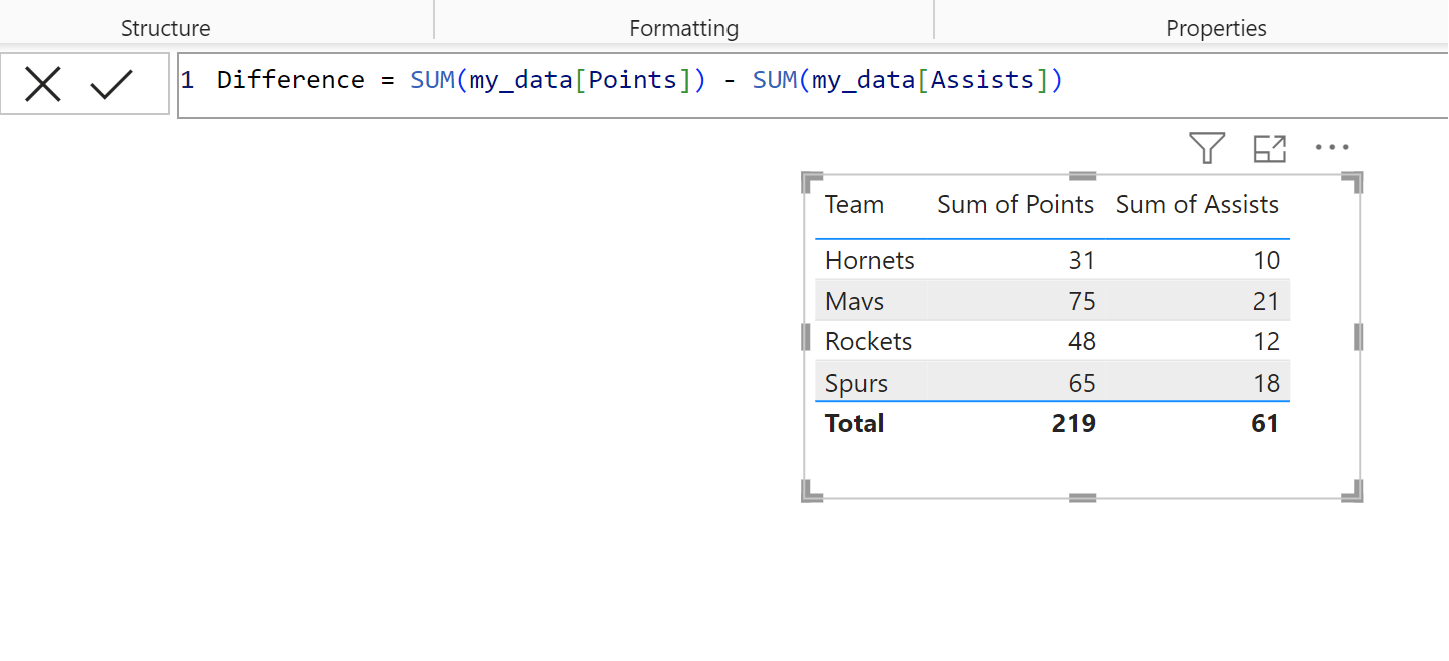

Type the following precise DAX formula into the formula bar. Note the use of the SUM function around each column reference, which correctly aggregates the values based on the current context before the subtraction operator is applied:

Difference = SUM(my_data[Points]) - SUM(my_data[Assists])

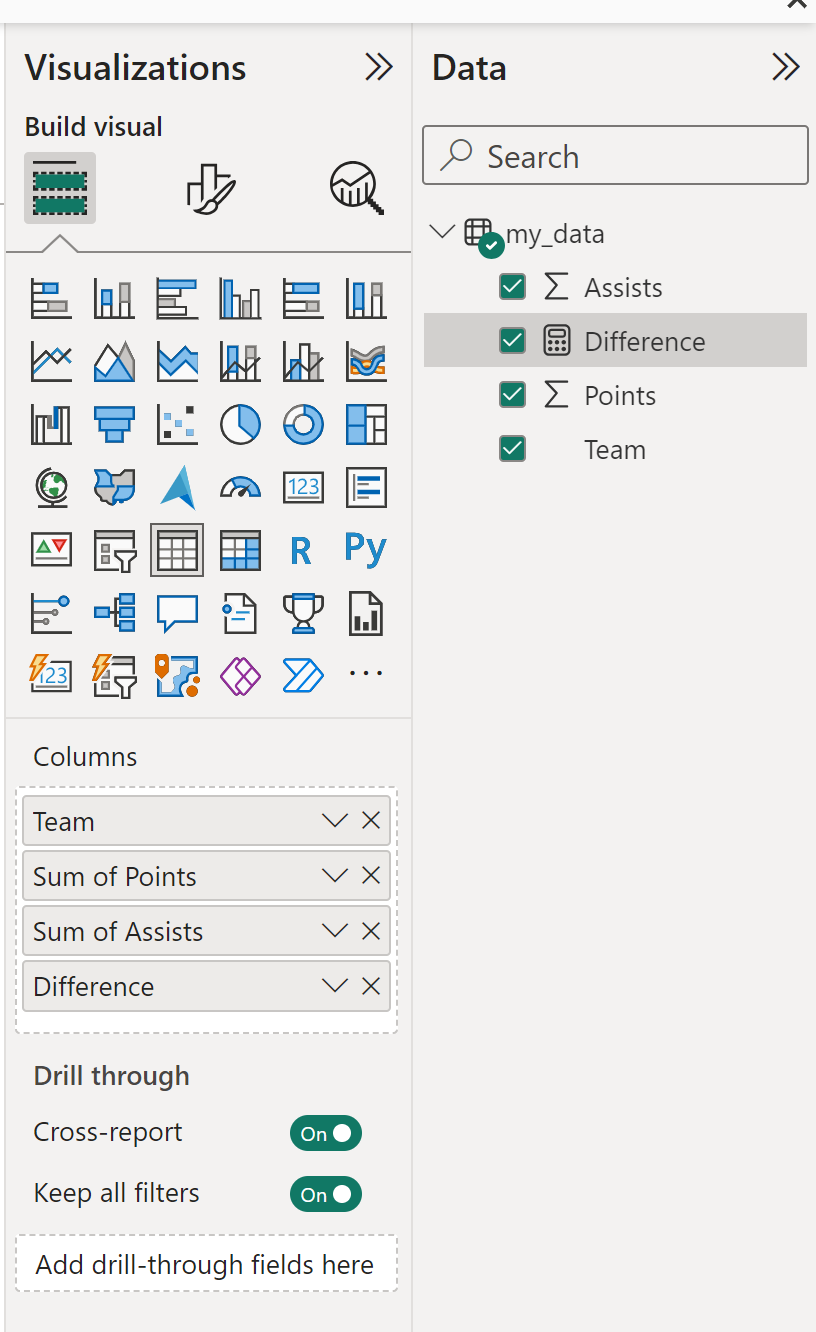

Once you confirm the formula (by pressing Enter or clicking the checkmark icon), a new Measure named Difference will be successfully created and added to your my_data table in the Data pane. This new Measure is instantly identifiable by the distinct calculator icon adjacent to its name, signifying its dynamic nature. It is now fully prepared to be deployed into any visual across your report pages.

Implementing and Validating the New Metric

With the crucial Measure successfully defined and stored within the Data Model, the final step involves incorporating it into our existing table visual. Simply drag the newly created Difference Measure from the Data pane and drop it into the “Values” section of the table visual, positioning it alongside the existing Sum of Points and Sum of Assists columns.

The table visual will update instantaneously, displaying the calculated variance for each team. Because the calculation is performed by a Measure, it automatically respects the row context (the specific team) and correctly subtracts the aggregated sums, providing a clean, accurate, and highly responsive variance metric for all report consumers. This dynamic result is precisely what distinguishes a high-quality Power BI report.

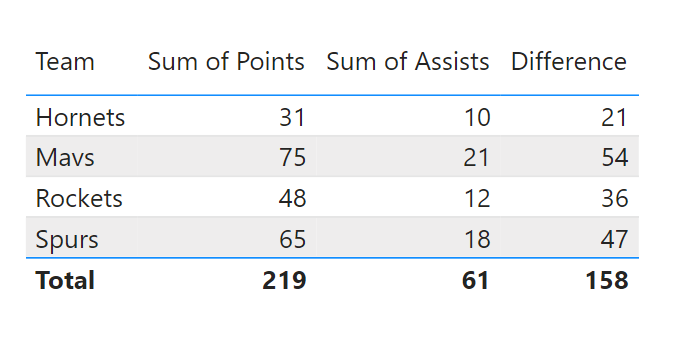

The completed table now clearly contains the precise difference between the two primary key performance indicators:

To definitively validate the accuracy of our new Difference column, we can manually check the calculation for each team row displayed in the visual. The results confirm that the DAX Measure is performing the aggregation and subtraction correctly and reliably within the visual context:

• The difference between points (31) and assists (10) for the Hornets is 31 – 10 = 21.
• The difference between points (75) and assists (21) for the Mavs is 75 – 21 = 54.
• The difference between points (48) and assists (12) for the Rockets is 48 – 12 = 36.
• The difference between points (65) and assists (18) for the Spurs is 65 – 18 = 47.

Conclusion and Best Practices for Data Visualization

Successfully calculating the difference between two aggregated columns in Power BI is fundamentally dependent on correctly utilizing a dynamic DAX Measure. This specific method is not only mathematically accurate for summarized data but also strictly adheres to best practices concerning performance, efficiency, and scalability within the Data Model. By defining this critical calculation once as a Measure, you guarantee consistency and accuracy across all reports and visuals where this variance metric is required, eliminating the possibility of reporting discrepancies.

When applying these techniques to increasingly complex reports, always prioritize clear model governance. A crucial best practice is to prefix your Measures appropriately (e.g., using a prefix like ‘M_’ or categorizing them logically within display folders) and placing them logically within your data tables. This structural organization significantly improves maintainability and makes it far easier for other developers or report consumers to quickly understand the flow and intent of your calculations. Furthermore, while the basic SUM function works flawlessly for straightforward column subtraction, more complex analytical scenarios—such as those involving time intelligence, intricate filtering, or context transition—might necessitate using advanced DAX functions like CALCULATE or SUMX to manipulate the filter context more aggressively to achieve the desired result.

Mastering the creation and deployment of dynamic Measures is arguably the most critical skill for any serious Power BI developer, as it transforms static data summaries into insightful, highly adaptable, and context-aware business intelligence metrics.
