Learning to Count Distinct Values with Filters in Power BI Using DAX

Introduction: Counting Distinct Values with Context in Power BI

Analyzing data effectively in Power BI often requires calculating metrics that involve specific constraints or filters. One common analytical requirement is determining the number of distinct values within a column, but only after applying a particular filter condition to the underlying data table. While the DISTINCTCOUNT function handles basic uniqueness counts, incorporating complex filtering logic necessitates leveraging the power of DAX (Data Analysis Expressions).

This guide provides an in-depth explanation and practical example of how to construct a robust measure that successfully counts distinct entries based on a specific filtering criterion. Understanding the interaction between filter context modification (using CALCULATE) and aggregation (using DISTINCTCOUNT) is fundamental to mastering complex data modeling in Power BI.

To achieve this precise calculation, we employ a combination of core DAX functions. The following syntax demonstrates the structure necessary to count the number of distinct values in a column after applying a precise filter:

Distinct Points =
CALCULATE (
    DISTINCTCOUNT ( 'my_data'[Points] ),
    FILTER ( 'my_data', 'my_data'[Team] = "C" )
)

This specific expression creates a new measure named Distinct Points. This measure is designed to evaluate the distinct count of entries found in the Points column within the table named my_data, but crucially, it only considers rows where the Team column is strictly equal to the value “C.” This technique ensures accuracy and flexibility when dealing with specific sub-populations of your dataset, demonstrating the practical application of modifying the evaluation context within DAX.

The Challenge: Mastering Filter Context Modification

When working in Power BI, it is essential to appreciate the concept of Filter Context. The filter context determines the subset of data upon which a measure operates. Typically, standard aggregation functions like DISTINCTCOUNT operate purely within the existing filter context defined by slicers, rows, columns, or filters applied to the visual itself.

However, if the goal is to calculate a metric based on a filter that is not currently applied to the visual—or if we need to enforce a filter that overrides or modifies the existing context—a simple DISTINCTCOUNT function is insufficient. It lacks the functional ability to define a specific, overriding data slice for the calculation. For example, if we place this measure into a visual grouped by Team A, B, and C, we still need the measure to consistently report the distinct count only for Team C, regardless of the row context it sits in.

This is where the CALCULATE function becomes indispensable. CALCULATE is arguably the most powerful function in DAX because it allows us to explicitly modify the filter context under which an expression is evaluated. By pairing CALCULATE with the FILTER function, we gain precise control over the rows included in the aggregation, regardless of external filters applied to the report page.

The FILTER function, used as an argument within CALCULATE, iterates over the specified table (my_data) and returns a reduced table containing only the rows that satisfy the boolean condition ('my_data'[Team] = "C"). CALCULATE then takes this filtered table and uses it as the basis for evaluating the primary expression, which is DISTINCTCOUNT(‘my_data'[Points]). This sophisticated interplay guarantees that the distinct count is performed only on the data slice we explicitly defined, solving the challenge of context modification.

Practical Application: Setting Up the Data Model

To illustrate the application of this powerful DAX formula, let us consider a practical scenario involving sports data analysis. Suppose we have a data model in Power BI containing a table named my_data. This table tracks individual player performance, including the specific team they play for and the points they scored in various matches.

The structure of our hypothetical table, my_data, is displayed below. Notice that the Points column contains duplicate values, as players from different teams might score the same amount, and even players on the same team might have identical scores across different entries.

Our specific analytical objective is to determine the total number of unique scoring values recorded by players exclusively belonging to Team C. We are not interested in the total number of entries, nor the total distinct scores across all teams. We are only focused on quantifying the variety of scores achieved by Team C, necessitating the application of a hard filter before counting uniqueness.

The process of creating a measure in Power BI is the appropriate method for performing dynamic calculations like this, as measures respond correctly to visual filters and context changes, unlike calculated columns which are evaluated once upon data refresh. The following steps detail the precise implementation procedure within the Power BI desktop environment, ensuring we isolate the data for Team C before invoking the DISTINCTCOUNT aggregation.

Step-by-Step Implementation of the Distinct Count Measure

The creation of a new measure is a fundamental and straightforward process within the Power BI interface. We will utilize the previously defined DAX expression, incorporating CALCULATE and FILTER, to solve our distinct count filtering problem.

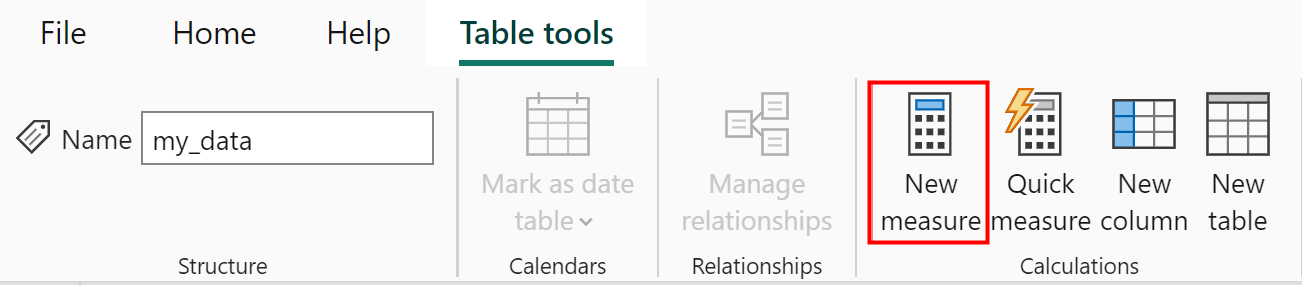

First, in Power BI Desktop, ensure you are in the Report or Data View and navigate to the Table tools ribbon. This tab provides essential functions for managing the data model, including the creation of new calculated fields. Within this ribbon, locate and click the New measure icon. This action immediately opens the formula bar, allowing you to input the desired DAX expression.

Once the formula bar is active, carefully input the full DAX expression. It is critical to ensure accurate spelling of table and column names (e.g., my_data, [Points], [Team]) and correct quotation marks for text strings (e.g., "C"). Precision in DAX syntax is paramount for accurate calculation.

Type the following formula into the formula bar:

Distinct Points =
CALCULATE (
    DISTINCTCOUNT ( 'my_data'[Points] ),
    FILTER ( 'my_data', 'my_data'[Team] = "C" )
)

Upon committing this formula, Power BI adds a new measure to your data model, typically associated with the my_data table (unless the measure is explicitly moved). This measure, labeled Distinct Points, now encapsulates the logic necessary to count the distinct values in the Points column, strictly filtered to only include rows where the Team value equals “C”. This approach ensures that the calculation is performed on the precise subset of data required, isolating the scores achieved by Team C from the rest of the dataset.

Visualizing and Validating the Result in Power BI

After successfully creating the DAX measure, the next logical step is to visualize the result within the Power BI Report View to confirm its accuracy. We can use a simple table visual to display the measure alongside the original data, or, more typically for single aggregate results, use a Card visual to highlight the calculated scalar result.

If we were to place the measure into a table visual that is grouped by the Team column, we would observe a crucial behavior: the measure consistently returns the result calculated specifically for Team C across all rows (A, B, and C), because the internal CALCULATE/FILTER structure overrides the external row context for the aggregation calculation.

The result of the measure, when displayed in a table format, clearly shows the calculation applied across the table structure:

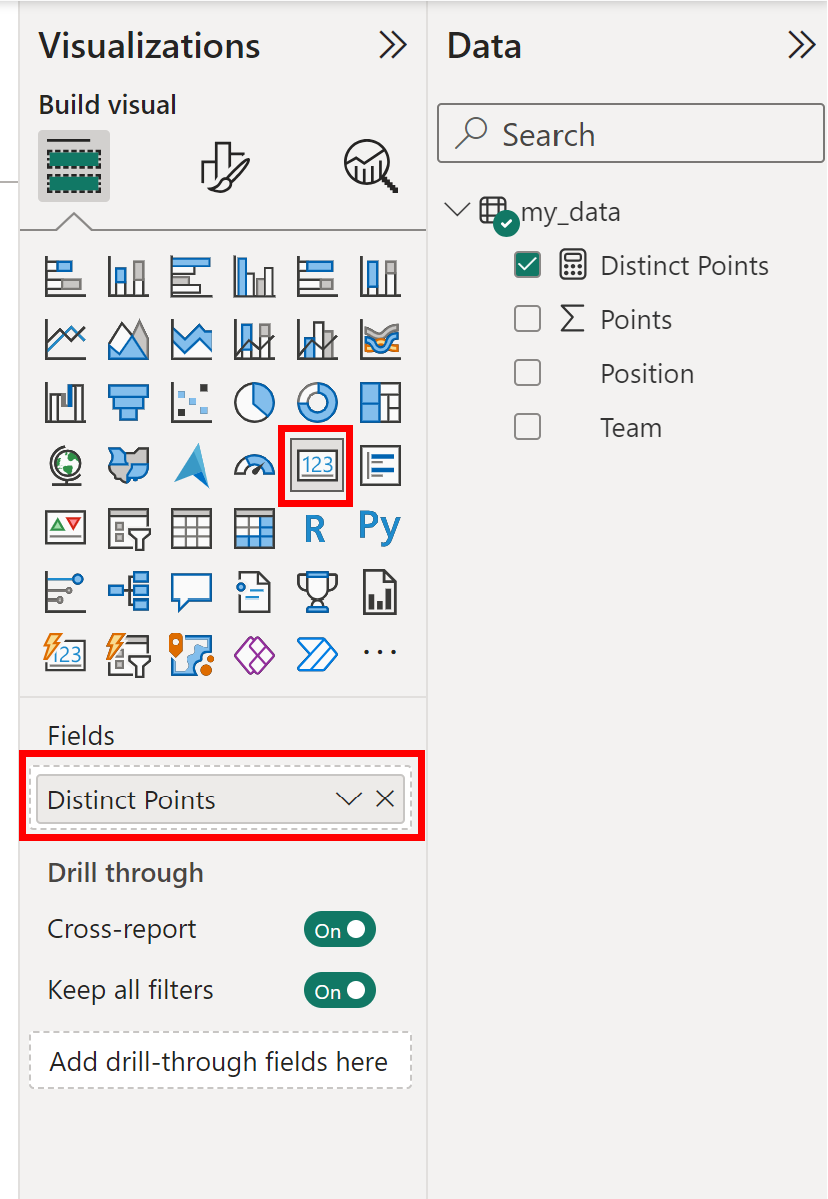

To provide a clean, focused display of this single metric, the Card visualization is the ideal choice. Navigate to the Report View, select the Card icon from the Visualizations pane, and then drag the Distinct Points measure into the Fields well of the visual. This visualization style is preferred for displaying key performance indicators (KPIs) or specific aggregated metrics that stand alone from the primary data tables.

The configuration for displaying the measure in a card is achieved by placing the measure in the visual’s field slot:

This step generates a dedicated card visual that clearly and prominently displays the calculated result: the count of distinct values in the Points column specifically for Team C. The final visualization confirms the precise output of the DAX measure.

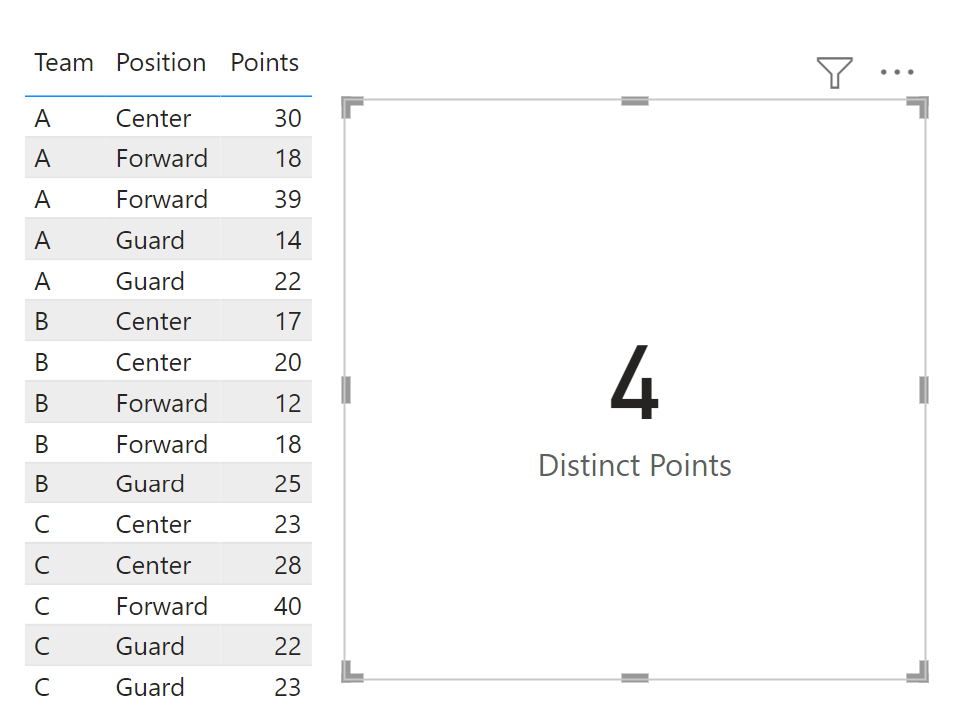

The final card visualization confirming the calculation appears as follows:

The card unequivocally shows that there are 4 distinct values recorded in the Points column for the filtered set corresponding to Team C, validating the successful execution of the DAX logic.

Advanced DAX Concepts and Efficiency Considerations

The measure we constructed is a foundational example of advanced DAX usage. To deepen your understanding of Power BI development, it is valuable to explore the underlying concepts that make this calculation efficient and reliable, specifically relating to context evaluation.

The primary concept at play is context transition. While CALCULATE is known for modifying the filter context, the FILTER function itself introduces a form of row context as it iterates row by row through the my_data table. The expression 'my_data'[Team] = "C" is evaluated for every row. The combination of these contexts ensures the filtering is precise before the aggregation begins.

Advanced DAX users often look for optimization opportunities. While the FILTER function is explicit and easy to read, it can sometimes be computationally intensive on very large tables because of the row-by-row iteration. In simple filtering scenarios like this one, where the filter is based on a column from the same table as the measure calculation, an alternative, more performant approach exists: directly passing the filter argument to CALCULATE.

An optimized equivalent to the demonstrated formula, which achieves the same result by leveraging how CALCULATE automatically converts simple column filters into filter context modifications, would be:

Distinct Points Optimized =
CALCULATE (
    DISTINCTCOUNT ( 'my_data'[Points] ),
    'my_data'[Team] = "C"
)

While both formulas yield identical results in this case, recognizing the role of CALCULATE in taking a simple boolean expression (like 'my_data'[Team] = "C") and transforming it into a filter context modification is crucial for writing efficient DAX code. The initial, verbose version using FILTER is excellent for clarity and for complex filtering scenarios involving multiple columns or calculated expressions, whereas the optimized version is generally preferred for simple, direct filtering performance within Power BI models.

Additional Resources for Power BI Mastery

For comprehensive study of the functions utilized here, the official documentation for the DISTINCTCOUNT function in the DAX reference library offers complete details on its usage and parameters. Mastery of CALCULATE, FILTER, and DISTINCTCOUNT is a cornerstone for professional Power BI reporting and analytics.

To further enhance your data analysis skills in Power BI, consider exploring related tutorials that address other common data manipulation and calculation tasks. Understanding how to handle various aggregation methods and context manipulation techniques is key to building robust data models.

The following resources explain how to perform other common tasks in Power BI, often relying on similar DAX principles:

• Calculating running totals across time periods.
• Using time intelligence functions for year-over-year comparisons.
• Creating dynamic rank measures based on user selections.
• Implementing calculated tables for advanced segmentation.

These topics build directly upon the foundation established by mastering the use of CALCULATE and explicit filtering demonstrated in this guide.
