How to Create a Monthly Line Chart in Power BI: A Step-by-Step Guide

In the dynamic landscape of business intelligence, the capacity to visualize and track performance metrics over specific time intervals is absolutely fundamental. A universal requirement for data analysts and strategic decision-makers is the construction of a robust line chart that concisely aggregates key performance indicators (KPIs) by increments such as month, quarter, or year. This detailed guide walks you through the precise steps required to configure Power BI Desktop, enabling you to generate a powerful visual that tracks and displays sales data specifically aggregated by the month.

Understanding these monthly operational trends is crucial for organizations seeking to identify inherent seasonality, accurately assess the long-term impact of recent strategic initiatives, and develop reliable forecasts for future performance. We will meticulously cover the entire process, beginning with the initial ingestion of raw data and culminating in the final, polished visual presentation. The outcome will be a clear, actionable visualization, similar to the example provided below, which effectively presents the summation of sales corresponding to each recorded month within your source dataset.

The resulting visual artifact provides immediate insights into momentum and allows stakeholders to quickly grasp performance fluctuations across the timeline. We focus specifically on monthly granularity, as it strikes the optimal balance between high-level trend analysis and granular detail, preventing the visual clutter that often accompanies daily plots.

Let us now commence this detailed configuration process within the powerful Power BI environment.

The Strategic Value of Monthly Trend Visualization

Effective analysis of complex business performance relies heavily upon the accurate and meaningful representation of time-series data. When analysts attempt to plot raw transactional records, including every single date entry, the resulting graph often becomes dense, cluttered, and ultimately uninformative. Aggregating these voluminous daily records into concise monthly summaries provides the necessary level of abstraction to observe macro-level business trends, detect cyclical patterns, and identify anomalies.

By systematically transforming raw date fields into a coherent monthly structure, Power BI empowers users to execute easy and precise comparisons between performance periods. This capability is absolutely foundational to high-quality financial reporting, rigorous operational auditing, and accurate effectiveness analysis for marketing campaigns. The line chart is universally recognized as the optimal visualization tool for this specific purpose, as its continuous nature naturally emphasizes movement, velocity, and momentum along the chronological axis.

Before initiating the visual creation process, it is critical to confirm two prerequisites: first, that your data source contains a dedicated date column that is correctly formatted as a date type; and second, that it includes at least one measurable field (e.g., Sales, Revenue, Units Sold) which is correctly recognized as a numerical type. These two core components—the categorical time dimension and the quantitative metric—are the fundamental inputs required to construct any meaningful, time-based visualization in the Power BI ecosystem.

Step 1: Preparing and Validating the Source Dataset

The initial and arguably most vital phase of this process involves the proper loading and validation of your source data into the Power BI data model. For the purpose of this tutorial, we are utilizing a straightforward but representative corporate sales dataset. This dataset must invariably contain one column designated as a date type and a corresponding column containing the numerical metric we intend to summarize, which in this example are the total sales figures.

Once you have successfully established a connection to your data source (be it an Excel file, a SQL database, or a CSV document), Power BI will display the table structure within the Query Editor or Data View. At this critical stage, analysts must confirm that the ‘Date’ column is unambiguously recognized as a date type (which is often indicated by a prominent calendar icon in the Data View pane) and that the ‘Sales’ column is correctly identified as a numerical or decimal type. Failure to ensure proper data typing will severely impede the aggregation and automatic hierarchy creation necessary for generating a correct monthly chart.

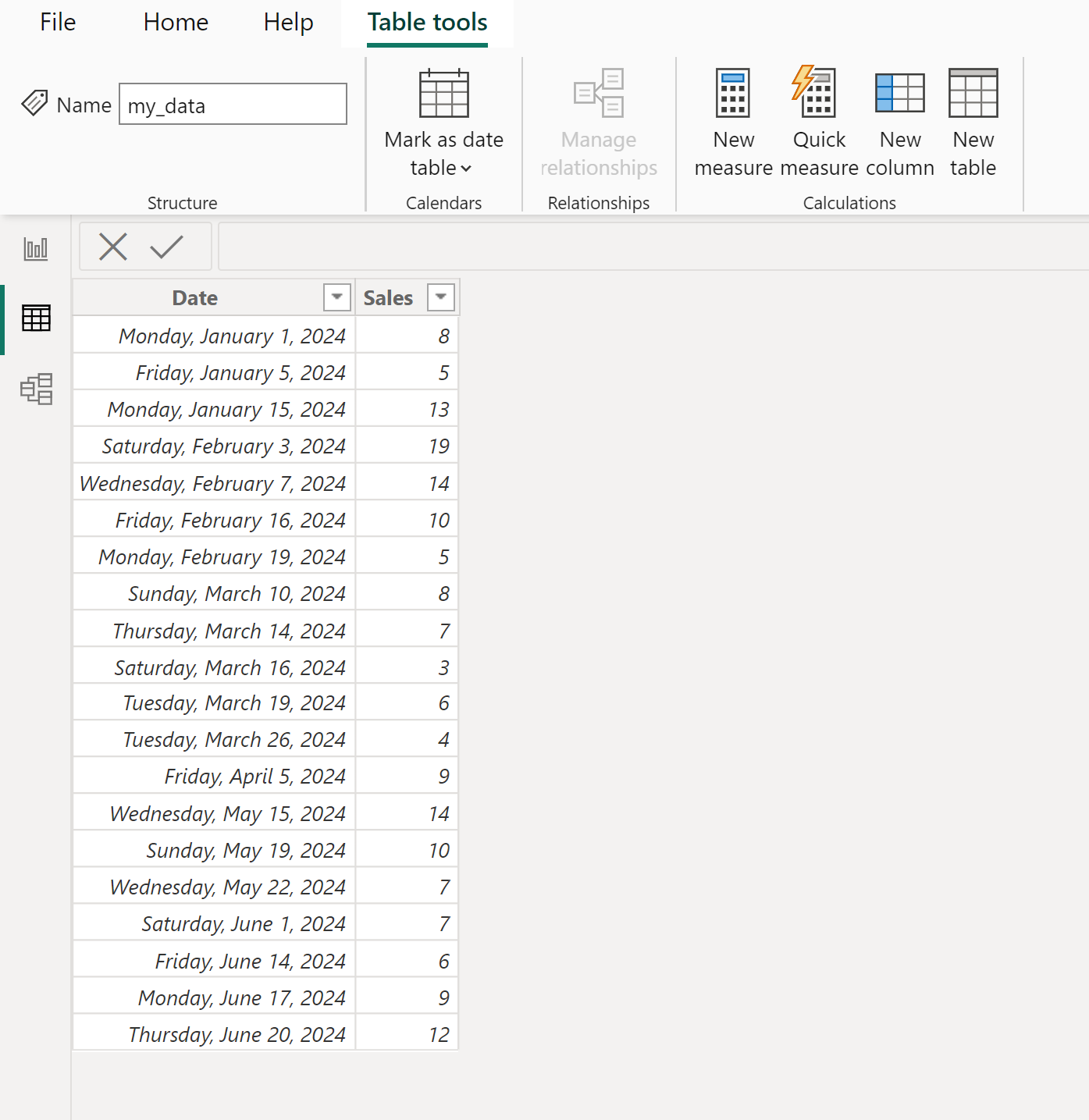

For the purposes of this demonstration, we are working with a meticulously prepared table that details daily sales transactions. Please review the underlying structure of the data loaded into your Power BI environment to ensure alignment with the expected formats:

After verifying the assigned data types and confirming the overall integrity of the data, we are fully prepared to proceed to the visual creation stage within the primary report canvas.

Step 2: Navigating to the Report Canvas and Selecting the Visual

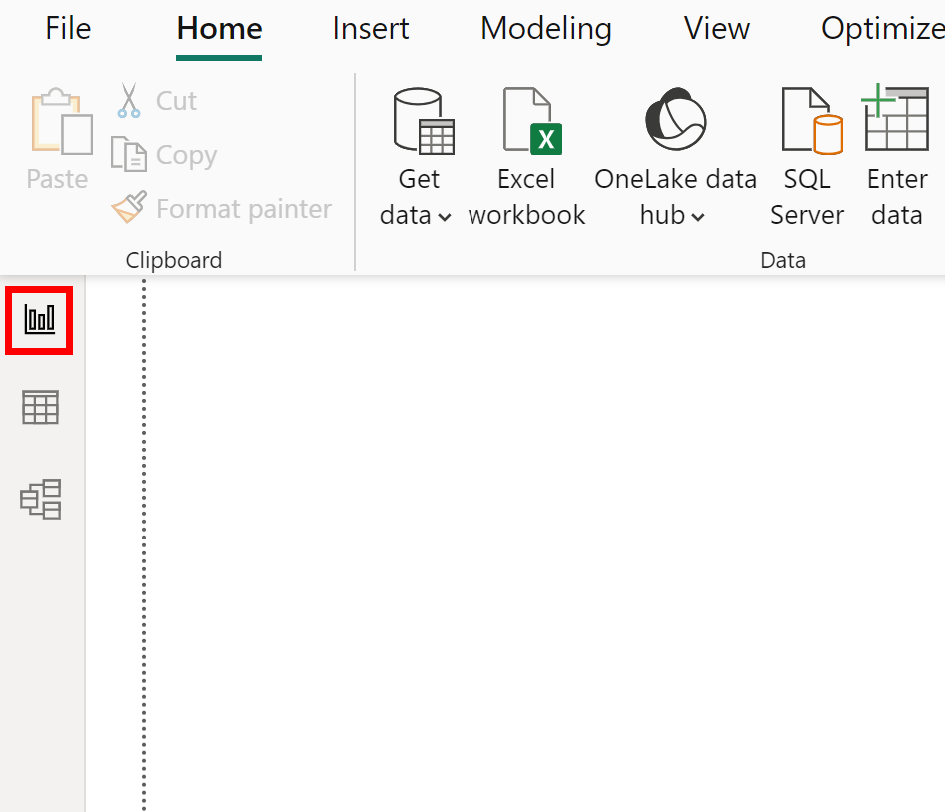

With the required data successfully loaded and structured within the model, the subsequent action involves navigating to the primary visualization environment within Power BI Desktop. Locate and click the Report View icon, which is consistently positioned on the left-hand navigation pane. This view operates as the central canvas where all visualizations, interactive charts, and interactive elements are meticulously constructed and arranged for presentation.

The Report View is the operational area where the abstract transformation of raw data into a compelling visual narrative takes place. Clicking this icon transitions the user interface away from the underlying Data Model or Data View and into the interactive reporting surface, thereby providing immediate access to the essential tools required for visual design and construction.

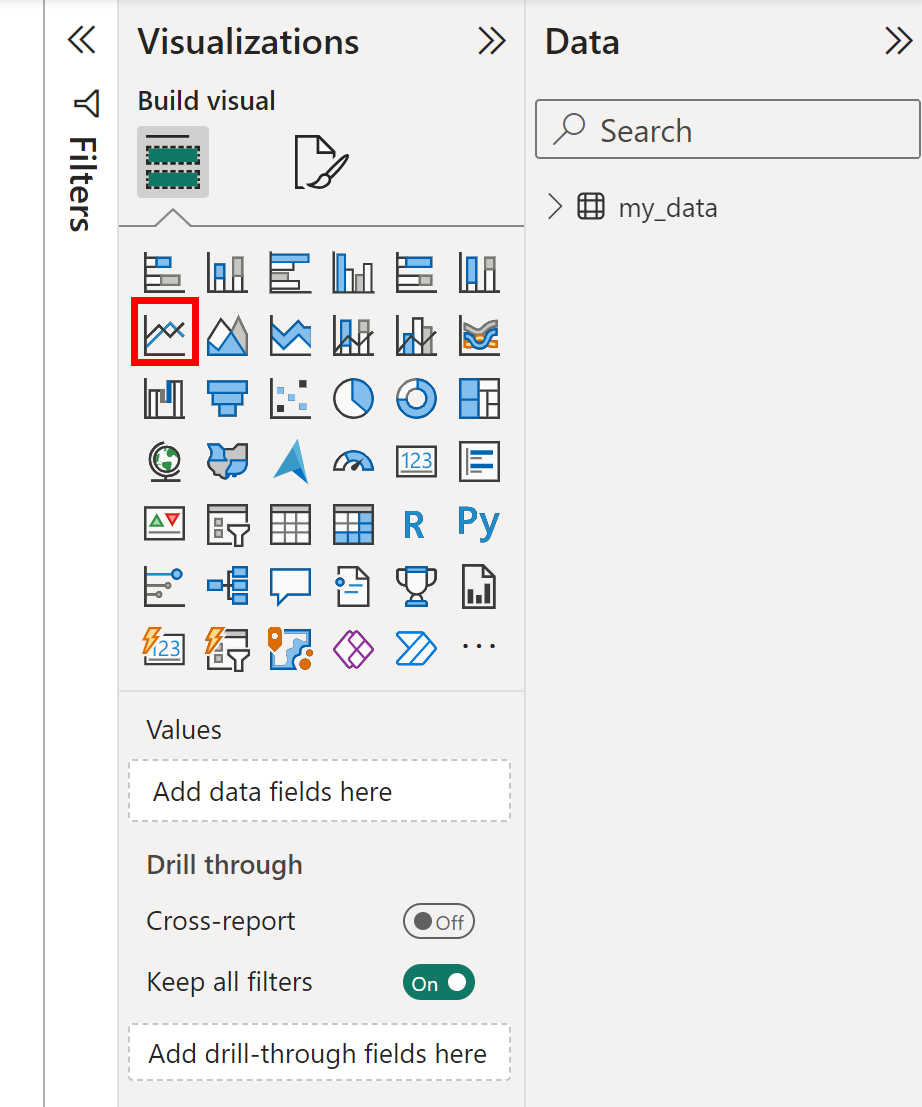

Once you are successfully positioned within the Report View, direct your attention to the right side of the screen where the dedicated Visualizations Pane is situated. This pane hosts a comprehensive gallery of all available chart types, ranging from straightforward bar charts to sophisticated geographical maps. Within the standard grouping of visualizations, locate and select the icon that corresponds specifically to the Line chart. Clicking this icon immediately places an empty visual container onto your report canvas, which is now configured and ready to receive the appropriate data fields.

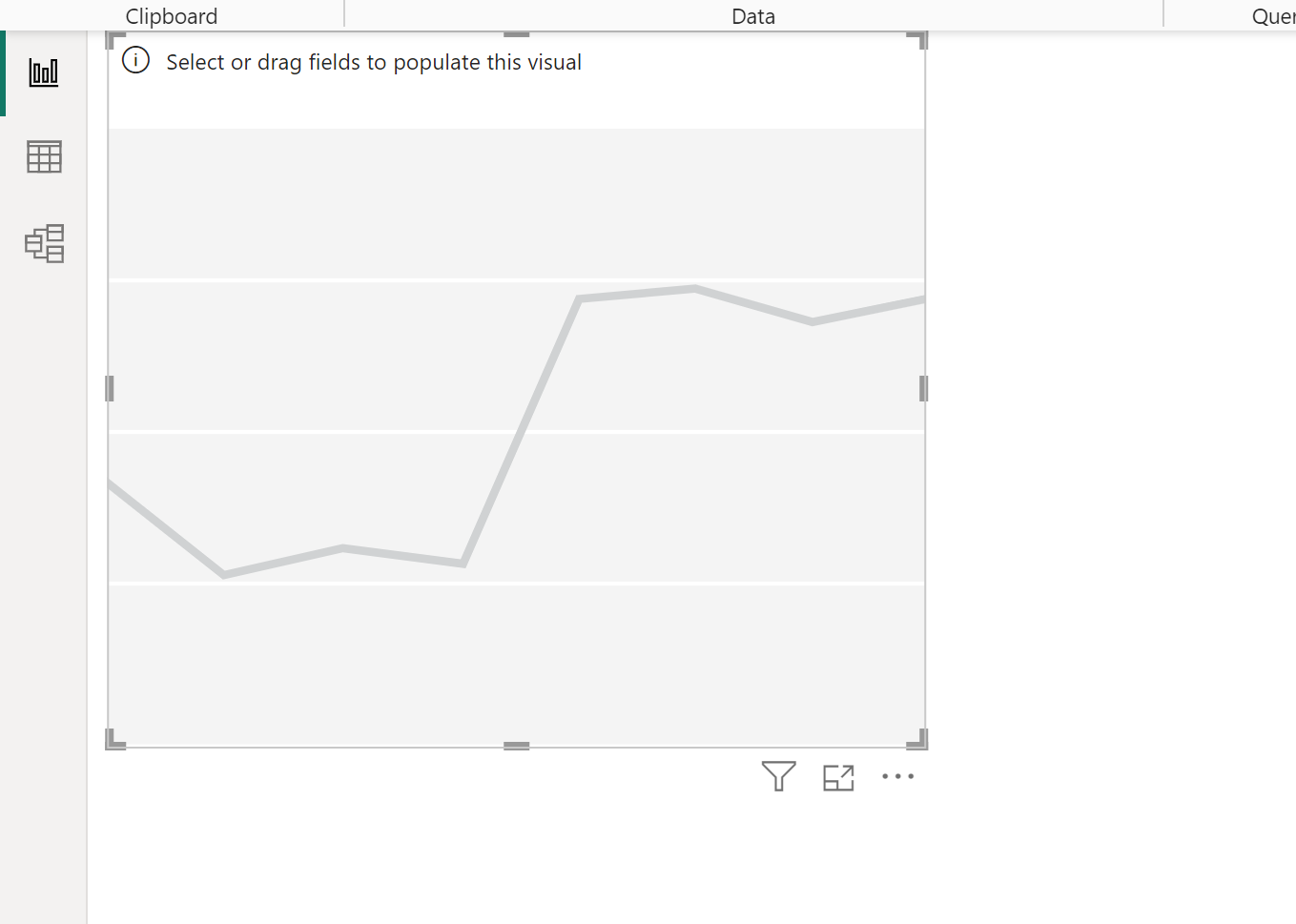

The immediate result of this selection is an empty placeholder object, which currently displays no data but is correctly configured within the canvas to accept and process the necessary fields for successful charting:

Step 3: Mapping Fields and Configuring the Date Hierarchy

The empty line chart placeholder must now be populated by correctly assigning specific fields from the loaded dataset to the appropriate axes within the Visualizations Pane. This specific step is the most pivotal, as it defines both the quantitative measure being tracked and the time granularity utilized for the tracking mechanism. Our objective is to assign the ‘Date’ field to the X-axis (the horizontal axis, which represents time) and the ‘Sales’ field to the Y-axis (the vertical axis, which represents the aggregated quantitative measure).

Access the Fields list located on the right side of the screen and proceed to drag the Date variable into the field well explicitly labeled X-axis. Subsequently, drag the Sales variable into the field well labeled Y-axis. The immediate consequence of these actions is the initial rendering of the line chart. However, it may initially display data aggregated at the highest possible level (Year) or, conversely, at the lowest (daily), depending entirely on the default behavior settings of your Power BI environment.

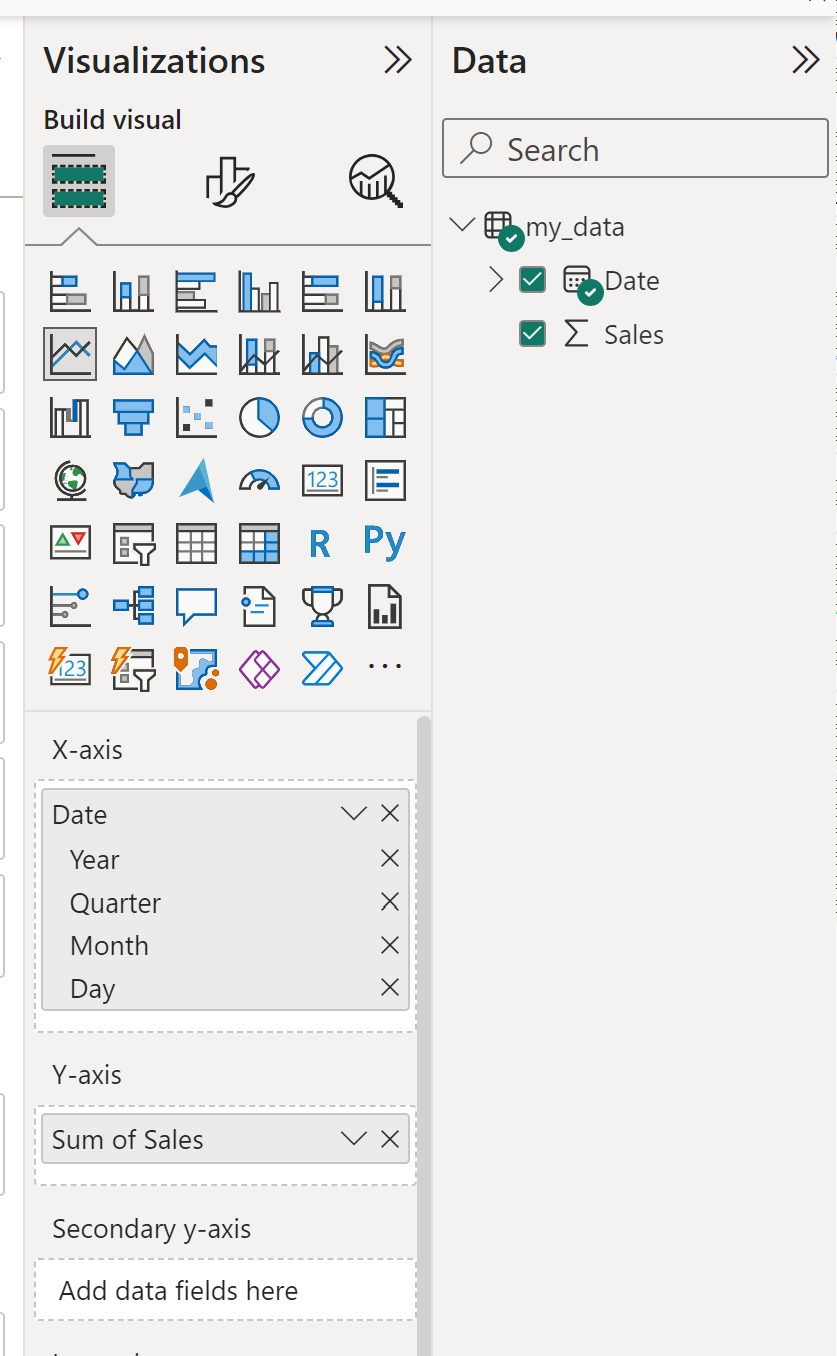

A crucial and often overlooked feature of Power BI is its automatic creation of a date hierarchy whenever a date field is placed onto an axis. This powerful hierarchy typically encompasses Year, Quarter, Month, and Day levels. To ensure the chart displays sales accurately summarized by month, you must specifically interact with the X-axis field well. By default, Power BI often utilizes the full Date Hierarchy structure. If this is the case, click the small downward arrow positioned next to the ‘Date’ field in the X-axis well and explicitly select ‘Date’ (which typically means the continuous date field) or modify the hierarchy to display only the ‘Month’ level. This explicit selection forces the required monthly aggregation.

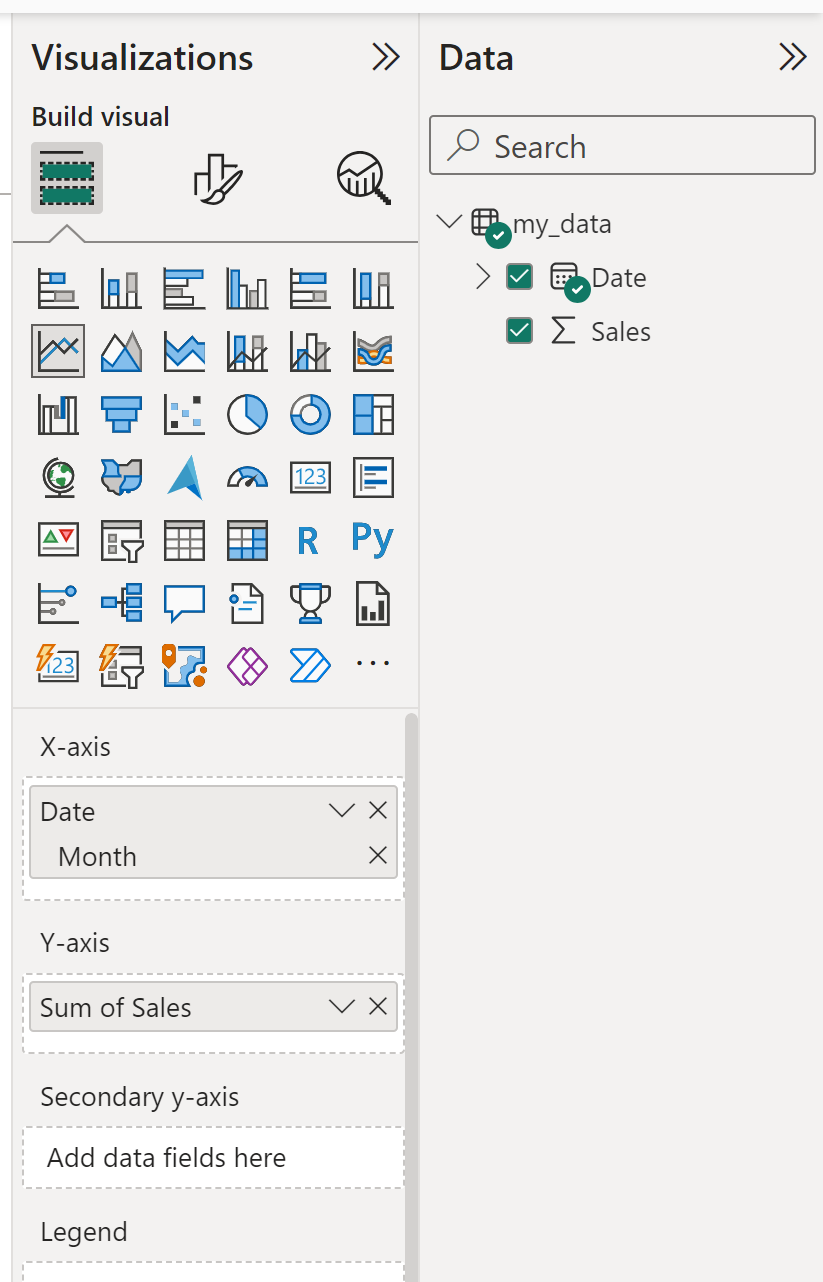

Upon correctly configuring the hierarchy to focus solely on the month level, the line chart will instantaneously update to display the sum of sales for each respective month present within the time-series data. The configuration fields within the Visualizations Pane should now reflect this appropriate assignment:

The final visual representation now accurately captures the required monthly summary of the sales metric across the entirety of the observed time frame. This detailed configuration guarantees that the visualization functions not merely as a scatter plot of data points, but rather as a coherent and meaningful tracking mechanism for business performance over time.

Step 4: Interpreting and Refining the Monthly Line Chart

Once the critical data fields are correctly mapped and the aggregation level is set to month, the resulting visual is a highly informative line chart clearly demonstrating the trend of total sales month-by-month. The X-axis now provides a clear chronological delineation of the sequence of months, while the Y-axis accurately quantifies the aggregated sales value corresponding to that precise period. This visualization is immediately functional for identifying critical periods of peak performance, recognizing predictable seasonal dips, or tracking steady, underlying growth trajectories.

The successful outcome of these steps is a visualization that encapsulates the sum of sales, accurately broken down by the corresponding month, providing a lucid and undeniable narrative of the business performance:

To significantly enhance the readability, professionalism, and overall impact of this chart, it is strongly recommended that you utilize the extensive formatting options available in the Visualizations Pane (under the Format tab). Key refinement steps that analysts should prioritize include:

• Title Clarity: Ensure the chart title is highly descriptive and reflective of the content (e.g., “Total Sales Trend by Month, FY2023”).

• Axis Labels: Clearly label both the X and Y axes, including any applicable units of measure, such as Currency or Millions, for the Sales figures.

• Data Colors: Adjust the line color, thickness, and style to align seamlessly with organizational branding standards or to simply improve contrast and visibility against the report background.

• Data Labels: Consider enabling data labels to display the precise sales value for each month, especially if the target audience requires exact figures rather than relying solely on general trend observation.

Mastering the creation of this fundamental time-series visualization is an indispensable core requirement for any analyst proficient in using Power BI. This chart serves as the reliable basis for developing far more complex analytical endeavors, including sophisticated forecasting models and detailed year-over-year comparison analyses.

Expanding Your Power BI Expertise

The foundational ability to create accurate, time-based visualizations is a cornerstone skill in modern data analysis and business intelligence. To further develop your expertise and capabilities within the robust Power BI environment, we highly recommend exploring advanced tutorials related to sophisticated data manipulation and visualization techniques. These resources are essential for tackling complex business scenarios, such as conducting detailed year-over-year performance comparisons, implementing powerful conditional formatting, or utilizing advanced filtering mechanisms to derive deeper insights from your time-series data.

By building upon the monthly line chart foundation, you can transition into creating truly interactive and dynamic reports. The following resources explain how to perform other common, yet critical, tasks in Power BI, enabling a holistic and comprehensive approach to high-level business intelligence reporting:

• Creating calculated columns and custom measures using powerful Data Analysis Expressions (DAX).

• Implementing conditional formatting rules to visually highlight outliers or performance thresholds on visuals.

• Developing fully interactive drill-down reports that allow users to move dynamically from monthly views to daily transactional details.
