Learning Power BI: Creating Measures with Multiple Filter Conditions Using DAX

Mastering Multi-Condition Filtering in Power BI Measures

When performing advanced data analysis in Power BI, the ability to create dynamic calculations that respond to precise criteria is essential. This is achieved through measures, which utilize the powerful formula language, DAX (Data Analysis Expressions). Often, standard aggregations are insufficient; we require calculations that filter rows based on multiple simultaneous conditions—whether those conditions must all be met (AND logic) or if meeting any one of them is sufficient (OR logic).

The cornerstone of conditional calculation in DAX is the CALCULATE function. This function allows us to override or modify the standard Filter Context, enabling highly specific aggregations. By understanding how to properly structure multiple filter arguments within CALCULATE using logical operators, you can unlock sophisticated reporting capabilities.

The following sections detail the syntax and practical application for constructing measures that filter data using both the logical AND (`&&`) and OR (`||`) conditions, providing robust solutions for complex business intelligence scenarios.

Implementing Logical AND (&&) Conditions for Measures

To calculate a measure where all specified criteria must be true for a row to be included in the aggregation, we employ the logical AND operator, represented by the double ampersand (`&&`). This method ensures strict compliance with all filter requirements simultaneously.

The general syntax for creating a measure that filters rows based on multiple conditions using the AND operator is structured as follows. We are essentially modifying the filter context of an aggregation function, such as SUM, using the capabilities of the CALCULATE function.

Method 1: Create Measure by Filtering with AND Condition

Sum of Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    'my_data'[Team] = "A" && 'my_data'[Position] = "Guard"
)

In this specific formula, a new measure named Sum of Points is calculated. This calculation aggregates the values found in the Points column, but only for those rows where the value in the Team column is precisely “A” AND the value in the Position column is precisely “Guard.” If a row satisfies only one of these conditions, it is excluded from the final sum, demonstrating the exclusive nature of the AND operator.

Step-by-Step Walkthrough: Using the AND Condition (Example 1)

To demonstrate these concepts practically, consider a data table in Power BI named my_data, containing player statistics, including their team, position, and accrued points.

Suppose our requirement is to calculate the total points scored exclusively by players who belong to Team A AND whose Position is designated as Guard. This requires a precise, filtered aggregation.

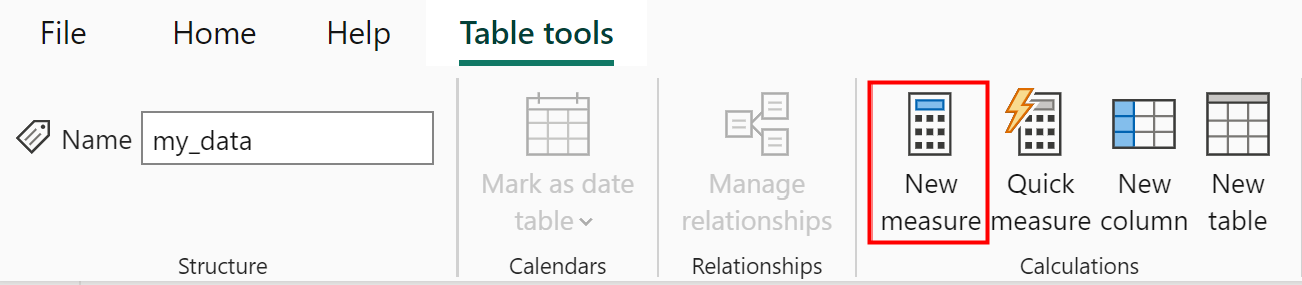

To begin creating this measure within Power BI Desktop, navigate to the Table tools tab in the ribbon and select the New measure icon. This action opens the formula bar, allowing you to define the DAX expression for the new calculation.

Paste or type the following AND formula into the formula bar:

Sum of Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    'my_data'[Team] = "A" && 'my_data'[Position] = "Guard"
)

Once the measure is defined and committed, it appears in the Fields pane. The measure is now available for use in visualizations. The resulting filtered data set, based on the `&&` condition, isolates only the rows that satisfy both criteria simultaneously.

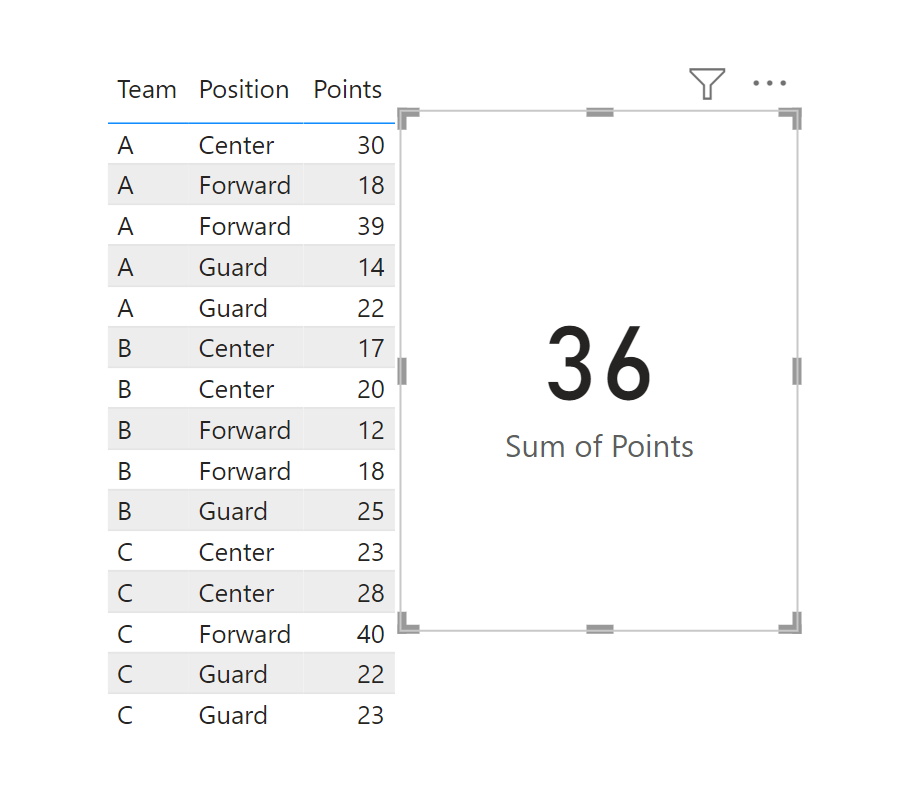

To visually confirm the result, switch to the Report View and insert a Card visualization. Drag the newly created Sum of Points measure onto the card.

The resulting calculation confirms that the sum of points for players who are both on Team A and hold the Position of Guard is 36. This demonstrates the precision achieved by combining filters using the logical AND operator in DAX.

Implementing Logical OR (||) Conditions for Measures

In contrast to the strict requirements of the AND condition, the logical OR operator, represented by the double pipe symbol (`||`), is used when a row should be included in the calculation if it satisfies any one of the defined filter conditions. This approach is necessary when calculating totals for members belonging to one group or another group.

Using OR significantly expands the data set included in the measure, as only one condition needs to be true. This is particularly useful for analyzing groups that may overlap or defining broad categories of interest.

Method 2: Create Measure by Filtering with OR Condition

Sum of Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    'my_data'[Team] = "A" || 'my_data'[Position] = "Guard"
)

Here, the measure Sum of Points calculates the total points for any row where the Team column equals “A” OR the Position column equals “Guard.” If a player is on Team B but is a Guard, they are included. If a player is on Team A but is a Forward, they are also included. This inclusive logic is key to understanding the difference between `&&` and `||`.

Step-by-Step Walkthrough: Using the OR Condition (Example 2)

Let us now apply the OR logic to the same my_data table. Our goal is to calculate the sum of values in the Points column for all players who are either members of Team A OR hold the Position of Guard, regardless of their team.

As before, navigate to the Table tools tab and click the New measure icon to open the DAX formula editor.

Enter the following formula, utilizing the logical OR operator (`||`):

Sum of Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    'my_data'[Team] = "A" || 'my_data'[Position] = "Guard"
)

By implementing this formula, we capture a much broader set of data points compared to the previous example, as the calculation is satisfied as long as one of the two conditions is met.

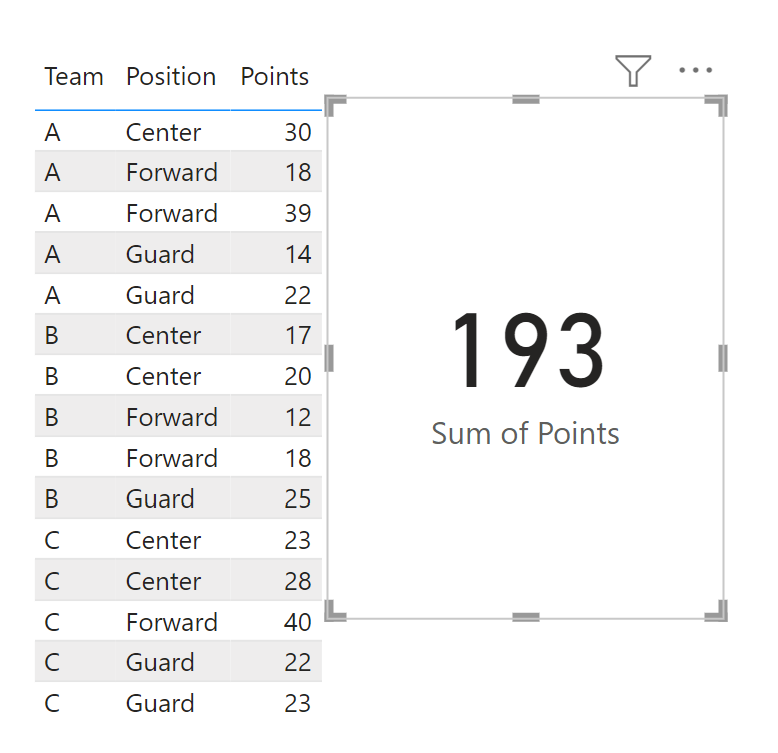

To visualize the result, return to the Report View and insert a new Card visualization displaying the value of this new measure.

As expected, the result is significantly higher: the sum of points for players who are on Team A or have a Position of Guard is 193. This dramatic increase reflects the inclusion of all rows that satisfied either condition independently.

Conclusion and Advanced Filter Management

Effectively utilizing CALCULATE with multiple conditions is a fundamental skill in Power BI development. Whether requiring the strict intersection of data using AND (`&&`) or the broad union of data using OR (`||`), DAX provides intuitive syntax to manage the Filter Context precisely. While direct use of `&&` and `||` is straightforward for simple column filtering, it is worth noting that for more complex scenarios involving related tables or expressions, advanced functions like FILTER might be required, though the logic remains fundamentally based on these Boolean operators.

Understanding these core filtering techniques ensures that your measures accurately reflect the specific business logic required for insightful reporting and analysis.
