Power BI: Filtering Data Tables by Date Range Using DAX

The Importance of Date Filtering in Data Analysis

Analyzing data over specific time periods is arguably one of the most fundamental requirements in business intelligence. Whether calculating year-over-year growth, examining quarterly trends, or isolating specific fiscal events, the ability to precisely filter datasets based on date ranges is critical for accurate reporting and insightful decision-making. In Power BI, achieving this precise time-based segmentation often requires leveraging the power of DAX (Data Analysis Expressions). While simple filtering can be done using visual slicers, creating persistent, calculated tables or measures that adhere to specific, hard-coded date ranges provides a robust foundation for complex data modeling scenarios. This method is particularly useful when you need to define a baseline dataset for further calculations, ensuring consistency across multiple reports or visualizations that rely on that specific subset of historical information.

The challenge in filtering dates effectively lies in DAX’s context sensitivity. Filtering a table directly requires defining a new context that restricts the rows based on logical conditions applied to the date column. Unlike simple spreadsheet filtering, DAX functions are optimized for working with large datasets and require specific functions designed for time intelligence. This ensures that the filtering process is efficient and handles edge cases, such as incomplete date ranges or non-contiguous data points, appropriately. By mastering the combination of table manipulation functions and dedicated date range functions, developers can extract meaningful insights from vast transactional histories, moving beyond simple visualization to sophisticated analytical reporting.

The primary technique for creating a static, date-filtered dataset involves using the CALCULATETABLE function in conjunction with a specialized time intelligence filter. This approach allows users to define a completely new table object within the data model, which is then available for subsequent relationships and analysis. This calculated table is static based on the dates defined in the formula, offering a fixed view of the data that doesn’t rely on user interaction, making it ideal for creating standardized comparison periods or historical snapshots. Understanding this foundational syntax is the key to unlocking powerful time-based data manipulation within the Power BI environment, providing a flexible alternative to standard query editors or visualization filters.

Understanding the Core DAX Syntax for Date Range Filtering

When the objective is to isolate a subset of data where a date column falls within two predefined boundaries, the most efficient DAX pattern utilizes the powerful combination of CALCULATETABLE and DATESBETWEEN. The CALCULATETABLE function serves as the container, defining a new table and evaluating an expression within a modified filter context. The filter context, in this case, is supplied by the time intelligence function DATESBETWEEN, which efficiently generates a set of dates that fall inclusively between the specified start and end dates, applying this set as a filter to the target date column.

The standard syntax for achieving this date-specific filtering is structured clearly, requiring the name of the new table, the source table, and the precise definition of the date boundaries. Below illustrates the exact structure used in DAX to filter a table named ‘my_data’ for rows where the date is between May 1, 2022, and August 20, 2023. Notice the use of the DATE function to construct unambiguous date values (Year, Month, Day), which is crucial for reliable calculations across different regional settings.

filtered_data =
CALCULATETABLE (
    'my_data',
    DATESBETWEEN ('my_data'[Date], DATE(2022, 5, 1), DATE(2023, 8, 20))
)

This specific implementation results in the creation of a new table called filtered_data. This table is a complete copy of the source table, my_data, but only includes rows where the value in the Date column is logically positioned between the starting date (5/1/2022) and the ending date (8/20/2023). This mechanism is highly effective because DATESBETWEEN handles the complexity of ensuring that the filter applies correctly across all time points within that period. For developers, this pattern offers a concise and readable way to enforce strict temporal constraints on data, establishing a clear foundation for complex analysis without relying on manual filtering steps within the report canvas.

Step-by-Step Implementation: Creating a Filtered Table in Power BI

To illustrate this process practically, consider a scenario involving a standard sales transaction dataset. Suppose we possess a table within Power BI, aptly named my_data, which meticulously records sales transactions, including the date of sale and various other metrics. The goal is to extract only those sales that occurred within a defined 15-month period to analyze performance trends during that window, excluding all data before May 2022 and after August 2023. This is a common requirement for focusing analytical efforts on specific strategic periods.

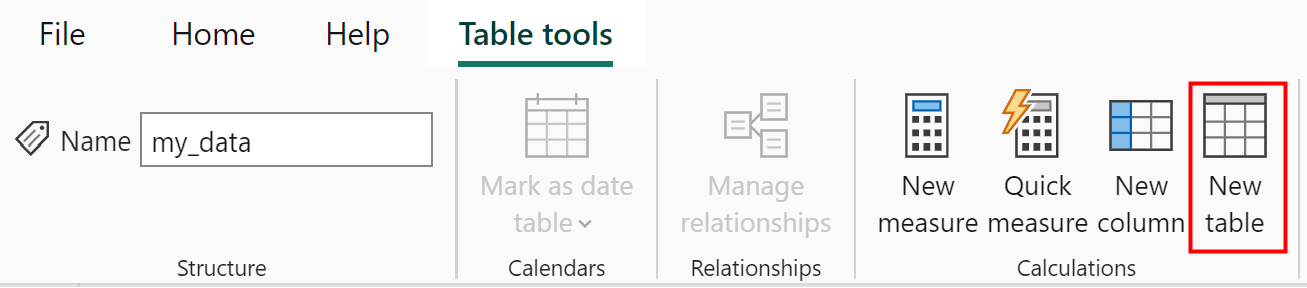

The initial step involves locating the necessary tools within the Power BI Desktop interface to initiate the creation of a new, calculated table. Unlike creating measures, which produce aggregated values, creating a new table generates a distinct, persistent object in the data model. To begin, navigate to the Table tools tab at the top of the interface. Within this tab, locate and click the New table icon. This action opens the formula bar, prompting the user to define the DAX expression that will govern the structure and content of the newly defined table.

Once the formula bar is active, the precise DAX formula must be entered. Using the example discussed previously, this formula clearly instructs the engine to create a new table, filtered_data, by evaluating the source table, my_data, under the filter context established by DATESBETWEEN. By specifying 2022/5/1 and 2023/8/20 as the boundaries, we effectively hard-code the necessary constraints directly into the data model structure.

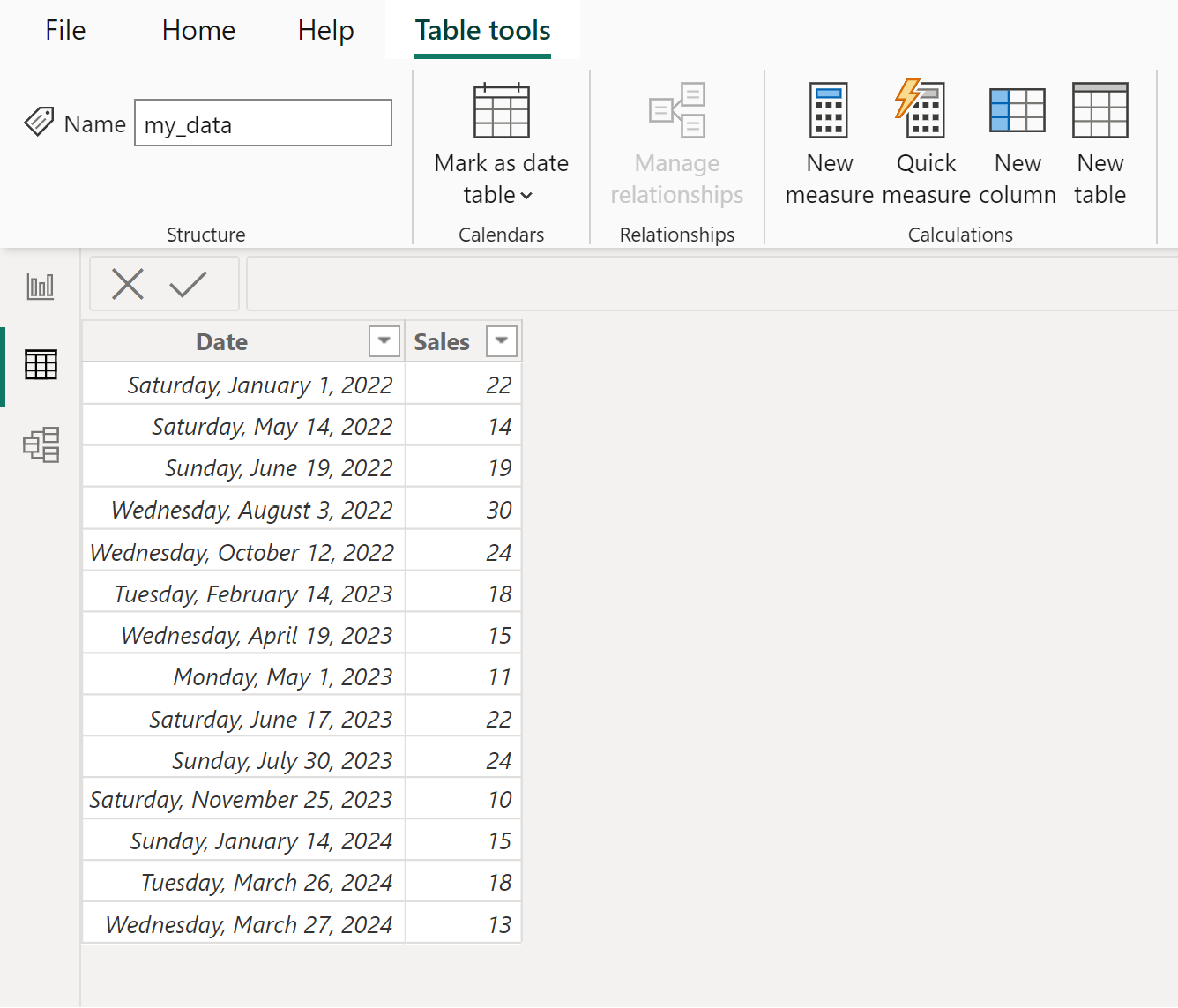

For context, consider the original data structure before filtering. This table, my_data, contains a mix of dates spanning several years:

The next critical step is the execution of the command. After clicking the New table icon:

The following formula is entered into the designated formula bar:

filtered_data =
CALCULATETABLE (
    'my_data',
    DATESBETWEEN ('my_data'[Date], DATE(2022, 5, 1), DATE(2023, 8, 20))
)

Upon successful execution, the Power BI data model will be updated with the new table, filtered_data. This resulting table will only contain those records that satisfy the date range criteria, effectively trimming the data to the desired analytical period. This outcome confirms the successful application of the time intelligence filter:

It is important to recognize that this method provides maximum flexibility. To apply the filter using different date boundaries, one simply needs to modify the arguments within the DATESBETWEEN function, changing the start and end dates specified by the DATE function components. This allows for quick recalculation of filtered datasets for various time comparisons, such as comparing Q3 performance of 2022 versus Q3 performance of 2023, by simply defining two separate calculated tables.

Deconstructing the DAX Functions: CALCULATETABLE and DATESBETWEEN

A deeper understanding of the two principal DAX functions involved—CALCULATETABLE and DATESBETWEEN—is essential for advanced Power BI development. The CALCULATETABLE function is a powerful table function that evaluates a table expression in a context modified by filters. It is the table equivalent of the scalar CALCULATE function, acting as the primary tool for shifting the filter context. In our example, CALCULATETABLE first takes the entire source table (‘my_data’) and then applies the filtering instructions passed as its second argument, resulting in the new, filtered table.

The true filtering logic resides within the DATESBETWEEN function. This is a time intelligence function designed specifically to handle chronological filtering efficiently. It requires three arguments: the column containing the dates (which must come from a proper Date table or a column defined with a Date/Time data type), the start date, and the end date. Crucially, DATESBETWEEN returns a table containing a single column of dates that fall within the specified range, inclusive of the start and end dates. When nested inside CALCULATETABLE, this table of dates is automatically applied as a filter to the date column of the source table, ensuring only rows matching those dates are included in the final output.

While DATESBETWEEN is ideal for hard-coded ranges, developers often explore alternatives. For instance, one could use a direct filter comparison, such as: FILTER('my_data', 'my_data'[Date] >= DATE(2022, 5, 1) && 'my_data'[Date] <= DATE(2023, 8, 20)). However, this method is generally less performant than dedicated time intelligence functions and often requires more complex syntax, especially when dealing with date hierarchies or date tables. Furthermore, time intelligence functions implicitly respect the structure of a properly modeled date table, which is a best practice in Power BI, ensuring calculations are reliable and context-aware. The dedicated DATESBETWEEN function is specifically optimized for this type of boundary filtering, making it the preferred, robust solution.

Best Practices and Considerations for Date Filtering

Effective date filtering in Power BI relies heavily on adherence to best practices, particularly concerning the underlying data modeling structure. The single most important best practice is the use of a dedicated, marked Date table. Although the example above worked by referencing the date column directly in the fact table (‘my_data'[Date]), relying on a central Date table ensures that all time intelligence functions, including DATESBETWEEN, function optimally and consistently across the model. A Date table guarantees contiguous dates, which is a requirement for many time intelligence operations, thus preventing unexpected gaps or missing context in calculations.

When defining the boundaries using the DATE function, it is crucial to understand its inclusive nature. The syntax DATE(2023, 8, 20) means the filter includes data up to and encompassing the entire day of August 20, 2023. If time components were relevant and required exclusion, more complex filtering involving DATETIME or EOMONTH functions might be necessary. Furthermore, when defining the date boundaries, always use the DATE(Year, Month, Day) format rather than simple text strings (e.g., “5/1/2022”). This explicit construction ensures that DAX interprets the dates correctly, regardless of the user’s regional settings or the model’s locale configuration, thereby eliminating a common source of calculation errors.

Finally, consideration must be given to performance and memory usage. Creating a new calculated table using CALCULATETABLE consumes memory, as it generates a materialized copy of the filtered data. While excellent for small to medium-sized datasets or for creating permanent analytical subsets, if the underlying source table is enormous and many different date ranges are needed, creating dozens of calculated tables might be inefficient. In such large-scale scenarios, leveraging measures that use CALCULATE with the DATESBETWEEN filter is often preferred, as measures dynamically compute the result without storing the entire filtered table in memory, optimizing resource consumption.

Advanced Date Filtering Techniques and Alternatives

While creating a static, calculated table is an excellent method for establishing a fixed analytical period, Power BI offers several alternative methods for filtering data between two dates, each suited for different analytical requirements. One common alternative is using parameters within DAX measures. Instead of hard-coding the start and end dates using the DATE function, the dates can be dynamically pulled from a simple helper table or disconnected slicer within the report. This technique allows the end-user to select the desired date range interactively, while the underlying measure uses DATESBETWEEN combined with MIN and MAX functions on the helper table to retrieve the selected boundaries.

Another powerful alternative involves pre-filtering the data at the source using Power Query (M Language). If the vast majority of analysis will focus on data after a certain cut-off point—for example, only the last five years of records—applying a date filter in Power Query before the data is loaded into the model significantly reduces the overall size of the dataset. This approach improves model refresh times and optimizes performance for all subsequent DAX calculations. However, this method sacrifices flexibility, as changing the historical window requires editing and refreshing the underlying query, unlike the CALCULATETABLE method which only requires updating the DAX function definition.

For developers who need to implement complex non-contiguous filtering, or filtering based on relative time periods (e.g., the last 18 months regardless of today’s date), other DAX time intelligence functions may be more appropriate. Functions like DATESINPERIOD or DATEADD offer ways to define date ranges based on relative movements from a current point in time, rather than fixed calendar dates. Understanding the full spectrum of time intelligence functions allows the developer to select the most efficient and readable solution for any given filtering challenge, ensuring that the Power BI model is both robust and easily maintainable.

Summary and Further Resources

Filtering data between two specific dates in Power BI is a foundational skill for advanced analysis. By utilizing the combination of the table manipulation function CALCULATETABLE and the efficient time intelligence function DATESBETWEEN, developers can reliably create static subsets of data essential for consistent reporting and benchmarking. This technique ensures data integrity by defining clear temporal boundaries using precise date construction via the DATE function.

The critical steps involve navigating to the Table tools tab, selecting New table, and inputting the structured DAX formula that defines the source table and the desired date range. This process, while creating a materialized table and consuming memory, provides an unchangeable baseline dataset that is invaluable for rigorous analysis where the filtered period must remain constant.

For ongoing learning and to explore the full capabilities of the functions discussed, the official documentation provides comprehensive details regarding syntax, usage, and contextual behavior.

Additional Resources

To further enhance your mastery of date manipulation and filter context in DAX, consult the following authoritative resources:

• Official documentation for the DATESBETWEEN function in DAX.
• Detailed explanation of the CALCULATETABLE function and its role in filter context modification.
• Best practices guide for creating and managing a dedicated Date Table in Power BI Data Modeling.
