Learning to Adjust Histogram Bins in R: A Guide to Data Visualization

The Role of Bins and R’s Default Selection Algorithms

When statistical data is visualized using a histogram, the primary goal is to understand the underlying frequency structure and the shape of the data’s distribution. The effectiveness of this visualization hinges entirely on how the raw data is divided into contiguous, non-overlapping intervals, known as bins. In the R statistical environment, the default behavior of the plotting functions involves a sophisticated, automated process to determine the optimal number of these data compartments. This automated calculation is designed to provide a statistically sound and balanced representation of the dataset without requiring manual input, making it highly convenient for initial data exploration.

The core statistical algorithm most frequently implemented by default in R for calculating the number of bins is Sturges’ Rule. This rule, which relates the number of bins ($k$) to the number of observations ($n$) via the formula $k = 1 + log_2 n$, is widely accepted and computationally efficient. While Sturges’ Rule performs admirably for datasets that approximate a normal distribution, its efficacy can diminish significantly when dealing with distributions that are highly skewed, possess heavy tails, or exhibit strong multimodality. In such complex cases, relying solely on the default calculation may inadvertently mask important features or structural characteristics inherent in the data, thereby potentially misleading the analyst.

A fundamental understanding of how R’s internal mechanisms handle default bin selection is essential for any serious data analyst utilizing the platform. Although the automated approach provides a reliable starting point, effective data analysis often necessitates a more granular level of control over the visual output. Analysts frequently need to override the default settings to rigorously test specific hypotheses, ensure comparability across different datasets, or simply optimize the visual clarity for a target audience. Recognizing this need for precision and manual control, the R language provides powerful and explicit methods for overriding these default statistical determinations.

Gaining Control: Utilizing the breaks Argument in hist()

To move beyond R’s automatic bin calculation and achieve complete, precise control over the resulting histogram, the user must manually specify the boundaries for each interval. This specification is managed through the highly flexible breaks argument within the core hist() function. By supplying a vector of values to breaks, the user dictates exactly where the data range will be partitioned, effectively defining the number and width of all resulting bins.

In standard practice, the specification of these break points is most efficiently accomplished using the built-in R function seq() (sequence). The seq() function is instrumental here because it generates a series of equally spaced numerical values, which serve as the precise boundaries between adjacent bins. By defining the minimum value, the maximum value, and the desired number of points, the analyst can quickly create a uniform structure for the histogram. The following structure illustrates the fundamental syntax required to override the default selection and enforce a specific number of bins using the seq() function:

hist(data, breaks = seq(min(data), max(data), length.out = 7))

A critical technical distinction must be understood regarding the relationship between the desired number of resulting intervals (bins) and the value assigned to the length.out argument within the seq() call. If an analyst specifies a value of $N$ for length.out, the resulting histogram will contain exactly $N-1$ total bins. This mathematical relationship is necessary because length.out defines the total number of boundary points, or break points, used to segment the data range. Since the number of intervals created by a set of points is always one less than the number of points themselves, the user must remember to input $N+1$ into length.out to achieve $N$ bins. This subtle but vital detail ensures that the resulting visualization precisely matches the analyst’s intended granularity.

The subsequent examples will provide concrete demonstrations of this syntax in action. We will highlight the visual and interpretative differences that arise when transitioning from R’s automated default settings, often based on algorithms like Sturges’ Rule, to explicit, user-defined specifications of bin boundaries.

Practical Demonstration 1: Analyzing the Default Histogram

The initial practical step involves establishing a baseline visualization by relying entirely on the automatic capabilities of the hist() function in R. This example serves to illustrate the inherent behavior when the number of bins is left undefined, allowing R to execute its internal calculation—typically leveraging Sturges’ Rule—to determine the optimal count. This automated approach is essential for quick diagnostic checks and initial explorations of a novel dataset.

To begin, we define a small, representative sample vector of data. This vector contains 17 observations, ranging from 1 to 16, which will form the basis of our frequency analysis. We then generate the simplest possible histogram, specifying only the data vector itself and a descriptive color for visual aesthetics. No parameters related to bin structure or breaks are included in this initial call, ensuring that R’s default mechanisms are fully engaged:

#define vector of data
data <- c(1, 2, 2, 3, 4, 4, 4, 5, 5, 6, 7, 10, 11, 13, 16, 16, 16)

#create histogram of data
hist(data, col = 'lightblue')

Upon the execution of this command, the R statistical environment analyzed the 17 observations within the data vector. Applying the logic derived from Sturges’ Rule (or a similar internal optimization algorithm), the software determined that the optimal number of compartments for this particular data structure was 8 total bins. This automatic determination resulted in a visualization that broadly captures the concentration of data points—showing high frequencies around the lower end (1-5) and a second, smaller peak near the high end (16). This initial plot provides a balanced, statistically suggested overview of the data’s central tendency and spread without user interference.

Practical Demonstration 2: Implementing Custom Bin Counts

In contrast to the passive approach demonstrated in Example 1, this second demonstration illustrates the necessary methodology for actively enforcing a specific level of data granularity. Suppose that due to external requirements—perhaps matching the structure of a published study or ensuring visual consistency across multiple, related datasets—we absolutely require the histogram to contain precisely 6 bins. This manual intervention allows the analyst to prioritize visual comparison or specific hypothesis testing over the statistically optimized default structure.

To successfully generate exactly six intervals, we must meticulously configure the breaks argument. As previously established, achieving $N$ bins requires setting the length.out parameter within the seq() function to $N+1$. Therefore, to obtain six bins, we must specify length.out = 7. This ensures that the sequence function generates seven equally spaced boundary points between the minimum and maximum values of the dataset, resulting in six discrete intervals that partition the data range:

#define vector of data
data <- c(1, 2, 2, 3, 4, 4, 4, 5, 5, 6, 7, 10, 11, 13, 16, 16, 16)

#create histogram with 6 bins
hist(data, col = 'lightblue', breaks = seq(min(data), max(data), length.out = 7))

A direct comparison between this visualization and the default plot in Example 1 immediately reveals a significant shift in the perceived shape and granularity of the data’s distribution. By reducing the number of bins from eight to six, the bars become wider, effectively merging some of the finer details into broader categories. This manipulation allows the user to emphasize different macro-characteristics of the data, such as its overall skewness or central tendency, which might have been less pronounced in the default setting. Consequently, mastering the manual control of breaks is paramount for tailored statistical reporting and visualization within the R environment.

The Critical Impact of Bin Selection: Under- and Over-Smoothing

The choice regarding the number of bins—or, equivalently, the determination of bin width—is not merely an aesthetic decision; it constitutes the single most critical parameter influencing the accurate interpretation of a histogram. This choice fundamentally dictates how the raw data is smoothed and summarized, thereby affecting our perception of the underlying probability distribution. A poorly selected bin count can severely distort the visual narrative, leading analysts to either miss crucial structural patterns (a phenomenon known as under-smoothing) or, conversely, to misinterpret random noise as significant trends (over-smoothing).

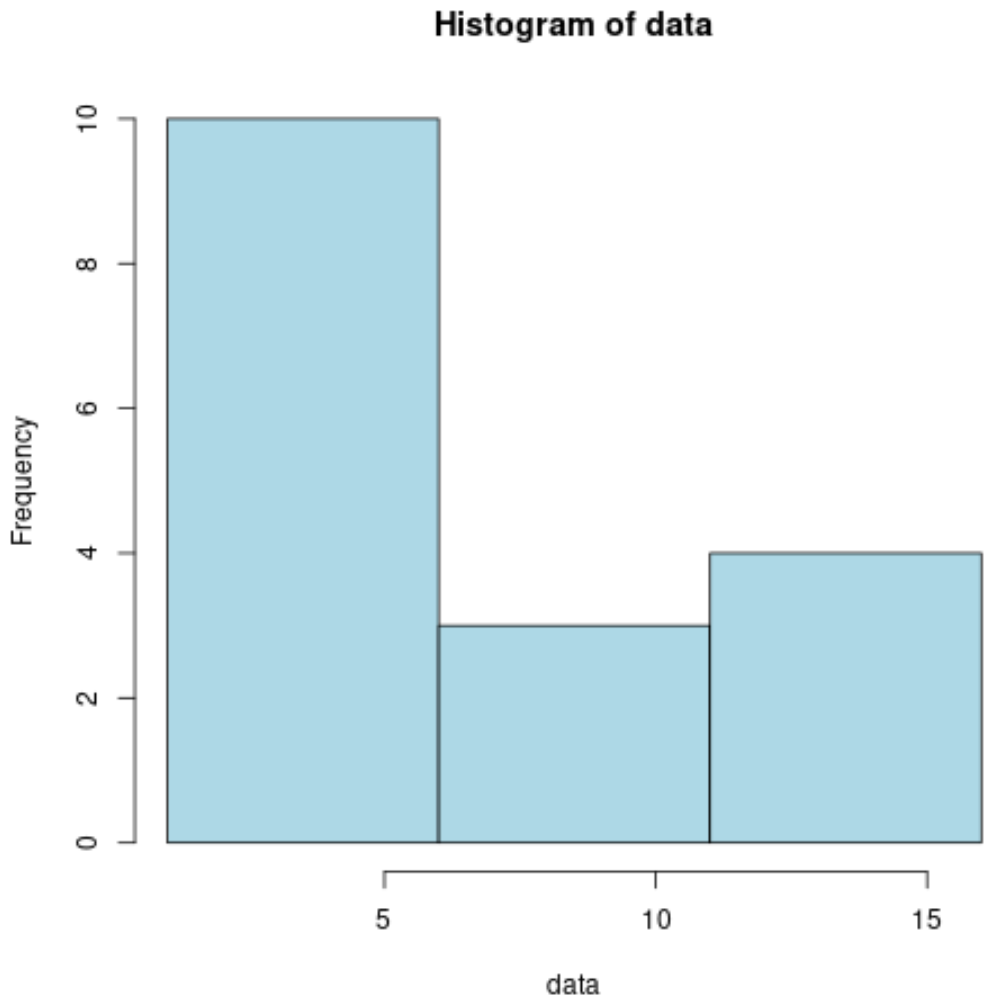

The danger of using too few bins, resulting in overly wide intervals, is known as under-smoothing. When the bin count is excessively small, the true structural characteristics of the data are aggregated and hidden from view. For instance, if a dataset is genuinely bimodal—meaning it possesses two distinct clusters or peaks—using only three or four large bins might cause these separate peaks to merge into a single, massive bar. This creates the false and misleading impression that the data follows a uniform or unimodal distribution, obscuring the heterogeneity present in the sample. The following visualization demonstrates the severe effects of under-smoothing by forcing the histogram to use only 3 bins on our sample data. Notice the profound loss of variation compared to the previous examples:

#define vector of data
data <- c(1, 2, 2, 3, 4, 4, 4, 5, 5, 6, 7, 10, 11, 13, 16, 16, 16)

#create histogram with 3 bins
hist(data, col = 'lightblue', breaks = seq(min(data), max(data), length.out = 4))

Conversely, the problem of over-smoothing arises when an analyst employs an excessively large number of bins, resulting in extremely narrow bin widths. When the number of bins approaches or exceeds the square root of the number of data points (a common heuristic boundary), the histogram becomes overly sensitive to minor, random fluctuations in the data. In this scenario, each individual bin may contain very few observations, resulting in a jagged, erratic, or “spiky” appearance. This visual noise can be mistakenly interpreted as meaningful modes or significant patterns in the dataset, leading to false conclusions about the underlying data generation process. Over-smoothing essentially treats random sampling variation as structural information.

To demonstrate this concept, we force the histogram to use 15 bins (by setting length.out = 16) on our small sample. The resultant plot is dominated by thin bars representing individual data frequencies, making it virtually impossible to discern the overall shape or underlying distribution of the data:

#define vector of data
data <- c(1, 2, 2, 3, 4, 4, 4, 5, 5, 6, 7, 10, 11, 13, 16, 16, 16)

#create histogram with 15 bins
hist(data, col = 'lightblue', breaks = seq(min(data), max(data), length.out = 16))

In conclusion, while the ability to manually customize the bin count in R is an invaluable tool for targeted analysis, it must be approached with informed caution. For most general statistical applications, the robust default calculation methods implemented in R—including Sturges’ Rule, or alternative sophisticated methods like the Freedman-Diaconis rule or Scott’s rule—are highly reliable. These algorithms are specifically designed to minimize the risk of both under- and over-smoothing, generally producing visualizations that accurately reflect the data’s true underlying structure. Customization should therefore be used judiciously, serving specific analytical goals rather than replacing sound statistical defaults.

Beyond Bin Count: Advanced Histogram Customization Techniques

Although this comprehensive guide has focused primarily on the crucial technique of manipulating the number of bins within a histogram, the R environment offers a vast suite of customization options that extend far beyond simple frequency charting. Effective data visualization requires control over numerous graphical elements, including the integration of theoretical distributions, detailed axis labeling, and the application of advanced smoothing techniques. Mastering bin selection is merely the foundational step toward producing truly informative and publication-ready statistical graphics.

Advanced users often seek to compare their empirical data distribution against a theoretical probability model (e.g., the Normal distribution, Exponential distribution, etc.). This comparison is typically achieved by overlaying a smoothed probability density function (PDF) line onto the histogram bars. In R, this involves calculating the density estimate using the density() function and then plotting the resultant curve using auxiliary functions like lines(). This technique transforms the histogram from a simple frequency plot into a powerful diagnostic tool for assessing data fit.

Furthermore, analysts should be aware that specifying the number of bins via length.out is only one method of control. The breaks argument can also accept a single numerical value representing the desired bin width, or a vector of specific boundary points that are not necessarily equally spaced. Manipulating the bin width directly provides an alternative, often more intuitive, pathway to controlling the granularity of the visualization, especially when dealing with continuous data ranges. Finally, R supports various alternative bin selection algorithms, which can be explicitly called using the breaks argument to utilize methods like “Scott” or “FD” (for Freedman-Diaconis), offering statistically optimized results tailored to different dataset characteristics.

To continue enhancing your skills in statistical graphics and data presentation within R, explore the following areas for deeper customization:

• Tutorials explaining how to overlay probability density functions and theoretical curves onto a histogram for diagnostic purposes.

• Guides detailing the process of altering bin width directly using the breaks argument, offering granular control over interval size rather than just total count.

• Official documentation and examples on using alternative, non-default bin selection algorithms (e.g., Freedman-Diaconis and Scott’s methods) to achieve optimal visualization for diverse data distributions.
