Learning R: Customizing X-Axis Labels in Barplots

Mastering X-Axis Label Customization in R Statistical Graphics

The foundation of effective data communication lies in clear and accurate data visualization. When constructing a barplot in the R environment, the x-axis labels are arguably the most critical component, as they assign meaning to the categorical data represented by the height of each bar. While the base R graphics package provides the standard barplot() function, its default labeling often lacks the required specificity or clarity for professional reports or academic publications. Fortunately, R offers flexible and straightforward mechanisms for managing these labels, enabling users to either dynamically extract categorical information from a data frame column or manually specify entirely custom text labels. Grasping these techniques is essential for any analyst utilizing R for statistical graphics, ensuring visualizations accurately and professionally narrate the underlying data story. This comprehensive guide details the two primary, most reliable methods for modifying the x-axis labels within R barplots.

The primary challenge when customizing labels centers on the correct utilization of arguments within the barplot() function call. The core function requires the bar heights (typically numerical data) but treats the labels beneath those bars as an optional, separate argument. If the user fails to provide a specific label argument, R often defaults to uninformative numerical indices (such as 1, 2, 3, etc.), rendering the graphic useless for categorical analysis. Consequently, to produce high-quality visualizations, explicit declaration of the label source or content is mandatory. We will first explore the process of dynamically linking labels to an existing column in the dataset, followed by the robust technique of manually defining a sequence of static labels.

These two approaches—dynamic assignment using column data and static specification using a custom vector—effectively cover almost every scenario encountered during barplot generation. Dynamic assignment is the preferred method when the categories (e.g., product names, geographic regions, experimental groups) are already well-defined and consistent within the source dataset. This method guarantees synchronization between the data source and the resulting graphic. Conversely, static specification proves invaluable when the data must be presented using shorter aliases, when aggregation necessitates new descriptive labels, or when mapping numerical results to non-sequential categories. Mastering both dynamic and static labeling strategies grants the visualization expert the necessary flexibility to adapt R graphics to diverse analytical and presentation requirements.

Preparing the Data Structure for Effective Barplot Labeling

Before delving into the specific code used to generate and customize the barplots, establishing a clear and appropriate data structure is crucial. The organization of data in R directly influences how the visualization functions interpret and display information. Typically, a barplot requires two core elements: a set of numerical values defining the magnitude (height) of the bars, and a corresponding set of categorical identifiers that serve as the x-axis labels. For our demonstration, we will construct a straightforward data frame that relates fictional sports teams to their accumulated points, providing a tangible context for applying the customization methods.

The sample data frame will incorporate two columns: team, holding the categorical variables that we intend to use as labels, and points, containing the numerical values that dictate the bar heights. This dual-column structure is the standard input format for the base R barplot() function, where the height argument references the numerical data and the label arguments reference the categorical data. By clearly defining this data frame upfront, we ensure that all subsequent code examples are immediately runnable and that the focus remains entirely on the techniques for label customization, rather than complex data manipulation.

The following R code snippet illustrates the creation and content of the sample data frame used throughout this tutorial. We utilize the data.frame() function, the standard mechanism for constructing this foundational structure in R. This object, named df, will be directly referenced in subsequent calls to the barplot() function, emphasizing that proper data preparation is the prerequisite for effective visualization customization.

#create data frame
df<- data.frame(team=c('Mavs', 'Nets', 'Kings', 'Hawks', 'Heat'),
                points=c(22, 24, 10, 31, 15))

#view data frame
df

   team points
1  Mavs     22
2  Nets     24
3 Kings     10
4 Hawks     31
5  Heat     15

As evidenced by the output, the df data frame contains five entries, perfectly aligning the team names with their respective point totals. This setup simplifies the subsequent visualization code significantly, allowing us to directly map df$points to the bar heights and then utilize either df$team or a custom vector for the x-axis labels, depending on the chosen method. This groundwork is essential not only for accuracy but also for ensuring that the customization techniques demonstrated focus purely on the visual output.

Method 1: Dynamic Label Assignment Using the names Argument

The most intuitive and frequently used method for labeling the x-axis of an R barplot involves extracting existing categorical data directly from a column within the source data frame. This approach, known as dynamic assignment, ensures that the labels displayed on the plot are inherently consistent with the data being visualized. Within the base R barplot() function, this synchronization is achieved using the names argument. When this argument is specified, R automatically maps the elements of the provided character vector to the bars generated by the height argument, maintaining the sequential order of the original data.

To implement this method, the user simply passes the specific categorical column of the data frame directly to the names argument. For our example using the data frame df, where we want the team names as labels, we supply df$team. This directs the barplot() function to calculate bar heights based on df$points and sequentially label them using the entries found in the df$team column. This technique is highly recommended whenever the raw categorical data provides sufficient clarity and detail for the intended visualization, as it minimizes the potential for human error associated with manually typing or transcribing labels.

The following code demonstrates Method 1 in practical application, utilizing df$points for defining the bar heights and df$team for retrieving the corresponding x-axis labels. This represents the simplest and most robust pathway for generating a correctly labeled barplot when the required category names are already available within a column of the source data structure.

#create barplot and use values from 'team' column as x-axis labels
barplot(height=df$points, names=df$team)

Employing the names argument guarantees an immediate and accurate visual correspondence between the data entry and the graphic representation. This powerful mechanism within R graphics streamlines the process of generating informative bar charts, linking the numeric outcome (bar height) directly to its source category (x-axis label) without requiring any external manipulation of the label text.

Example 1: Visualization Using Column Values as X-Axis Labels

To solidify the understanding of dynamic assignment, we execute the code using our defined data frame, df. This specific example verifies that the names argument successfully extracts the team names and correctly positions them beneath each bar corresponding to their accumulated point totals. This is the preferred methodology for maintaining data integrity and clarity when the raw categorical variable names are suitable for the final presentation.

The visualization process begins with the call to the barplot() function. The numerical values from df$points establish the vertical scale, while the character vector extracted via df$team populates the horizontal labels. No supplementary formatting or specification is required, which underscores the inherent simplicity and elegance of dynamic label assignment within R’s base graphics system. It is vital to confirm that the length of the height vector precisely matches the length of the names vector; any inconsistency would result in an error or an erroneous plot. Since both df$points and df$team originate from the same rows of the data frame, this length consistency is automatically assured.

The specific R command used to generate the barplot is:

#create barplot and use values from 'team' column as x-axis labels
barplot(height=df$points, names=df$team)

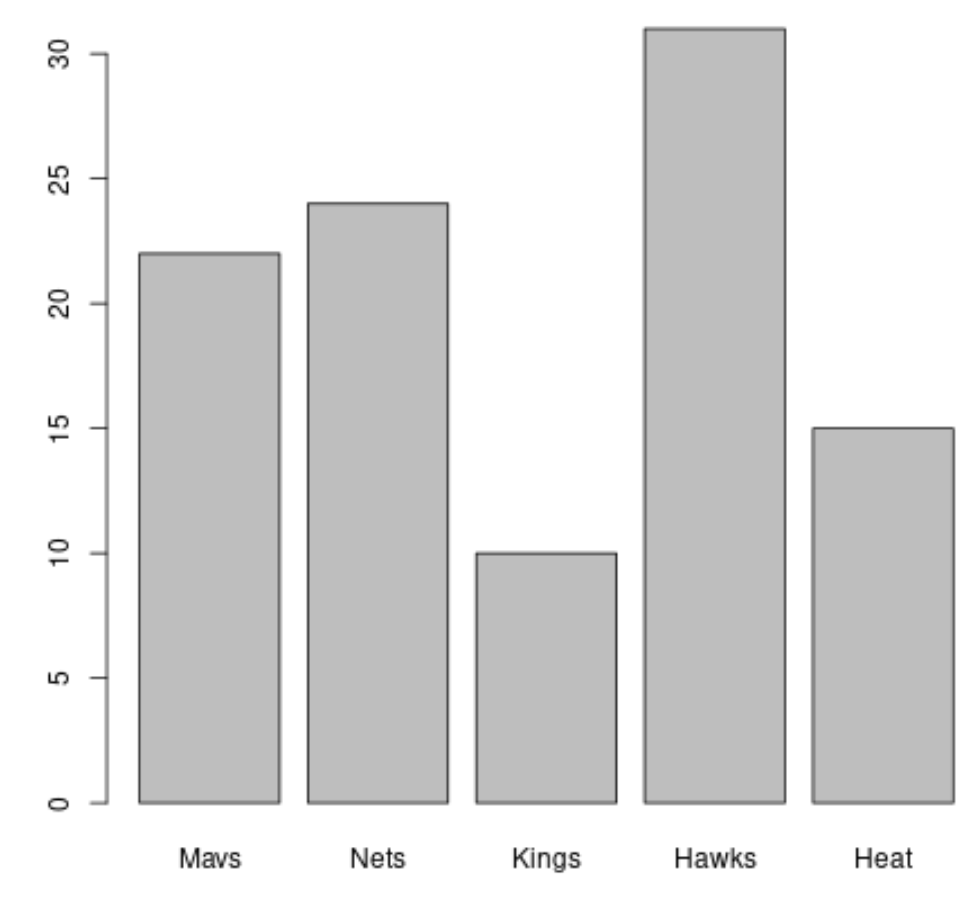

Upon execution, the resulting graphic clearly displays the team names (“Mavs”, “Nets”, “Kings”, “Hawks”, “Heat”) positioned directly beneath the bars representing their respective point totals.

Observe that the x-axis labels correspond exactly to the values retrieved from the team column in the source data frame. This successful outcome confirms the efficacy of using the names argument for dynamic label assignment, which provides a clean, one-to-one mapping between the categorical data and the visualization elements. This methodology is particularly valuable when working with extensive datasets where manual label entry would be both time-consuming and prone to transcription errors.

Method 2: Static Label Specification Using the names.arg Argument

While Method 1 is highly effective for leveraging existing column data, numerous analytical scenarios necessitate the use of custom, static labels. This requirement often arises when the original category names are excessively long, requiring abbreviation due to space constraints, or when the plotted data represents a summary or aggregation that requires new, more descriptive aliases. To define entirely custom labels within the R barplot() function, we employ the powerful names.arg argument.

The names.arg argument accepts a character vector containing the user’s desired labels. Critically, the length and sequential order of this custom vector must precisely match the number and order of the bars being plotted (i.e., the length of the height vector). If the vector lengths are mismatched, R will often recycle the labels or, more commonly, generate an error, resulting in a misleading or failed plot. By utilizing names.arg, the user gains maximum control over the exact text displayed on the x-axis, independent of the underlying categorical column names in the source data. This independence is a significant asset for achieving specific visual design objectives and enhancing clarity.

For our example, instead of using the full team names (“Mavs”, “Nets”, etc.), we might choose to substitute them with generic, abstracted labels such as ‘A’, ‘B’, ‘C’, ‘D’, and ‘E’. This technique is useful if the visualization needs to be anonymized or if these generic labels correspond to specific groups defined in an accompanying report key. The essential constraint remains: because our data frame df defines five bars, the custom vector supplied to names.arg must contain exactly five elements.

The implementation structure for Method 2 involves constructing the custom vector using the standard c() function and passing this vector directly to the names.arg parameter within the barplot() function call.

#create barplot with custom x-axis labels
barplot(height=df$points, names.arg=c('A', 'B', 'C', 'D', 'E'))

This code snippet clearly demonstrates the technique of using a hard-coded vector for labeling. While this method grants significant flexibility, it requires meticulous manual management to ensure that the order of the custom labels correctly corresponds to the sequence of the data points being plotted, thereby preventing any potential misinterpretation of the visualization results.

Example 2: Demonstrating Custom, Hard-Coded X-Axis Labels

To finalize the demonstration of Method 2, we generate a barplot utilizing the identical point totals (df$points) but explicitly override the default categorical labels by employing the names.arg argument. This exercise effectively highlights the comprehensive degree of control afforded to the user when the default column names are deemed unsuitable for the intended final visualization.

We execute the following code, replacing the original team names with a simple sequence of alphabetical characters (‘A’ through ‘E’). It is paramount to recall the sequential mapping: ‘A’ corresponds to the first element in df$points (Mavs, 22), ‘B’ corresponds to the second (Nets, 24), and so forth. If the order of the custom labels is inadvertently rearranged, the viewer will mistakenly associate a bar’s height with the wrong category name, severely compromising the fidelity and integrity of the data presentation.

The specific R code utilized is:

#create barplot with custom x-axis labels
barplot(height=df$points, names.arg=c('A', 'B', 'C', 'D', 'E'))

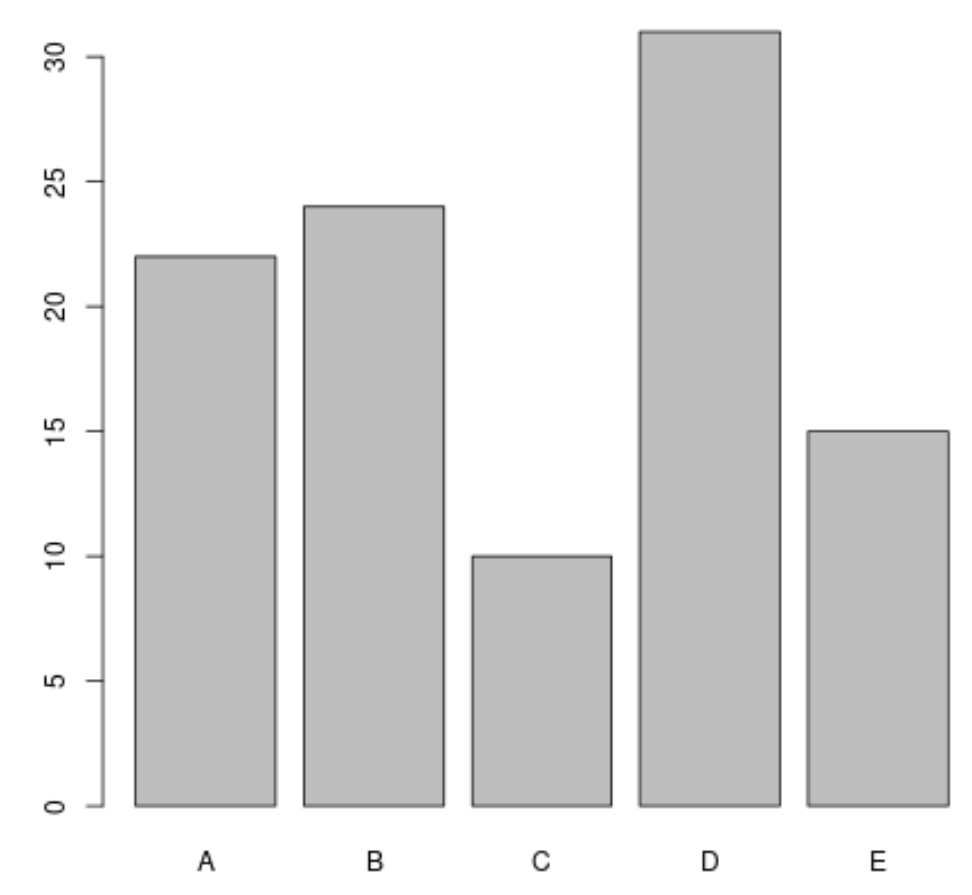

The resulting graphic confirms that the hard-coded vector has successfully superseded the default labels, providing an entirely customized x-axis display.

Notice that the x-axis labels now correspond precisely to the values that we explicitly specified using the names.arg argument. This confirms that for situations demanding abbreviated or significantly altered category names, names.arg provides the necessary granular control within the base R barplot() function. While this method offers maximum flexibility, users must always ensure that the custom labels are thoroughly and accurately explained in any accompanying documentation, particularly when the labels are highly abstracted (such as ‘A’, ‘B’, ‘C’).

Conclusion: Selecting the Appropriate Labeling Strategy

Effectively labeling the x-axis of a barplot is an indispensable step toward producing informative and professional data visualizations in R. We have thoroughly examined two robust methods for achieving this customization using the base R barplot() function. Method 1, which utilizes the names argument, is the optimal choice for scenarios where the categorical data is already clearly defined within a column of the source data frame. This approach prioritizes data consistency and minimizes the potential for manual input errors. Conversely, Method 2, which leverages the names.arg argument, provides granular, explicit control, allowing the user to input a custom character vector to override, shorten, or abstract the default category names.

The decision between employing names and names.arg should always be guided by the specific communication requirements of the visualization. If the plot is being used for internal exploratory analysis, relying on the names argument is typically the most efficient and reliable solution. However, if the graphic is destined for external reporting, academic publication, or client presentation, where label brevity, specific formatting, or anonymity is mandated, the flexibility provided by names.arg becomes essential. Regardless of the method chosen, maintaining the strict one-to-one correspondence between the order of the data (the height vector) and the order of the labels is paramount for generating a trustworthy and unambiguous visual representation of the statistical data.

Mastering these two fundamental labeling techniques provides a solid foundation for tackling more intricate visualization challenges in R. Once the basic structure and labeling are perfected, users can confidently advance to customizing other aesthetic elements, such as adjusting color palettes, setting appropriate axis limits, adding descriptive titles, and optimizing label rotation to effectively handle particularly long category names. R’s base graphics system, while sometimes overshadowed by newer packages like ggplot2, continues to offer powerful and direct control over the graphical elements necessary for high-quality, reproducible statistical output.
