Understanding Transparency in R Plots: A Tutorial Using the alpha() Function

Introduction to Controlling Transparency in R Visualizations

Effective data communication hinges on the ability to precisely control the visual properties of graphical elements. In the realm of statistical computing, particularly when constructing complex visualizations such as scatterplots, it is frequently necessary to modulate the clarity or visibility of individual data points. This critical adjustment is formally achieved by setting the alpha channel, or transparency level. Transparency becomes fundamentally important when analyzing and visualizing large, dense datasets where numerous observations inevitably overlap—a common issue known as overplotting. Without proper control over transparency, these dense areas often merge into solid, impenetrable blocks of color, thereby obscuring vital underlying variations in data density and distribution. By meticulously applying an alpha value, we enable the colors of overlapping graphical elements to blend seamlessly, effectively highlighting regions of high concentration and significantly improving overall data clarity and interpretability.

The alpha value within the R plotting ecosystem governs the opacity of any given color, operating on a precise numerical scale that spans from 0 to 1. An alpha value precisely set at 0 denotes complete transparency, meaning the plotted element is entirely invisible. Conversely, a value of 1 signifies full opacity, resulting in an element that is completely solid and maximally visible. Intermediate values, such as the commonly used 0.5, provide partial transparency, allowing background elements, grid lines, or other overlapping data points to be partially perceived through the foreground element. Developing mastery over this parameter is essential for any professional leveraging the R programming language for advanced data visualization. Proper alpha management ensures that plots remain highly informative and aesthetically appealing, regardless of the inherent complexity or sheer size of the analyzed dataset.

The specific methodology required for adjusting transparency differs significantly depending on the plotting system being utilized. Users employing the traditional Base R plotting system—which relies on functions like plot()—must typically employ external utility packages to inject transparency information directly into the color vectors. In sharp contrast, the modern, powerful, and widely adopted ggplot2 package integrates alpha intrinsically, treating it as a standard aesthetic mapping or a fixed geometric parameter. This deep, intrinsic integration offers a far more streamlined and consistent approach to visual customization. We will meticulously explore both of these distinct methods in the subsequent sections, focusing on the practical application of the alpha() function (in Base R) or the alpha argument (in ggplot2) to achieve optimal visualization results tailored to specific data needs.

Preparing and Structuring the Demonstration Data

To provide a clear, reproducible demonstration of transparency techniques across both R environments, we will construct and utilize a small, simulated dataset representing hypothetical basketball player statistics. This minimal data frame encapsulates information across eight observations, characterized by three fundamental variables: team (structured as a factor variable to differentiate two distinct groups), points scored, and total assists recorded. Utilizing a simple, contained dataset ensures that the visual impact of the transparency settings—both within Base R and the ggplot2 framework—is immediately discernible and easy for the user to interpret. Our primary objective is to generate a powerful visualization that compares points against assists, color-coded by team, where the transparency parameter can be effortlessly manipulated and observed.

The necessary prerequisite before any plotting can commence is the proper initialization of the data frame. It is crucial to note that within this simulated data, the team variable is explicitly converted into a factor. This conversion is vital because it instructs R to treat the variable as a nominal, categorical grouping variable, which is essential for accurate color mapping in visualizations. The data frame initialization uses standard R syntax, defining columns for team assignment (1 or 2), the numerical points, and the numerical assists. This foundational setup provides the necessary structure, allowing us to pivot our attention entirely to the implementation specifics of the alpha parameter in the upcoming plotting examples.

#create data frame for demonstration
df <- data.frame(team=as.factor(c(1, 2, 1, 2, 1, 2, 1, 2)),
                 points=c(99, 68, 86, 88, 95, 74, 78, 93),
                 assists=c(22, 28, 45, 35, 34, 45, 28, 31))

#view data frame structure
df

  team points assists
1    1     99      22
2    2     68      28
3    1     86      45
4    2     88      35
5    1     95      34
6    2     74      45
7    1     78      28
8    2     93      31

The resulting data frame, df, now successfully holds all the required information for our subsequent visualization tasks. Our immediate goal is to construct a scatterplot where the horizontal axis (X-axis) precisely represents the points scored and the vertical axis (Y-axis) corresponds to the total assists recorded. Critically, the individual points themselves will be distinguished and colored according to the categorical team variable. As we progress through the practical examples, users should observe closely how the explicit addition of the alpha setting fundamentally alters the visual appearance and representation of these points, powerfully illustrating how transparency serves as a vital tool for enhancing data visualization, especially when point overlap is present.

Method 1: Implementing Transparency in Base R using the scales Package

When operating within the confines of the traditional Base R graphics system, defining colors typically relies on standard color names (e.g., “red,” “blue”) or specific hexadecimal codes. A major limitation of these standard definitions is their inherent lack of an explicit transparency component, often referred to as the alpha channel. To overcome this limitation and successfully introduce transparency, R users must rely on dedicated utility packages. The scales package provides the highly efficient alpha() function, which is expertly designed to accept existing opaque colors and append a user-defined alpha value. This process generates a new, semi-transparent color code vector perfectly suited for direct use within Base R plotting functions such as plot(). This mechanism is essential because Base R‘s native color handling capabilities do not natively support the vector-based application of transparency without the aid of such an external tool.

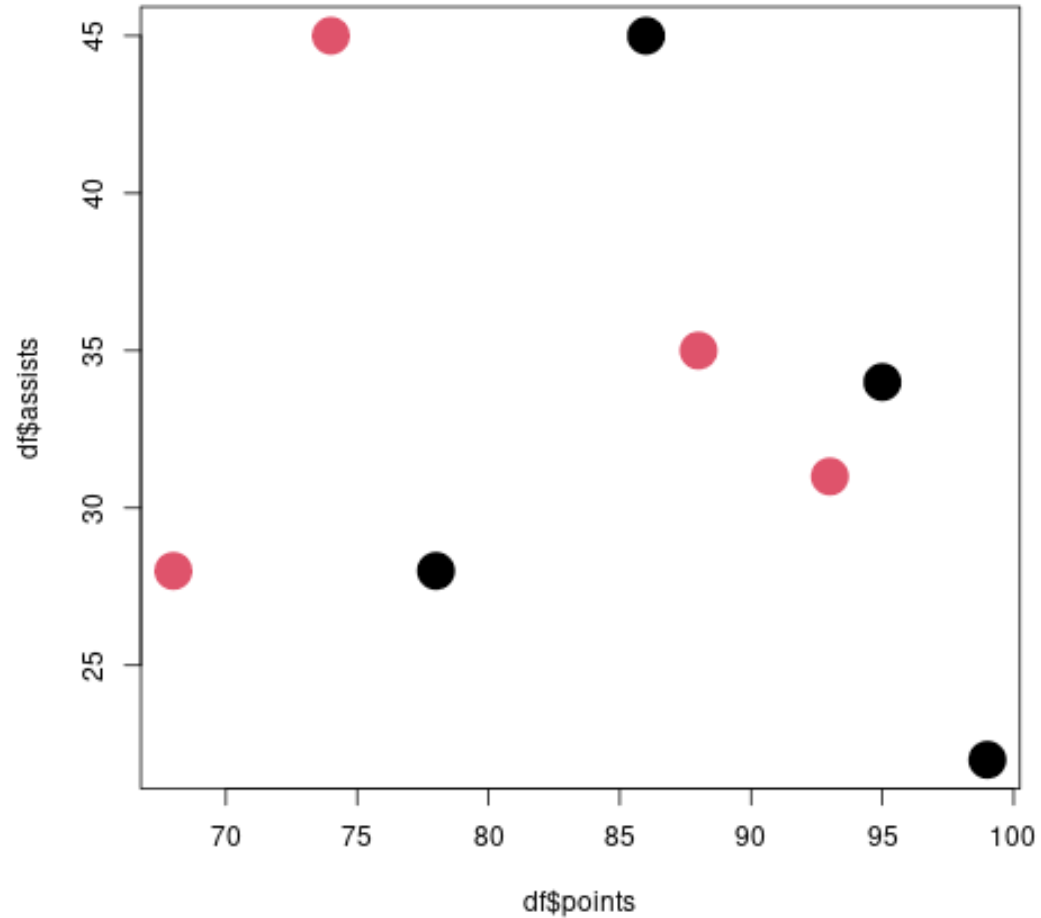

Before introducing transparency, let us first establish a visual baseline by observing the default appearance of a Base R scatterplot plotted without any transparency applied. We initiate this visualization using the standard plot() function, carefully mapping our variables and setting key graphical parameters. We set col=df$team for automatic color assignment based on the factor variable, utilize cex=3 to significantly enlarge the points for enhanced visibility, and specify pch=19 to ensure solid circular shapes are rendered. Since the alpha channel is implicitly defaulted to 1 (full opacity), the points appear maximally saturated and intense, demonstrating the default, opaque behavior of the underlying R graphics device.

#create basic scatterplot of points vs assists without transparency
plot(df$points, df$assists, col=df$team, cex=3, pch=19)

To successfully introduce partial transparency—in this example, a half-transparency level—we must first ensure the scales package is loaded into the R session using the library() command. The critical step involves modifying the col argument within the plot() function. We achieve this by wrapping our existing color vector, df$team, inside the specialized alpha() function provided by the package, simultaneously specifying our desired transparency level, which is .5. The scales::alpha() function performs the necessary calculation: it processes the input colors, translates them into the required Hexadecimal RGBA codes (incorporating Red, Green, Blue, and Alpha components), and then returns this newly created vector of semi-transparent colors directly back to the plot() function for rendering. This transformation is pivotal; it converts the previous opaque plot into a visually softer, transparent representation that is capable of displaying density gradients.

library(scales)

#create scatterplot with transparency value of 0.5 using alpha()
plot(df$points, df$assists, col=alpha(df$team, .5), cex=3, pch=19)

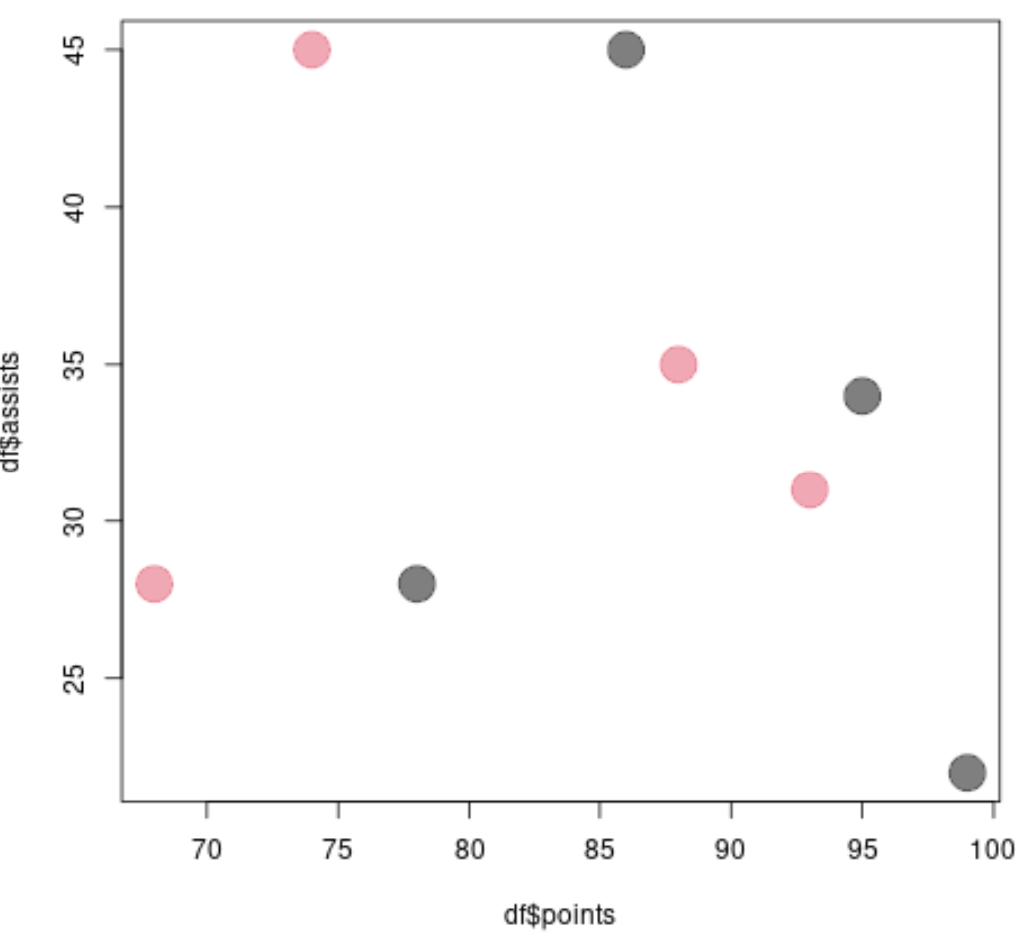

A careful examination of the resulting plot clearly confirms that the data points now exhibit the intended 50% transparency. Visually, these points are noticeably lighter, less saturated, and far less intense compared to their fully opaque counterparts. While the benefit is subtle in this small dataset, the impact is dramatically pronounced in larger contexts: if these points were densely overlapping, the introduced transparency would immediately reveal the underlying layering, providing the viewer with a much clearer understanding of data density and distribution. This specific methodology, leveraging the alpha() function from the specialized scales package, remains the standardized and highly recommended approach for effectively managing point opacity within the Base R plotting environment.

Method 2: Controlling Alpha Values Directly in ggplot2

The highly influential ggplot2 package, meticulously constructed upon the theoretical foundation of the Grammar of Graphics, manages aesthetics—including transparency—in a fundamentally different and often more intuitive manner than Base R. In ggplot2, alpha is recognized as a core aesthetic property. This allows it to be handled in two powerful ways: first, it can be dynamically mapped to a variable (allowing transparency to fluctuate based on the data values themselves); or second, it can be set as a static, fixed parameter directly within a specific geometry function (applying uniform transparency to all points within that layer). This deep, intrinsic integration eliminates the need for preprocessing colors with external functions like scales::alpha() when the goal is simply to apply a constant transparency level across all elements.

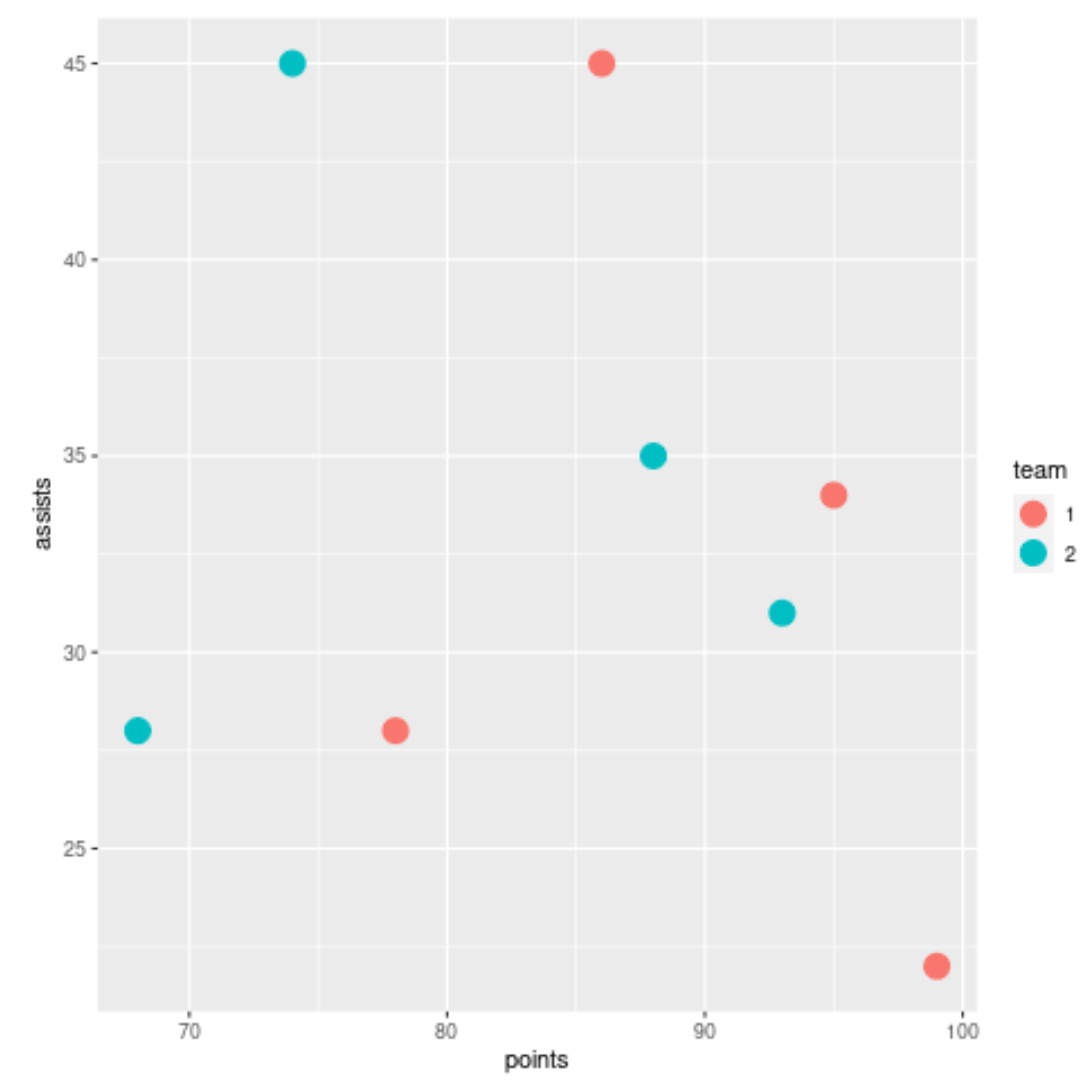

We start by generating the functional equivalent of the opaque scatterplot using ggplot2 syntax. The standard construction begins by defining the data frame (df), mapping points and assists to the X and Y axes, respectively, and assigning team to the color aesthetic within the mandatory aes() function. We then append the geom_point() layer, setting a fixed size=5 for adequate point visibility. Crucially, since we have deliberately omitted an explicit alpha parameter at this stage, ggplot2 automatically defaults to full opacity (alpha=1) for all drawn elements, perfectly mirroring the initial opaque results observed in the Base R example.

library(ggplot2)

#create initial scatterplot of points vs assists without alpha
ggplot(df, aes(points, assists, col=team)) +
  geom_point(size=5)

Introducing static transparency within the ggplot2 framework is remarkably straightforward and requires minimal additional code. We simply add the alpha argument directly inside the geom_point() function itself. By setting alpha=0.5, we issue a clear instruction to the geometry layer to render all points at precisely half opacity. It is essential that this parameter is specified outside of the main aes() function. This placement signifies that we are setting a constant, non-data-mapped visual property for the entire geometric layer, rather than attempting to link the transparency level to a specific, fluctuating data variable. This elegant approach underscores the structural efficiency of ggplot2, where visual properties are controlled precisely at the point where the geometric elements are defined and generated.

library(ggplot2)

#create scatterplot with transparency of 0.5 in geom_point
ggplot(df, aes(points, assists, col=team)) +
  geom_point(size=5, alpha=0.5)

Upon reviewing the final plot, it is confirmed that the points generated by ggplot2 now exhibit the specified half transparency, successfully achieving the identical visual effect observed in the Base R example, albeit through a distinctly different syntactical process. The internal, seamless handling of the alpha channel by ggplot2 significantly simplifies the required code, resulting in visualizations that are highly readable and easily maintainable. This method is generally favored by many R practitioners for its consistency and powerful extensibility, offering users the ability to effortlessly layer multiple geometric elements, each potentially holding its own independent transparency setting, which is vital for constructing complex and highly nuanced data visualizations.

Mastering the Alpha Scale and Visualization Best Practices

At its core, the alpha argument acts as the fundamental control over the degree of light transmission through a plotted element, relying strictly on the numerical continuum from 0 to 1. A deep understanding of this scale is paramount for crafting truly effective visualizations. A value closely approaching 0 guarantees minimal or zero visibility, which can be strategically useful for rendering background noise or for plotting points intended to serve only as subtle visual hints. Conversely, a value near 1 ensures maximum visual impact and saturation. The most practical and common application of transparency, particularly when plotting thousands of observations, typically falls within the intermediate range of 0.2 to 0.7. If the data points are highly clustered, a significantly lower alpha value (e.g., 0.2) becomes necessary to prevent the dense, clustered region from becoming completely opaque and misleadingly dark. If, however, the points are sparse and widely distributed, a slightly higher alpha (e.g., 0.6) might be required simply to ensure that individual points remain adequately visible and detectable by the viewer.

Selecting the truly optimal alpha level is rarely a one-size-fits-all solution; it demands iterative experimentation meticulously tailored to the specific dataset being analyzed and the overall visualization context. A highly recommended starting point for beginning the exploration of data density is often an alpha value of 0.4 or 0.5. Best practice guidelines insist that the chosen alpha level must consistently allow the viewer to perceive accurate density gradients—the crucial ability to visually and intuitively distinguish between an area where 2 points overlap versus an area where 10 or 20 points are heavily clustered. Furthermore, the final selection of the alpha value must be consciously considered in conjunction with the plot’s background color; for instance, semi-transparent points rendered on a pure white background will produce a distinct visual effect compared to the exact same points plotted on a dark or colored background. Transparency, therefore, transcends a mere aesthetic choice; it functions as a critical analytical tool designed to prevent visual saturation and significantly enhance the interpretation of underlying data distribution patterns.

Conclusion and Further Resources

In conclusion, regardless of the chosen approach—whether you are manipulating the color vector using the dedicated alpha() function from the scales package for legacy Base R plots, or setting the alpha parameter directly within a ggplot2 geometry function—the underlying principle remains constant: transparency is achieved by setting a value between 0 (invisible) and 1 (fully opaque). Mastering these two distinct but equally valuable approaches is fundamental to ensuring that R users can consistently produce visualizations that are not only visually compelling but also technically accurate, honest representations of complex data structures. The careful and judicious application of the alpha channel is rightly considered a defining hallmark of sophisticated and professional data visualization within the R environment.
