Learning to Rank Data by Group in Excel

One of the fundamental challenges in data analysis within Excel is transitioning from simple, global data interpretation to detailed, category-specific performance evaluation. While determining the overall ranking of data across an entire dataset is a straightforward task, assigning a rank to individual values based exclusively on their respective groups or categories presents a significant analytical hurdle. This specialized functionality is absolutely crucial for gaining insightful analysis, enabling users to quickly identify the top performers, median values, or lowest values within predefined organizational segments.

Standard spreadsheet functions are often inadequate when attempting to perform this group-based ranking directly, requiring complex workarounds or manual filtering. This comprehensive article will demonstrate how to construct two sophisticated array-based formulas utilizing the versatile SUMPRODUCT function in Excel. By implementing these techniques, you can effectively rank values by group in both descending (highest-to-lowest) and ascending (lowest-to-highest) orders, providing dynamic and accurate results.

Understanding Group-Based Ranking in Excel

The capability to rank data points relative only to their immediate group is invaluable across numerous analytical contexts. Consider a business scenario where you have sales data: knowing a salesperson’s rank within their specific geographic region is far more actionable than knowing their rank globally across all regions. Similarly, in quality control, understanding a machine’s error rate rank compared only to other machines on the same production line provides more relevant operational insights than a general company-wide comparison. This granular level of analysis is essential for targeted decision-making, resource allocation, and focused performance evaluation.

Traditional Excel ranking functions, such as `RANK.EQ` or `RANK.AVG`, are fundamentally designed to evaluate values across one continuous, entire range. They lack the inherent logic structure to conditionally partition the data and then apply the ranking calculation to those subgroups independently. This limitation historically forces users into time-consuming and error-prone manual processes, often involving sorting, filtering, and copying subsets of data, especially when dealing with large or frequently updated datasets.

Fortunately, the SUMPRODUCT function offers a powerful and flexible method to bypass these limitations by supporting complex conditional criteria within its calculation structure. By cleverly combining array operations—where logical conditions are converted into numerical arrays of 1s (TRUE) and 0s (FALSE)—Excel can evaluate multiple conditions simultaneously. This makes SUMPRODUCT perfectly suited for performing accurate, dynamic, group-based ranking. The following sections will detail the construction and logic of these advanced array formulas.

Formula 1: Ranking Values by Group (Descending Order)

This first formula is structured to assign a rank where the largest value receives a rank of 1, the second largest receives a rank of 2, and so on, strictly within its designated group. This is the standard procedure for ranking performance metrics and is typically used to identify leaders or top performers in any given category.

=SUMPRODUCT(($A$2:$A$13=A2)*($B$2:$B$13>B2))+1

To fully leverage this powerful technique, it is essential to understand the logic behind each component of the formula:

• $A$2:$A$13=A2: This initial segment defines and isolates the specific grouping criterion. It generates a logical array where TRUE indicates that a cell in the fixed range A2:A13 matches the current group identifier found in cell A2. The absolute references (dollar signs) are crucial as they ensure the range remains static when the formula is copied down the column.
• $B$2:$B$13>B2: This second segment executes the core comparison for the descending ranking. It produces a second array where TRUE indicates that a value within the fixed ranking range B2:B13 is strictly greater than the current value in cell B2. This effectively counts how many group members have a higher score than the current data point.
• `*` (Multiplication Operator): The multiplication operator performs a logical AND operation. It converts the TRUE/FALSE values into 1s and 0s. A result of 1 is achieved only when both conditions are met: the data point belongs to the correct group AND its value is greater than the current cell’s value.
• SUMPRODUCT Function: This function is the engine that sums all the 1s resulting from the multiplication. The total sum represents the exact count of all values within the specific group that are ranked above the current value.
• `+1`: Finally, adding 1 to the calculated sum converts the count into a rank. For instance, if the count shows two values are larger than the current value, the current value must be the third largest (2 + 1 = 3). If no values are larger, it is the largest, resulting in a rank of 1 (0 + 1 = 1).

Formula 2: Ranking Values by Group (Ascending Order)

In contrast to the descending formula, this variation is designed to assign a rank where the smallest value receives a rank of 1, the second smallest receives a rank of 2, and so on. This ascending order ranking is particularly useful in scenarios where a lower numerical value signifies better performance, such as identifying the lowest costs, shortest completion times, or fewest recorded errors within a given group or category.

=SUMPRODUCT(($A$2:$A$13=A2)*($B$2:$B$13<B2))+1

The foundational structure of this formula remains nearly identical to the descending version, relying on the same array logic for grouping. However, there is one crucial alteration that reverses the ranking order:

• $B$2:$B$13<B2: Instead of checking for values greater than the current cell (B2), this segment now checks for values that are strictly less than the current cell. Consequently, the SUMPRODUCT function aggregates the count of occurrences where a value within the same group is smaller than the current value.
• `+1`: As before, adding 1 to this count establishes the rank. If the count reveals two values smaller than the current value within its group, the current value is the third smallest (2 + 1 = 3). If no values are smaller, it is designated as the smallest (rank 1).

Both of these formulas expertly utilize the power of array operations within SUMPRODUCT to deliver group-specific ranking. They eliminate the necessity for creating complex pivot tables, using helper columns, or writing custom Visual Basic for Applications (VBA) code.

Practical Application: Example 1 – Ranking in Descending Order

To illustrate the real-world application of the descending formula, let’s use a concrete example. Imagine managing a dataset in Excel that tracks points scored by various basketball players across several different teams. The objective is to calculate the rank of each player’s points score relative only to the other players on their specific team, with the highest score receiving rank 1.

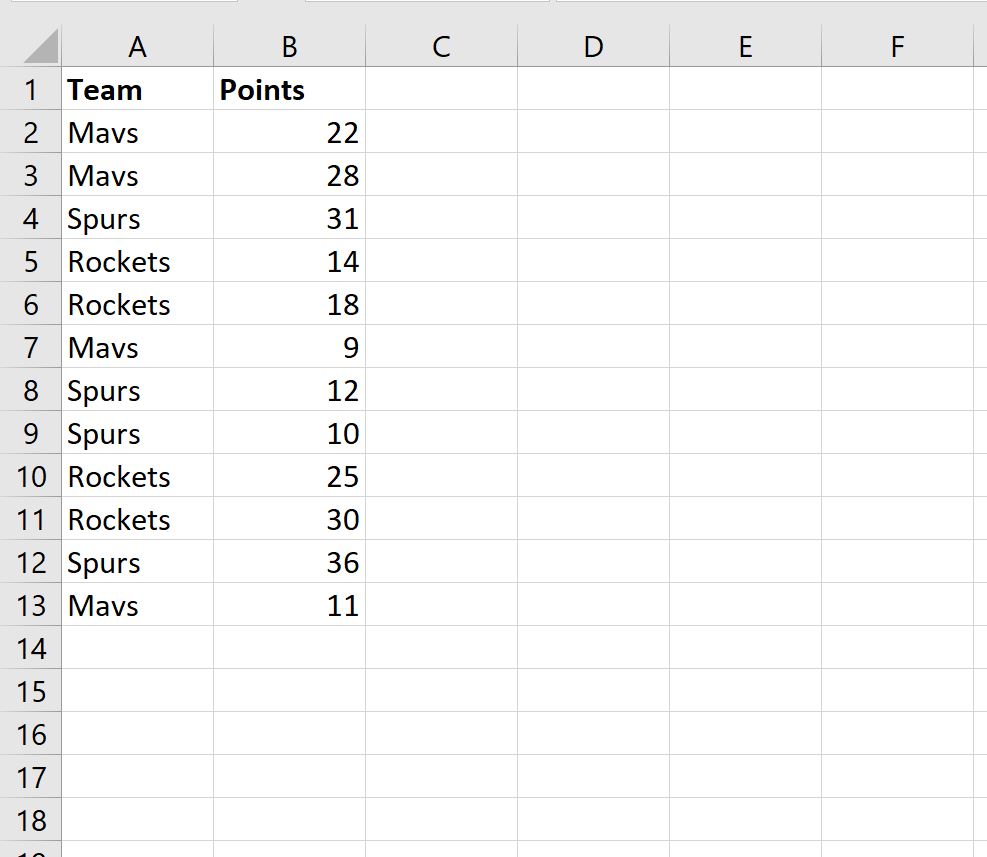

We will use the following sample dataset, where Column A represents the Team (the Grouping Criteria) and Column B represents the Points Scored (the Ranking Values):

To calculate the group ranks for the points scored by each team’s players, we will apply the descending order formula introduced earlier. Assuming the teams are in A2:A13 and the points are in B2:B13, the formula to be entered into cell C2 is:

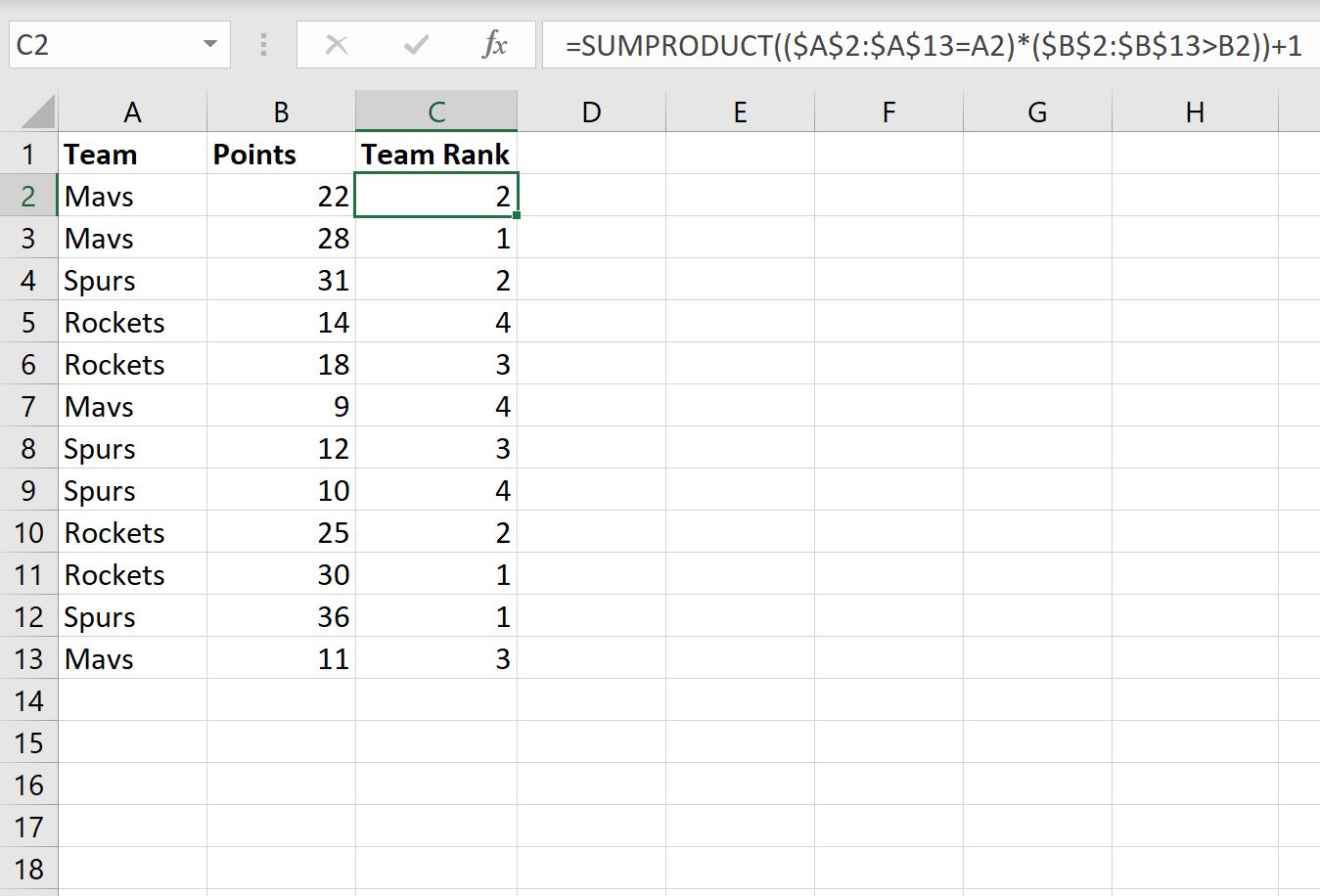

=SUMPRODUCT(($A$2:$A$13=A2)*($B$2:$B$13>B2))+1

Enter this formula into cell C2, and then drag the fill handle down to apply it to all corresponding cells in column C. Excel will dynamically calculate the rank for every player, ensuring that the ranking is constrained only to their respective team.

By reviewing the resulting ranks in column C, we can draw precise conclusions about relative performance:

• A player scoring 22 points for the Mavericks (Mavs) receives a rank of 2, meaning two players in that team scored higher than or equal to them.
• The player who scored 28 points for the Mavs receives a rank of 1, clearly identifying them as the top scorer for their team within this dataset.
• A player with 31 points for the Spurs receives a rank of 2 among Spurs players.
• Similarly, a player with 19 points for the Warriors receives a rank of 3 within the Warriors team, indicating two other Warriors players scored more points than them.

Practical Application: Example 2 – Ranking in Ascending Order

For analytical tasks that require identifying the minimum values or bottom performers within groups, the ascending order formula is essential. We will reuse the same basketball player dataset to illustrate this, but our objective is now reversed: we want to rank players based on the fewest points scored within their specific team, with the lowest score receiving rank 1.

The structure of our dataset remains the same, with teams in Column A and points in Column B:

To rank the points in ascending order (where rank 1 signifies the smallest value) by team, we utilize the modified formula, which incorporates the “less than” operator (`<`):

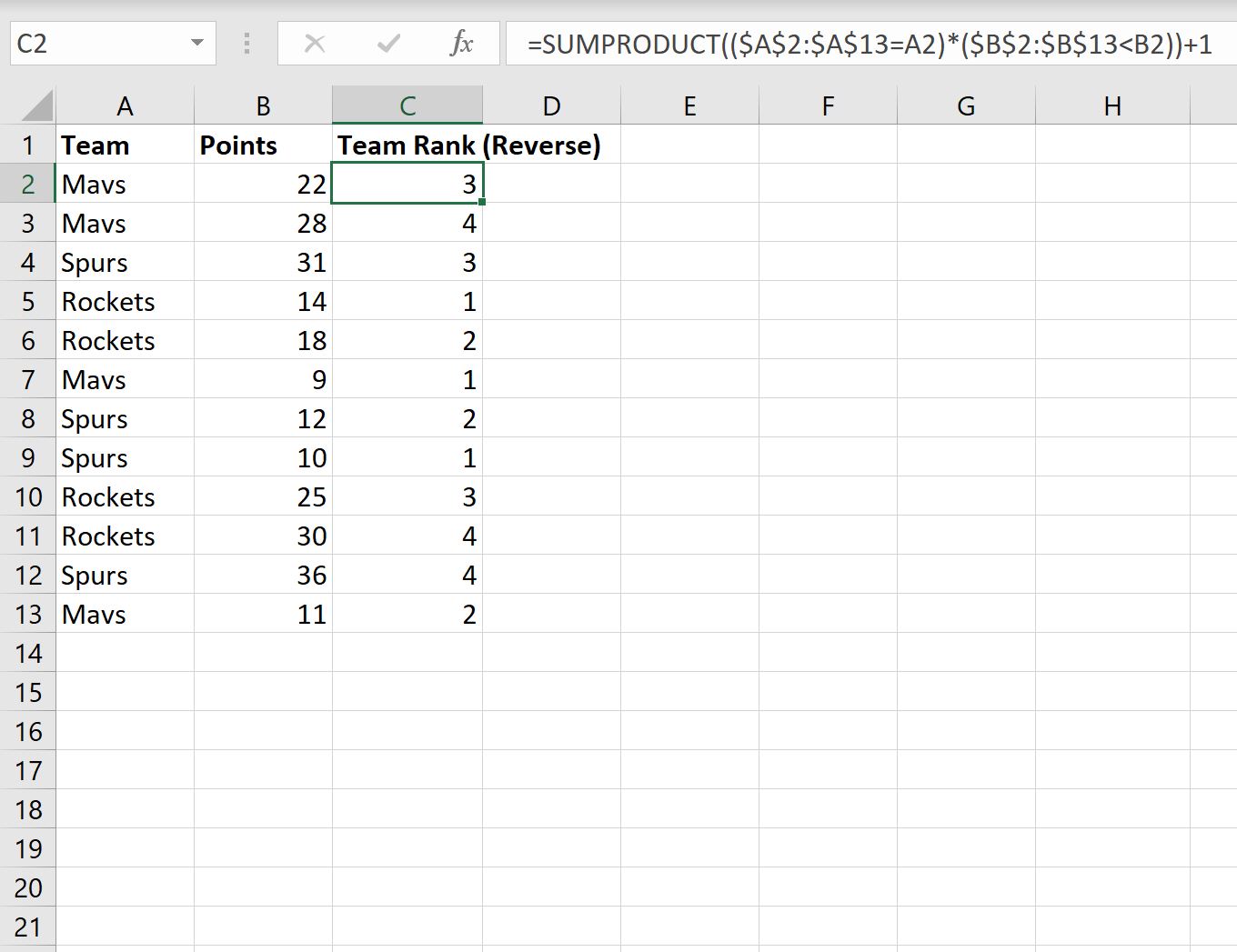

=SUMPRODUCT(($A$2:$A$13=A2)*($B$2:$B$13<B2))+1

Insert this formula into cell C2, and then copy it down the entire column. The resulting ranks will now accurately reflect the ascending order of points scored within each team category.

The interpretation of the values in column C for ascending rank is critical:

• The player scoring 22 points for the Mavs receives a rank of 3, indicating two players in the Mavericks team scored fewer points than they did.
• The player scoring 28 points for the Mavs receives a rank of 4, meaning three players scored fewer points, positioning them as the fourth smallest scorer in their group.
• The player with 31 points for the Spurs receives a rank of 4 among Spurs players.
• Crucially, a player with the absolute minimum score for their team, such as 15 points for the Rockets, would receive a 1st smallest rank (Rank 1), designating them as the lowest scorer among Rockets players.

This technique is highly valuable for identifying minimum thresholds, outlier low values, or evaluating performance metrics where minimizing a result (e.g., cost, time) is the goal.

Conclusion and Key Takeaways

Mastering the ability to perform group-based ranking in Excel is an indispensable skill for any professional involved in data manipulation and analysis. By harnessing the versatility and array-handling capabilities of the SUMPRODUCT function, you can efficiently overcome the inherent limitations of standard ranking tools. This method allows you to generate highly specific, context-aware insights from complex datasets, moving beyond simple global comparisons.

The array formulas detailed in this guide provide dynamic solutions that automatically adjust and update as your source data changes, ensuring that your analytical results remain current and accurate without the need for manual recalculation. Whether your goal is to identify the highest performers in sales regions or pinpoint the minimum errors in production runs, integrating these techniques into your workflow offers a clean, efficient, and robust solution for advanced group analysis in Excel.
